Challenge 8

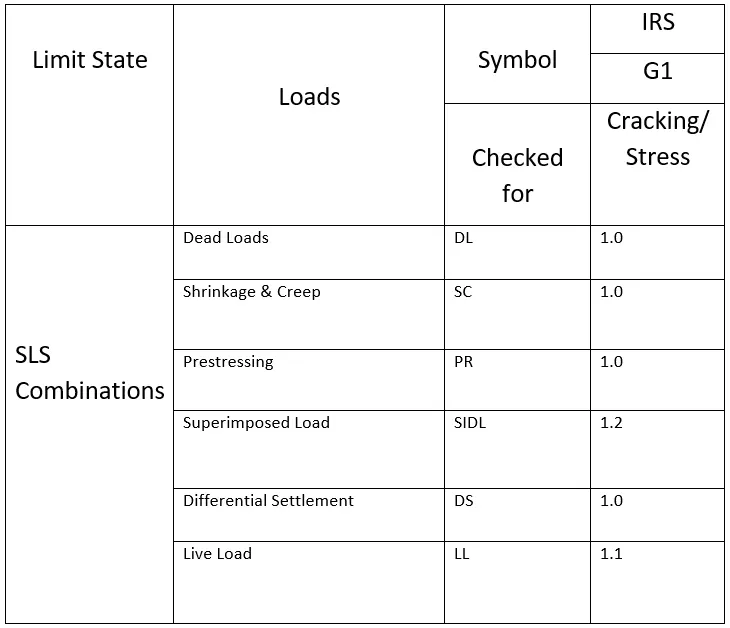

Q1) List factors of 4 loads for SLS G-I Combinations as per IRS.

--> There are seven categories of load combination (G I, G II a, G II b, G II c, G II d, G III & G V) 'G' primarily stands for grouping where in G I we take all the normal Loading, this load is taken for designing the life of the structure.

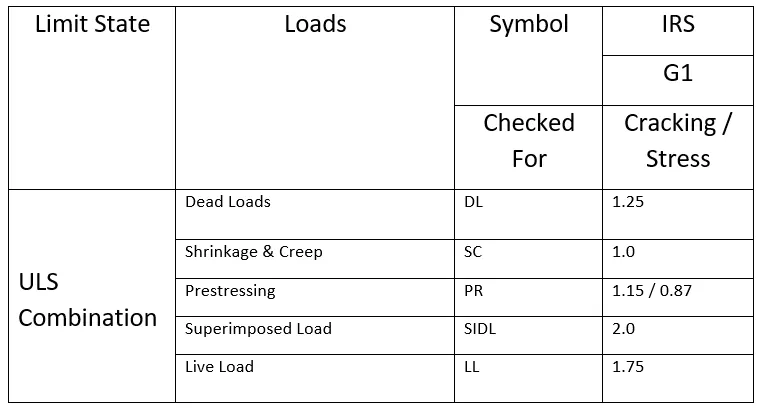

Q2) List factors of 3 loads for ULS G-I Combinations as per IRS.

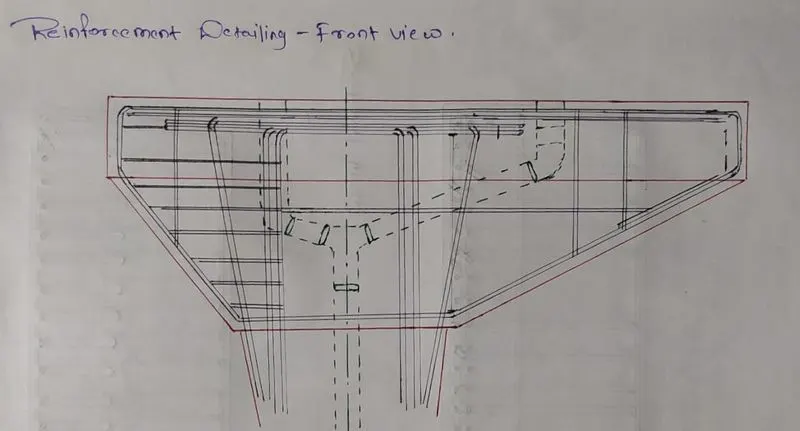

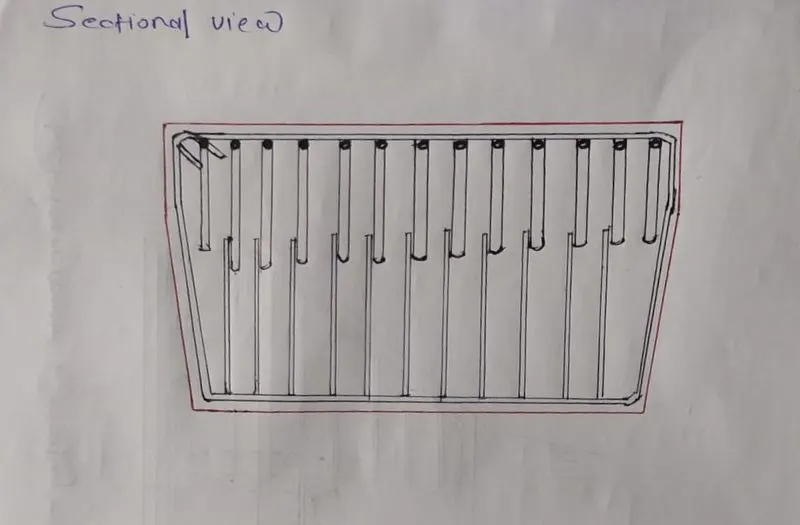

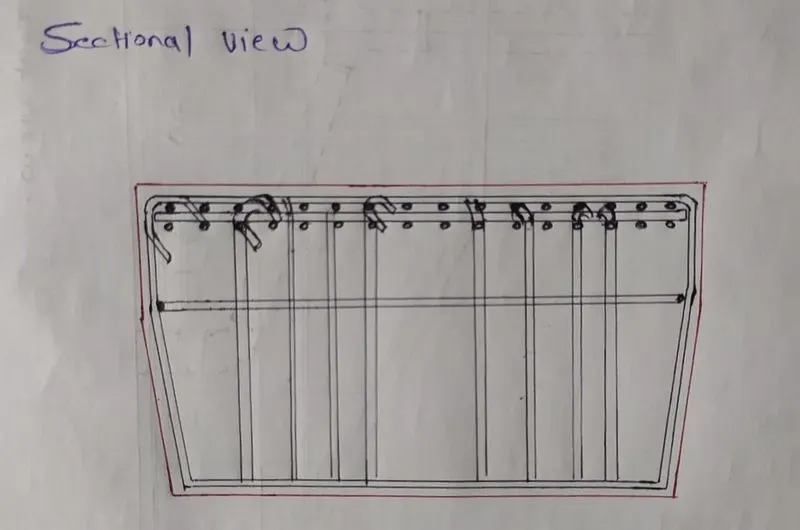

Q3) Explain in detail about the reinforcement provided in the RCC cantilever pier cap with drawings.

--> Cantilever pier cap is a critical structural element & they need to be properly detailed, so they fulfilled their desire, and purpose of load transfer safely to the substructure.
