POJECT 1:

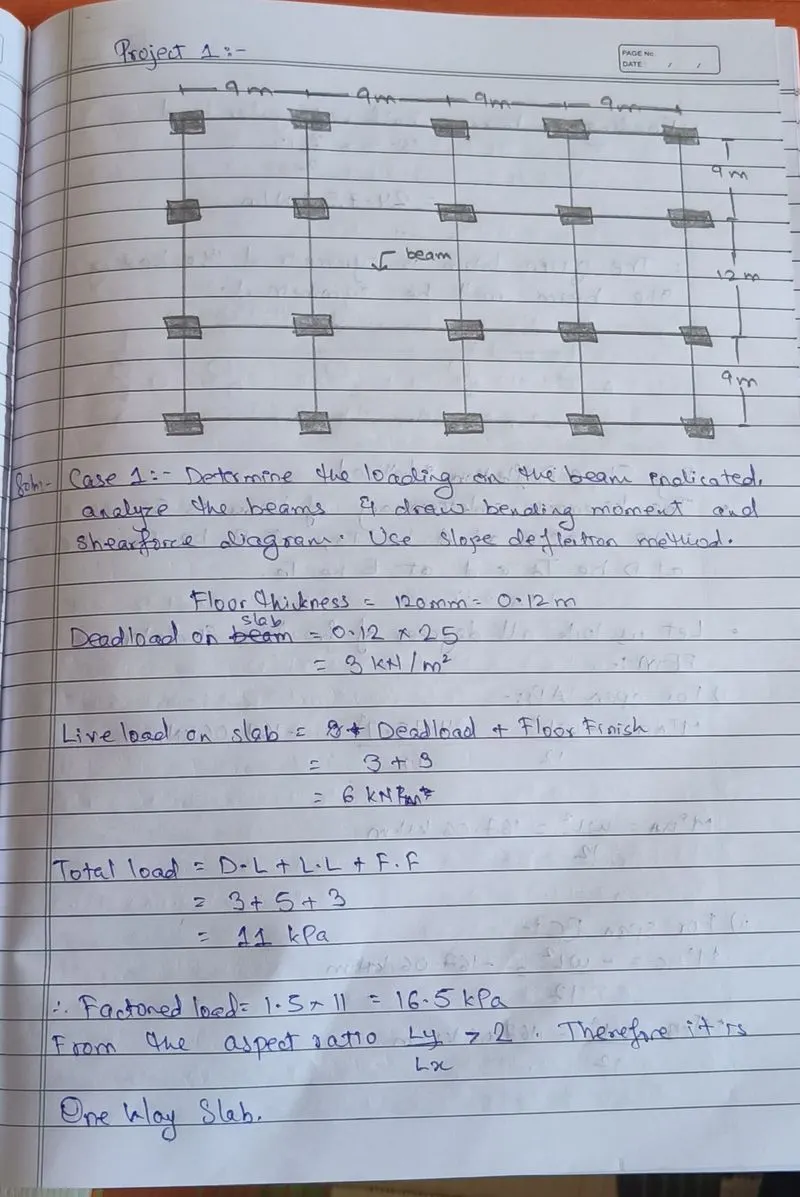

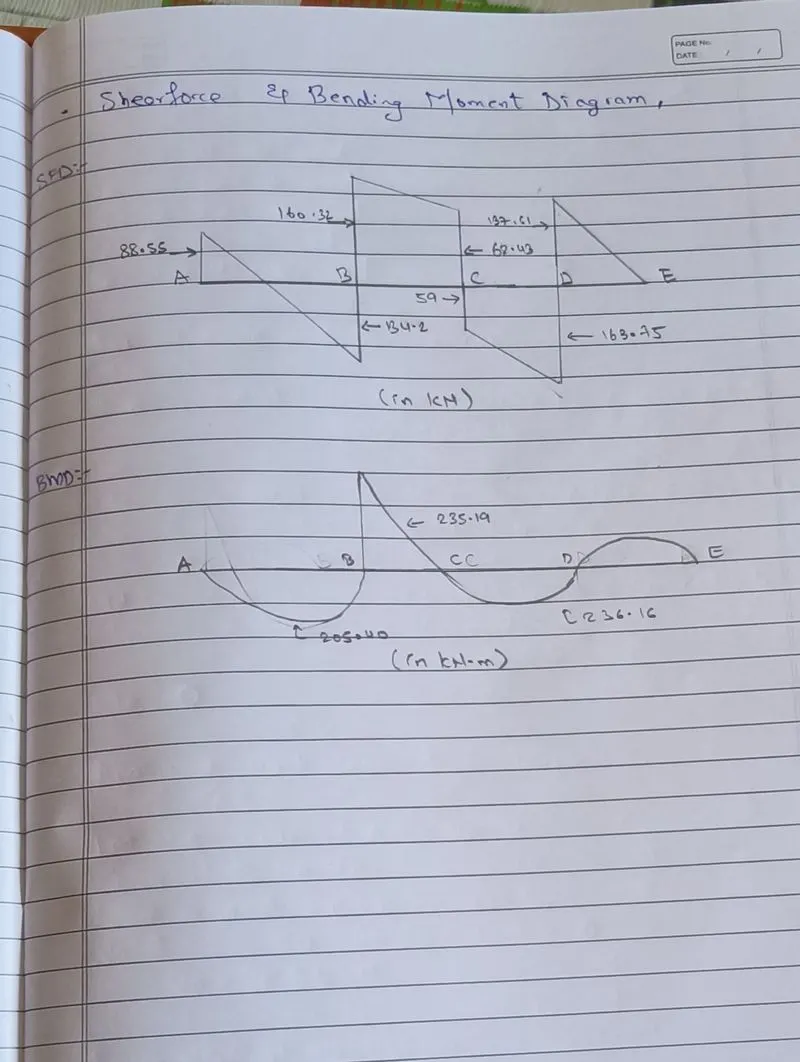

AIM: i) Determine the loading on the beam indicated, analyze the beams and draw bending moment and shear force diagram. Use slope deflection method. Do not consider any load patterning. Also, do not consider any girder deflections for this analysis purpose.

ii) For the same beam, consider load patterning to determine maximum positive and negative moments in each span.

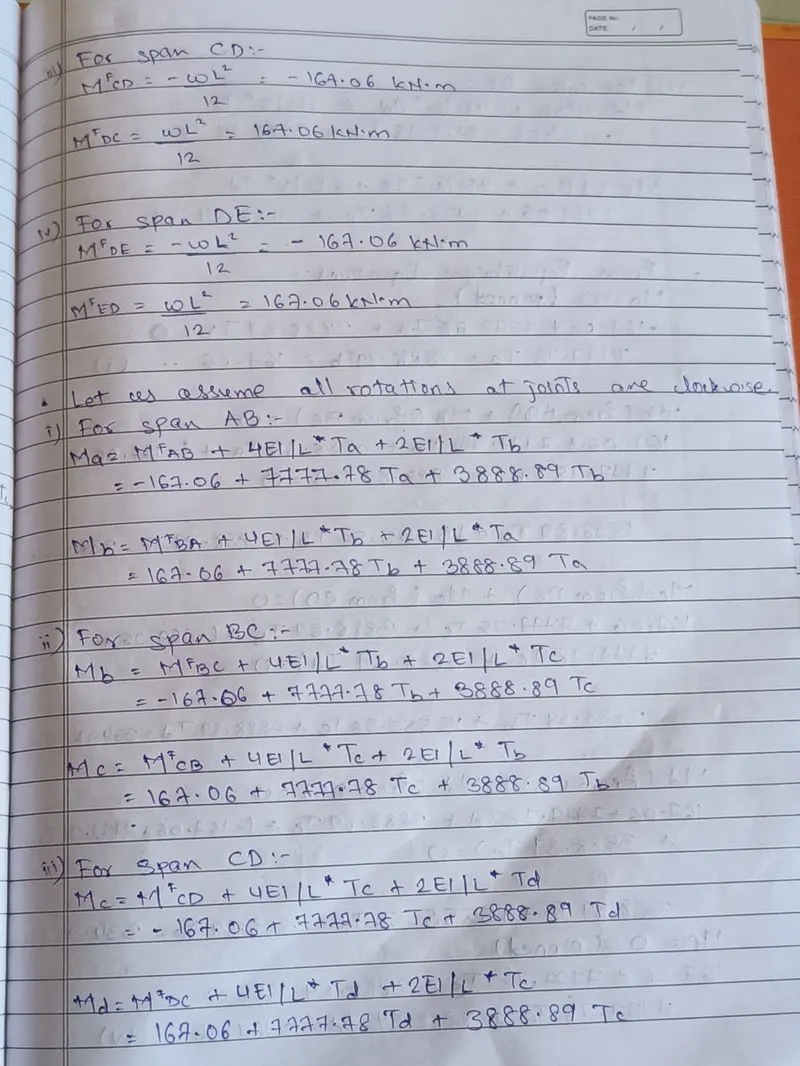

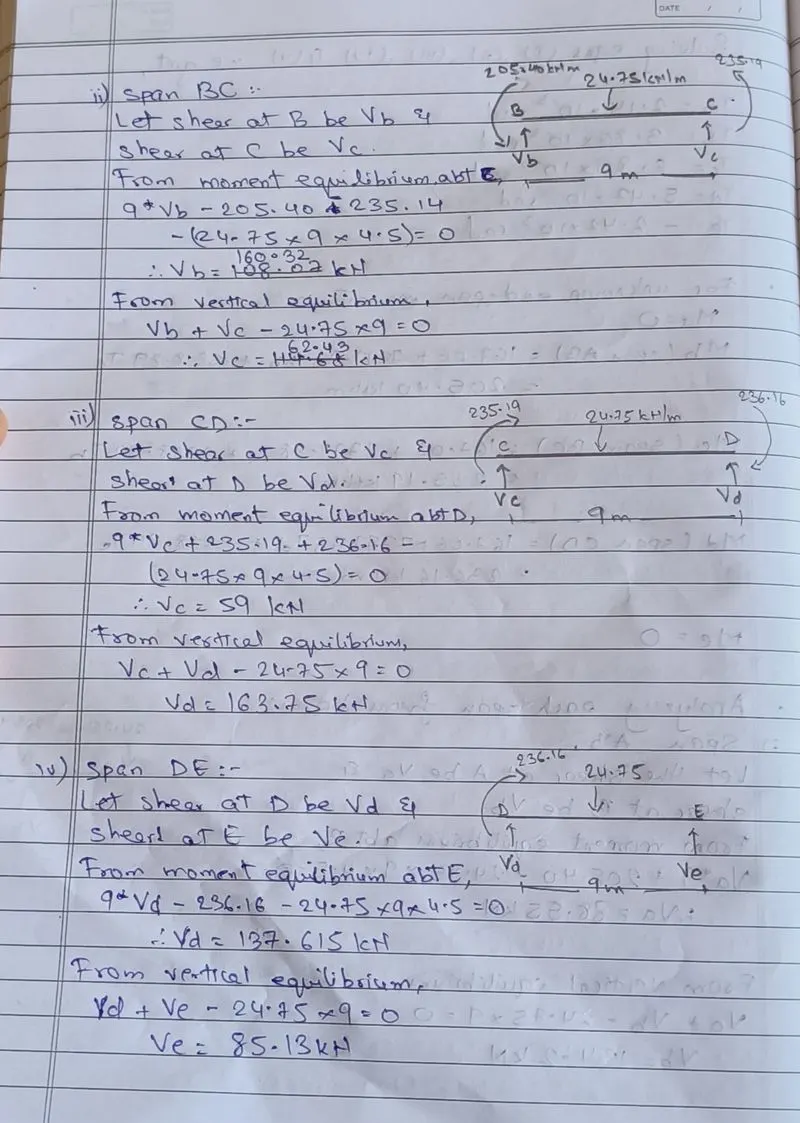

SOLUTION: CASE 1:

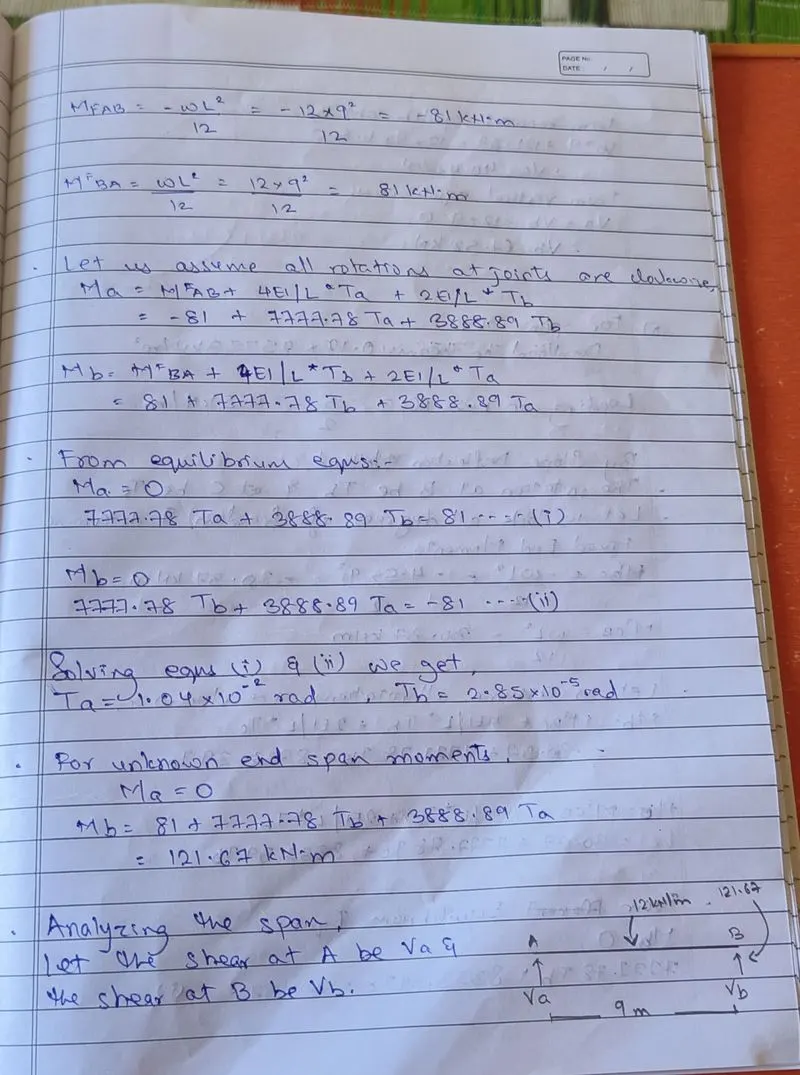

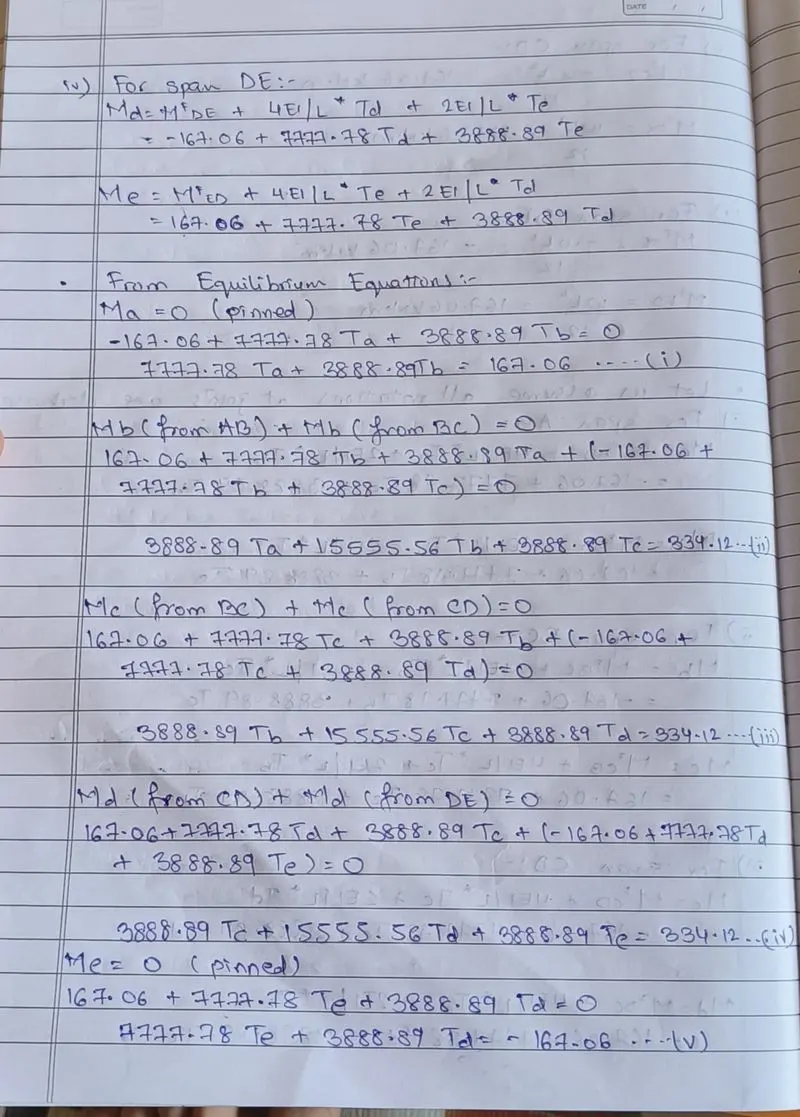

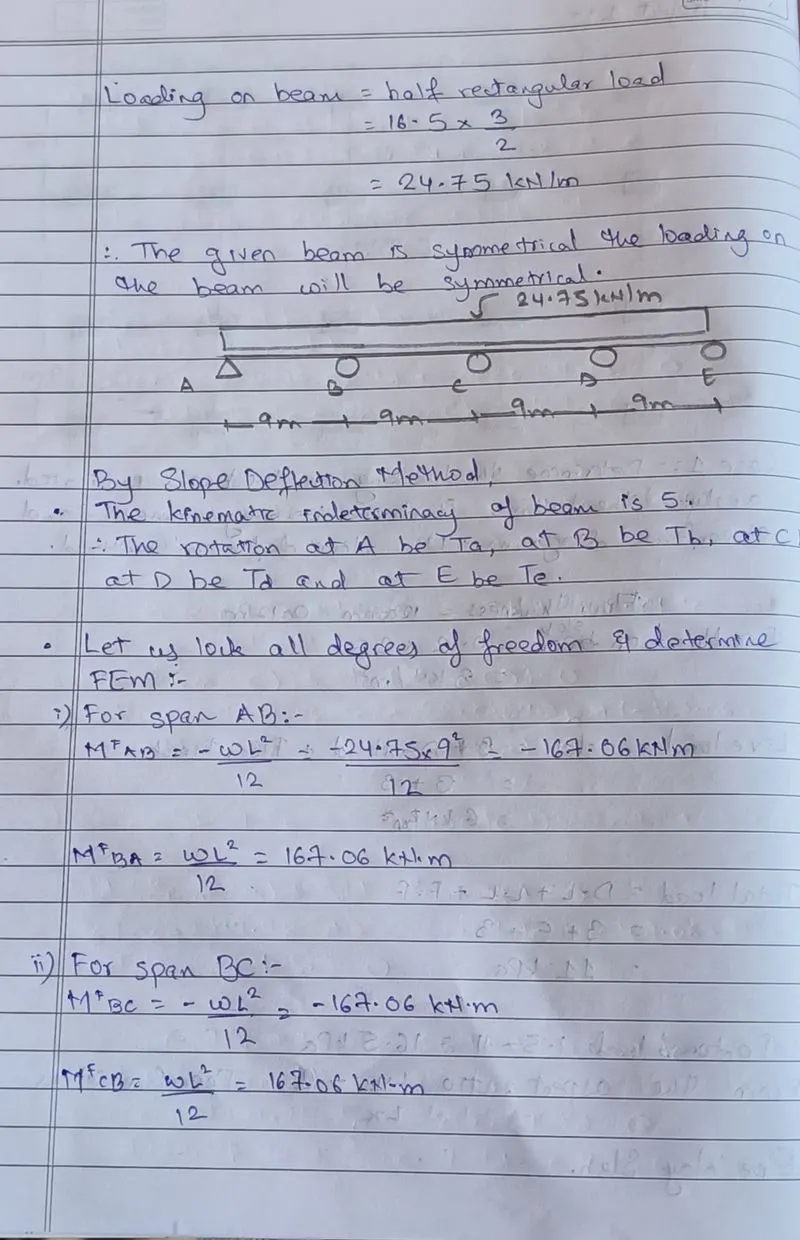

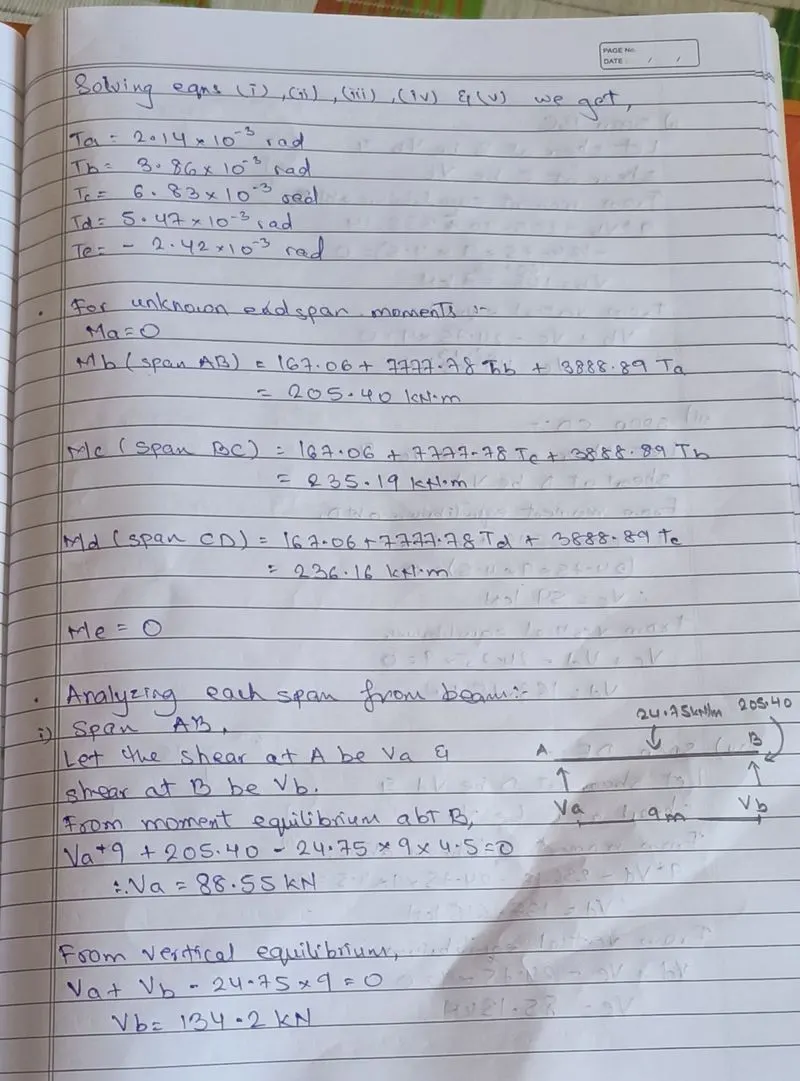

DL+LL on whole beam

CASE 2:

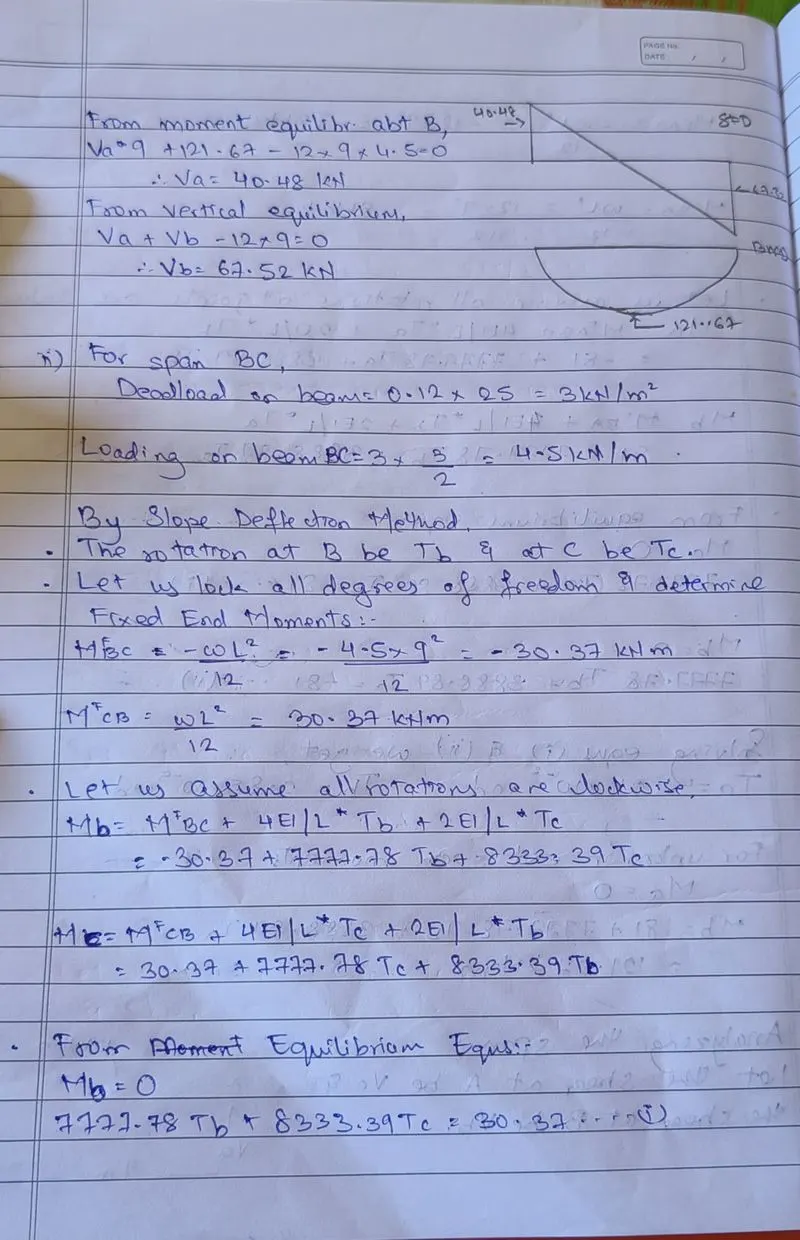

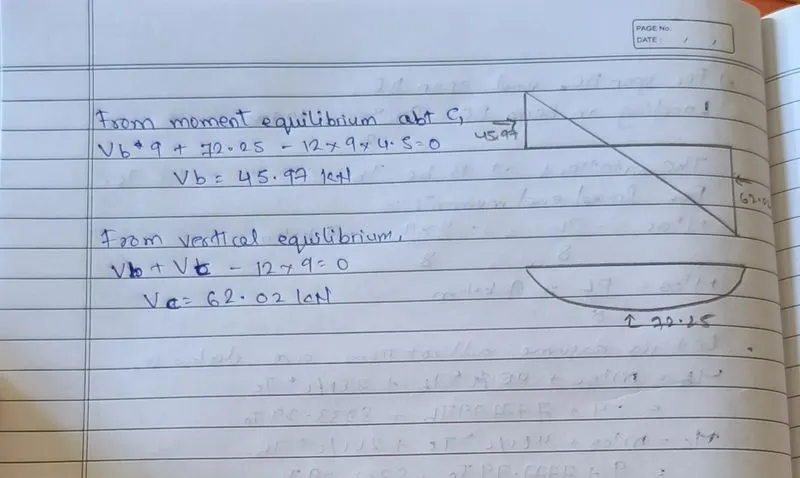

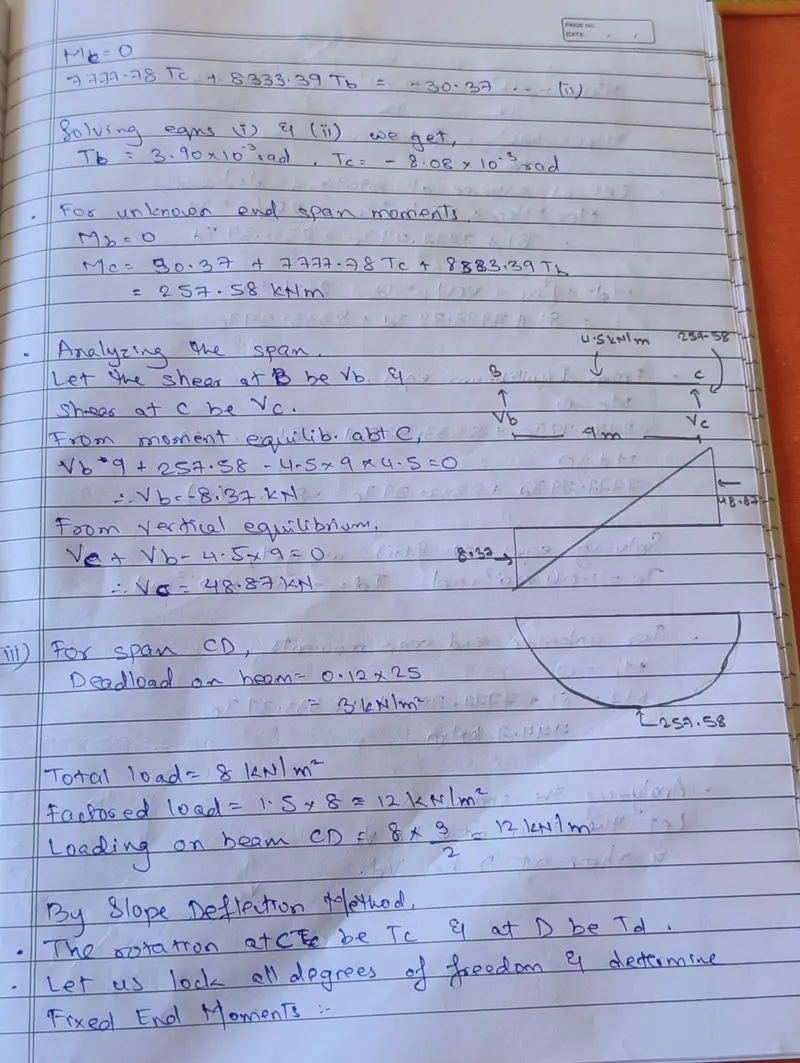

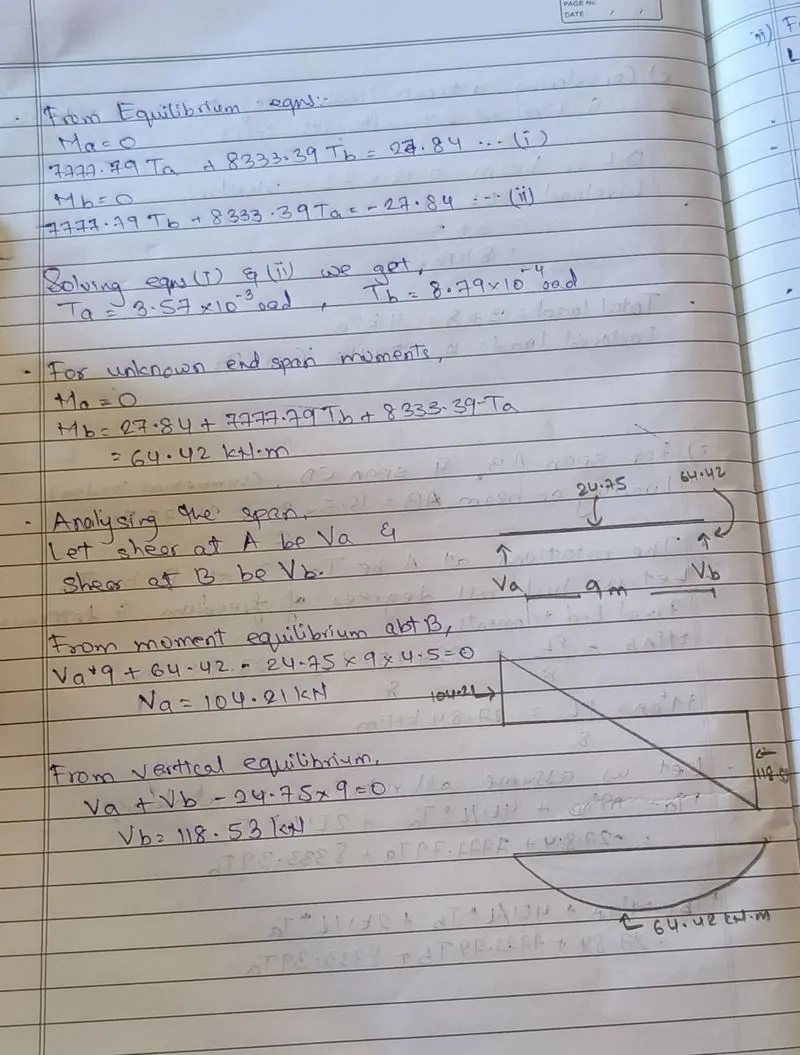

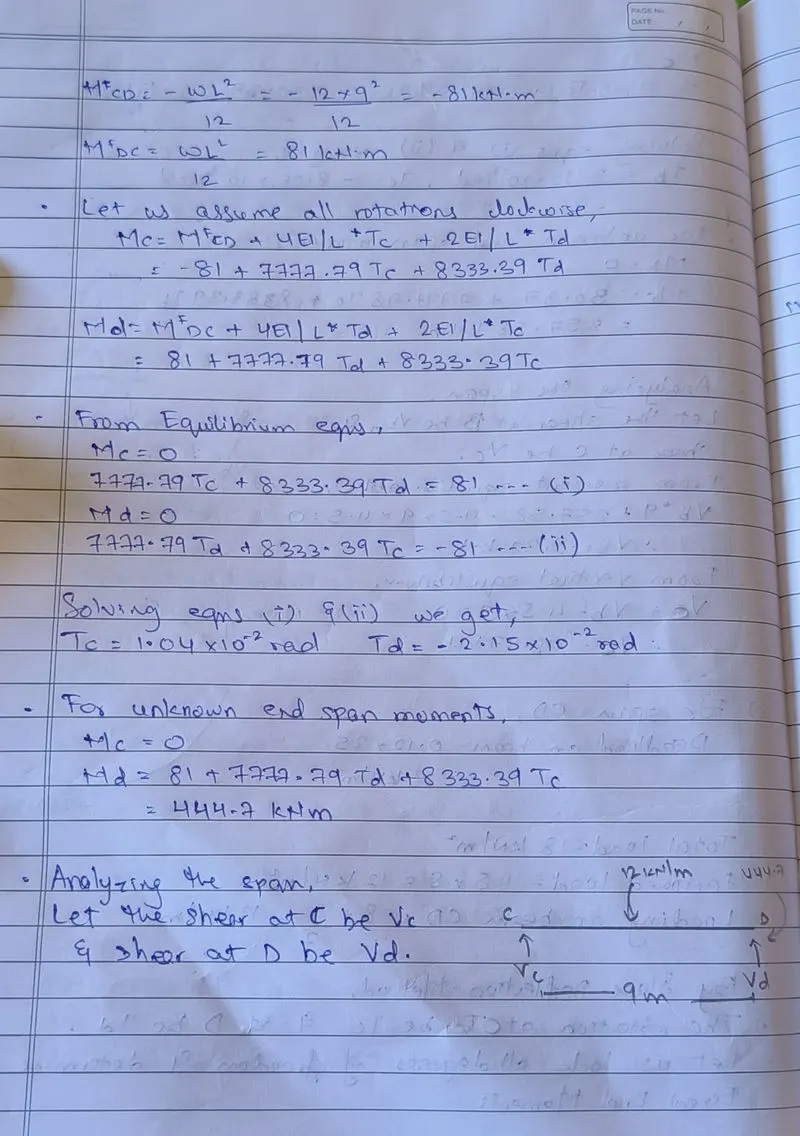

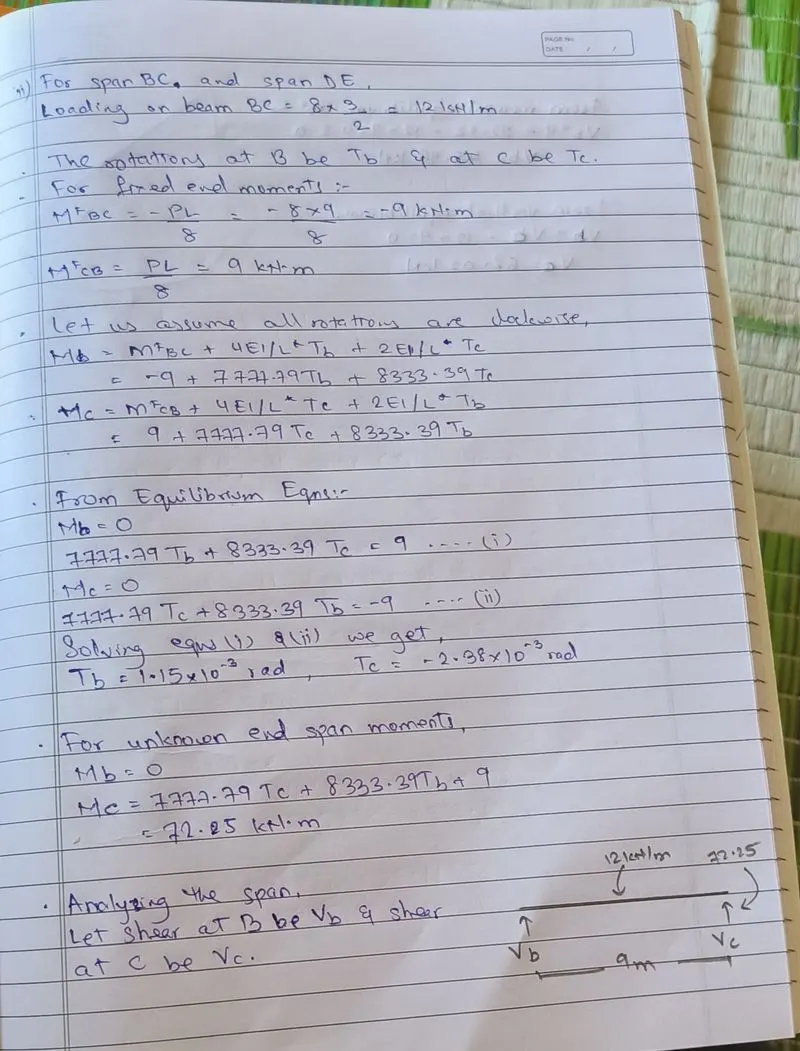

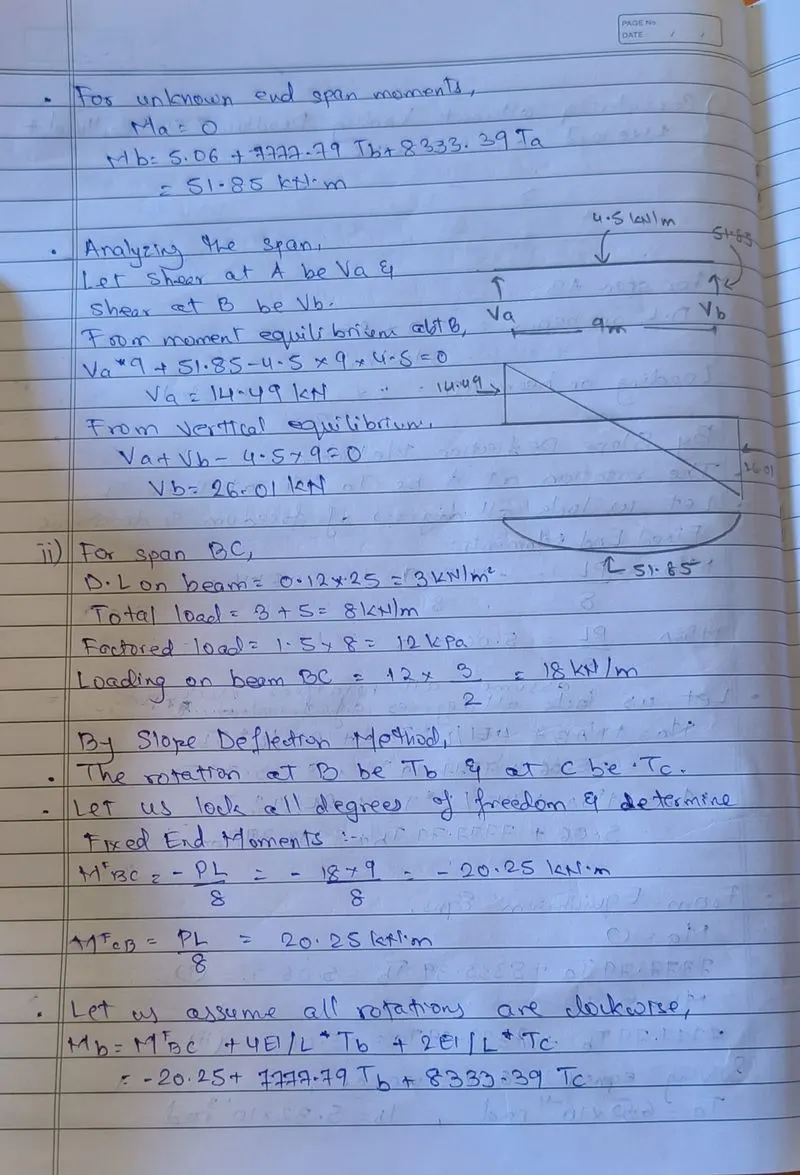

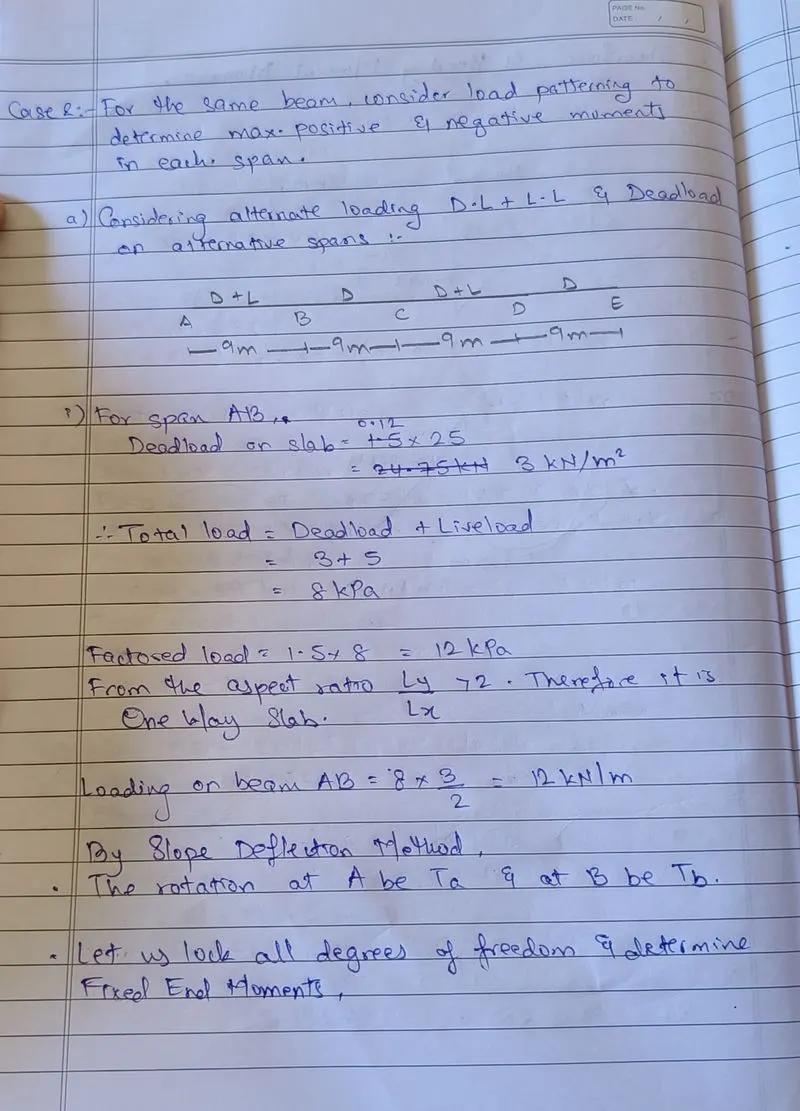

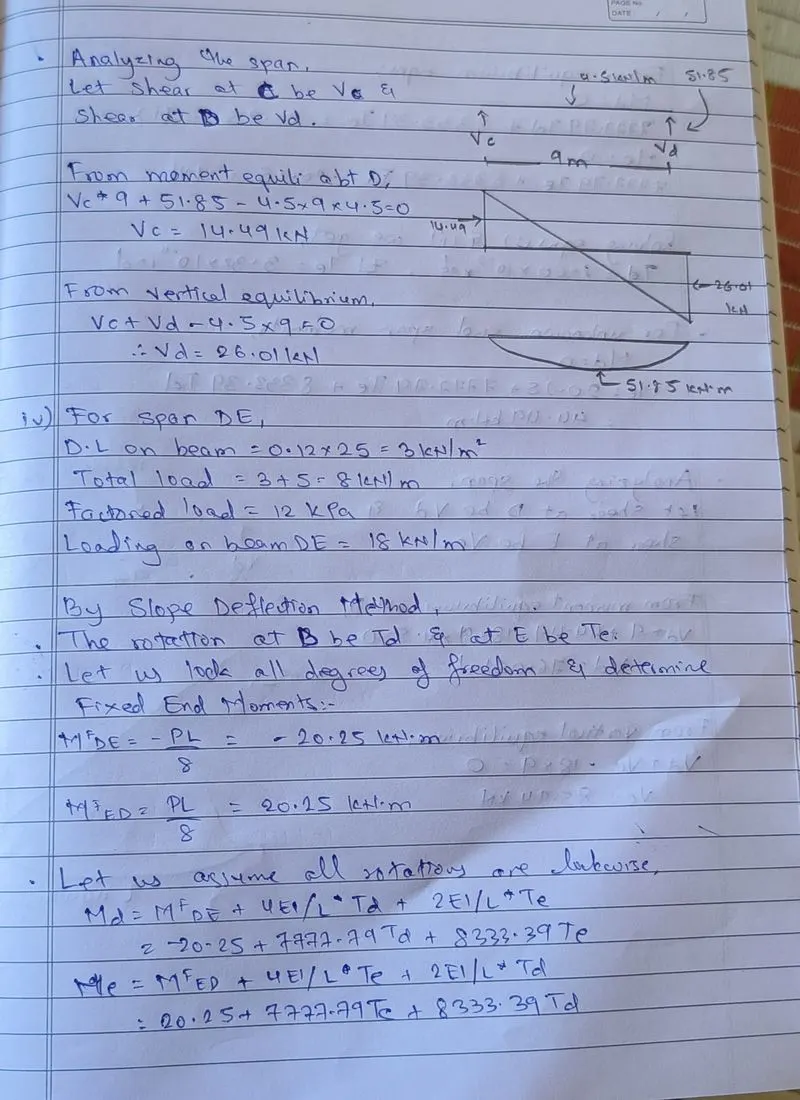

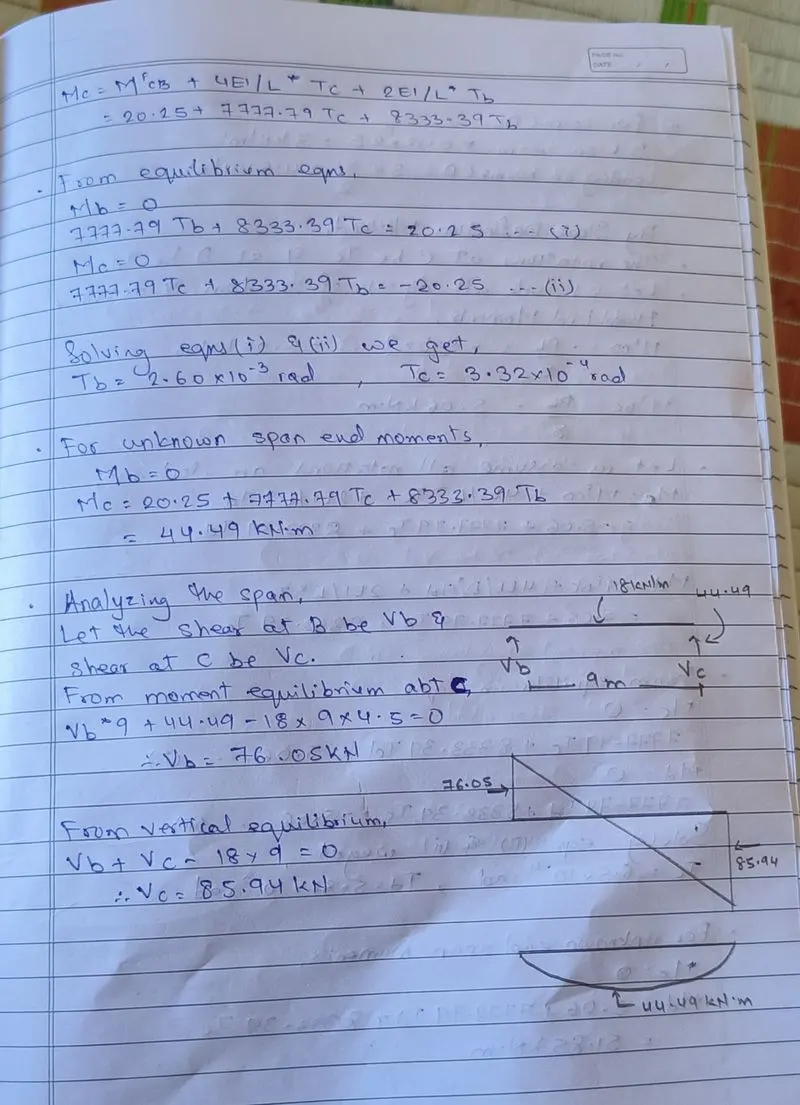

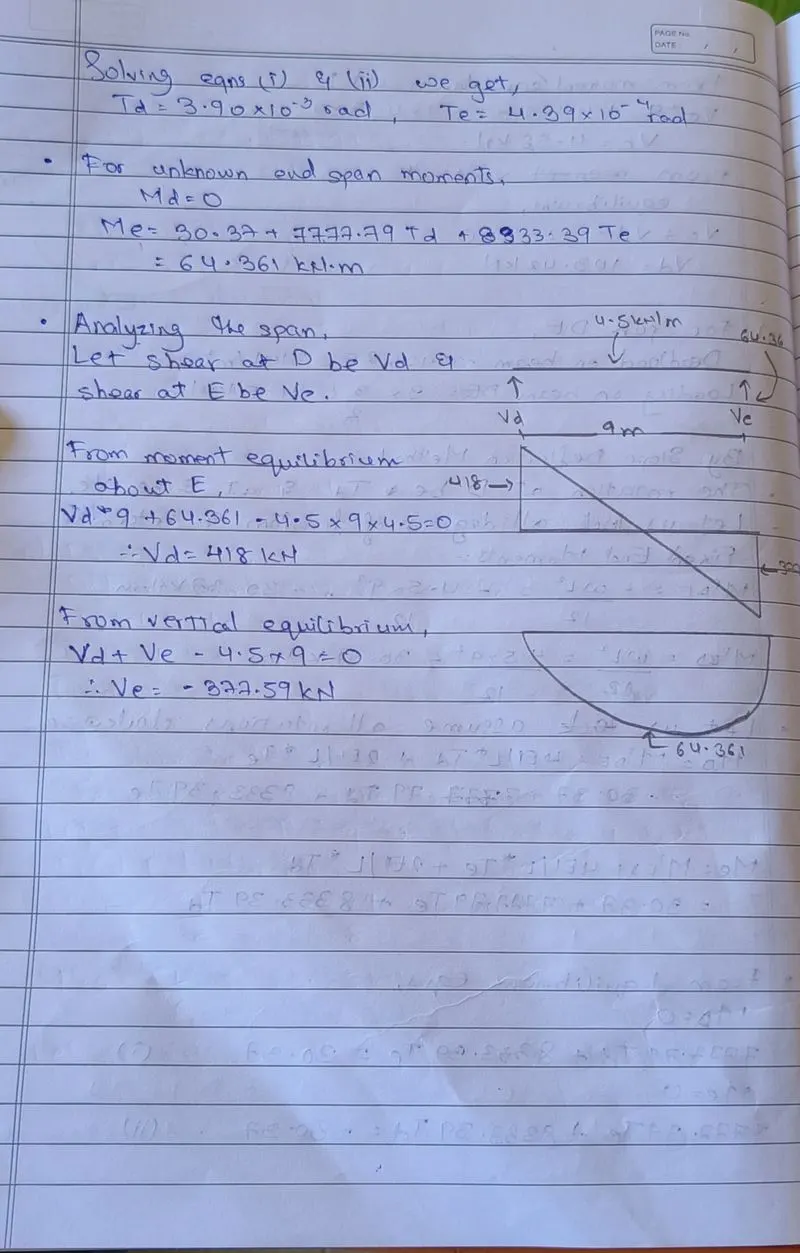

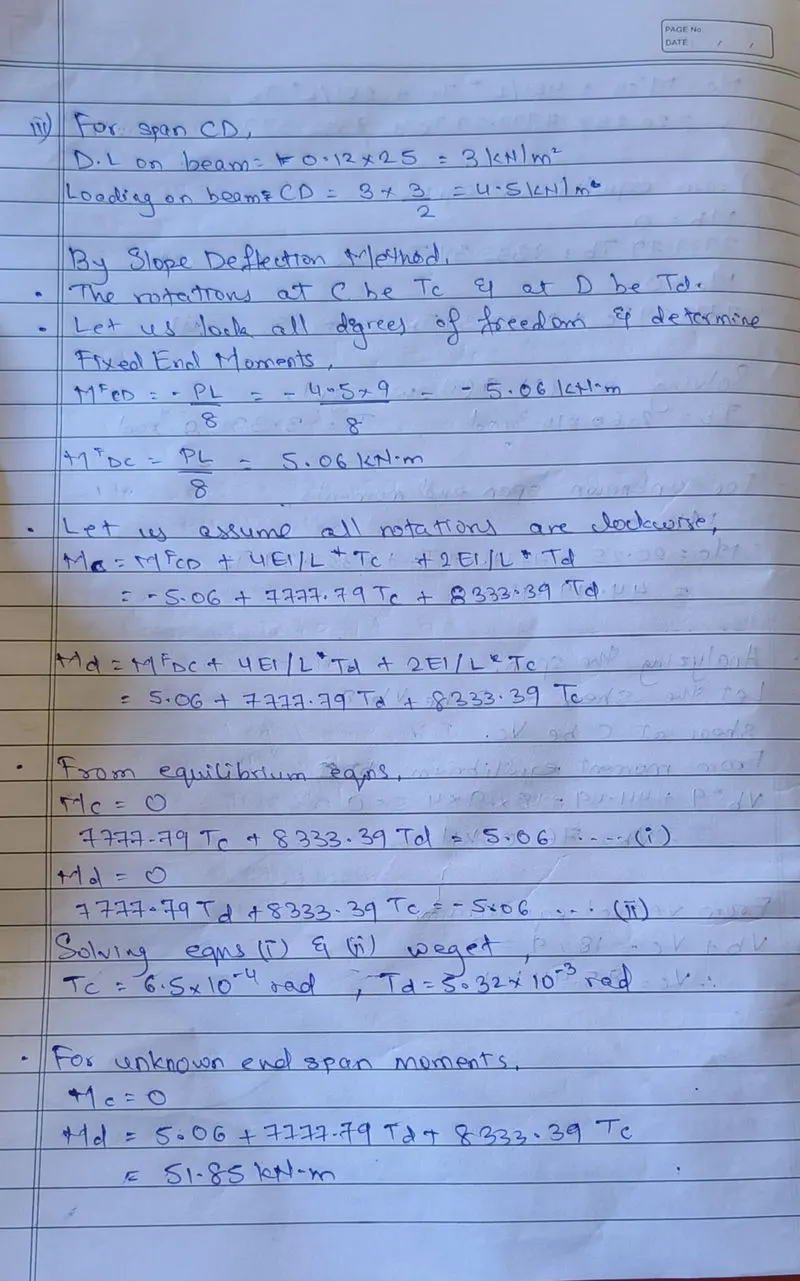

a) Considering alternate loading of Dead Load+LiveLoad and Deadload on alternate spans:

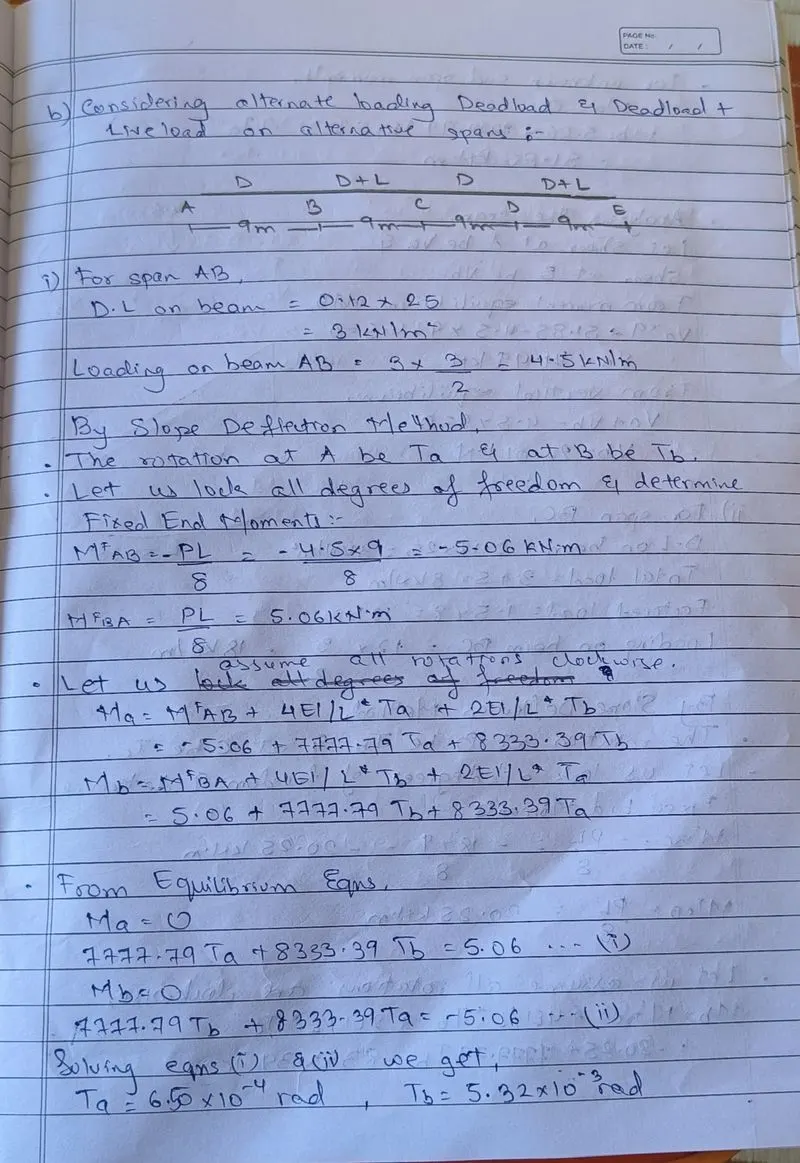

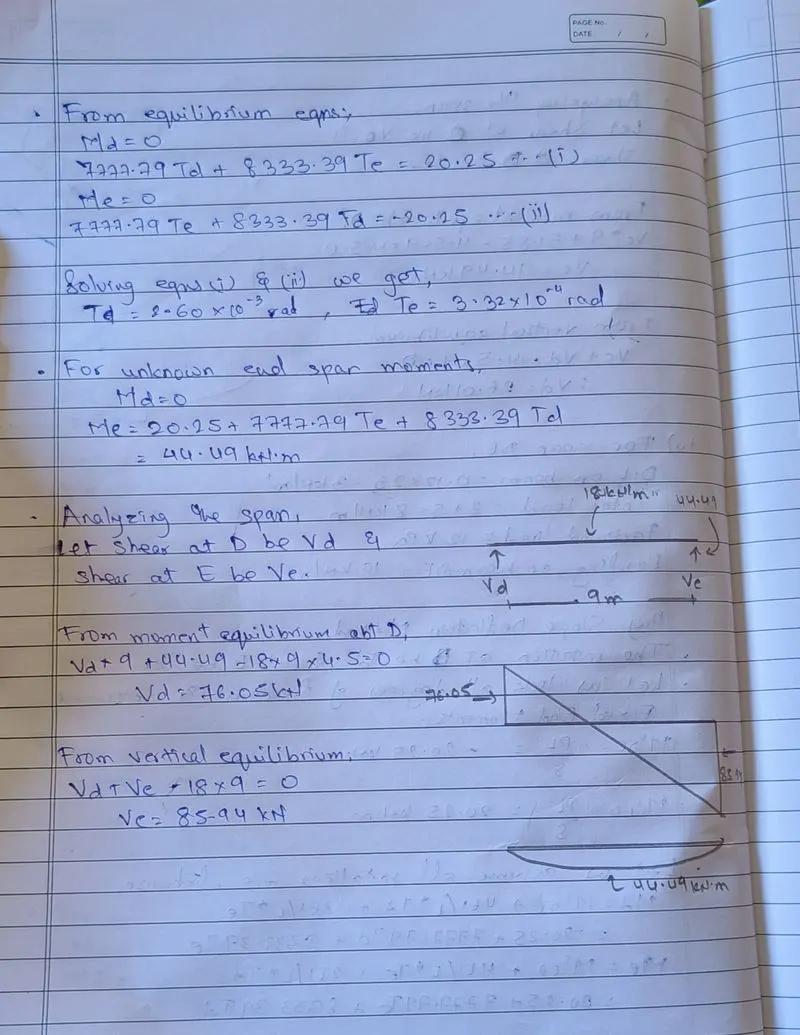

b) Considering alternate loading of Deadload and Deadload+Liveload on alternate spans:

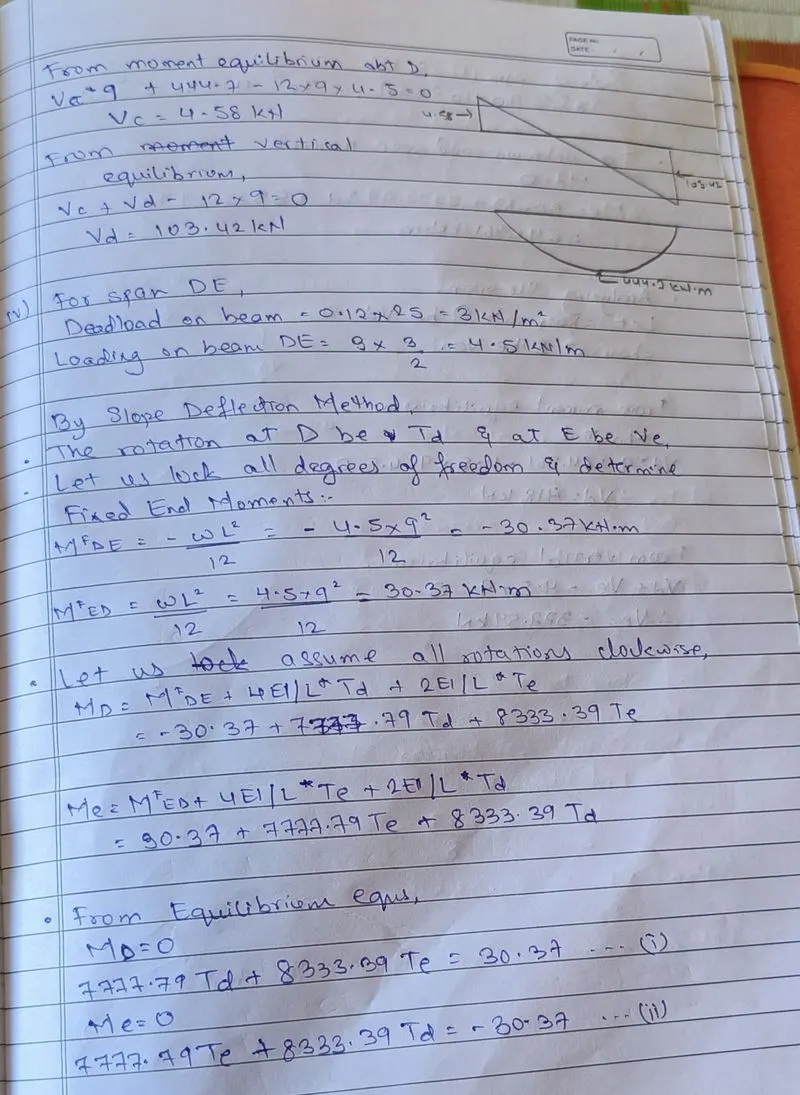

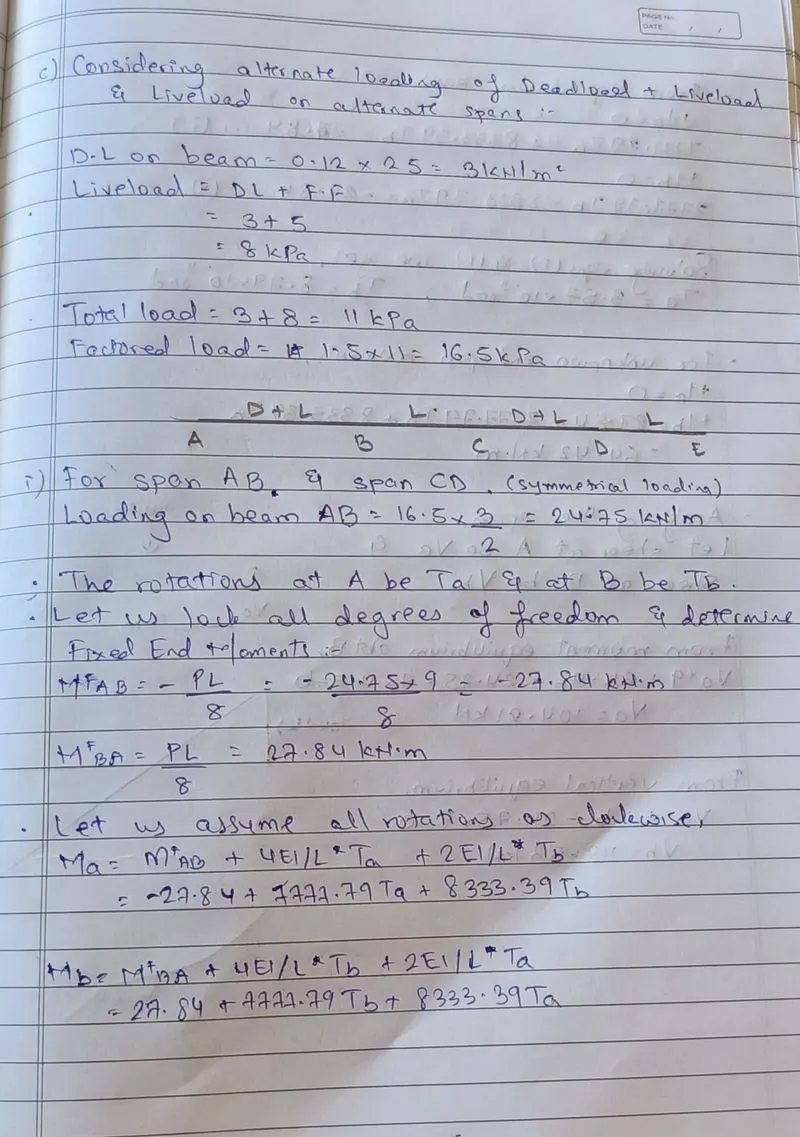

c) Considering alternate loading of Deadload+Liveload and Liveload on alternate span:
