Challenge 6 : Concept Modeling of Side Fender
- Concept Modeling of Side Fender

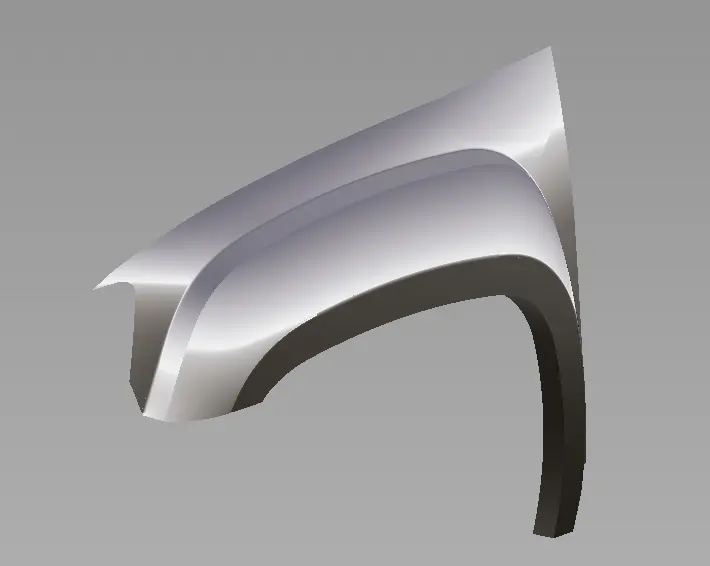

- Objective:- To create surface model of GMC car side fendor and Hood
- Introduction:-In this assingment we make an Side fendor and hood of GMC Sierra 1500 as per visualisation. we assume the the all diamensions of perticular surface visually and make it similar to canvas image.

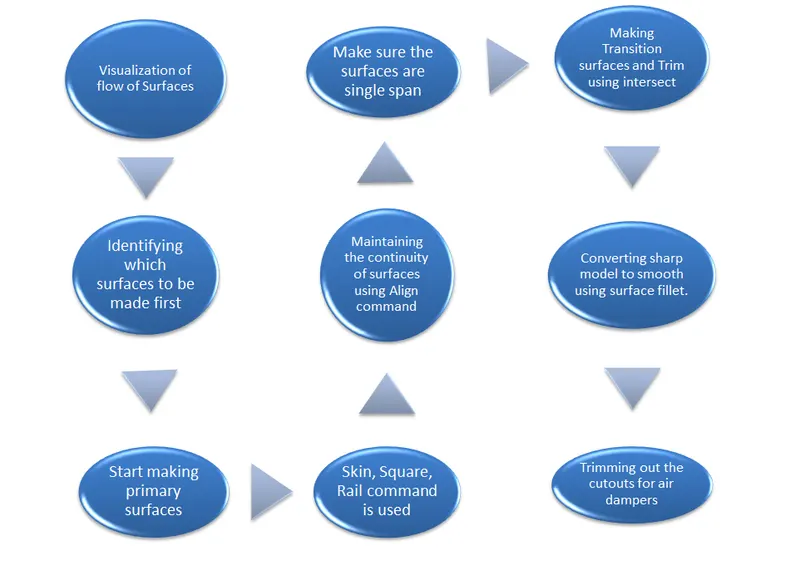

- Design methodology:-
- SIDE FENDOR
- Step 1:- We import the canvas image of fendor side view.
- Step 2:- we crete the curve network and surfaces as per shown in canvas image and maintain surface flow.
- Step3:- we trim out the actual fendor and discard the extra surfaces

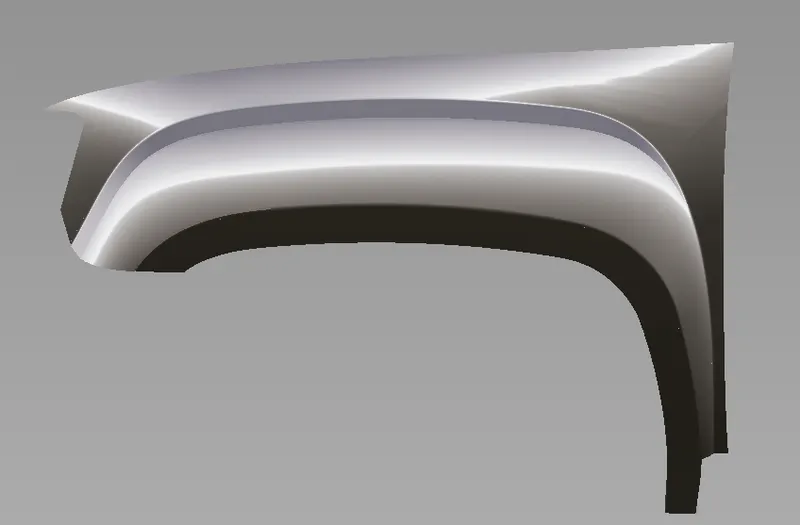

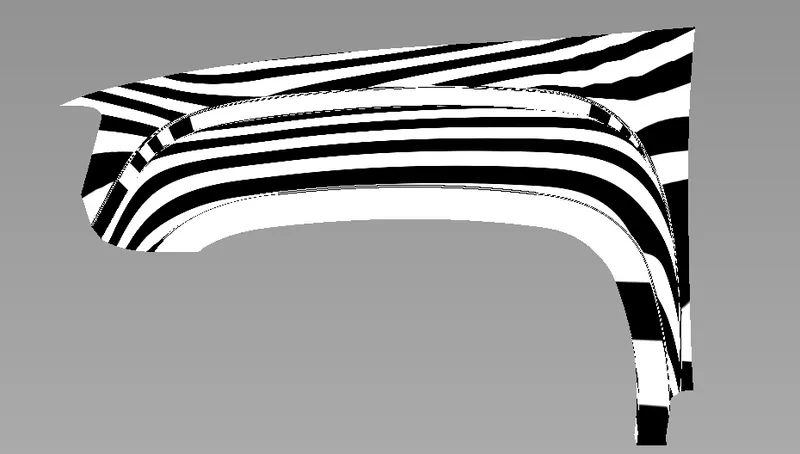

- Step 4:- we applied surface fillets on all edges to smoothning the surface edges.

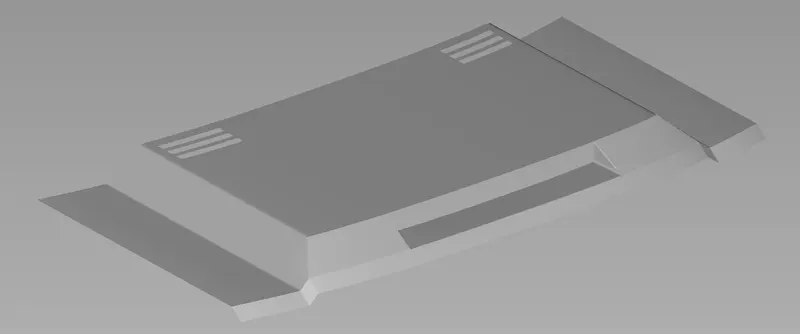

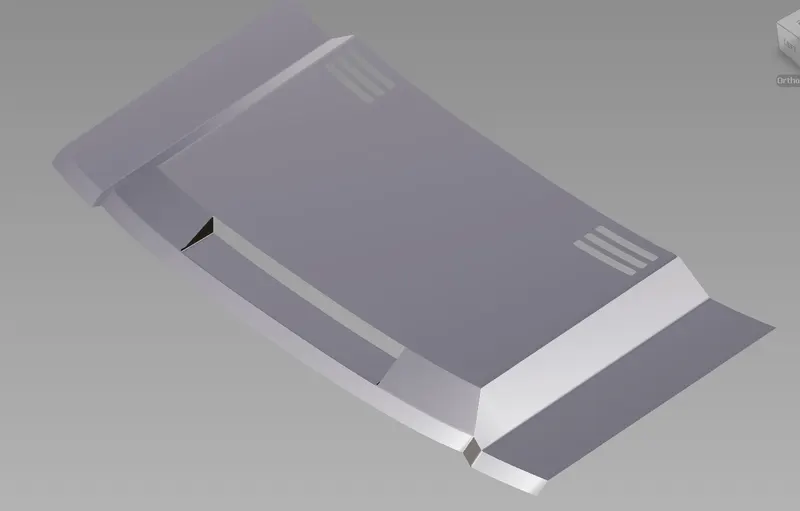

- CAR HOOD
- Step 1:- We saw the Hood and understood the surfaces
- Step 2:- we did not have any side view so we assume all diamensions and make it similar
- Conclusion:- Hence we make the side fendor by using one side view and visualisation. then we make the car hood without any side view.
