Challenge 5 : Concept Modeling of Car Bumper

Concept Modelling Of Car Bumpers

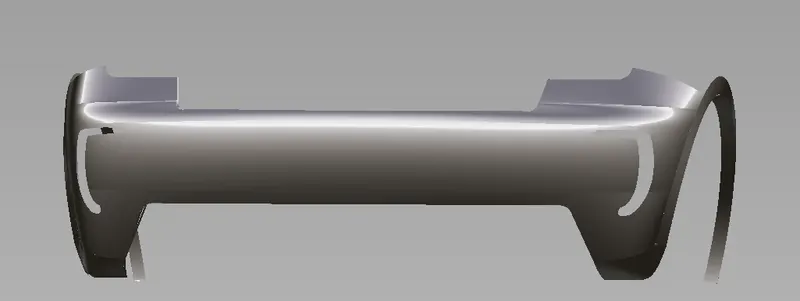

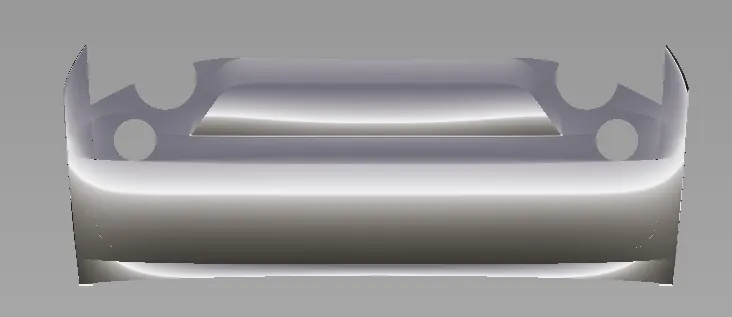

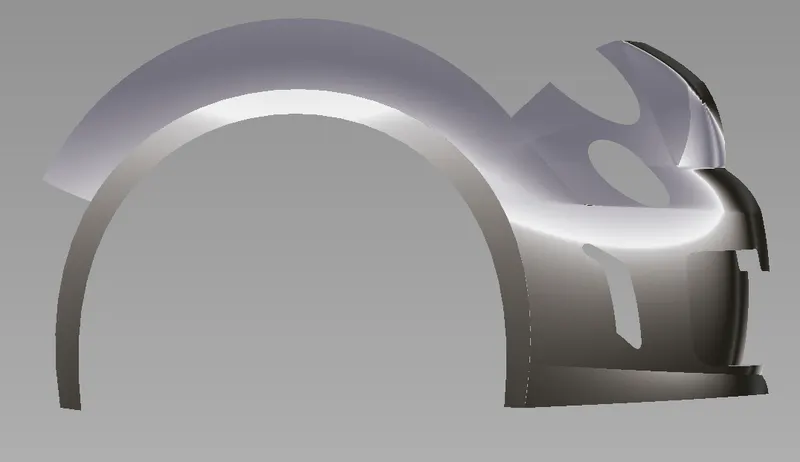

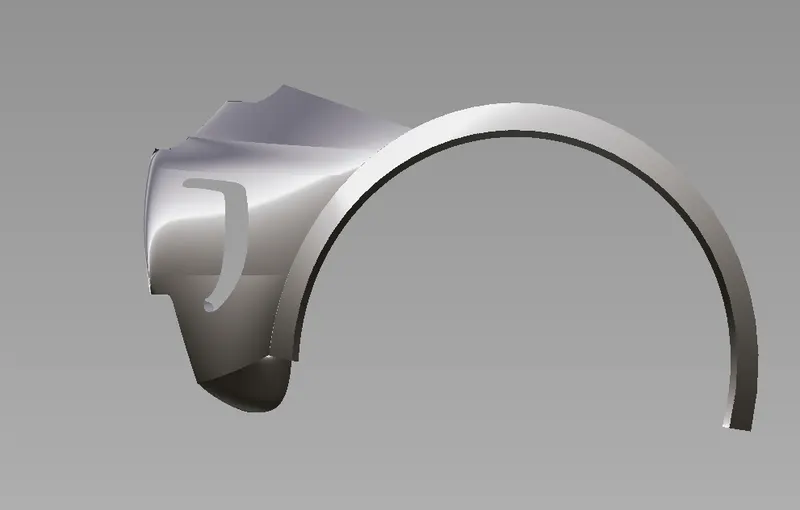

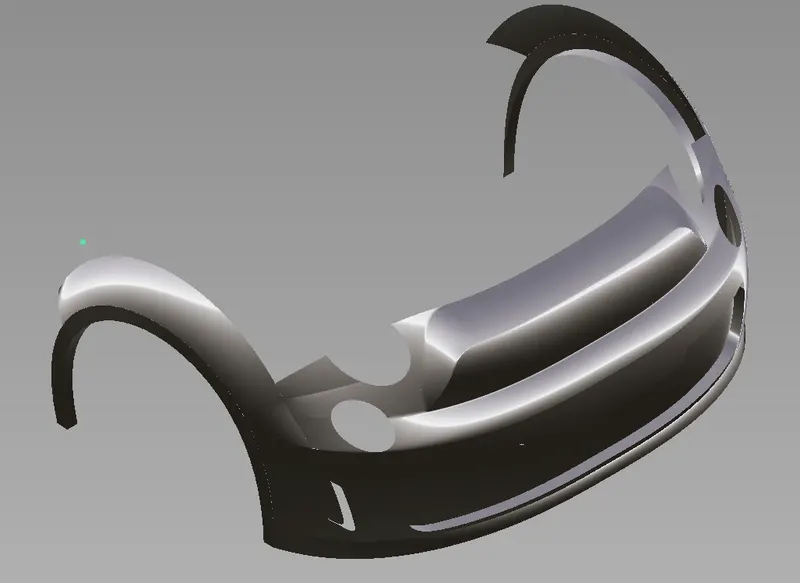

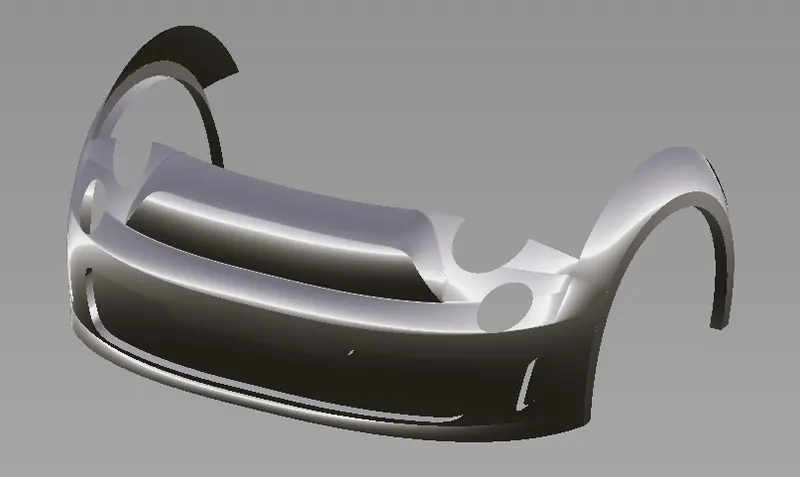

Objective: To make a model of front and rear bumper of Fiat abarth 500 with the help of 2 views.
Introduction:- Concept modelling is the modelling where 3D data starts to take shape. Every parts involve in design is depends upon visualisation of blueprint.
Design methodology / approach:-

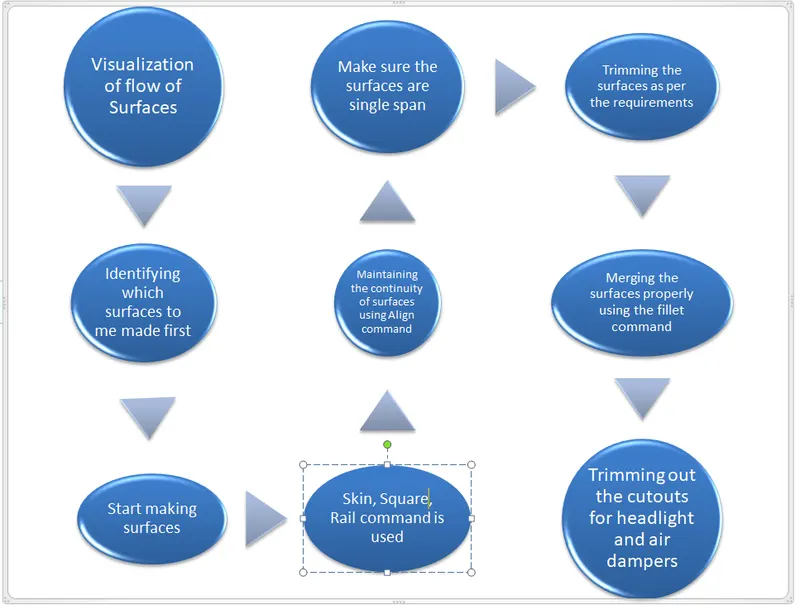

Concept modelling is done by using various tools, i.e, curves, surfaces, fillets,

firstly we make an diamension box and import the canvas images in it.

then we make curve structure and surfaces as per surface shown in image.

we make it as per visualisation in only one direction.

then we trim the extra surfaces. i.e, headlamp, fog lamp surfaces.

Conclusion:- Modelling of bumper has been devloped succesfully by using cuve networking and surface volume.
