Bird Strike - Project - 2

The units of the model are kg,mm,ms.

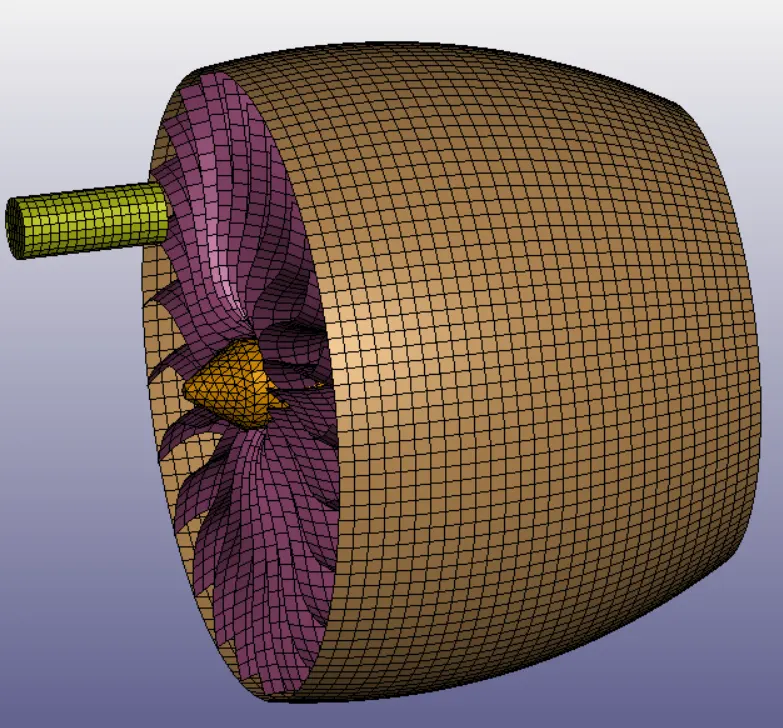

Separate files for the bird,casing,blades and hub are created as follows:

Bird.k, Engine_Casing.k,Blades.k & Hub.k

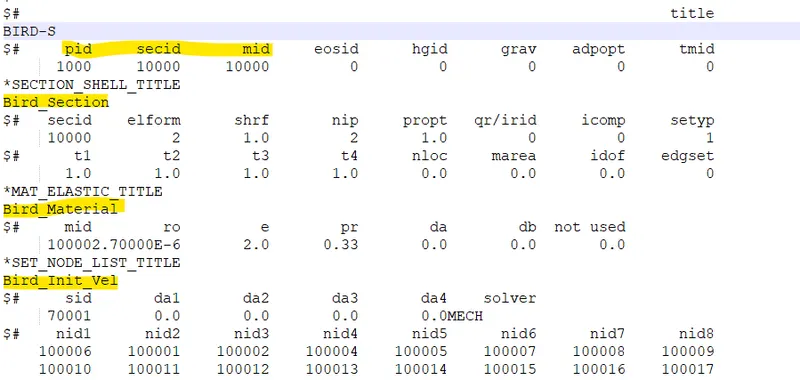

Bird.k

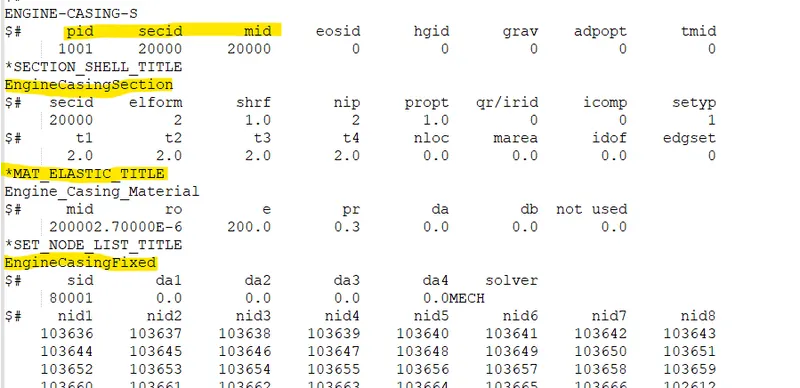

Engine_Casing.k

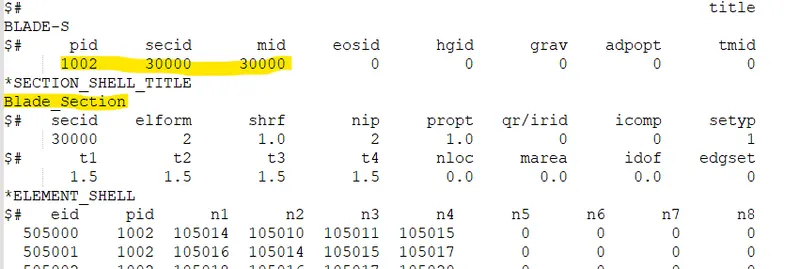

Blades.k

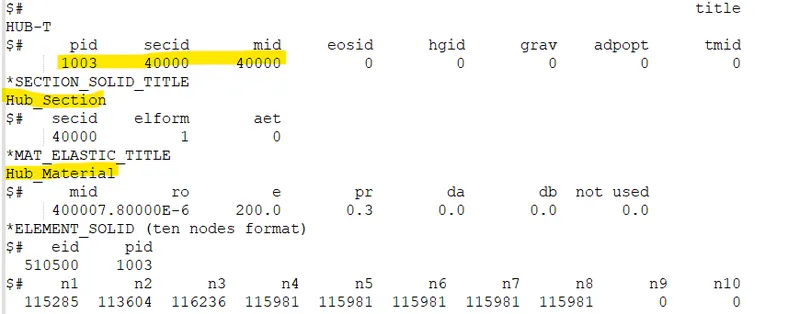

Hub.k

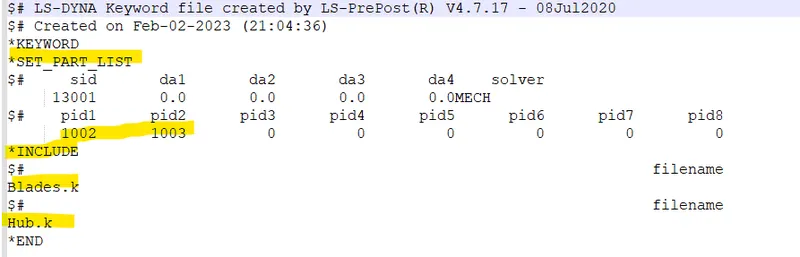

Hub_Blades.k (File Containing Part Set of Blades & Hub)

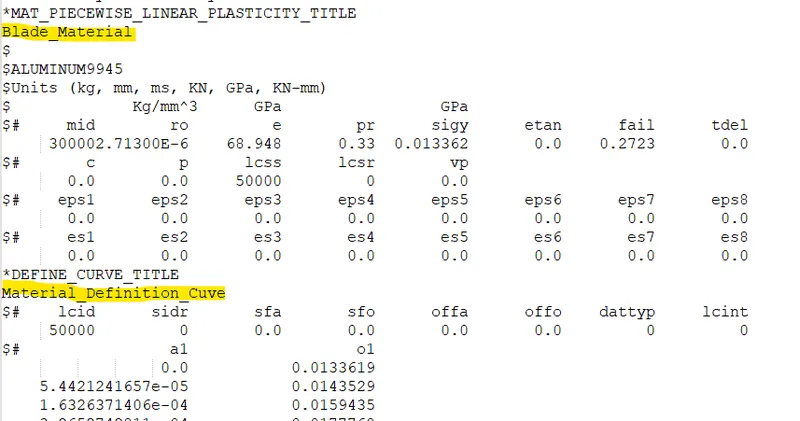

File Containing Material of Blades (AL-4495-MaterialModel.k)

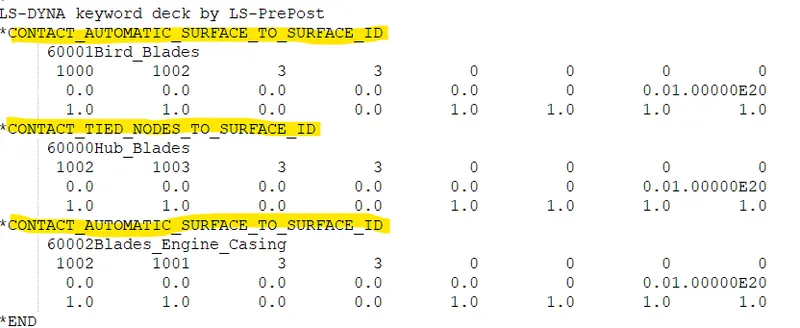

File Containing Contacts (contact.k)

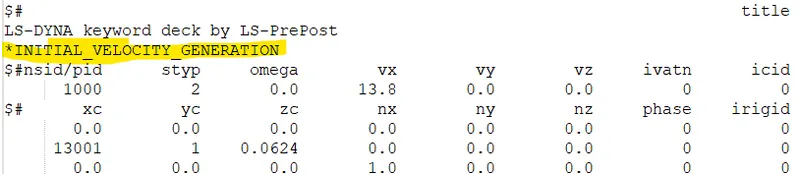

File Containing Boundary Conditions (bc.k) (Velocity assigned to Blades & Hub Omega=0.0624 rad/ms,Velocity of Bird (13.88 mm/ms)

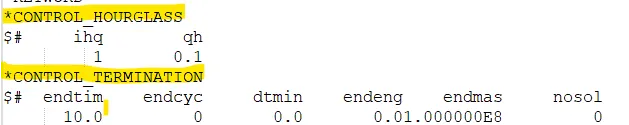

File Containing the Control Cards (control.k)

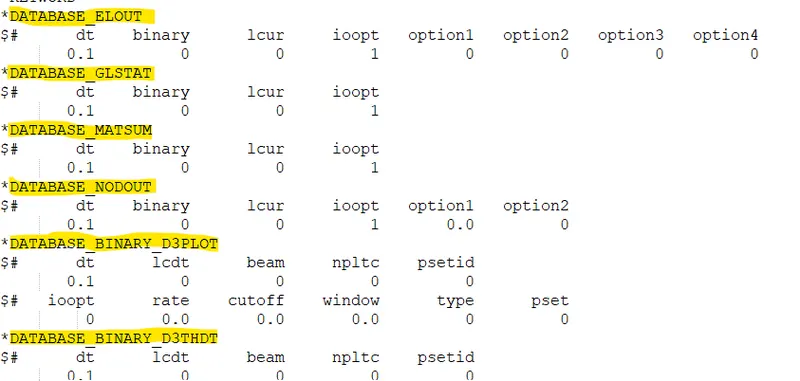

File Containing Database Cards (database.k)

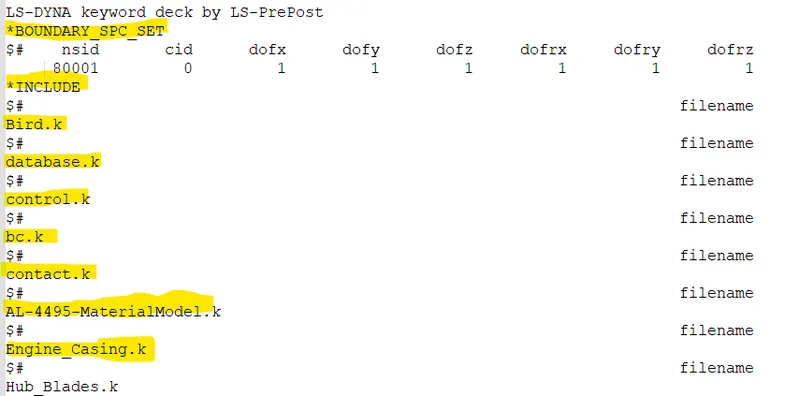

Master File (main.k)

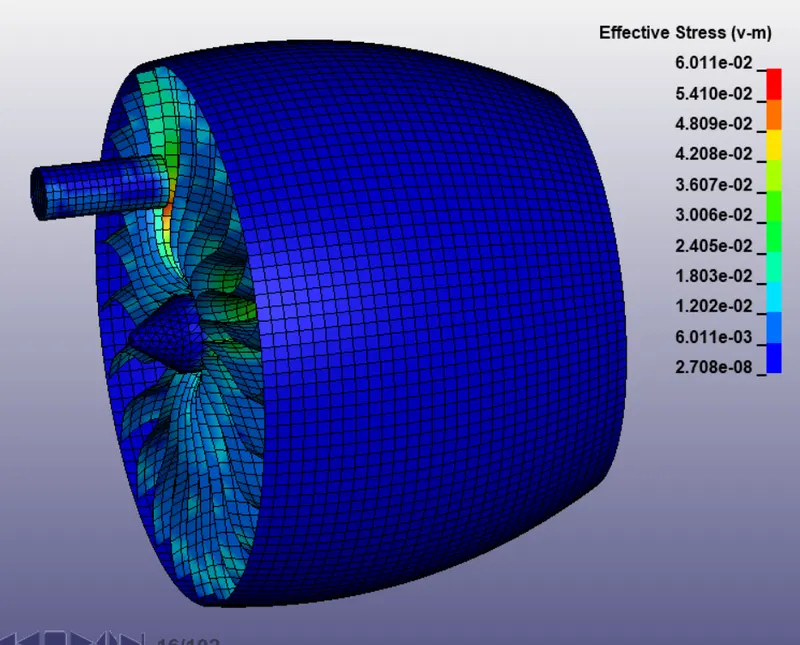

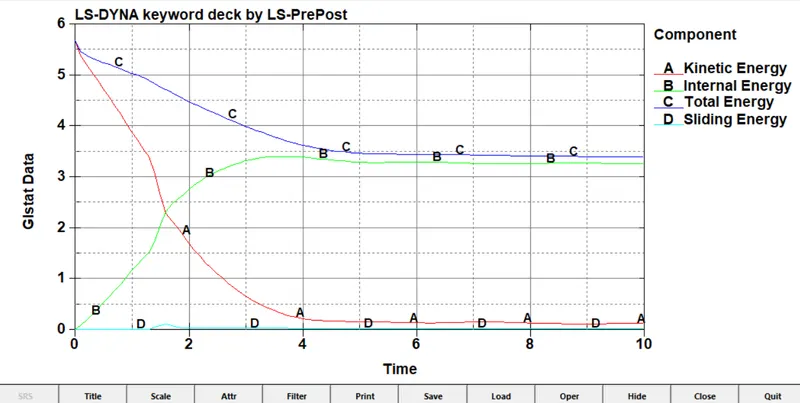

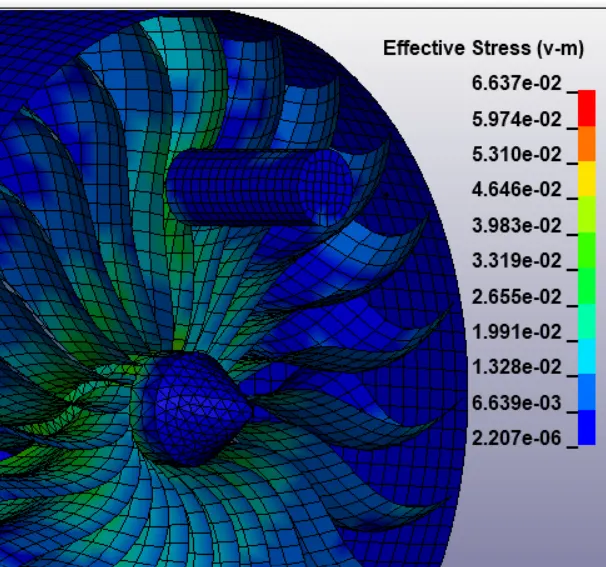

Results:
