Benchmarking

OBJECTIVE The objective of this project is to design a butterfly valve and apply GD&T to its components and final assembly using Siemens NX.   INTRODUCTION  A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The…

                                                      Car Back Door Design Car Back Door and Components:                The back door is a hinged door/tailgate at the rear of the vehicle. It may be used for loading and unloading cargo, or to get passengers in and out, in case there are seats present at the rear. The back…

Roof Design     OBJECTIVE- The objective of this project is to design a car roof with  essential flanges and reinforcements  like ditch area, front roof rail, bow roofs, central roof rail, and rear roof rail for the given styling surface Perform a curvature study on the roof and perform the calculations…

Fender Design Objective: The main object of this project is to design the BIW(Body in white) of the front fender using the fender skin data and the master section as the data by using NX CAD. Introduction : Fender is the American English term for the part of an automobile, motorcycle, or other vehicle body that frames…

Fender Design - Wheel Arch Challenge   Aim :      To calculate the wheel arch gap at required points and check whether the car passes the European standard. Objective : Study the different wheel arch gap standards. Draw the lines at the required angle and points for the European standard. Measure the distance at each angle…

Section Modulus calculation and optimization        The main objective of this challenge is to calculate the section modulus of the hood design. The section modulus of the car hood is calculated using the tools and commands available in the NX cad, buy calculating the section modulus of the car hood we can know the strength…

HOOD DESIGN    Step 1      Download the given data provided from this challenge       i)Hood Outer Panel                 ii)Striker               iii)Hinge assembly           …

Routing the Wiring harness on the Given Engine  The engine We have to insert a new product named engine harness geo. bundle and we have to define it as a geometrical bundle. - import all the required connectors from the available website provided in that challenge and define all the connectors electrically and place the…

ROUTING FOR BACK DOOR     Rout the wiring harness for the given car's back door, flatten the completed wiring bundle, and draft them in a separate sheet. Before flattening the bundle, we have to check whether the wiring harness bundle is fully connected. The input they provided:-   To start the routing we…

Underbody Coating:                  Underbody coatings are those which are used to prevent car bodies against rust & corrosion. This underbody coating helps in protection from dust and moisture also some other factors such as poor road conditions, rocks getting thrown…

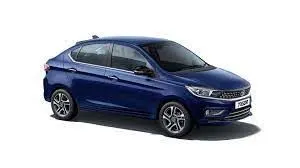

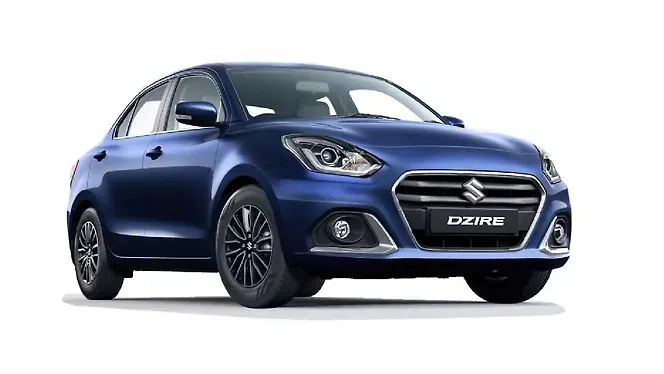

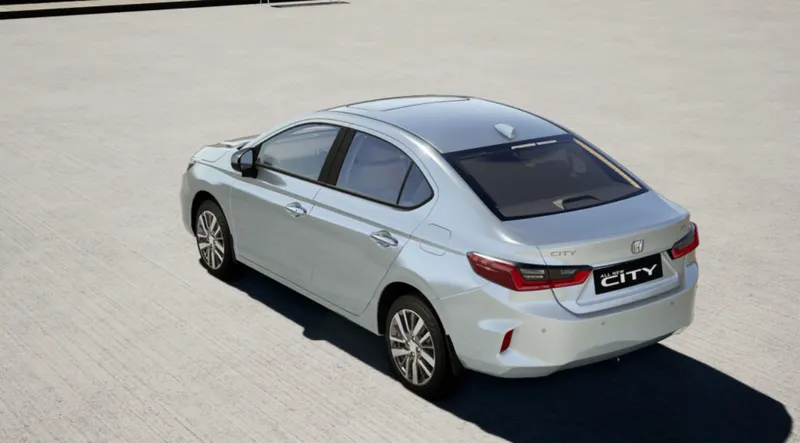

Comparison(benchmarking) of presently available cars in the market for Pughazhyendhii     As pughazhyendhi is a family man, who lives in Bangalore with his family. His family comprises five members: his wife, a five-year-old son, his father, and his mother. He visits his native place Madurai which is…

ELECTRICAL HARNESS FLATTENING       This challenge is wholly based on the previous challenge(i.e 4th-week challenge). All the parts are electrically defined, and we have to work on the Electrical Harness Flattening.           Create a new product and open the Electrical harness flattening workbench, select the command…

CREATION OF HARNESS A AND HARNESS B *HARNESS A After the successful installation of the required connectors from the link provided in this challenge we have to define it electrically,  We have to follow the same procedure to define it as electrically as we observed in the previous challenge, like we have place a point…

The following steps I have followed to complete this challenge- After downloading all the required connectors provided in the challenge, I have defined it electrically.         For every connector, I have used the same procedure-           i) Insert a point on the bundle entry side of the connector,           ii) Insert…

Wiring harness routing & packaging Rules Week 3 Challenge P clamp I have downloaded the p clamp from the link which is provided in this challenge and after the successful installation of the p clamp, I have worked on it by CATIA v5.  We have to insert a point and plane on the bundle entry and exit side of the p clamp.…

CHALLENGE 03 I have downloaded the CAD.PART from the link provided, the downloaded parts are  1) CONNECTOR  2)FEMALE CONNECTOR  3)CAVITY CLIP          FEMALE CONNECTOR    After successfully installing this cad part we have to open it in the CATIA.  We have to…

 FINAL PROJECT - Development of a Door Trim panel    I Have completed the final project in the following way-         at first, I inserted the same CAD file (provided in this challenge) in the Assembly design for four-time and renamed them according to the part name( i.e  i) Arm Rest ii)Lower subtract iii)Map pocket iv)Bottle…

 FINAL PROJECT - Development of a Door Trim panel    I Have completed the final project in the following way-         at first, I inserted the same CAD file (provided in this challenge) in the Assembly design for four-time and renamed them according to the part name( i.e  i)…

ASSEMBLY -1 FIRST PART IN ASSEMBLY 1 SECOND PART IN ASSEMBLY 1 THIRD PART IN ASSEMBLY 3 FOURTH PART IN ASSEMBLY 01 FIFTH PART IN ASSEMBLY 01   ASSEMBLY 02     First part in assembly 02   Second part in the assembly 02 thrid part in assembly 02   Report  Assembly -01 & 02    …

 A pillar Design with Master Section Iso metric view                                                                           Front…

DOOR TRIM LOWER WITH ENGINEERING FEATURES                     ISO METRIC VIEW                                                       …

DOOR TRIM FOR DOG HOUSE ISO METRIC VIEW                                                           FRONT VIEW        TOP VIEW       …

DOOR HANDLE                ISO METRIC VIEW                                                                             FRONT VIEW                       TOP VIEW                                                                                                 SIDE VIEW     DRAFT ANALYSIS OF A CLASS A SURFACE   DRAFT ANALYSIS…

DREAFT ANALYSIS OF A SWITCH BEZEL FINAL BODY (FINAL BODY) DRAFT ANALYSIS OF A CLASS A SURFACE                ISO METRIC VIEW                                                                                FRONT VIEW                   TOP VIEW                                                                               …

BUMPER                  ISO METRIC VIEW                                                                   …

COIN HOLDER  ISO METRIC VIEW                                                                                 …

SWITCH BEZEL ISO METRIC VIEW                                                                            FRONT VIEW     …

BASE BRACKET  ISO METRIC VIEW                                                                                 …
