Auto Cad - Project 1 - Drawing geometries using different coordinate methods
Aim : To draw the given geometries using different coordinate methods in Auto Cad
Procedure:
In the given geometries,line command is only used .To activate line :
a. Ribbon -Home >draw >line
b. Toolbar : Draw>Line
c. Menu bar : Draw>Line
d. Tool palettes: Draw >line
e. Command : Line or L

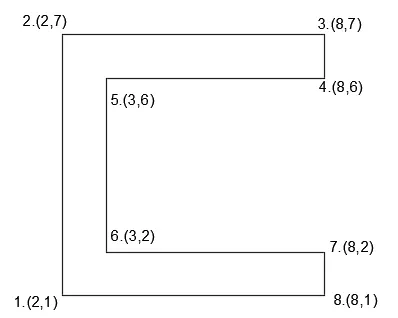

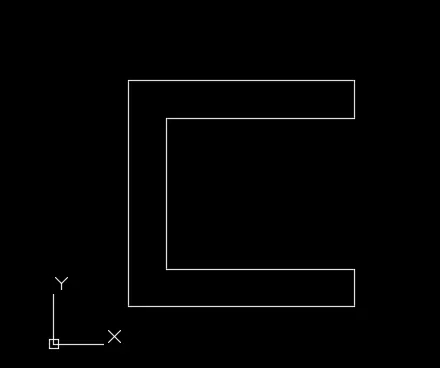

1. P-1
a. Absolute coordinate system - In this system ,distances are measured from orgin. The coordinates with respect to orgin are:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (2,1).
Step 2: Type the next coordinate of point 2 (2,7) in the command box.
Step 3 : Type next coordinates of point 3. (8,7) in the command box.
Step 4 : Type next coordinates of point 4. (8,6) in the command box
Step 5 : Type next coordinates of point 5. (3,6) in the command box
Step 6 : Type next coordinates of point 6. (3,2) in the command box
Step 7 : Type next coordinates of point 7. (8,2) in the command box
Step 8 : Type next coordinates of point 8. (8,1) in the command box.
Step 9 : Enter or click on the command "close".

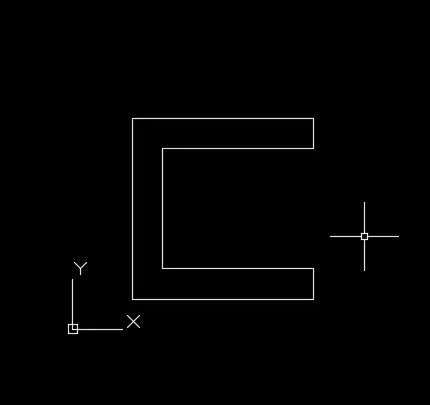

Result:

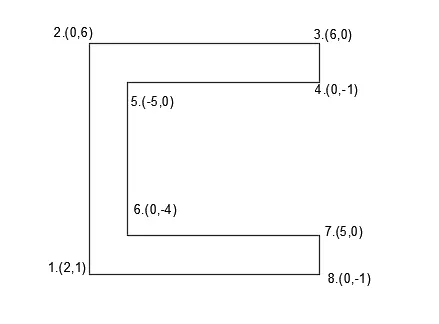

b. Relative rectangular coordinate system - In this system, the coordinates are measured from the previous point , the coordinates are:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 .@0,6 in the command box.
Step 3 : Type next coordinates of point 3. @ 6,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,-1 in the command box
Step 5 : Type next coordinates of point 5. @ -5,0 in the command box
Step 6 : Type next coordinates of point 6. @0,-4 in the command box
Step 7 : Type next coordinates of point 7. @5,0 in the command box
Step 8 : Type next coordinates of point 8. @0,-1in the command box.
Step 9 : Enter or click on the command "close".
Result:

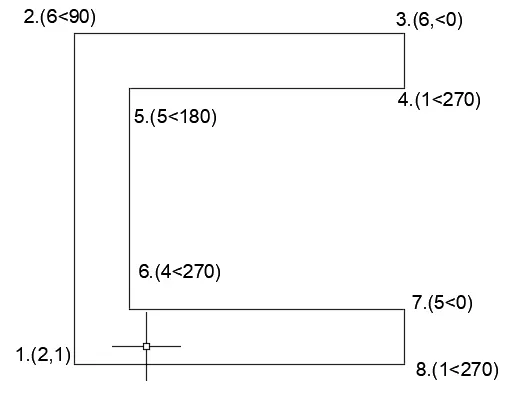

c. Polar coordinate system - In polar coordinate system, the coordinate and the angle with respect to x axis is given.
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 . @6<90 in the command box.
Step 3 : Type next coordinates of point 3. @6<0 in the command box.
Step 4 : Type next coordinates of point 4. @ 1<270 in the command box
Step 5 : Type next coordinates of point 5. @ 5<180 in the command box
Step 6 : Type next coordinates of point 6. @ 4<270 in the command box
Step 7 : Type next coordinates of point 7. @5<0 in the command box
Step 8 : Type next coordinates of point 8. @1<270in the command box.
Step 9 : Enter or click on the command "close".
Result:
2. P-2

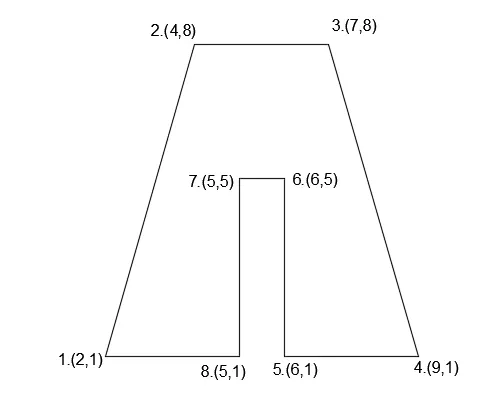

a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (2,1).
Step 2: Type the next coordinate of point 2 (4,8) in the command box.
Step 3 : Type next coordinates of point 3. (7,8) in the command box.
Step 4 : Type next coordinates of point 4. (9,1) in the command box
Step 5 : Type next coordinates of point 5. (6,1) in the command box
Step 6 : Type next coordinates of point 6. (6,5) in the command box
Step 7 : Type next coordinates of point 7. (5,5) in the command box
Step 8 : Type next coordinates of point 8. (5,1) in the command box.
Step 9 : Enter or click on the command "close".
Result:

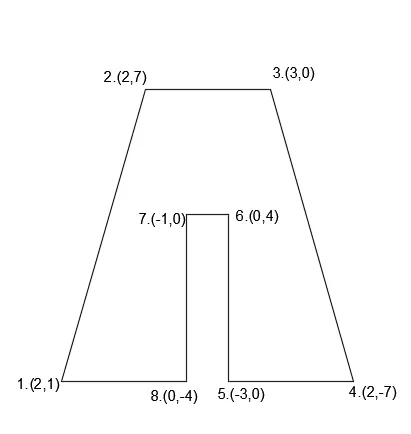

b. Relative rectangular coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 .@2,7 in the command box.
Step 3 : Type next coordinates of point 3. @ 3,0 in the command box.
Step 4 : Type next coordinates of point 4. @2,-7 in the command box
Step 5 : Type next coordinates of point 5. @ -3,0 in the command box
Step 6 : Type next coordinates of point 6. @0,4 in the command box
Step 7 : Type next coordinates of point 7. @-1,0 in the command box
Step 8 : Type next coordinates of point 8. @0,-4 in the command box.
Step 9 : Enter or click on the command "close".

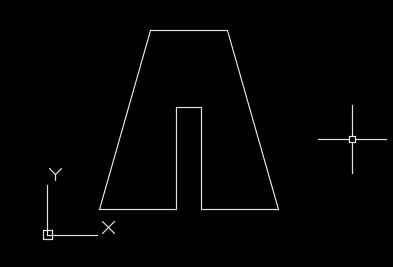

Result:

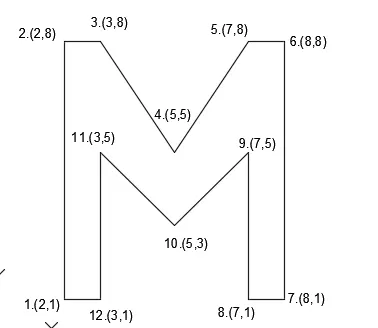

3. P-4
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (2,1).
Step 2: Type the next coordinate of point 2 (2,8) in the command box.
Step 3 : Type next coordinates of point 3. (3,8) in the command box.
Step 4 : Type next coordinates of point 4. (5,5) in the command box
Step 5 : Type next coordinates of point 5. (7,8) in the command box
Step 6 : Type next coordinates of point 6. (8,8) in the command box
Step 7 : Type next coordinates of point 7. (8,1) in the command box
Step 8 : Type next coordinates of point 8. (7,1) in the command box.
Step 9 : Type next coordinates of point 9. (7,5) in the command box.
Step 10 : Type next coordinates of point 10. (5,3) in the command box.
Step 11 : Type next coordinates of point 11. (3,5) in the command box.
Step 12 : Type next coordinates of point 12. (3,1) in the command box.
Step 13 : Enter or click on the command "close".
Result:

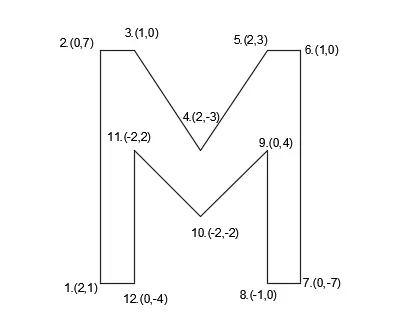

b. Relative rectangular coordinate:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 .@0,7 in the command box.
Step 3 : Type next coordinates of point 3. @ 1,0 in the command box.
Step 4 : Type next coordinates of point 4. @2,-3 in the command box
Step 5 : Type next coordinates of point 5. @ 2,3 in the command box
Step 6 : Type next coordinates of point 6. @1,0 in the command box
Step 7 : Type next coordinates of point 7. @0,-7 in the command box
Step 8 : Type next coordinates of point 8. @-1,0 in the command box.
Step 9 : Type next coordinates of point 9. @0,4 in the command box.
Step 10 : Type next coordinates of point 10. @-2,-2 in the command box.
Step 11 : Type next coordinates of point 11. @-2,2 in the command box.
Step 12 : Type next coordinates of point 8. @0,-4 in the command box.
Step 13 : Enter or click on the command "close".
Result:

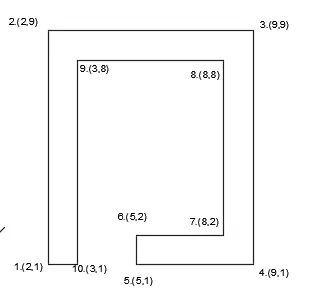

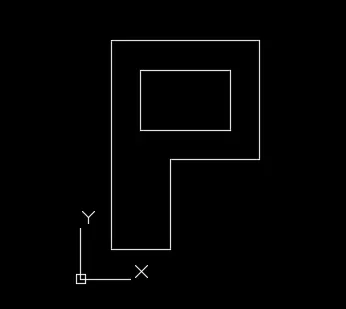

4. P-5
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (2,1).
Step 2: Type the next coordinate of point 2 (2,9) in the command box.
Step 3 : Type next coordinates of point 3. (9,9) in the command box.
Step 4 : Type next coordinates of point 4. (9,1) in the command box
Step 5 : Type next coordinates of point 5. (5,1) in the command box
Step 6 : Type next coordinates of point 6. (5,2) in the command box
Step 7 : Type next coordinates of point 7. (8,2) in the command box
Step 8 : Type next coordinates of point 8. (8,8) in the command box.
Step 9 : Type next coordinates of point 9. (3,8) in the command box.
Step 10 : Type next coordinates of point 10. (3,1) in the command box.
Step 11 : Enter or click on the command "close".
Result:

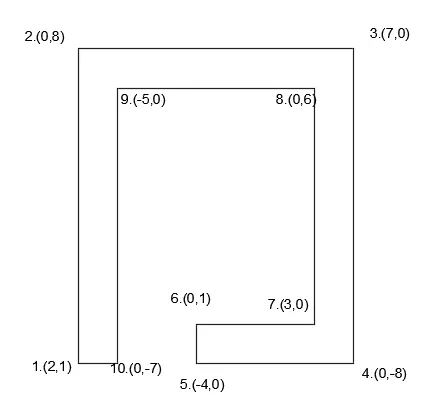

b. Relative rectangular coordinate:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 .@0,8 in the command box.
Step 3 : Type next coordinates of point 3. @ 7,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,-8 in the command box
Step 5 : Type next coordinates of point 5. @ -4,0 in the command box
Step 6 : Type next coordinates of point 6. @0,1 in the command box
Step 7 : Type next coordinates of point 7. @3,0 in the command box
Step 8 : Type next coordinates of point 8. @0,6 in the command box.
Step 9 : Type next coordinates of point 9. @-5,0 in the command box.
Step 10 : Type next coordinates of point 10. @0,-7 in the command box.
Step 11 : Enter or click on the command "close".

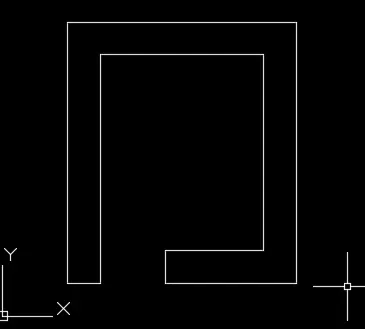

Result:

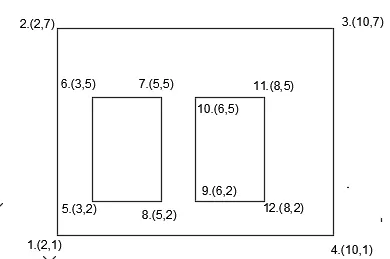

5. P -7
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (2,1).
Step 2: Type the next coordinate of point 2 (2,7) in the command box.
Step 3 : Type next coordinates of point 3. (10,7) in the command box.
Step 4 : Type next coordinates of point 4. (10,1) in the command box
Step 5 : Enter or click on the command "close".
Step 6 : Type the command "L"for line and give the coordinates for point 5. (3,2).
Step 7 : Type next coordinates of point 6. (3,5) in the command box
Step 8 : Type next coordinates of point 7. (5,5) in the command box.
Step 9 : Type next coordinates of point 8. (5,2) in the command box.
Step 10 : Enter or click on the command "close".
Step 11 : Type the command "L"for line and give the coordinates for point 9. (6,2).
Step 12 : Type next coordinates of point 10. (6,5) in the command box.
Step 13 : Type next coordinates of point 11. (8,5) in the command box.
Step 14 : Type next coordinates of point 12. (8,2) in the command box.
Step 15 : Enter or click on the command "close".
Result:

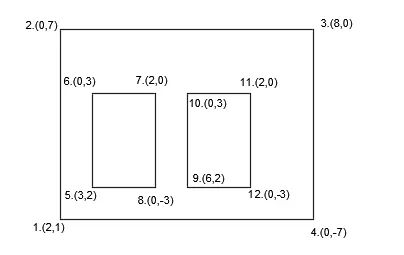

b. Relative rectangular coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(2,1).
Step 2: Type the next coordinate of point 2 .@0,7 in the command box.
Step 3 : Type next coordinates of point 3. @ 8,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,-7 in the command box
Step 5 : Enter or click on the command "close".
Step 6 : Type the command "L"for line and give the coordinates for point 5.(3,2).
Step 7 : Type next coordinates of point 6. @0,3 in the command box
Step 8 : Type next coordinates of point 7. @2,0 in the command box.
Step 9 : Type next coordinates of point 8. @0,-3 in the command box.
Step 10 : Enter or click on the command "close".
Step 11 : Type the command "L"for line and give the coordinates for point 9.(6,2).
Step 12 : Type next coordinates of point 10. @0,3 in the command box.
Step 13 : Type next coordinates of point 10. @2,0 in the command box.
Step 14 : Type next coordinates of point 10. @0,-3 in the command box.
Step 15 : Enter or click on the command "close".

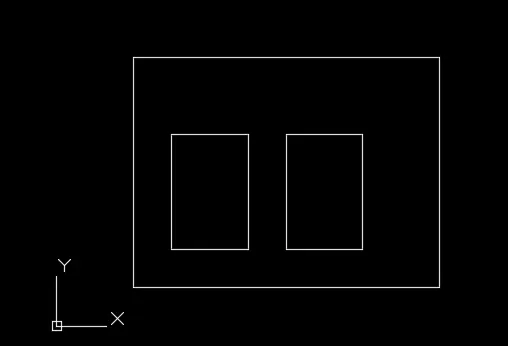

Result:

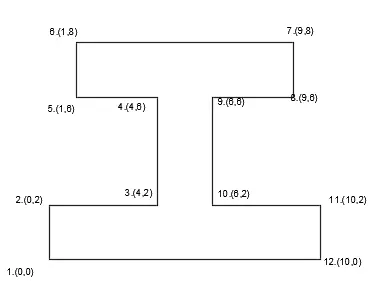

6.P-8
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (0,0).
Step 2: Type the next coordinate of point 2 (0,2) in the command box.
Step 3 : Type next coordinates of point 3. (4,2) in the command box.
Step 4 : Type next coordinates of point 4. (4,6) in the command box
Step 5 : Type next coordinates of point 5. (1,6) in the command box
Step 6 : Type next coordinates of point 6. (1,8) in the command box
Step 7 : Type next coordinates of point 7. (9,8) in the command box
Step 8 : Type next coordinates of point 8. (9,6) in the command box.
Step 9 : Type next coordinates of point 9. (6,6) in the command box.
Step 10 : Type next coordinates of point 10. (6,2) in the command box.
Step 11 : Type next coordinates of point 11. (10,2) in the command box.
Step 12 : Type next coordinates of point 10. (10,0) in the command box.
Step 13 : Enter or click on the command "close".
Result:

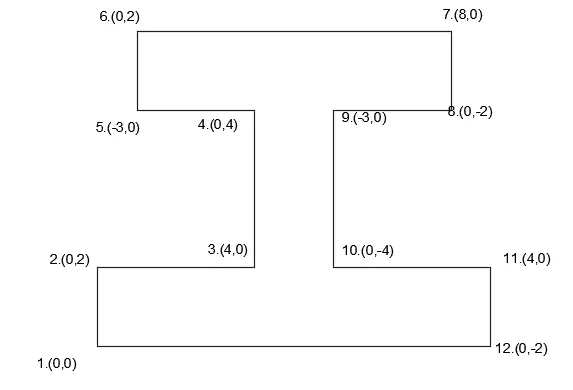

b. Relative rectangular coordinate:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).
Step 2: Type the next coordinate of point 2 .@0,2 in the command box.
Step 3 : Type next coordinates of point 3. @ 4,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,4 in the command box
Step 5 : Type next coordinates of point 5. @ -3,0 in the command box
Step 6 : Type next coordinates of point 6. @0,2 in the command box
Step 7 : Type next coordinates of point 7. @8,0 in the command box
Step 8 : Type next coordinates of point 8. @0,-2 in the command box.
Step 9 : Type next coordinates of point 9. @-3,0 in the command box.
Step 10 : Type next coordinates of point 10. @0,-4 in the command box.
Step 11 : Type next coordinates of point 10. @4,0 in the command box.
Step 12 : Type next coordinates of point 10. @0,-2 in the command box.
Step 13 : Enter or click on the command "close".

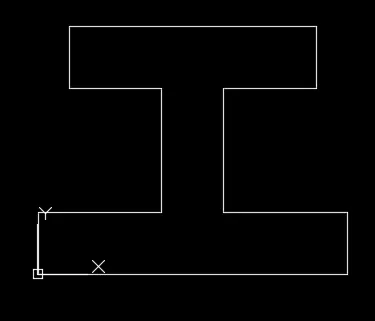

Result:
7. P-9
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (0,1).

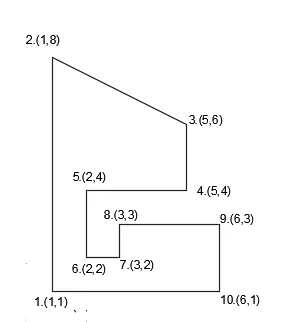

Step 2: Type the next coordinate of point 2 (1,8) in the command box.
Step 3 : Type next coordinates of point 3. (5,6) in the command box.
Step 4 : Type next coordinates of point 4. (5,4) in the command box
Step 5 : Type next coordinates of point 5. (2,4) in the command box
Step 6 : Type next coordinates of point 6. (2,2) in the command box
Step 7 : Type next coordinates of point 7. (3,2) in the command box
Step 8 : Type next coordinates of point 8. (3,3) in the command box.
Step 9 : Type next coordinates of point 9. (6,3) in the command box.
Step 10 : Type next coordinates of point 10. (6,1) in the command box.
Step 11 : Enter or click on the command "close".

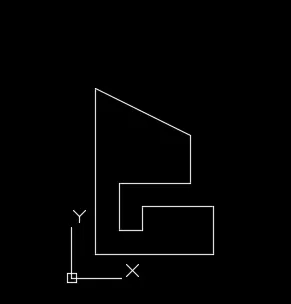

Result:
b. Relative rectangular coordinate:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).
Step 2: Type the next coordinate of point 2 .@0,7 in the command box.
Step 3 : Type next coordinates of point 3. @ 4,-2 in the command box.
Step 4 : Type next coordinates of point 4. @0,-2 in the command box
Step 5 : Type next coordinates of point 5. @ -3,0 in the command box
Step 6 : Type next coordinates of point 6. @0,-2 in the command box
Step 7 : Type next coordinates of point 7. @1,0 in the command box
Step 8 : Type next coordinates of point 8. @0,1 in the command box.
Step 9 : Type next coordinates of point 9. @3,0 in the command box.
Step 10 : Type next coordinates of point 10. @0,-2 in the command box.
Step 11 : Enter or click on the command "close".
Result:

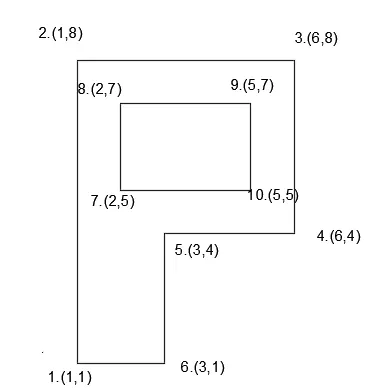

8. P-10
a. Absolute coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1 (1,1).
Step 2: Type the next coordinate of point 2 (1,8) in the command box.
Step 3 : Type next coordinates of point 3. (6,8) in the command box.
Step 4 : Type next coordinates of point 4. (6,4) in the command box
Step 5 : Type next coordinates of point 5. (3,4) in the command box
Step 6 : Type next coordinates of point 6. (3,1) in the command box
Step 7 : Enter or click on the command "close".
Step 8 : Type the command "L"for line and give the coordinates for point 7.(2,5).
Step 9 : Type next coordinates of point 8. (2,7) in the command box.
Step 10 : Type next coordinates of point 9. (5,7) in the command box.
Step 11 : Type next coordinates of point 10. (5,5) in the command box.
Step 12 : Enter or click on the command "close".
Result:

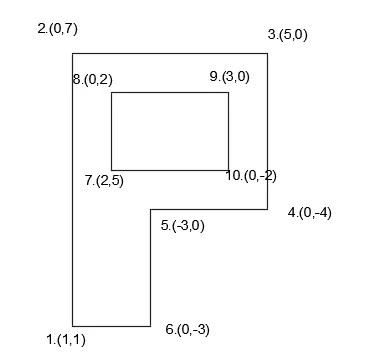

b. Relative rectangular coordinate:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).
Step 2: Type the next coordinate of point 2 .@0,7 in the command box.
Step 3 : Type next coordinates of point 3. @ 5,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,-4 in the command box
Step 5 : Type next coordinates of point 5. @ -3,0 in the command box
Step 6 : Type next coordinates of point 6. @0,-3 in the command box
Step 7 : Enter or click on the command "close".
Step 8 : Type the command "L"for line and give the coordinates for point 7.(2,5).
Step 9 : Type next coordinates of point 8. @0,2 in the command box.
Step 10 : Type next coordinates of point 9. @3,0 in the command box.
Step 11 : Type next coordinates of point 10. @0,-2 in the command box.
Step 12 : Enter or click on the command "close".
Result:

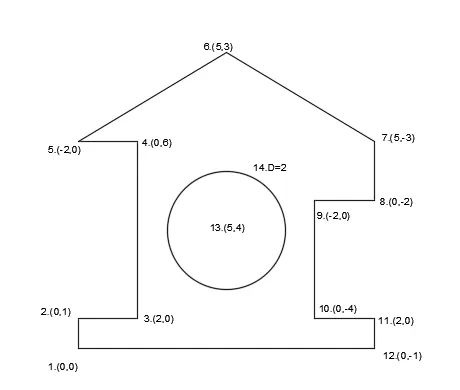

9. Profile- wood
This is done by Relative rectangular coordinate system:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(0,0).
Step 2: Type the next coordinate of point 2 .@0,1 in the command box.
Step 3 : Type next coordinates of point 3. @ 2,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,6 in the command box
Step 5 : Type next coordinates of point 5. @ -2,0 in the command box
Step 6 : Type next coordinates of point 6. @5,3 in the command box
Step 7 : Type next coordinates of point 7. @5,-3 in the command box
Step 8 : Type next coordinates of point 8. @0,-2 in the command box
Step 9 : Type next coordinates of point 9. @-2,0 in the command box.
Step 10 : Type next coordinates of point 10. @0,-4 in the command box.
Step 11 : Type next coordinates of point 11. @2,0 in the command box.
Step 12: Type next coordinates of point 12. @0,-1 in the command box.
Step 13: Enter or click on the command "close".
Step 14: Click circle from the draw panel and select centre -radius
Step 15: Enter the coordinates of the centre 5,4 in the command box
Step 16: Then the command box shows " enter the diameter" and enter the value 2 ,which is the diameter of circle.

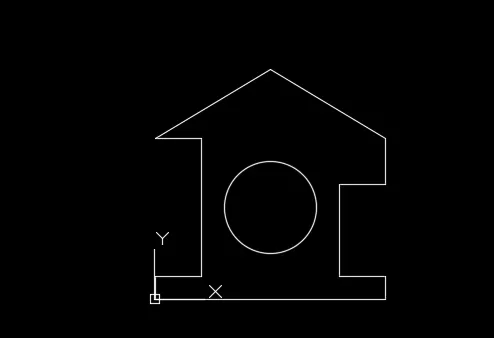

Result:

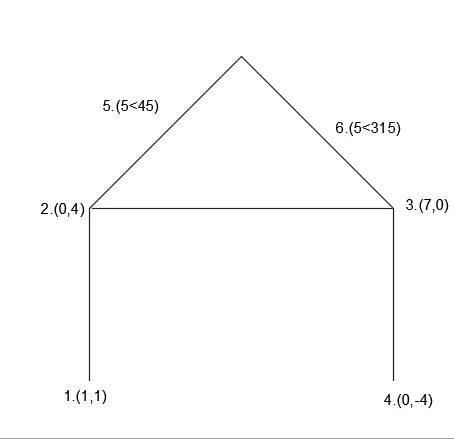

10. Queen post truss
Combination of relative rectangular and polar coordinate system is used here
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).
Step 2: Type the next coordinate of point 2 .@0,4 in the command box.
Step 3 : Type next coordinates of point 3. @ 7,0 in the command box.
Step 4 : Type next coordinates of point 4. @0,-4 in the command box
Step 5 : Press Esc to cancel the command.
Step 6 : Type the command "L"for line and give the coordinates for point 5.@5<45.
Step 7 : Type the coordinates for point 6. @5<315.

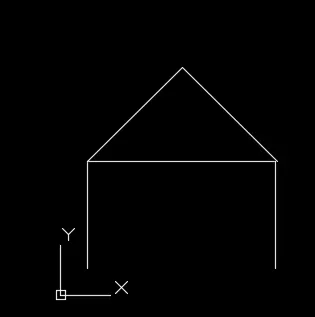

Result:

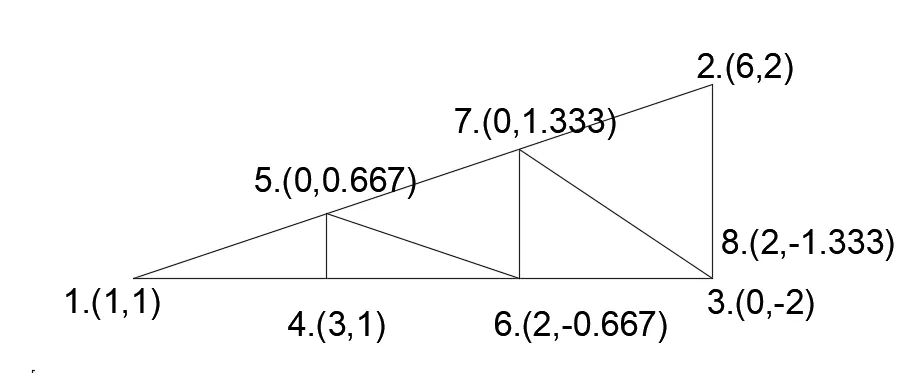

11. Monopitch:
Relative rectangular coordinate is used:
Procedure:
Step 1: Type the command "L"for line and give the coordinates for point 1.(1,1).
Step 2: Type the next coordinate of point 2 .@6,2 in the command box.
Step 3 : Type next coordinates of point 3. @ 0,-2 in the command box.
Step 4 :Enter or click on the command "close".
Step 5 : Type the command "L"for line and give the coordinates for point 4.(3,1).
Step 6 : Type next coordinates of point 5. @0,0.667 in the command box
Step 7 : Type next coordinates of point 6. @2,-0.667 in the command box
Step 8 : Type next coordinates of point 7. @0,1.333 in the command box
Step 9 : Type next coordinates of point 8. @2,-1.333 in the command box.

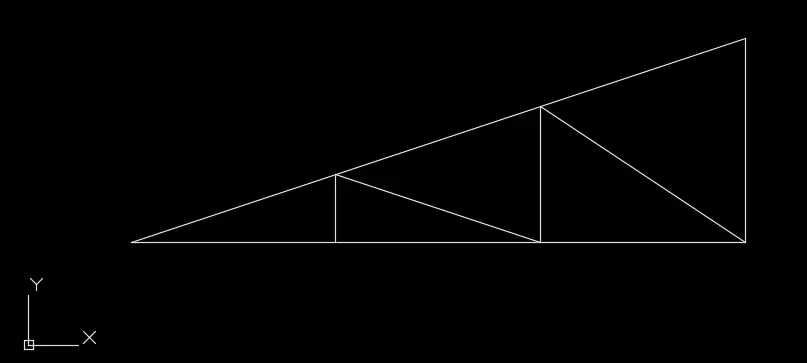

Result:
RESULT:
All the geometries are drawn in respective coordinate system and using line tool and each output is shown for each geometries.
