Auto Cad Project 5 : Drawing column details , inserting text for creating schedules and beam details
1. COLUMN SHEDULE:
Aim : To prepare the column shedule
Procedure:

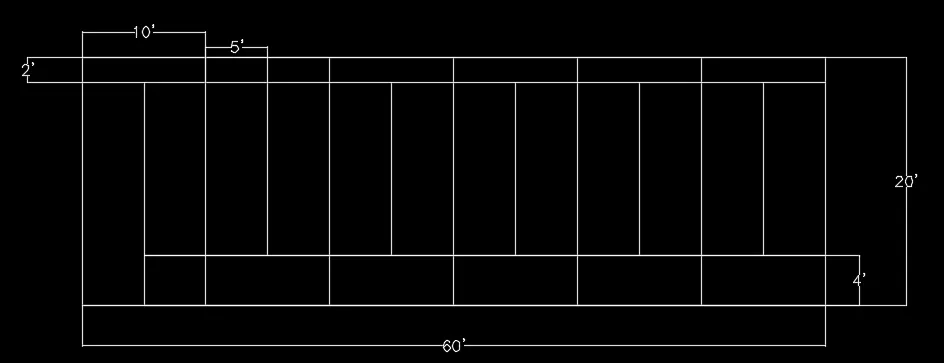

Creating table:

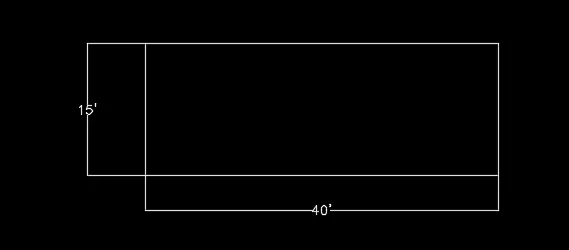

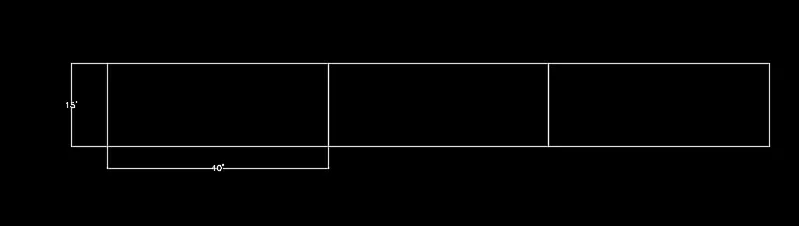

- Create rectangle of 60' x20 ' ,explode it .
- Divide the 60' into 10' columns nad again divide each 10' to 5' by using offset command .Command "O" - select the left side line and give offset distance as 10' first and for the second as 5'.
- Create row at top and bottom of 2' and 4' respectively by offset command .Command "O" - select the top line and give distance as 2' again command "O" -select the bottom line and give offset distance as 4'.
- Trim off the unecessary lines.
Entering text:
- Enter the text in the table by using singleline text from the text drop down menu - specify the point of text- specify text height as 8" -text agle as 0 degree, in case of the text " TERRACE TO MUMTY" give text angle as 90 degreeand type the text . After entering the text ,right click and slect properties - then list of properties will be displayed -ensure that the text height is 8" and make justify : as left
- To change the style of text Command "ST" ,a dialogue box apperas and select the font name as "romans.shx"
- Then insert all the text or copy the text created and edit it to the required text in respective rows and colums
- Give the heading as column shedule:
Drawing the column section:

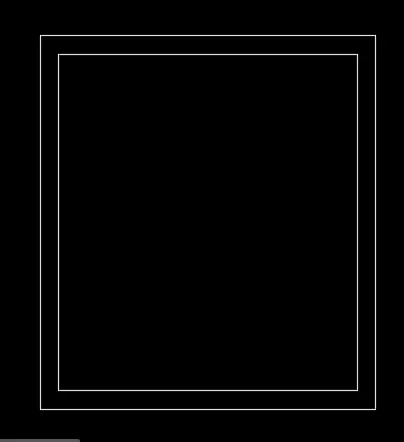

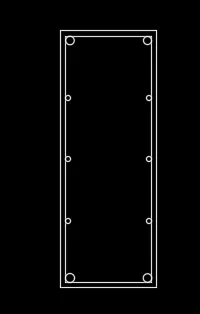

a. Drawing the column section C1 - Column of size 9" x 24" having 20mm dia reinforcement at 4 corners and 12 mm dia 6 reinforcemnt bars in between connected by 8 mm dia stirrup.

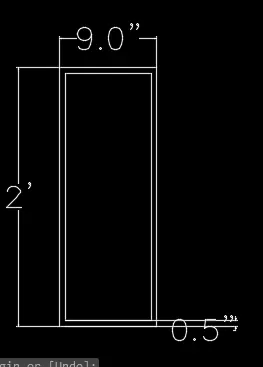

- Draw a rectangle of sixe 9"x24" - Command "REC" - specfiy a point - click on dimension in the command box - then enter the first value as 9" and second dimension as 24".
- Draw the column outline after a cover of 40mm ie ,0.5" by offset command Command "O"- select the object- give offset distance as 0.5" .
- Explode the inside rectangle so that the line can be selected seperately. Command "EXPLODE" - select the inner rectangle - enter.
-
Drawing reinforcement:
- By circle draw the reinforcement Command "C" - click on tan tan radius on the command box- select the left line as one of tangent - top line as another tangent - give radius as 10mm ie,0. 4".
- Using mirror command create the reinforcement on bottom of the left side of column . Command "MI" - select the object - give the mirror plane as the midpoint of the 2' line by Object snap- midpoint on and click on "NO" for erase source object.

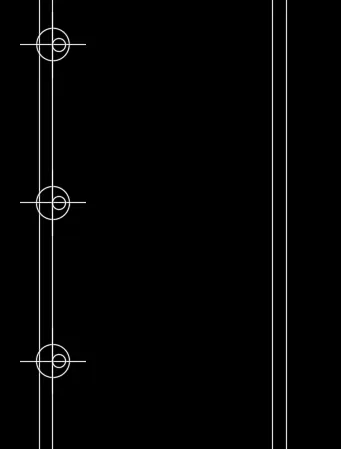

- Divide the line containing the reinforcement by command "DIV" - select the object (line)- no: of segments to be divided is given as 4 ,the line willbe divided
- To make the point of division visible , type Command "DDPTYPE" in command box - a dialogue box appears and select the suitable point type- apply.
- For the reinforcement of 12mm dia , 6 bars
- Create circle by commnad "C"- specify the centre point - enter the radius as 6 mm ie 0.2" .
- Copy the circle command "CO" - select the circle- select the base point as top point on the circle -and place it in the centre point of the point created by object snap on.
- Place 3 circles as such on each divided point , then dlete the points created.
- Create similar circles on the other side, right side of the column. For that,
- Mirror the circles Command "MI"- select all the 5 circles- create the mirror plane from the middle of the 9" line ,erase source object -give it as "NO" then the mirror image will be created.
Drawing stirrups:

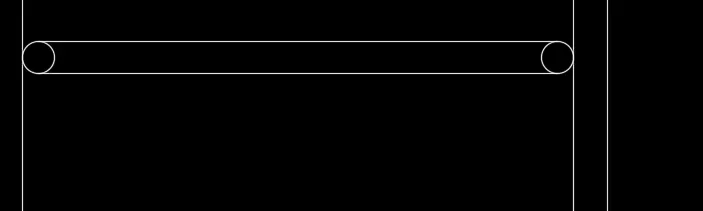

- Connect the reinforcement of raidus 6 mm ,1st row from the top ,2nd row top and bottom and 3rd row from bottom.
- Connect the lines as top tangent of the two circles.
- Draw the rings by arc- 3 point method , and mirroring it.
- Fillet the corners of the colum outline with filet radius as 0.5".
- Use donout command to fillthe circle Command "DO" - specify the inner dimaeter as 0 and outer diameter as 0.8" for 4 corner reinforcement and 0.5" for inside reinforcement -specify centre of the donout , it gets filled. Mark "a" for in between reinforcemnet to indicate it as 12mm dimaeter.

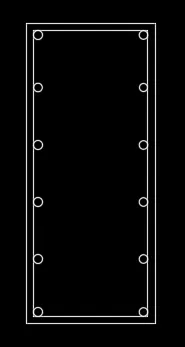

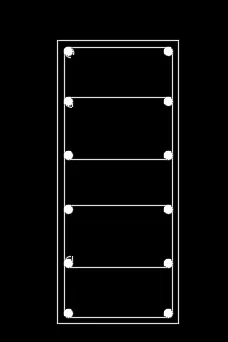

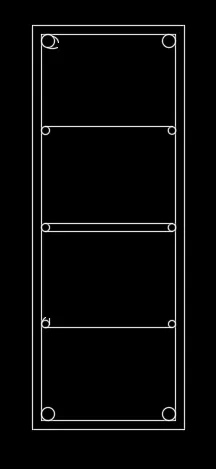

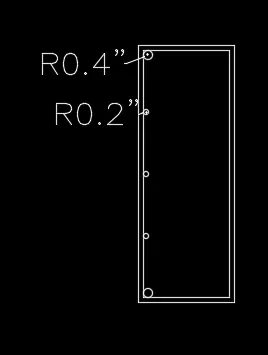

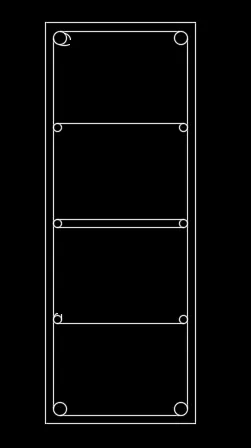

b. Drawing column section C1a - Column of size 9" x 24" having 16mm dia 12 bars connected by 8 mm dia stirrup.
- Draw a rectangle of sixe 9"x24" - Command "REC" - specfiy a point - click on dimension in the command box - then enter the first value as 9" and second dimension as 24".
- Draw the column outline after a cover of 40mm ie ,0.5" by offset command Command "O"- select the object- give offset distance as 0.5" .
- Explode the inside rectangle so that the line can be selected seperately. Command "EXPLODE" - select the inner rectangle - enter.

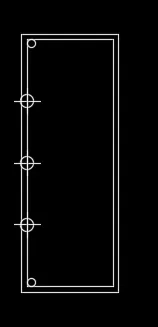

Drawing reinforcement :
- By circle draw the reinforcement Command "C" - click on tan tan radius on the command box- select the left line as one of tangent - top line as another tangent - give radius as 8mm ie,0. 3".
- Using mirror command create the reinforcement on bottom of the left side of column . Command "MI" - select the object - give the mirror plane as the midpoint of the 2' line by Object snap- midpoint on - slect erase source object as "NO".
-Divide the line containing the reinforcement by command "DIV" - select the object (line)- no: of segments to be divided is given as 5 ,the line will be divided
- To make the point of division visible , type Command "DDPTYPE" in command box - a dialogue box appears and select the suitable point type- apply.
- Copy the circle ( reinforcement ) and place it in the centre of the 4 points . as here all reinforcement are of same size.
- Delete the points
- Mirror the circles to the right side by command "MI" - select all the 6 circles ,then draw the mirror plane as the midpoint of the 9" line.and give erase source object as "NO".
Drawing stirrups:
- With line command draw lines in top and bottom of reinforcements to show the stirrups same in the next set also.
- With arc - 3 point methiod ,draw rings where required .
- Fillet the corners with fillet radius of 0.3" .
- With "DO" command create donout -give inner dimaeter as 0 and outer diameter as 0.62"

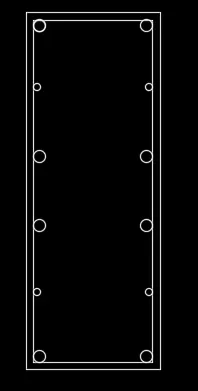

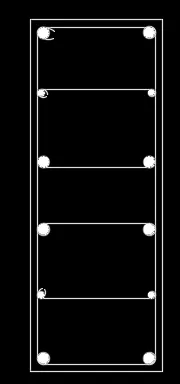

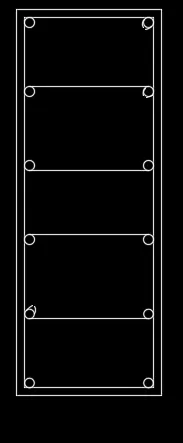

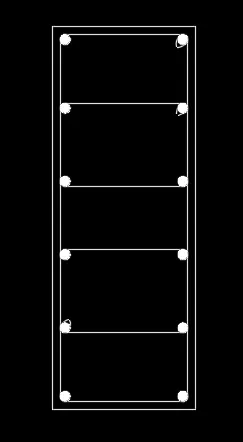

c. Column C2 - Column of sixe 9" x 24" having 20 mm dia 8 bars shown in figure as "a" and rest 12mm dia 4 bars with 8 mm dia stirrups
Drawing column
- Draw a rectangle of sixe 9"x24" - Command "REC" - specfiy a point - click on dimension in the command box - then enter the first value as 9" and second dimension as 24".
- Draw the column outline after a cover of 40mm ie ,0.5" by offset command Command "O"- select the object- give offset distance as 0.5" .
- Explode the inside rectangle so that the line can be selected seperately. Command "EXPLODE" - select the inner rectangle - enter.

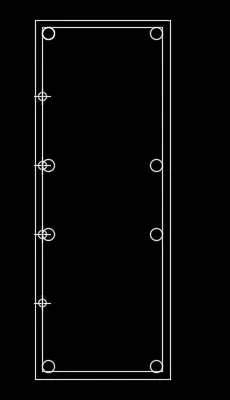

Drawing reinforcement :

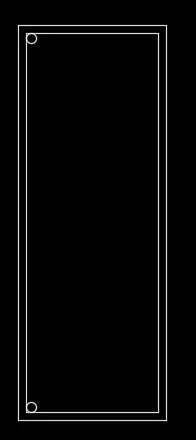

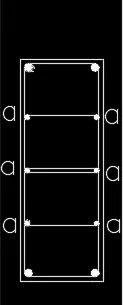

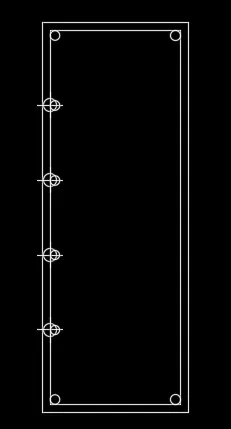

- With circle draw 20 mm reinforcemnet on left corner by tan -tan- radius method - select the circle and create mirror in bottom left corner .
- Divide the line by "DIV" command and divide it onto 5 segments 4 poits are created
- Copy the reinforcemnt to the third and fourth row, Command : "CO" - select the circle ,and place it .
- Mirror the copied circles and the top and bottom circles to right side Command "MI" - select the circles -then draw the mirror line towards the midpoint .
- Create circle of radius 0.23" and place it in centre rest of the points created and mirror it as done in previous step.
- Drawing stirrups:
- By "L" line command draw lines connecting top and bottom of the reinforcement as in the figure
- Create rings by arc
- Fillet the corners of the column outline with fillet radius 0.4".
- Fill the circle by donout command "DO" -enter inner diameter as 0 and outer diameter as 0.7" and 0.4" respectively.

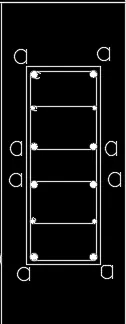

- Mark "a" with single line text on side of 20mm diameter reinforcement for identification.

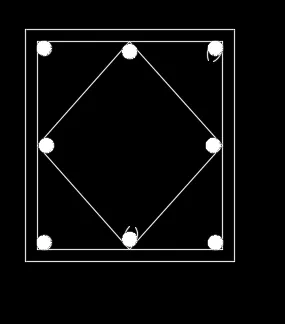

d. Drawing column C2a :

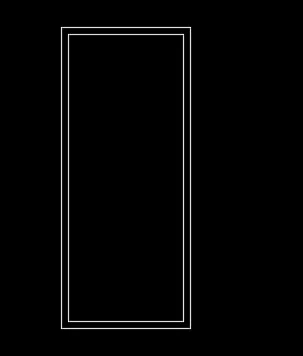

- Draw rectangle of 9" x10" and give offset of 0.5" , explode the offseted rectangle.
Drawing reinforcement:
- With circle command "C" - select tan tan radius - and seelct the two corner lines and give radius as 0.3". (8mm)
- Mirror these to the opposite coreners.
-
- Draw lines joining the midpoint of each side ,then by circle "C"- tan tan radius - slect the two sides as tangent and give 0.3" as radius.
- Mirror the circles on opposite side by "MI" command .
- Again draw the other side reinforcement as done above.
- Create rings by arc - 3 point
- Fill the reinforcement by donout command "DO" - give inner diameter as 0 and outter diameter as 0.6".

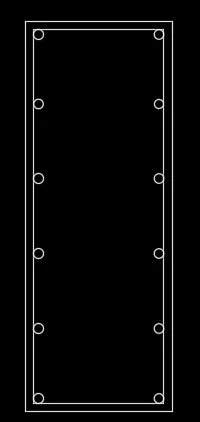

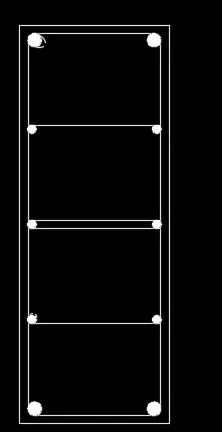

e. Drawing column C3 - size 9" x21" reinforcement of 16 mm dia 12 no's and stirrups od 8mm diameter.
Drawing column
- Draw rectangle by command "REC" - click on dimension ,give the dimensions as 9" and 21"
- Offset the rectangle with an offset distance of 0.5" by command "O" - distance as 0.5".
- Explode the inner rectangle .
Drawing reinforcement:
- By circle "C"- tan tan radius - select the two corner lines and give the radius as 0.3".
- Mirror the circle to the four corners of the column .Command "MI" - select the circle - draw the mirror plane at the midpoint of both the sides.
- Divide the line by "DIV" command into 5 segments , 4 points are created.
- Copy the circle and place it in the midpoint of the points by "CO" command
- Mirror the copied circles on the other side command "MI" - select the objects ,draw the mirror plane from the midpoint of the 9" line , give erase source object as "NO".
- Delete the points.
Drawing the stirrups
- With line command "L" draw the line from top and bottom of the reinforcemnt .
- Fillet the corners "F" - with fillet radius as 0.3".
- Create rings with arc - 3 point
- Fill the reinforcement by donout command "DO" - give inner dia as 0 and outer dia as 0.6".
Placing it in column :

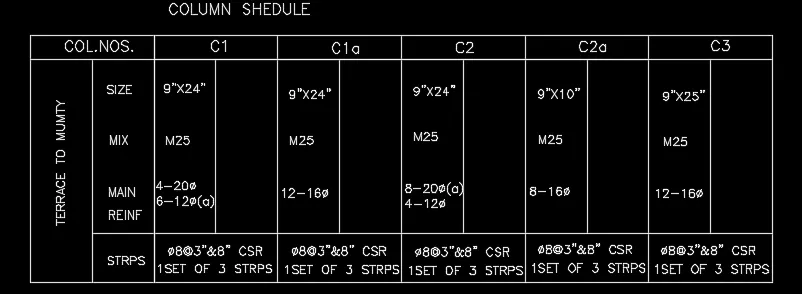

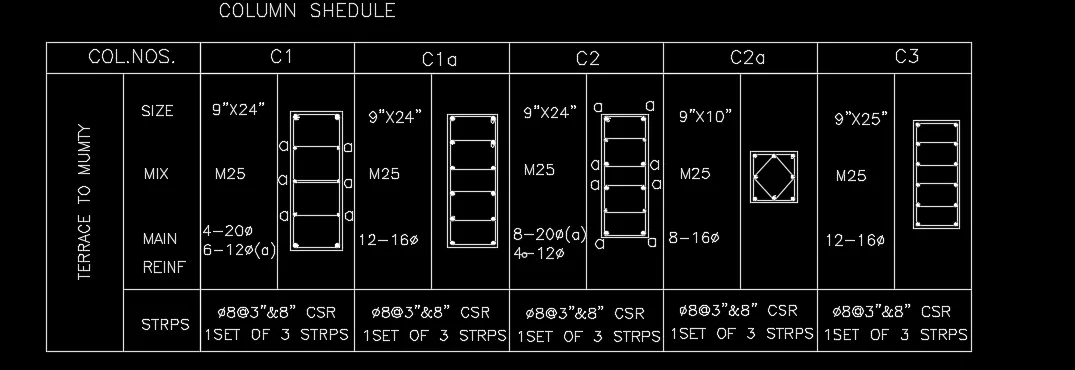

- Place each of the drawn columns in the respective table making it a scale of 4"
- Command "SC"- select the object - select base point - scale factor give it as 4".
Result: The column shedule is drawn
2. WINDOW SHEDULE:
Aim : To draw the window shedule
Procedure:

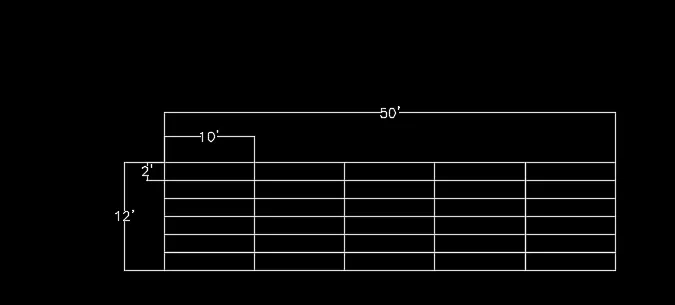

Creating table:
By using line command draw a rectangle of length 50' and width 12' .
- Command "L" with ortho on 12' verticaly upwards then 50' towards + x direction ,12' vertically downwards and close.
Divide the length 50' into 5 equal parts ie 10' each
-Offset :command "O" and give the distance as 10' horizontally to + x direction.
Divide the 12' into 6 equal parts ie, 2' each
- Command "O" and give the distance as 2' downwards
Inserting text :

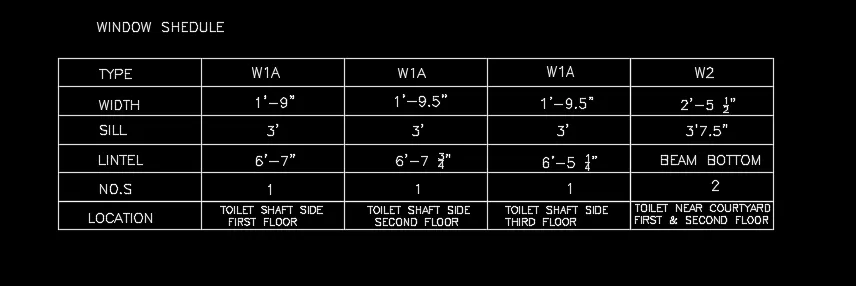

- Select single line from the text drop down menu or type the command "DT"
-Specify start point of text : specify the point where we need to start the text
- Specify text height - give it as 8"
- Specify rotation angle of text - give it as 0 degree ( as we need the text in horizontal direction)
- Type the text we need to insert ,then press enter.
- If we need to change the style of text ,Command :"ST" - select the font ,here I have seleced "romans.shx"
- If we need to change the properties of text ,select the text then right click -properties ,we can edit the properties we want.
- Enter "TYPE" , "WIDTH" , "SILL" , "NO" ,"LOCATION" in the 1st column and "W1 A ,W2 in the rows.
- We can copy the text and use the edit option to change the text by "CO" command.
-Enter the values given in the table, for fractional numbers enter the multiline text option
- Select multiline from drop down menu of text, craete a rectangular box to type the text
-Type the number eg: in 1st row 2'-5 1/2" then enter a space , the fraction will be stacked horizontally.
- In the location row text should be multiline and text size needs to be changed so,select the text,right click -properties- text height- change it to 6".
- Use grips to adjust the text box width and height to fit in the column.
Result: Window shedule is drawn

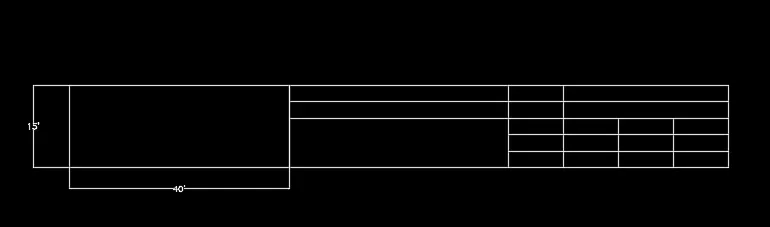

3. Creating template:
Aim : To create the template
Procedure:
Creating table:

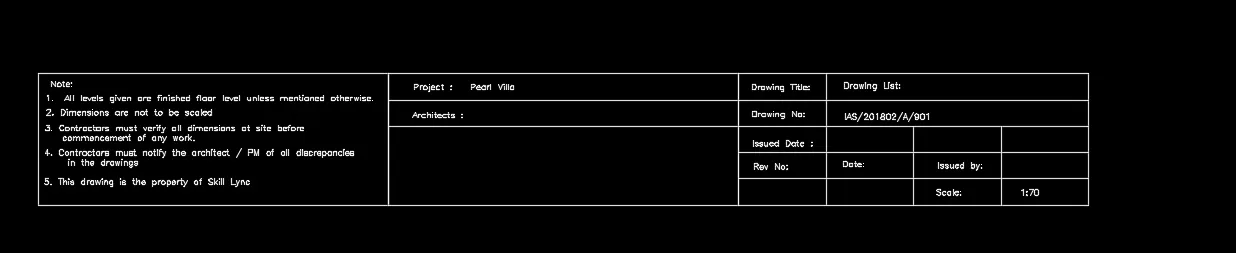

- Create the left side of table by line command - Command "L"- draw line of 15' vertically upwards and 40' in +x direction ,again 15' downwards ,then close.
- Copy this rectangle and place it next to it with snap on ,copy 2 of them.
- Command "CO" -select the object- select the base point- select the point where we need to place the rectangle.
- Divide the 2nd column of table into two and the 3rd column into 5
- Command "O" -offset distance -3' seelct the object and create the rows.
- Also divide the 3rd column into 4 each of 10' by command "O" (offset)and trim the unwanted line by "TR"
Table is created
Inserting text:
- Select multi line from drop down list of text - create the text box , then type the data given
- Text height is given as 8" .
Result: The template drawn is shown
4. List of drawing shedule:
Aim : To create the list of drawings shedule
Procedure:
Creating table :

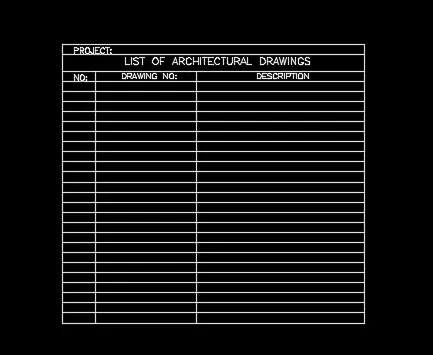

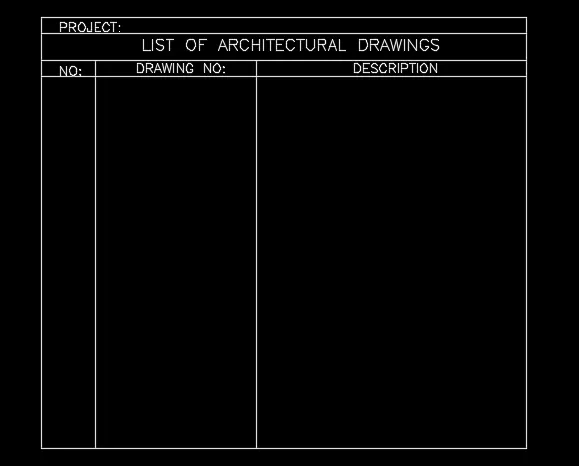

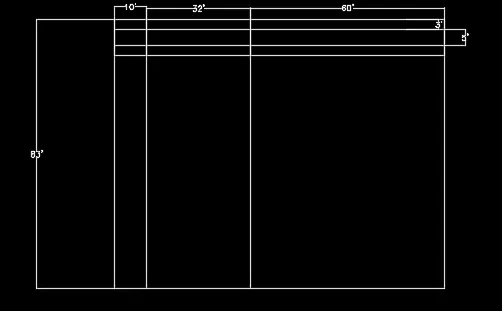

- With line tool draw the outline of the table of 102' x 83' with command "L"- specify the strat point , then draw 83 in + y direction -102' in + x direction 83' downwards and close.
- Draw the columns by offset command "O" with a distance of 10' ,32',60' respectively from the left side.
- Create the rows by offseting distance of 3' ,5' and 3' from the top side for the headings.
-Trim off the unwanted lines.
Insering heading texts:

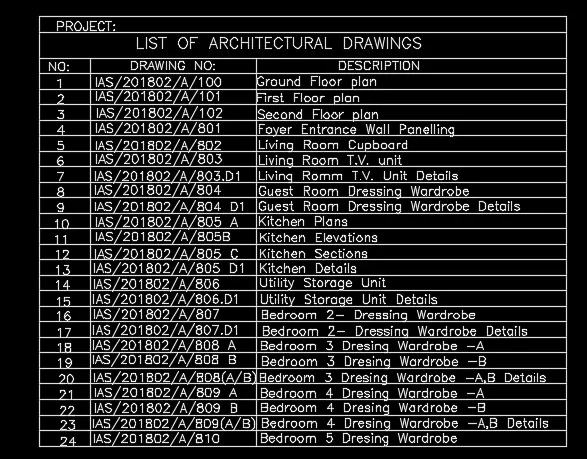

- With multiline option from the text drop down menu ,create a text box in the 1st row and type" project" with text height 1'-8" and style as romans .shx
- In the 2nd row ,using multiline text type " LIST OF ARCHITECTURAL DRAWING" with text height of 2'-1" and same style.
- In 3rd row type "NO: ,"DRAWING NO:" ,DESCRIPTION" in respective columns with multiline text of height 1'-8" and same style.
Creating the rows:
-With offset command"O" create rows of height 3' ,offset distance =3'. ,create 24 such rows.
Inserting text:
- Select multiline text and create the text box ,with text height 1'-8" type the data given in each rows and columns.
-In the No: column , type the numbers from 1 to 24
- In Drawing no: column type the first entity ,then copy Command"CO" - select the object- seelct "array" ,then enter the number of items in array as 23 ,then click on the point where we need to place the array
- select each text and edit it to the given text.
RESULT: The list of drawing shedule is created.
5.BEAM DETAIL:
Aim : To draw the beam detail
Procedure:

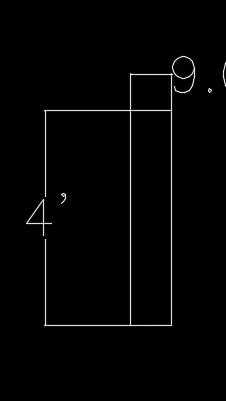

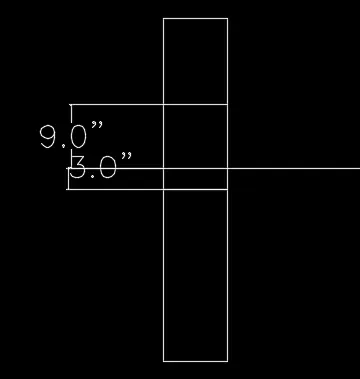

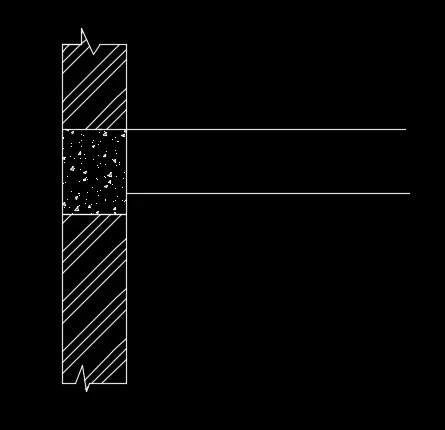

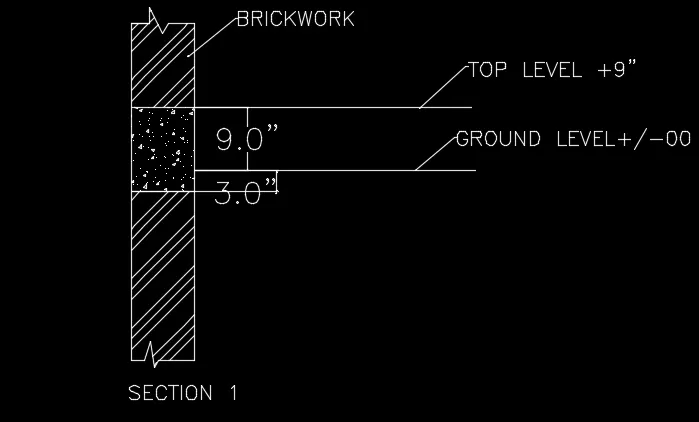

- Draw cross-section of beam with height 4' and thickness 9" ( wall thickness)
- With command "L" , draw a line of 4' in + y direction an 9" in + x direction and 4' downwards and close.
- From top give an offset of 9" ,which marks the ground level, Command "O" - select the top portion -give the offset distance as 9" and extend the grould level line.
- Then give an offset of 3" from 9" line Command "O"- select the 9" line - give offset distance as 3" ,which indicate the bottom level of concrete.
- Hatch the portion of brick and concrete and trim off the line of ground level from the cross-section of the beam.
Inserting text:
- Select multi learder from annotate tab and write the text with text height of 2"
- Type the text " TOP LEVEL +9" " at the top of 9" line ,type "GROUND LEVEL +/00 " at the 3" ground line
- Type "BRICKWORK" indicating the part of brickwork using multileader.
- With multiline text from the text dropdown type "SECTION 1" at bottom of the figure at 2" height.
RESULT: The beam detail is drawn
