Assignment 5-RADIOSS Interfaces & Study of Effect of Notches Challenge
Aim:
1)Create 2D mesh for Bumper Assembly.
2)Run Simulation with 6 cases on changes into Interfaces and different Notching conditions and Boundry condition

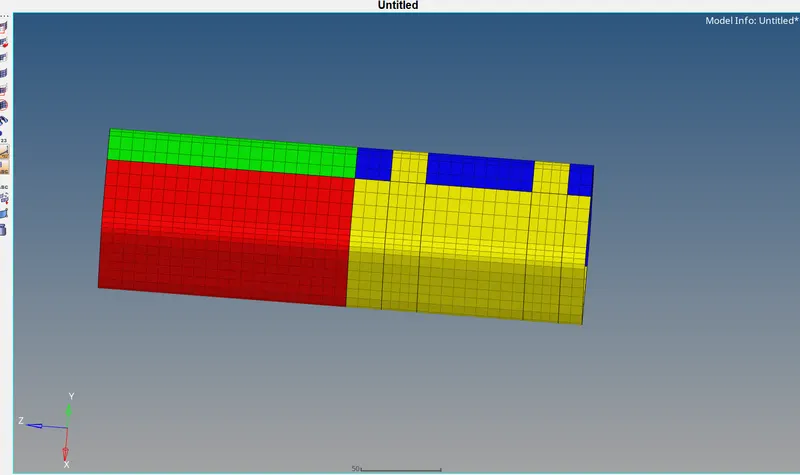

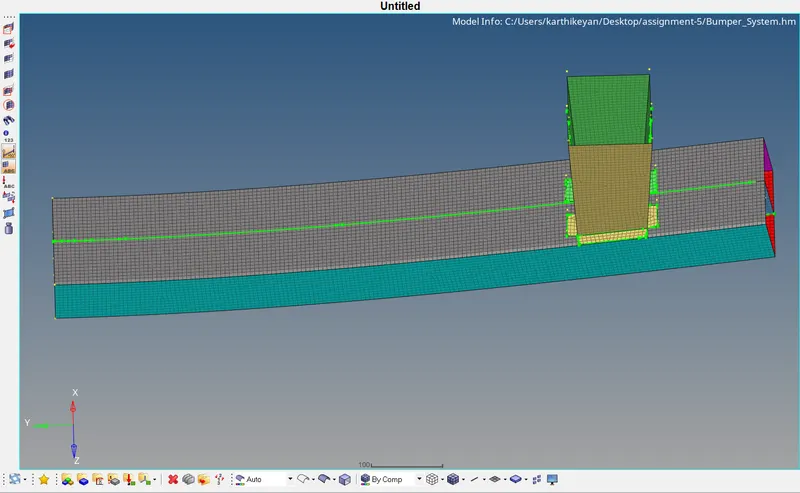

1)2D Mesh -Bumper Assembly
Model HM file attached.
Simulation Cases:
Case1:
Run The crash Tube Model As it is:
Contact Force:

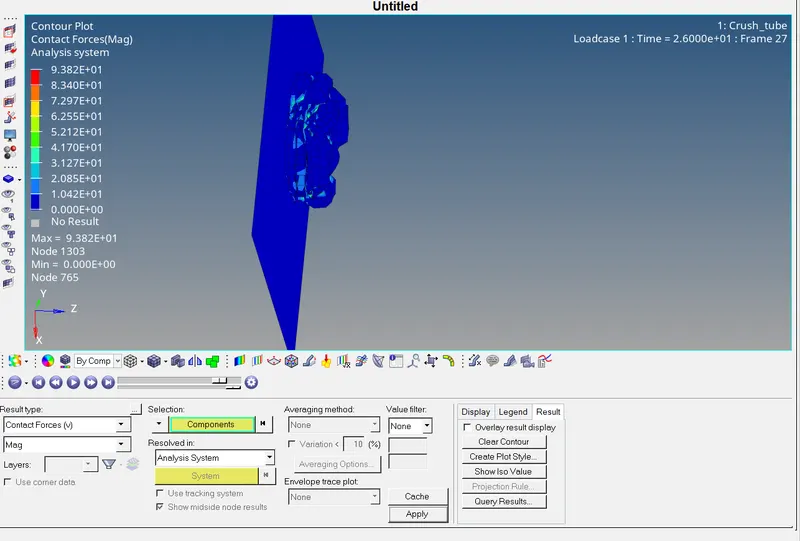

Maxmim contact force:98.3KN

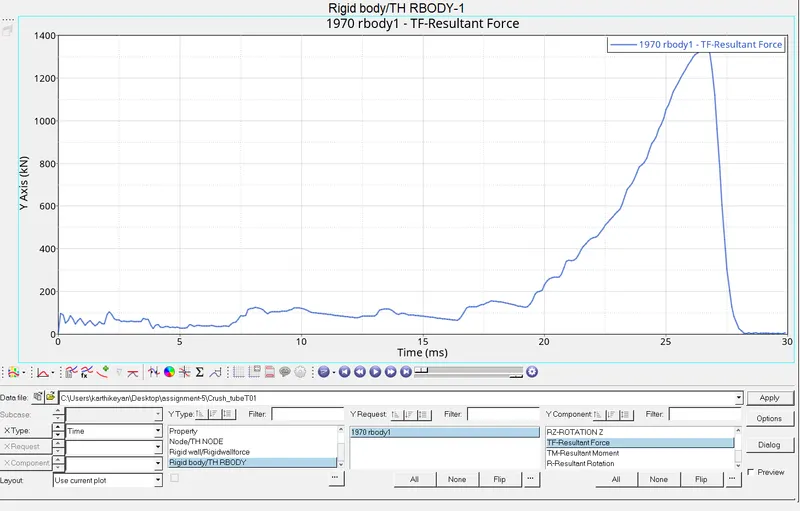

Rigidwall Force:
The Maximum RW force is 1350KN occured at 27ms
Internal Energy:
The internal Energy attained maximum of 42.5KJ at 26ms
Case2:

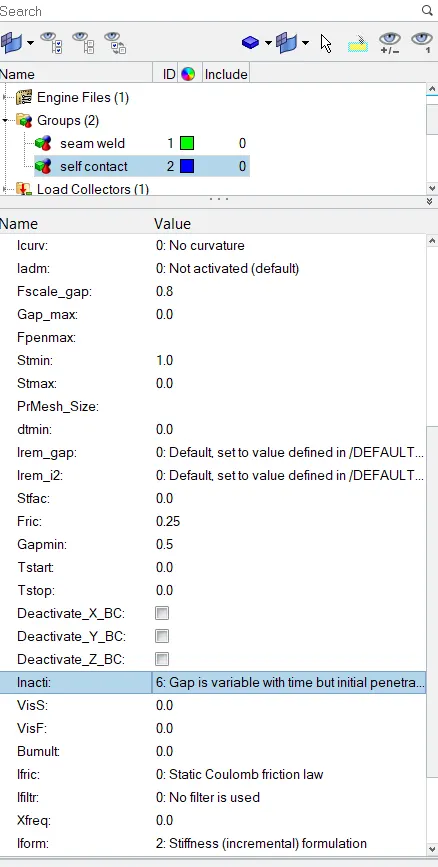

Change Inacti into 6 and run simulation
Iacti setting:4

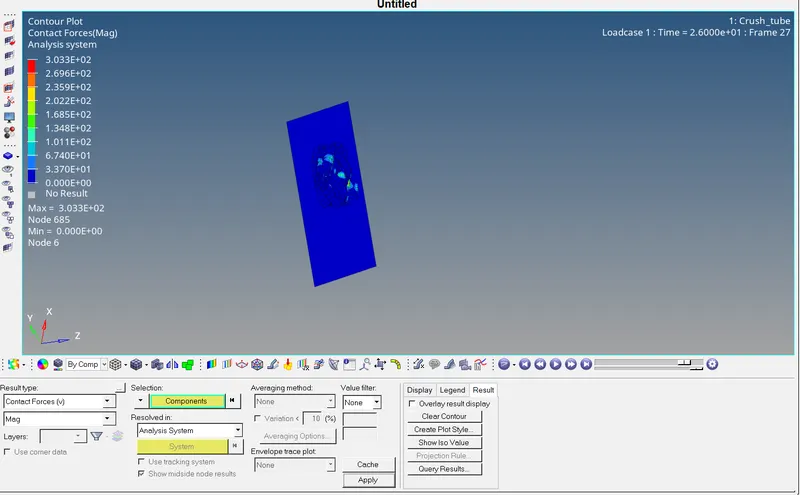

Contact force:
Contact force max:303.3KN
RW force:
Rw force max:1500KN at 26ms
Internal energy:
The internal Energy attained maximum of 42.5KJ at 26ms
Case3:

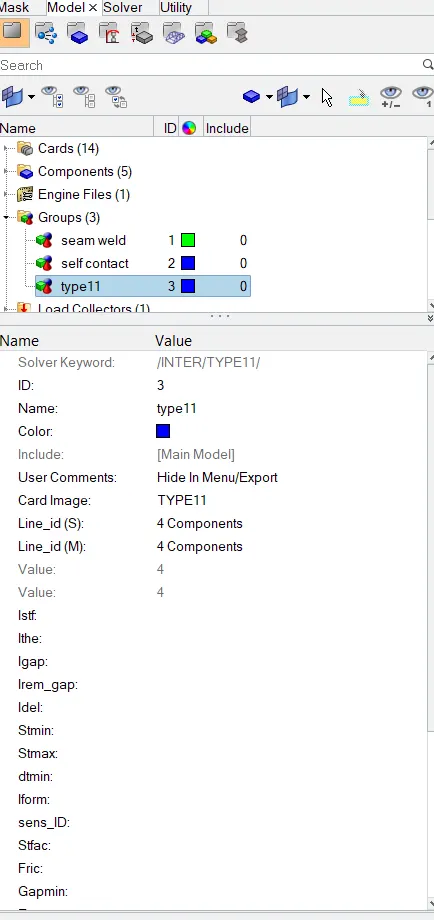

Create Interface of type 11 and Run simulation
Type11 setting:
Contact force:

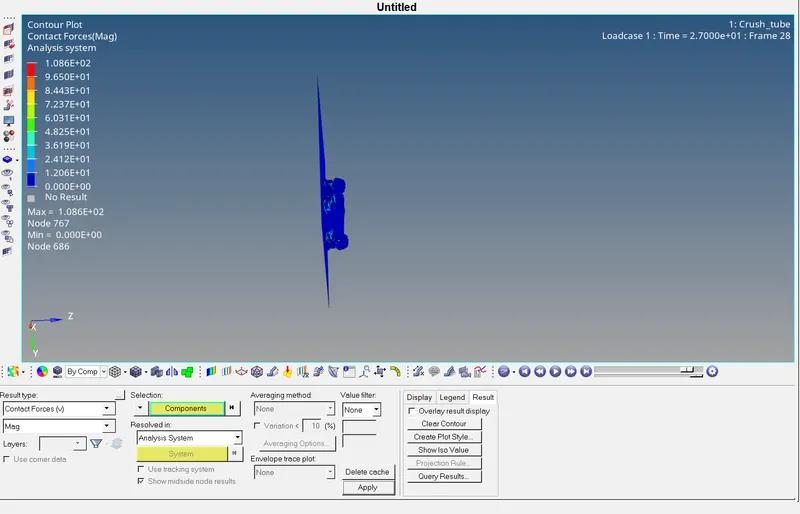

Contact force max:108.6KN

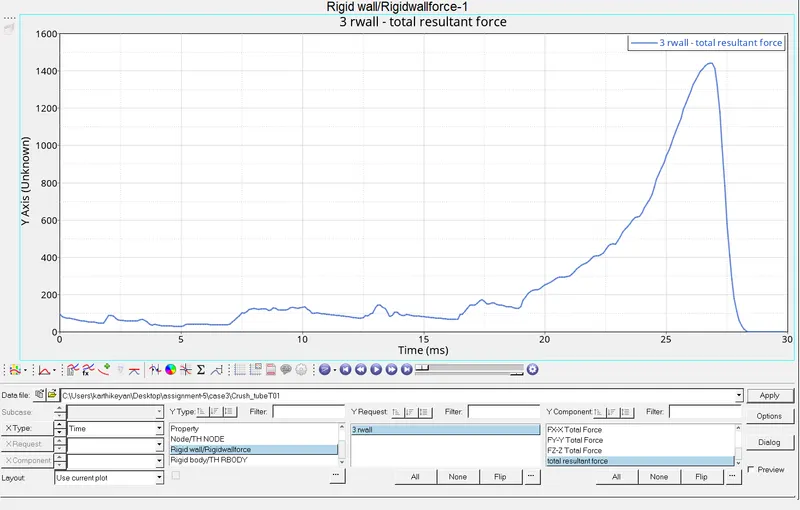

RW force:
RW force max:1450KN at 27ms
Internal Energy:
The internal Energy attained maximum of 42.5KJ at 26ms
Case4:
Remove notches and Boundry conditions then run simulation
Contact force:
Contact force max:64.5KN

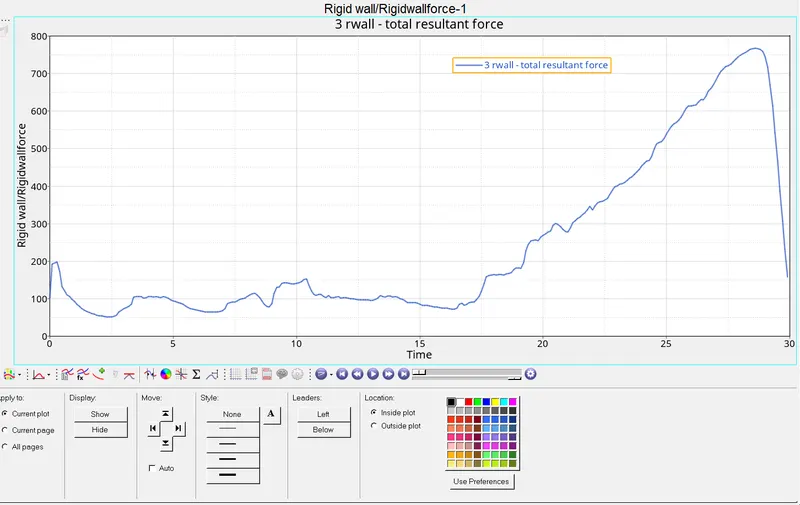

RW force:
RW force max:753KN @ 29ms

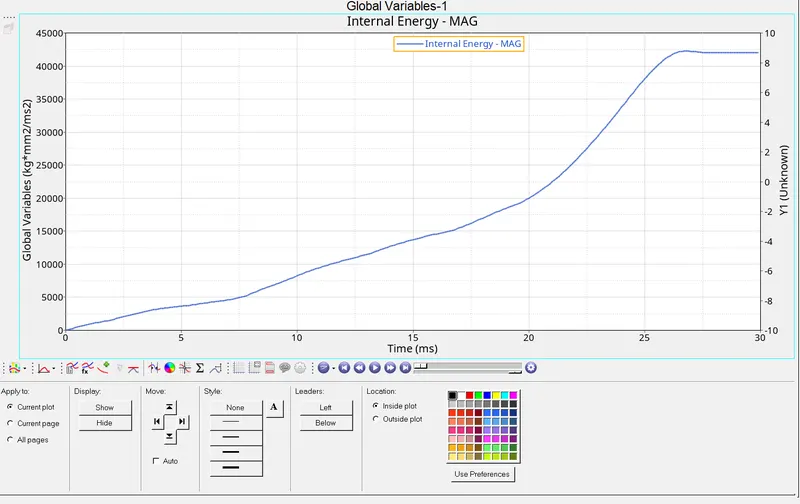

Internal Energy:
The internal Energy attained maximum of 42.5KJ at 28ms
Case5:

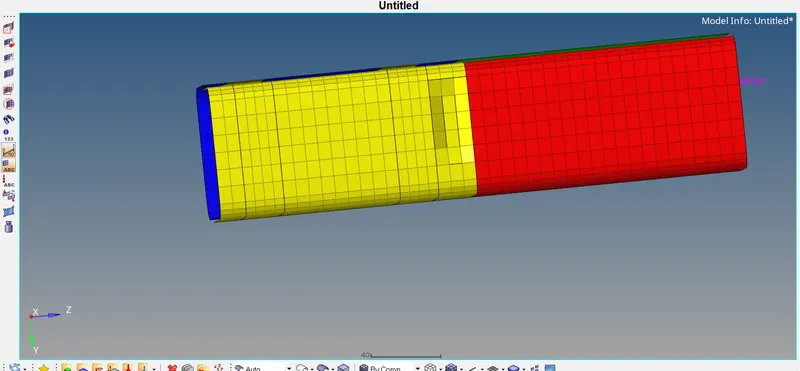

Create new Notch at Middle and run simulation:
Contact force:

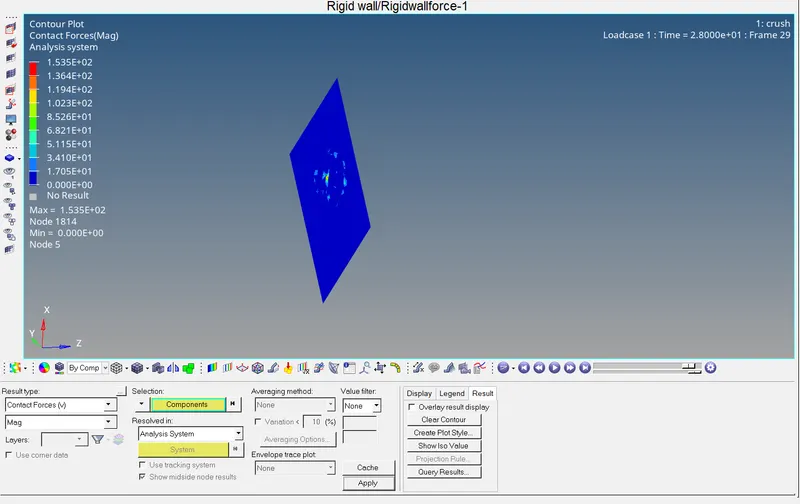

Contact force max:153.5KN

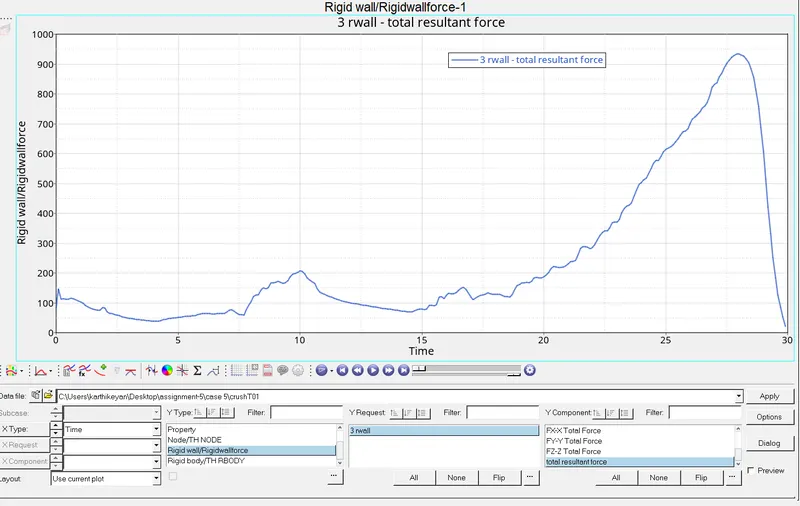

RW force:
RW force max:940KN at 28ms

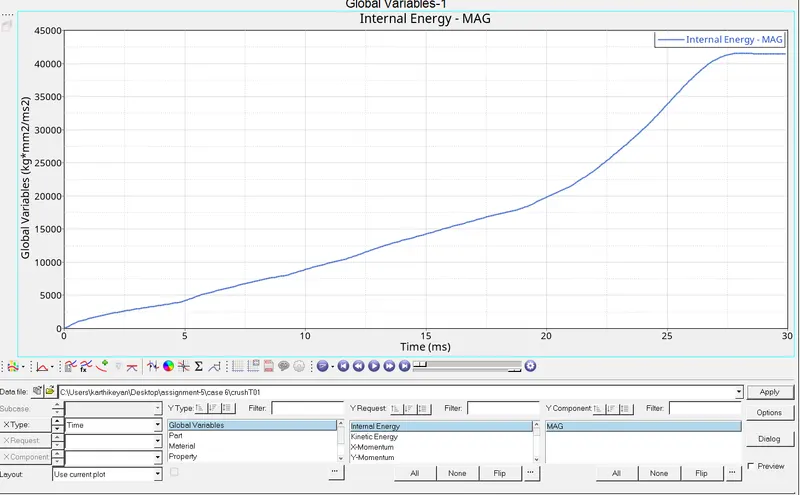

Internal Energy
The internal Energy attained maximum of 42.5KJ at 28ms
Case6:

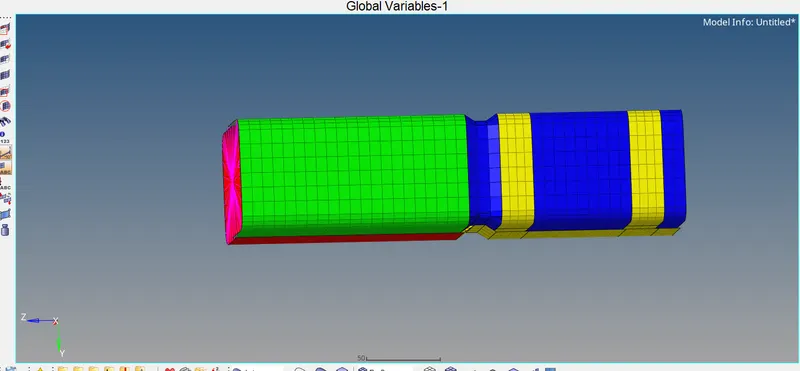

Create New notche of nodes from Opposing faces and Run simulation

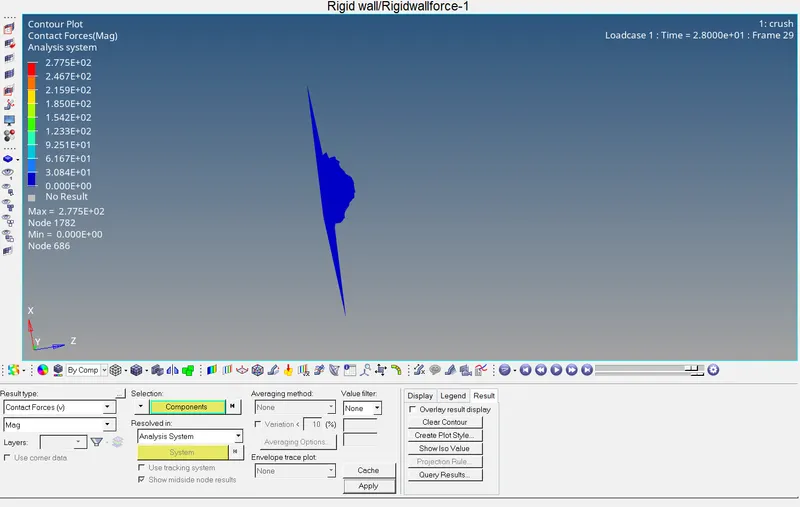

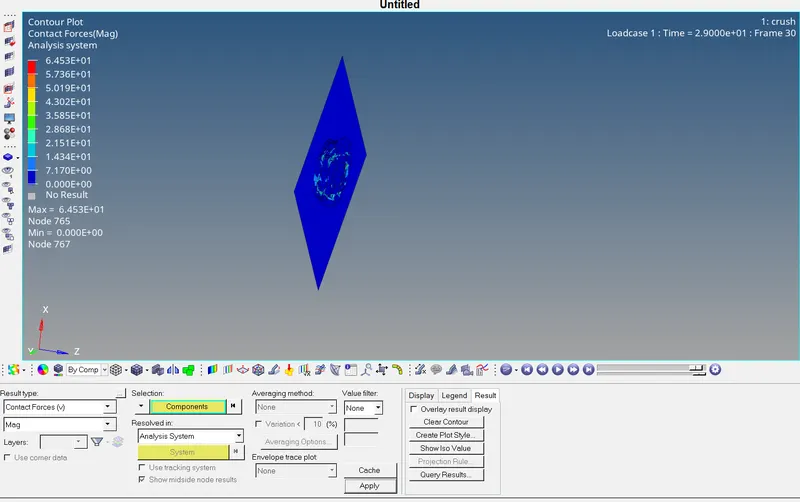

Contact force:
Max contact force:277.KN

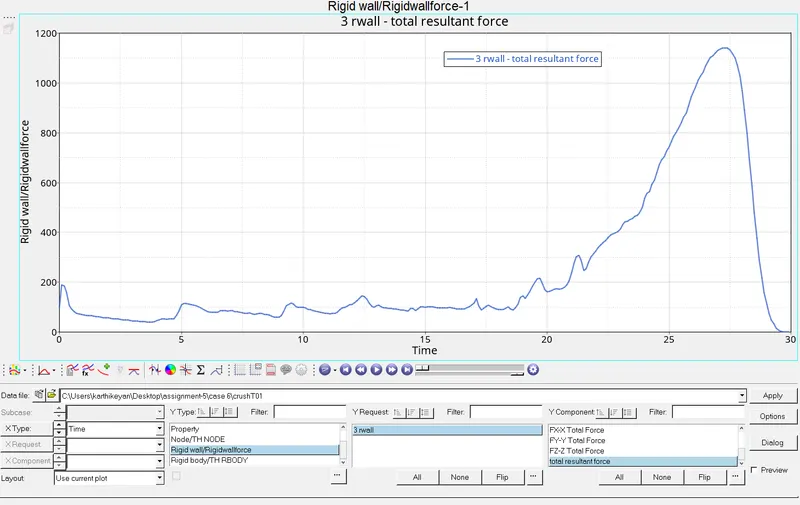

RW force:
RW force max :1150KN at 27ms

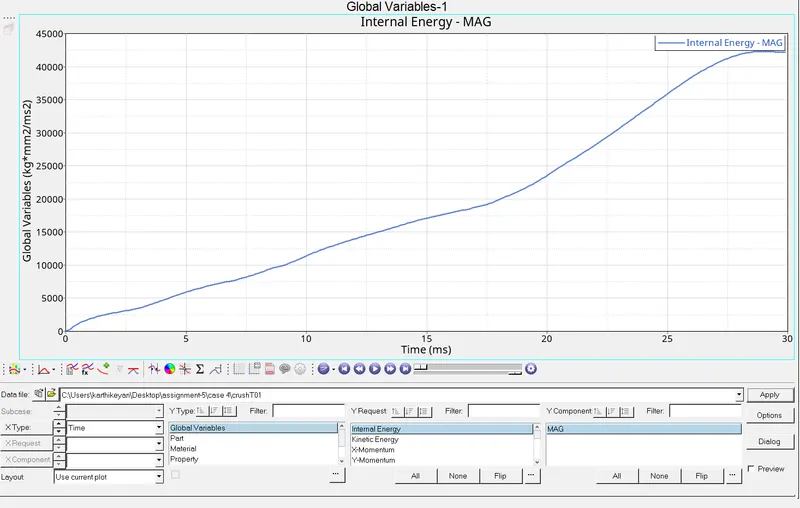

Internal Energy:
The Max Internal energy:42.5KJ at 27.5ms
Comparison:
Comparison of RW forces, Internal Energy and Contact forces for all cases
|
Cases |
RW forces |
Contact forces |
Internal energy |
|
Case1 |
1350KN |
93.8KN |
42.5KJ |
|
Case2 |
1500KN |
303.3KN |
42.5KJ |
|
Case3 |
1450KN |
108.6KN |
42.5KJ |
|
Case4 |
753KN |
64.5KN |
42.5KJ |
|
Case5 |
940KN |
153.5KN |
42.5KJ |
|
Case6 |
1150KN |
277.5KN |
42.5KJ |
