Assignment 2-RADIOSS Engine File Editing & 3D Meshing Challenge

TO PERFORM DATA ANALYSIS OF RADIOS FILE

1. Check the material properties of the rail component and calculate the speed of sound in steel rail = 5188.7m/s

2. The length of the rail is about 1000 mm.calculate the time takes for a shock wave to travel from one end of the rail to the other.

0.1m/s

3.Time for sound to travel length of rail = 0.1m/s

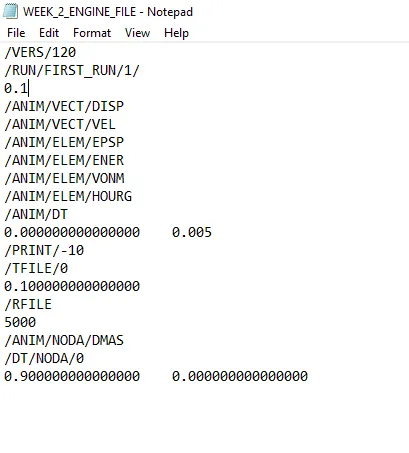

4./RUN

5./ANIM/DT

CONCLUSION :

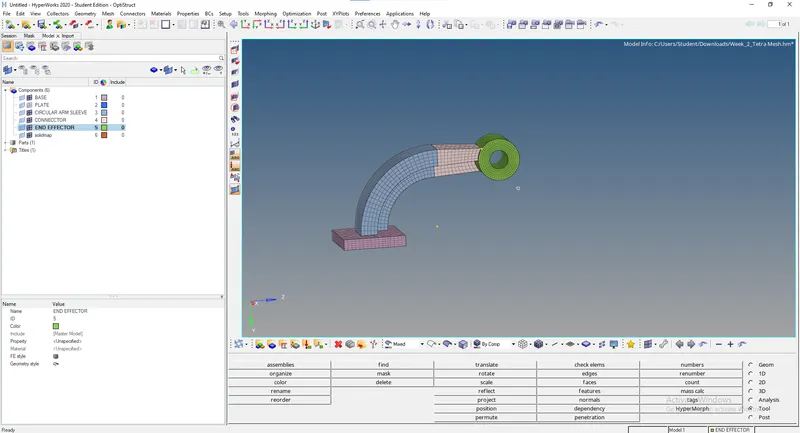

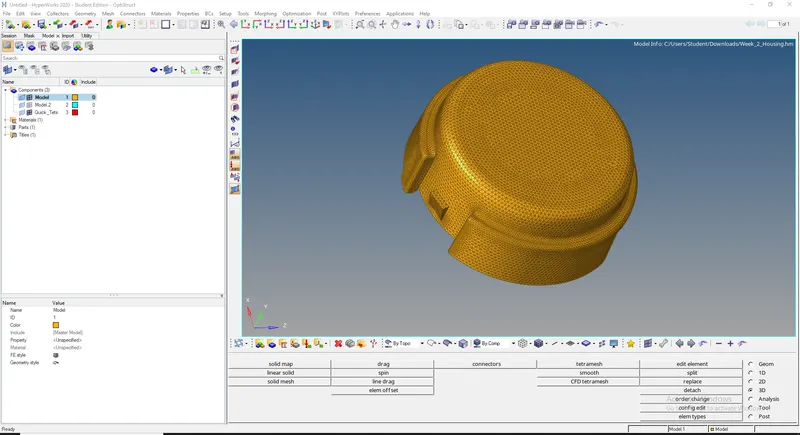

• Learned the concept behind tetramesh > tet collapse .
• Learned How to solve Errors of tet collapse .
• Learned Basic program engine file .
