Assignment 1-2D Meshing Challenge
AIM : To Mesh the given designed parts .
OBJECTIVES :
- Clean the geometry.
- Extract midsurface.
- Clean midsurface geometry.
- Ignore holes less than dia 5mm.
- Create 2D mesh with target length 5mm, min 3.5mm max 7mm.
- And assign proper thickness, by creating a generic property.
PROCEDURE :

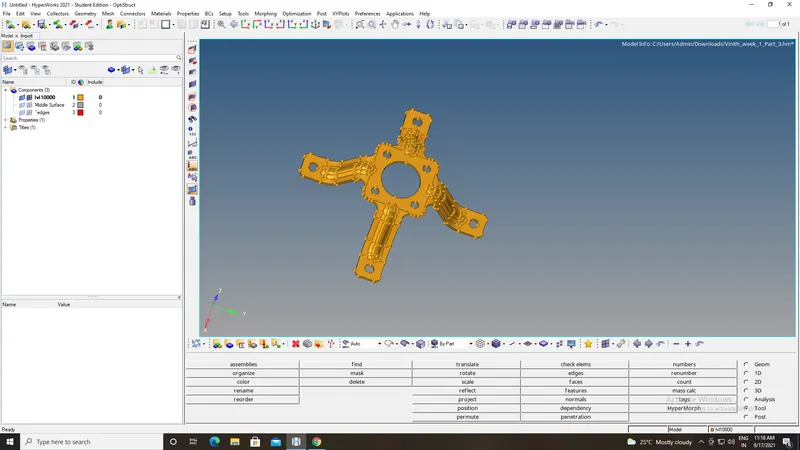

- PART - 1

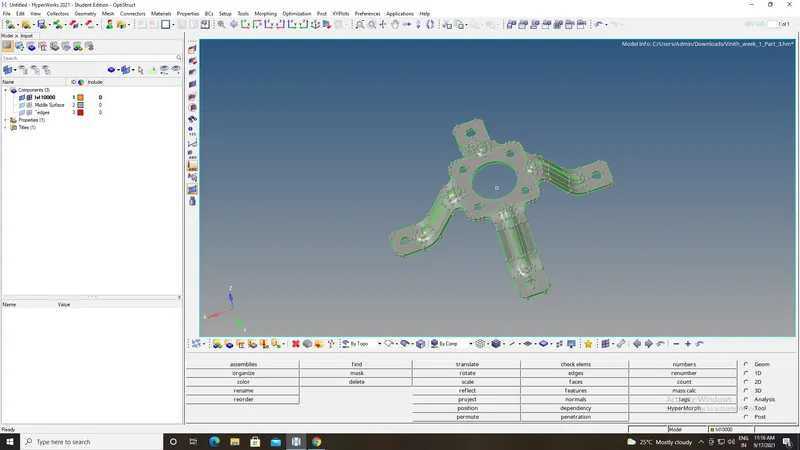

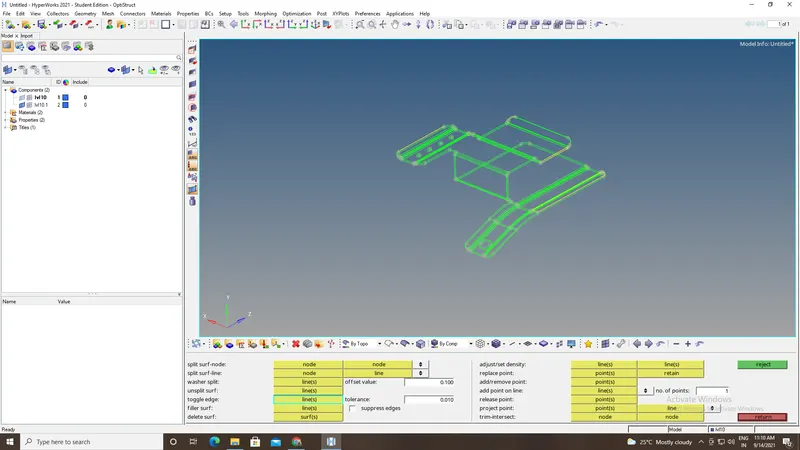

Cleaning the geometry and free from unwanted edges and nodes.
USING : quick edit(F11)

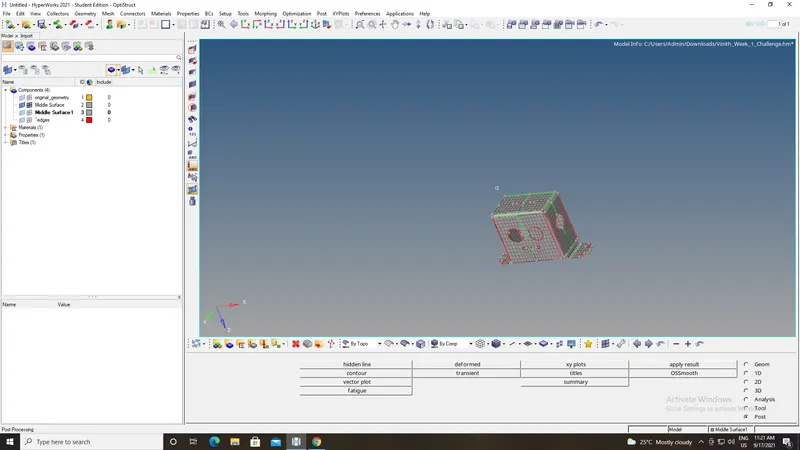

Extracting the midsurface and ready to mesh
USING : geom > midsurface

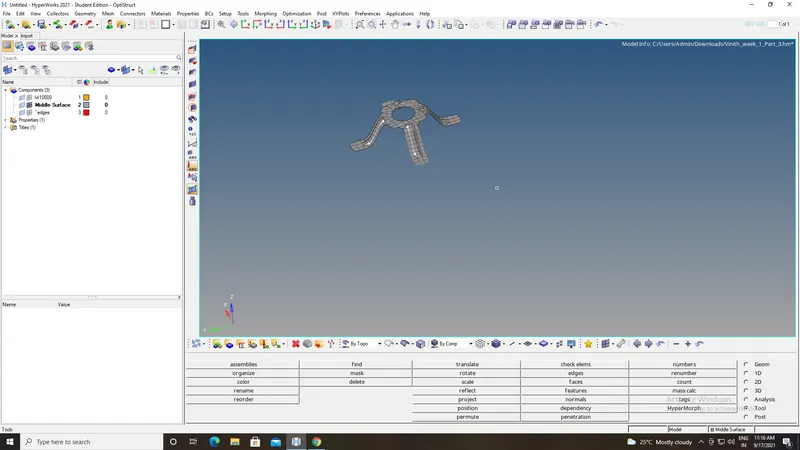

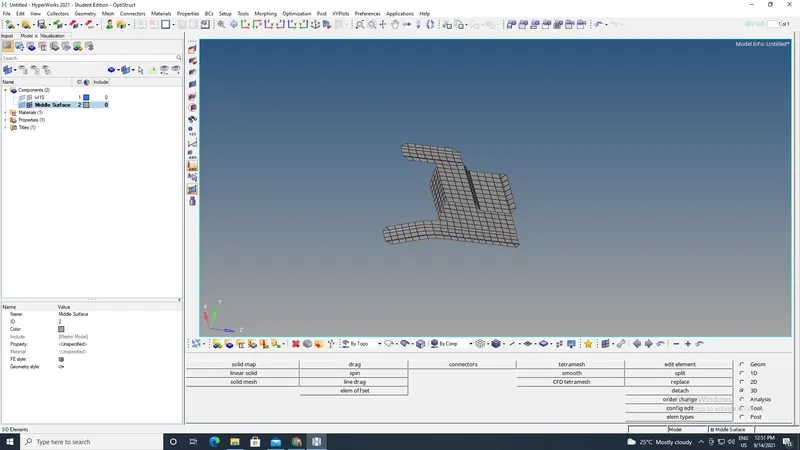

Completely meshed part file
USING : F12( Surface )

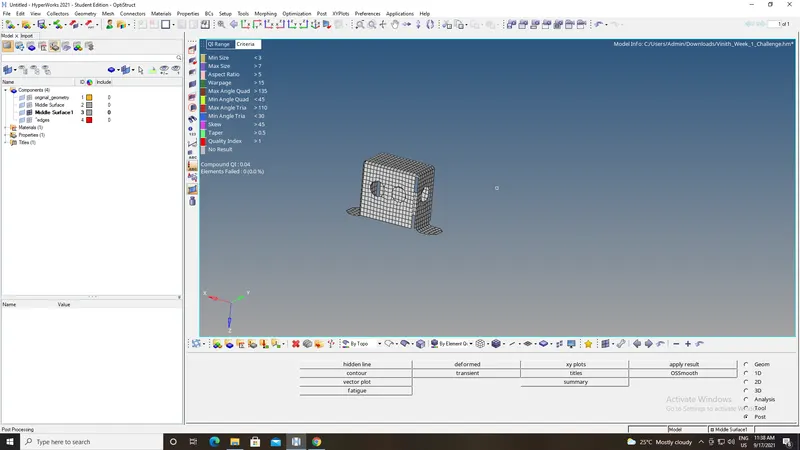

Element Quality check
USING : Tool > quality index
PART -2

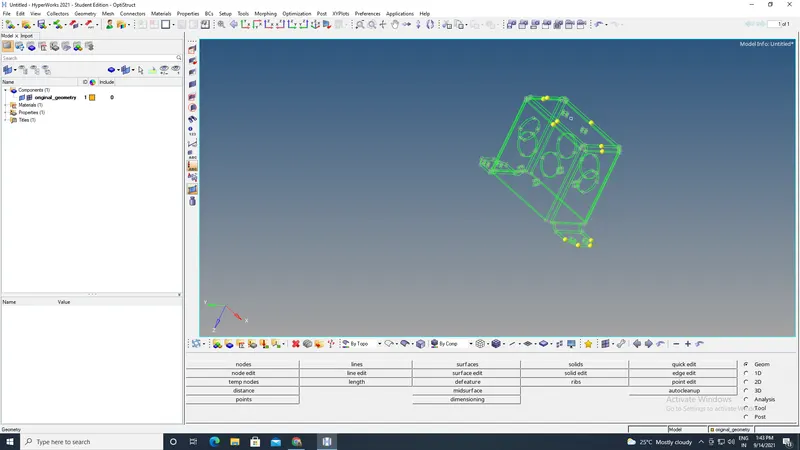

Given Part file
Cleaning the geometry and free from unwanted edges and nodes.
USING : quick edit(F11)
Extracting the midsurface and ready to mesh
USING : geom > midsurface

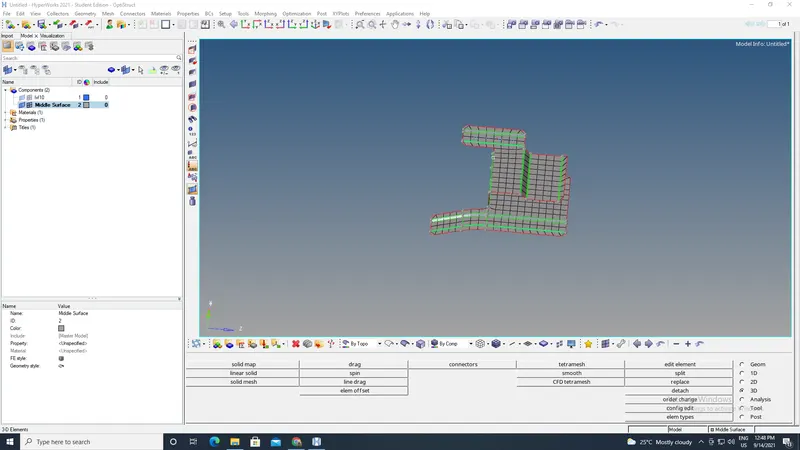

Completely meshed part file
USING : F12( Surface )

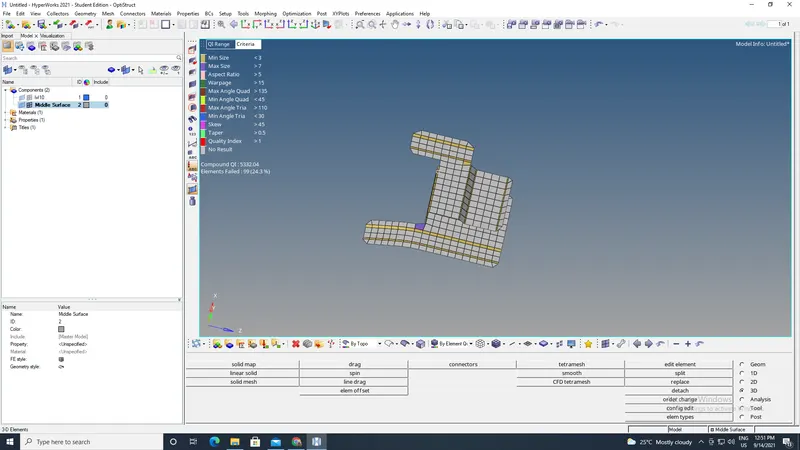

Element Quality check
USING : Tool > quality index
PART - 3

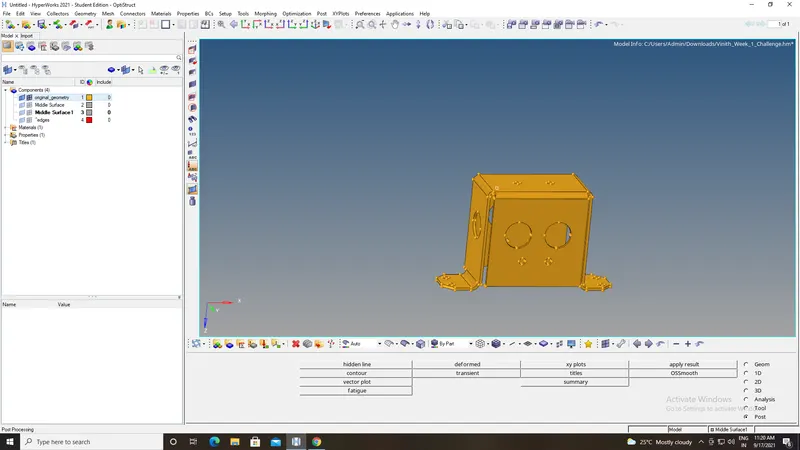

Given Part file
Extracting the midsurface and ready to mesh
USING : quick edit(F11)

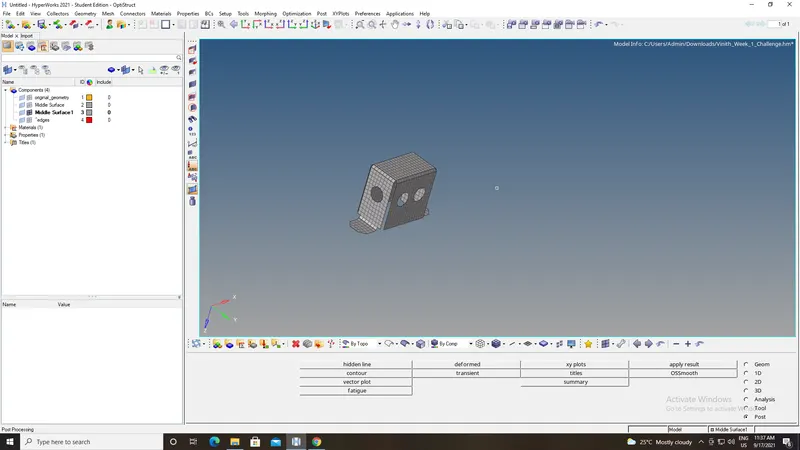

Completely meshed part file
USING : F12( Surface )
