Objective ;

To perform geometry clean up and and mesh the modal with given quality criteria

CAD MODAL:

PART 1 PART 2

Procedure:

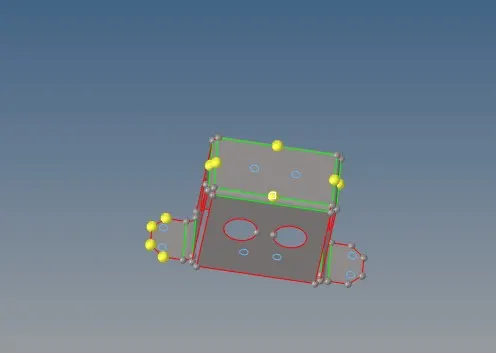

1. perform geometry clean up on the given model ,check the cad surface with only manifold edges and no free edges and non manifold edges.


2.

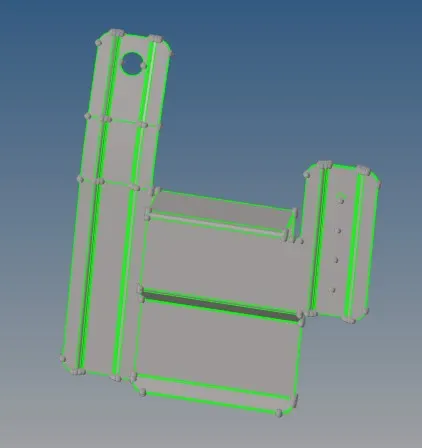

3. pic of model after clearing deformations
4.

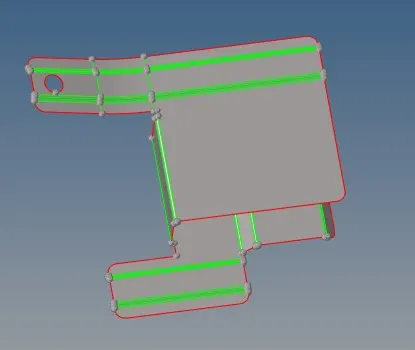

5. Extract midsurface for given cad model
6.


7. Remove all the holes less than 5 mm

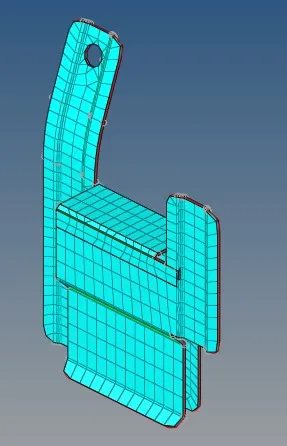

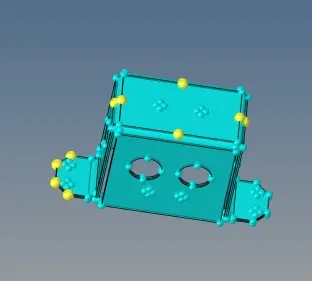

8. Then perform meshing operation by setting element size as 5 and type as quad.

RESULT

1. Assign property as thickness of the modal
