Assignment 1-2D Meshing Challenge
AIM : GENERATING MESH AS PER GIVEN CRITERIA AND EXACT OF MID SURFACE AND GEOMETRY CLEAN UP
PROCEDURE :
>First import the given model
>GEOMETRY CLEAN UP :

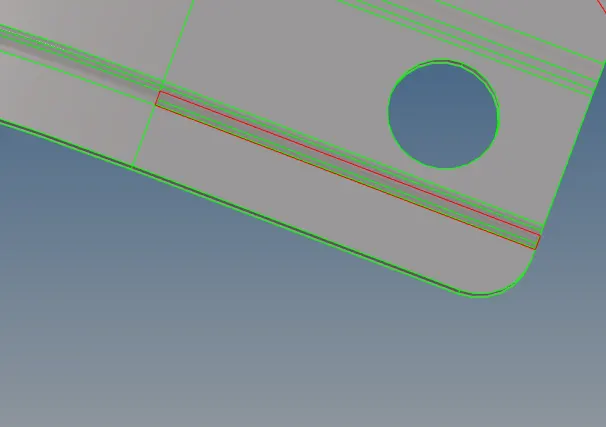

- View midsurface and correct errors using the mid surface edits options such as of Geometry :(Quik Edit)
- Importing the geometry component
- Generating midsurface
- Simplifying geometry
- Refining topology to achieve a quality mesh
> The given component of models are :
- Practice
- Clip Repair
- Mounting Bracket
>(1) given model practice
>GEMENTARY CLEAN UP :
>The gomentary clean up with using of hypermesh(QUICK EDIT F(11)

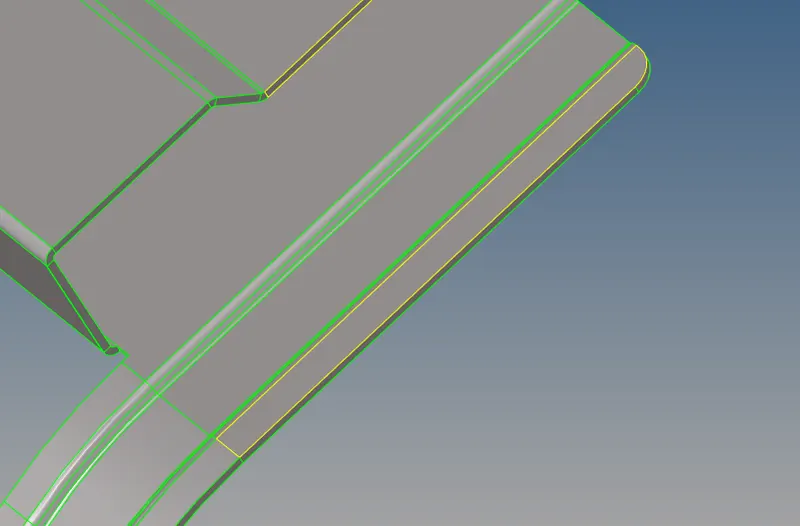

> THE Three layers of surface joining its an bule colour indicates

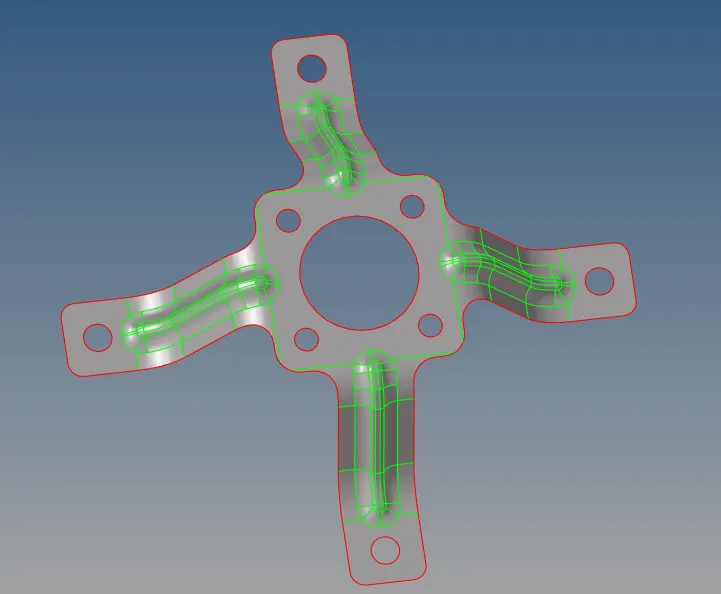

>EXTRACT OF THE MIDSURFACE OF PRACTICE MODEL :

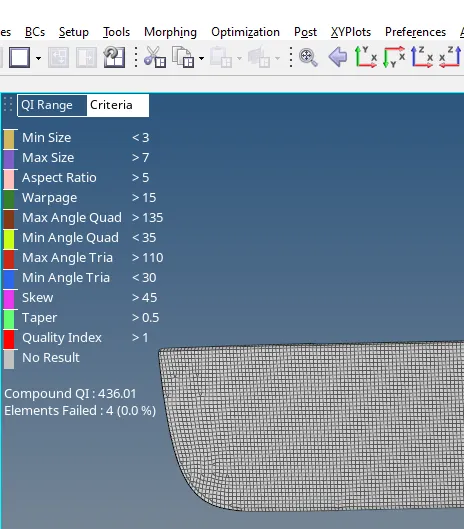

>AS per quality criteria given dimensional values
>miminmum size - 3.5
>maximum size - 7
>Target element length - 5
>GENARETING OF MESH(F12) :
>Automesh pannel where option of meshing

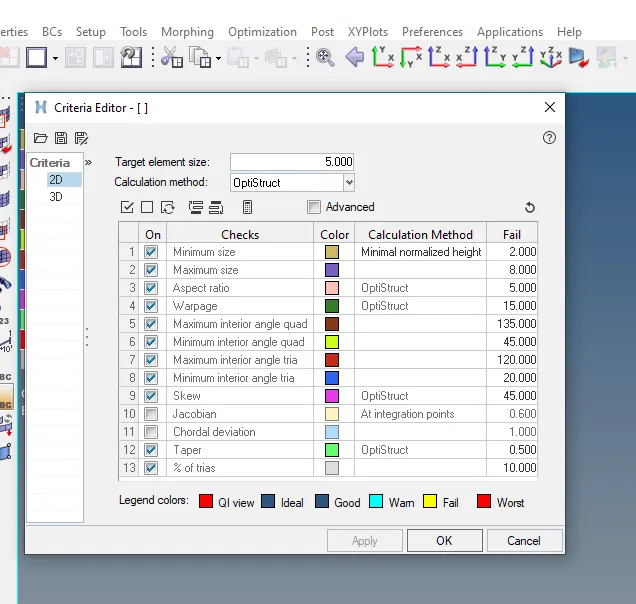

>Fitted into values in above of display (preference- criteria file setting) option
- BY given of above values to meshing the components
- After completing of mid surface exact ,then we go from the mesh the component
- 2D-automesh optionselested-then we go from while surf/elements option of doing the mesh
- shortcut key f12 (mesh)
- And selected of mesh type options
>Fitted into values in above of display (preference- criteria file setting) option:

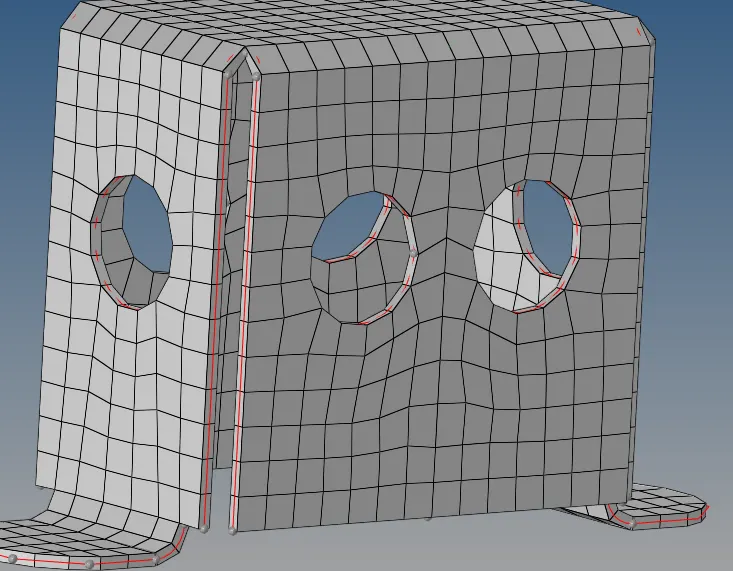

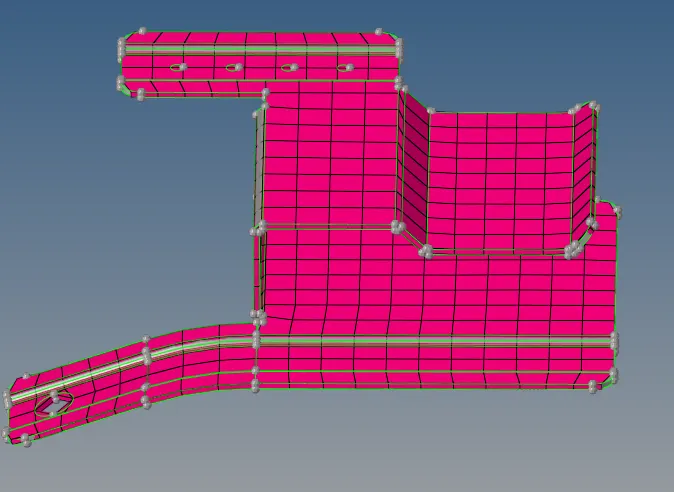

>Final mesh part
>ASSIGNING THE THICKNESS :
>Create property and then assign thickness

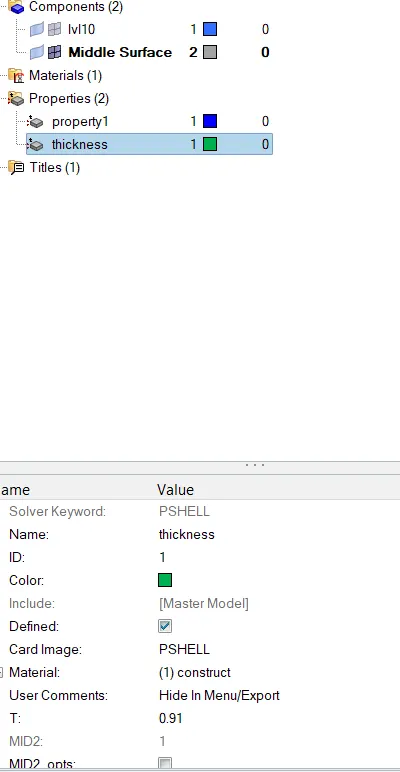

>Measure of thickness value (T = 0.91)
>To view see of assign thickness :
>SECOND MODEL OF CLIP REPAIR ;
>GIVEN MODEl :

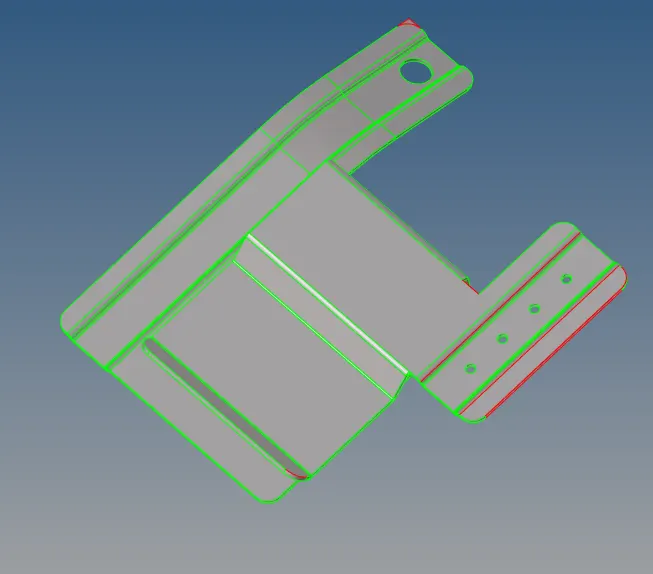

>GEMENTARY CLEAN UP :
>Using with quick eidt pannel

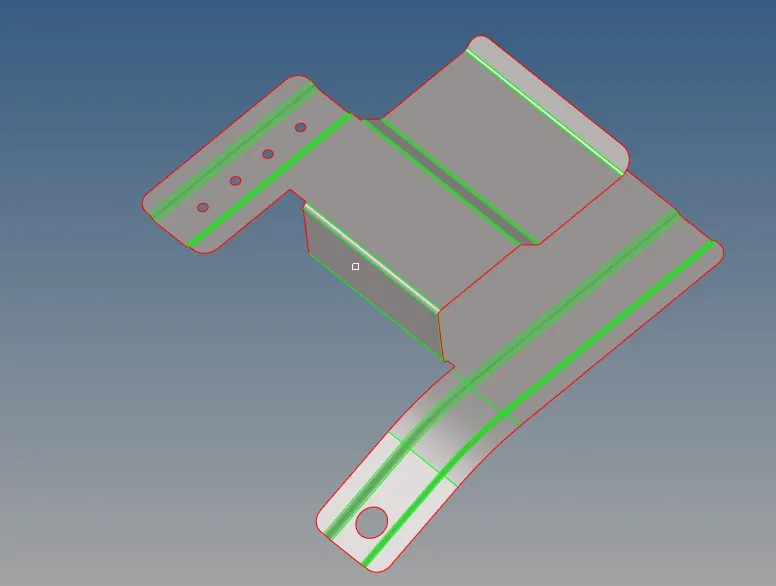

>EXTRACT OF MIDSURFACE :

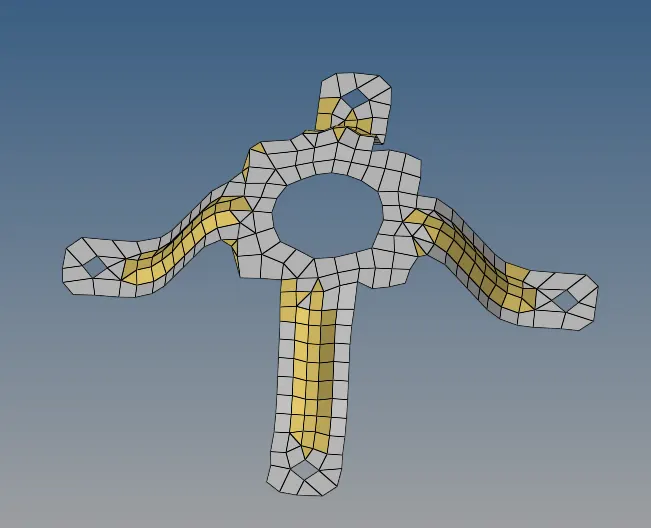

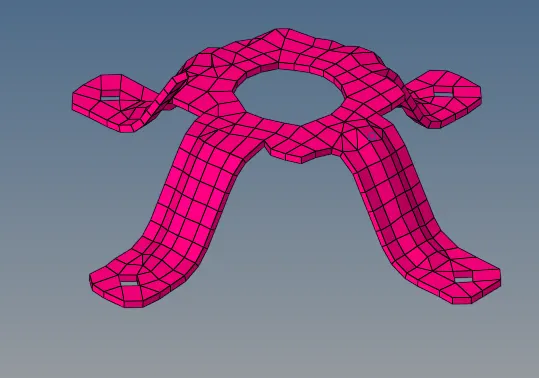

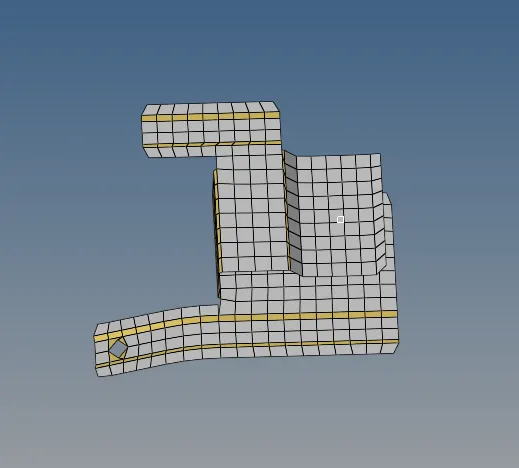

>GENARETING OF MESH ;

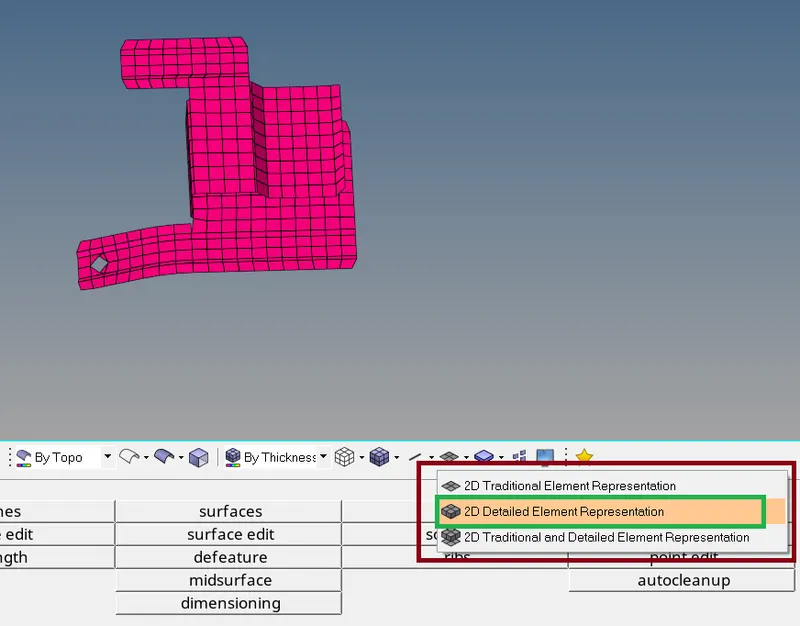

>ASSIGNING OF THICKNESS :

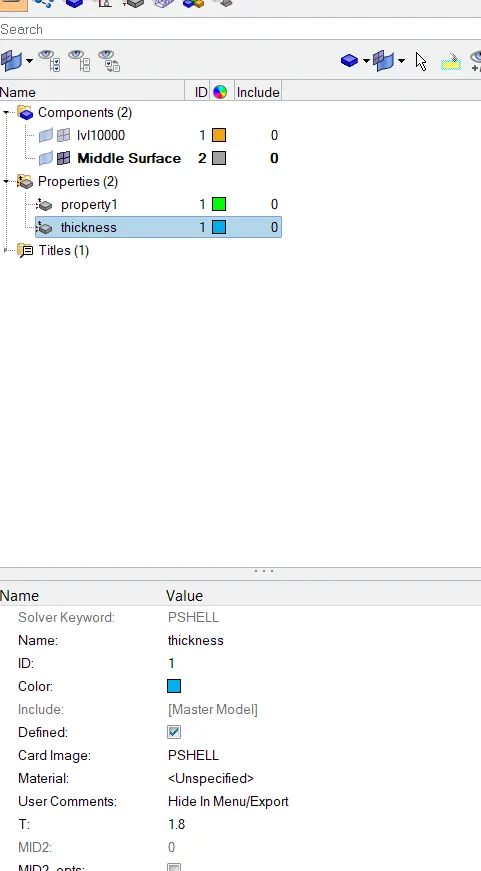

>Create property and apply the thickness
>FINIALLY ASSIGN THICKNESS :
>THIRD MODEL OF MOUNTING BRACKET ;

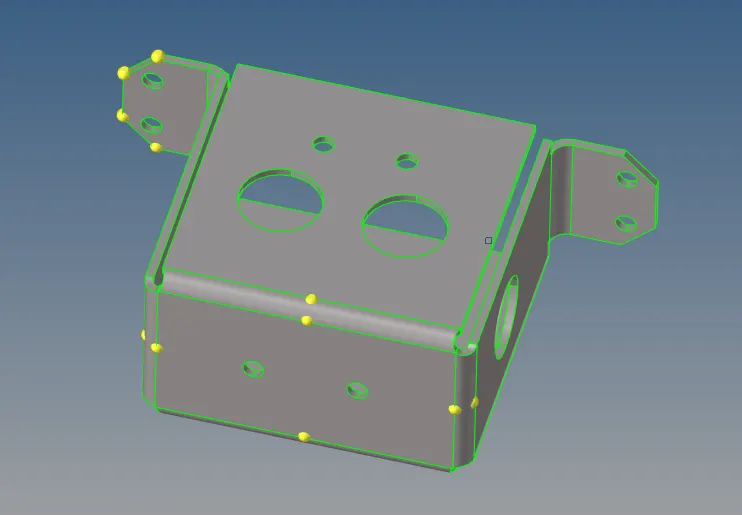

>IMPORT THE MODEL
>GEMENTARY CLEAN UP

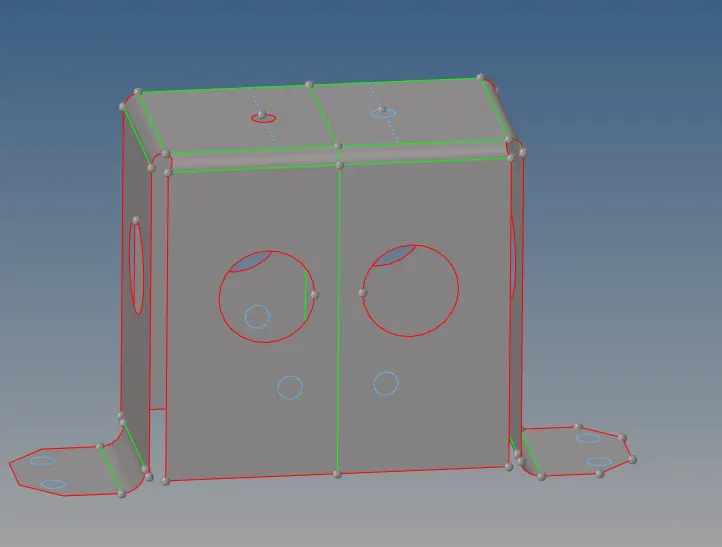

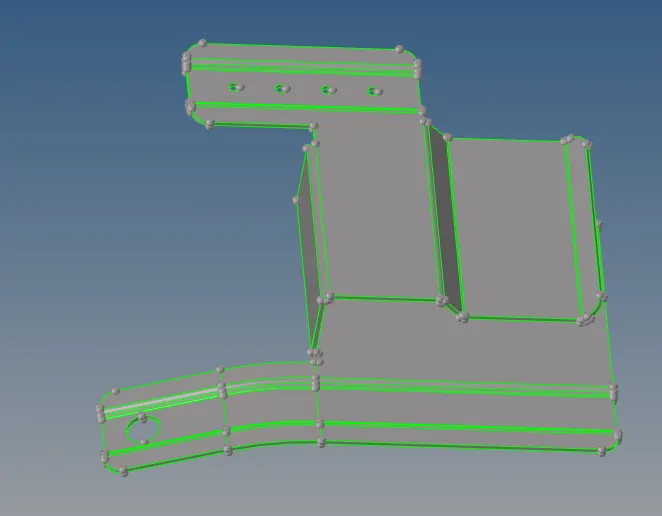

>GIVEN MODEL :

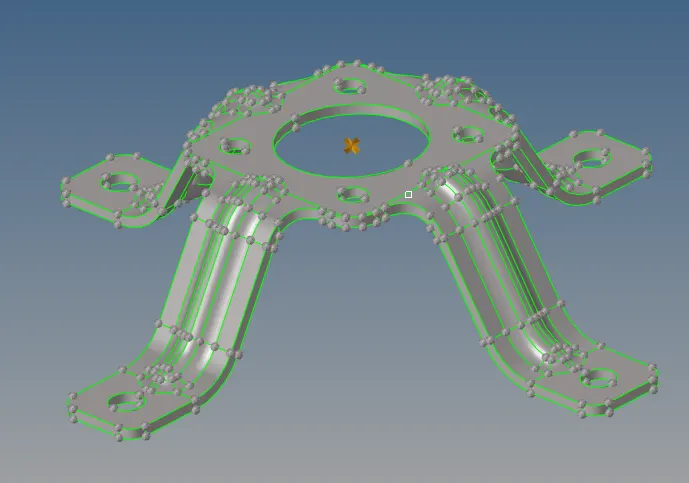

>EXTRACT OF MIDSURFACE OF MOUNTING BRACKET :

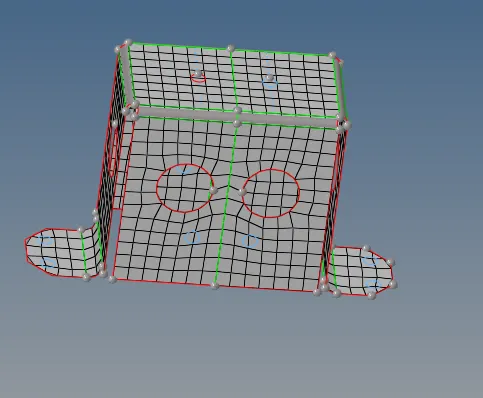

>GENERATING Of MESH :

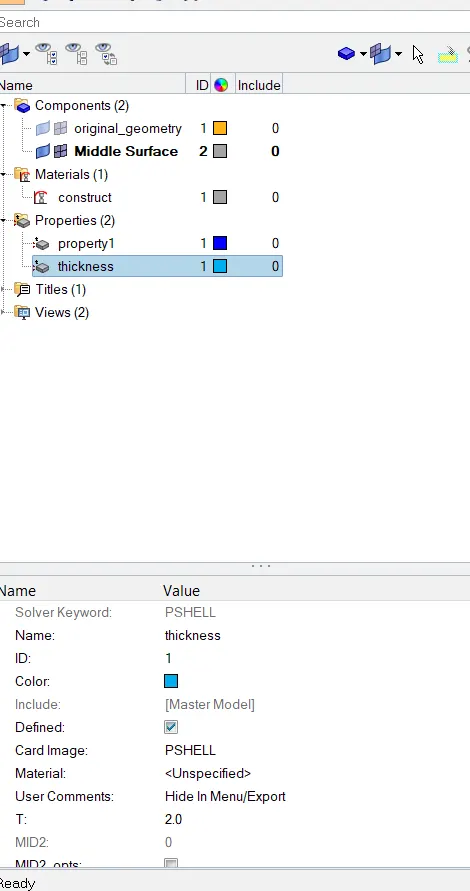

>ASSIGNING OF THICKNESS :
>CONCLUSION :
>Generated midsurface and geometry clean up
>Generated mesh on the given component with low tria concentration
