Assignment 1-2D Meshing Challenge

Report on 2D Meshing Challenge

Aim :- Meshing of 2D Challenge with the given Quality Criteria and assign thickness

For that we have to follow the following steps

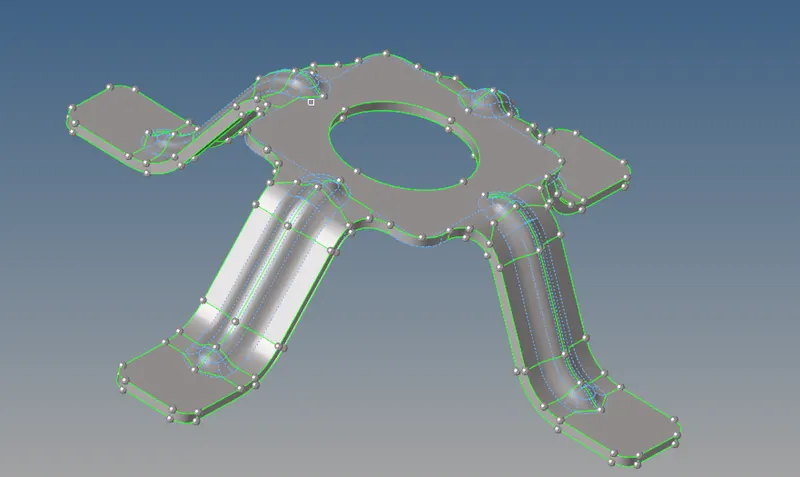

1)First we import the geometry from import solver deck>import geometry>hm format>import

Note:- I had uploaded the pictures for part1, part2,part3 respectively

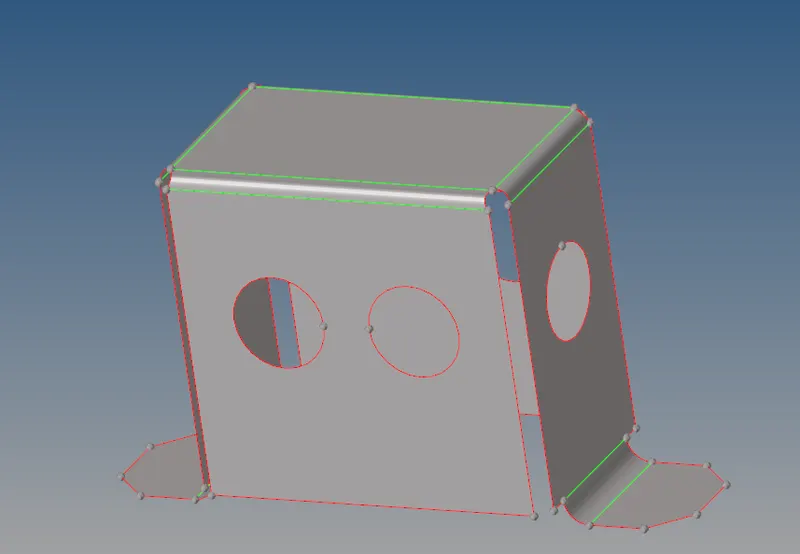

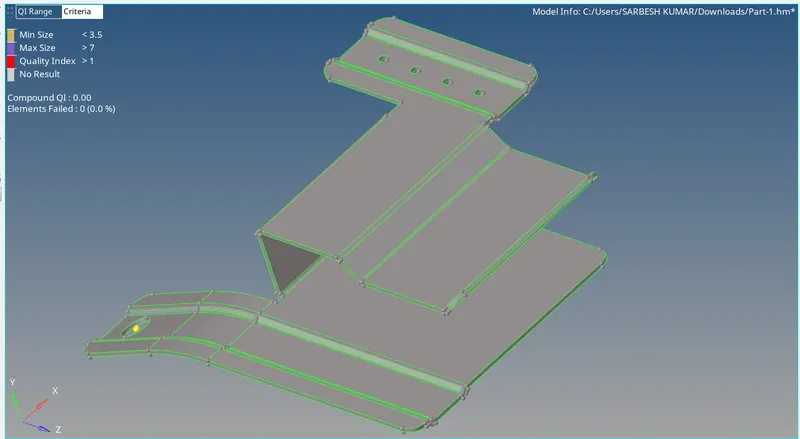

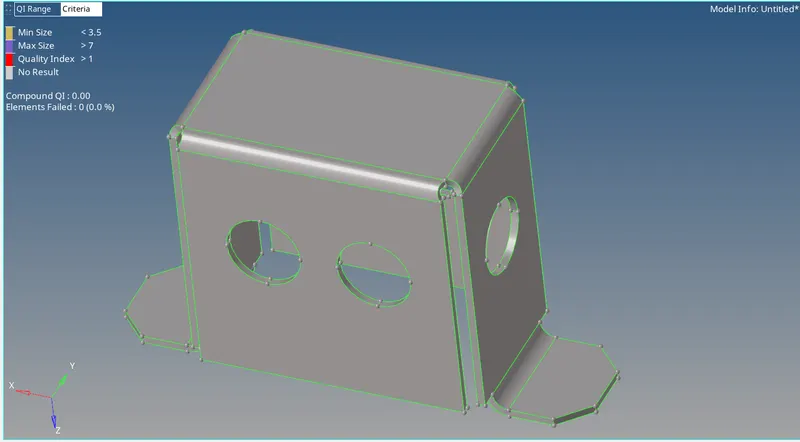

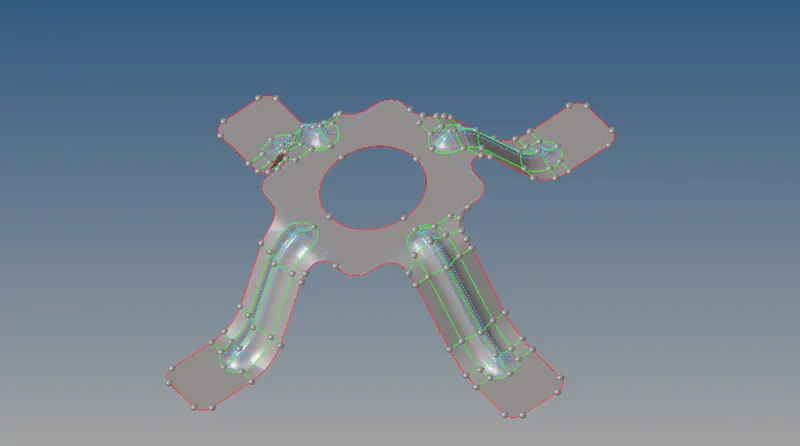

2) First we have to Rectify the Geometrical Errors for that we have to do Autocleanup with the given target element length equals to 5 units and observe the model carefully , check the connectivity and suppress the unnecessary lines and the models should have closed geometry

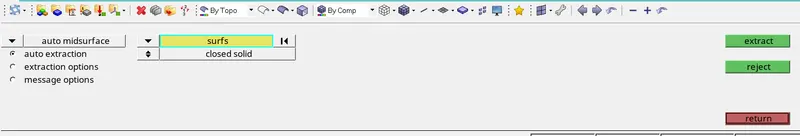

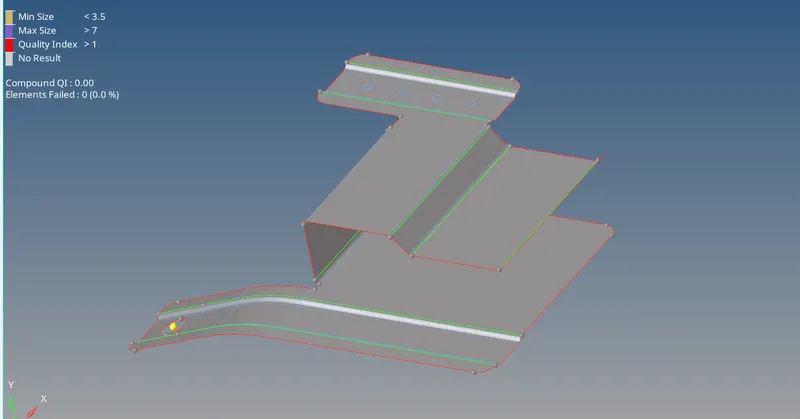

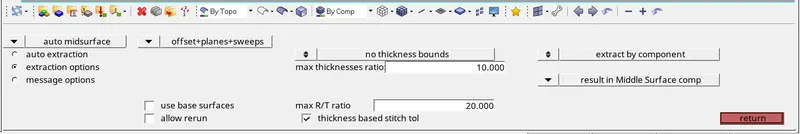

3) Now for mid surface extraction goto midsurface>auto midsurface>extraction option>select offset+plane option>again click on the auto extraction>select all>midle mouse click>mid surface is generated

4) Now compare the mid surface with parent geometry , Here some commands are frequently used like trim option (Geom>surface edit>trim with surface>self intersecting surface), for creating surface (Geom>surfacwe>rule option>select the edges one by one along with middle mouse click), delete surface (quick edit>delete surfs), etc

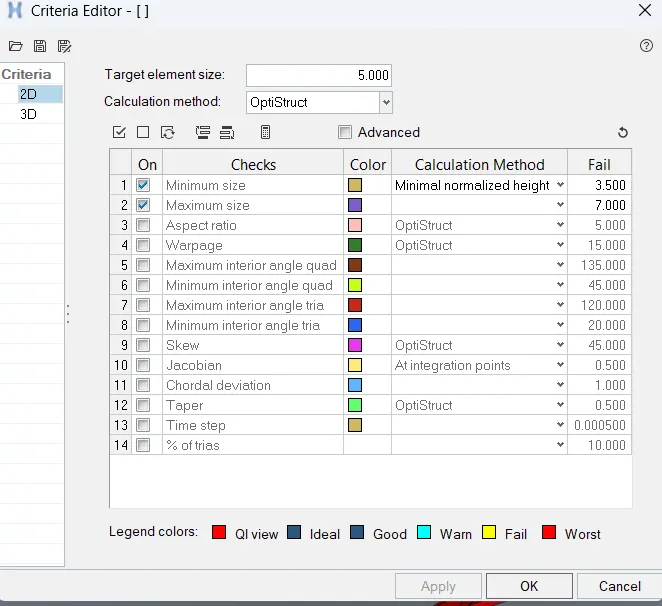

5) Enter the quality criteria goto preferences>criteeria file setting>set the value and click on apply and as well set parameter target element size equal to 5 unit

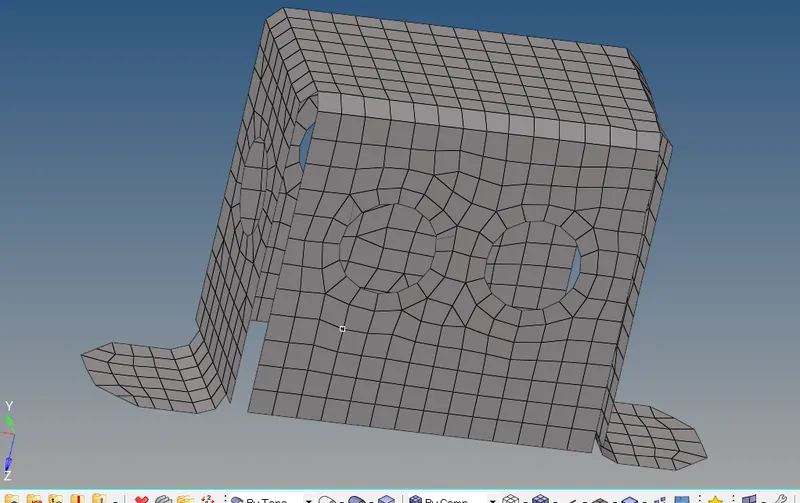

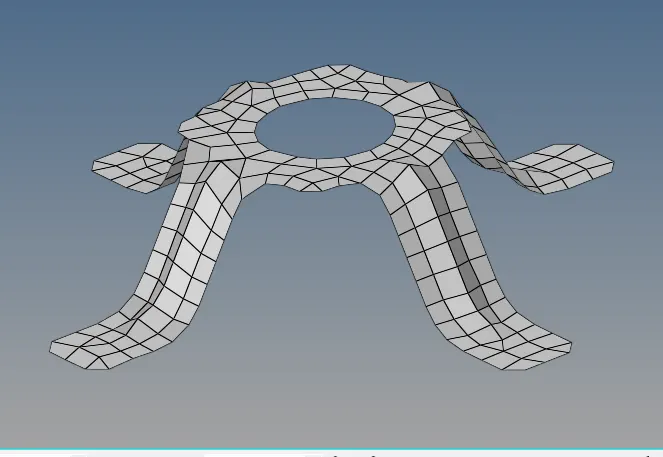

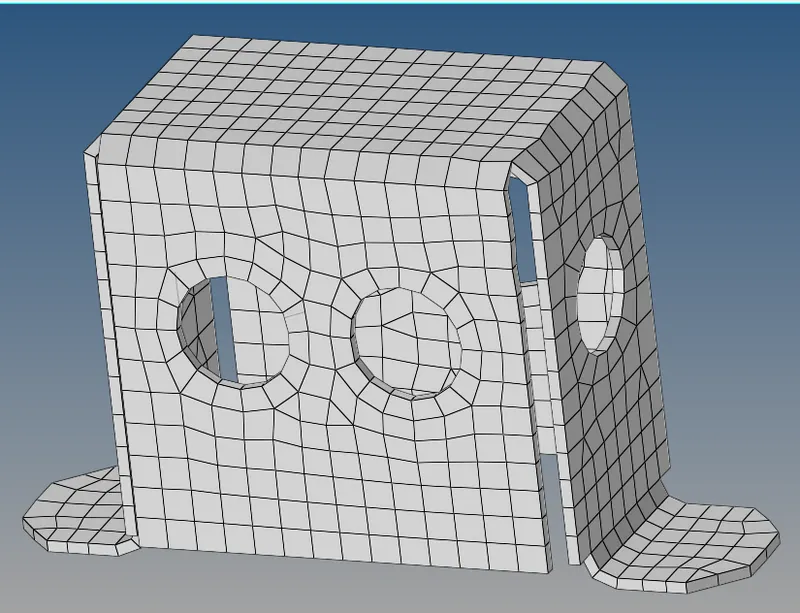

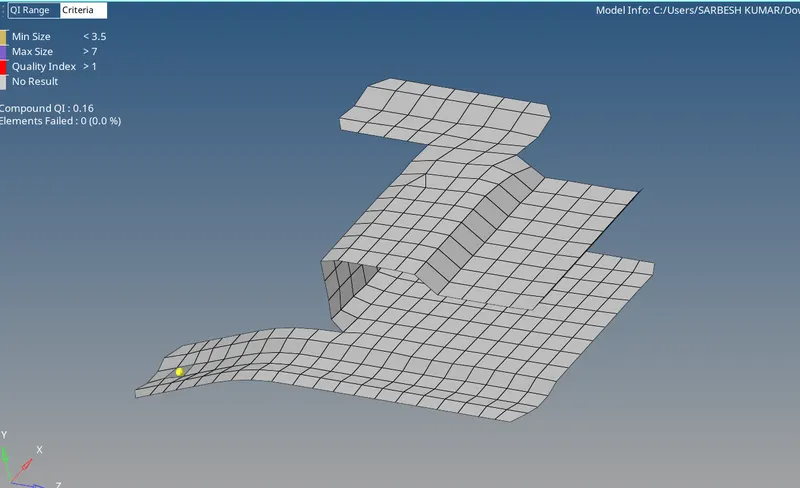

6) Now perform meshing operation one by one , create a mesh on the mid surface goto 2D>automesh>select the surface>give element size =5>click on mesh

Few points must be Obey during the meshing

• No Tria element on the edges (free edge , share edge ,non- manifold edges, )
• No opposite trias in the Mesh
• Not trias should touch each other (no back to back trias)
• No trias must touch features (Embosses,Fillets , Holes, Logos, Dog Houses, Weldings etc.)
• There should be an even number of nodes on the holes opening
• No rotational quads
• No pattern Trias

7) Check mesh flow and make it proper for that some frequently used commands Rebuild mesh (2D>Rebuild mesh>select elements>click on rebuils), Edit element (2D>Edit element>create/split/combine), smooth option (2D>smooth>select element,enter iterations>smooth), quality index (2D>quality index>QI setting/cleanup tool) in quality index we have both option Quality index and cleanup tools we can use both options, in QI we can check quality criteria and we can set display thresholds, and in cleanup tools we can split,collapse, combine, optimize element node etc, we can use Replace option to connect two nodes or to remove edges

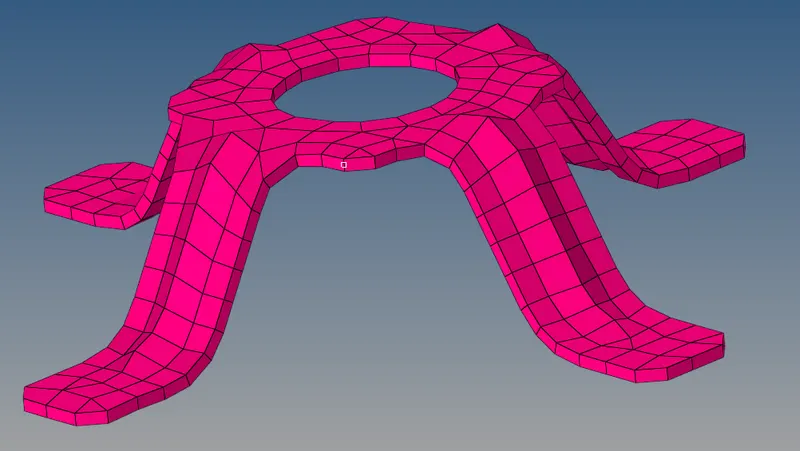

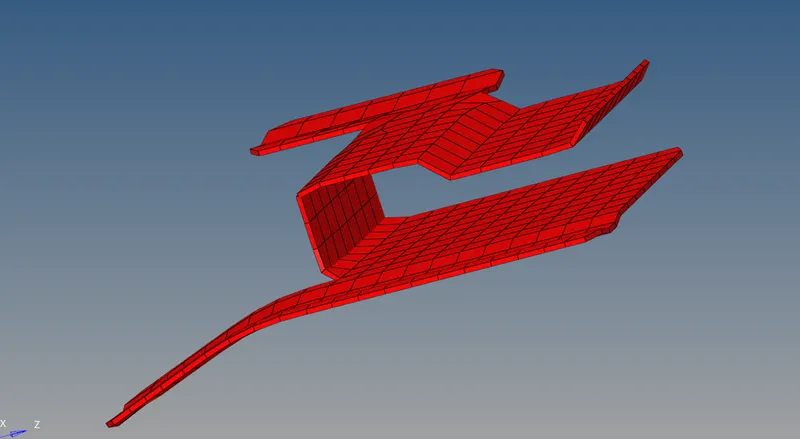

8) Now after completing all these we have to asign thickness to the component Reaspectively (create property>thickness option>provide thickness>right click on mid surface>assign>select property>click ok)

Repeat step 7 until we got proper mesh flow

Conclusion:- Since these are three basic model, in this we learned basic 2d meshing and some usefull tools
