Assignment 1-2D Meshing Challenge

REPORT

AIM:TO CLEAN THE GEOMETRY OF THE THREE GIVEN MODEL AND MESH THEM ACCORDING TO THE GIVEN CRITERIA.

PROCEDURE:

STEPS

1.IMPORT THE GEOMETRY TO THE HYPERMESH SOFTWARE.

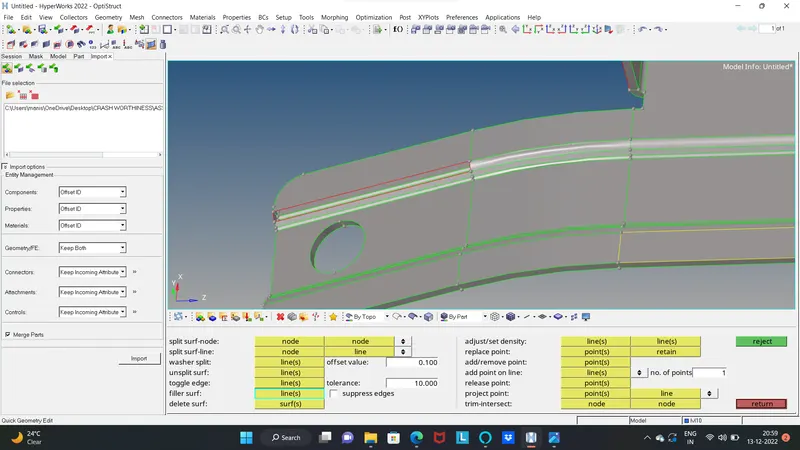

2.CHECK FOR ANY FREE EDGES OR SURFACES TO BE TOGGLED OR CLEANED.IF ALL THE GEOMETRY IS CLEAN THEN

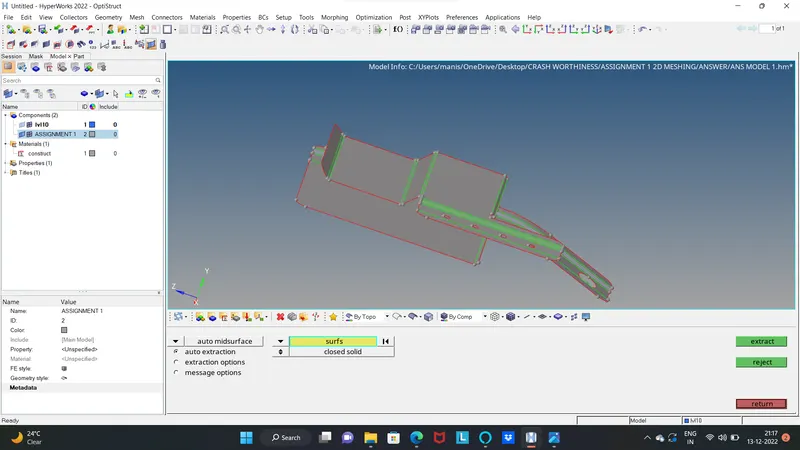

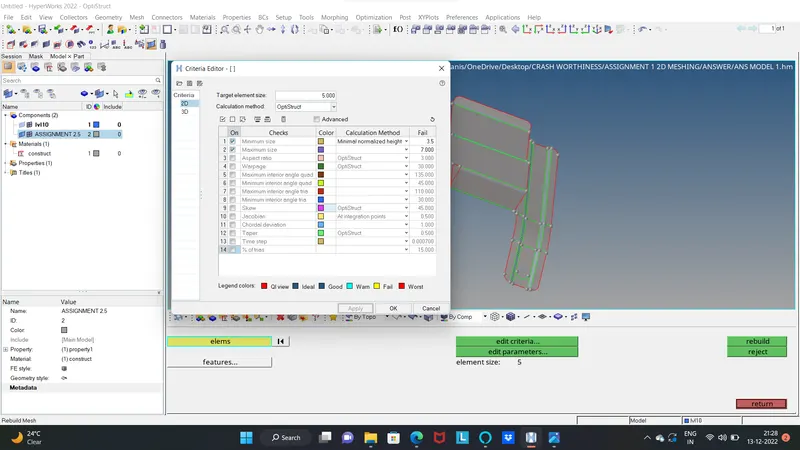

3.START THE AUTO MIDSURFACE OF THE GEOMETRY.AFETR THE AUTO MIDSURFACE OF THE MODEL THEN GIVE THE CRITERIA FOR THE MESHING AND AUTO MESH IT.

4.CHECK FOR THE CRITERIA FAILURE AND RECTIFY IT.

5.DO THE SAME FOR THE OTHER TWO MODELS.
