Animation of a simple pendulum using matlab .

Aim - To write a program in matlab to stimulate the pendulum motion

THEORY - A simple pendulum consist of mass(m) hanging from a string of length (L) and fixed at pivot point .When displaced to an initial angle and released ,thr pendulum will swing back and forth with periodic moyion .

This motion can be described in mathematicall form and code can be written in MATLAB to get the representation.

MATHEMATICAL EQUATION :-

g = 9.81 ,acceleration due to gravity

L =`1 , length of pendulum in (m)

m =1 , mass of the ball in(kg)

b = 0.05 , damping coefficient

PROCEDURE -

1 Firstly the second order 0DE is converted into first order ode which can be used in function .

2 call the function using the inbuilt ode45

3 input the initial data such as time,angular displacement, and angular velocity along with parameter L,g,b and m .

The result ares tored in 2 coloumn in the first coloumn angular displacement value and in 2nd coloumn angular velocity values .

MATLAB CODE -

clear all
close all
clc

% inputs
l =1;
m =1;
g = 9.81;
b=0.05;
ct = 1;

% initia; condition


theta_0 = [0,3];
t_span = linspace(0,20,500);

% 0de solving

[t,results] = ode45(@(t,theta)ode_func(t,theta,b,g,l,m),t_span,theta_0);

figure(1)

hold on
plot(t,results(:,1));
plot(t,results(:,2));
xlabel ('time')
ylabel('angular velocity or angular displacement')
legend('angular displacement(radians)','angular(radian/sec)')
grid on

theta2 = results(:,1)

for i = 1:length(theta2);
    theta_x = theta2(i);

    x0 = 0;
    y0 = 0;


    x1  = l*sin(theta_x);
    y1 = -l*cos(theta_x);

    % plotting the pendulum

    figure(2)
    plot([-0.5 0.5],[0 0],'color','b','linewidth',5)
    hold on
    plot([x0 x1],[y0 y1],'color','r','linewidth',3)
    hold on
    plot(x1 ,y1 ,'o','markers',15,'markerfacecolor','g')


    hold off
    grid on
    axis([ -1.5 1.5 -1.5 0.5]);

    pause(0.002)
    M(ct) = getframe(gcf);
    ct = ct+1;

end



movie(M)
videofile = VideoWriter('pendulum.avi','Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)

ODE_FUNCTION CODE

function [dtheta_dt] = ode_func(t,theta,b,g,l,m)
theta1 = theta(1)
theta2 = theta(2)
dtheta1_dt = theta2;
dtheta2_dt = -(b/m)*theta2 -(g/l)*sin(theta1);
dtheta_dt = [dtheta1_dt ; dtheta2_dt];

end

RESULTS :

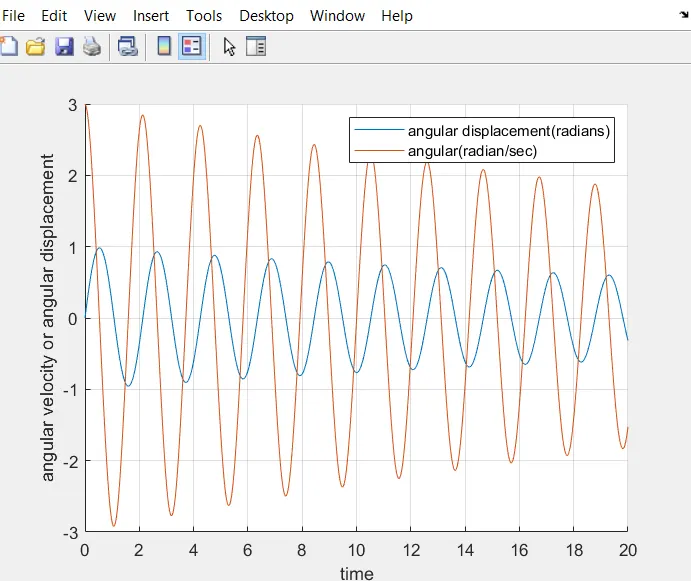

PLOT -1

VARIATION OF ANGULAR DISPLACEMNT OR ANGULAR VELOCITY W.R.T TIME .

PLOT -2

ANIMATION VIDEO FOR THE SIMPLE PENDULUM (proceed the link for this )

https://youtu.be/afwCsSlt5XY
