Challenge

Analysis & Design of RCC shear walls in the model using ETABS

PPraveen Banakar29 Jun 2023
ETABS

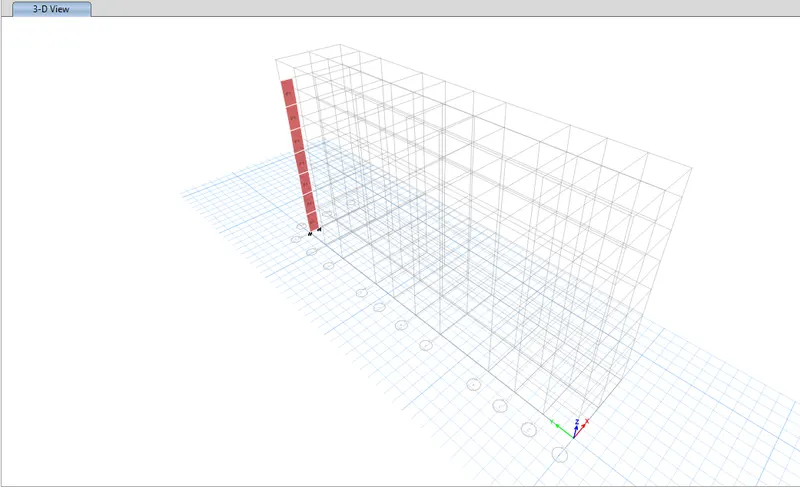

Selecting the shear wall at junction of Grids A and 11 from the given ETABS model.

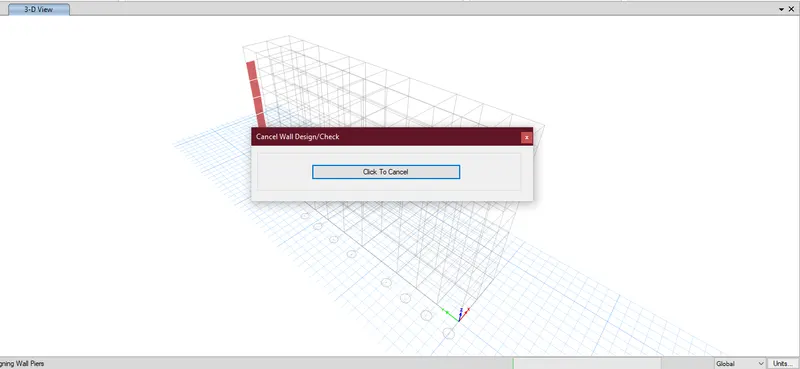

Running the analysis and then running the shear wall design:

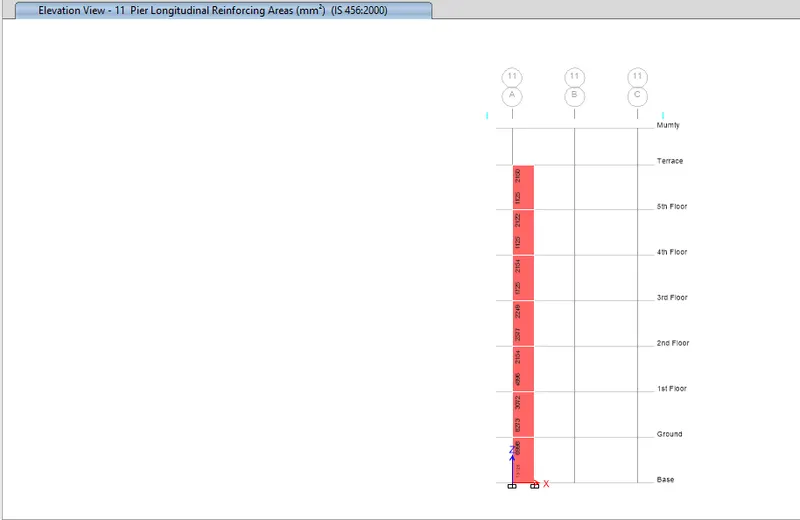

Obtaining the Longitudinal reinforcement details from ETABS:

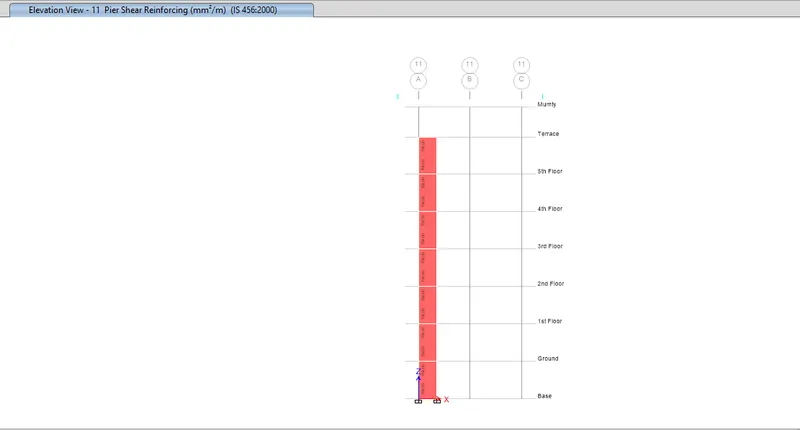

Obtaining the Shear reinforcement details from ETABS:

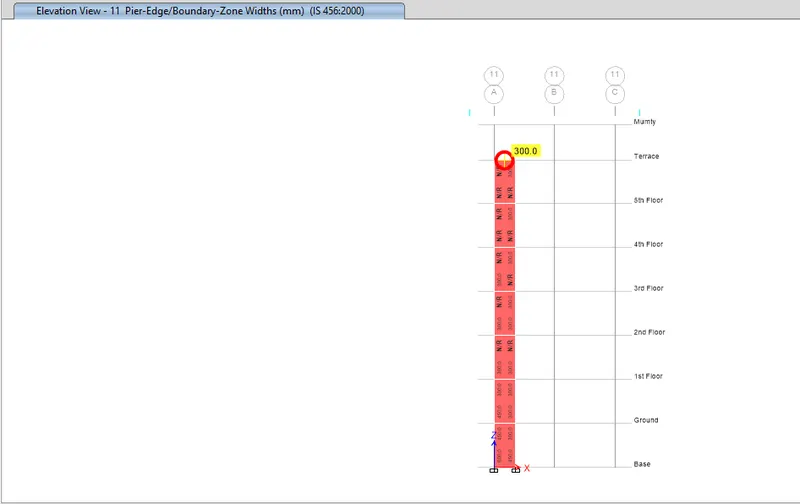

Obtaining the Boundary Element details from ETABS:
