Analysis & Design of RCC shear walls in the model using ETABS

ANSWER

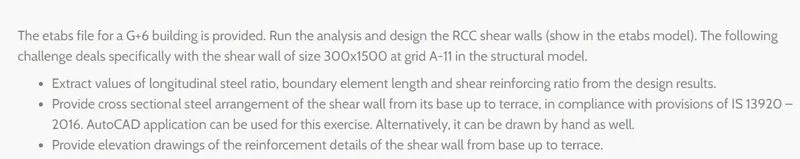

AIM

To provide the Reinforcement detailng of given structural wall of G+6 building.

PROCEDURE

STEP 1

• To open the G+6 model building in Etabs.'

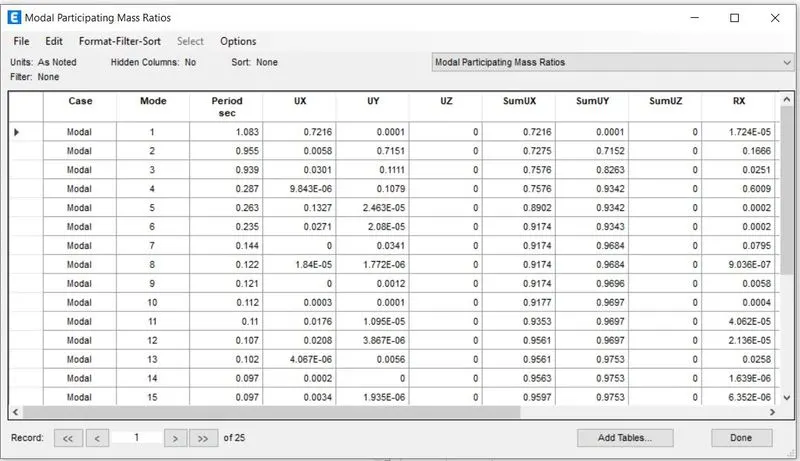

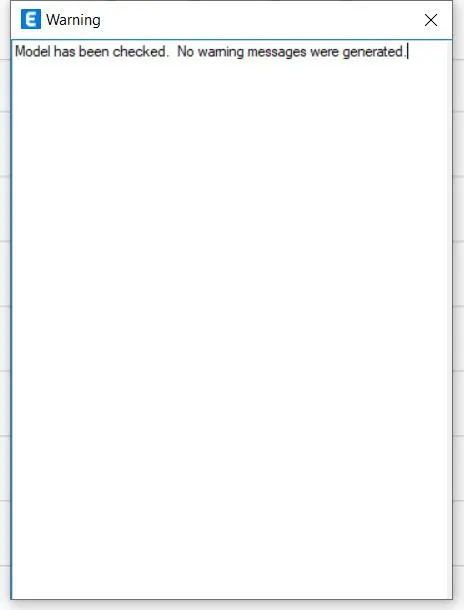

• next, we do check and RUN the analysis.

STEP 2

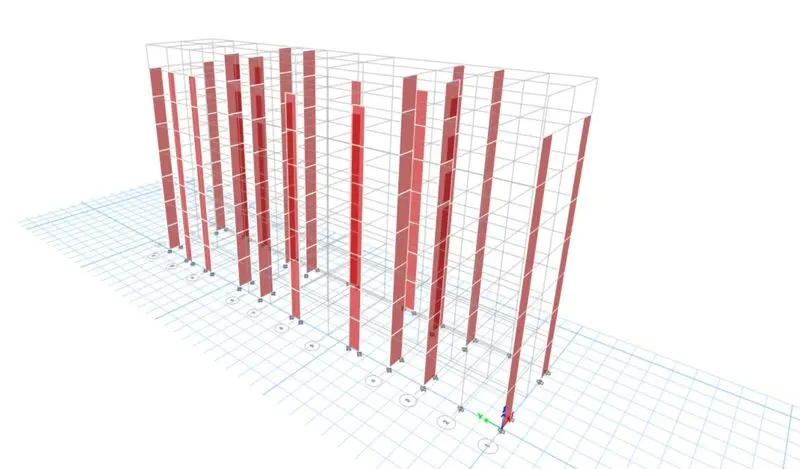

• Next, we have to keep the model in 3D view.

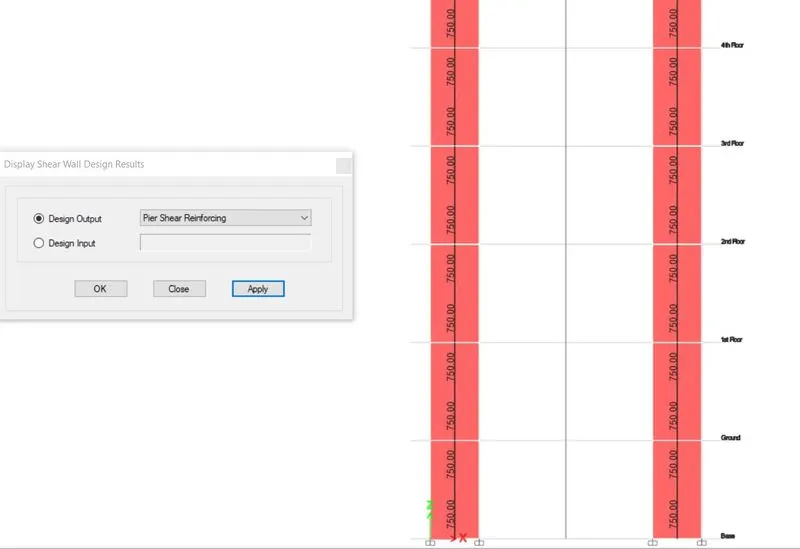

• Go to shear wall design, start DESIGN and Check the Model.

STEP 3

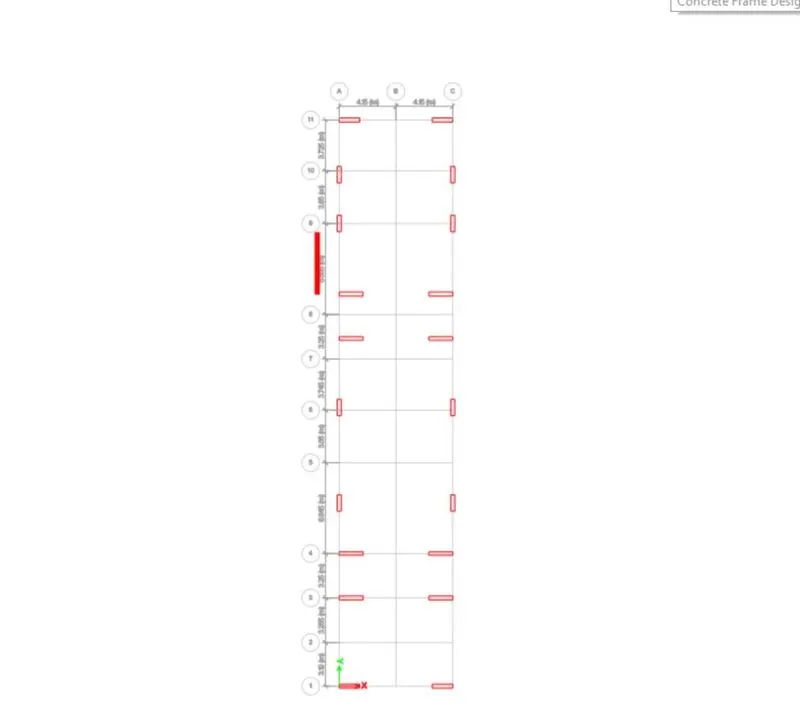

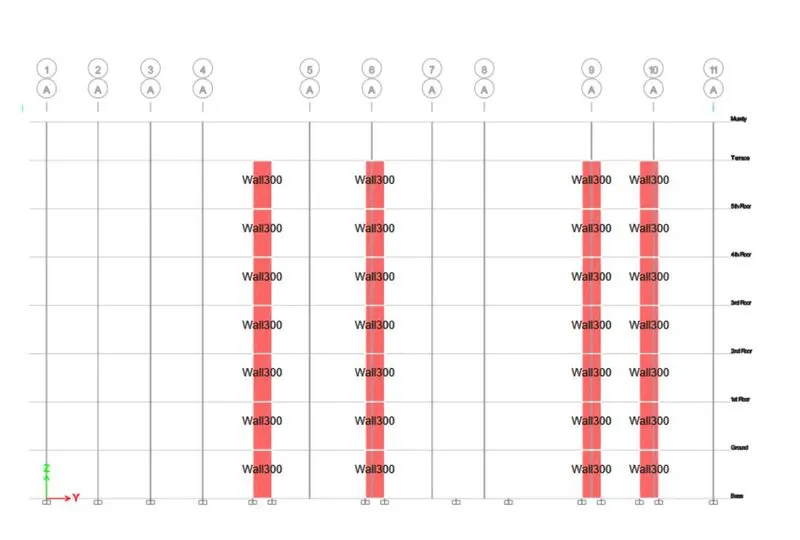

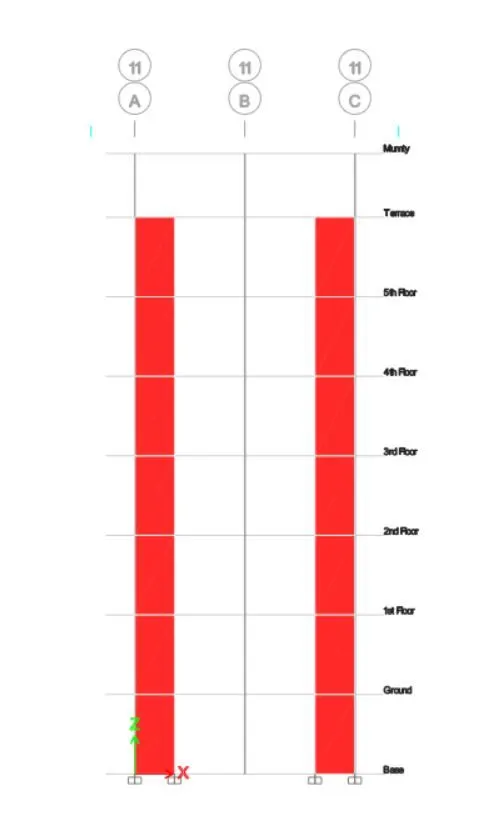

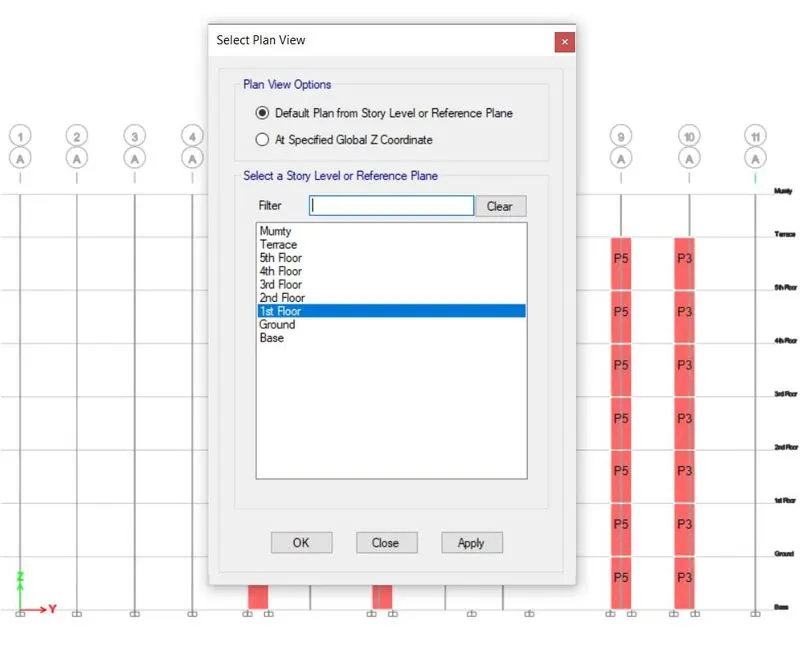

• Then, go to Elevation view of Grid A-11 shear wall design.
• the size of the column is 450 mm x 650 mm

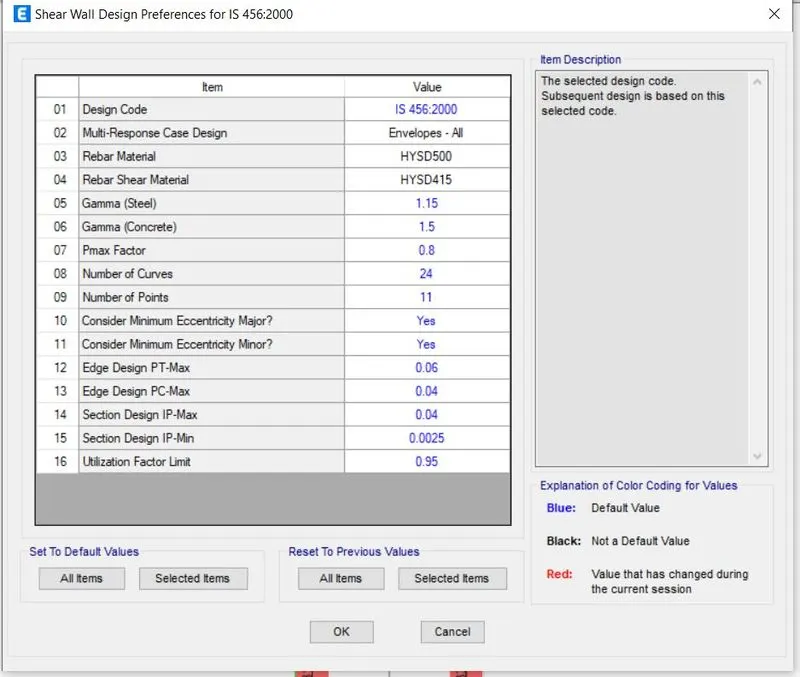

• Then go to design shear, to consider and read all VIEW / Revise preference of code.

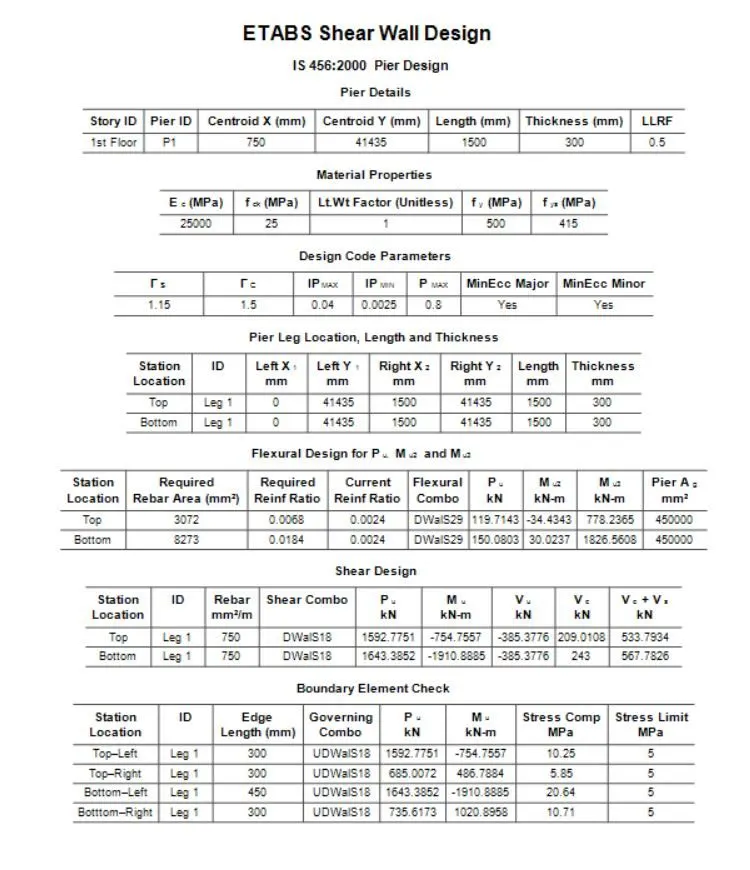

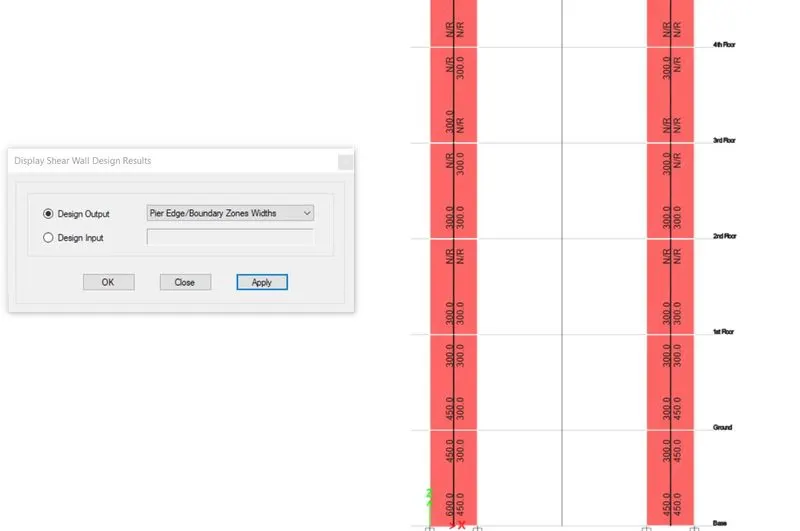

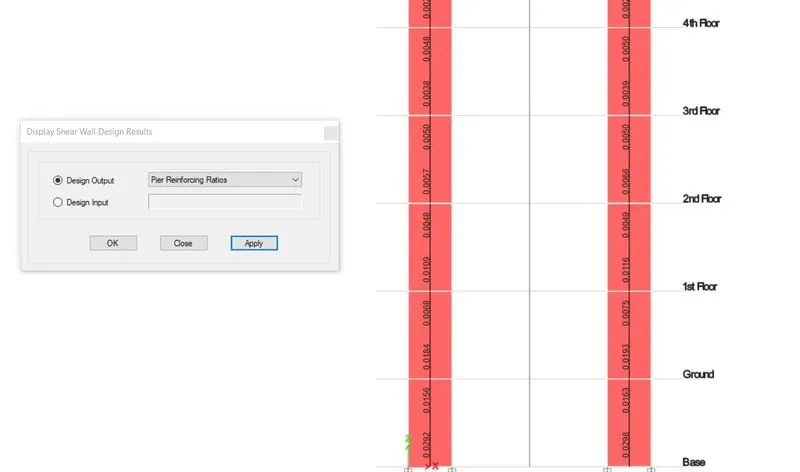

• To check all pier details From DISPLAY Design info for boundary condition,web condition, pier reinforcement ration and pier shear reinforcement ratio.

STEP 4

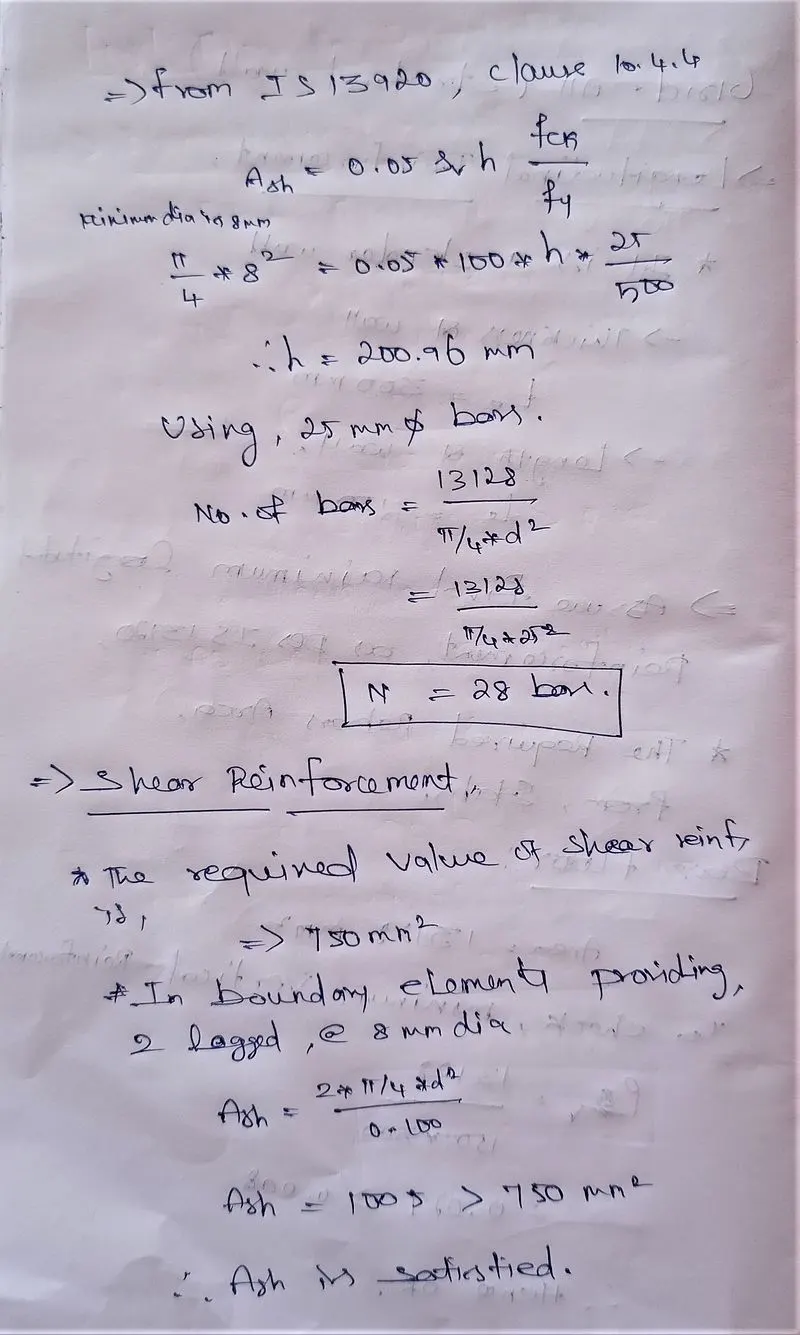

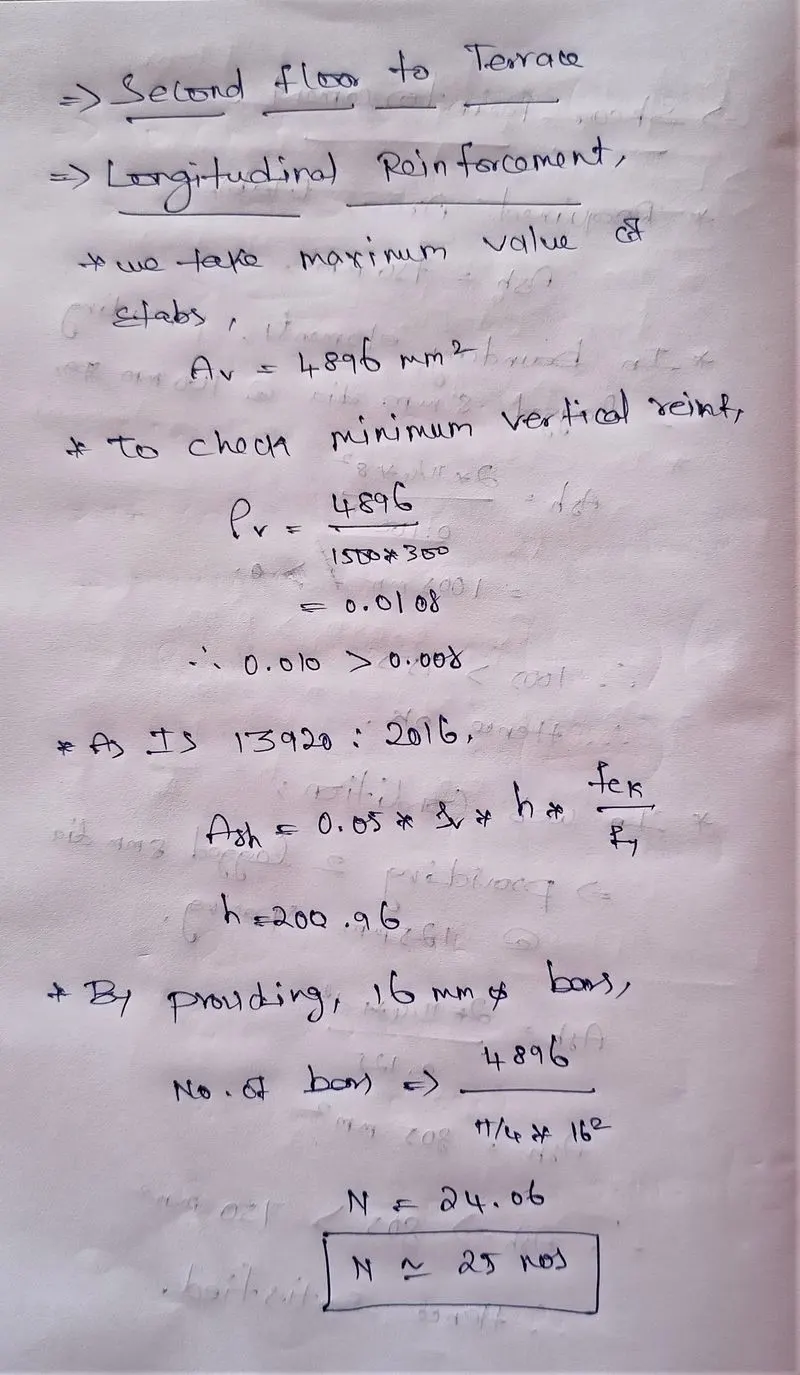

• To find the Longitudinal Reinforcement details by reference of IS 13920:2016

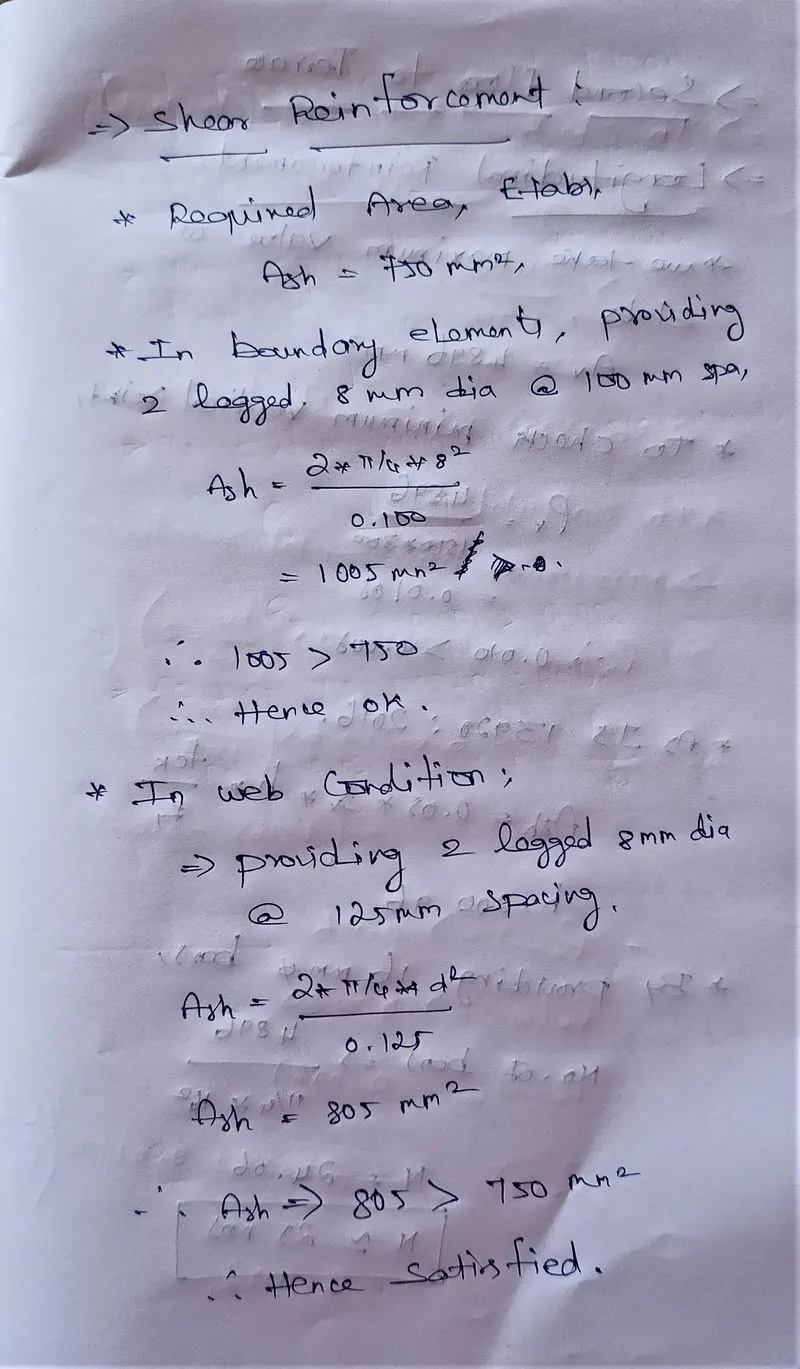

• And also to find the Shear reinforcement of web and Boundary elements

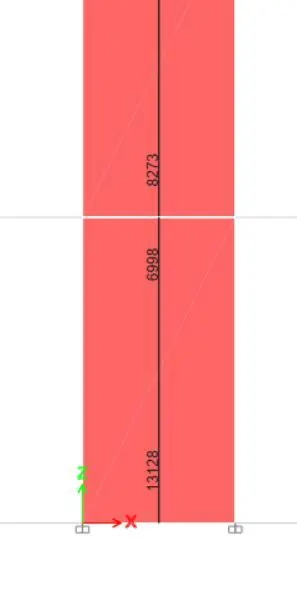

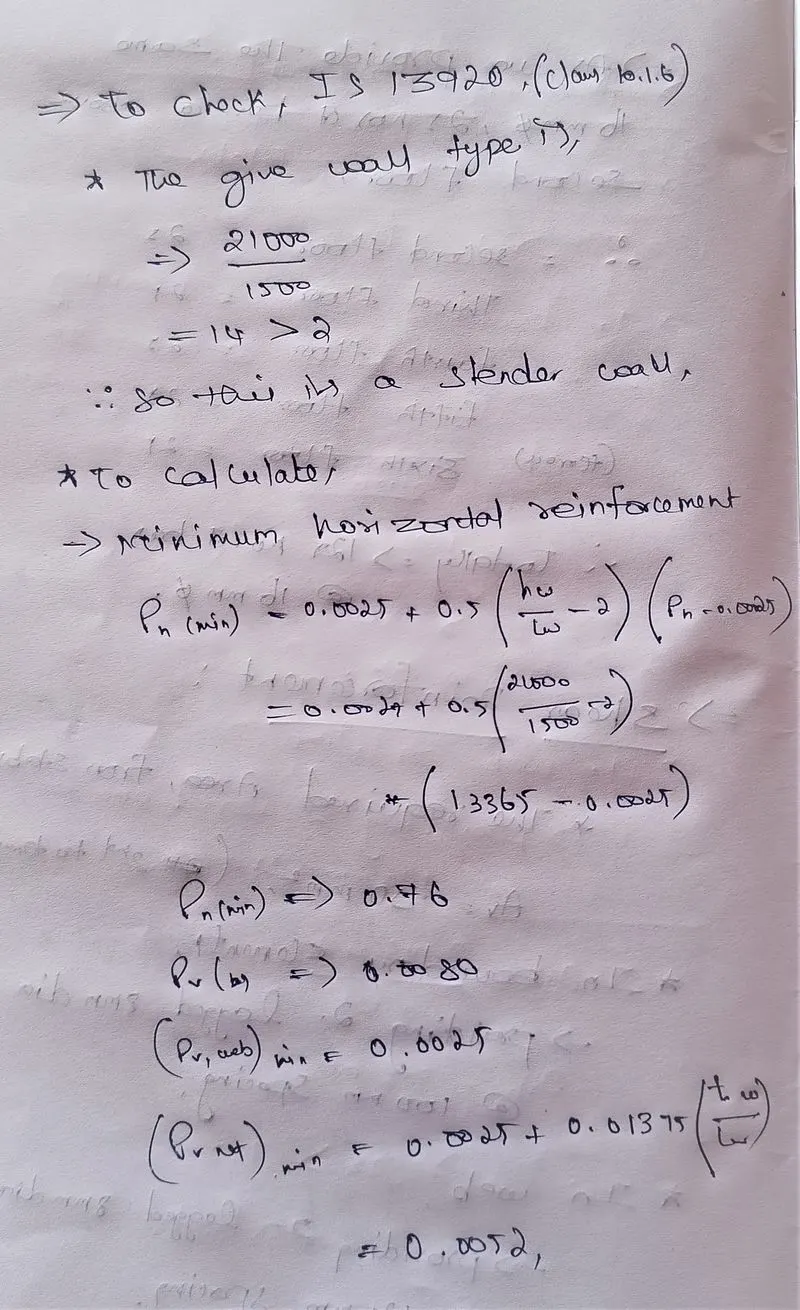

• The every data from Etabs to check the detailed reference from IS 13920:2016

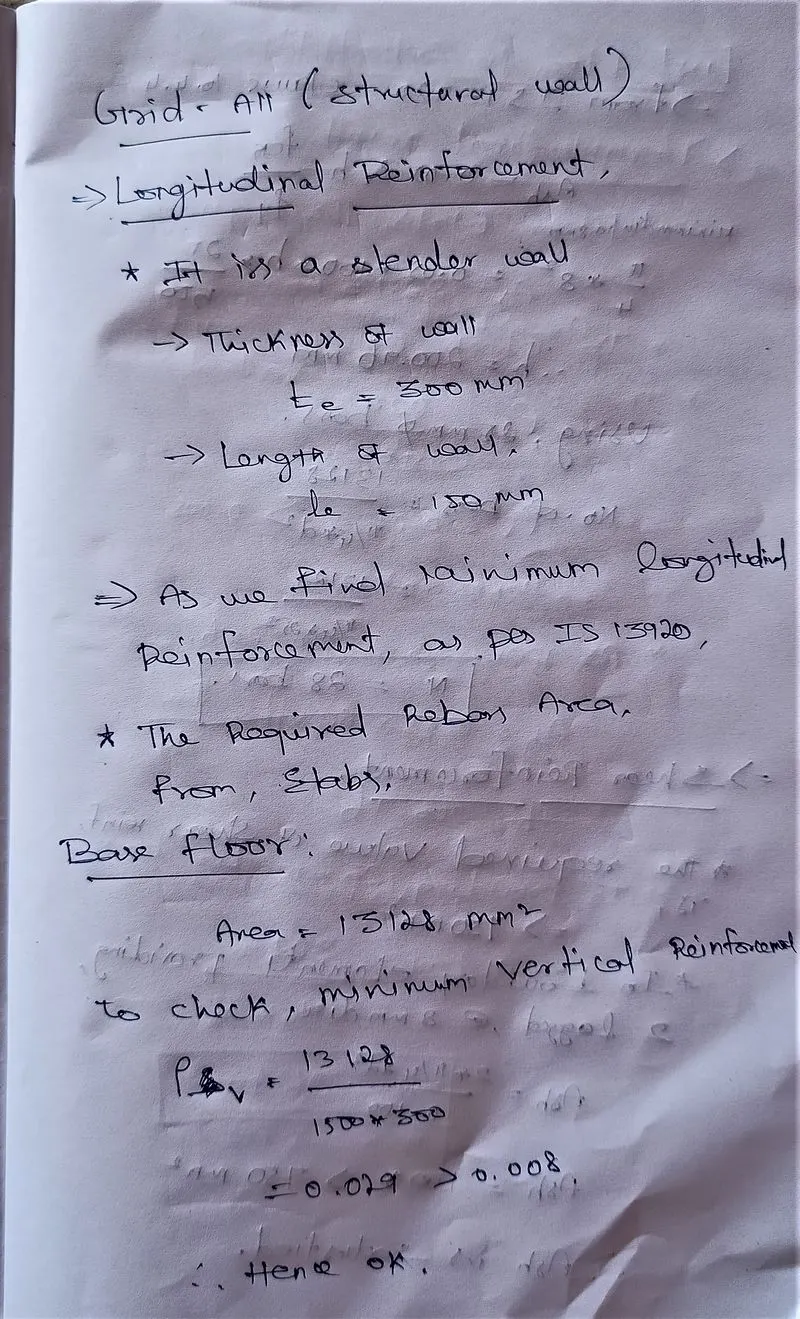

AT BASE LEVEL TO GROUND FLOOR LEVEL

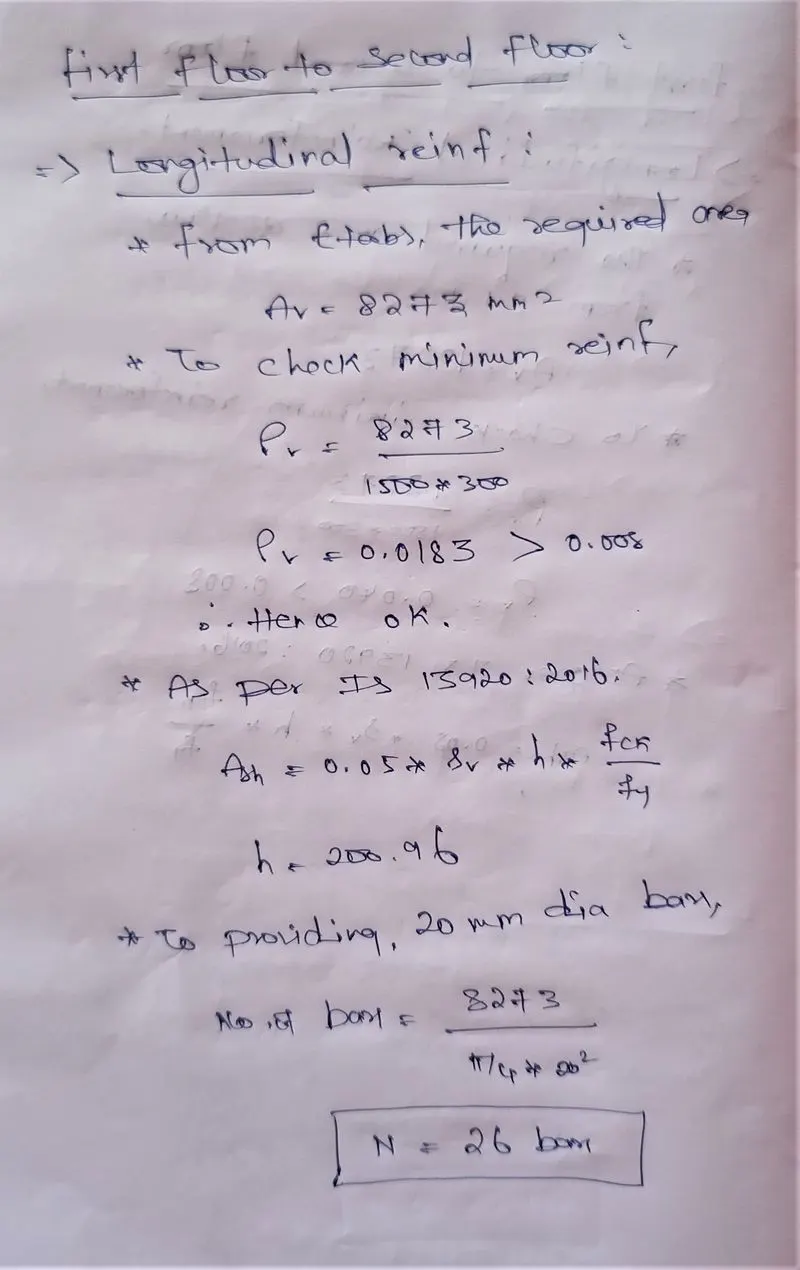

AT FIRST FLOOR TO SECOND FLOOR LEVEL

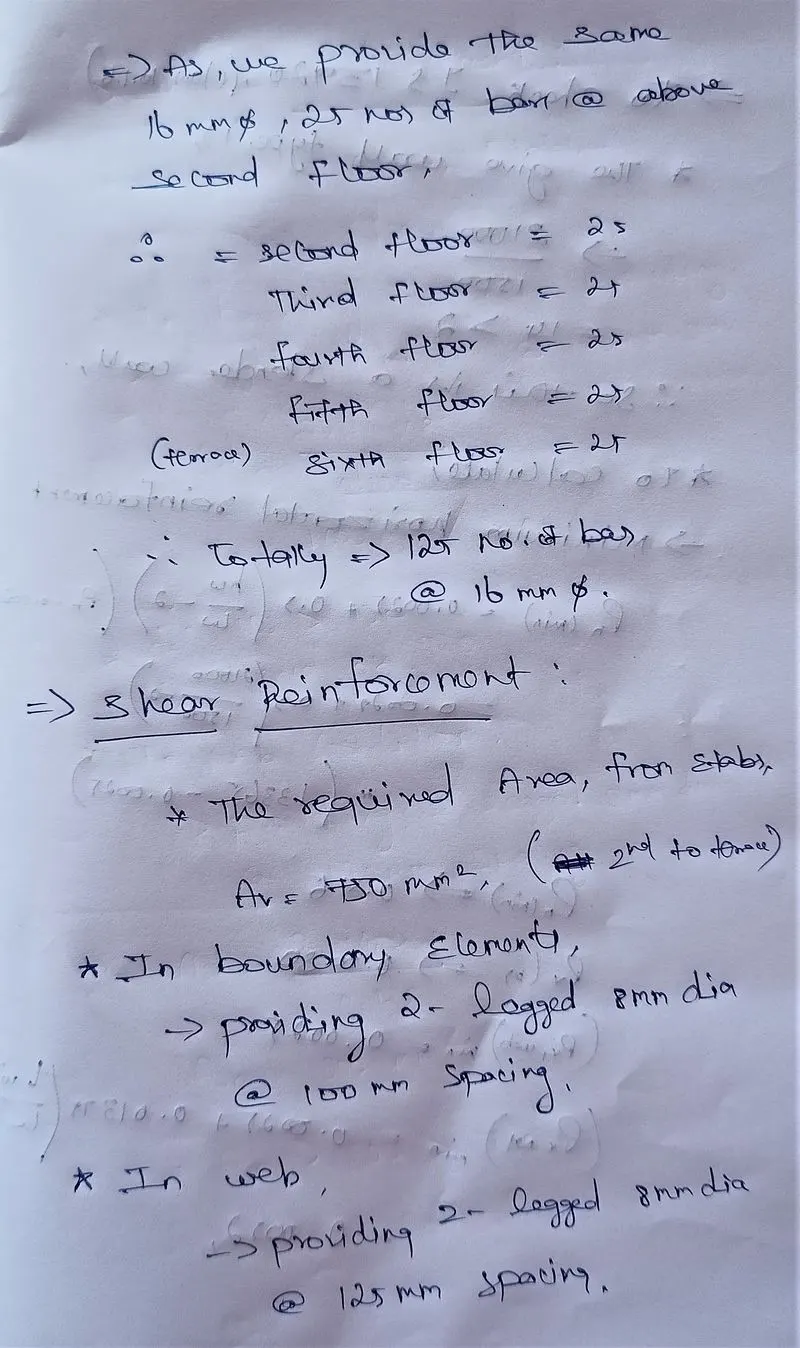

AT SECONG FLOOR TO TERRACE LEVEL

RESULTS

• Provided the longitudinal and shear reinforcement of given structural wall by using Etabs.

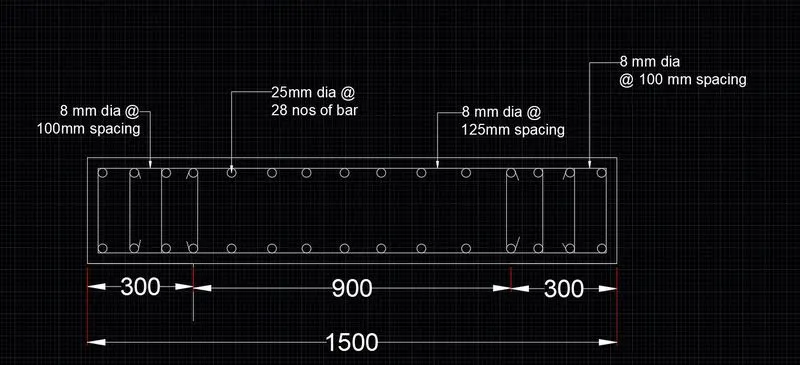

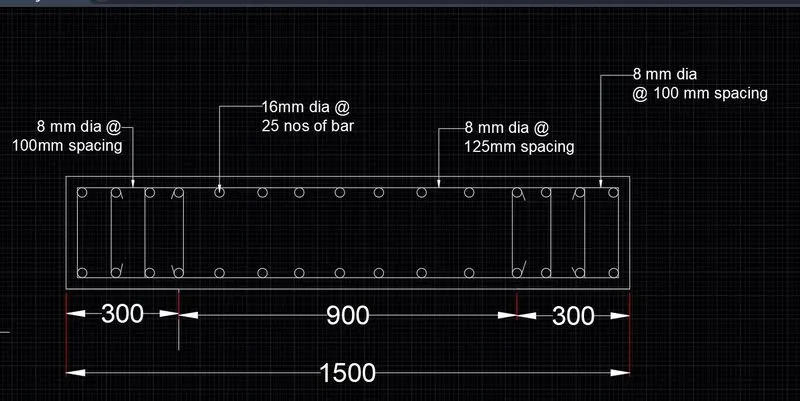

• provided the cross sectional steel arrangement by using AutoCAD.
