Analysis & Design of RCC shear walls in the model using ETABS
AIM: -
Run the analysis and design the RCC shear walls.
Extract values of longitudinal steel ratio, boundary element length and shear reinforcing ratio from the design results.

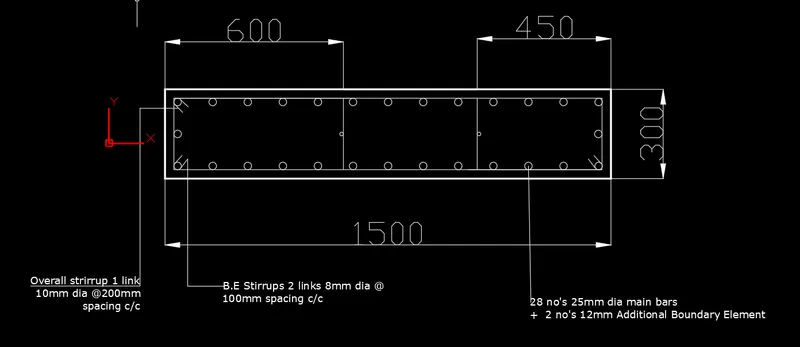

Provide cross sectional steel arrangement of the shear wall from its base up to terrace, in compliance with provisions of IS 13920 – 2016.
Provide elevation drawings of the reinforcement details of the shear wall from base up to terrace.
PROCEDURE: -
Open the given file in ETABS

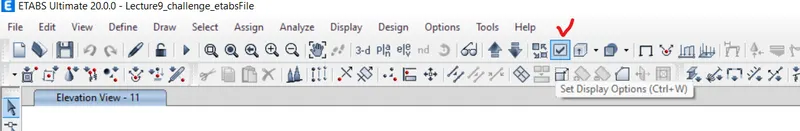

Click on Set Display Options tool or Ctrl+W

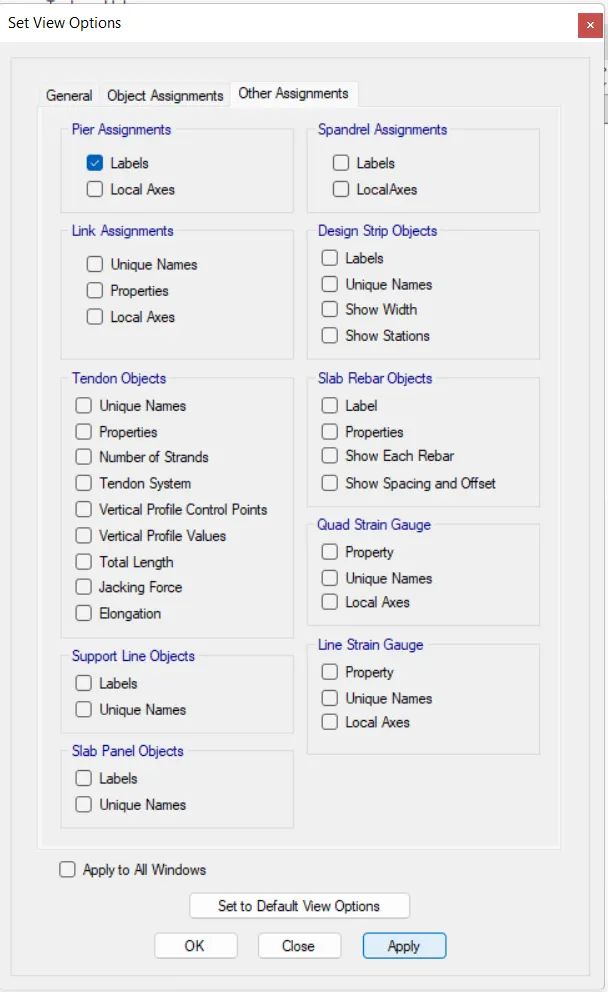

Set View Options dialogue box opens

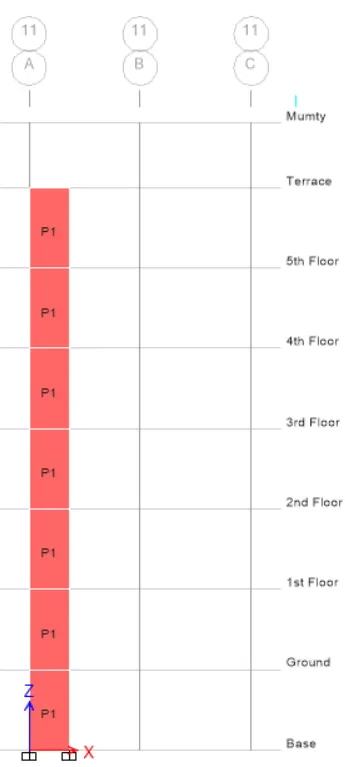

Under pier Assignments column,Tick on labels
Shear walls are labelled
Click on DESIGN TAB
Click on Shear Wall Design

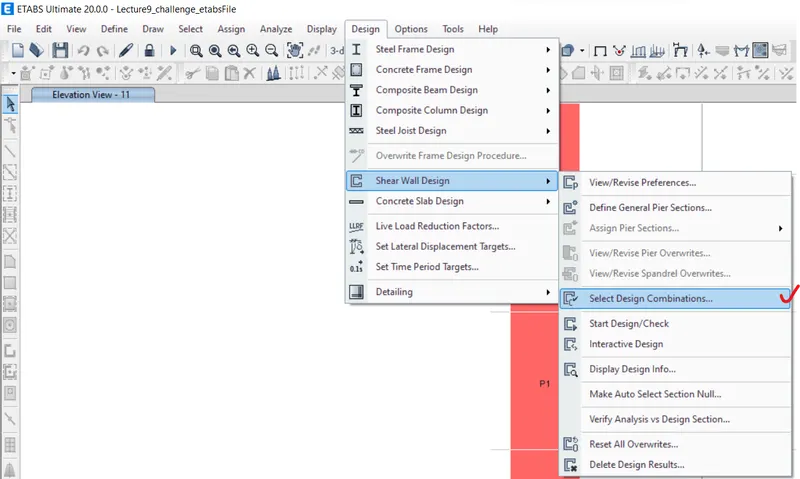

Select Design Combinations

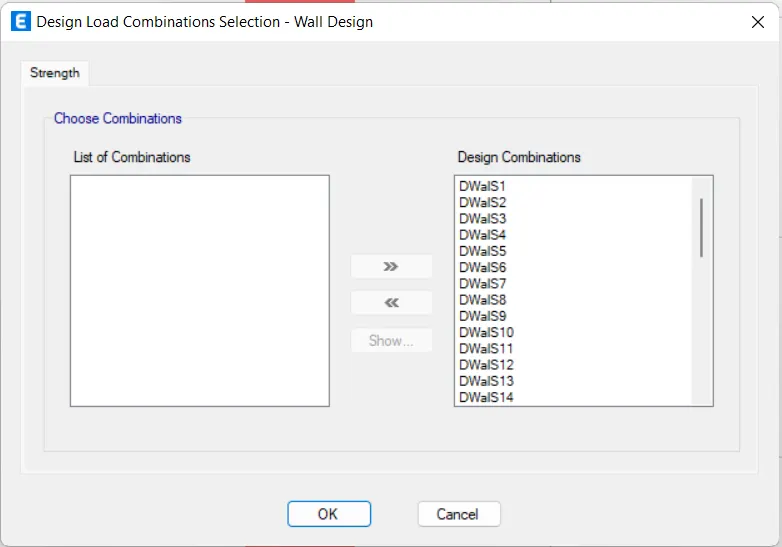

Design Load Combinations dialogue box opens
Choose the Combinations
Press OK

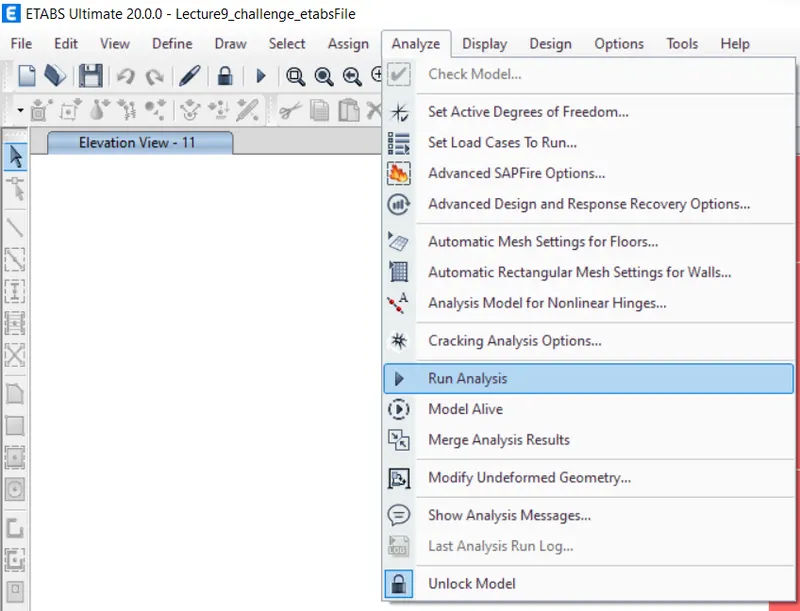

Click on Analyse Tab
Click on Run Analysis
Click on DESIGN TAB
Click on Shear Wall Design

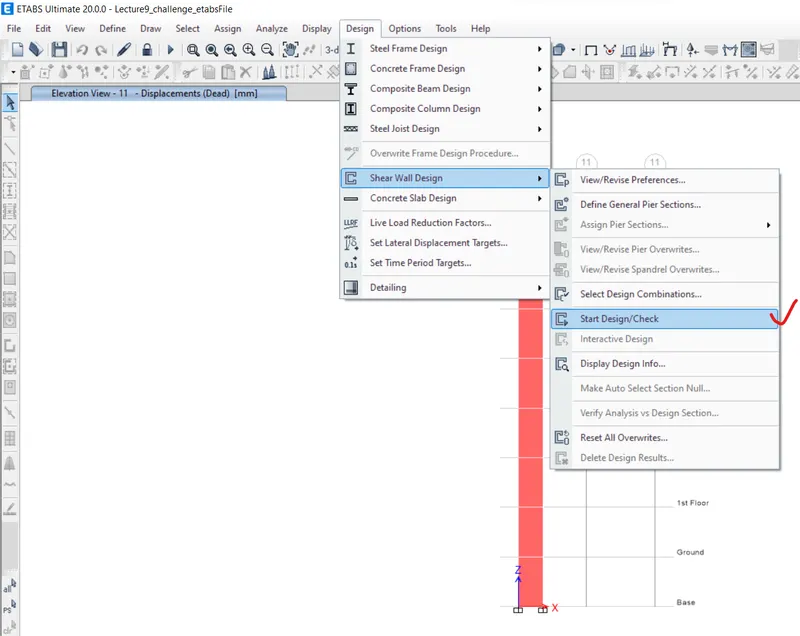

Select Start/Design Check
System designs the frame
Click on DESIGN TAB
Click on Shear Wall Design

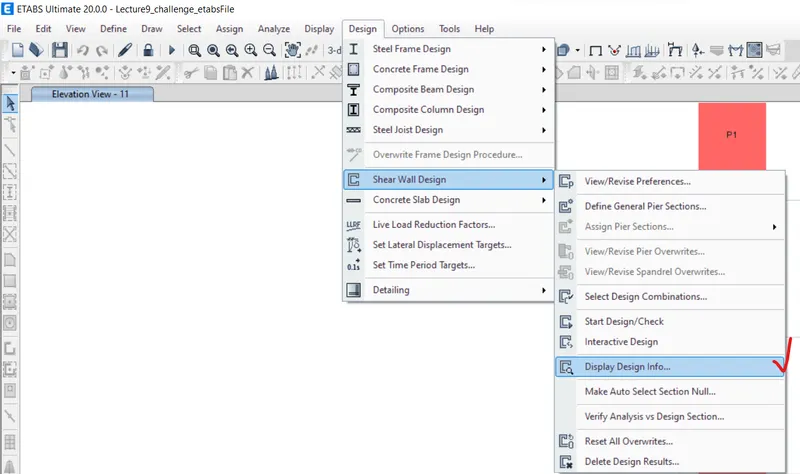

Select Display Design Info

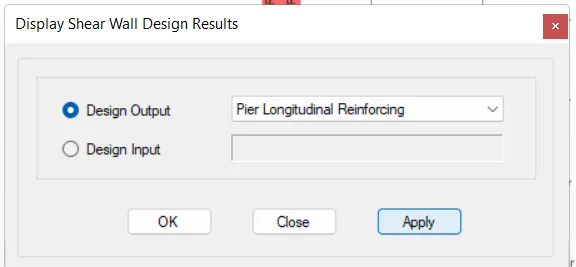

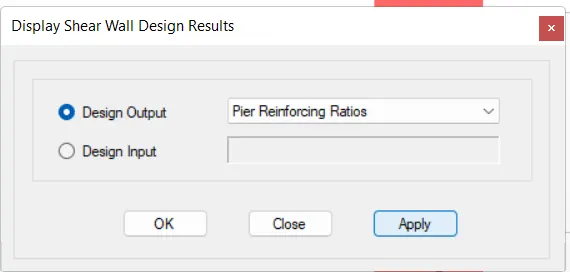

Display Shear Wall Design Results dialogue box opens

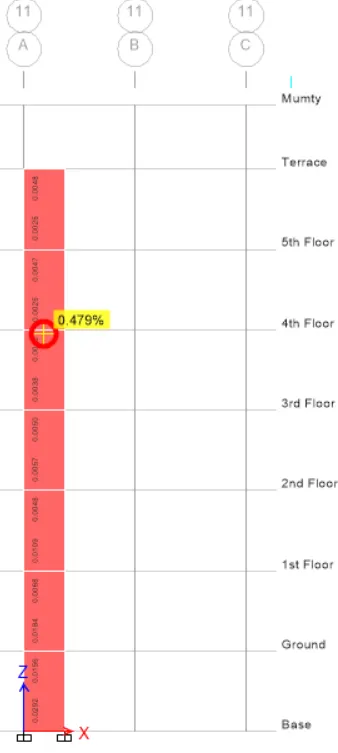

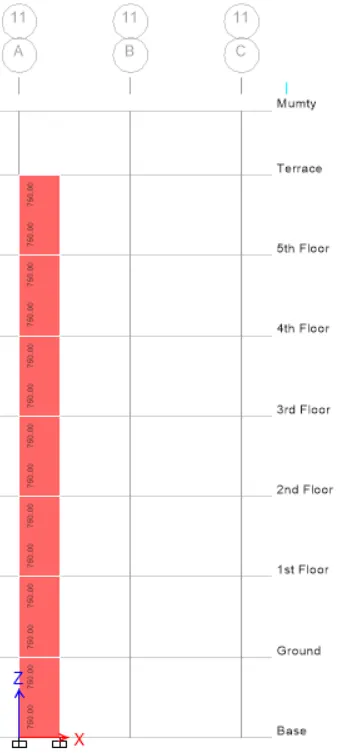

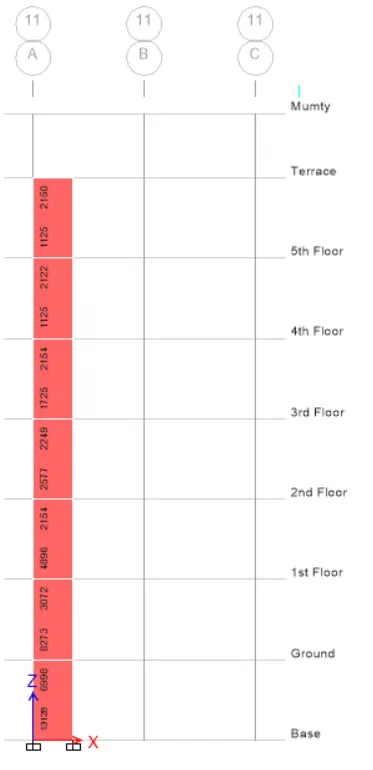

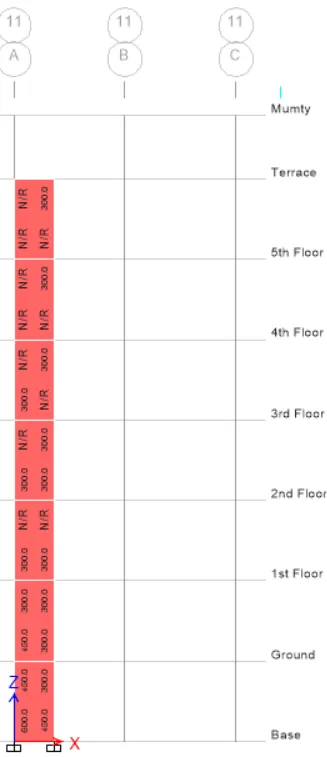

Design output: Pier Longitudinal Reinforcing
Click on APPLY
Press OK

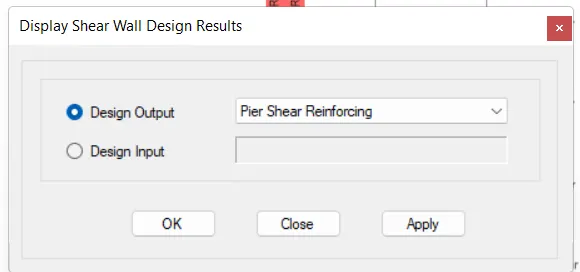

Display Shear Wall Design Results dialogue box opens
Design output: Pier Shear Reinforcing
Click on APPLY
Press OK

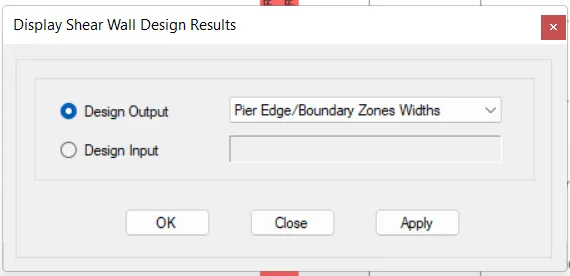

Display Shear Wall Design Results dialogue box opens

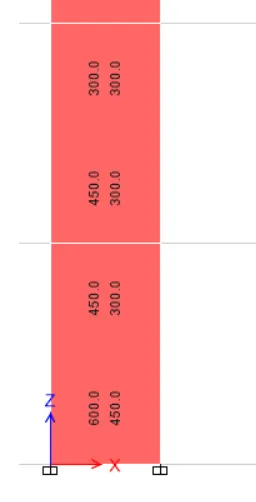

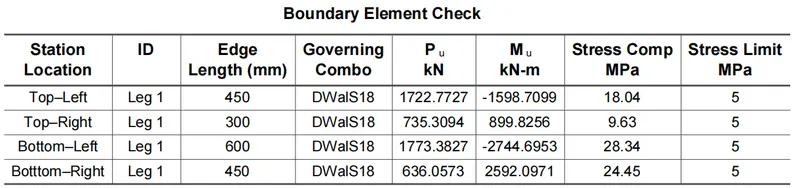

Design output: Boundary Zone Widths
Click on APPLY
Press OK
Display Shear Wall Design Results dialogue box opens
Design output: Boundary Zone Widths
Click on APPLY
Press OK
SHEAR WALL DESIGN (A-11)
SECTION CLASSIFICATION AS PER IS 13920
Clause 10.1.2
`t_w`>150mm
`t_w`=250mm > 150mm............O.K.
Clause 10.1.3
`L_w/t_w`>4
`L_w/t_w`=1500/300 >4............O.K.
Clause 10.1.4
`h_w/L_w`=21000/1500
= 14>2
Hence it is Slender Wall

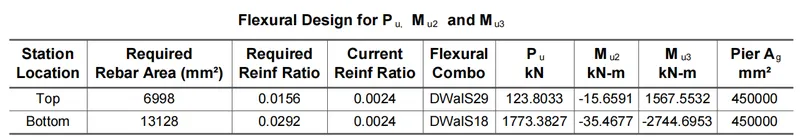

DESIGN OF VERTICAL REINFORCEMENT: -
`A_(v)(req)`= 13128 mm`
=`13128/((pi*25^2)/4)`
Provide 28 no's 25mm diameter bars
SPACING: -

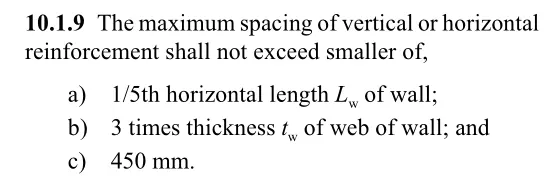

Clause 10.1.9
a) 1/5*(1500) = 300mm
b) 3*300 = 900mm
c) 450mm
Spacing= (1500-60-8-8)/13
= 109.5mm
Provide 28 no's 25mm diameter bars at 110mm c/c spacing.

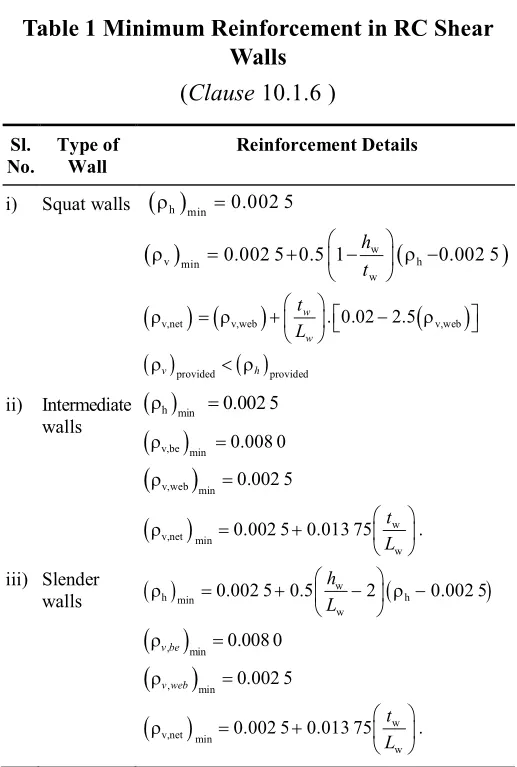

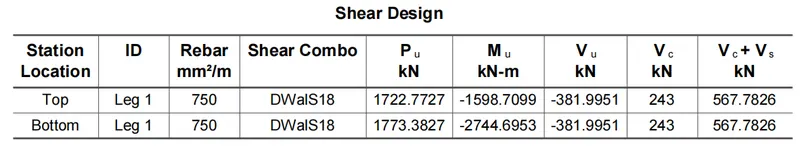

DESIGN OF HORIZONTAL REINFORCEMENT: -
`A_(st)(prov)` = 0.0025*300*1000
= 750mm2
Provide 10mm diameter bars
SPACING: -
a) 1/5*(1500) = 300mm
b) 3*300 = 900mm
c) 450mm
Sv = `(a_t*1000)/A_(h)`
= `(78.5*2*1000)/750`
= 209mm
Provide 200mm spacing.
Hence Provide 10mm diameter bars at 200mm spacing c/c.

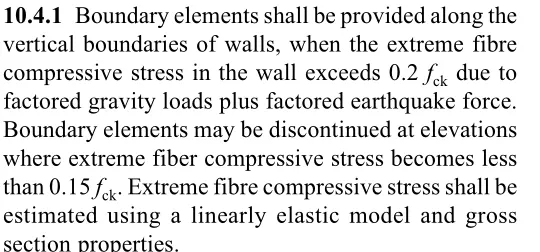

BOUNDARY ELEMENT: -
`0.2f_(ck)`= 0.2*25
= 5 MPa
Comp stress > Stress Limit
Then Boundary Element shall be provided.
CONFINING REINFORCEMENT: -

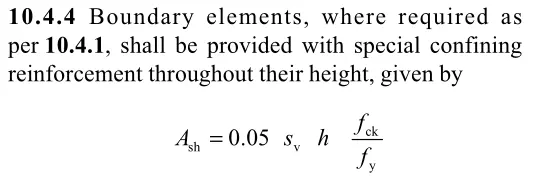

Clause 10.4.4
`A_(sh)= 0.05*150*1000*(25/415)`
= 452mm2
Provide 8mm diameter bars
SPACING: -

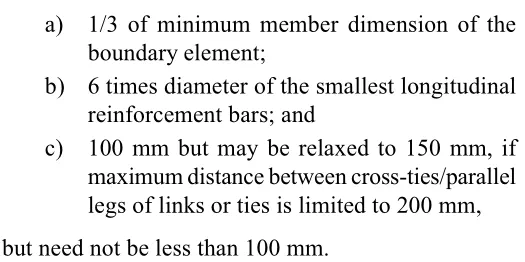

provide spacing of 100 mm c/c
Hence Provide 8mm diameter bars at spacing 100mm c/c.
RESULT: -
- Ran the analysis and designed the RCC shear walls.
- Extracted values of longitudinal steel ratio, boundary element length and shear reinforcing ratio from the design results.
- Provided cross sectional steel arrangement of the shear wall from its base up to terrace, in compliance with provisions of IS 13920 – 2016.
- Provided elevation drawings of the reinforcement details of the shear wall from base up to terrace.
