Advanced Sheet Metal Design of Metal bracket-II

BBanala Sumith26 Jan 2021

FEA

TITLE: Sheet metal design of BRACKET.

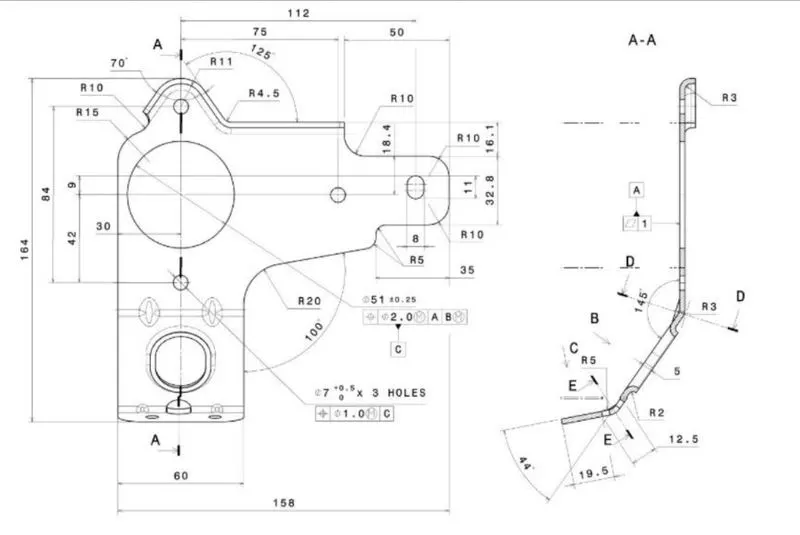

OBJECTIVE: To design a sheet metal Bracket from a 2D sketch with help of NX CAD tool features.

INTRODUCTION:

In this project convert the 2D sketch to 3D and add the advanced features to get strengthen the bent portions.

For this project, I have chosen the NX tool with help of advanced sheet metal design features.

DESCRIPTION:

FEATURES USED:

SKETCH: This is used to create a basic sketch of the design on selecting the desired plane, then later it can be modeled for the requirement.

CONTOUR FLANGE: It is used to create a model of sheet metal by selecting the sketch.

NORMAL CUTOUT: This feature is used to cut the portions of the sheet metal by giving sketch curves.

BEND: This feature is used to bend the sheet metal along the sketched curve upon our requirement.

BREAK CORNERS: Break corners is used to make the edges round for easy handling when using.

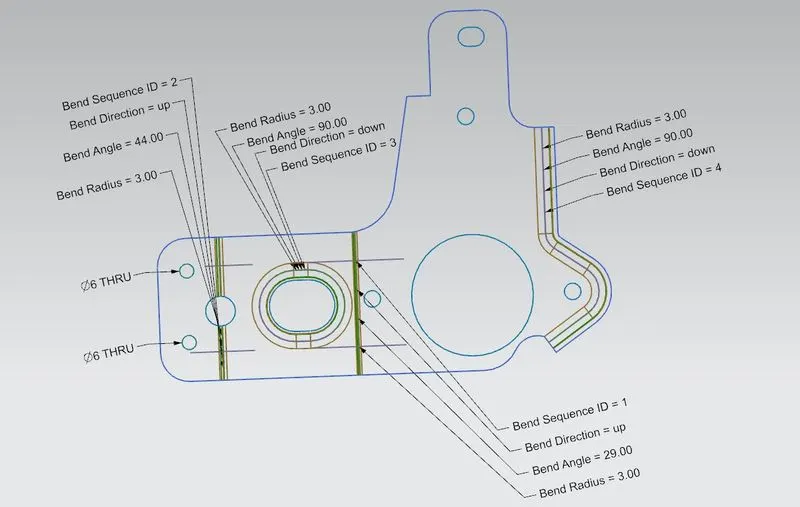

UNBEND: Unbend is a feature used to analyze the model whether it has perfectly assigned the alignments, which ensures for the modeler to do further operations on it.

HOLES: Make holes on the sheet metal by selecting the points located on the sketch.

GUSSETS: It is used to strengthen the flange without the need for secondary processes such as welding.

REBEND: This is used to re-bend the object after all conformations.

ABOUT GUSSET:

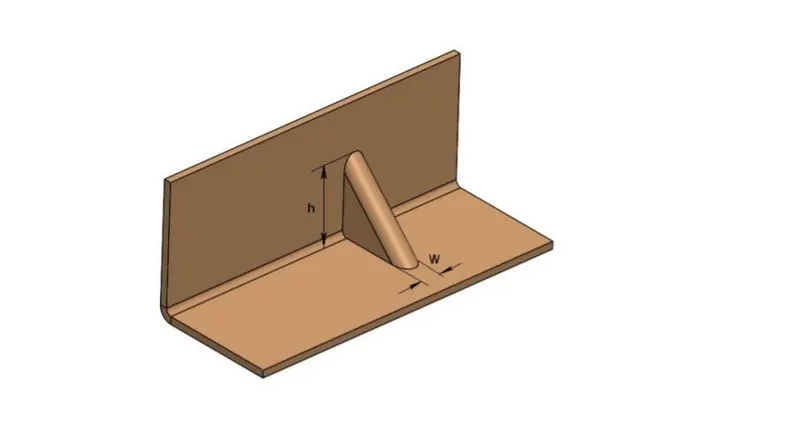

As per the guidelines that the width and depth of the gusset at an angle of 45 degrees is directly proportional to the radius and material thickness.

t = Sheet metal thickness, h = depth of gussets, W = width of gussets

A certain distance must be maintained between a hole and gusset to avoid metal deformation and fracturing. It is recommended that the minimum distance between hole edge to gusset should be at least eight times the material thickness.

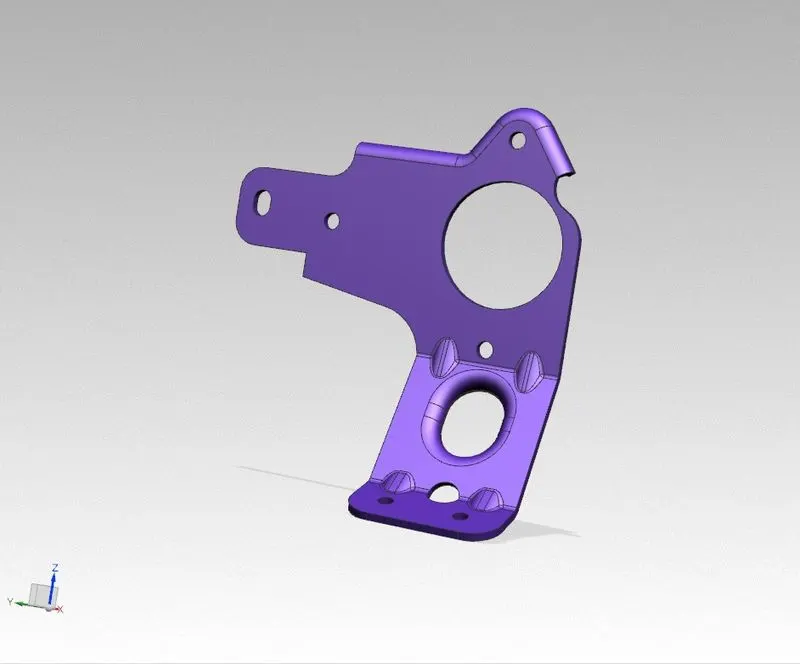

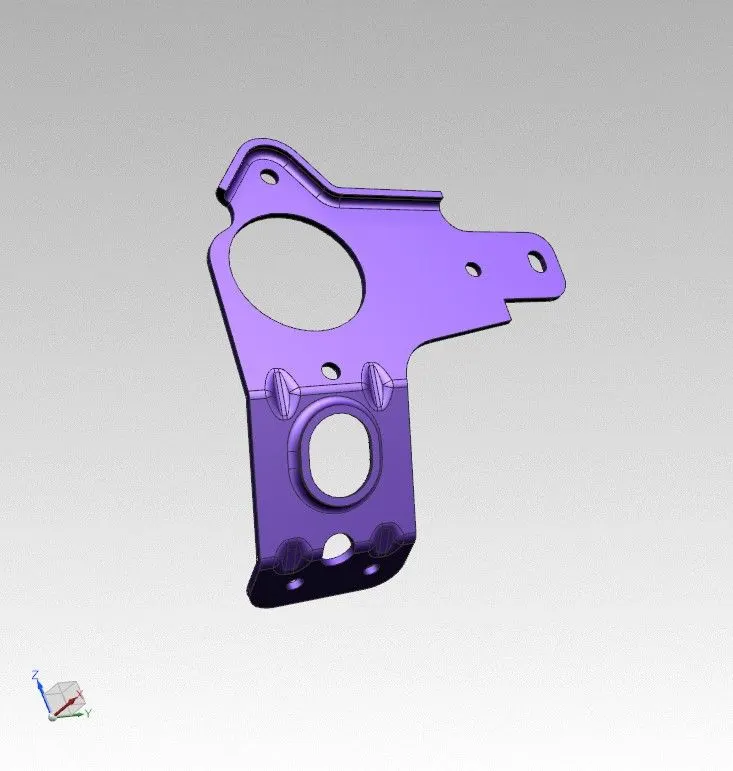

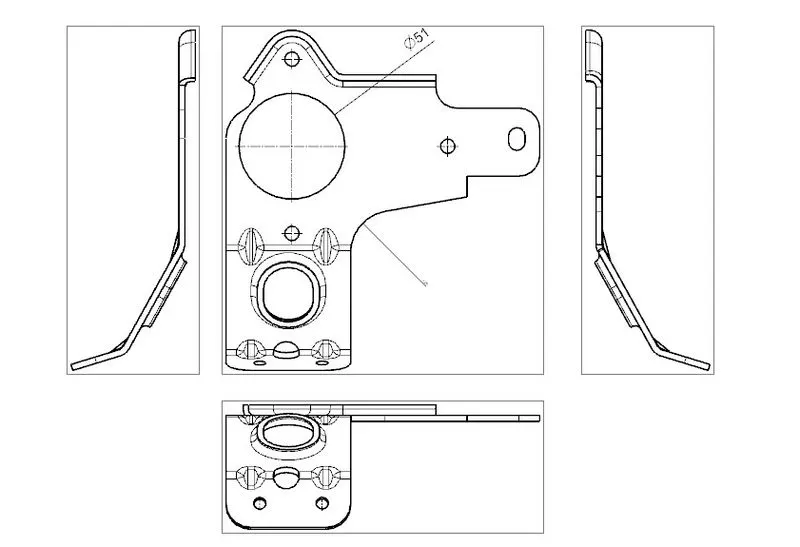

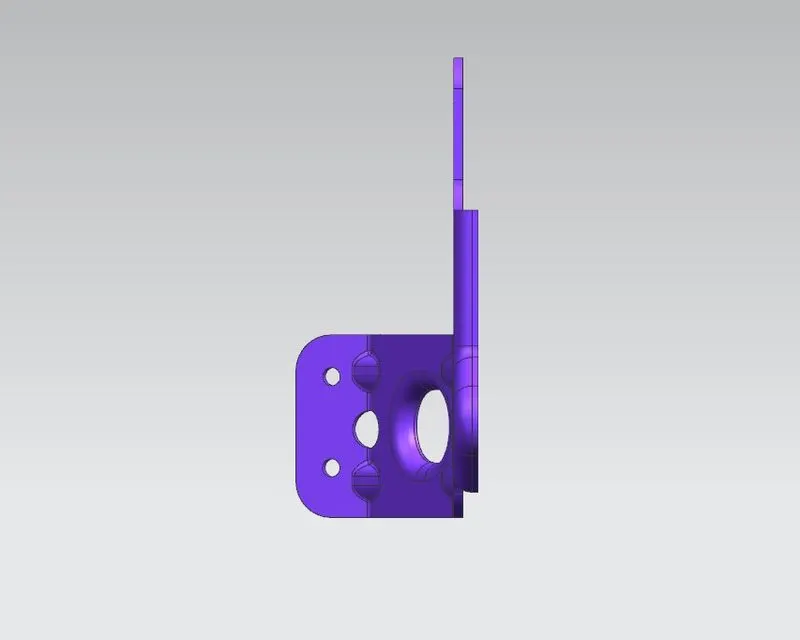

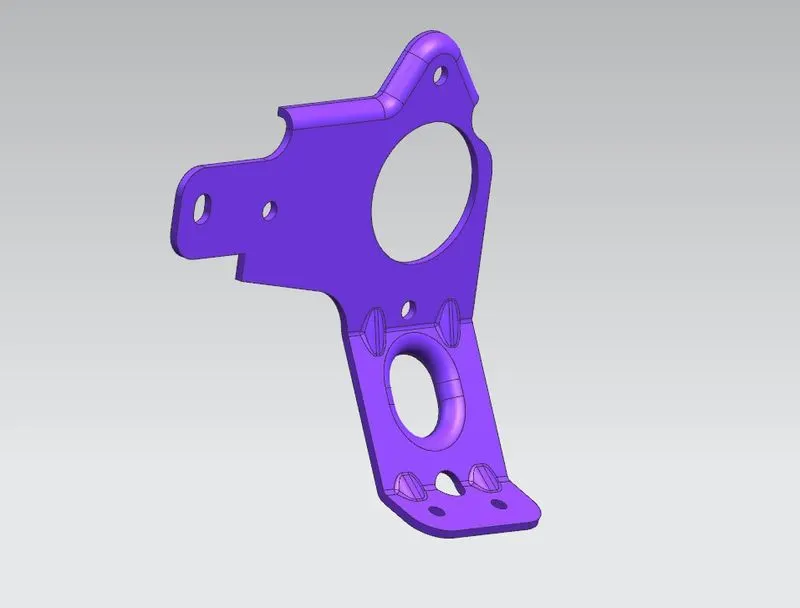

BRACKET VIEWS:

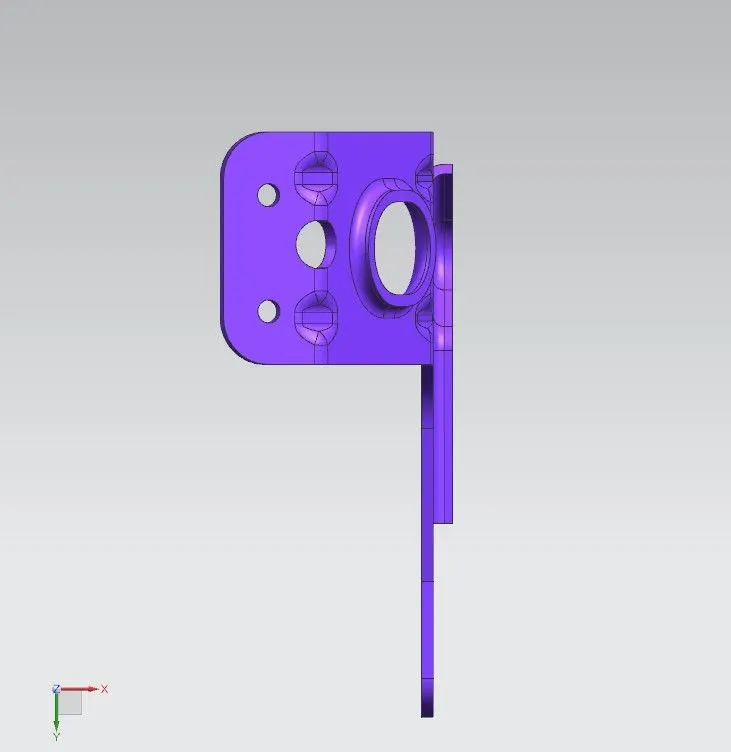

FRONT VIEW
