Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

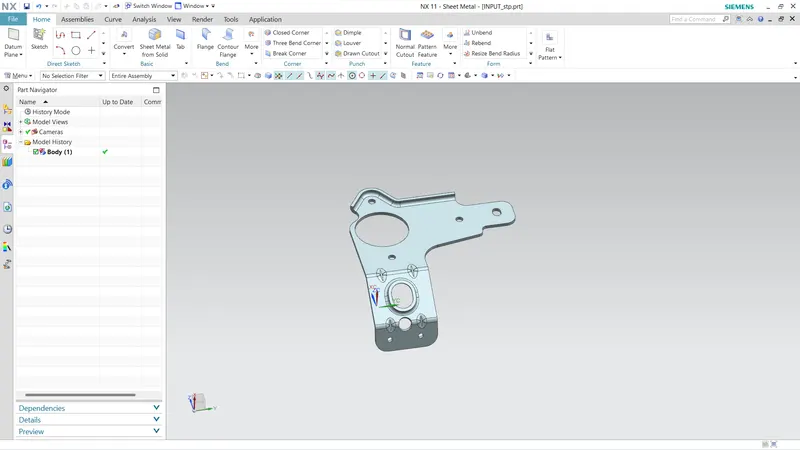

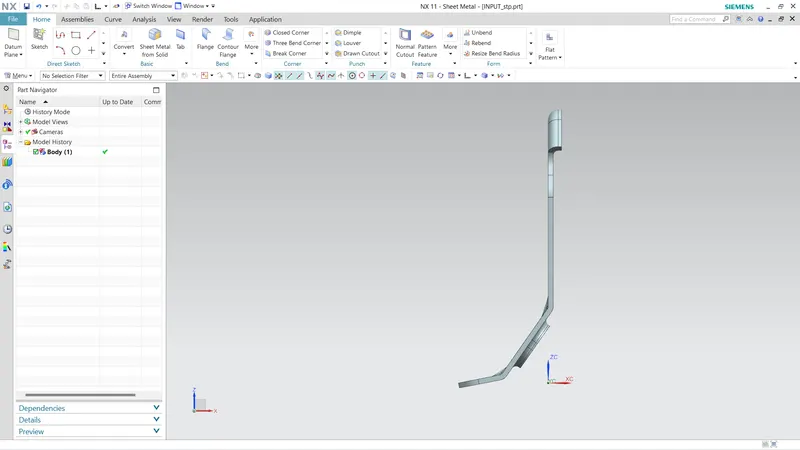

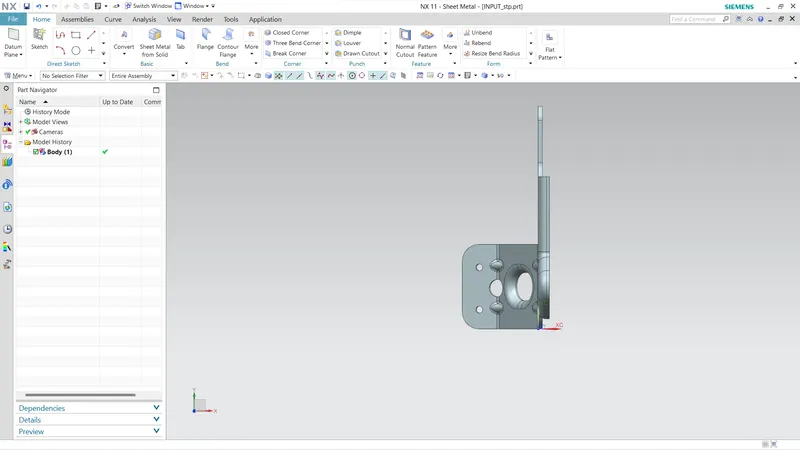

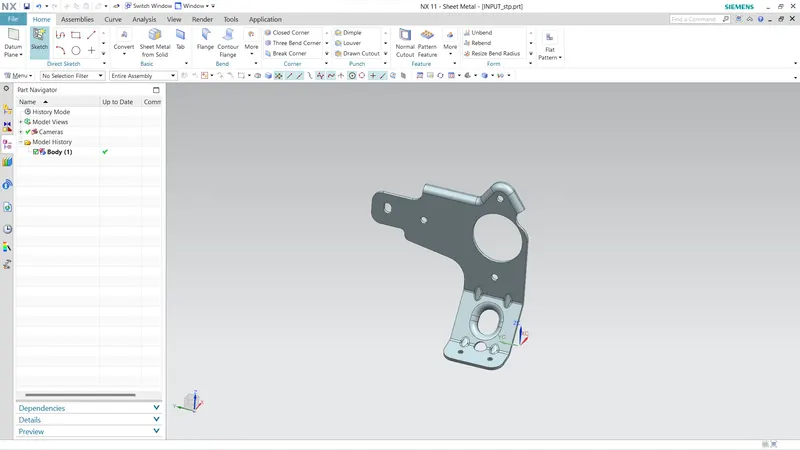

create “Bracket” from the given 2d Drawing.

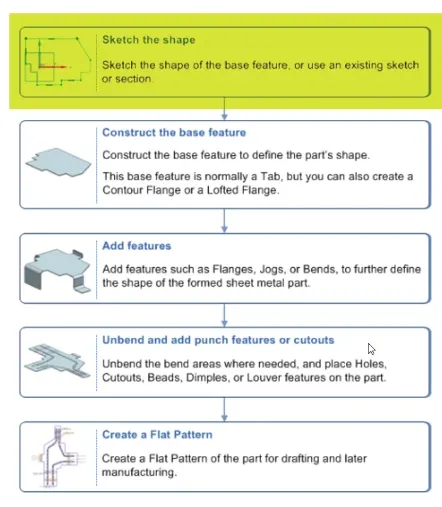

Design methodology / approach

CONTOUR FLANGE COMAND is used to make first base

NORMAL CUTOUT is used to remove extra portions

break corner used to remove sharp edges

ADVANCED FLANGE command used to make flange at curved edges

HOLE comand is used to make holes

gusset command used to make gusset at various positions
