Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
- Title of the Project
- Objective

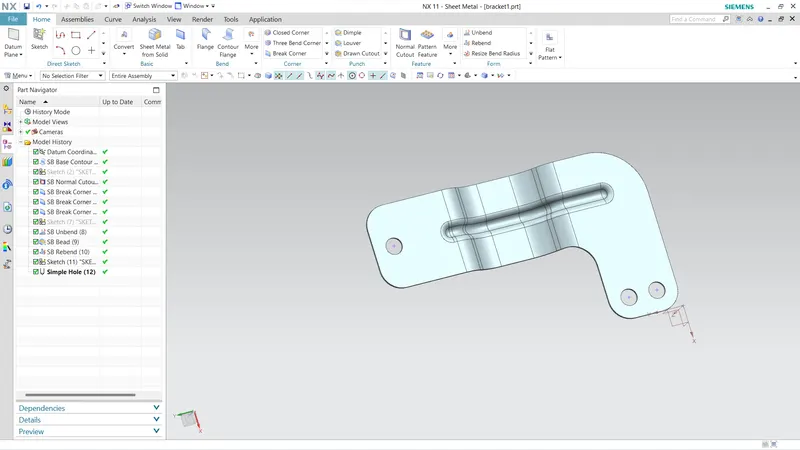

create “Bracket” from the given 2d Drawing.

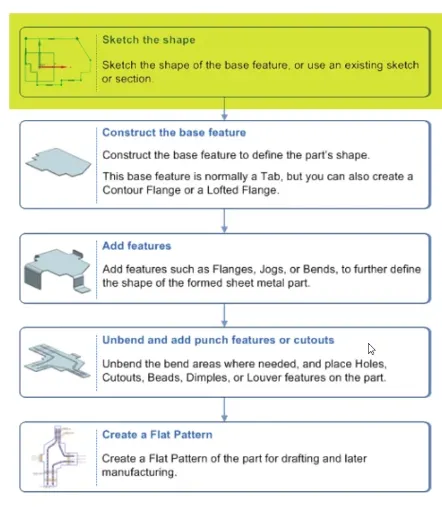

Design methodology / approach
CONTOUR FLANGE COMAND is used to make first base
NORMAL CUTOUT is used to remove extra portions
break corner used to remove sharp edges

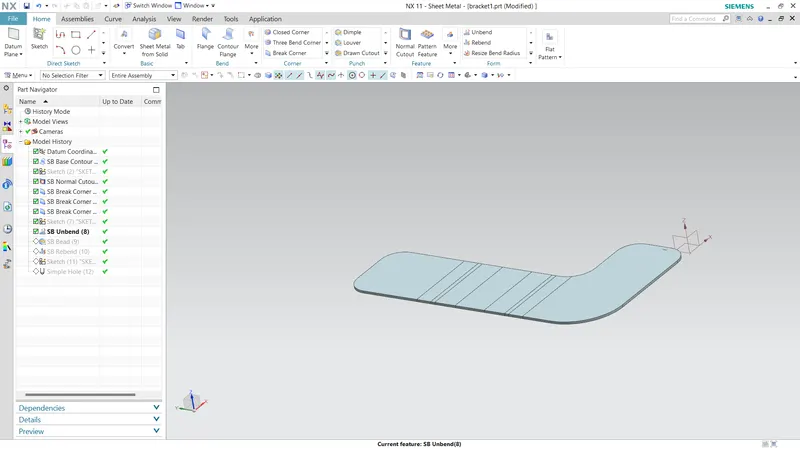

after UNBEND COMAND we can add BEADS

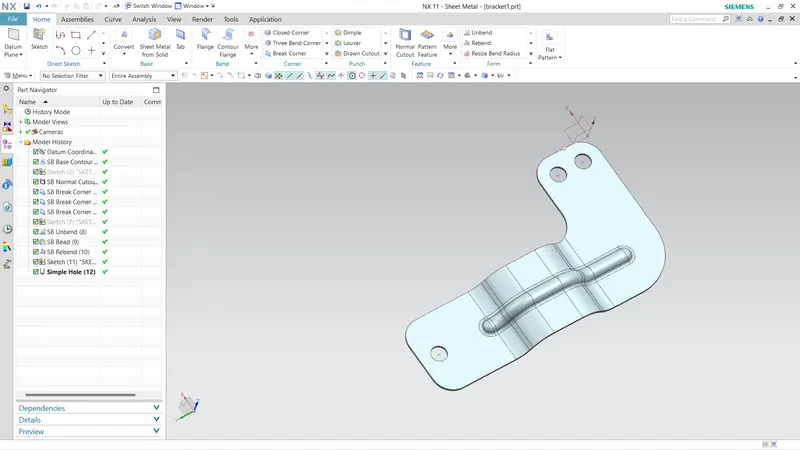

HOLE comand is used to make holes
