Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Title of the Project: To design a Bracket using Siemens NX Sheet metal application.

DESIGN METHODOLOGY:

SKETCH TOOLS: Sketching is the process of creating a 2D drawing before developing it in 3D. In Siemens NX Sheet Metal, there are plenty of options and has various tools for creating a 2D sketch. In that, a few tools which are used for drawing the casing are discussed below.

STRAIGHT-LINE: The straight line is one of the sketch tools which is used to draw a straight line. It creates lines with constraint inferencing.

RECTANGLE: Creates a rectangle using any of three different methods.

POINT: It is used to create sketch points in a 2D plane.

TAB: It is used to create a base feature by extruding a sketch along a vector by a thickness value or adds material to a planar face. Additional planar selections can be added to generate bends as part of the base feature.

FLANGE: It is used to add a flat flange at an angle to a planar face and adds a bend between the two.

BEND: It is used to modify a model by bending material on one side of a sketch line, adding a bend between the two sides.

BREAK CORNER: It is used to create rounds or chamfers around sharp corners of a tab or flange

DIMPLE: It is used to lift an area of the model inside a sketch that simulates a stamping tool.

BEADS: It is used to lift the material along the contour of a sketch that simulates a stamping tool.

.

NORMAL CUTOUT: It is used to create cut material by projecting a sketch onto the model and then cutting perpendicular to the faces intersected by the projection.

UNBEND: It is used to flatten a bend and the material adjacent to the bend.

REBEND: It is used to restore an unbend feature to its previous bend state, along with any features added after the unbend feature.

JOGS: This is used to modify the model by lifting material on one side of a sketch line, adding a flange between the two sides.

HOLES: It is used to add a hole to one or more solid bodies in a part or assembly with options for counterbored, countersunk, and threaded.

LOUVERS: It is used to pierce a model with a sketch line that simulates a stamping tool.

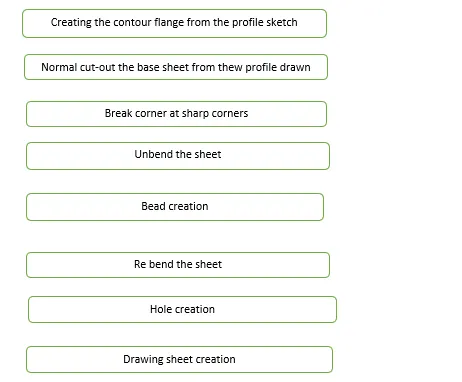

PROCEDURE:

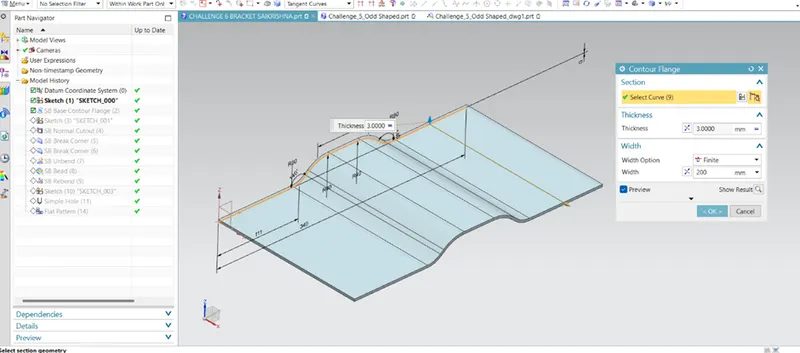

Creating the solid body:

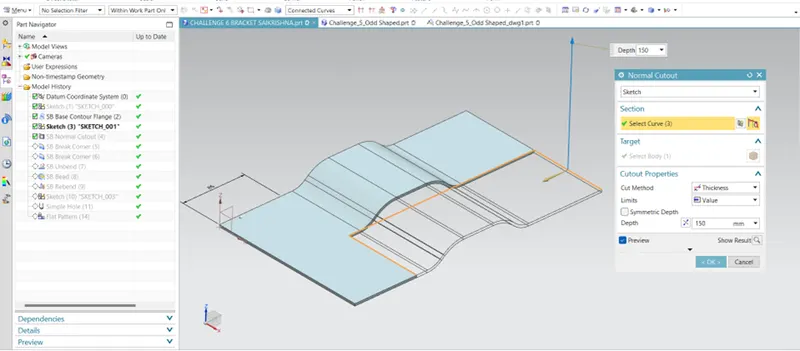

NORMAL CUTOUT:

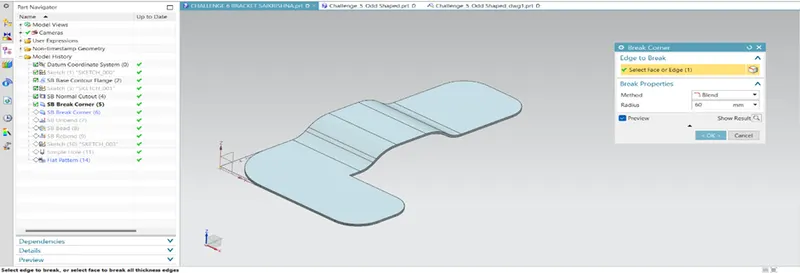

BREAK CORNER:

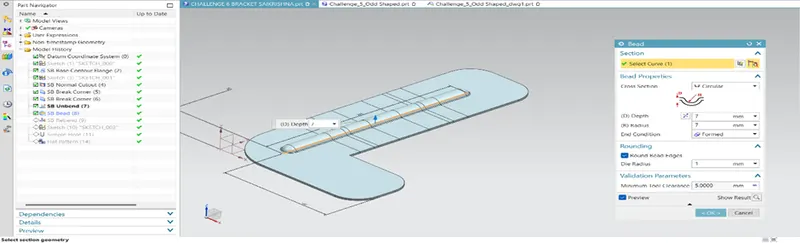

BEADS:

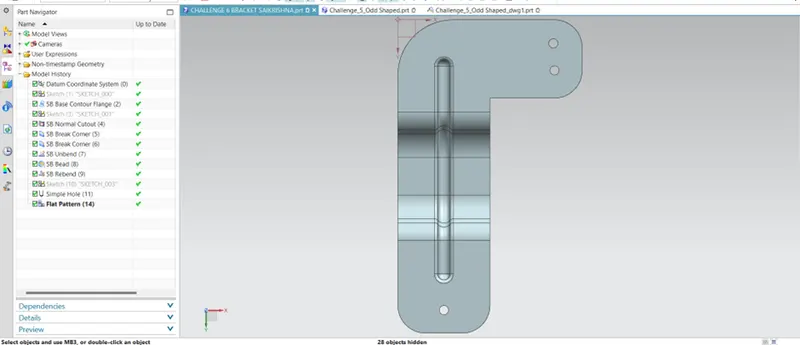

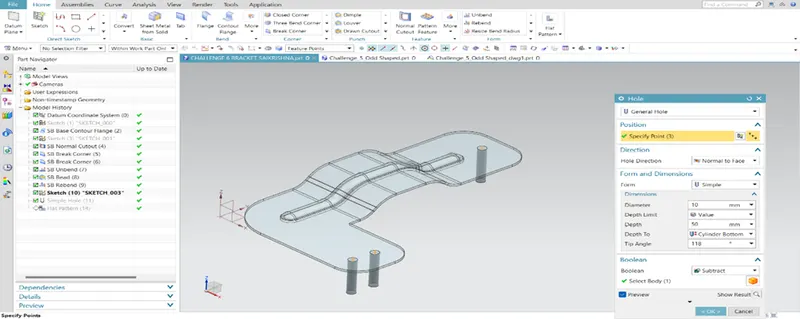

HOLES:

Flatpattern: VIEWS: FRONTVIEW:

Top view:

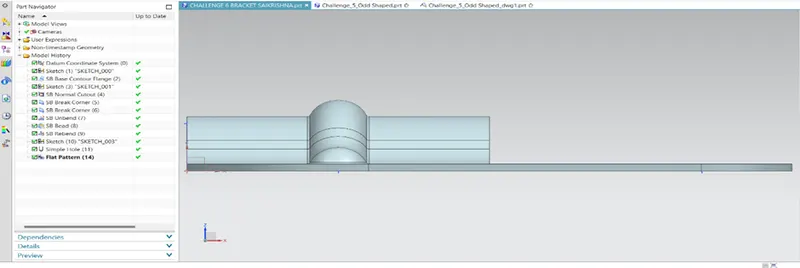

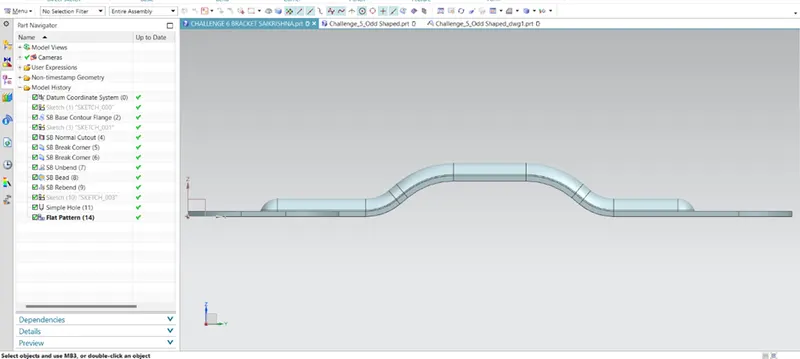

Sideview:

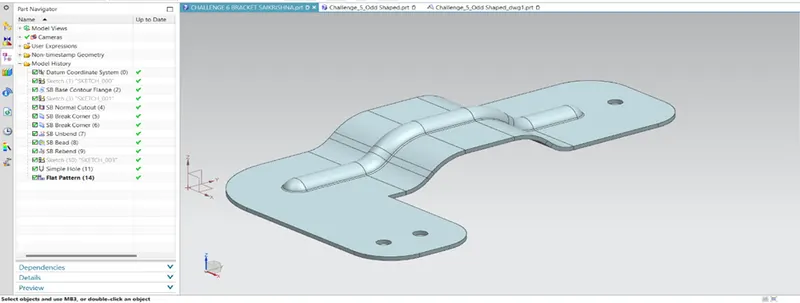

Isometric view:

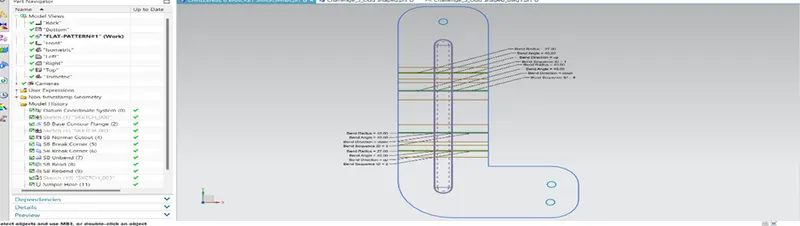

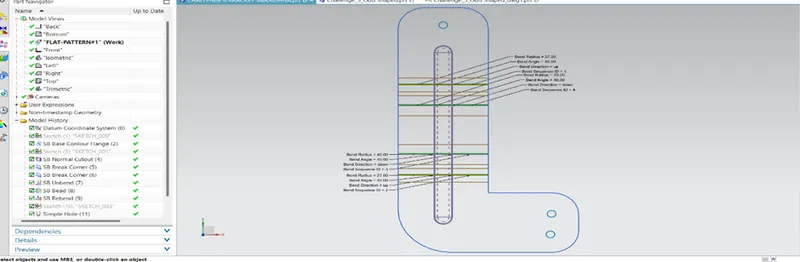

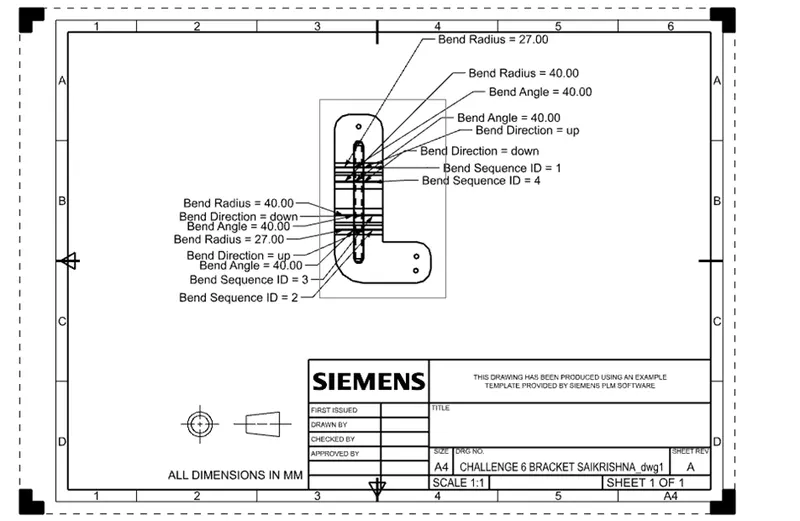

Flat pattern:

Conclusion:- Bracket is obtained using basic feature of sheet metal application.
