Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Design of Sheet Metal Bracket

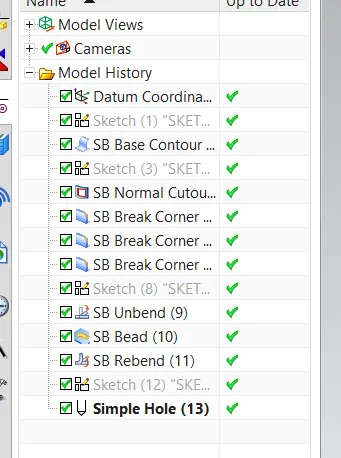

The objective is to design a bracket using sheet metal in NX cad using various commands in the NX cad softtware. The design contains various commands like contour flange, break corners, holes etc.

Introduction

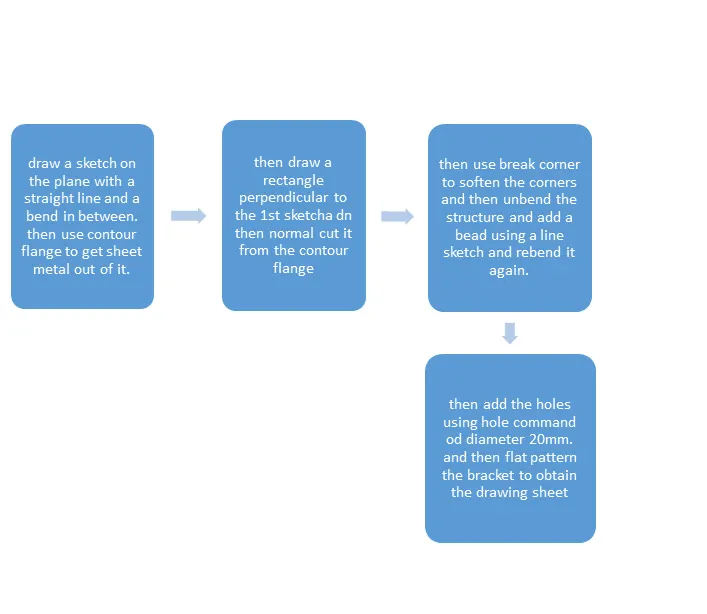

NX cad is a designing and modeling software used to model various designs. The casing is made of sheet metal. The design of bracket has contour flange, holes, etc. the total designing process and methadology will be dicussed as follows.

conclusion

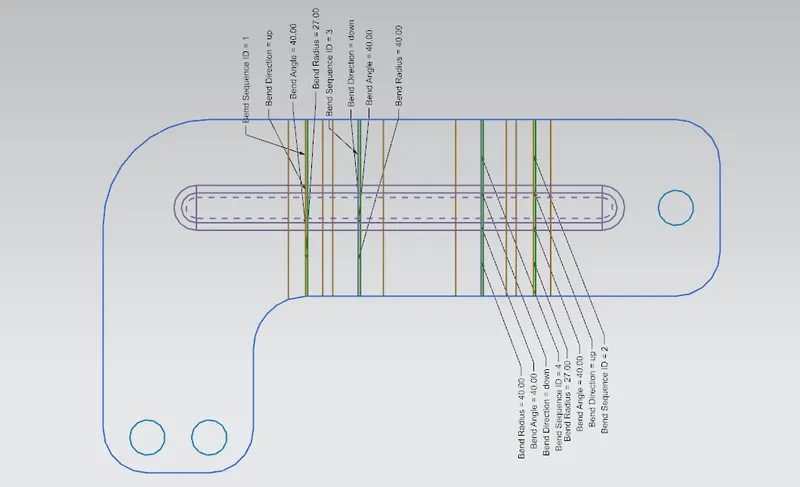

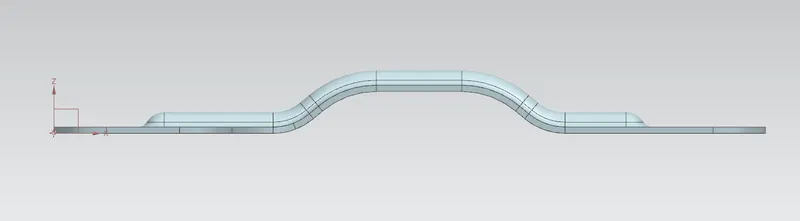

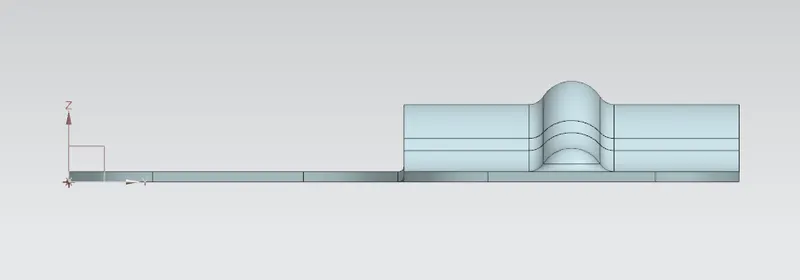

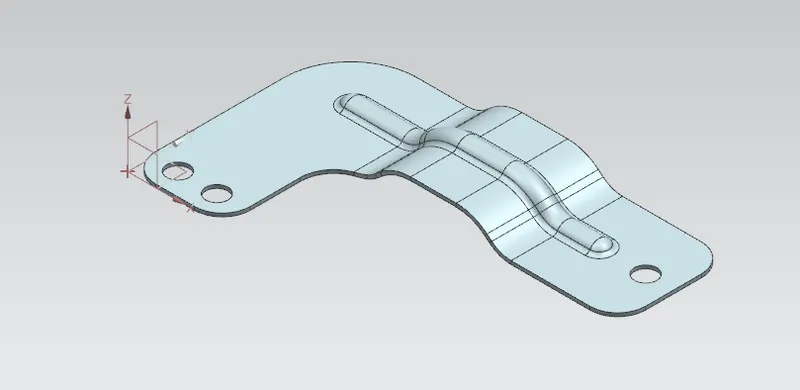

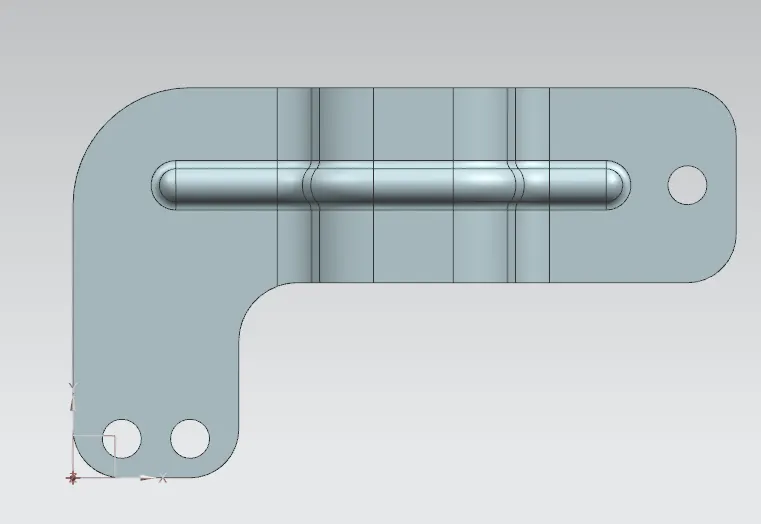

Thus the desgin of bracket has been done using many features and commands and the pictures of various viwes of the casing have been attached.
