Radar Mast & Final Assembly of Yacht
Design of predator yacth using Solid works
Objective
The objective of the work is to design a predator yacth using various commands and featured in solid works, and learn various commands and freatutres.
Introduction

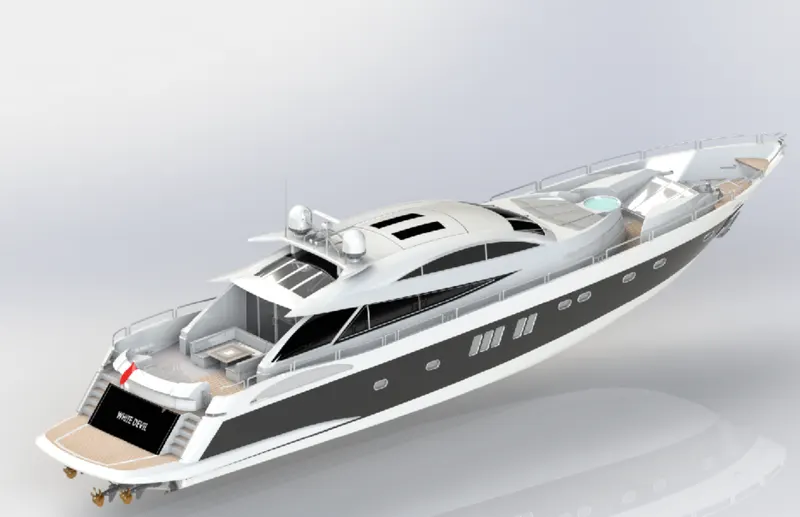

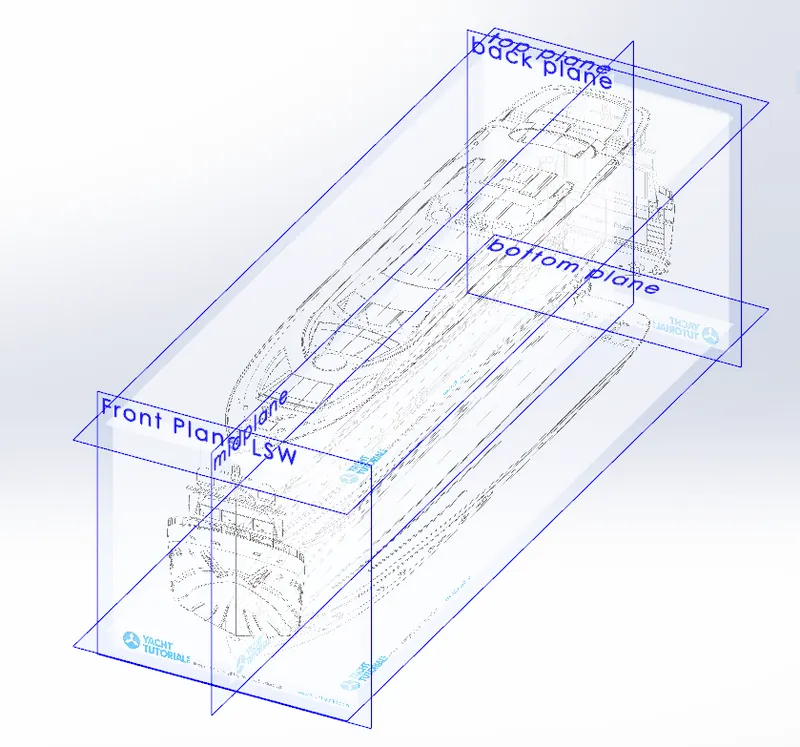

The design of the predator yacth starts by using the blue prints of the front, back, side, top and bottom views of the the predator yacth. The blue print reference is used all over the model to get the exact same yacth model. So many features are used in the model to design the yacth.
Design approach
The design approach is like designing the toughest part starting withe easier one by learning many features and commands from the previous part.
In my design the approach is like
- Blue print setup
- Propeller
- Radar
- Hull
- Garage door
- front seat
- middle seat
- Back seat
- Super structure

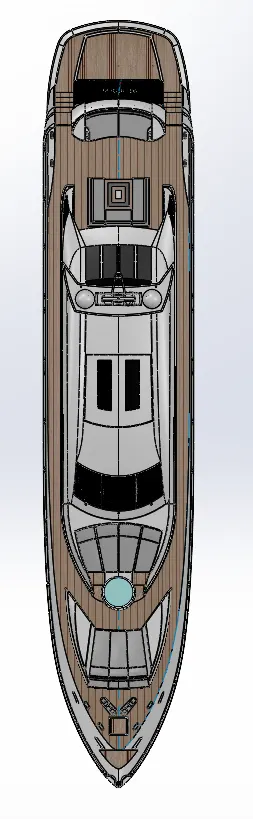

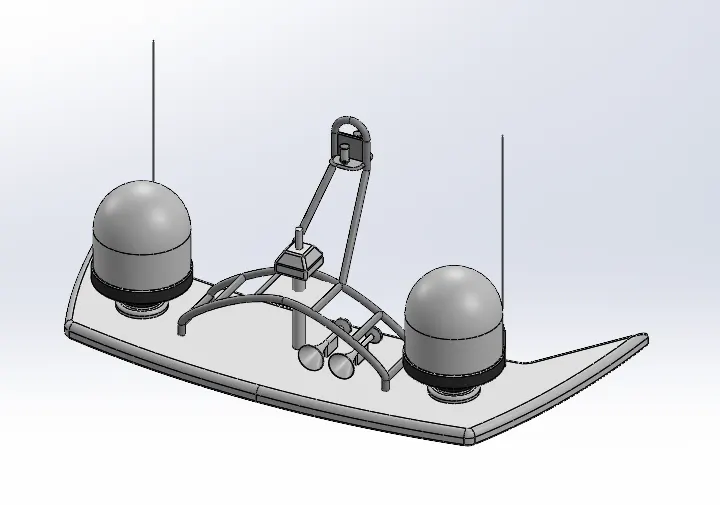

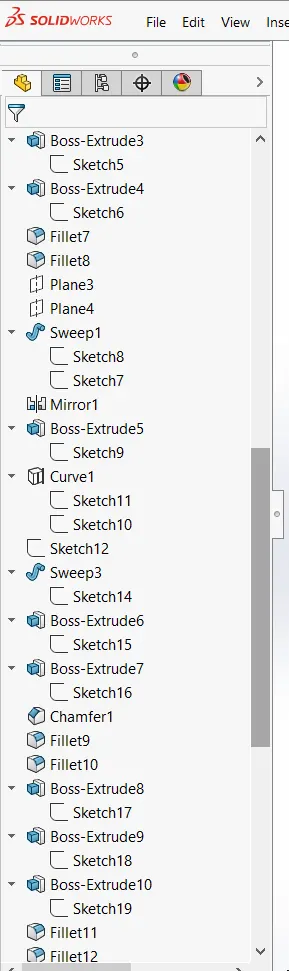

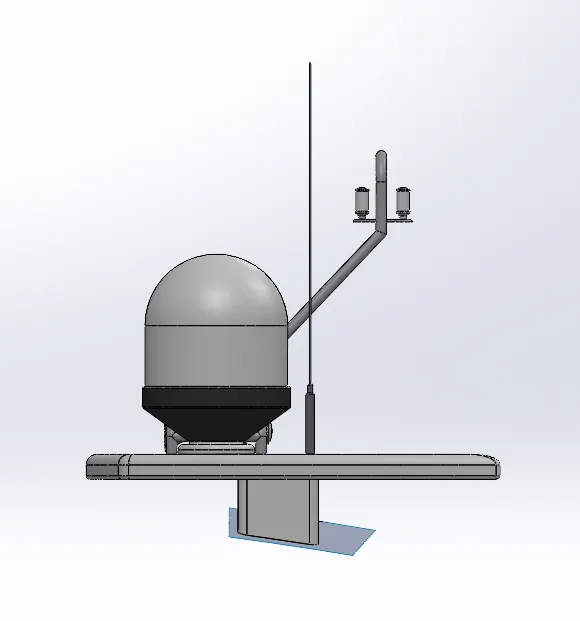

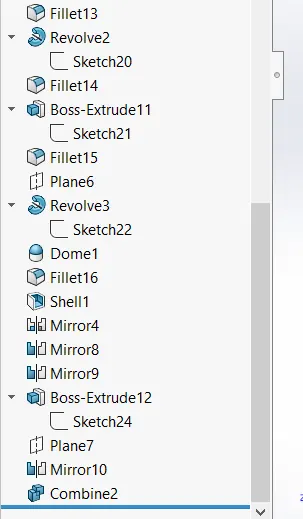

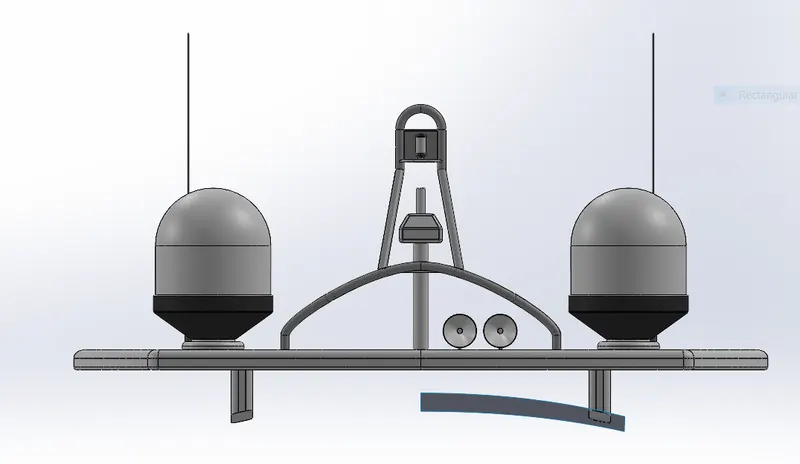

- Radar mast
Description

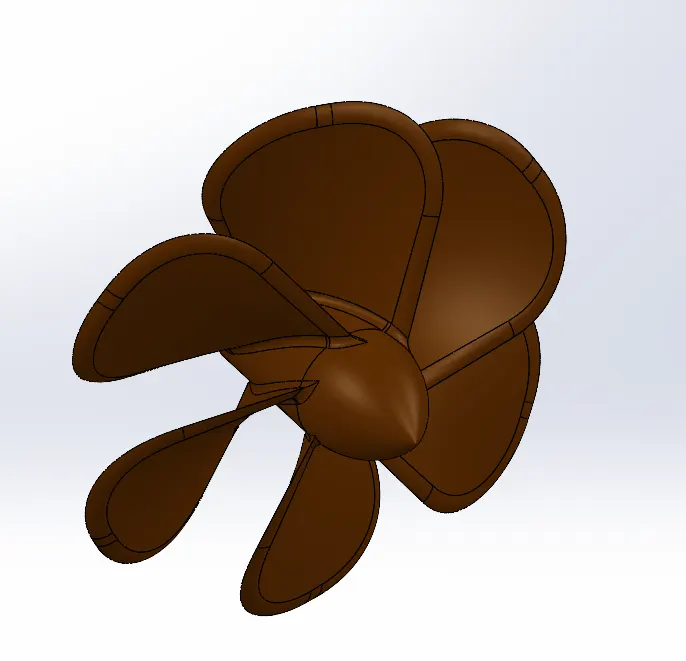

propeller
Features: revolve, extrude cut, fillet, loft.
Radar
Features: extrude, extrude cut, fillet

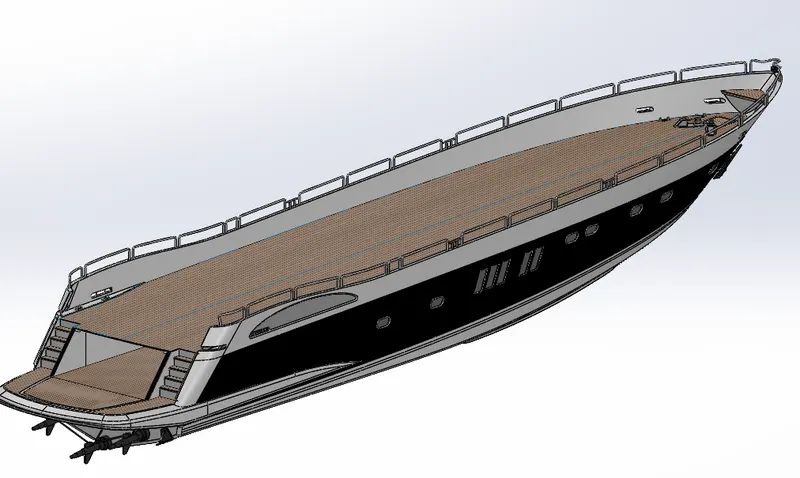

Hull
Features: extrude, extrude cut, fillet, chamber, projected curve, sweep boss, linear pattern, split, combine, shell, dome, mirror.

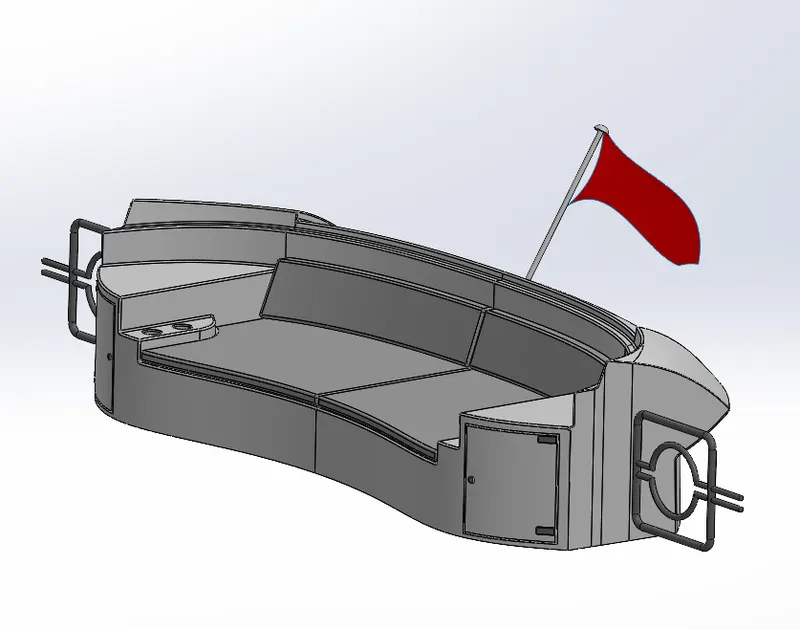

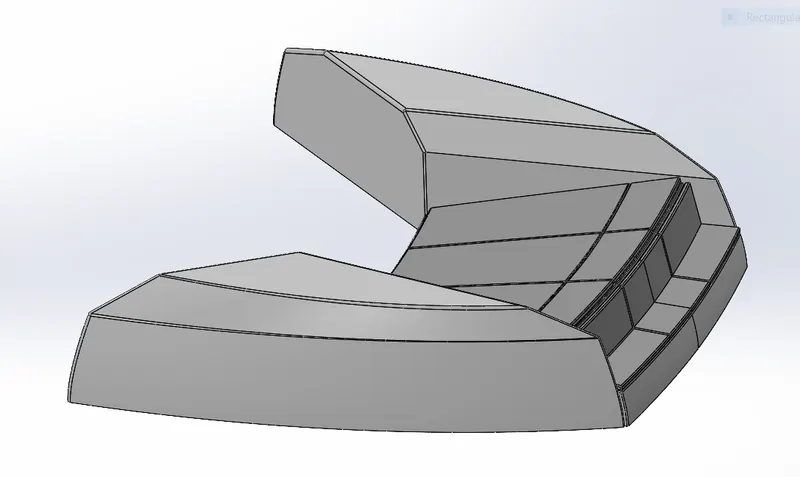

Front seat
Features: extrude, extrude surface, extrude cut, loft surface, fillet, chamber, mirror, knit surfaces, trim surface, dome, offset surface, sweep surface, revolve boss.

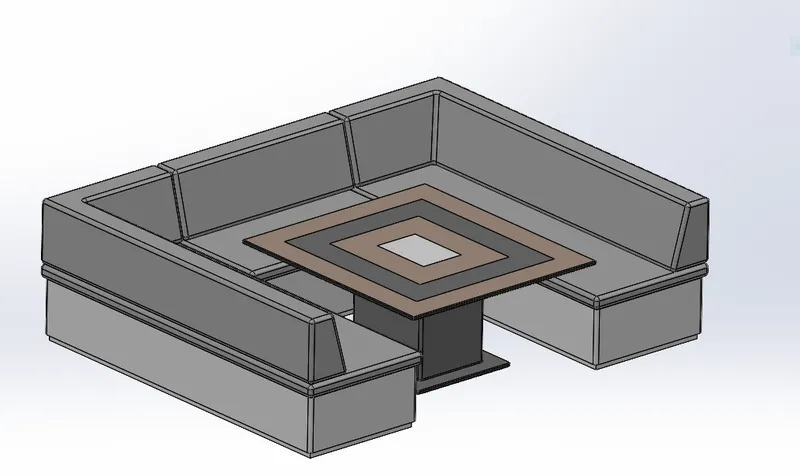

middle seat
Features: extrude, extrude cut, fillet, chamber, surface offset.
Back seat
Features : surrface extrude, surface loft, filled surface, ruled surface, off set surface, fillet, chmber, tim surface, knit surface, extend surface.

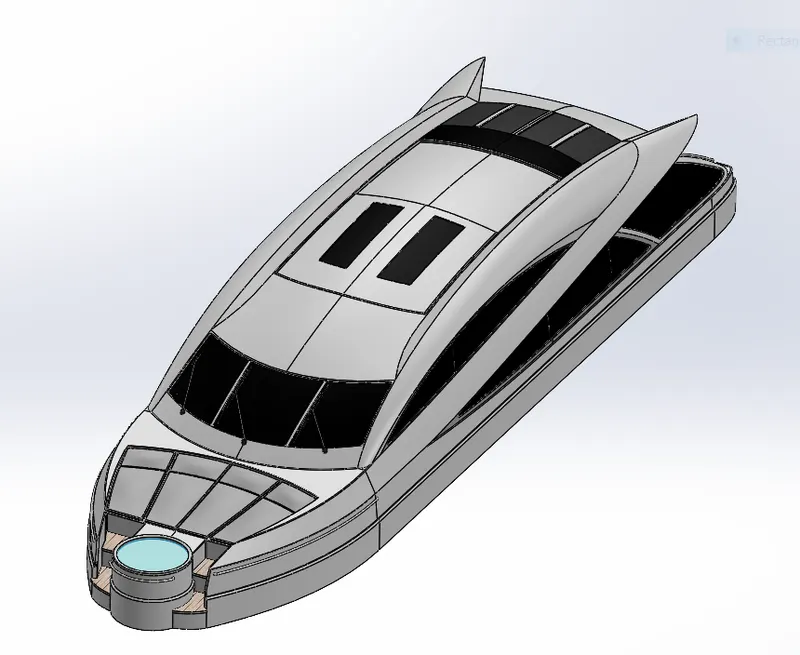

Super structure
Features : extrude, extrude cut, fillet, chamber, mirror, projected curve split, dome, extrude surface, surface loft surface, filled surface, offsett surface, ruled surface, delete face, extend surface, trim surface, knit surface.

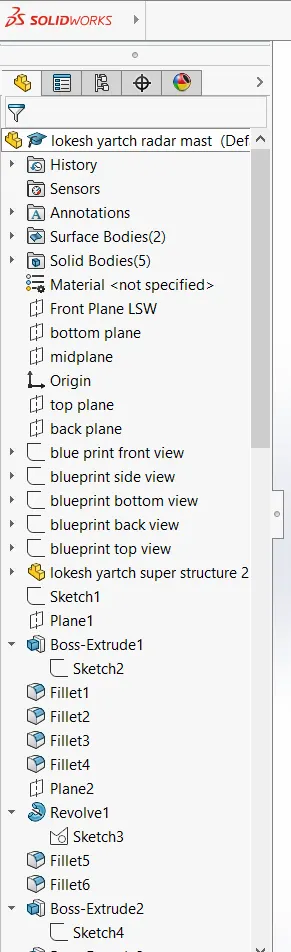

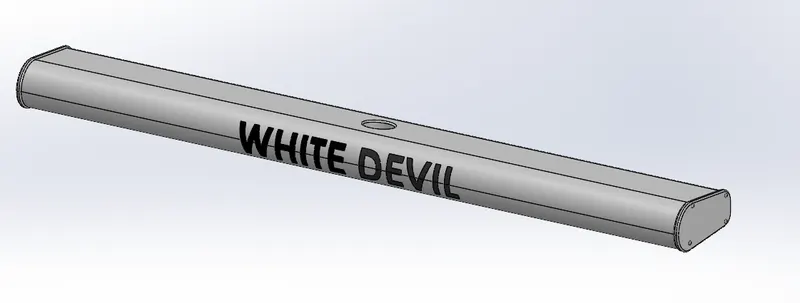

Radar mast

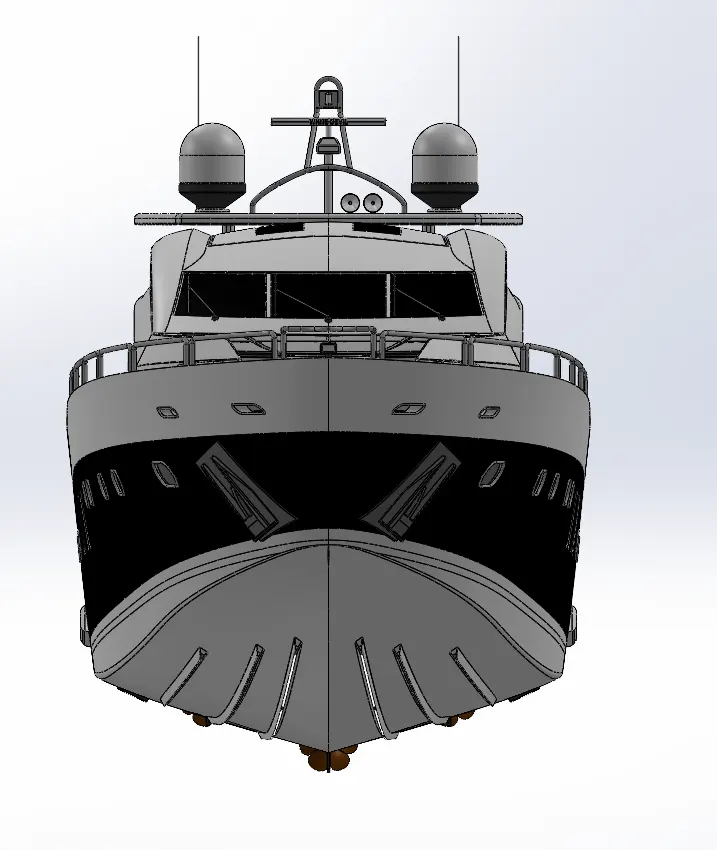

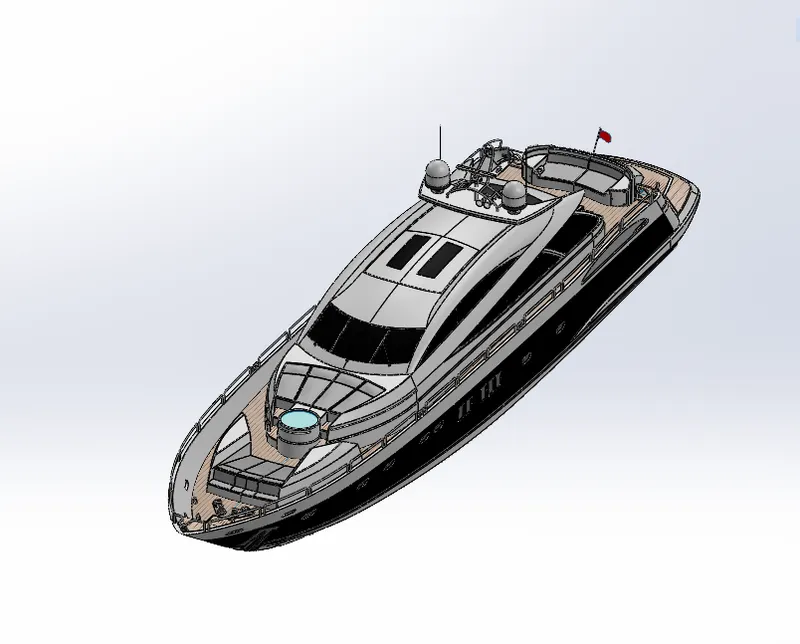

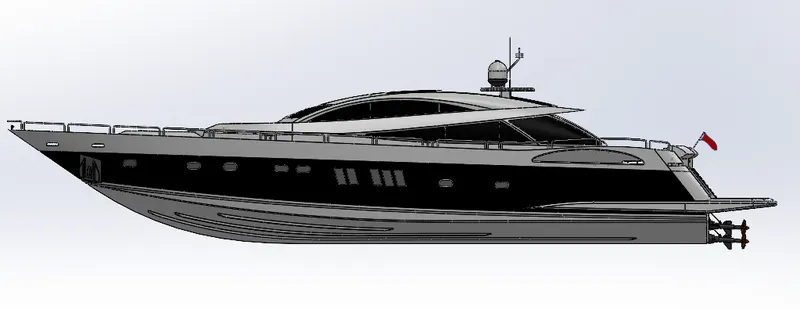

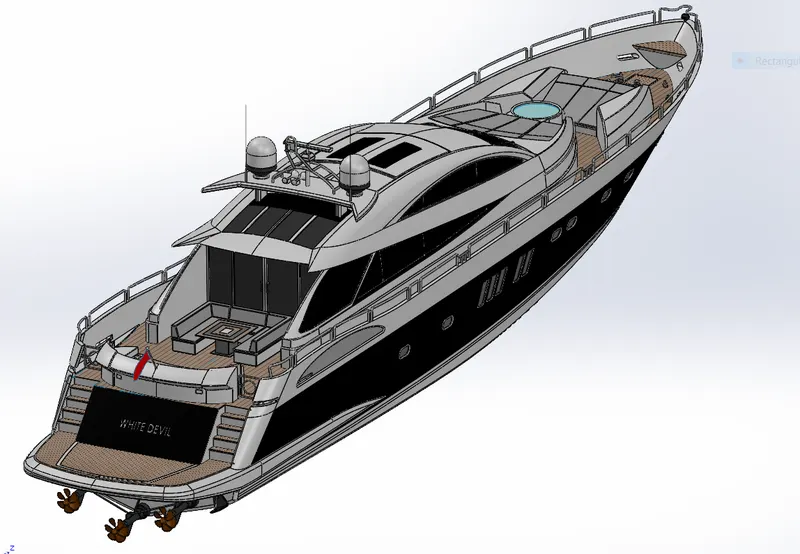

Assembly
conclusion
The predator yacth has been understood and designed from the given dimensions values and constrrains.
