Week 9 Challenge

Sliders and Insert blocks for cpu fan case

Design of sliders

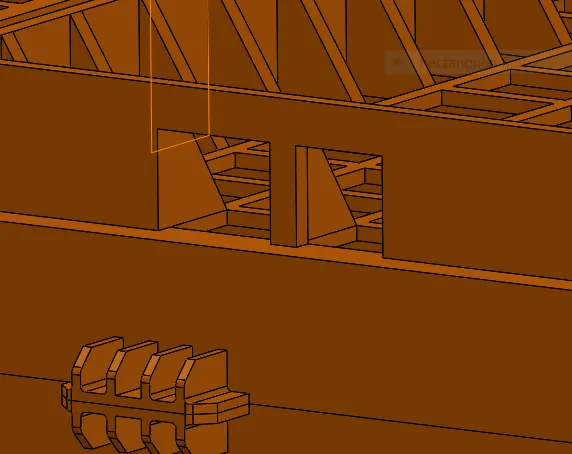

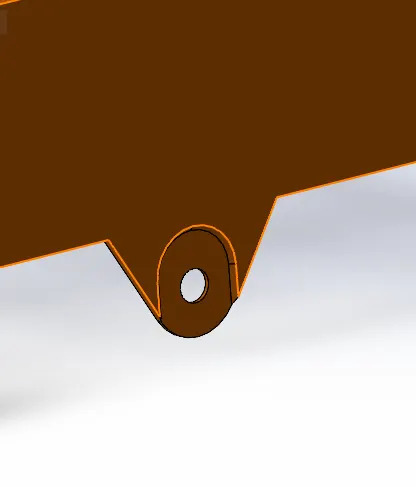

• There are 2 sliders that needs to be designed in the model for the 2 undercuts present.
• They are deisgned using the slip command and then editing the splited part as per required dimensions.
• The core and cavity blocks are edited as per the sliders.

they are

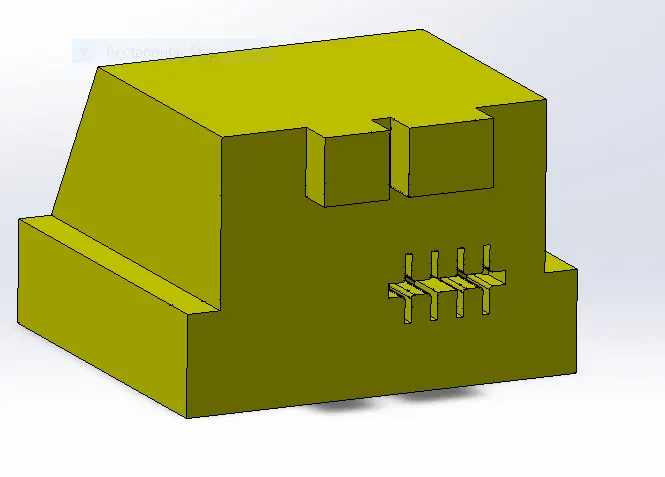

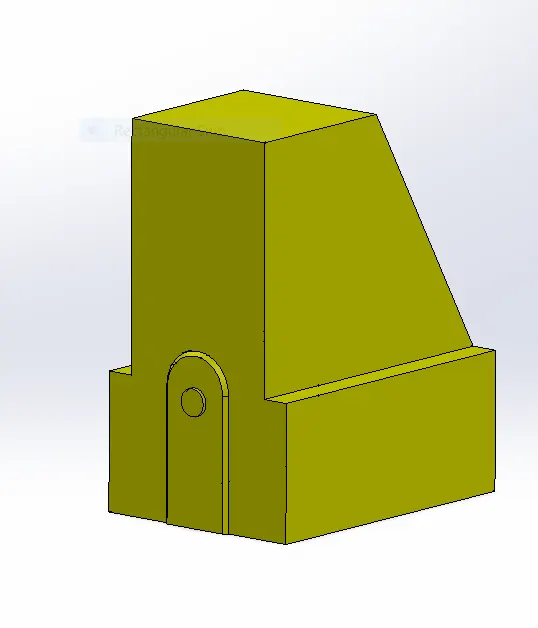

the sliders for both the undercuts are like

These sliders help to create the required undercuts.

Insert blocks

• Insert blocks are made when there are deeper cuts above the level of manufacturing.
• insert blocks are generally the blocks that seperate the cut into two parts which are manufactured seperately and then joined as a single part for the requied function.

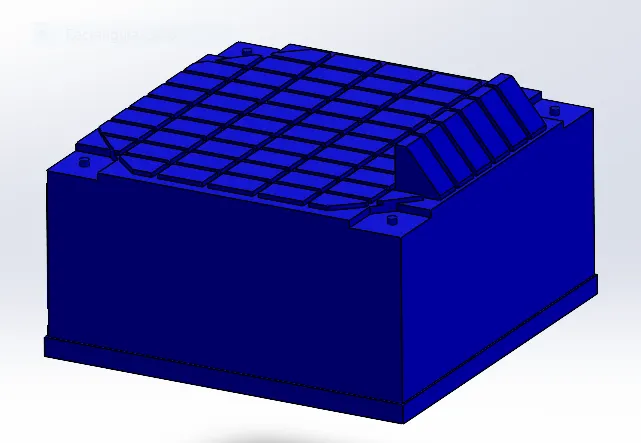

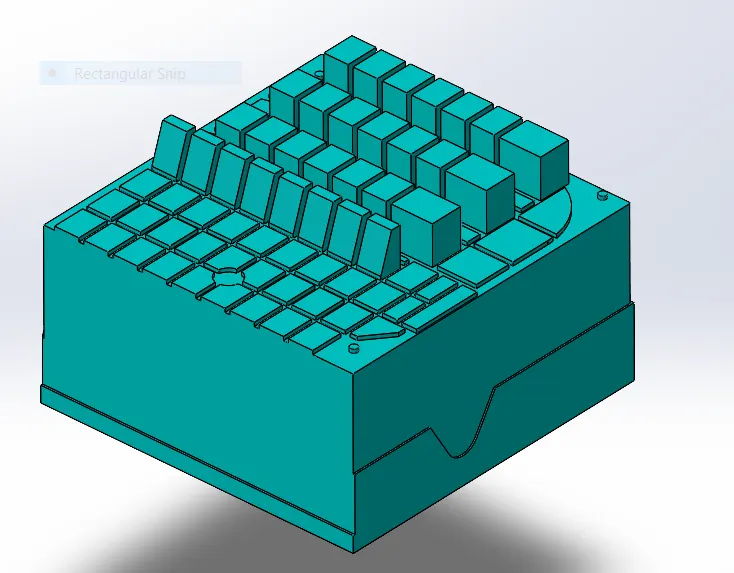

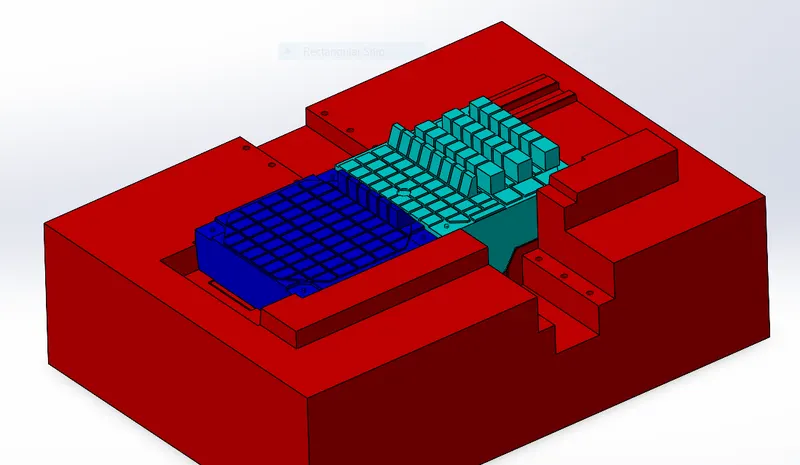

The insert blocks in this model are as follows

So the manufacturing process is easuer now to make evn with the deeper cuts.
