Week 7 Challenge

Report

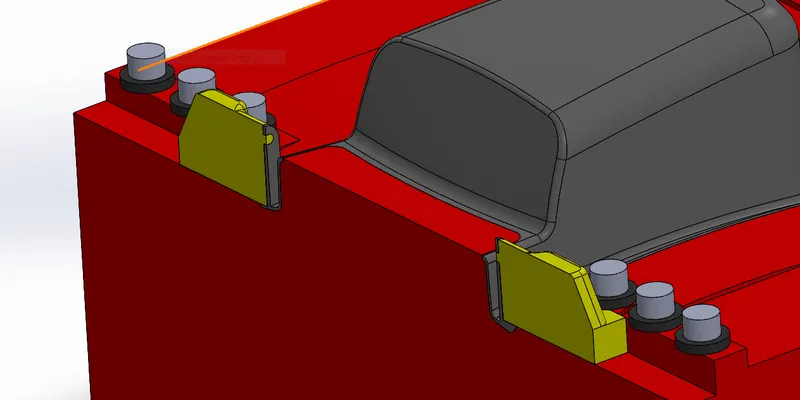

• The Second slider has been Designed in the same process in which the 1st silder was designed.
• we take a plane with reference to the undercuts and convert the sketch of side pins into the plane and then split the the part form the cavity block.
• we creat the under part of the slider with extrude which is in the shape of a slot.
• Then we edit the Splitted part into the slider block with extrude and extrude cut, the recover the extra cutted part in the cavity block using move face command.
• we add fillets to the slider as well as cavity block, we also make path for the slider in the core block and creat an extruded path for the washers as well.
