Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
ADVANCED SHEET METAL DESIGN USING NX CAD - BRACKET
OBJECTIVE
The objective of this project is to create a bracket in Siemens NX using the sheet metal tool and to create a draft of the sheet metal casing in NX.
INTRODUCTION
- Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metalworking, and it can be cut and bent into a variety of shapes.
- Countless everyday objects are fabricated from sheet metal. Thicknesses can vary significantly. Sheet Metal application provides an environment for the design of sheet metal parts used in machinery, enclosures, brackets, and other parts normally manufactured with a brake press.
- Siemens NX sheet metal design software incorporates material and process information in sheet metal-specific modelling features: bends, flanges, tabs, cutouts, beads, dimples, louvres, corner and edge treatments, patterns, and other formable features.
- You can also quickly convert solid models to sheet metal components, and create sheet metal parts that enclose other components. More than 85% of Sheet metal industries use NX CAD as a design tool.
DESIGN METHODOLOGY
SHEET METAL > SKETCH > CONTOUR FLANGE > NORMAL CUTOUT > BREAK CORNERS > UNBEND > BEAD > REBEND > HOLE > DRAFTING.
DESCRIPTION
Sketch - It is a basic and initial operation for creating any kind of sheet metal components.
Normal cutout - It cuts the material perpendicular to the sketch.
Flange - It adds a flat flange on basis of edges at an angle to a planar face and adds bend between them.
Break corner - It Rounds a sharp corner at edges. It avoids sharp edges by making it smooth.
Unbend - It flattens a bend and material adjacent to the bend.
Hole - It creates a whole on basis of circle created.
Bead - It lifts a material along the contour of a sketch that forms an stamping tool.
Rebend - It restores a bend.

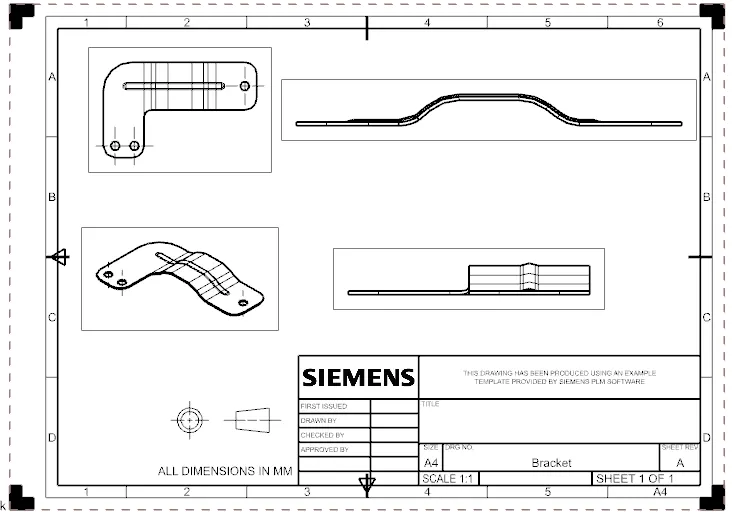

Drafting - It is used to draw 2D drawing from a 3D model. The drawing shows dimensions, relations, annotations etc. which is used to manufacture the components.

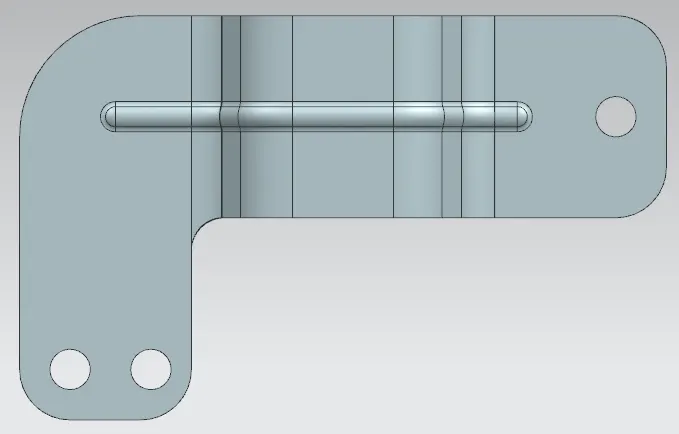

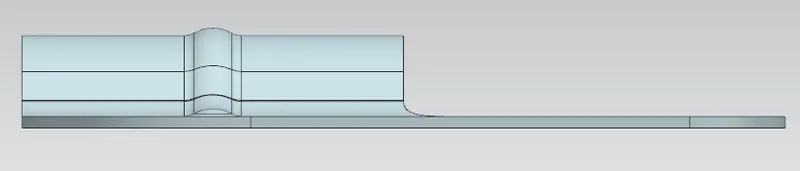

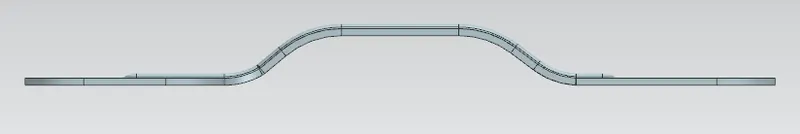

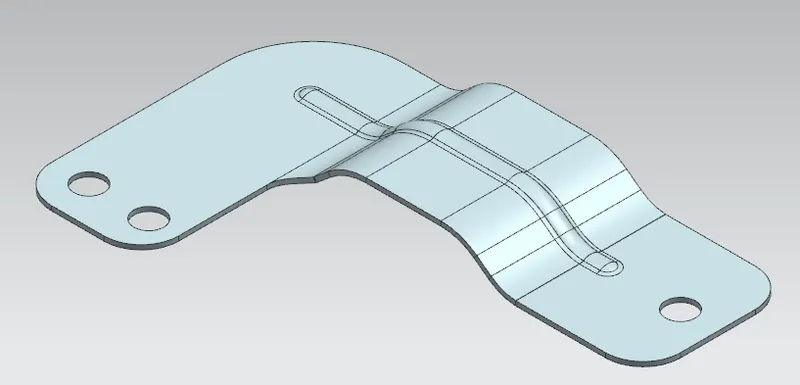

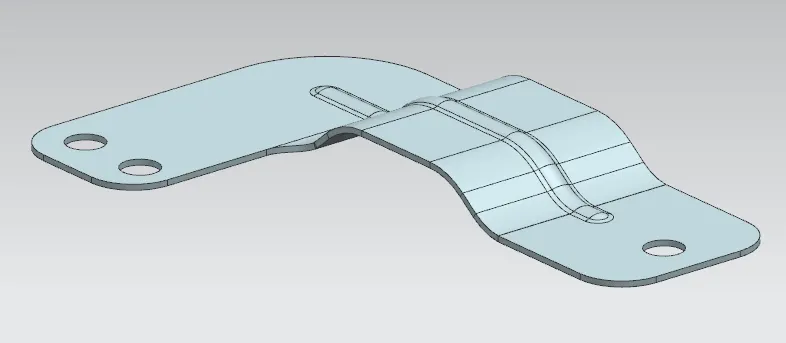

IMAGES

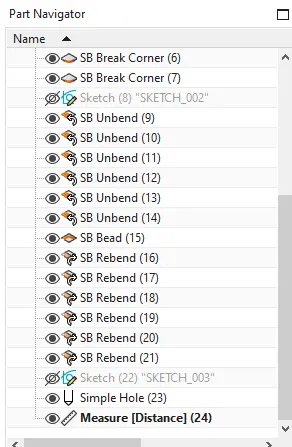

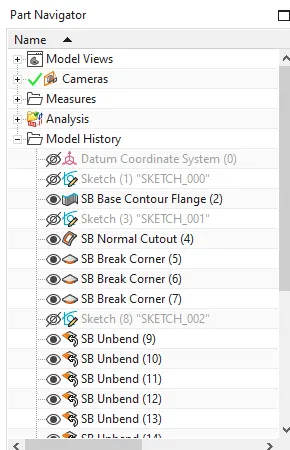

IMAGES OF FEATURE TREE
CONCLUSION
Thus, creating a bracket from a 2D sketch is done using sheet metal tools in Siemens NX by understanding the user interface with NX cad.
