Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure
Aim : Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure
Objective: Write a detailed report on Sheet Metal Component with good explanation on Sheet Metal modelling tools applied throughout the modelling. Also attach the Final model Images (Min. 4 images) of Sheet Metal Odd Shaped Enclosure.
Link for PDF.
https://drive.google.com/open?id=1rf0KfrEA_4GpM9sdwg4vhdXymtIZDPpe
Title of the Project : CREATING ODD SHAPED ENCLOSURE WITH NX SHEET METAL APPLICATION:
Objective : To create Sheet metal part from a solid body and create features on the Sheet metal part. Also to create the flat pattern of the Sheet metal model so formed.
Introduction: It is focused on creating a Sheet Metal part from a solid body and add features to the Sheet Metal Part as required.This project is to create the enclosure by creating solid body and wrapping the sheet metal over the solid body. Unbend the Sheetmetal to add the more features like Beads, Louver, Dimple and hole etc. and rebend the sheet metal and create the flat pattern to check the manufacturing requirement.fesability of that product

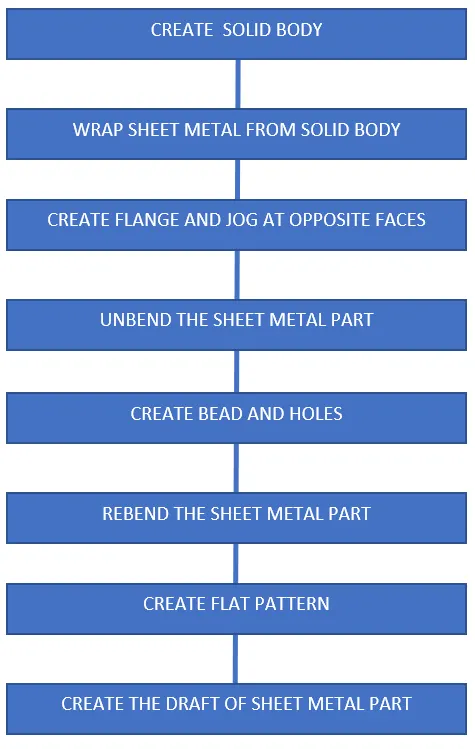

Approach (To be explained with the help of Flowcharts only)
Description (Need to explain tools/ Features used while designing)
PROCEDURE:

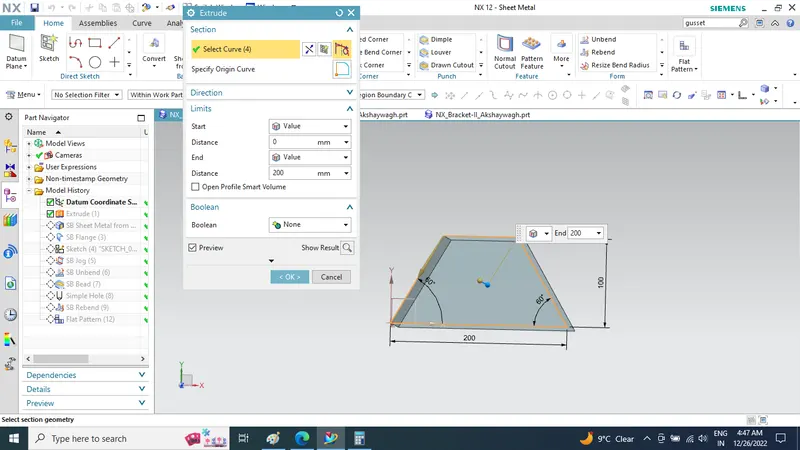

1) Create Sketch Extrude of the solid body to be formed.

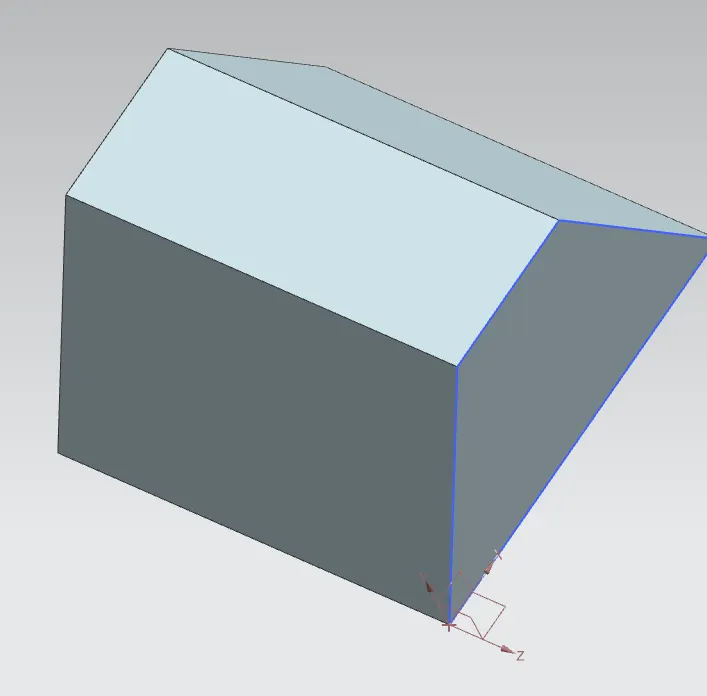

2) Using extrude option to Create the solid body required.
3) Wraping Solid body with Sheet Metal by using Sheet metal from solid option:
4) After the Sheet metal part is created, Features are added as follows:

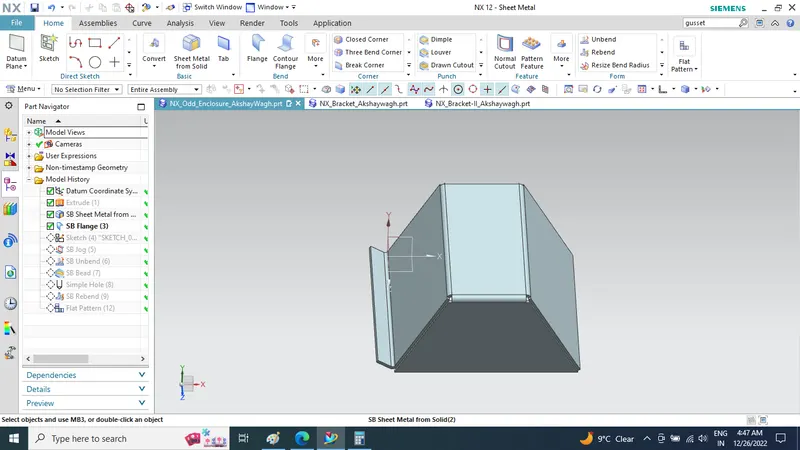

Adding flange at one end of the Sheet Metal part.

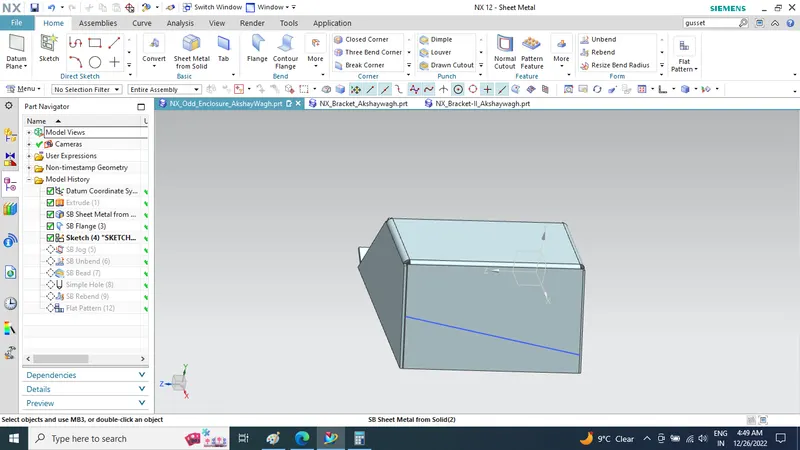

Sketching a slant line in the opposite side of the Sheet Metal part inorder form a jog.

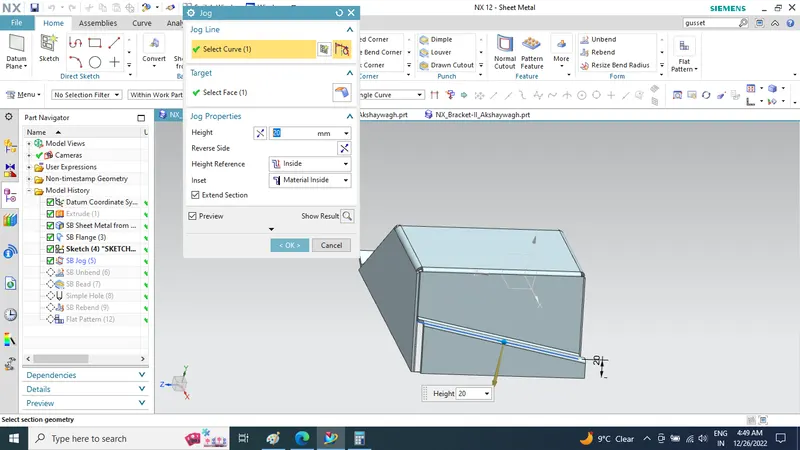

4c) Using the jog option to create jog with respect to the sketch created.

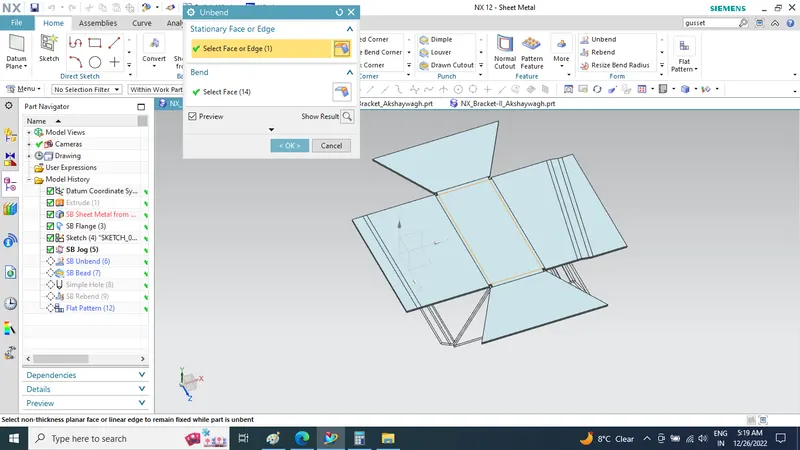

5) Using Unbend option to unbend the created Sheet Metal part.
6) Once the Sheet Metal part is unbend, 2 lines are sketched on the base face as datum plane where bead is to be formed.
- The created lines are selected and Bead option is used to form the requird bead as follows:

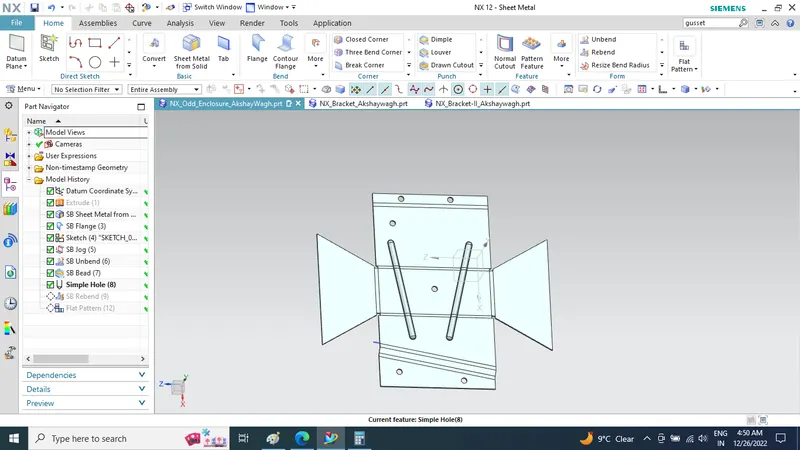

7) Inorder to create general hole, Hole option is used and point is sketched at the faces where holes are required and the holes are created as shown below:

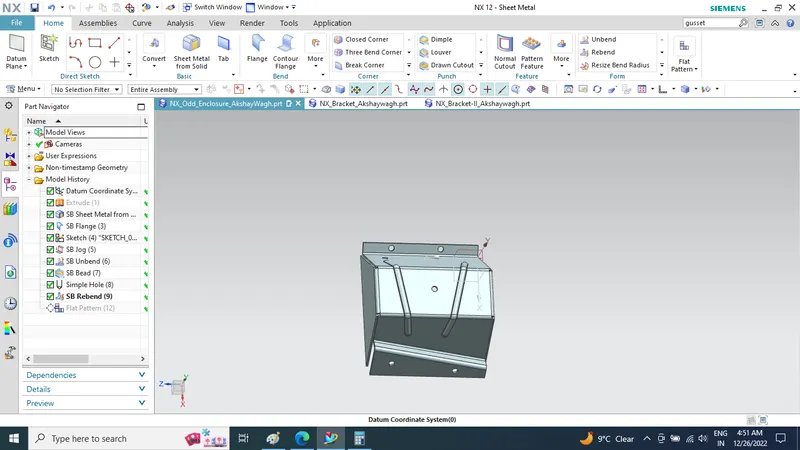

8) Once all the features are made, Rebend option is used to regain the shape of the Sheet Metal part created.

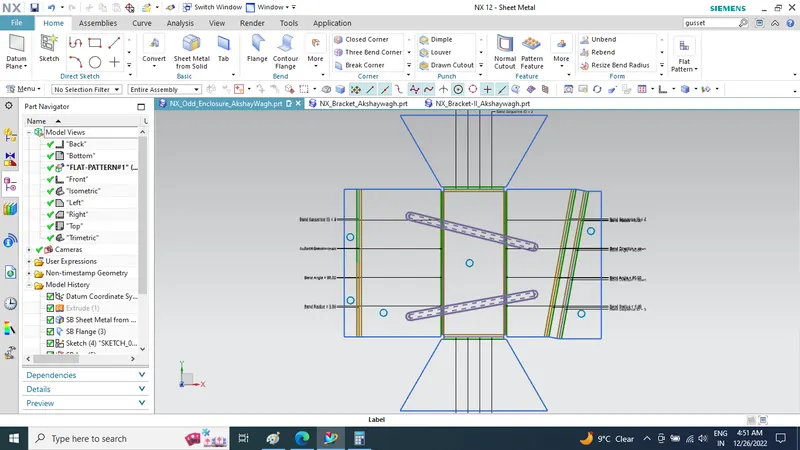

9) Flat Pattern option is selcted and only the bend radius angle and direction is turned on.:
Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)

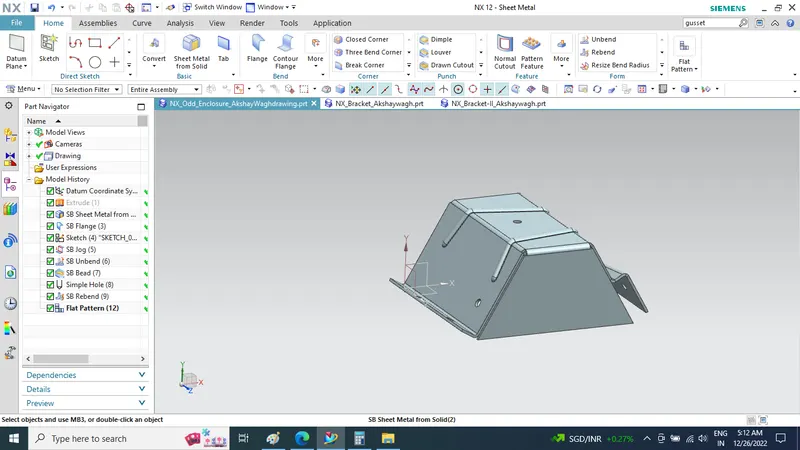

ISOMETRIC View:

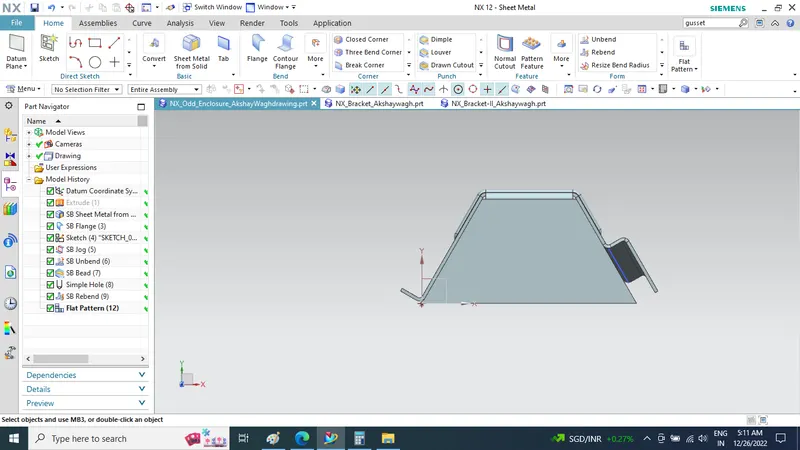

Front View:

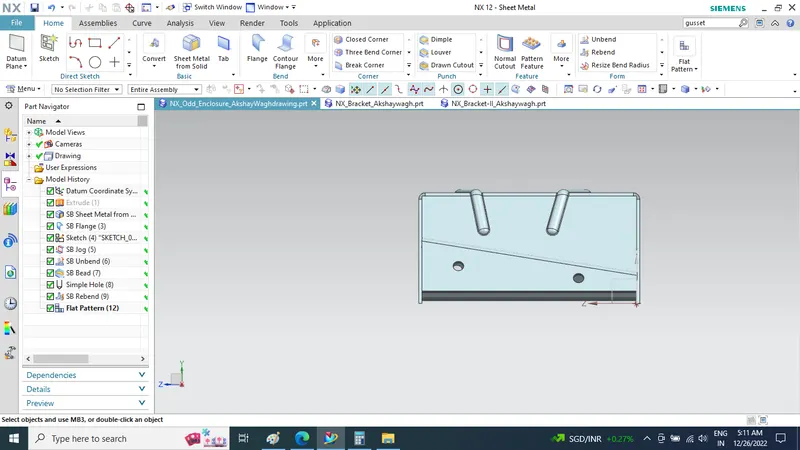

SIDE View:

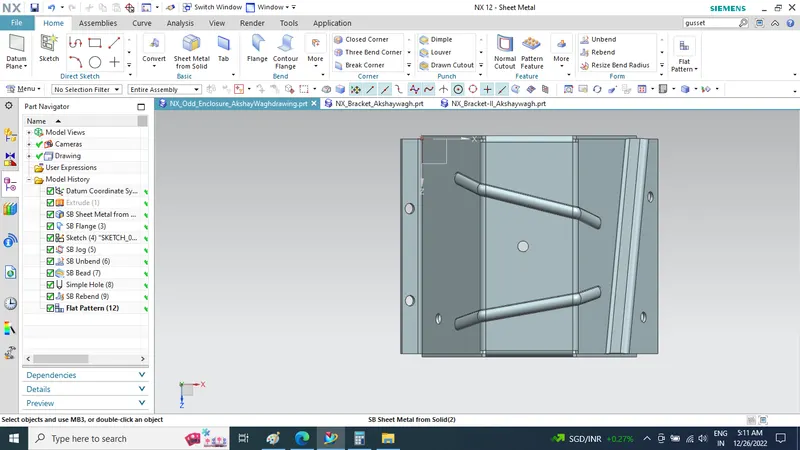

TOP View:

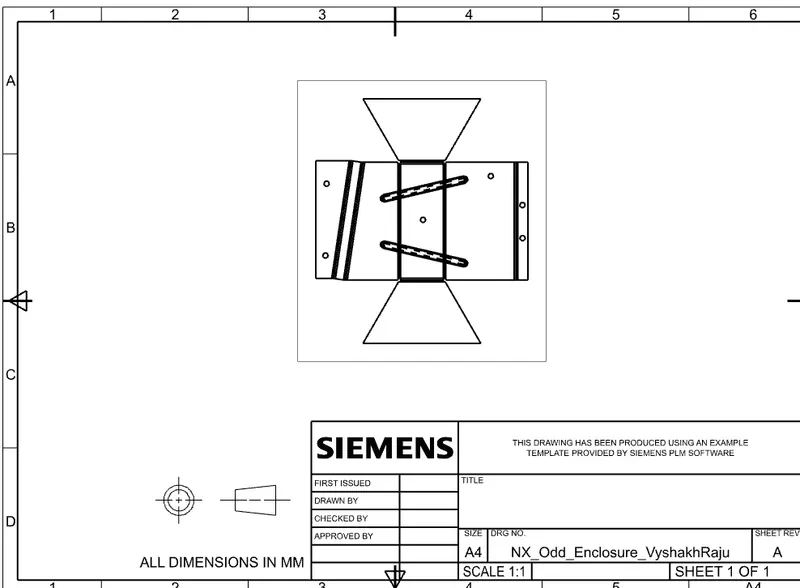

10) Using the flat pattern created, drafting Image of the flat pattern is also created:
CAD File is in zip folder attched with Report Plz Find it
CONCLUSION:
Created the Odd Shaped Enclosure Sheet metal part by using sheetmetal features in NX CAD AS the required Sheet metal Part is created from a solid body.Features like Flange, Jog, bead and General hole is added to the partFinally the flat pattern of the Sheet metal part created is also generated.
