Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Title: Project report on modelling of Odd shaped enclosure using NX CAD.

Objective: To design 3D CAD model of odd shaped enclosure using NX .

Introduction:

NX is the most powerful, flexible and innovative product development solution in the industry. NX for design has the features, performance, and capabilities to help you get product to market faster than ever before.

In this project we will learn the recommended workflow procedure to design a 'sheet metal part for odd shapes' using Siemens NX sheet metal application.

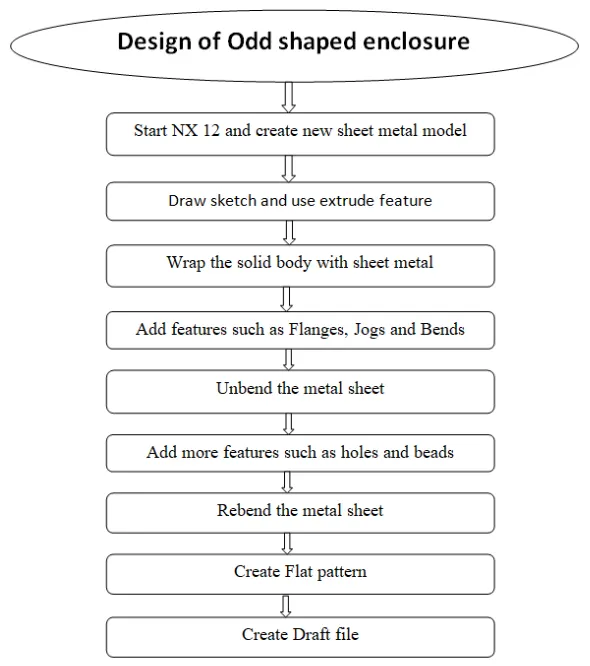

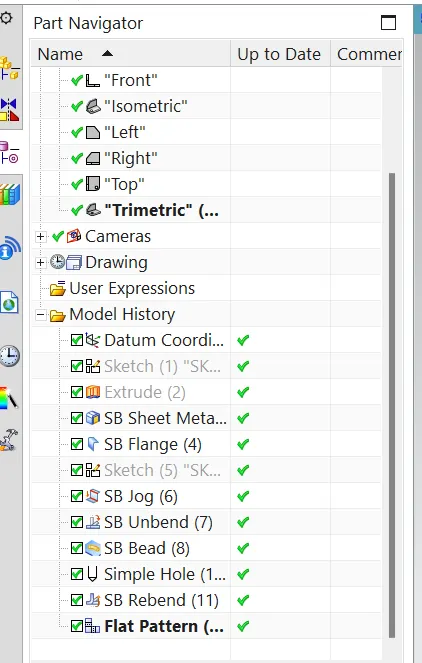

Design Methodology:

Description:

The design procedure of the odd shaped enclosure is explained in detail as follows.

1. Sketch

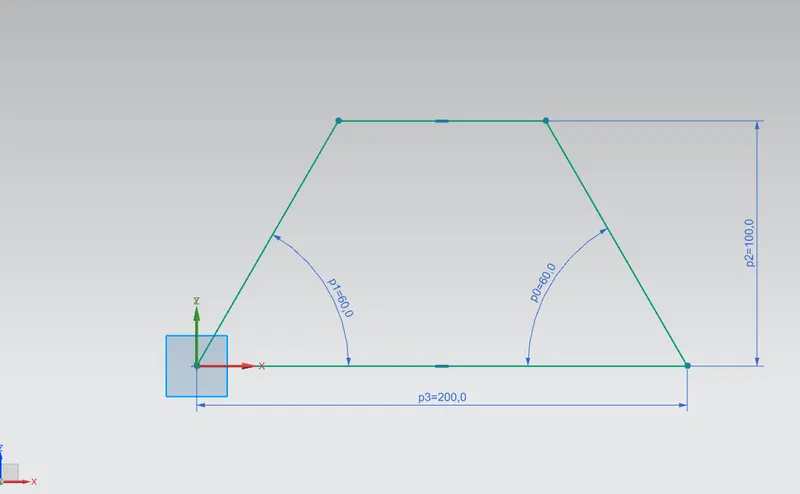

Draw new sketch on YZ plane using given dimentions.

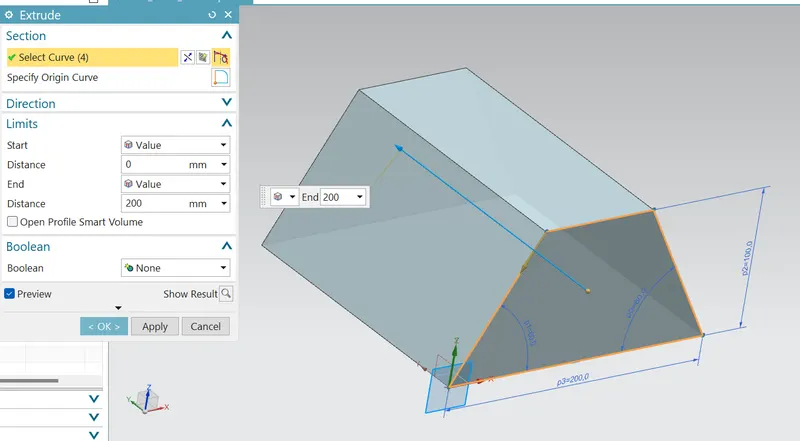

2. Extrude:

Use extrude feature to create the solid body using given dimentions.

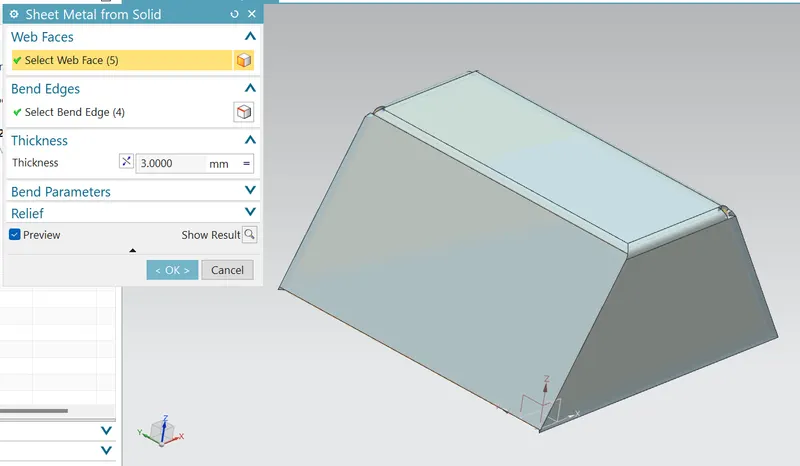

3. Sheet metal from solid:

Create sheet metal using 'sheet metal from solid' command in the workbench.

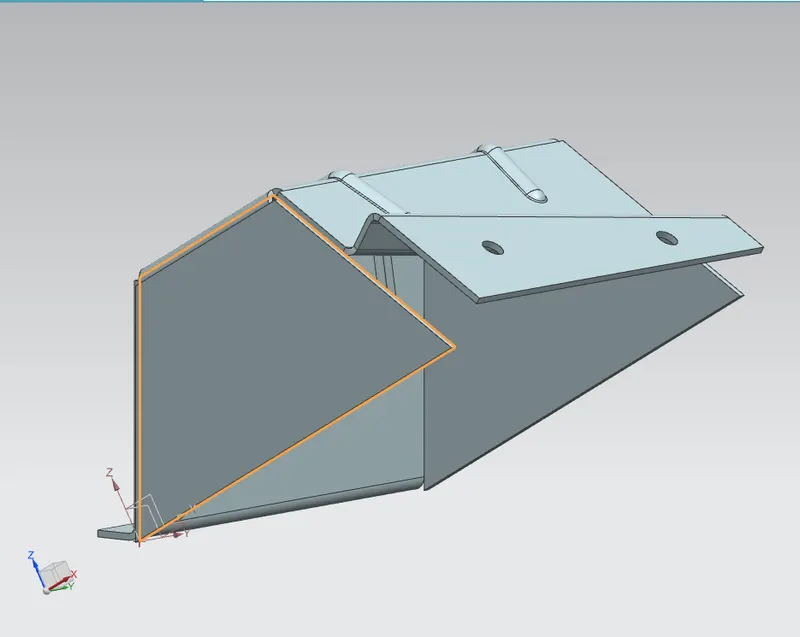

4. Add flange and Jog:

Add flange and jog along the edges of sheet metal using given dimentions.

5. Unbend:

Unbend the sheet metal to add more feature such as beads and holes as per given dimentions.

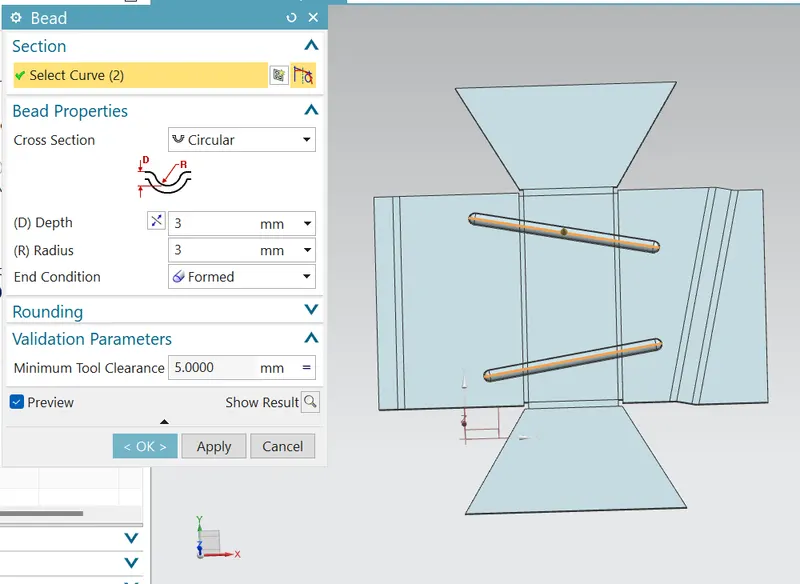

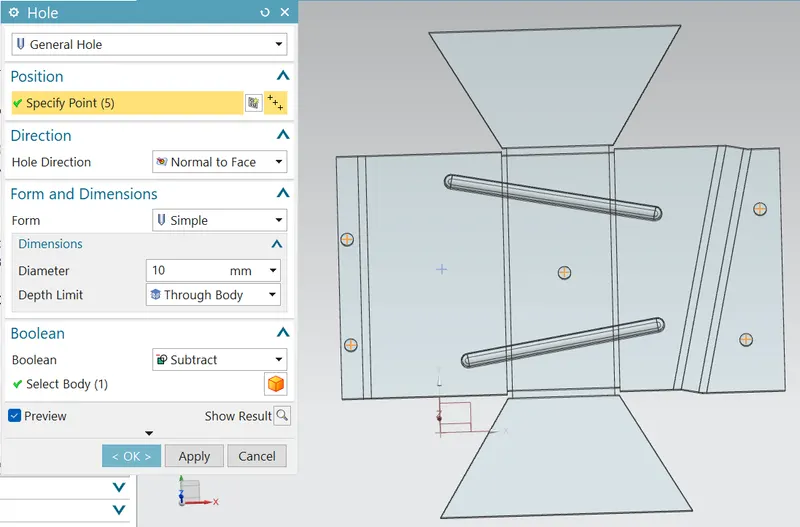

6. Add Beads and simple holes:

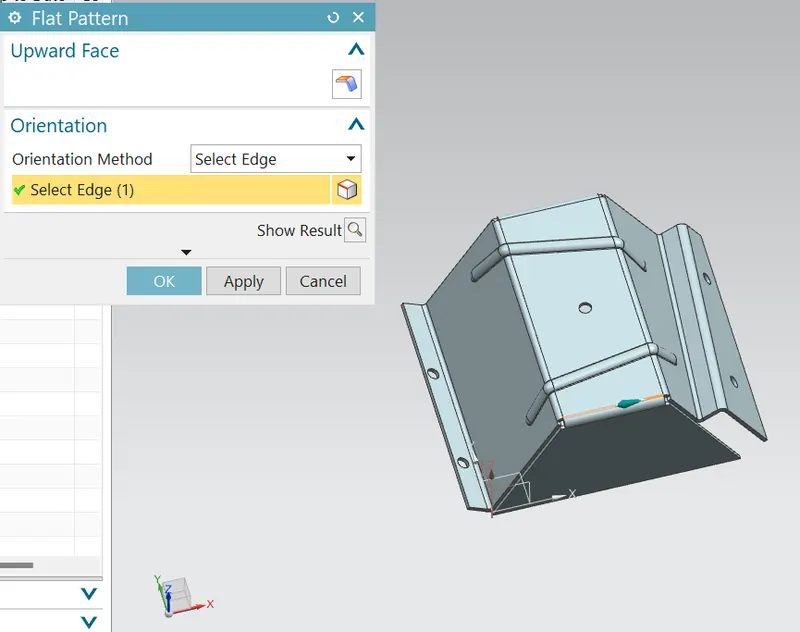

7. Rebend and flat pattern:

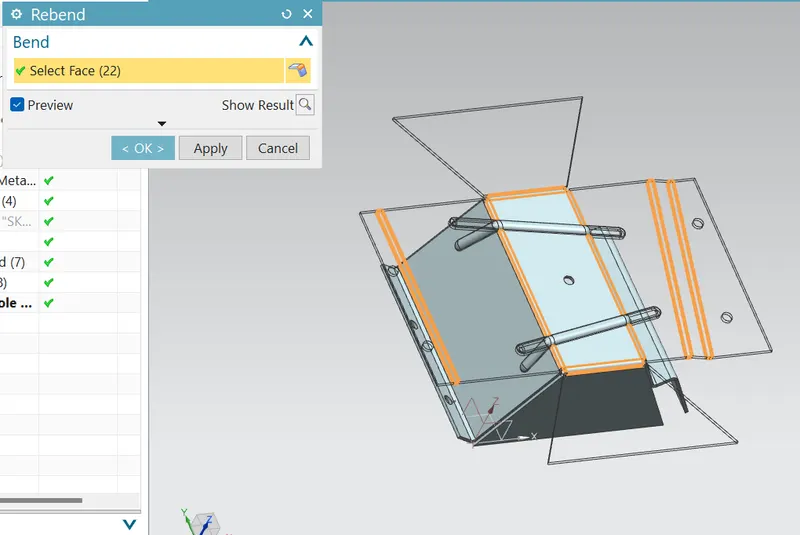

Rebend the sheet metal using rebend command and create flat pattern.

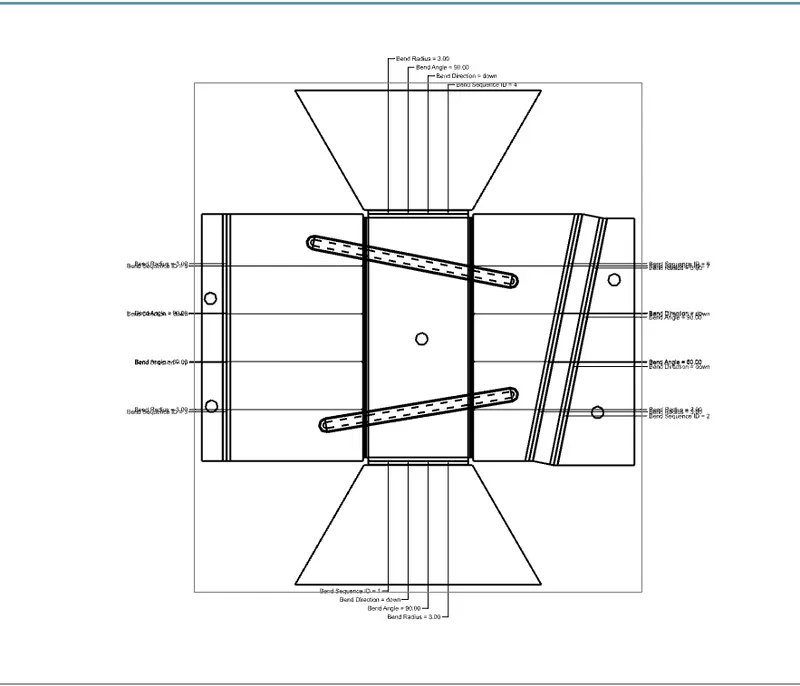

8. Drafting:

Conclustion:

Modelling of Odd shaped enclosure is done successfully using NX 12.

Google link:https://drive.google.com/file/d/1YxxqBnfQha3EW77L9r-LQXarpVPx5VBZ/view?usp=sharing
