Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

Box Assembly

OBJECTIVE:-

To create a box assembly using different sheet metal commands that will help to know about every single command in detail.

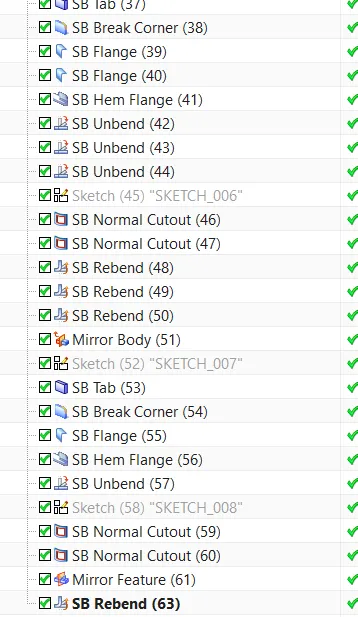

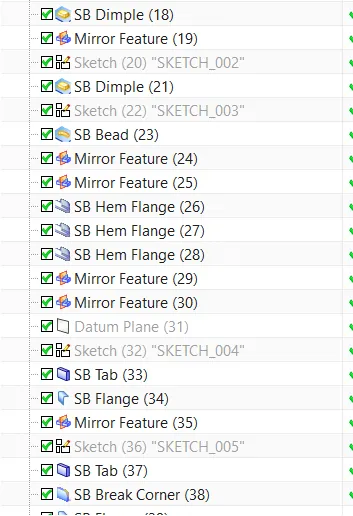

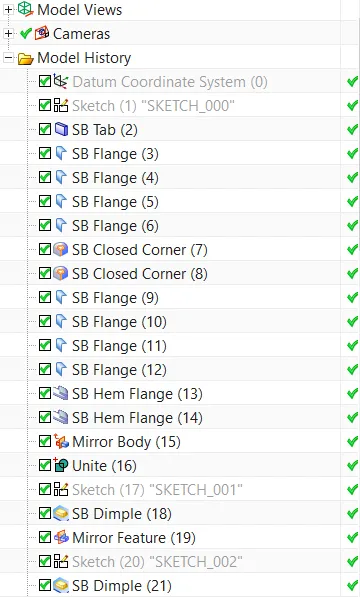

DESIGN TREE

DESCRIPTION:-

commands used:-

Tab:- This command is used to make a sheet metal part by adding material in the sketch.

Flange:- It is used to make a flange in any direction at any angle. Flange basically creates a bend between two faces.

Closed Corner:- This command is used to change the corner style

Hem:- This command is used to make hem in sheet metal part. The hem is used to fold the edge of the sheet metal part to achieve a tight fit

Unite:- This command is used to make a single part or join the to different parts.

Dimple:- This command is used to lift the area of a model that is inside a sketch.

Bead:- This command is used to lift the material along the contour of a sketch that is similar to the simple command

Images
