Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

Box assembly:

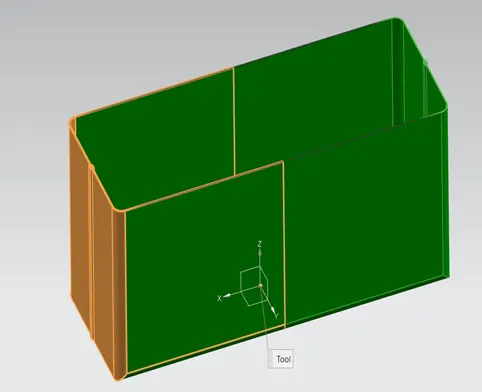

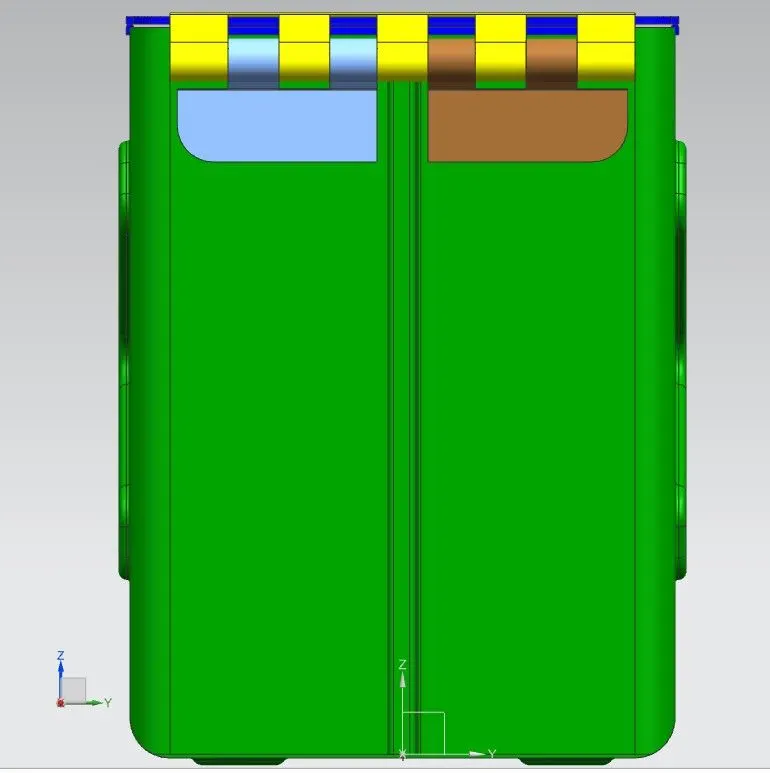

front view:

right side view;

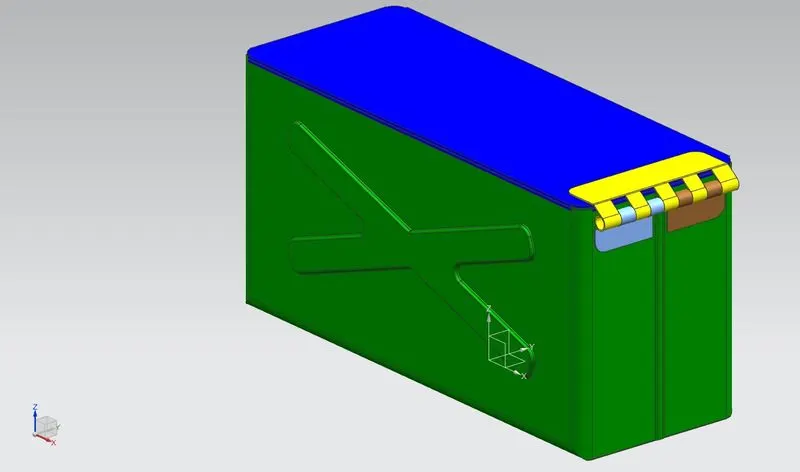

trimetric view:

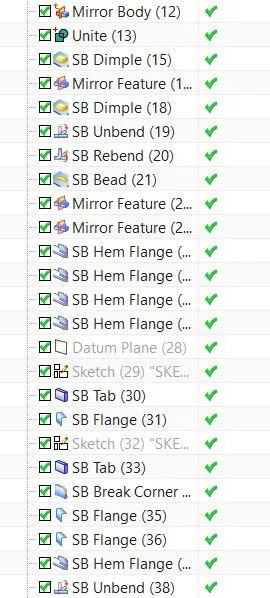

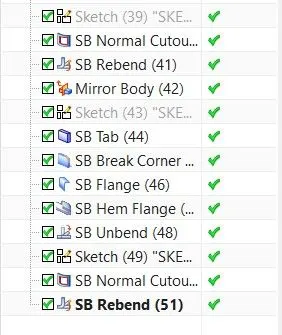

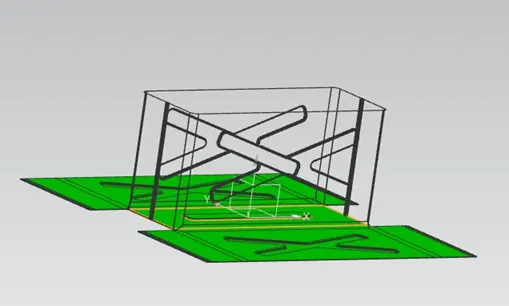

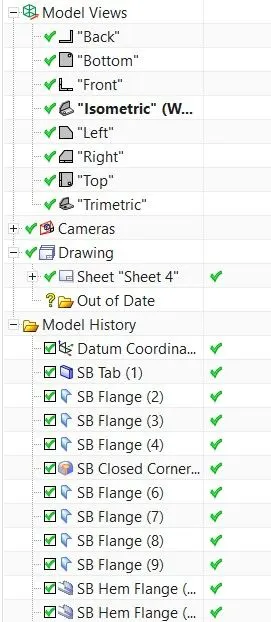

Box assembly tree history:

Project report on Box assembly:

BOX ASSEMBLY

Title: Box assembly

Objective: Advance sheet metal design of Box assembly

Introduction:

Sheet metal designing is used in industrial process. To produce sheet metal compounds like cases, canes, automobiles, medial uses. In this process the different operations done is like tabs, flanges, beads, dimple, unbend, rebend, break corners, Hem flange, normal cut out, closed corner’s, mirror and unite, etc.

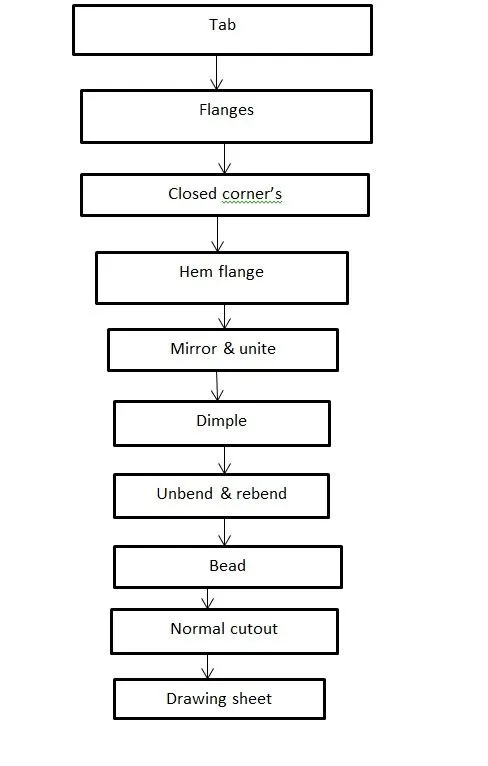

Flow chart:

Description about tools are used:

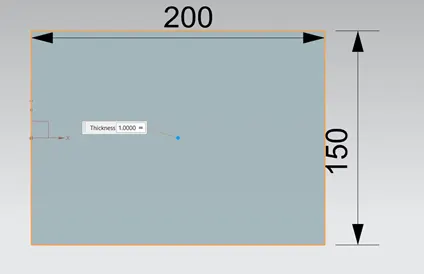

Sketch: It is to draw 2d drawing.

Tabs: It is used to create the base of casing.

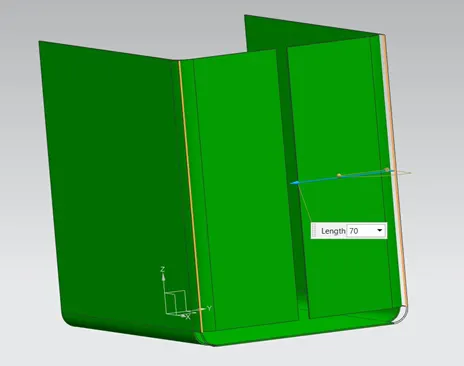

Flanges: it is used to create flanges to tab.

Closed corners: It is used to close the corner’s.

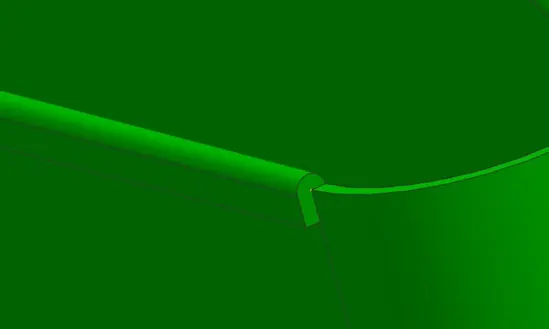

Hem flange: It is added to the edge end of the flange.

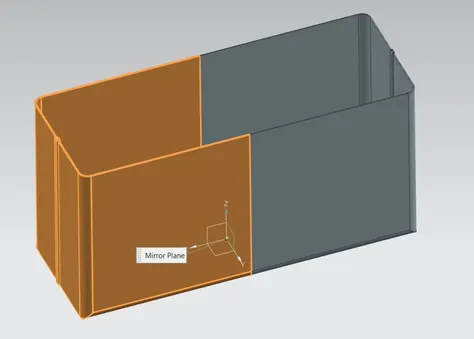

Mirror and unite:

It is used to mirror the body with respect to the plane and unite is used to add the mirrored body to single object.

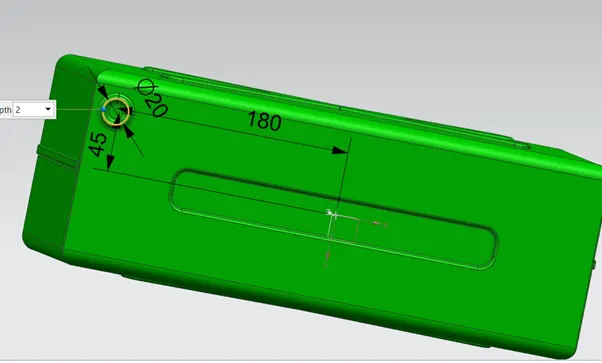

Dimple: It is used to make dimple punch on the sheet.

Unbend and Rebend: it is used to unbend and rebend the component.

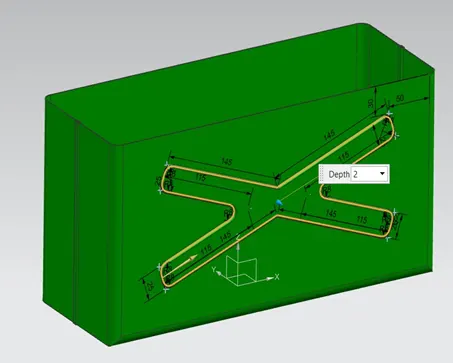

Beads: It is to make beads on the surfaces..

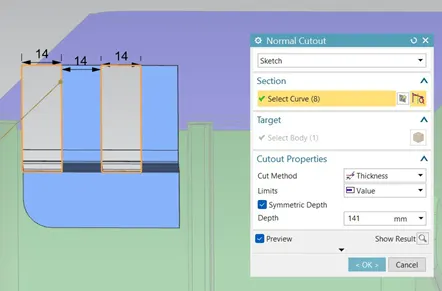

Normal cut-outs: it is used to create cut-outs.

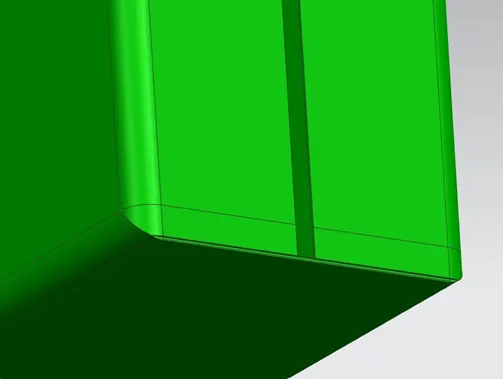

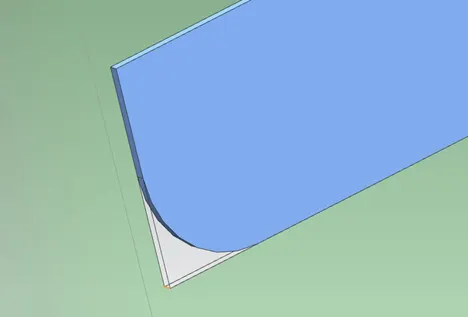

Break cornors; It is used to break cornors and become rounded edges.

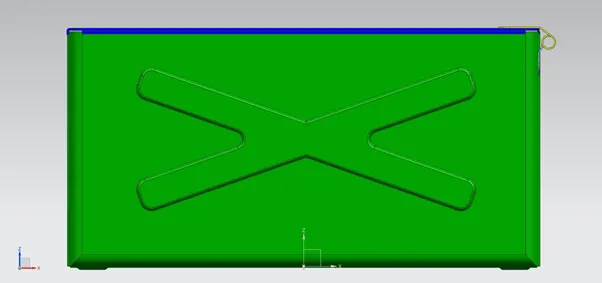

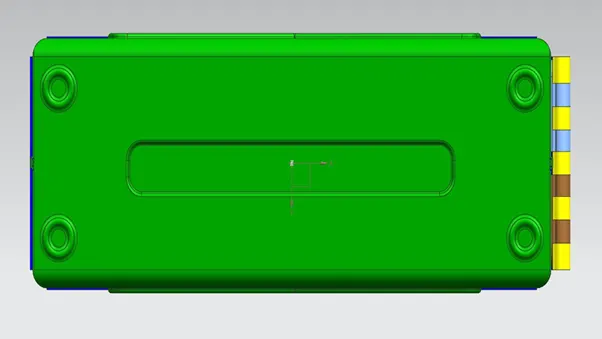

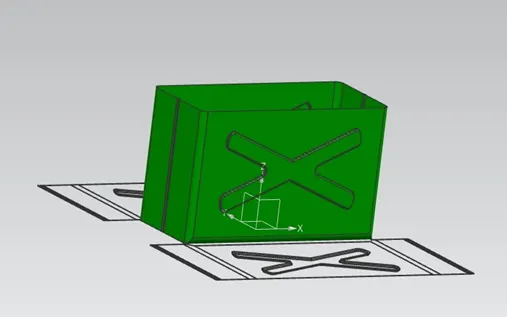

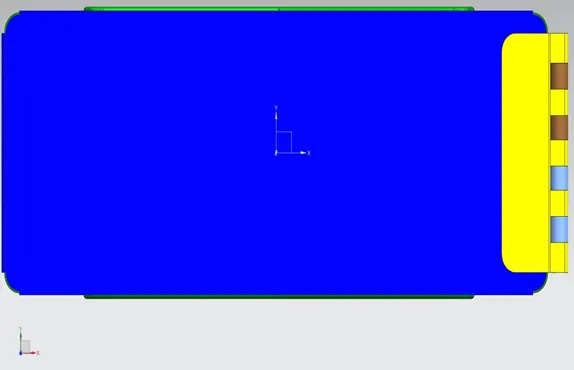

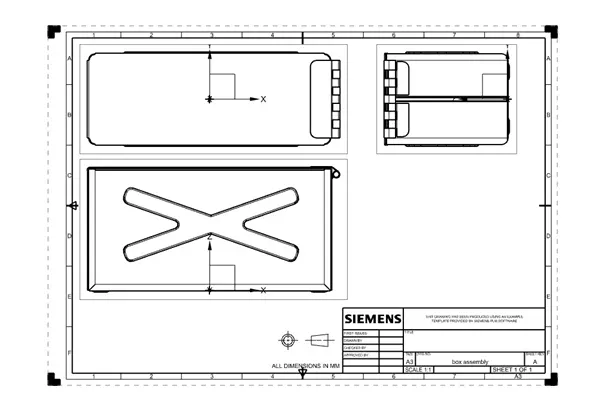

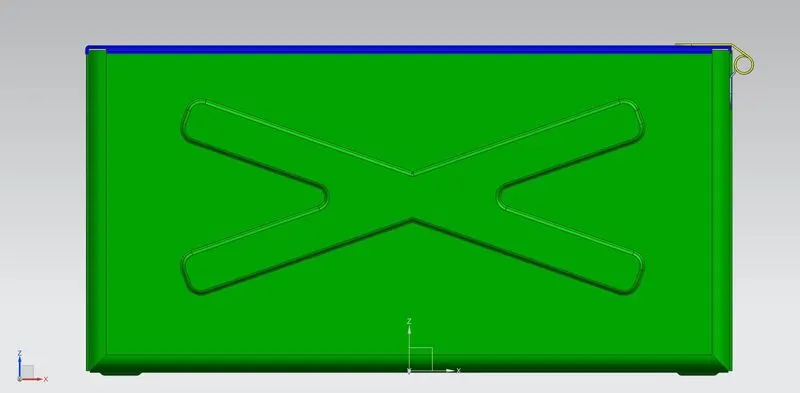

Box assembly views:

Conclusion:

Designing of Box assembly is successfully modeled by using Siemen’s NX 12 software
