Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

casing:

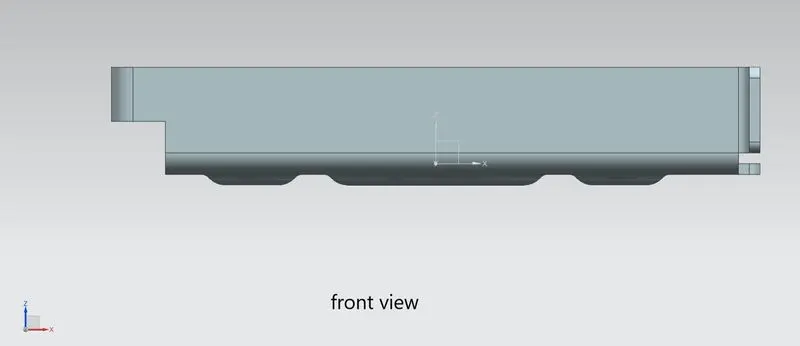

front view:

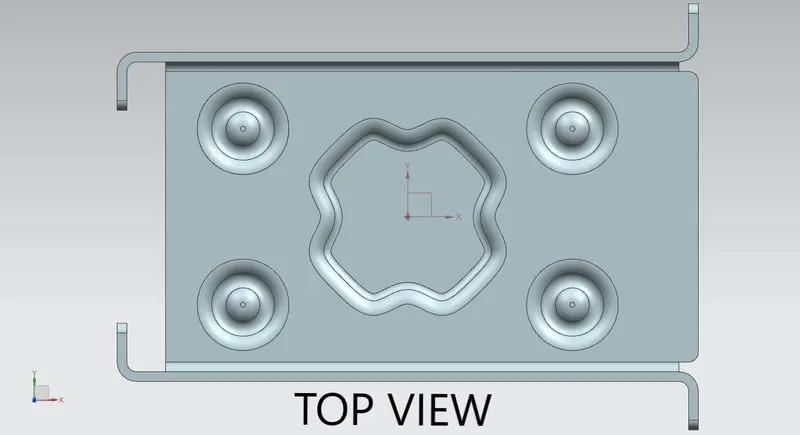

top view:

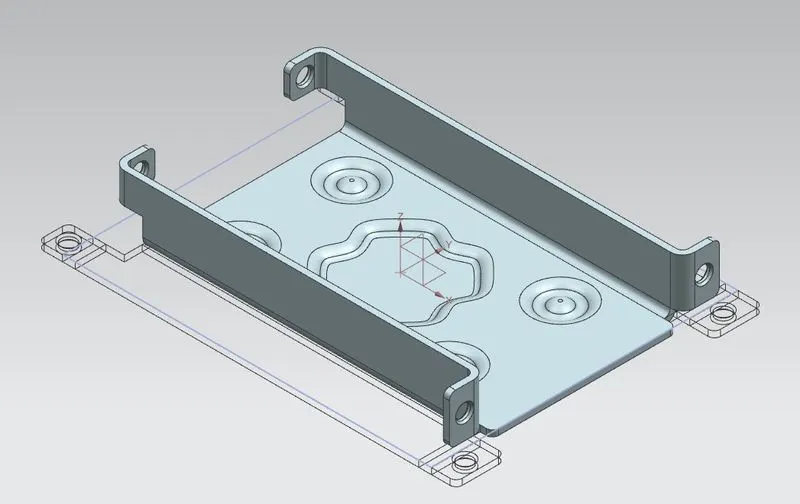

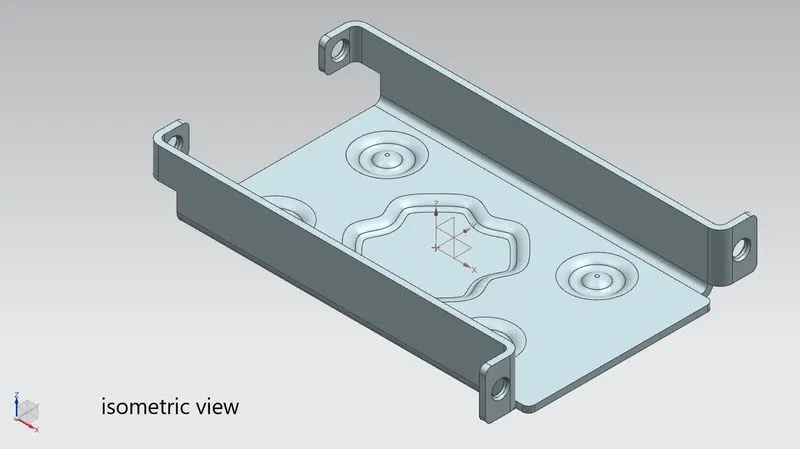

isometric view:

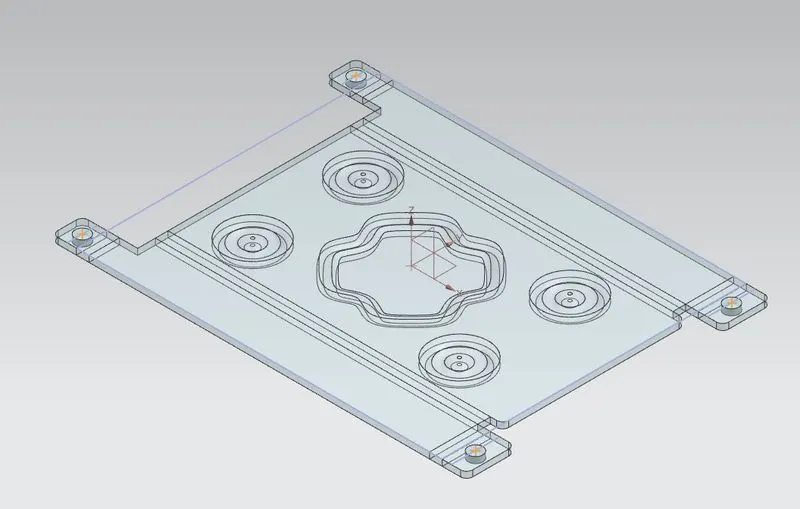

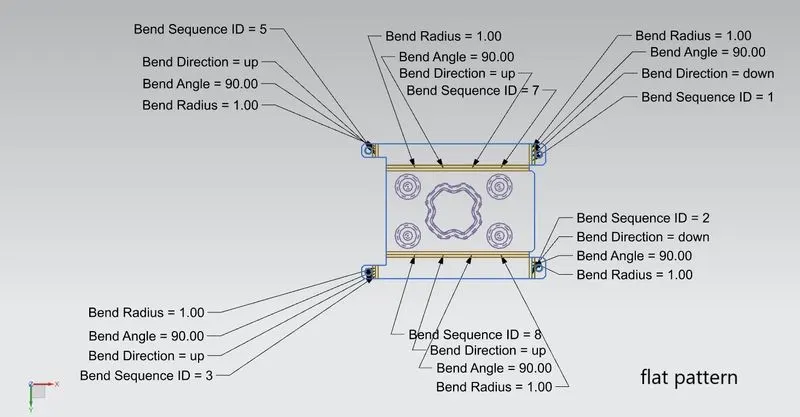

flat pattern:

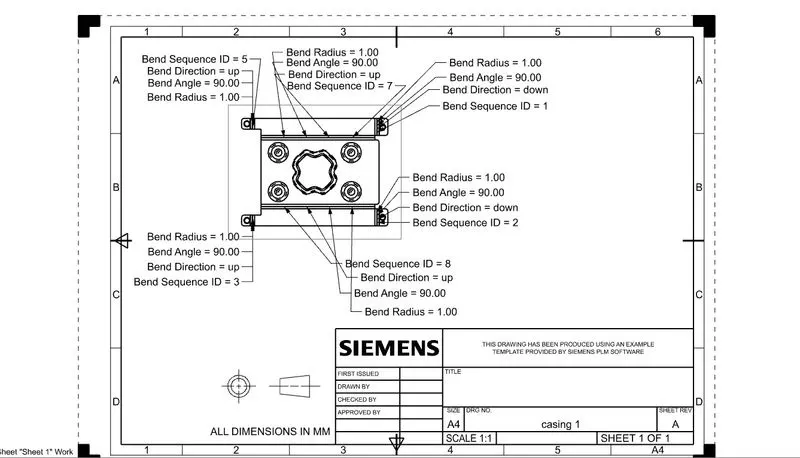

drawing sheet:

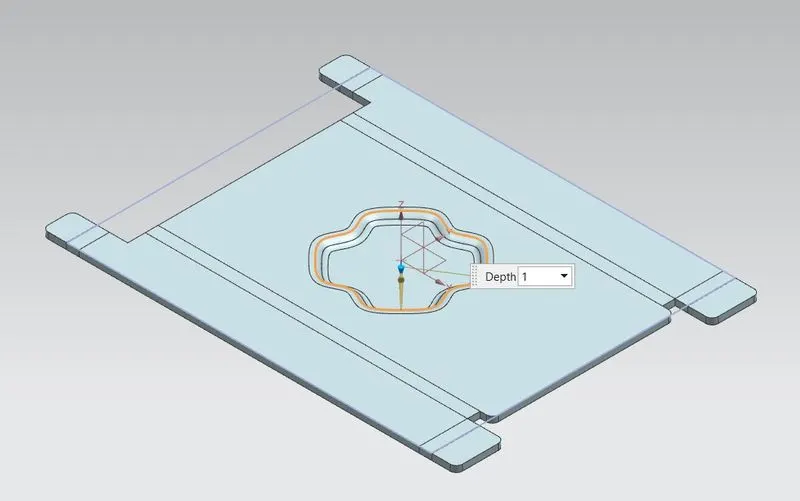

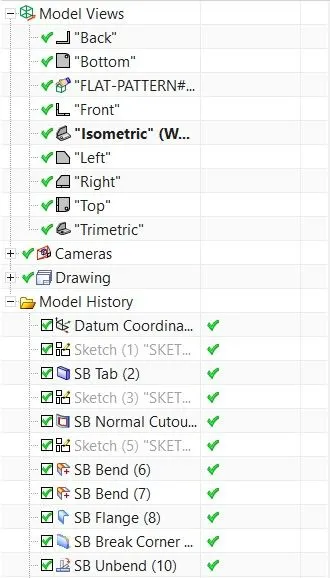

casing tree history

project report on casing:

Title: Casing

Objective: Advance sheet metal design of casing

Introduction:

Sheet metal designing is used in industrial process. To produce sheet metal compounds like cases, canes, automobiles, medial uses. In this process the different operations done is like tabs, flanges, beads, dimple, unbend, rebend, holes, break corners, etc.

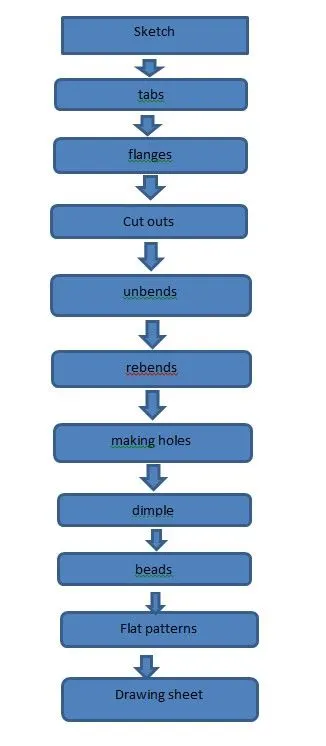

Flow chart:

Description about tools are used:

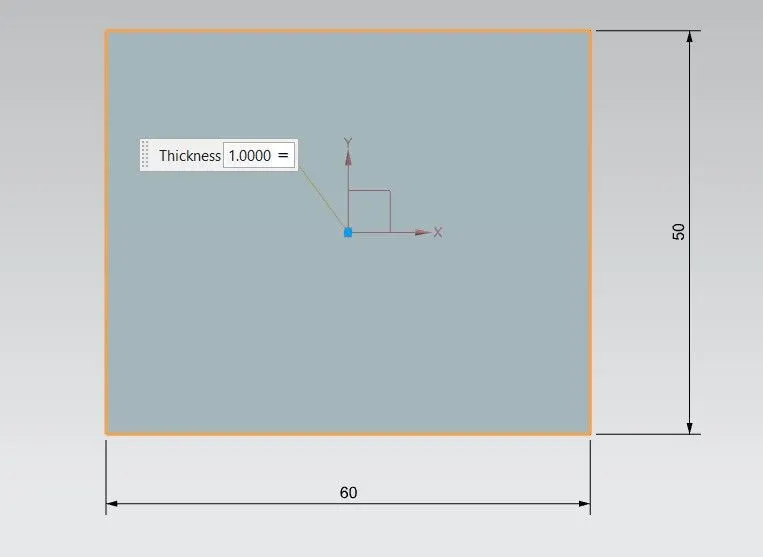

Sketch: It is to draw 2d drawing.

Tabs: It is used to create the base of casing.

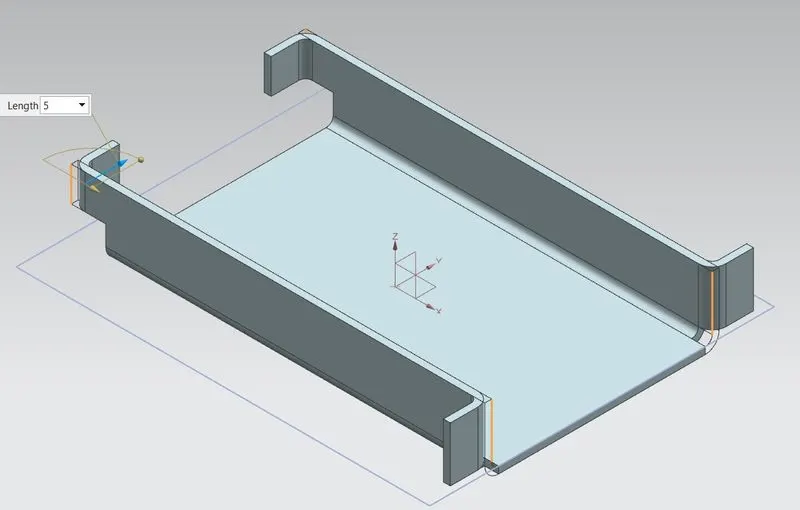

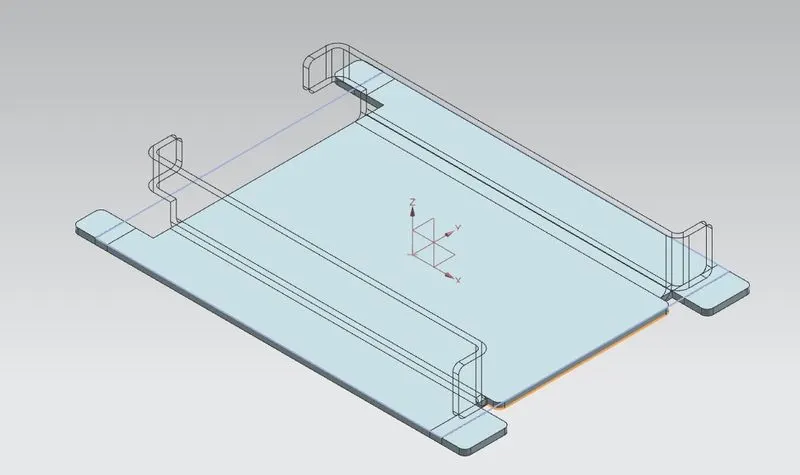

Flanges: it is used to create flanges to tab.

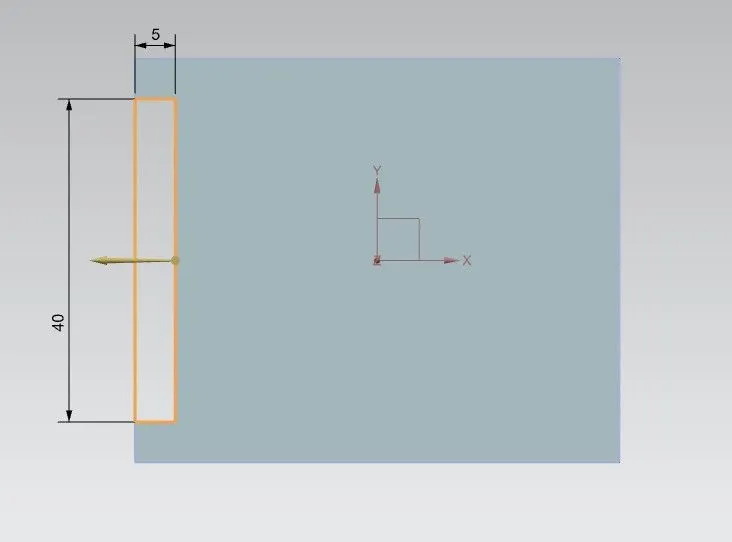

Cut-outs: it is used to create cut-outs.

Unbend: it is used to unbend the component.

Rebend: It is used to rebend the component.

Holes: it is to make holes on the metal sheet.

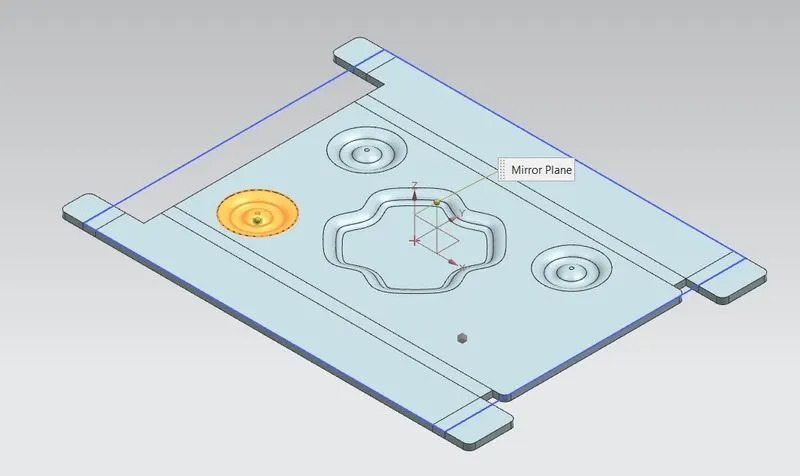

Beads: It is to make beads on the surfaces.

Dimple: It is used to make dimple punch on the sheet.

Flat pattern: It is used to create flat form of component.

Drawing sheet: It is 2D wireframe of the casing design.

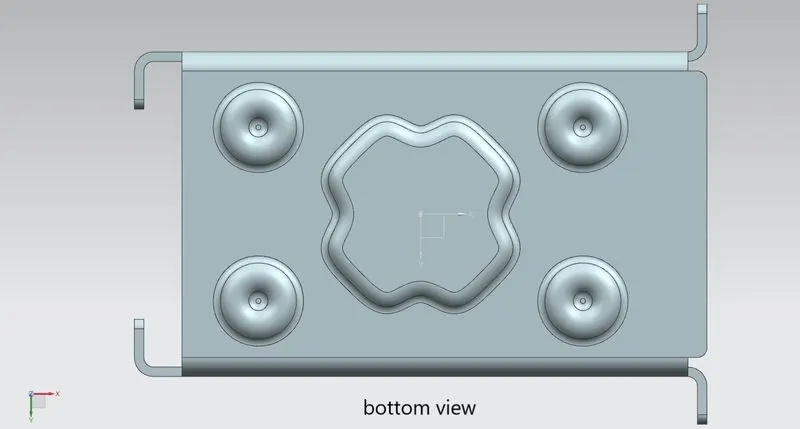

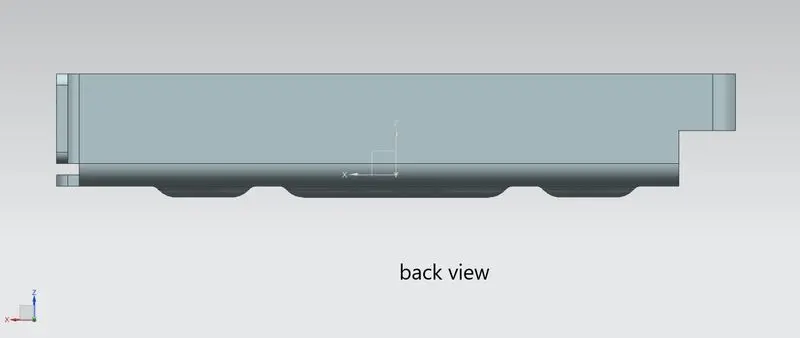

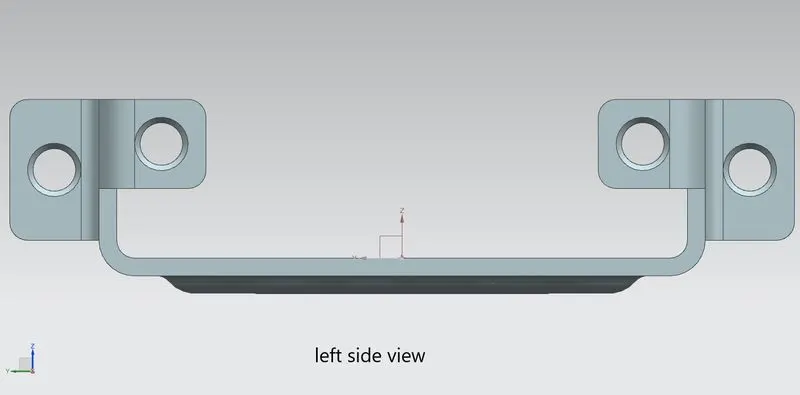

Casing views:

Conclusion:

By using NX Cad designing the advance sheet metal casing is completed.
