CASING IN NX ADVANCE SHEET METAL

MODELLING

OBJECTIVE:

To learn how to use fundamental function and model a casing in NX advances sheet metal modelling.

INTRODUCTION:

What you will see in this report was how I design and model a casing concept

Support by skill-lync.

DESIGN METHODOLOGY:

2D SKETCH & BASIC DIMENSIONS

CONVERT INTO 3D SKETCH

DESCRIPTION:

TOOL & FEATURE USED:

Tab – This feature use to create a base and secondary block. It’s a first step to do create casing.

Normal cut-out- It uses to remove a selected area and get desire cut-out.

Bend- This feature used to bend a tab to required length and angle.

Flange-one of coolest tool to use simplify a process and get required shape.

Break corner- It use to create a fillet in selected corner a required radius.

Unbend-This feature used to flat the model plane sheet metal it help us to make complex design.

Hole- It use to create a required hole in specified location.

Mirror-This feature used to mirror a shape according to mid plane.

Dimple- It use to create a complex shape in sheet metal.

Rebend-It use to rebend the bended sheet in reverse order.

Flat pattern- It uses to create a 2D view sketch from 3D modelling.

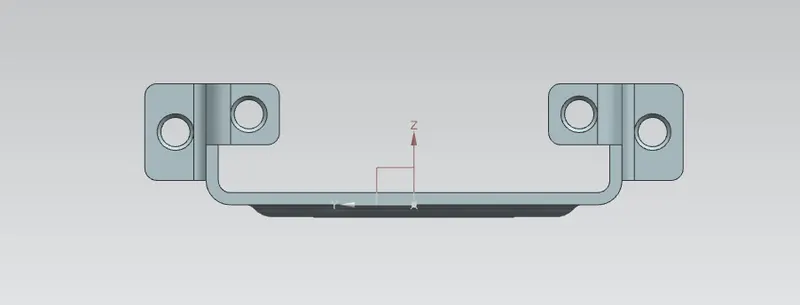

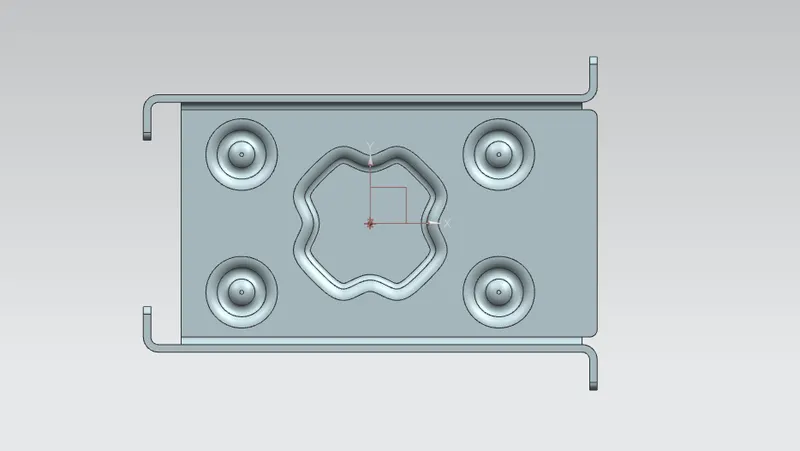

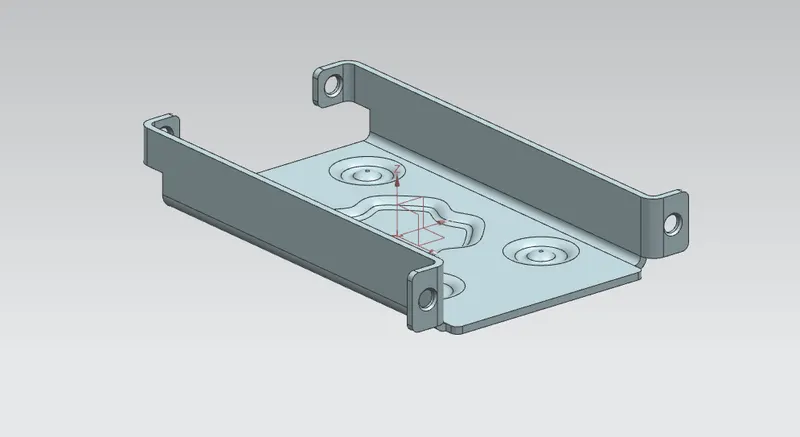

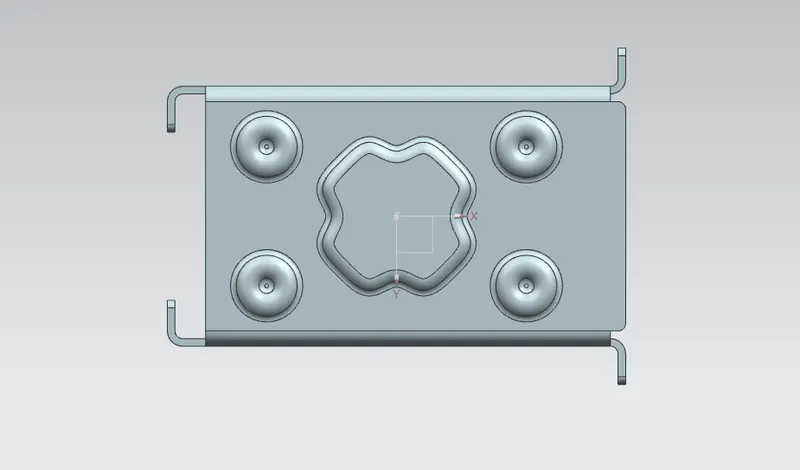

screenshot of my casing model :

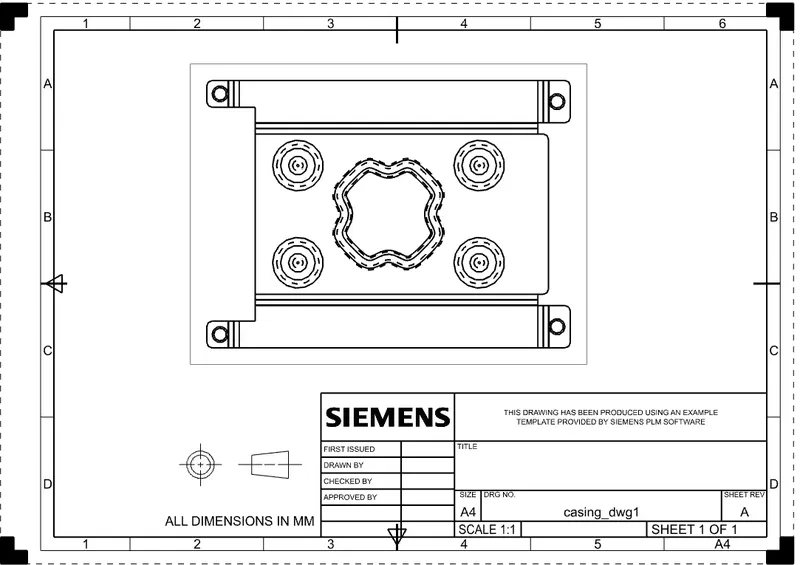

DRAWING SHEET IMAGE:

CONCLUSION:

Modeling of casing design is done according to given detials.
