Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Advanced Sheet Metal Design Using NX Cad Challenge 1 Casing Design
Objective:To design a Casing with the help of NX advance sheet metal.

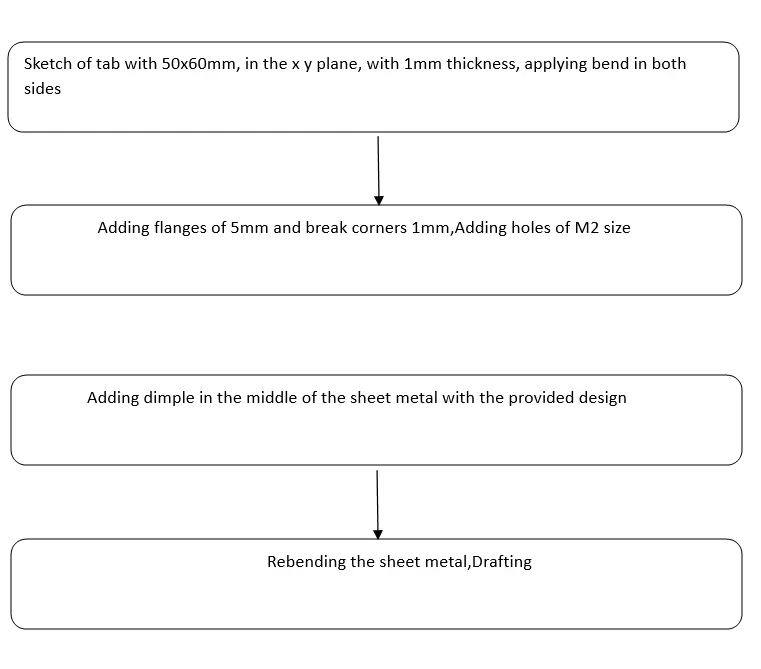

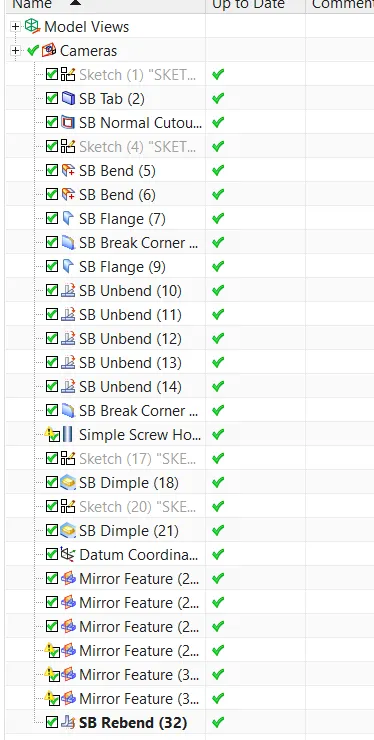

Design:
- Bend: Modifies the model by bending material on one side of a sketch line adding a bend between the two sides
- TAB: Creates a base feature by extruding a sketch along a vector by a thickness value or adds a material to a plane face.
Extrude: We can subtract the part with the given area.
Flange: Adds a flange to an angle to a planar face and adds a bend between tabs
Break Corner: Rounds a sharp corner
Rebend:Unbend the part selected.
Top view
