Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

REPORT :

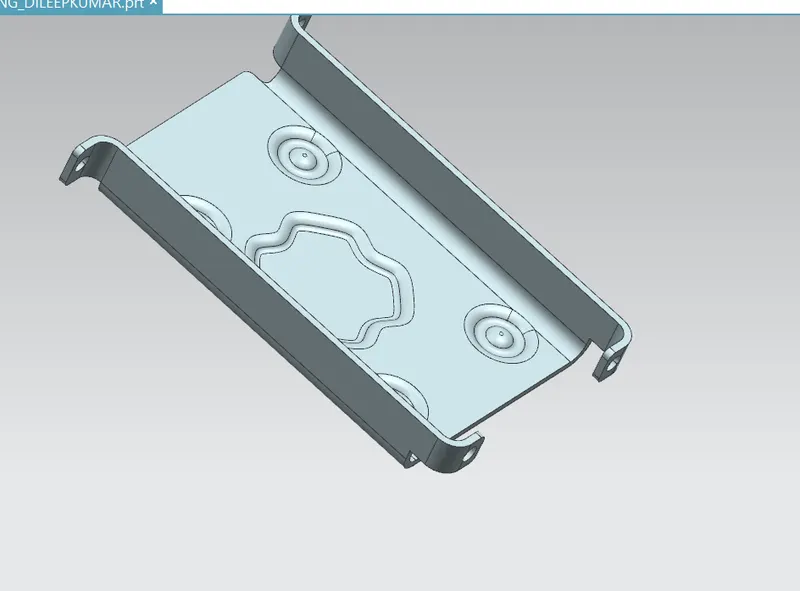

The title of the project is NX_CASING_DILEEPKUMAR

OBJECTIVE :

The main objective of this model is to create the model file that is being described in the pdf file with the words and bring the physical form of the model by taking the dimensions from the pdf and also to to drafting for the given file.

INTRODUCTION :

Generally sheetmetal thickness range varies from 0.4mm to 6mm then it is called has sheetmetal,The sheet metal modellin is used for designing the models like the battery cases,casing for the radiators and also for creating the models that have rectangular or the square shape or the L brackets etc these kind of objects are more convinent for designing the objects.

If the thickness is less than 0.4mm then it is called has foil.

If the thickness is more tham 6mm then it is called has plate.

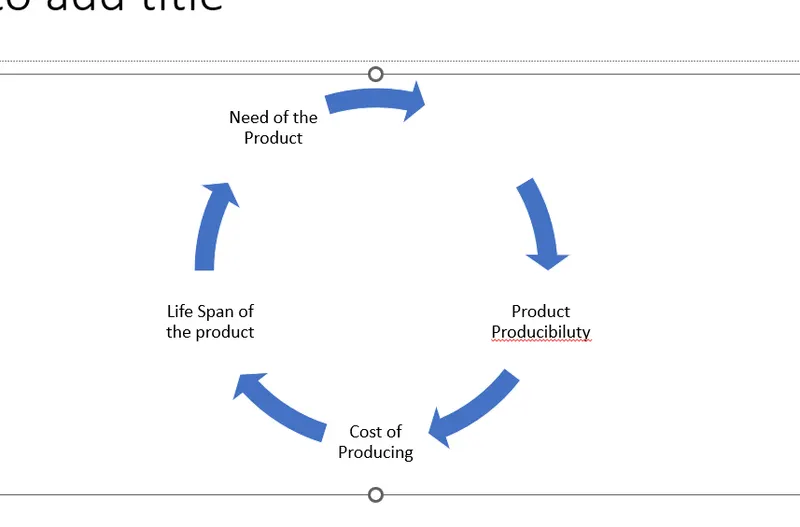

Design Methodology :

DESCRIPTION IF TOOLS:

Tab : It creates the base feature by extruding the sketch by a thickness value along the given vector direction.

Flange : It is used to extend the corner of the component to a requried length at the given angle

Closed Corner : It is used to close the corner where the two adjacent flanges meet.

Hem : It folds the edge of the flange over on to itself for the purpose of the safe handling and to increse the stiffness at the edge.

Dimple : It is used to increase or decrease the surface height without changing the thickness of the surface basically embosses are created generally defined has the raised or the recessed part.

Bead : It lifts the material along the counter of the sketch that stimulates a stamping tool

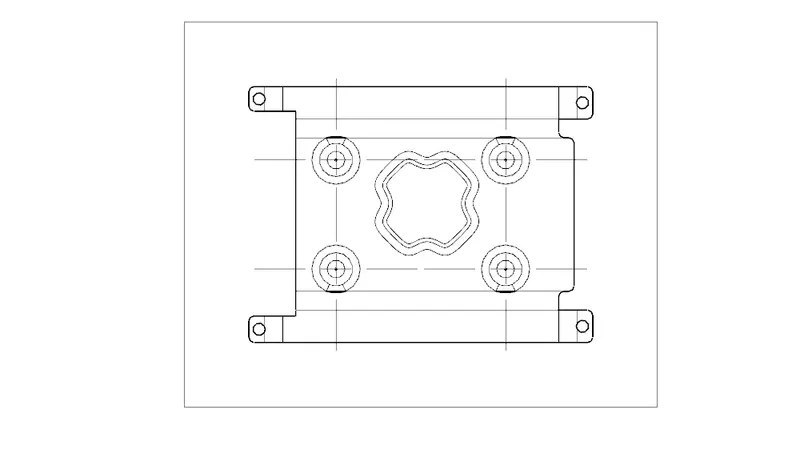

The Drafting of the flateern part

CONCLUSION :

Therefore the output is produced with given dimensions and the casing is designed.
