Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Title of the Project :Advanced Sheet Metal Design Using NX Cad Casing Design
Objective:
The main objective of this project is to design a sheet metal casing in NX cad sheet metal application workbench. Also to perform the drafting for the casing part.
Introduction:
Casings usually used to enclose or cover the required components from protecting many things by using NX CAD for modeling the sheet metal casing.
Casing can protect the sensitive inner components from damaging, accidents etc.,
- computer is used sheet metal casing to the outer body.
- Casing borehole, metal tubes used for drilling a well.
Design methodology:

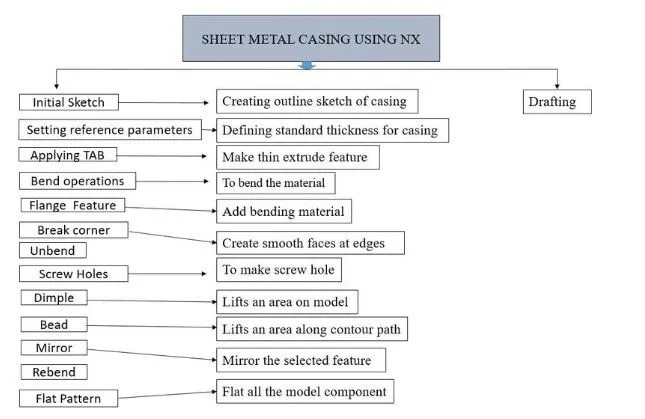

Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)

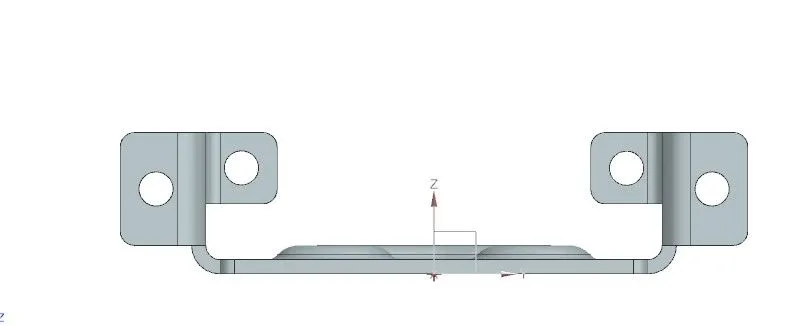

Front View

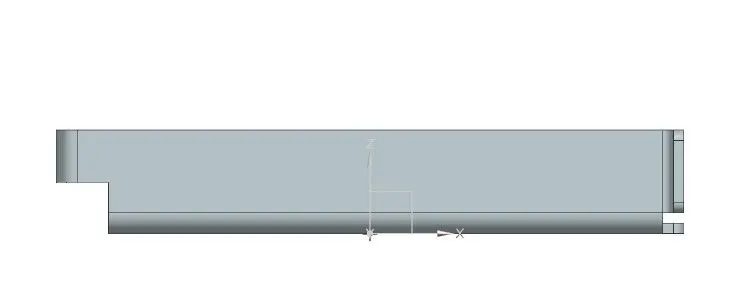

Side View

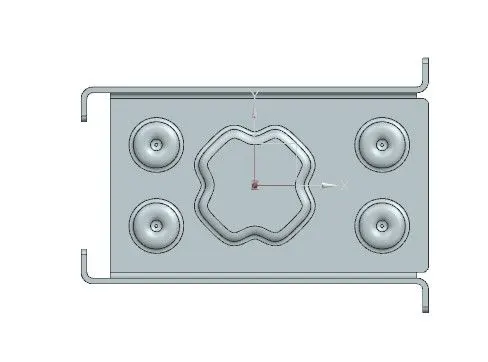

Top View

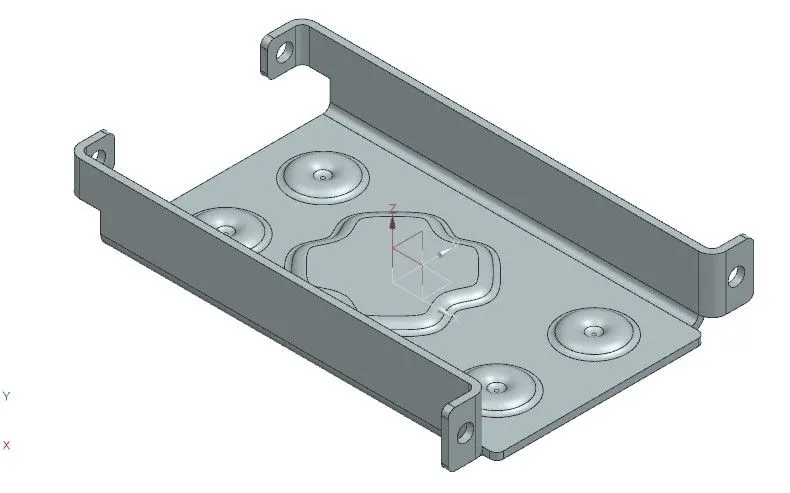

Isometric View

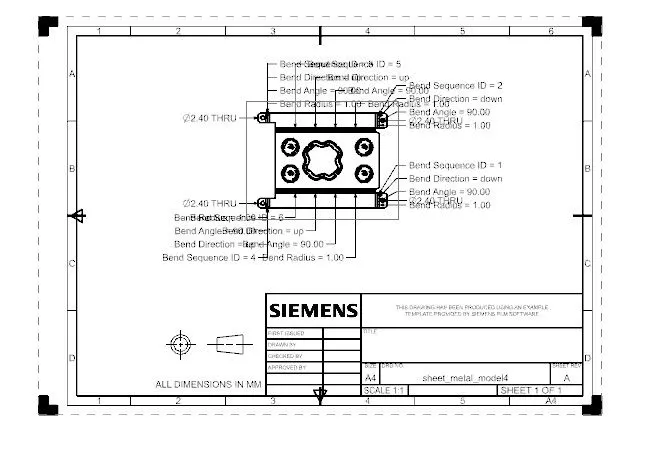

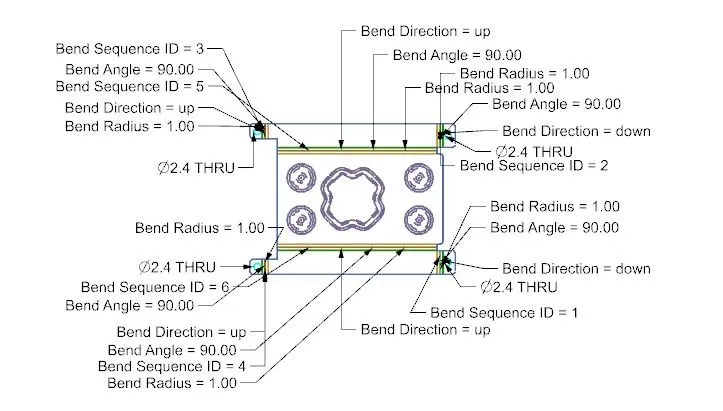

Attach Detailed Drawing Sheet Image
Conclusion:
To learn the sheet metal designing and tool methodology by design a casing in sheet metal by using tools and it’s features by using NX CAD.
