Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
CASING MODEL
Objective: To design the casing model using the NX CAD
Introduction: A casing is a substance or object that covers something and protects it.The casing is made using the sheet metal using a many Sheet metal features.

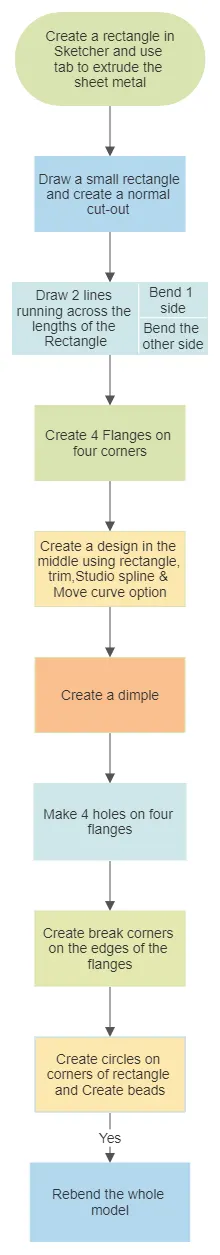

Design methodology / approach:
Description:
The tools used are
Datum CSYS
Sketch features: Sketch, Studio spline , Rectangle , Move curve ,
Sheet metal features: Tab, Flange, Hole, Mirror Feature, Dimple , Bead , Bend, Unbend, Rebend
Sketch is used to draw the images in 2d format.
The studio spline is used to create a smooth curve by connecting several poles
Move curve option can be use to transform the model and rotate
Tab is used to create a extrusion of the sketch which creates a sheet metal
Flanges , dimple , Bead , hole are several sheet metal features to design the model as per the requirements

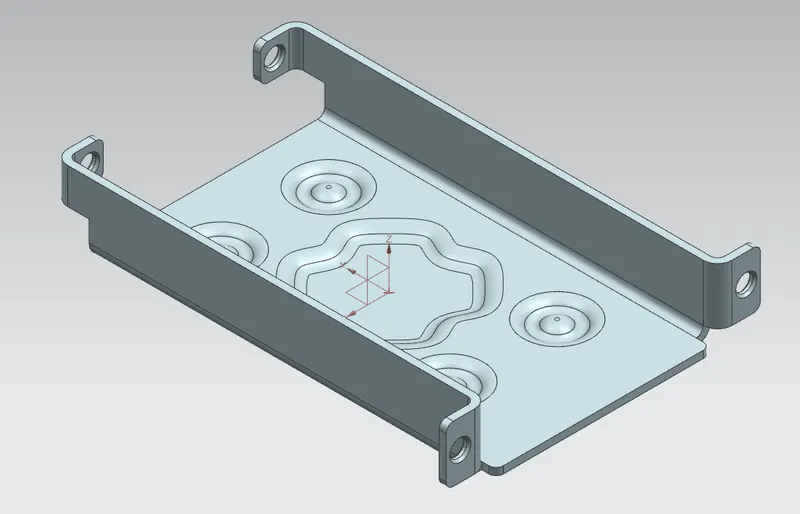

Isometric view:

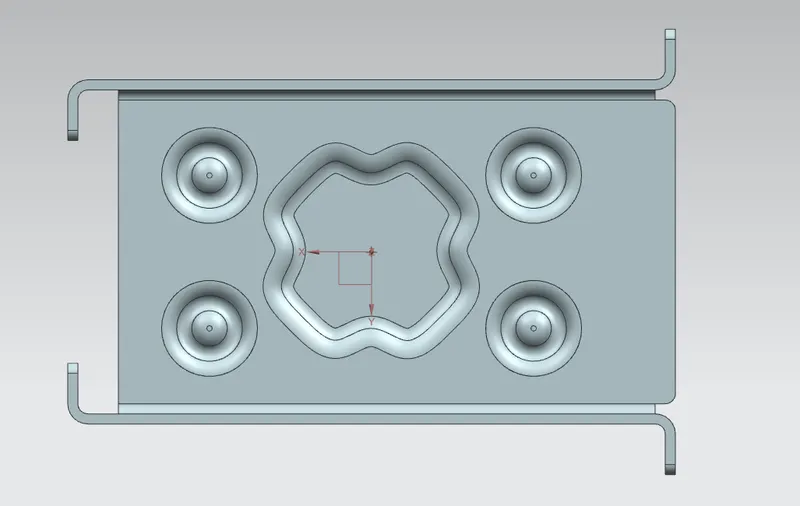

Top view:

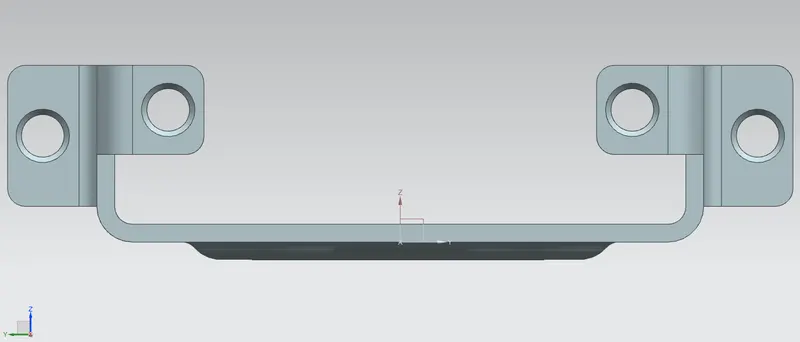

Front view:

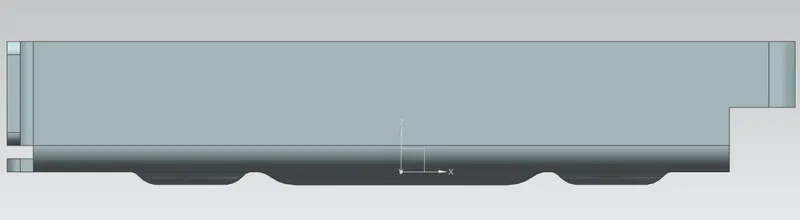

Side view:

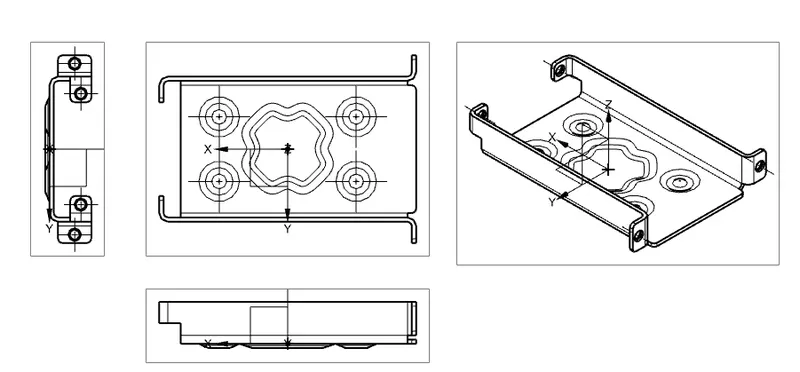

Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)Attach Detailed Drawing Sheet Image
Conclusion:
THe casing modelis successfuly designed using NX CAD
