Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

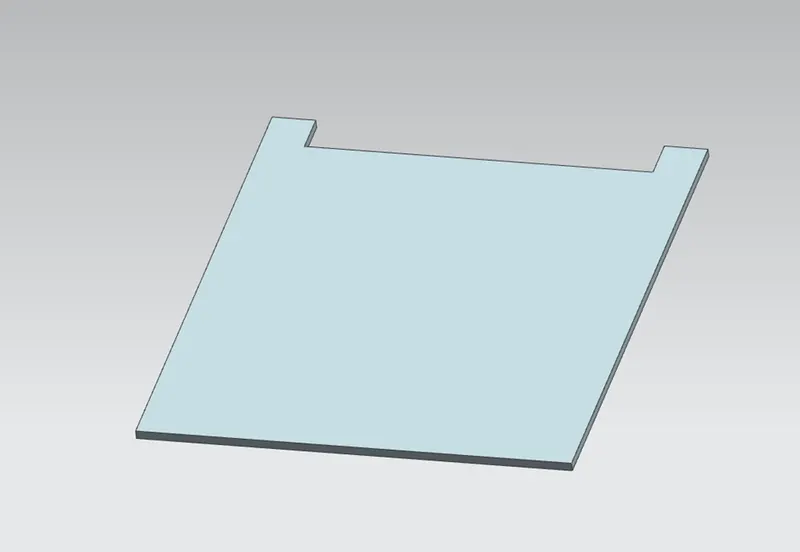

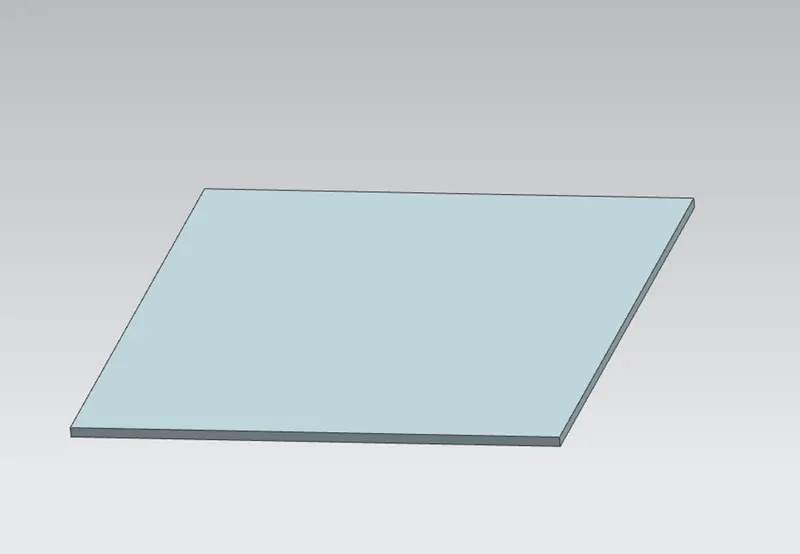

TAB is used to extrude the sketch to 1 mm

A normal cut-out option is used to remove the dimension of 5 mm*40 mm

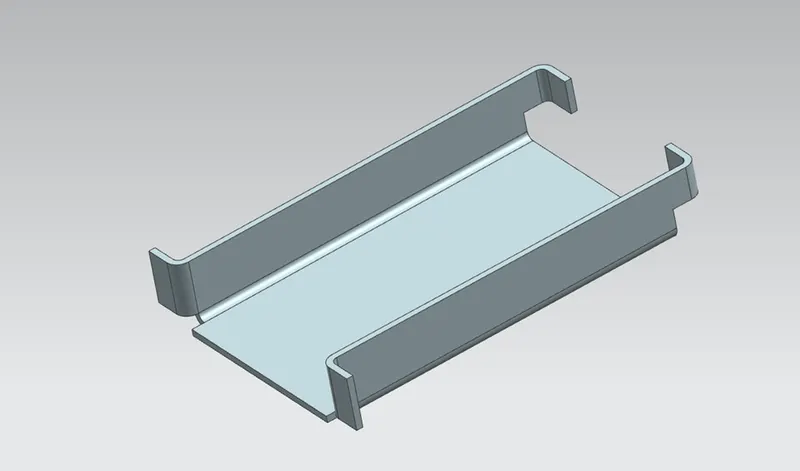

The surface is bended using bend commands as shown in Figure

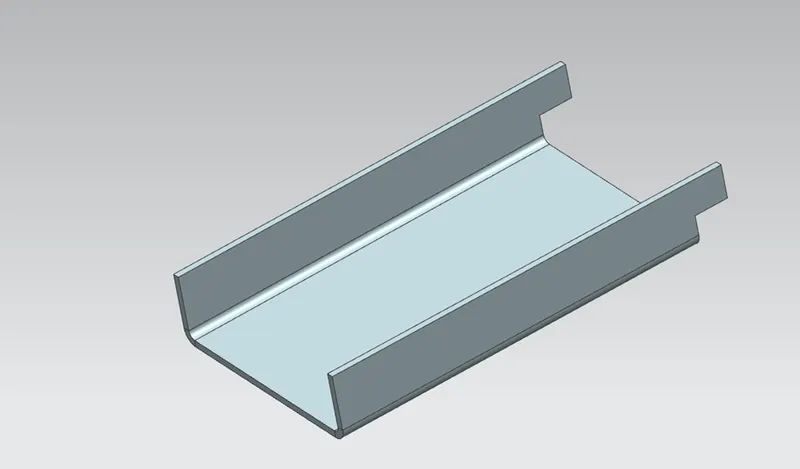

The flange is added to the planar surface as shown in Figure

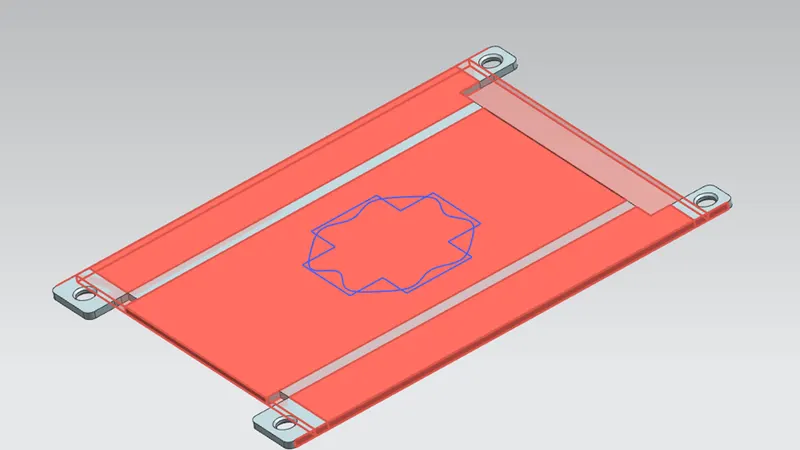

Through unbending the bent sides the hole was created as shown in Figure

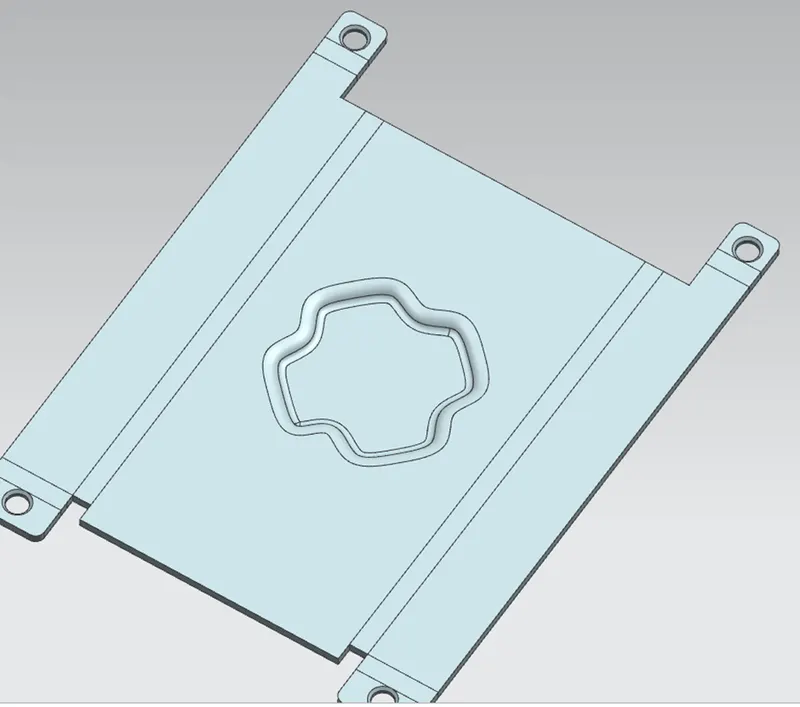

A sketch was made and closed spline was created and rotated to 45° and dimple was created  as shown in Figure

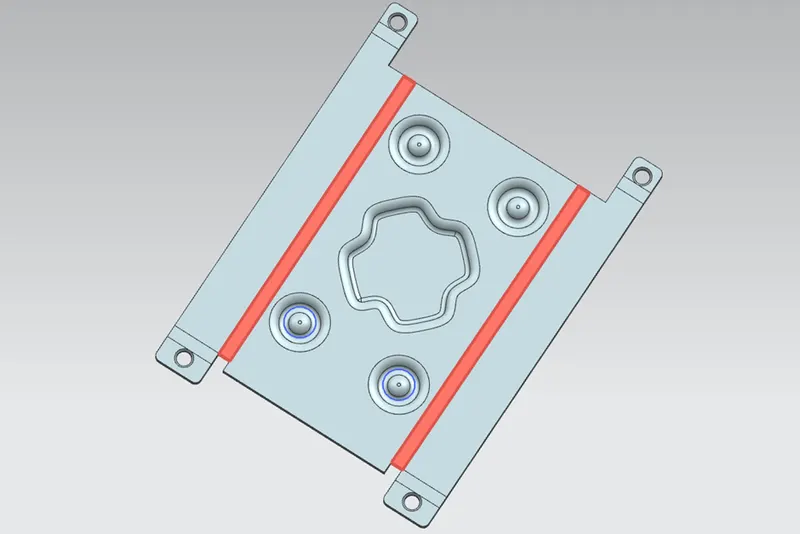

The circle was drawn and bead were created and mirrored as shown in Figure

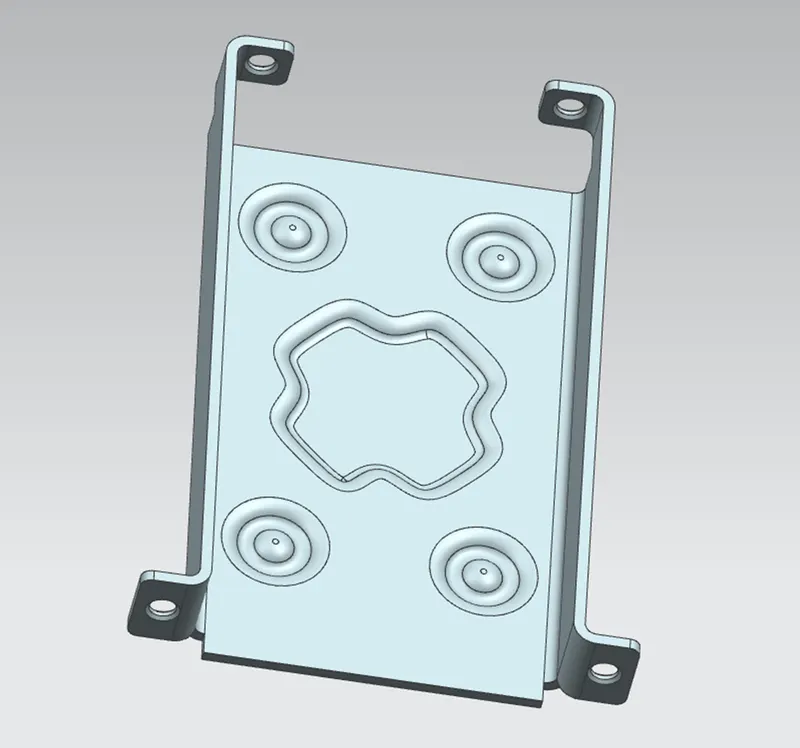

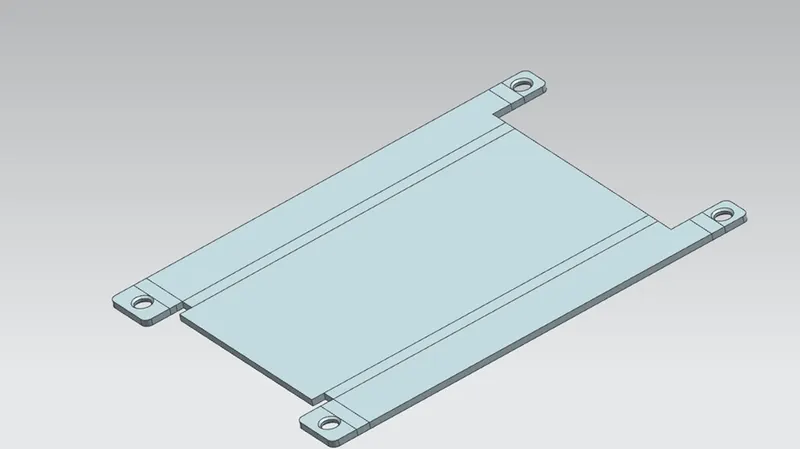

The complete sheet metal model is shown in Figure

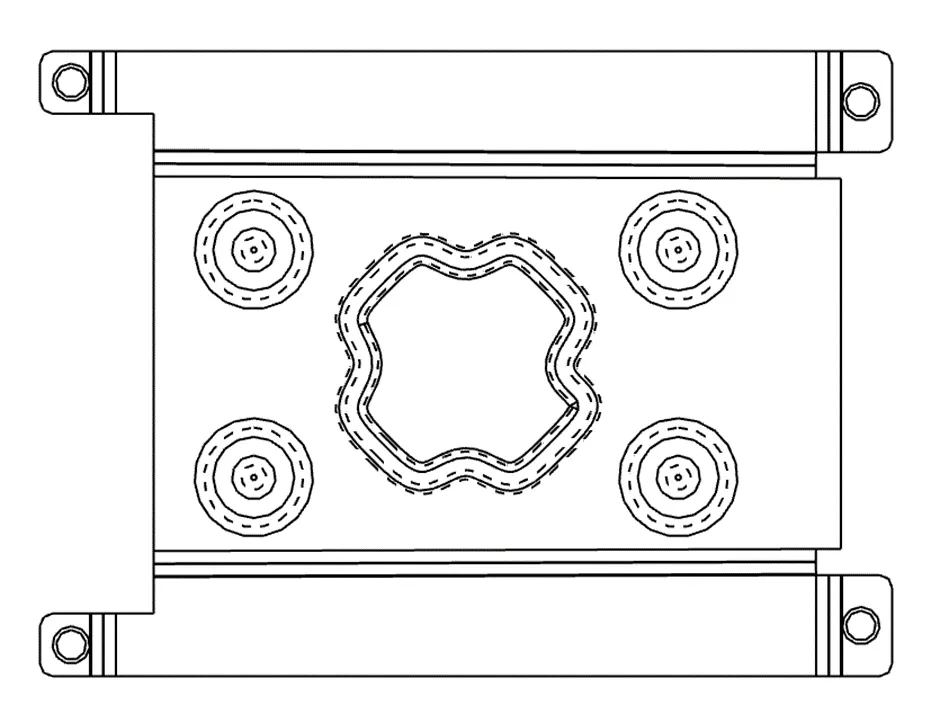

The 2d diagram of the sheet metal casing as shown in Figure
