Adams challenge 5 - post processing

PROCEDURE:

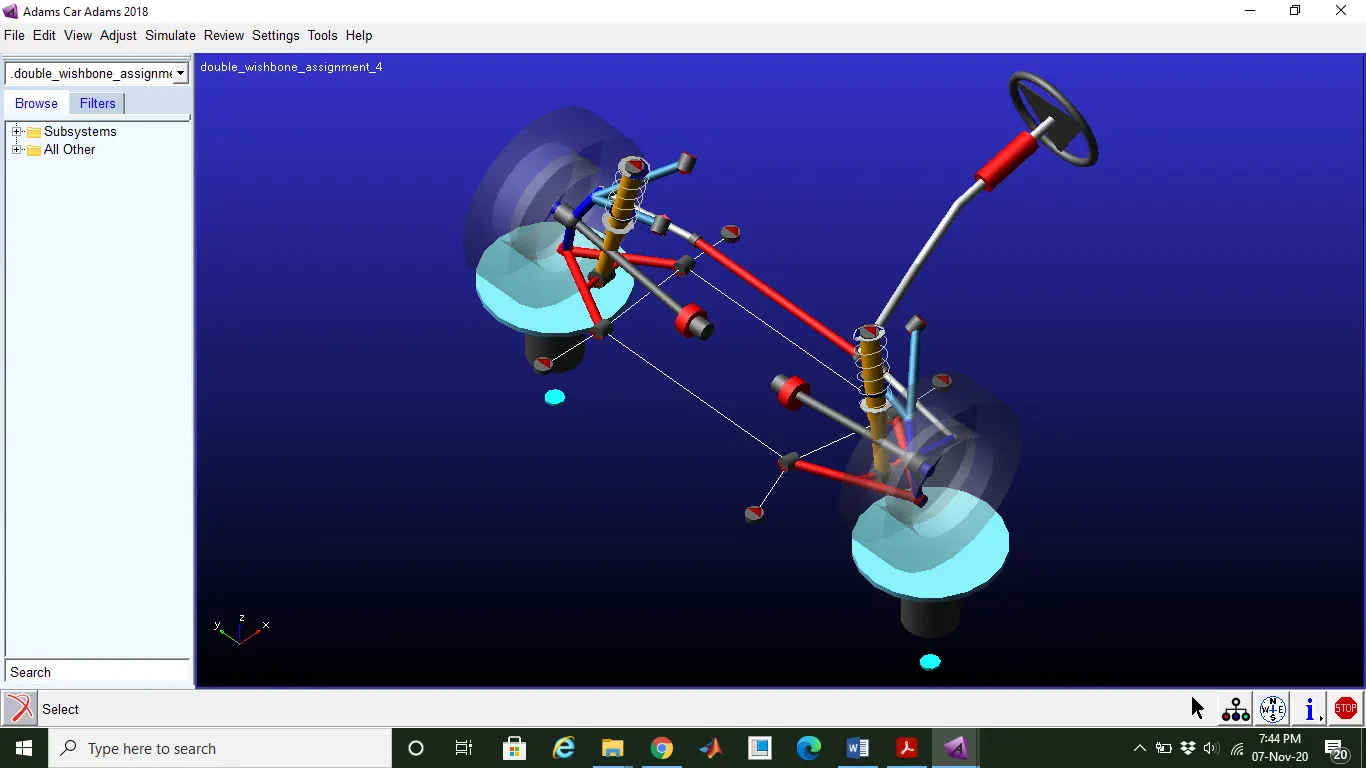

1. The double wishbone suspension subsytem is first imported from the suitable database.

2. A steering wheel simulation is performed on the suspension system first on the defualt hardpoints of the suspension system, then by modifying the hardpoint of the Z coordinate of the LCA outer arm to 400mm.

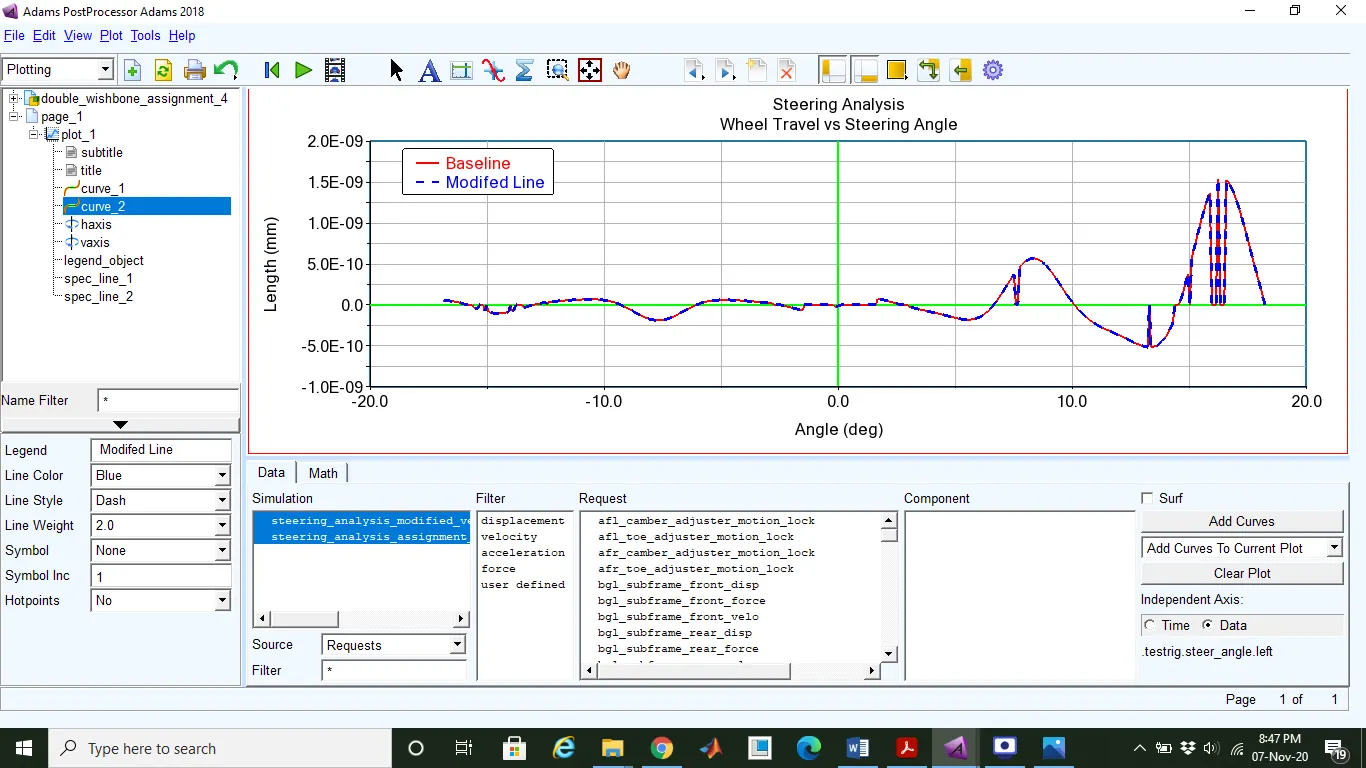

3. The post-processor operation is then performed by plotting the Wheel Travel vs Steering angle as shown in Figure 2.

4. The legend of the plot is changed to "Baseline" shown by the red solid line and "Modified line" for the blue intermittent line. The title is added as "Steering Anlysis" and subtitle is added as "Wheel travel vs Steering Angle".

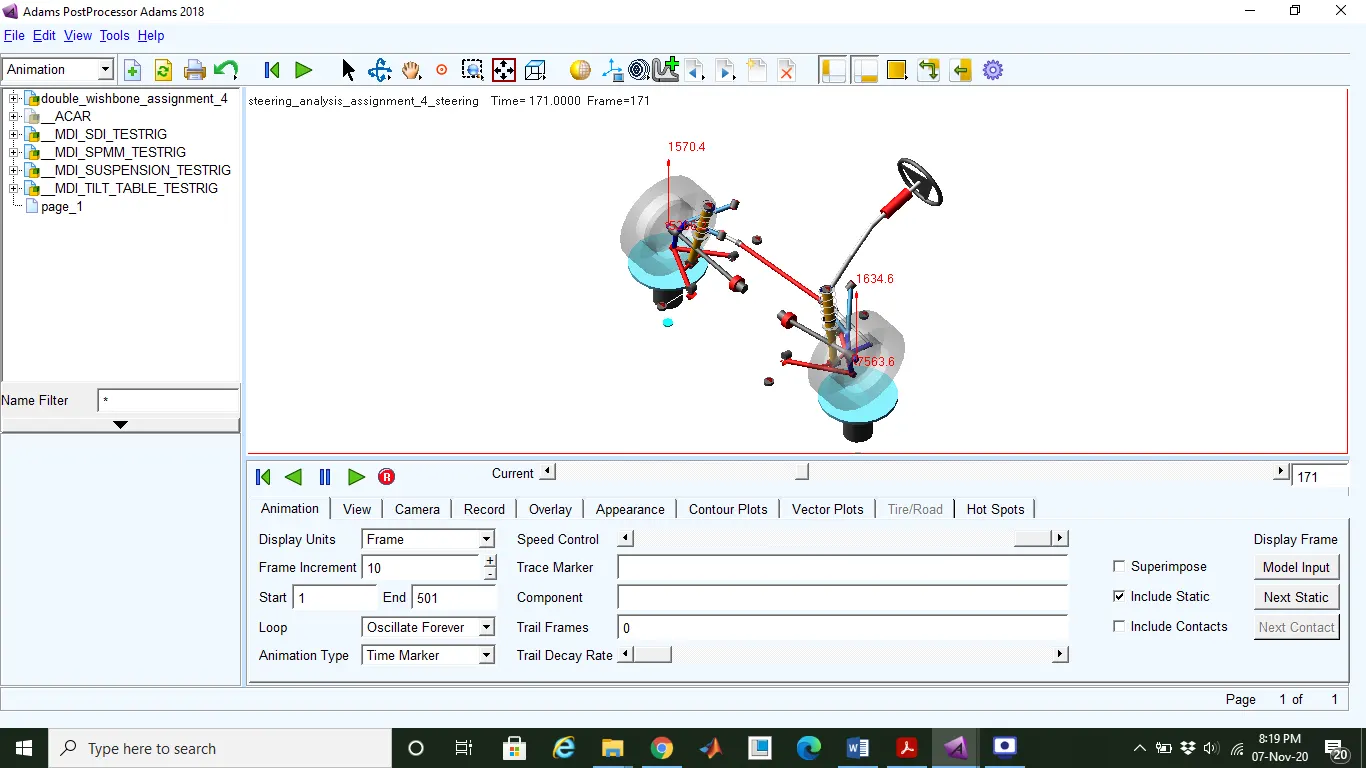

5. The animaton is then performed as shown in figure 3 and is recorded by changing the frame increament to 10 to account for suitable viewing.

6. The plot is exported by using "Plot config file" and is exported to the required database.
