Objectives: To analyze Worm and Gear Assembly for Stress Analysis. Geometrical Design: For this project we have two parts in assembly named as Worm & Gear. This is how full geometry looks like, For the sake of FE Analysis we will look for stress only in half portion of gear, this will lead to less…
Vishal Joshi
updated on 26 Apr 2020
For this project we have two parts in assembly named as Worm & Gear.
This is how full geometry looks like,
For the sake of FE Analysis we will look for stress only in half portion of gear, this will lead to less computational time, this is how an updated geometry looks like;
In this analysis we will keep Structural Steel as default material for both the parts, here its mechanical properties;
We have an assembly of two parts Worm & Gear, in which Gear will be applied with rotational joint and joint load, will be applied to Worm. Transient Structural Analysis Module of ANSYS Workbench is used. As the worm will rotate, gear will rotate and we will look for various results such as Deformation, Strain & Stress.
Type of Elements: Tet & Hex Elements (Automatic Meshing)
Size of Elements: Default
Adaptive Sizing: Yes
Smoothing: Medium
Mesh Model:
Element Quality:
Frictionless Contact is kept between Worm & Gear; Various Teeth are in contact with each other can be seen from image below;
Contact:
Two Revolute Joints applied to assembly, both are kept in Body – Ground Condition.
Joints:
For Loading the Worm is applied with Joint Rotation (Revolute- Ground to Worm), in which total 18 steps applied for analysis, each step applied 100 Degree of rotation in each step.
No of Steps: 18
Carry Over Time Step: ON
Initial Time Step: 0.2 s
Minimum Time Step: 0.1 s
Maximum Time Step: 0.25 s
Large Deflection: ON
Analysis Settings:
Loading:
Total Deformation:
Equivalent Elastic Strain:
Equivalent Stress:
Click here to see Animation of this Project;

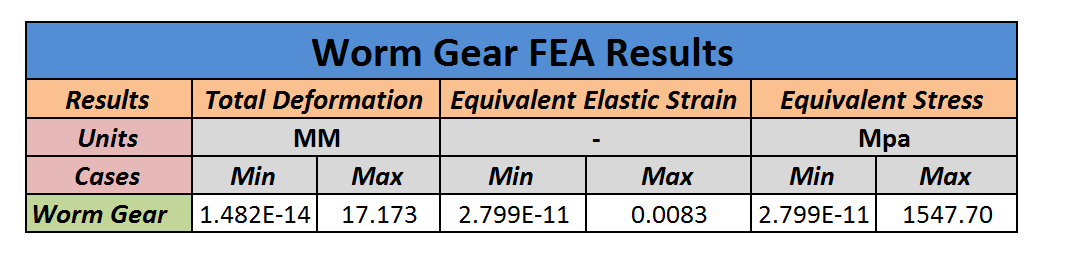

Post Process Results Summary;
1) Max Deformation in assembly is 17.173 MM
2) Max Equivalent Stress in assembly is 1547.70 Mpa
3) Max Equivalent Elastic Strain in assembly is 0.0083
Worm & Gear Assembly analysed in Transient Structural on ANSYS Workbench and various results obtained.
