3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q1

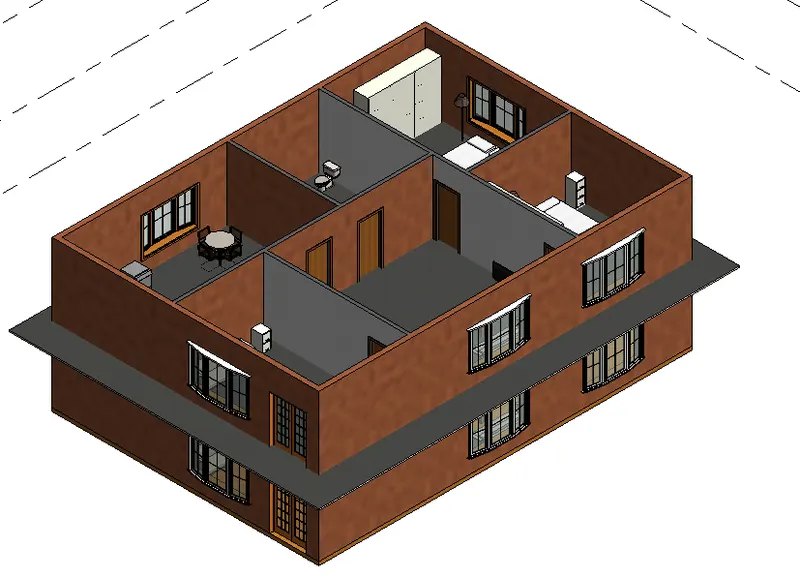

AIM:- To create a ceiling for the first floor

• open the week 3 project
• go to architechteture
• select the ceiling
• Click on the boundary lines
• specify the boundary lines the plan
• then click on the OK

Q2

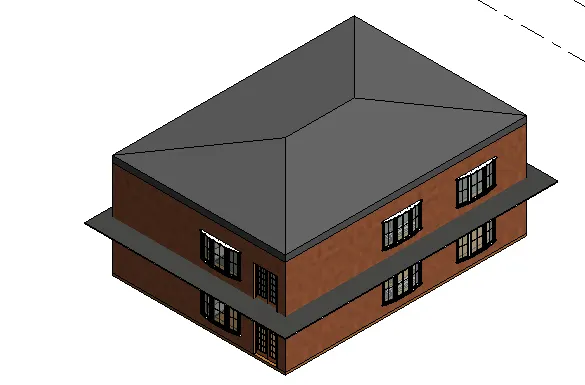

AIM:- To create a ceiling using footprint at the slope of 10 degrees

• go to architecture
• select roof by footprint
• specify the level of the roof
• select the boundary line
• draw the line to create a boundary
• then click ok

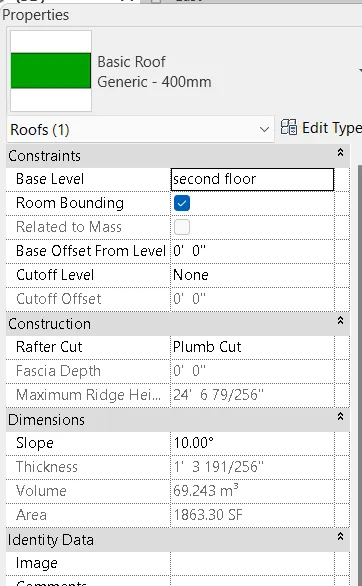

• specify the slope of the roof as 10 degrees from the properties

Q3

AIM:- To create architecture and structural plans

(a) to create an architectural plan of first floor and ground floor

• go to view from the menu bar
• then select plan views
• select floor plan
• then add the level u desire

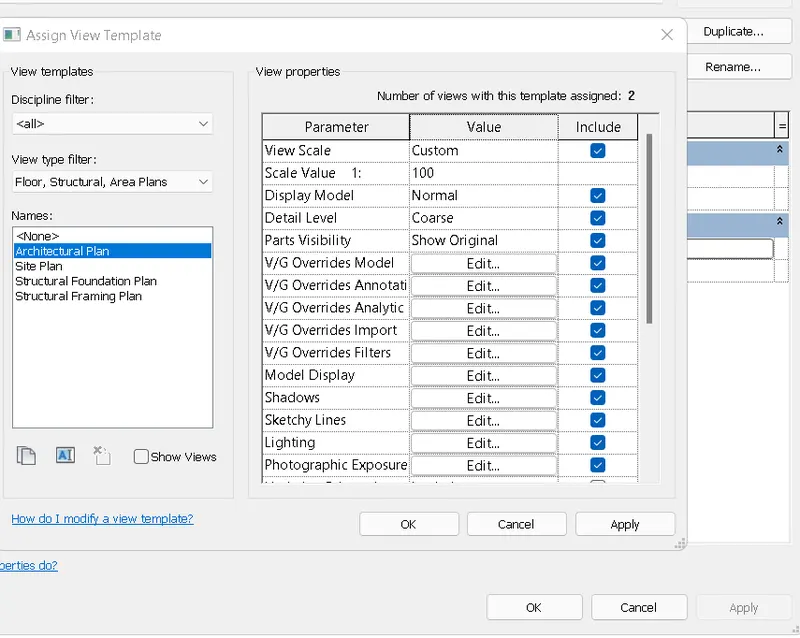

• then go to edit type
• select the plan as architecture type
• then click on apply and ok
• similarly, follow the same procedure to create a plan view of the first floor

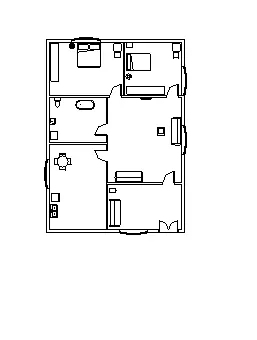

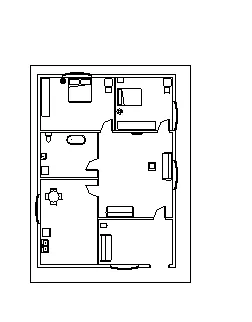

• PLAN VIEW OF GROUND FLOOR

• PLAN VIEW OF FIRST FLOOR

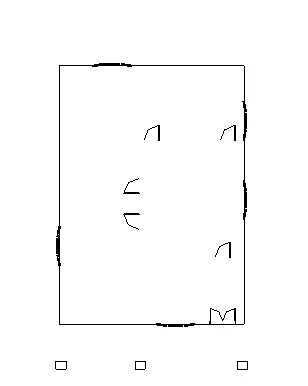

(b) to create a structural plan view

• go to view from the menu bar
• select plan views
• select structural plan
• add the floor levels to desire to create a structural view
• then click on ok
• all the structural components of the plan will be viewed

NOTE:- the plan I have created consists of architectural walls, so walls will not be highlighted in the structural plan view

the below structural plan view has windows, doors, roof and columns.

Q4

AIM:- to add dimensions to the plan view and structural view of the model

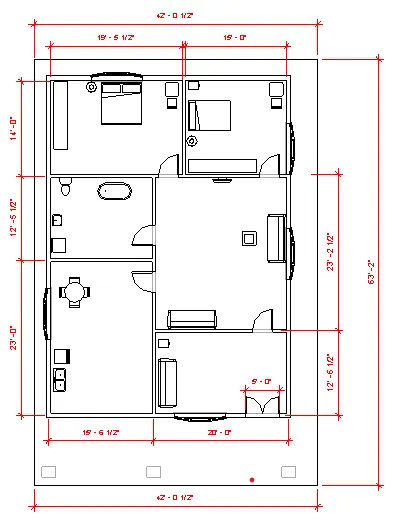

(a) TO SPECIFY DIMENSIONS TO THE ARCHITECTURAL PLAN VIEW AND POSITION OF COMPONENTS

• go to annotate toolbar
• select linear or angular measure
• specify the points to add dimensions
• click on the space bar to switch between the horizontal and vertical alignment

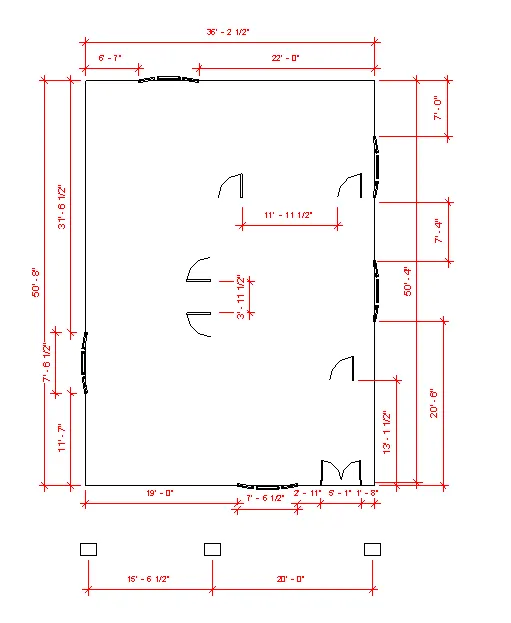

(b)TO SPECIFY DIMENSIONS IN THE STRUCTURAL PLAN

• Open structural plan view which was created previously with all the structural elements
• go o annotate from the menu bar
• select the linear measurement
• specify the points in the plan to add dimensions

Q5

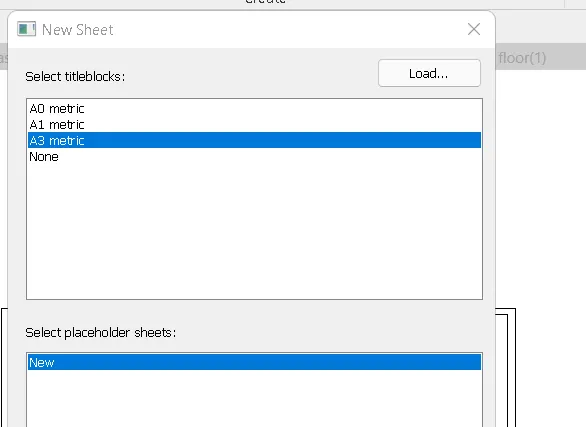

AIM:- To create a sheet template and add plan views

• go to the view menu
• then select the sheet
• then select the title blocks
• drag and add the viewport from the project browser

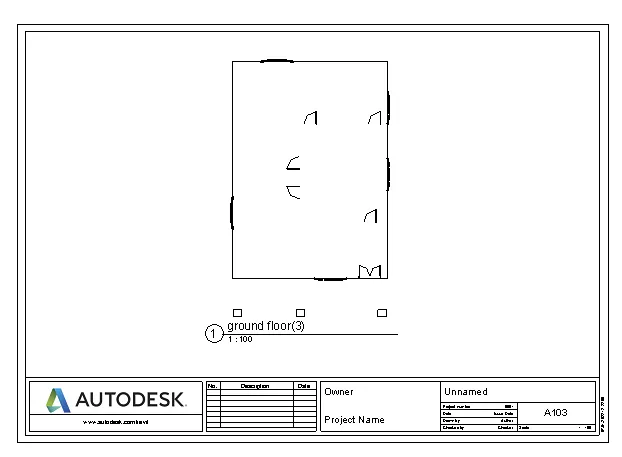

GROUNDFLOOR STRUCTURAL PLAN IS ADDED TO THE SHEET TEMPLATE

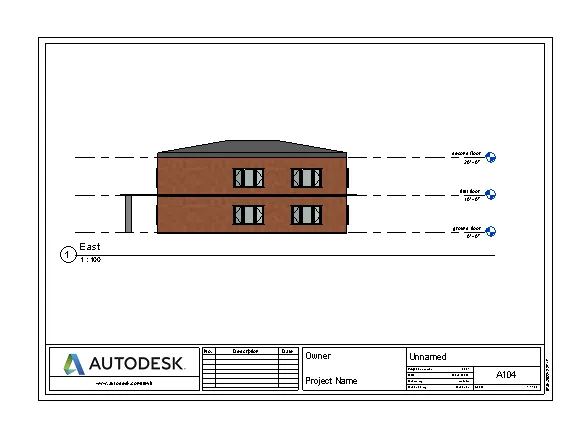

3D ELEVATION VIEW IS ADDED TO THE SHEET TEMPLATE

Q6

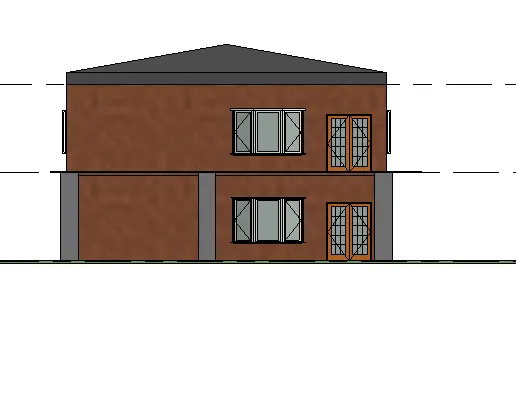

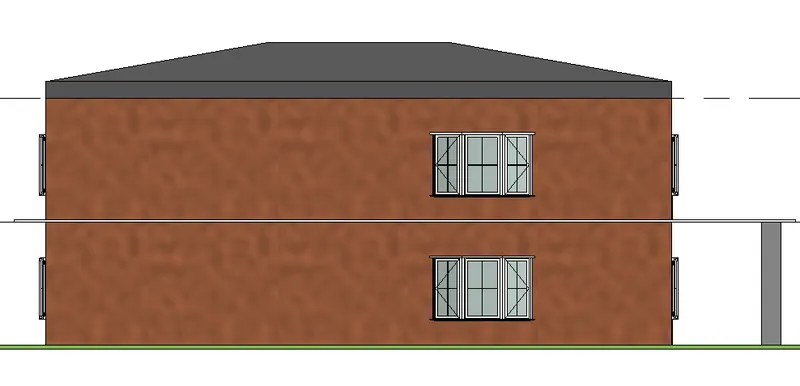

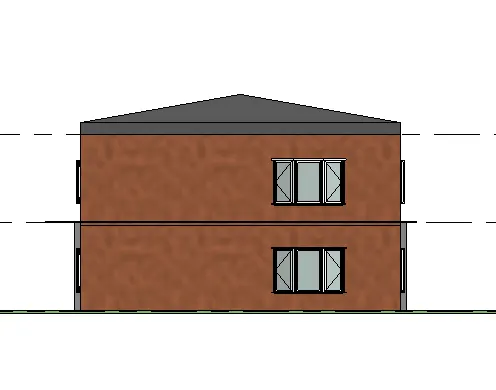

AIM:- To show the elevation of the model from all the directions

• from the project browser
• expand elevations
• then click on the direction you desire to view
• then the elevation view will be shown

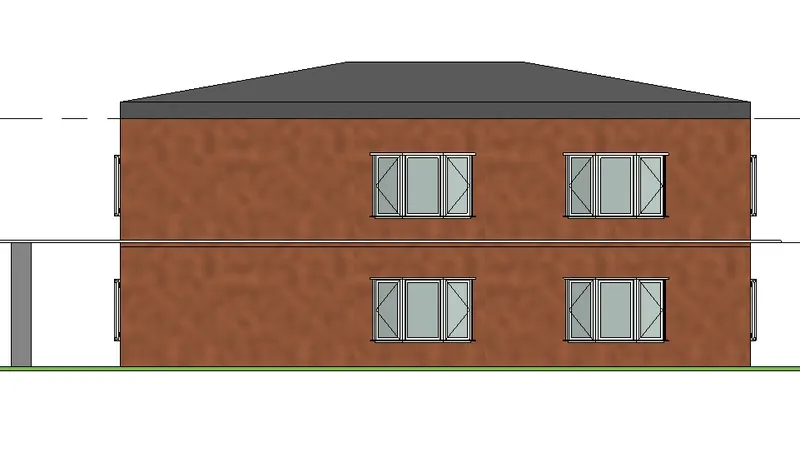

EAST

WEST

NORTH

SOUTH

Q7

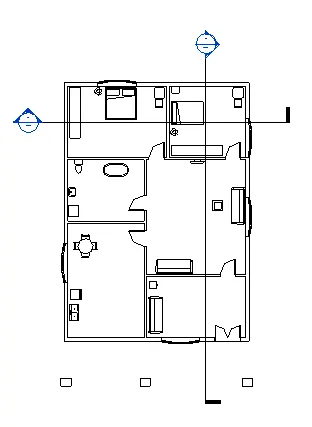

AIM:- To create a section view on each room

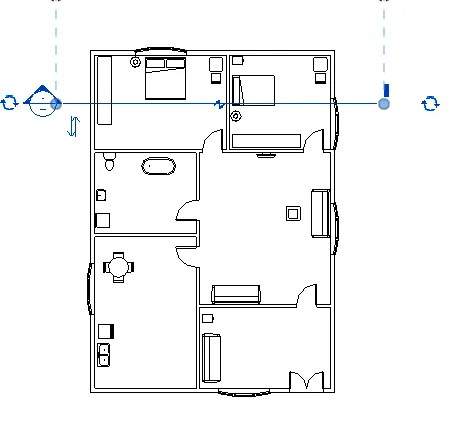

• go to section from the view menu
• draw the line through the model to create a section cut
• then to the project browser
• expand section views
• Click on the view created
• then the sectional view will be shown

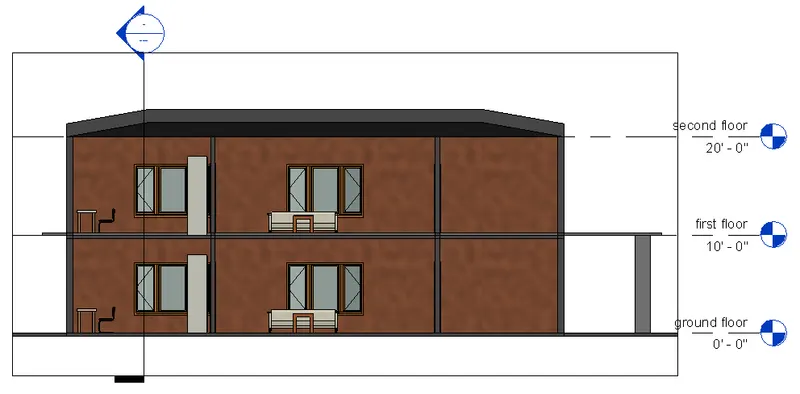

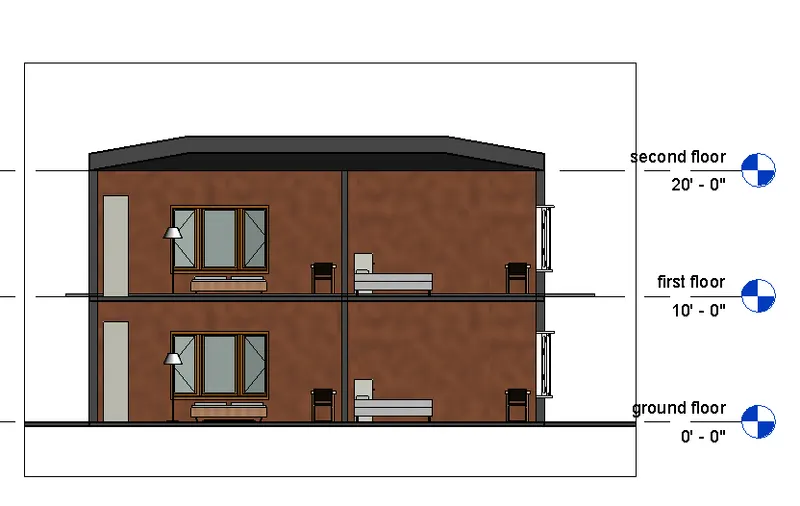

SECTION VIEW 1

SECTION VIEW 2

Q8

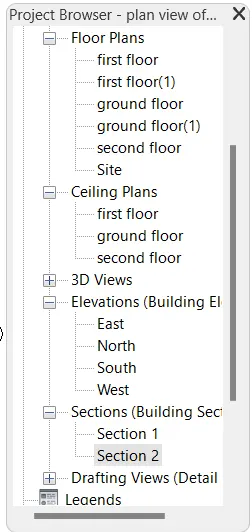

AIM:- TO classify the views from the project browser

• go to project browser
• expand all view
• then the various views you have created will be shown

Q9

AIM:- To create a sheet template with multiple viewports

• go to the view menu
• then select the sheet
• then select the title blocks
• drag and add the viewport from the project browser

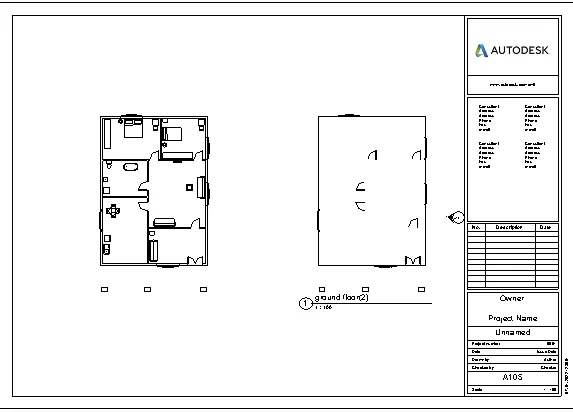

MULTIPLE SHEET TEMPLATE OF GROUND FLOOR

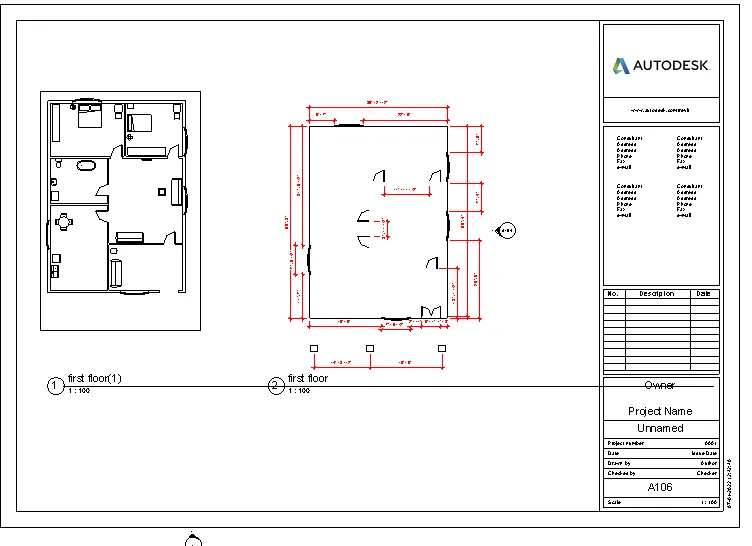

MULTIPLE VIEWPORTS OF FIRST FLOOR ON SHEET TEMPLATE

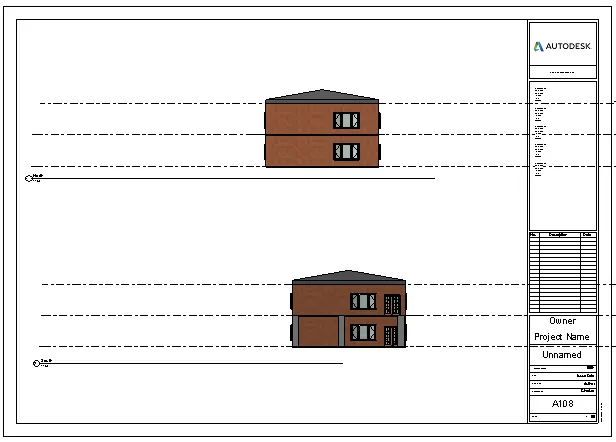

SHEET TEMPLATE OF NORTH-SOUTH ELEVATION VIEWS

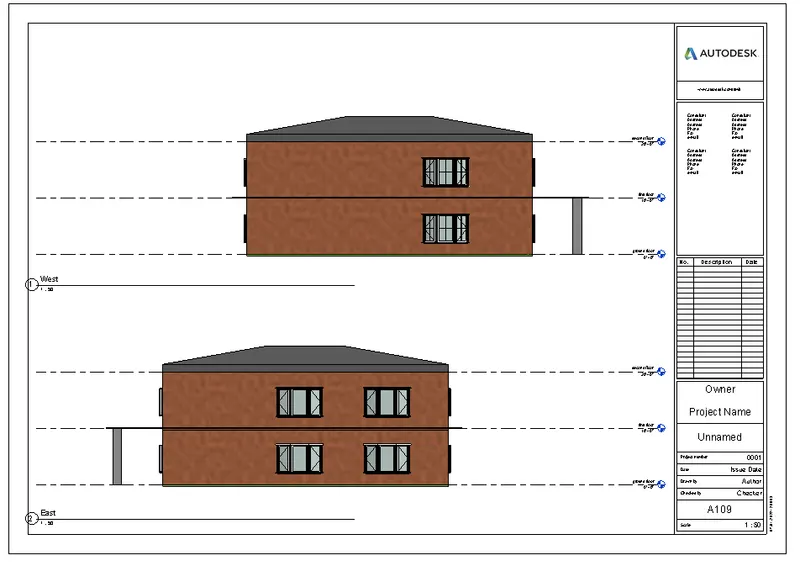

SHEET TEMPLATE OF EAST-WEST ELEVATIONS

Q10

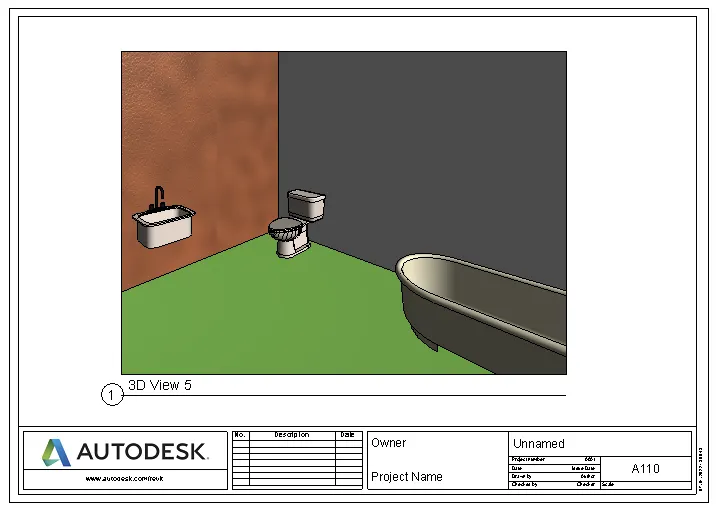

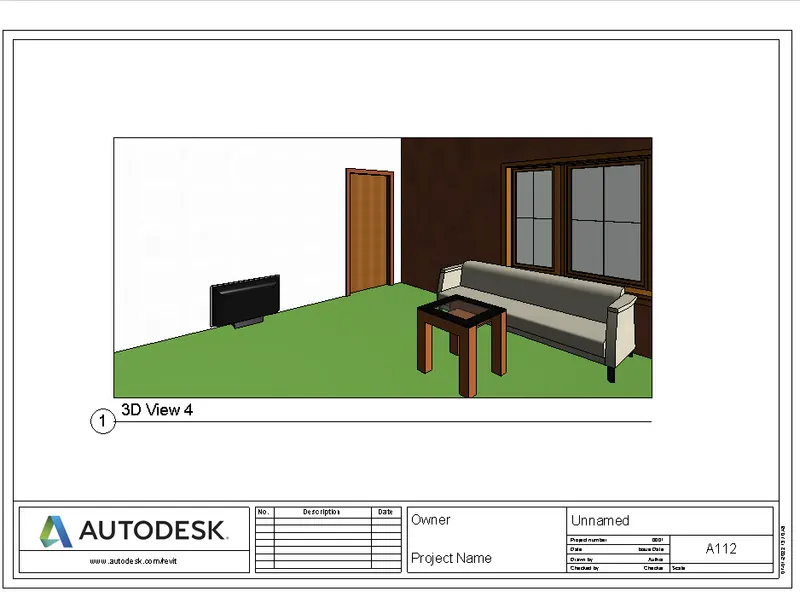

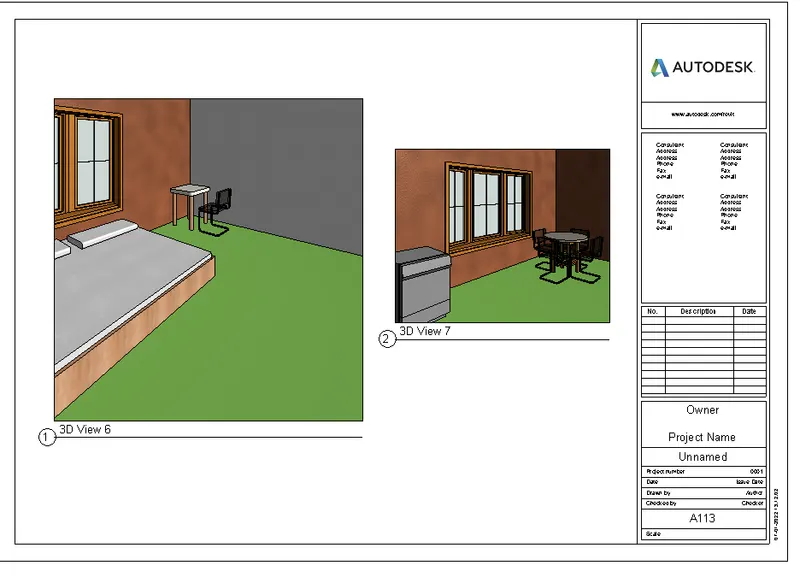

AIM:- To create a sheet template of camera viewports of living, bedroom, kitchen, and dining

• go to view from the menu bar
• click on 3d view and select camera
• place the camera at the required position to create a view
• then the view is created as pe the camera axis
