3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

CHALLENGE 4

QUESTION 1 ANSWER

AIM: To Model a Ceiling from the architecture tab above the walls at the first-floor level

PROCEDURE :

1. Open your week 2 challenge and go to level 1 from your properties browser
2.
3.

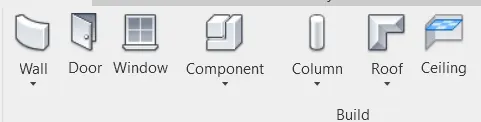

4. Click on sketch ceiling
5.
6. Now draw your ceiling by selecting lines around your layout
7.
8. Click finish and go to 3d view
9.

Result : We modelled ceiling to our layout

QUESTION 2 ANSWER

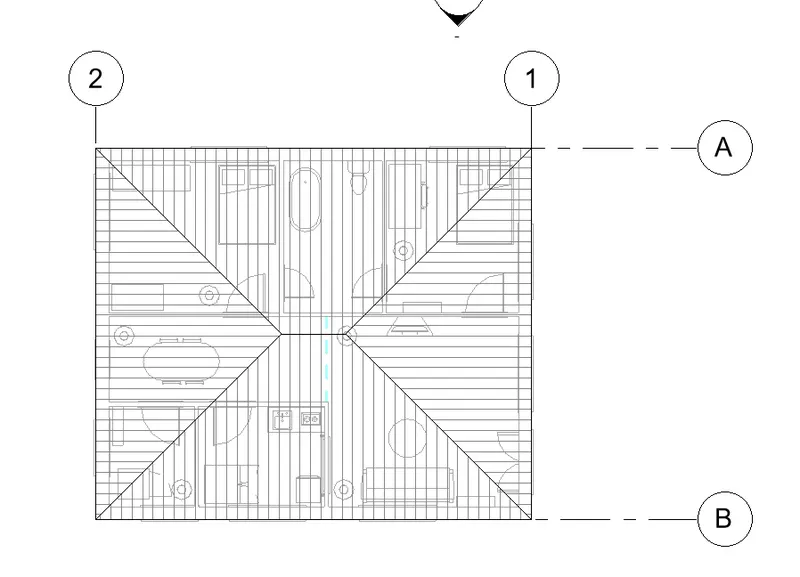

AIM : To model a roof for our model and to adjust the roofs slope to 10 degrees

PROCEDURE:

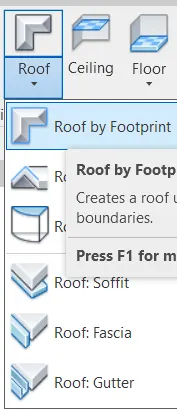

1. Click on roof under architecture tab and then click on roof by foot print
2.
3. Sketch the roof and click finish
4.
5. Now to set the slope of the roof go to properties browser and scroll down and set the slope to 10 degress
6.
7.

RESULT : We modelled roof for our layout

QUESTION 3 ANSWER

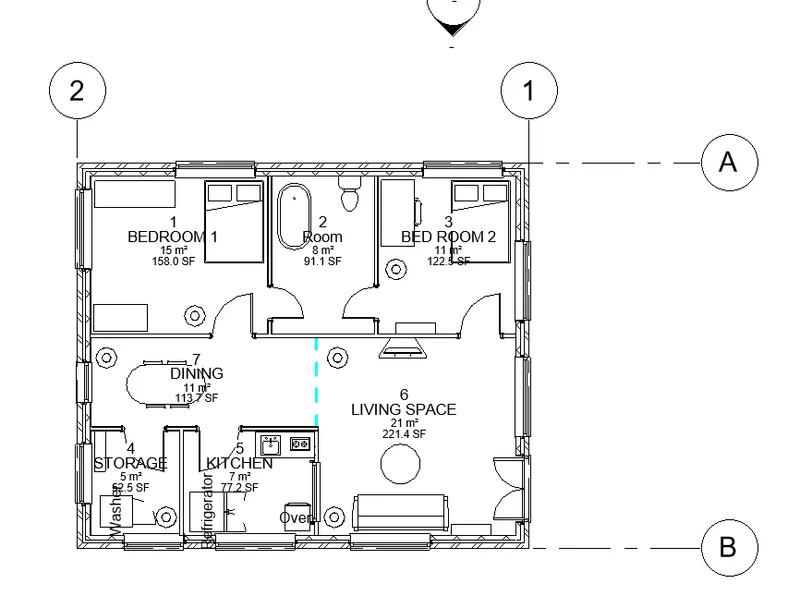

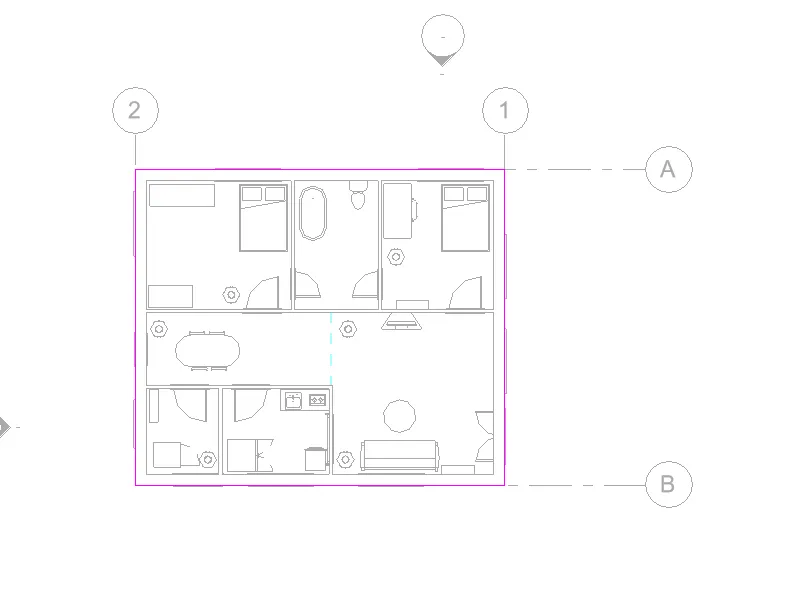

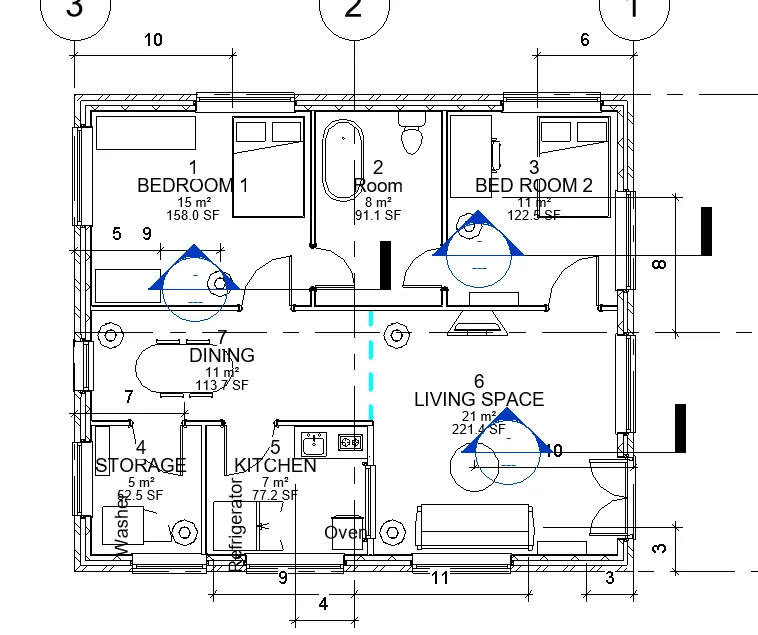

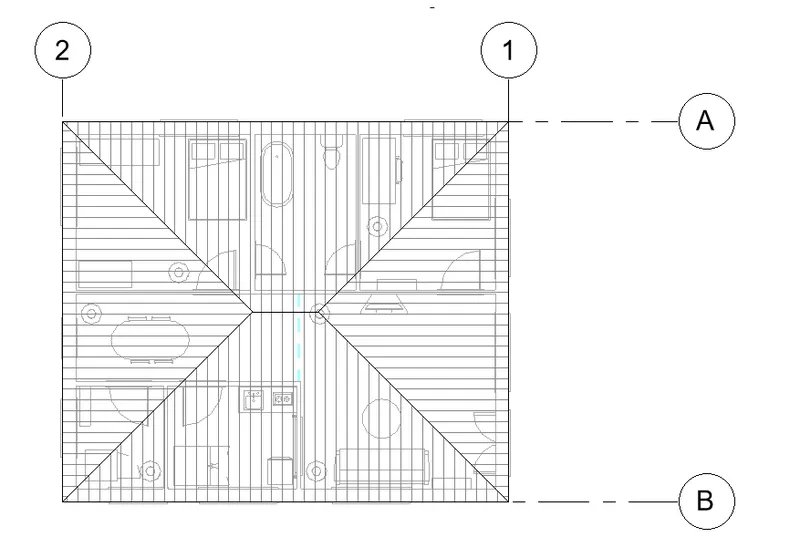

AIM : To create plan views for ground floor level and first-floor level including all the walls, floors, and components.

PROCEDURE:

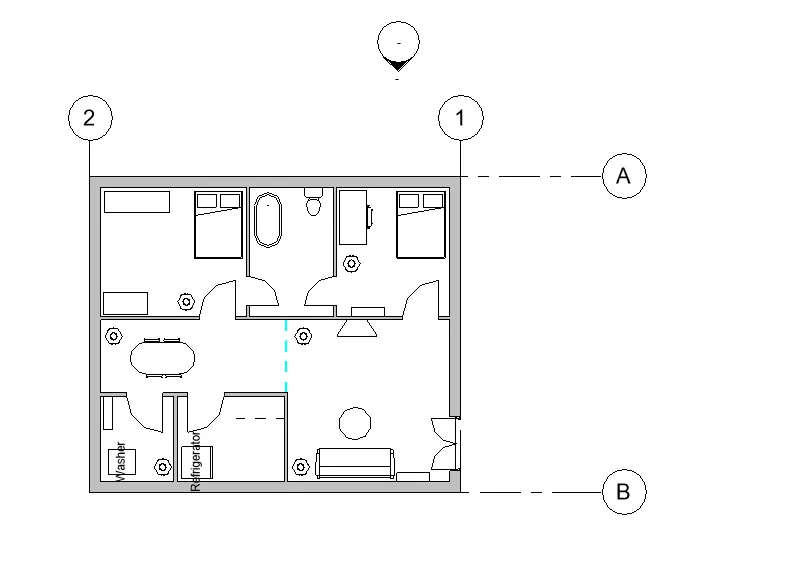

1. We already have architectural plan view of ground floor and first floor in the properties browser.
2.
3. Click on Level 0 to get ground floor plan
4.
5. Click on Level 1 to get first floor plan
6.

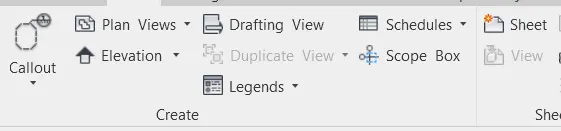

7. Now for the structural views ,Go to View tab and click on plan views
8.

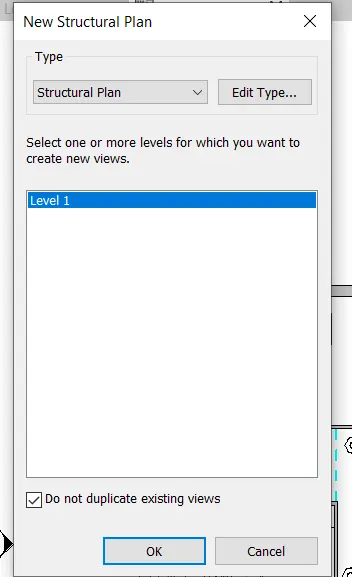

9. Click on structural plan and select level 0 and level 1
10.
11.
12.

RESULT : We created Architectural and Structural Plan views for ground floor and first floor

QUESTION 4 ANSWER

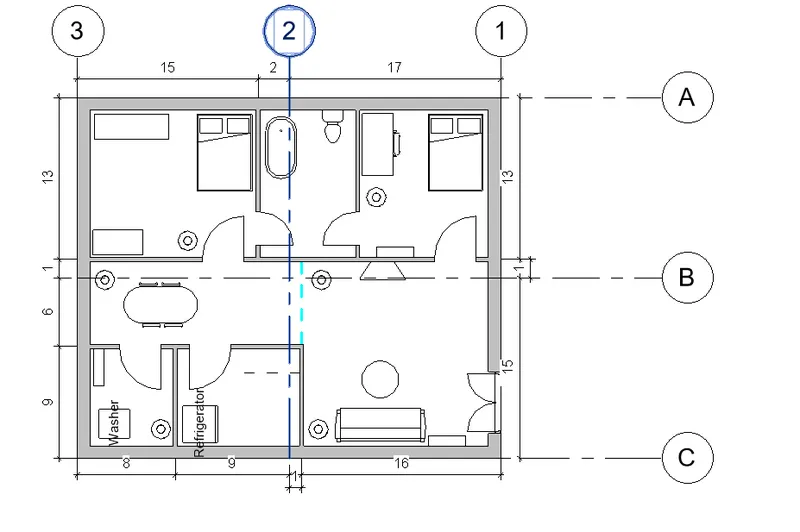

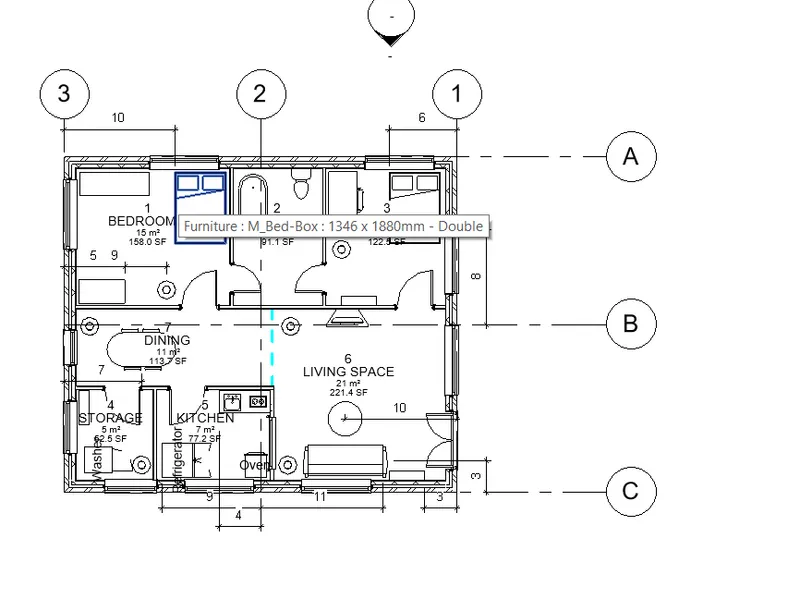

AIM : To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

PROCEDURE :

1. Click on alighned dimensions under annotate tab
2.
3. Now add dimensions to your structural and architectural layouts with respect to the grids
4.
5.

RESULT : We added dimensions to our architectural and structural layouts with respect to grids

QUESTION 5 ANSWER

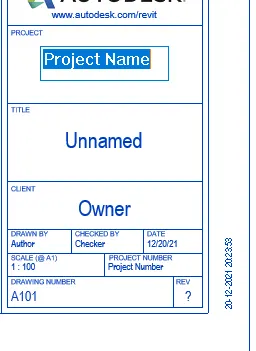

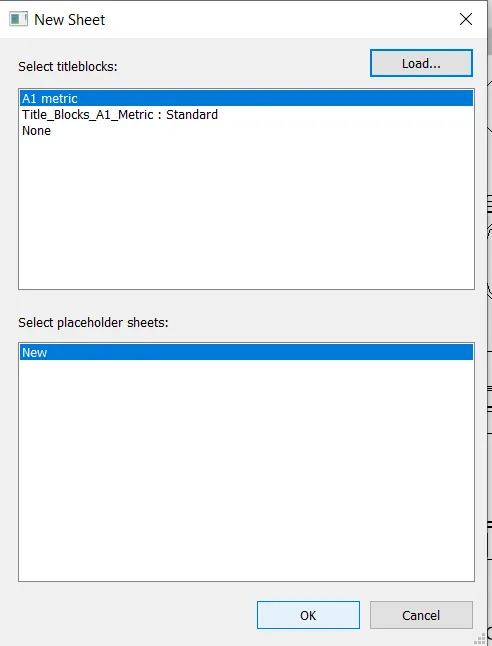

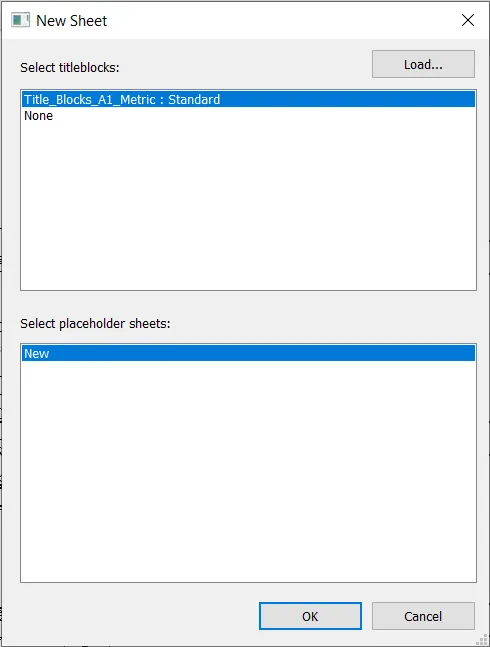

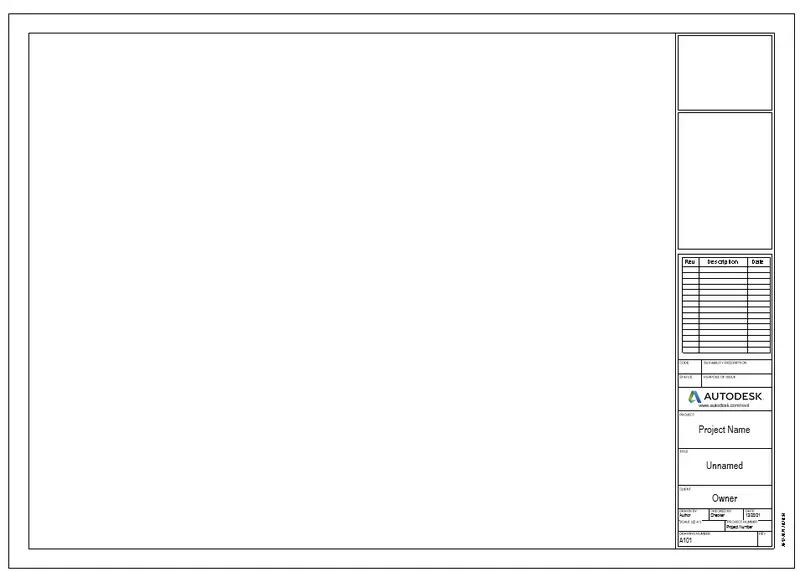

AIM : To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

PROCEDURE :

1. Under view tab click on Sheet
2.
3. And select a new sheet
4.
5.

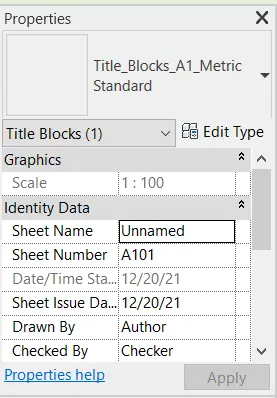

6. To change the parameters of the sheet click on the parameters on rename them
7.
8. You can also change the parameters from properties browser
9.

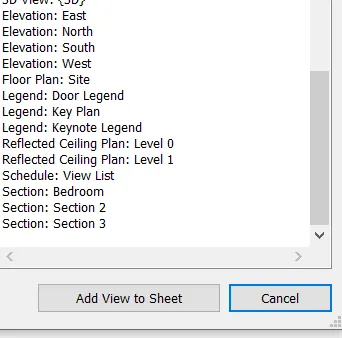

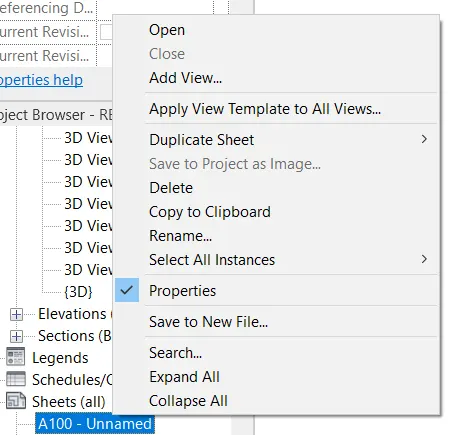

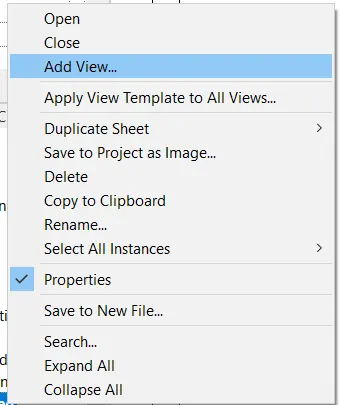

10. To Add Views right click on sheet and click on add view and select the required views
11.

RESULT : We Created a sheet template and changed its parameter

QUESTION 6 ANSWER

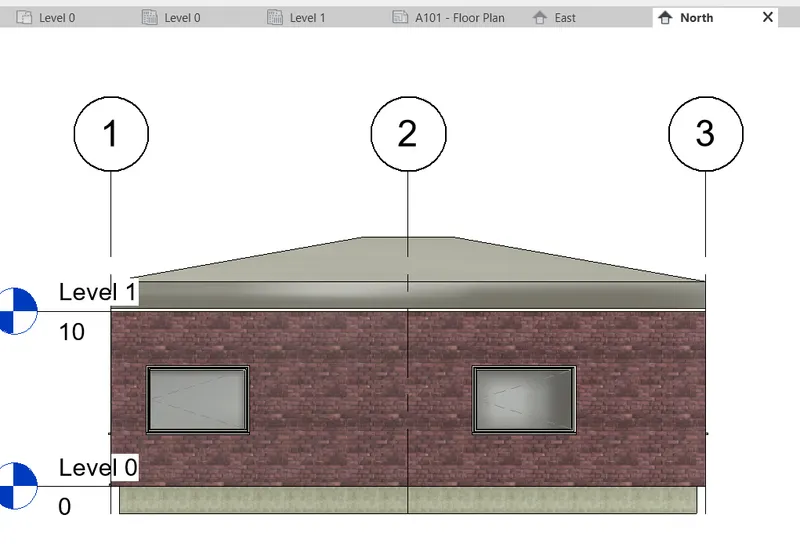

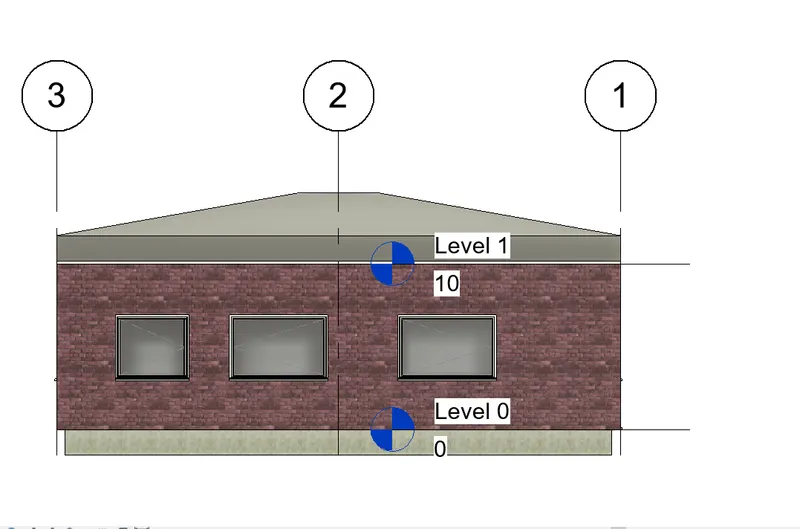

AIM : To create the elevation views, looking at your building from East, North, South, and West

PROCEDURE :

1. CLick on elevation in properties browser
2. You will see east west north and south
3. double click on them to get respective views
4.

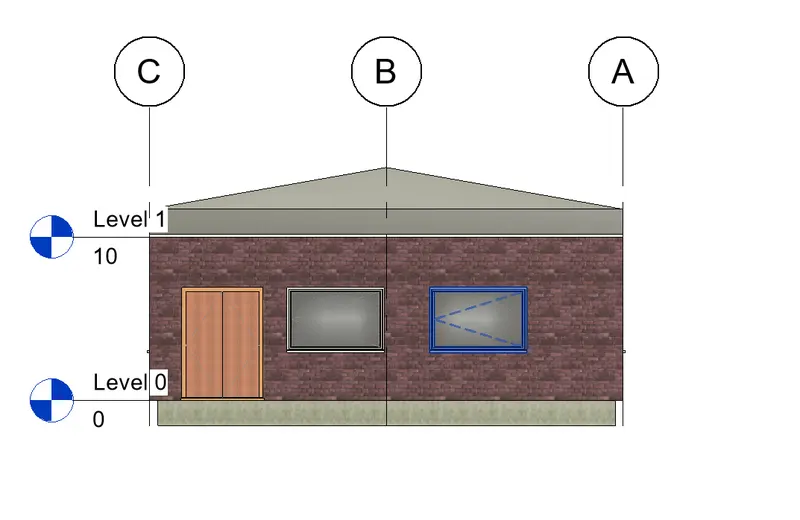

5. EAST
6.
7. NORTH
8.
9. SOUTH
10.

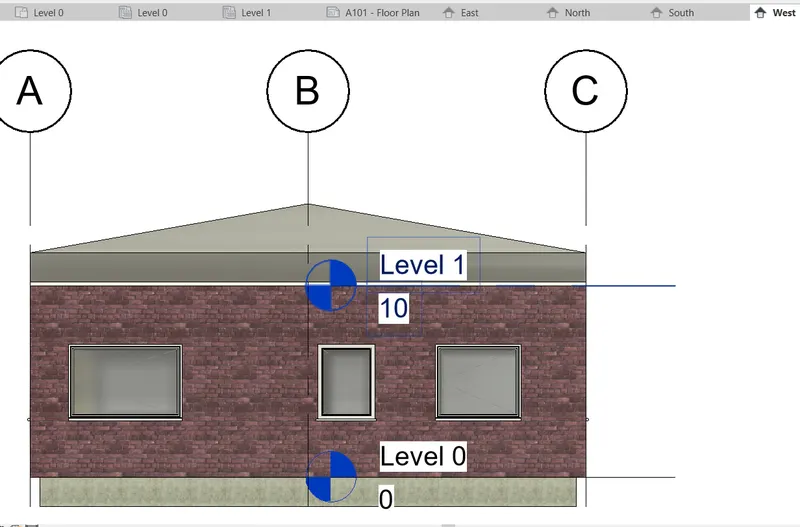

11. WEST
12.

RESULT : We created elevation views of our model

QUESTION 7 ANSWER

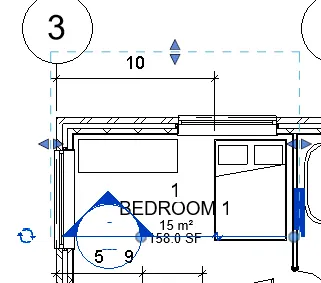

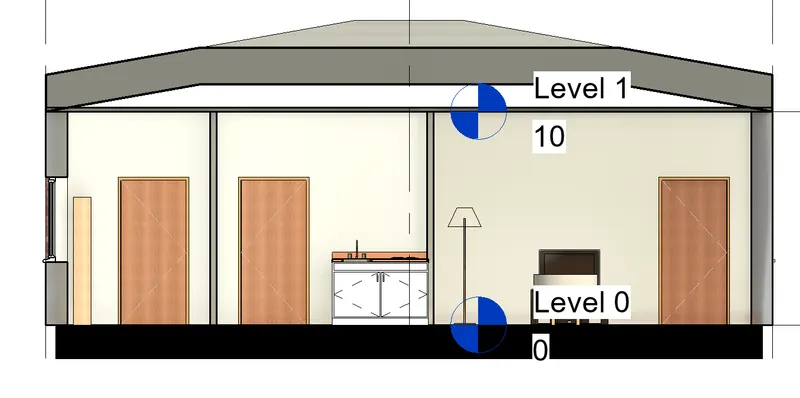

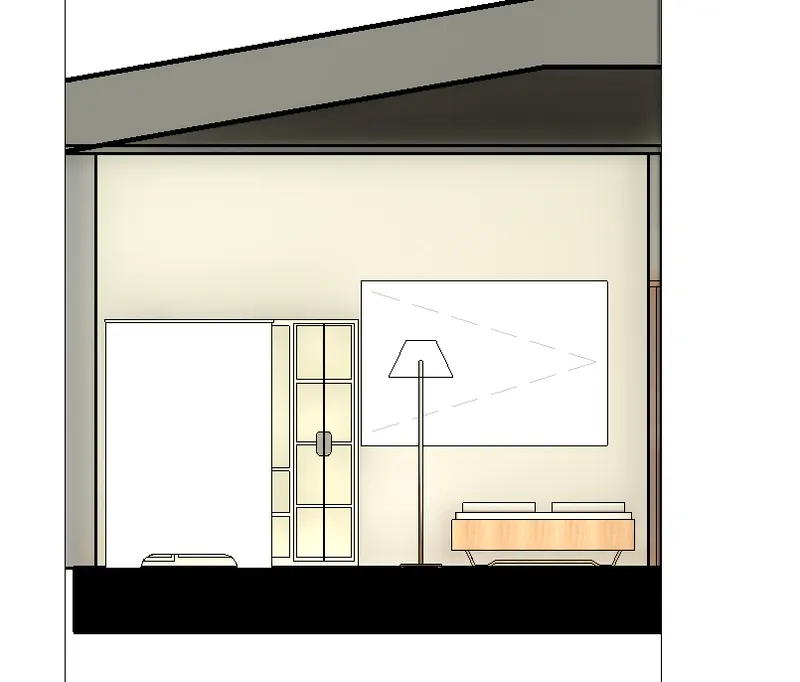

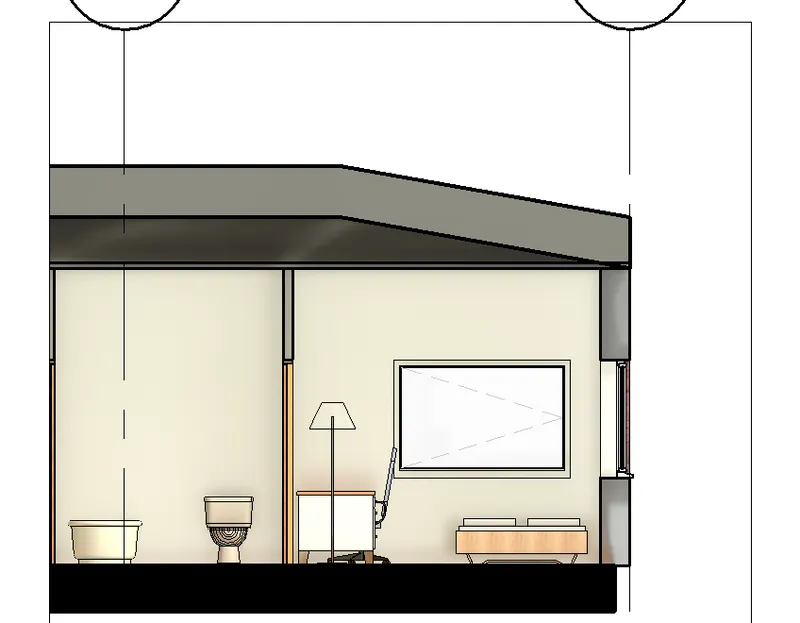

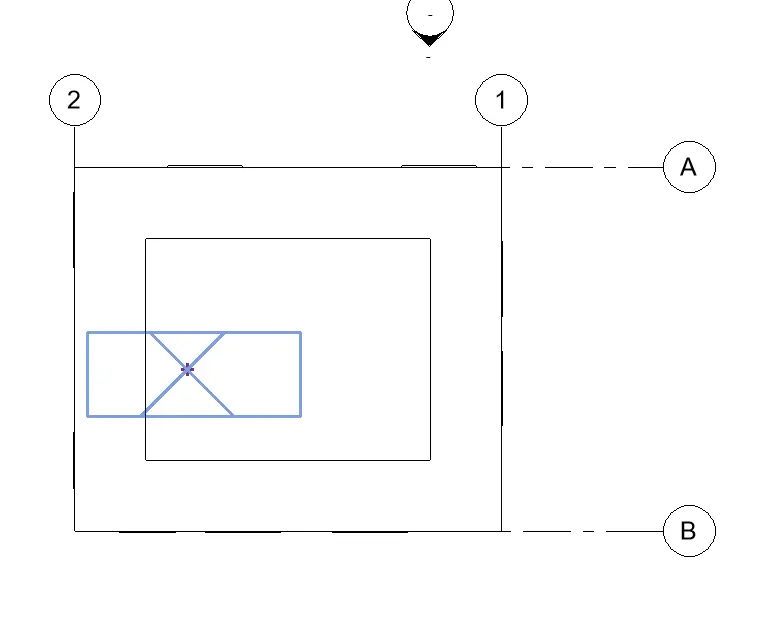

AIM : To produce section cut through each room either cutting across longitudinally or in a transverse direction

PROCEDURE :

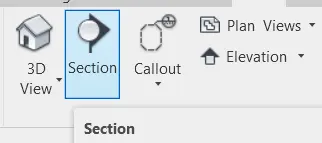

1. Under view tab click on section
2.
3. Place the sections in different rooms to get the inside views of different rooms
4.
5.
6.
7.
8.
9. You can view your views from properties browser and also rename them
10.

RESULT : We created sectional views for our model

QUESTION 8 ANSWER

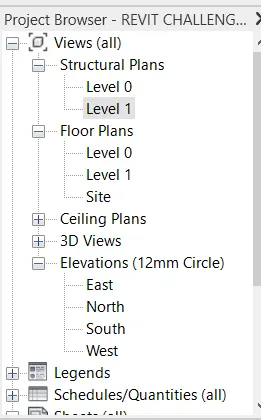

AIM : To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

PROCEDURE:

1. We have all the plan views ,sectional views and elevation views in the properties browser
2.
3. They are classified in properties browser
4. Double click on them to get the respective views

RESULT: We classified all the views from properties browser

QUESTION 9 ANSWER

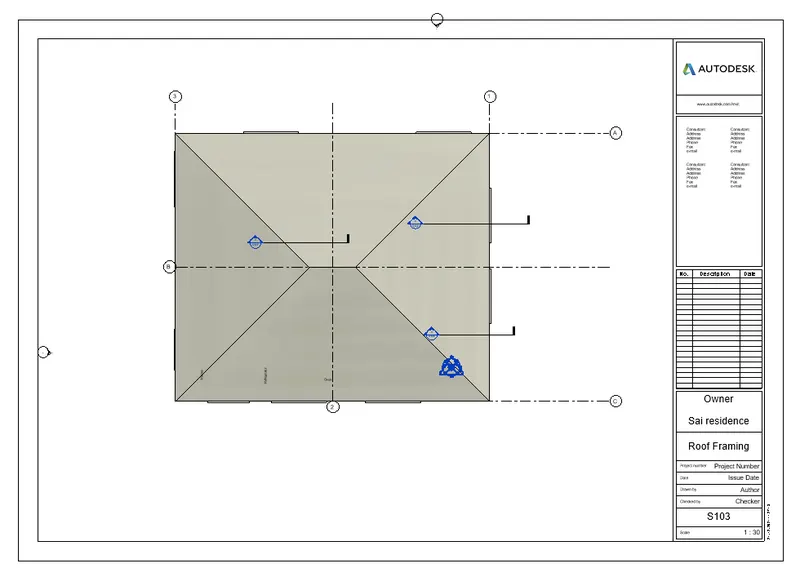

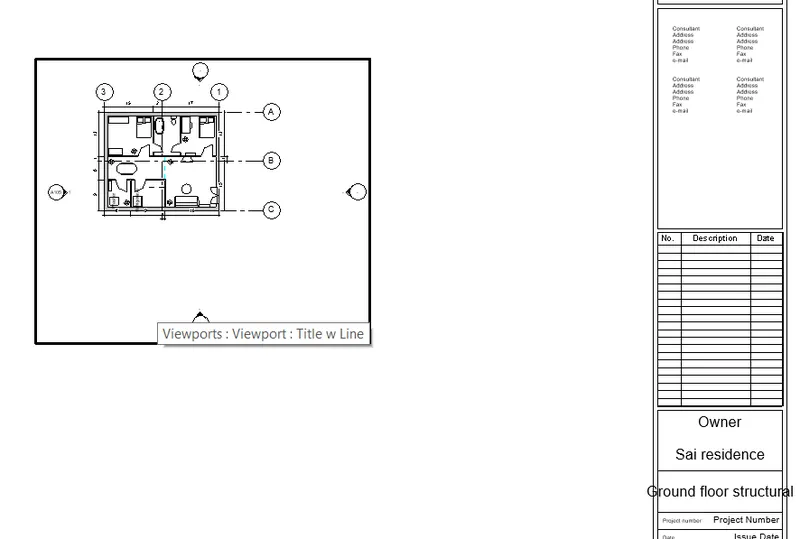

AIM : To create sheet templates for the following views

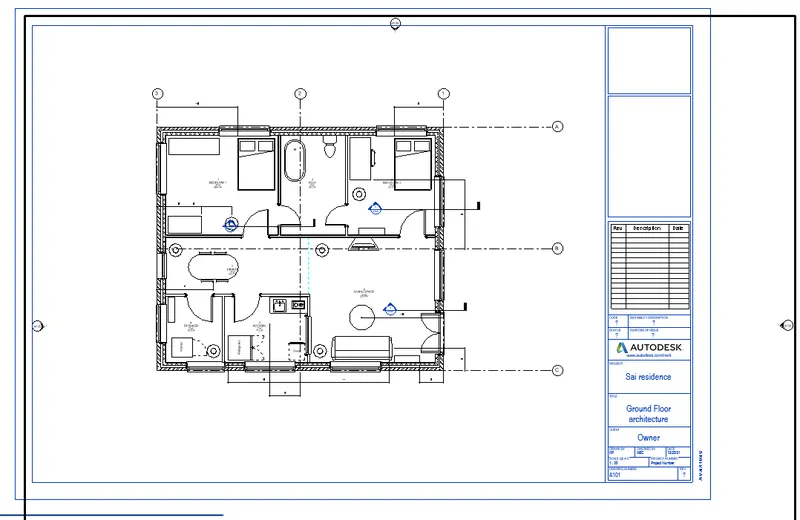

a. A 101- Ground Floor Architecture Plan

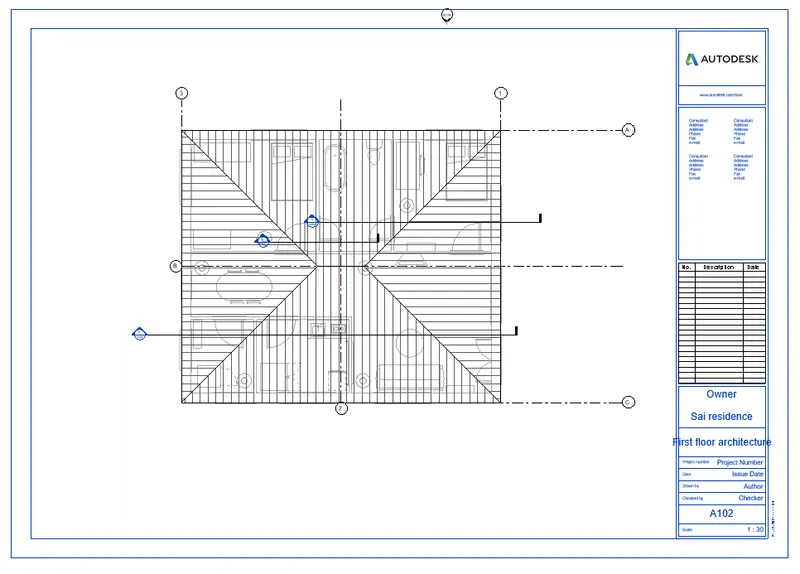

b. A 102- First Floor Architecture Plan

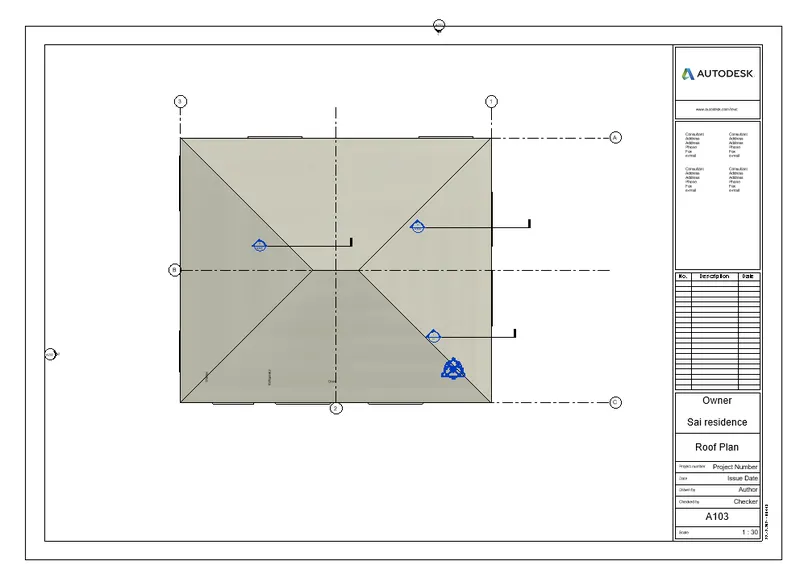

c. A 103- Roof Plan

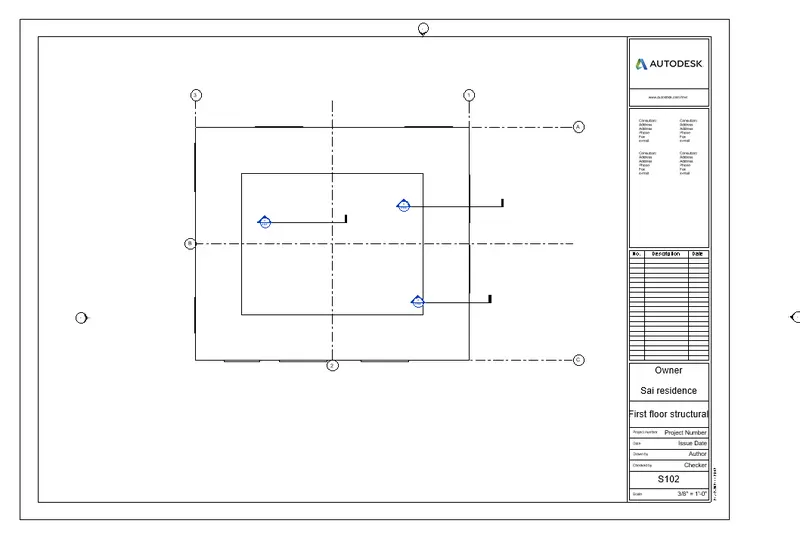

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

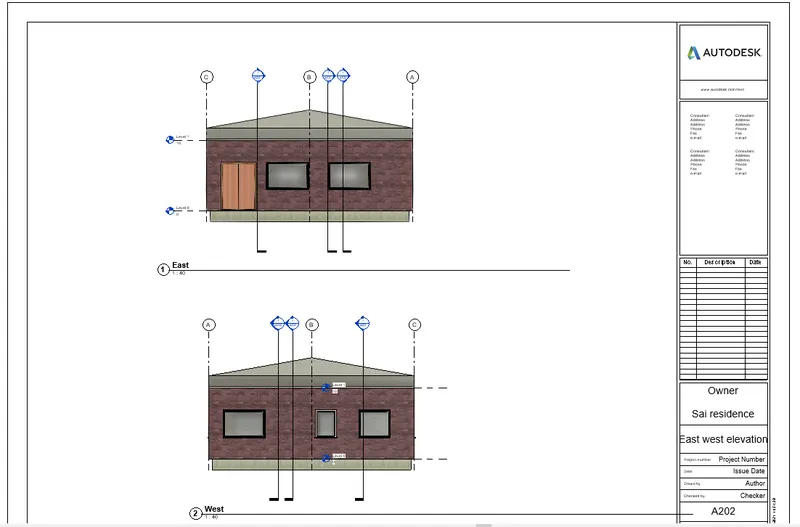

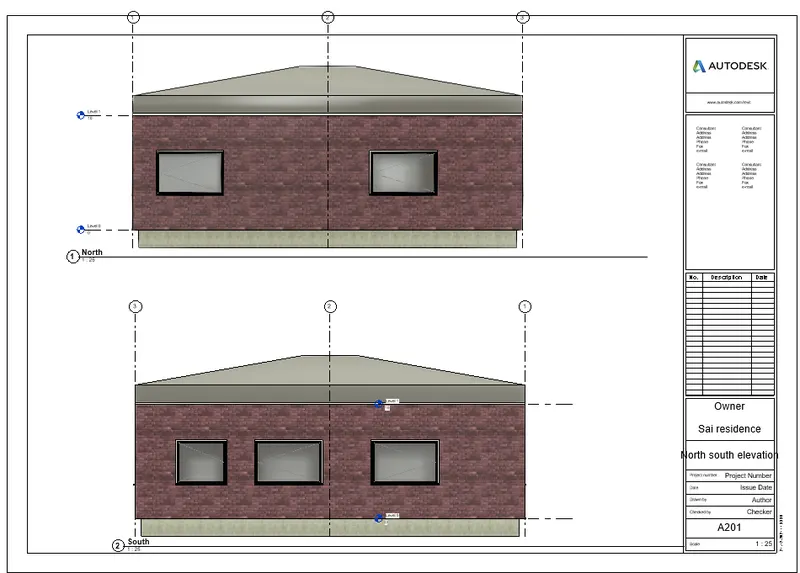

g. A-201- North-South Elevations
h. A-202- East-West Elevations

PROCEDURE:

1. Click on sheet under view tab and select a new sheet
2.
3.
4. Change the sheet name as given in question and the appropriate views by right clicking on sheet and selecting add view
5.
6.
7. You can change the size of view by adjusting scale from properties browser
8.
9.
10.
11.
12.
13.
14.
15.

RESULT : We Added different views to sheets as per given in question

QUESTION 10 ANSWER

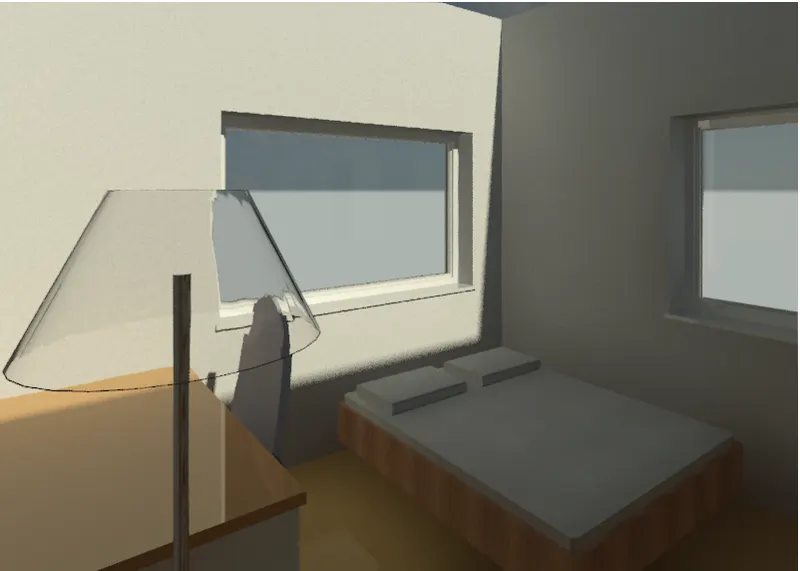

AIM : To Create a camera-specific view or a 3D view in each room ( living, dining, bedroom).

PROCEDURE :

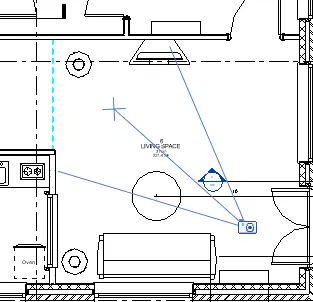

1. Under view tab select 3d view and select camera in it
2.
3. Now place the camera in different rooms to get different views of them
4. You can navigate to these views from properties browser and can also rename them by single clicking on them
5.

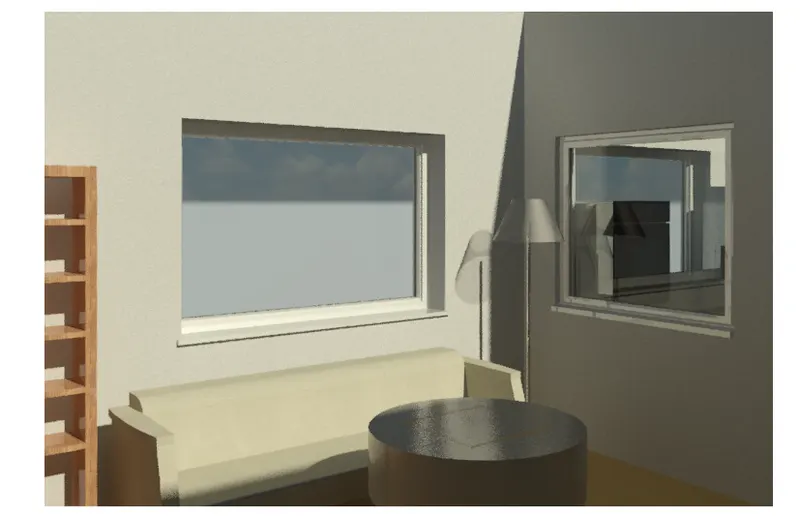

6. living space
7.
8. Living space
9.
10. Dining room
11.

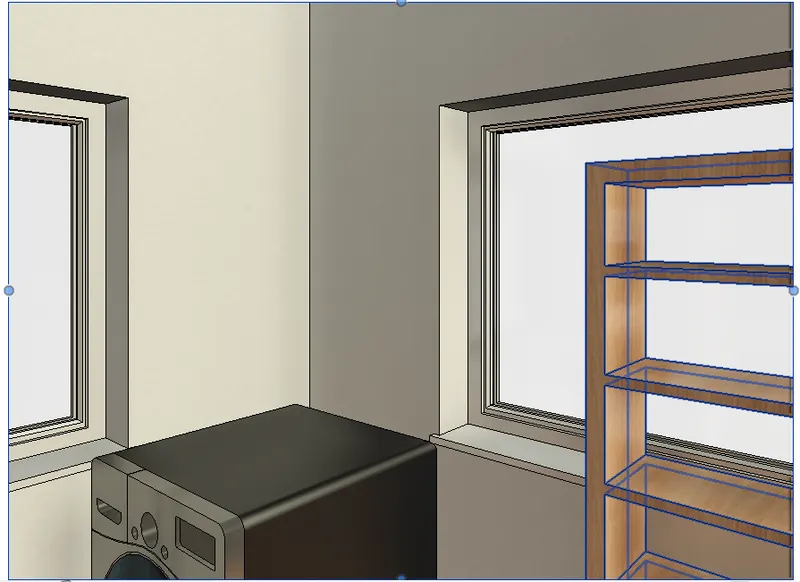

12. Kitchen
13.
14. Storage room
15.
16. Kitchen
17.
18. Bedroom
19.
20. Rest Room
21.
22. Now you can select sheets and add these views to them

RESULT : We created room views using camera and added them to sheets
