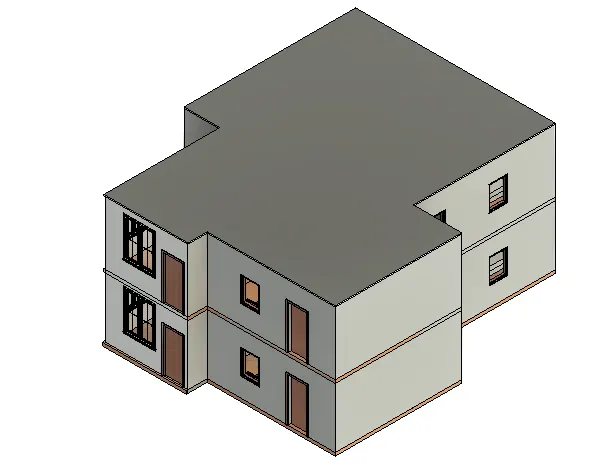

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

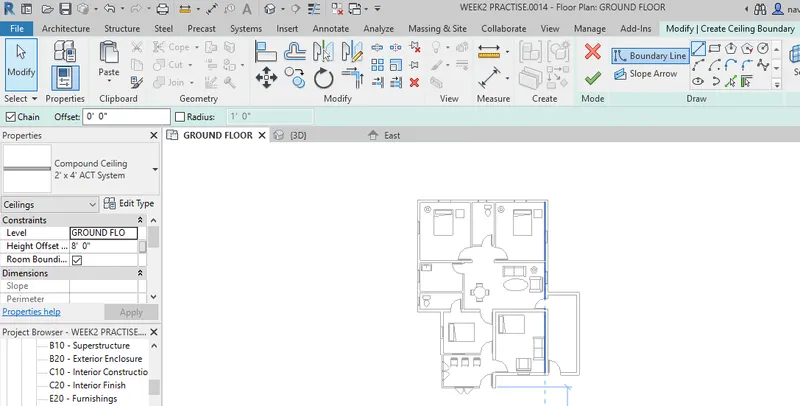

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
AIM:-
To Model a Ceiling from the architecture tab above the walls at the first-floor level.
PROCEDURE:-

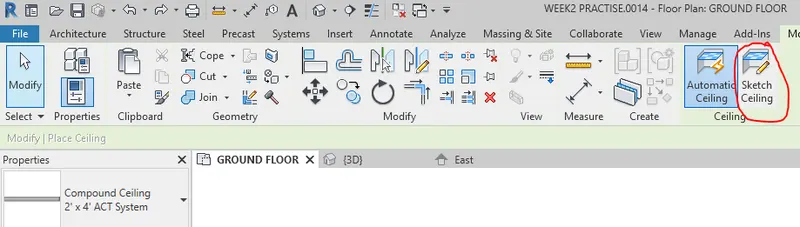

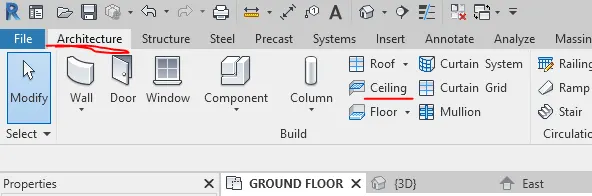

- Go to architectural tab and select ceiling tool.
- Go to sketch editing.
- Draw an enclosed area.
RESULT:-
The ceiling has been created.

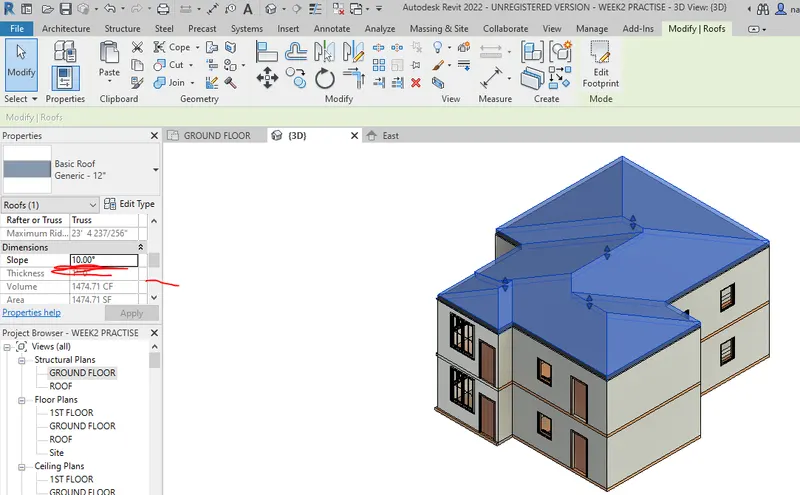

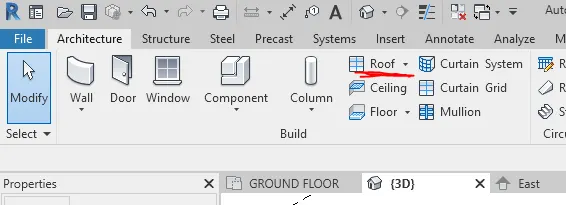

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
AIM:-
To model a roof above the ceiling by selecting the footprints of ceiling.
PROCEDURE:-
- Go to architectural tab and select ceiling tool.

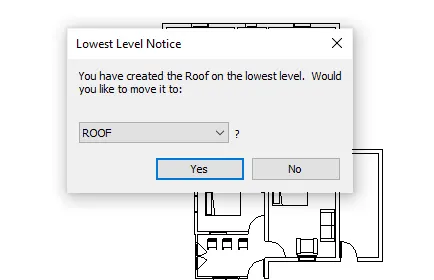

- Select the level,
- Select the pick line and edge of ceiling.
- Adjust the scale to 10 in properties browser.
RESULT:-

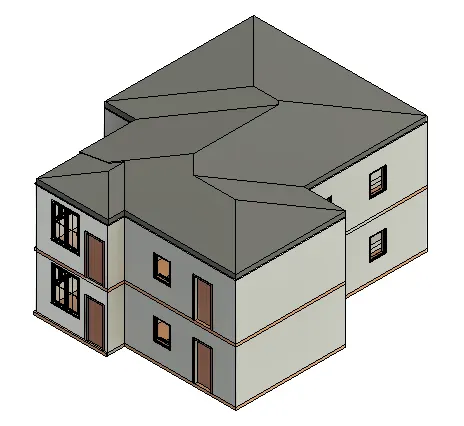

The roof has been created.
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

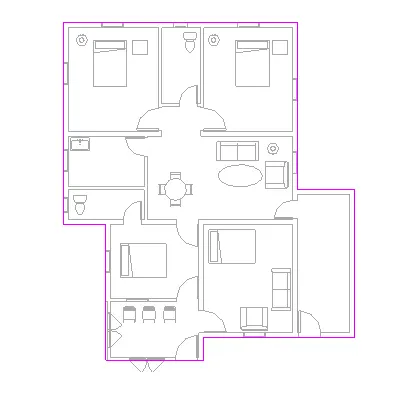

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
AIM:-
To create plan views for ground floor level and first floor level and seprate them to architectural and structural plans.
PROCEDURE:-

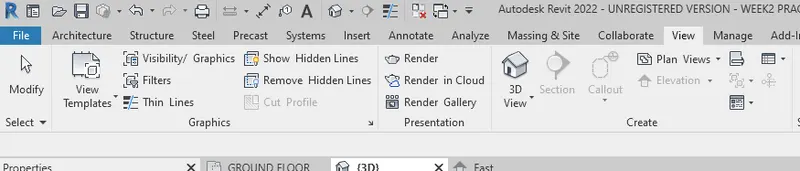

- Go to view tab and select plan view.

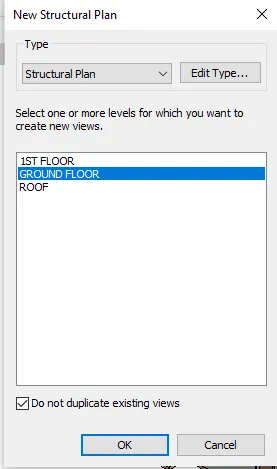

- Select the structural plan.
- Select the Ground floor as to create the structural plan.
- Press ok.
- Go to project browser and the plan created is there as structural plan.
RESULT:-
Hence, sepratre architecture and structural plan has been created.

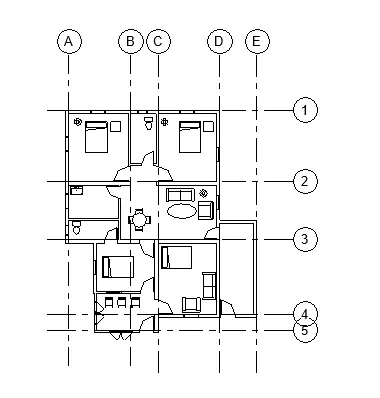

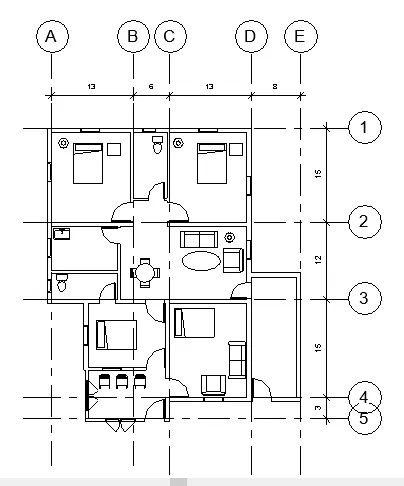

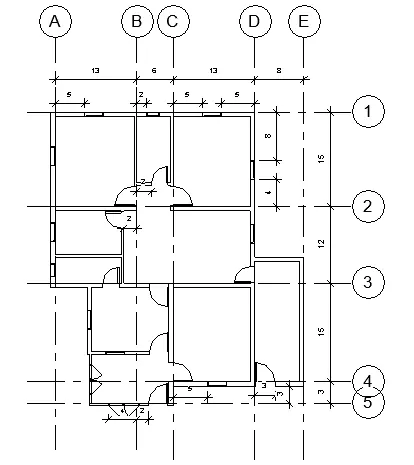

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM:-
To add dimensions to all the walls and floor with reference to the longitudinal and transverse grids in the project file.
PROCEDURE:-
- Go to architectural tab and select Grid tool.
- Add vertical and horizontal grids accordingly.
- Go to annotate toolbar and give dimensions between the grids using dimensions.
- Go to structural plan and show the location of door and windows with reference to the grid using dimensions.
RESULT:-
Hence, the required architectural and structural plan are drawn.

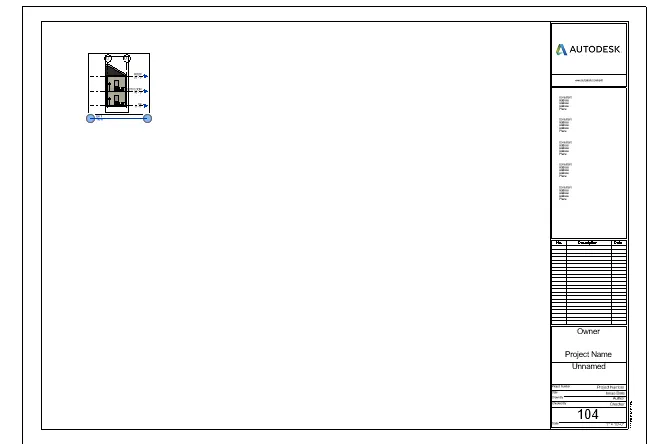

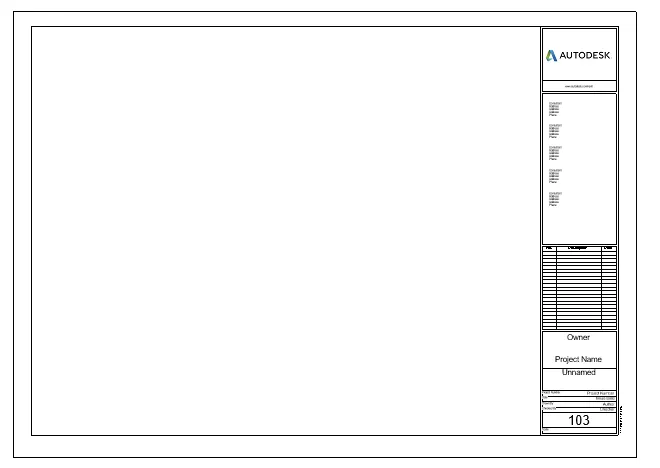

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
AIM:-
To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE:-

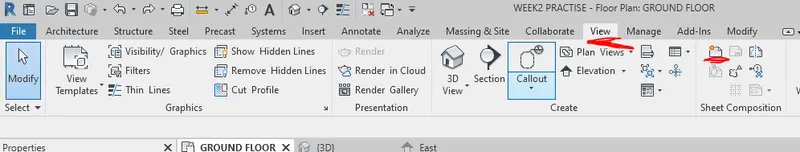

- Go to view tab and select sheet.

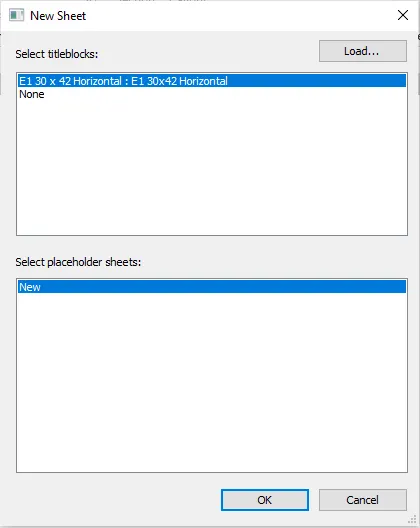

- A new sheet dialog box will appear.
- Press ok.
- Adjust the sheet parameters as per requiremants.
RESULT:-
The desired sheet has been created.

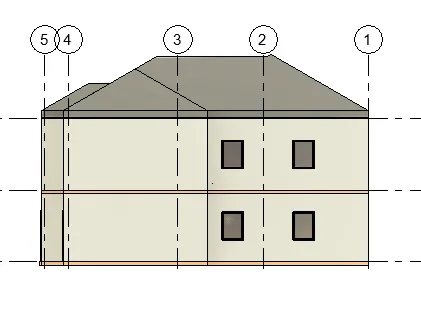

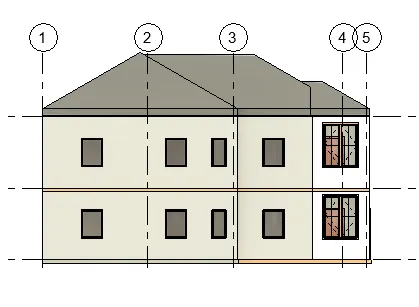

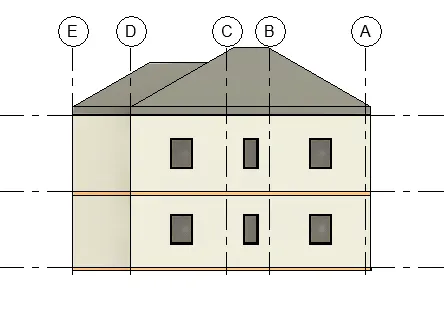

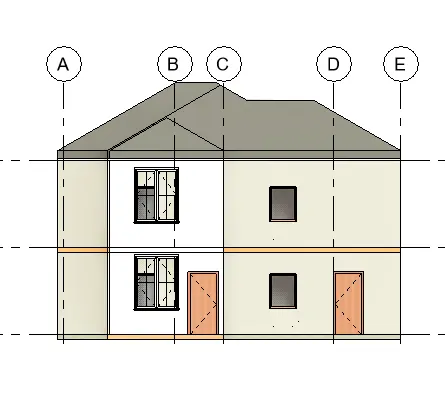

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.
AIM:-
To create the elevation views, looking at the building from East, North, South, and West.
PROCEDURE:-
- Go to project browser.
- Go to elevations.
- Select the direction to see the view.
i)EAST ELEVATION
ii)NORTH ELEVATION
iii)SOUTH ELEVATION
iv)WEST ELEVATION
RESULT:-
The desired elevation view has been created.

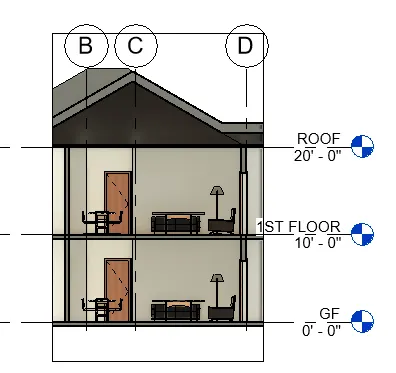

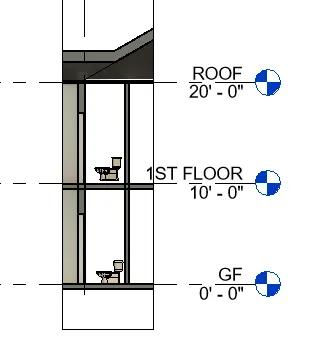

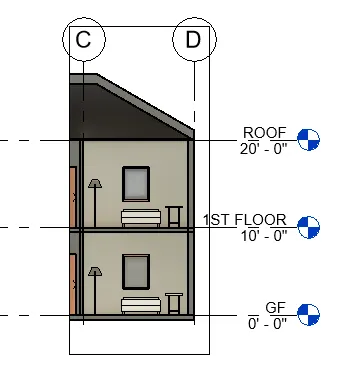

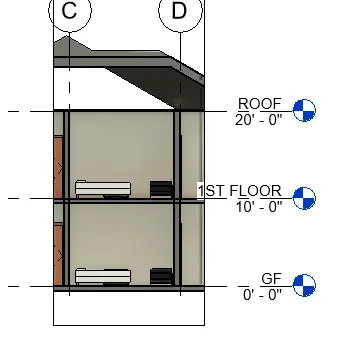

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.
AIM:-
To create section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE:-

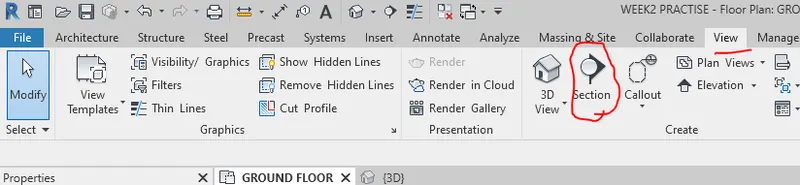

- Go to view tab and select section tool.

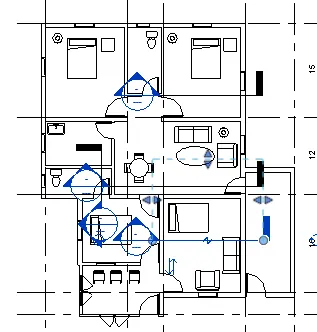

- Cut the section line through each room in the floor plan.
- Go to the project browser to see the different sections.
RESULT:-
Hence, different section views has been created.
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
AIM:-
To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
PROCEDURE:-
- Go to view tab and select sheet.
- A new sheet dialog box will appear.
- Press ok.
- Now go to propert browser and select the view.
- Repeat the procedure for plan,section and elevation views.
RESULT:-
The desired sheet has been created.
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

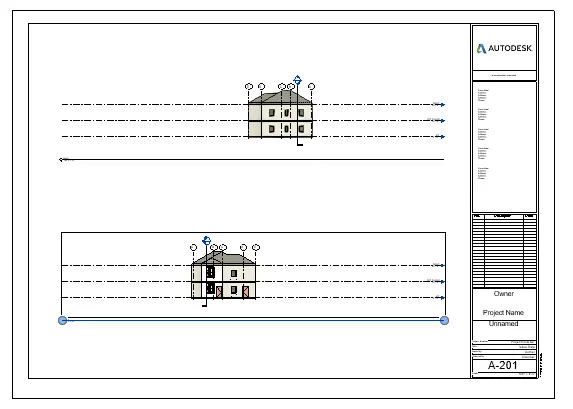

g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file.
AIM:-
To create sheet for different plan.
PROCEDURE:-
- Go to view tab and select sheet.
- A new sheet dialog box will appear.
- Press ok.
- Now go to propert browser and select the plan.

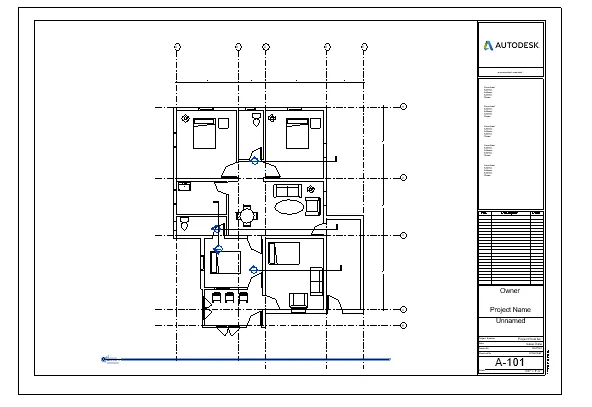

a. A 101- Ground Floor Architecture Plan

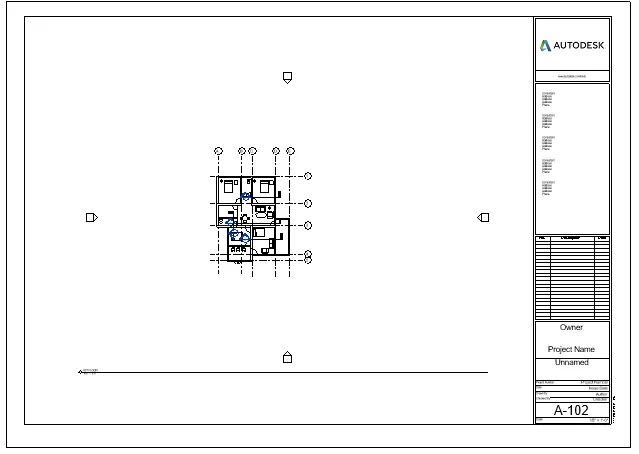

b. A 102- First Floor structural Plan

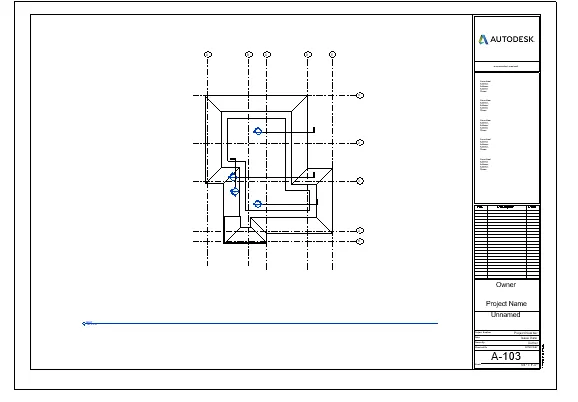

c. A 103- Roof Plan

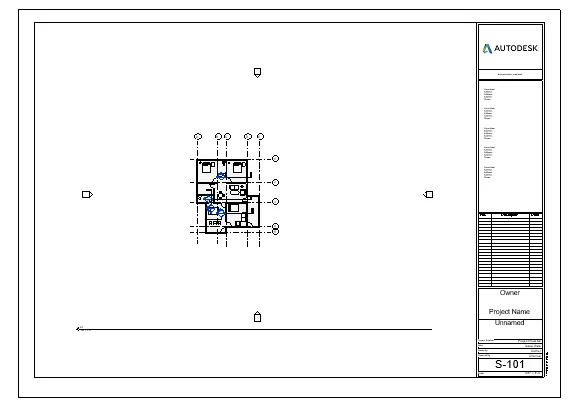

d. S 101- Ground Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations

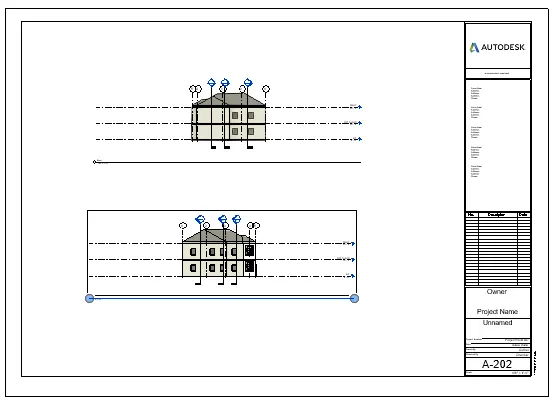

h. A-202- East-West Elevations

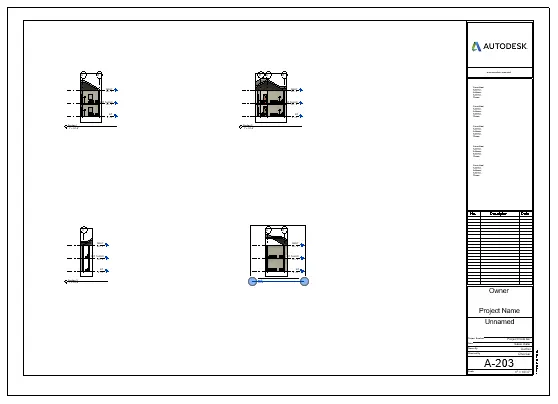

- A-203 SECTIONAL VIEW

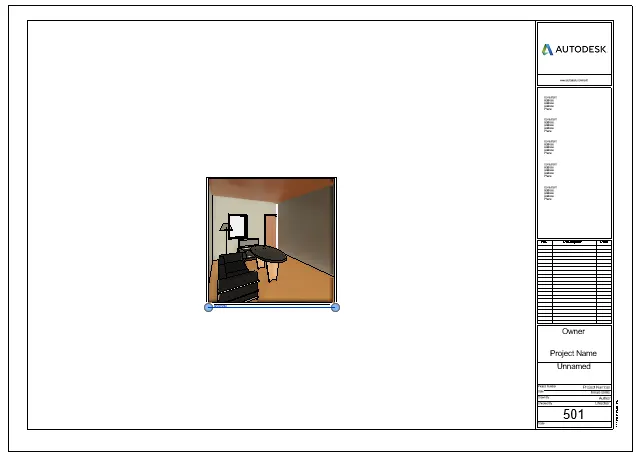

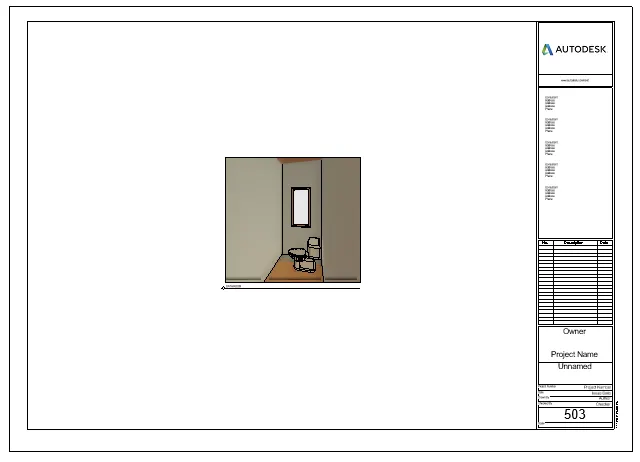

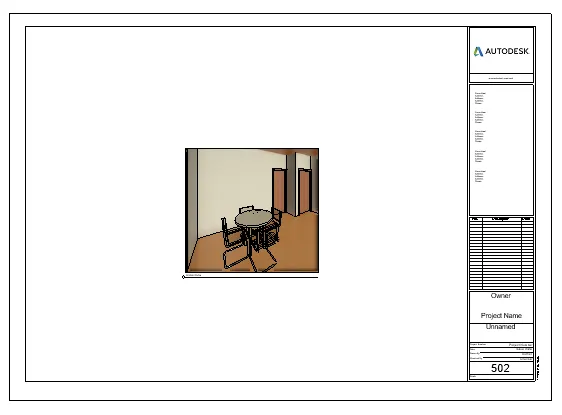

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM:-
To create camera specific view.
procedure:-
- Go to view tab and select sheet.
- A new sheet dialog box will appear.
- Press ok.
- Now go to propert browser and select the camera view.
i)Bed room
ii)Dining
iii)Bathroom
