3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
A)
1.
Aim:
To create the ceiling above the walls at the first floor level.
Procedure:
• Initially open the week 3 assignment from the revit software.

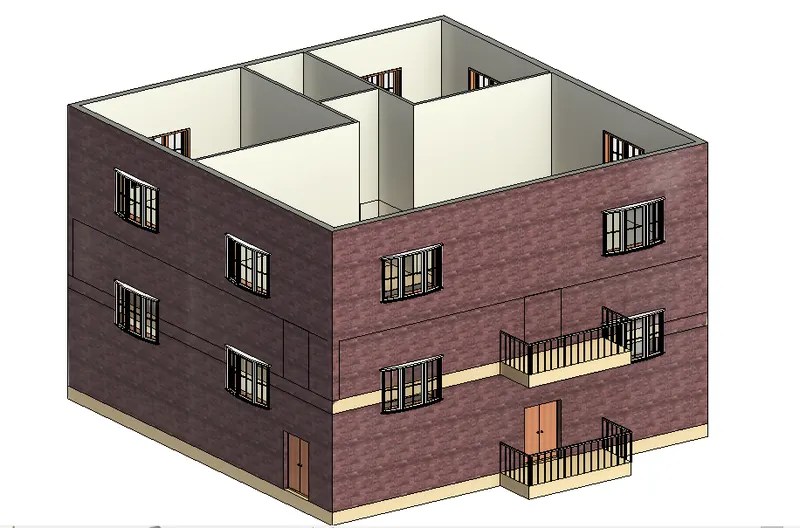

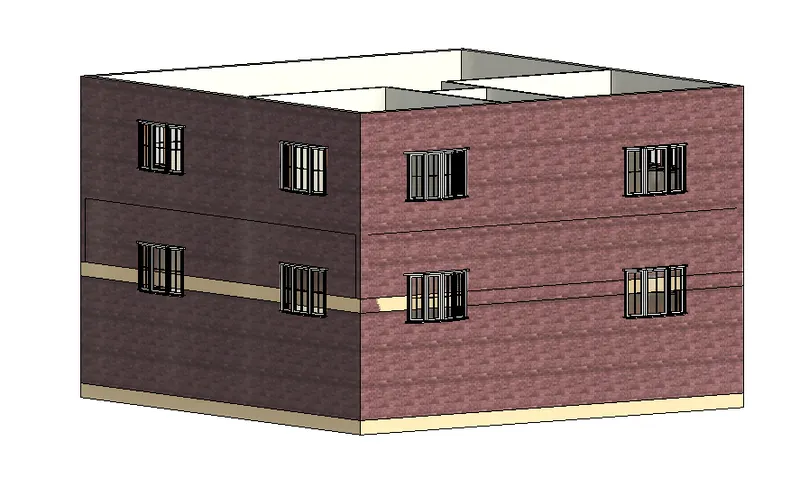

Then, first let us create a verandah in the ground floor as well as first floor level, so that roof can be created for the entire structure.
For this initially go to plan view.

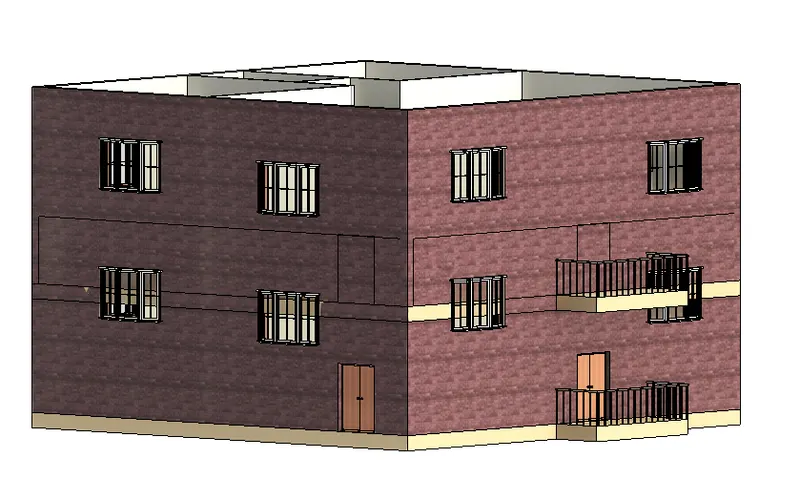

copy this floor to the level 2

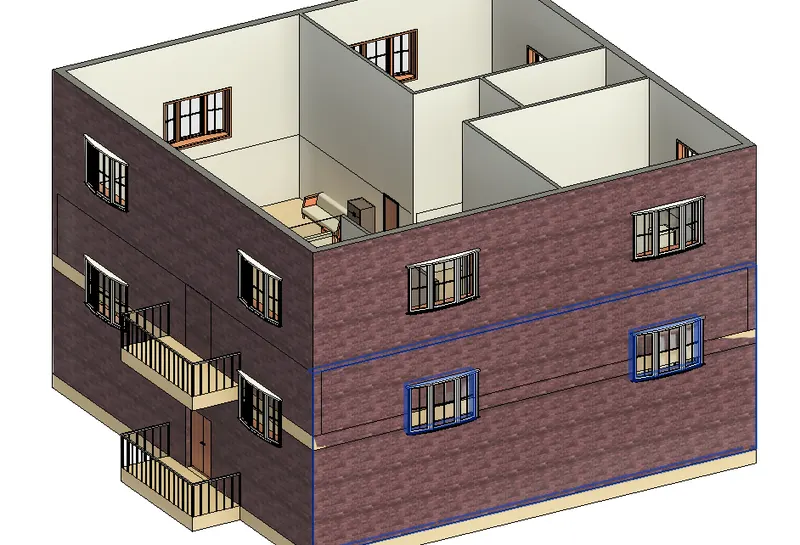

hence the celing is created.
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
A)
Aim:
to model a roof above the ceiling by selecting the footprints of the ceiling and to adjust the roof slope to 10 degrees using adjustment toolbar
Procedure:
• Inorder to create the roof, initially go to architecture tab of the ribbon.
From the roof dropdown choose roof by footprint.
• Then choose the roof option

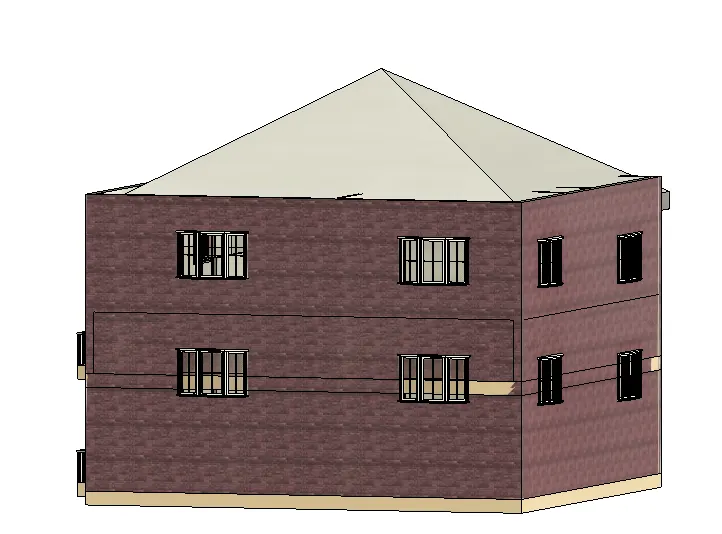

Then you cad adjust the slop to 10 degrees
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
A)
Aim:
To create plan views for ground floor level and first-floor level including all the walls, floors, and components and then separate them to
a) Architecture plan
b) Structural plans.
Procedure:
a) To create architecture plan:

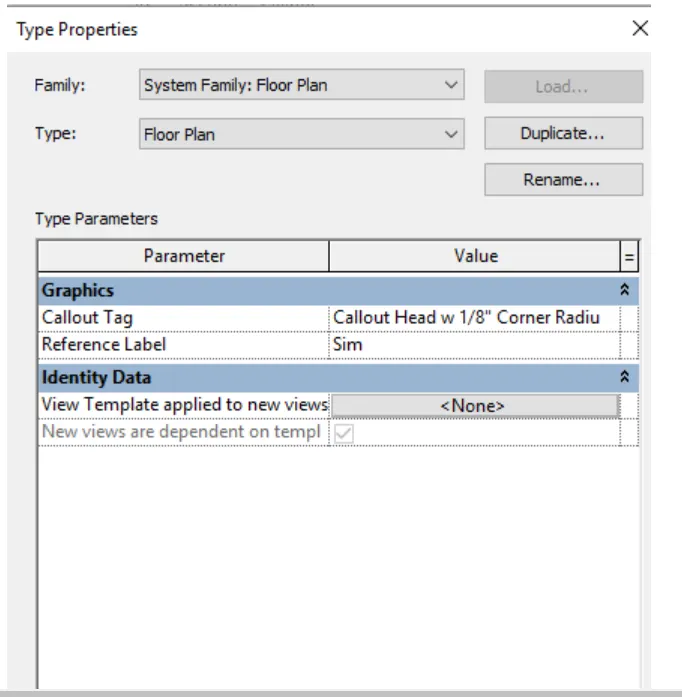

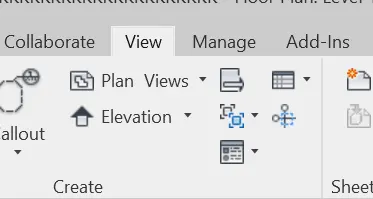

• Initially go to view tab of the ribbon then select plan views.

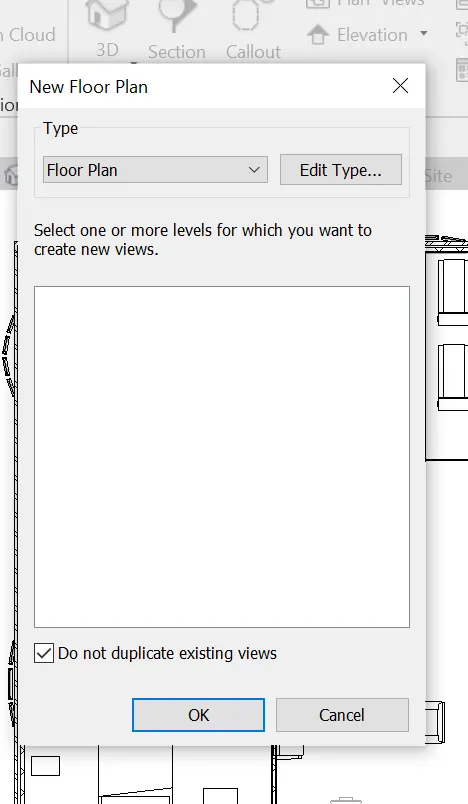

In that select Floor plan

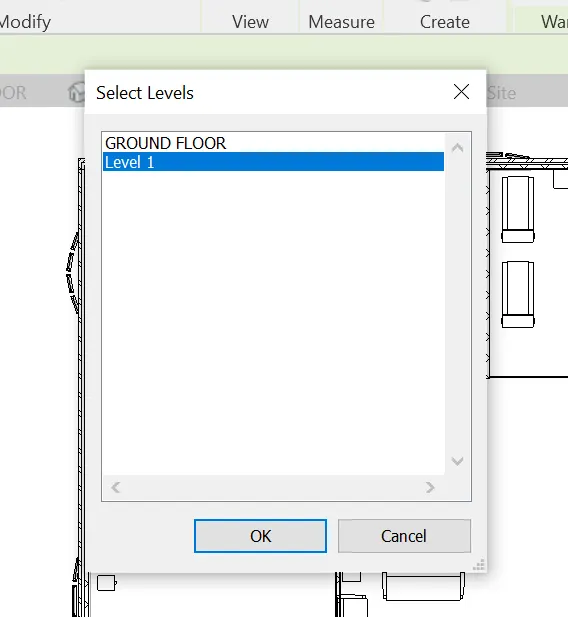

cleck on level and press ok.
In that select architexure plan.

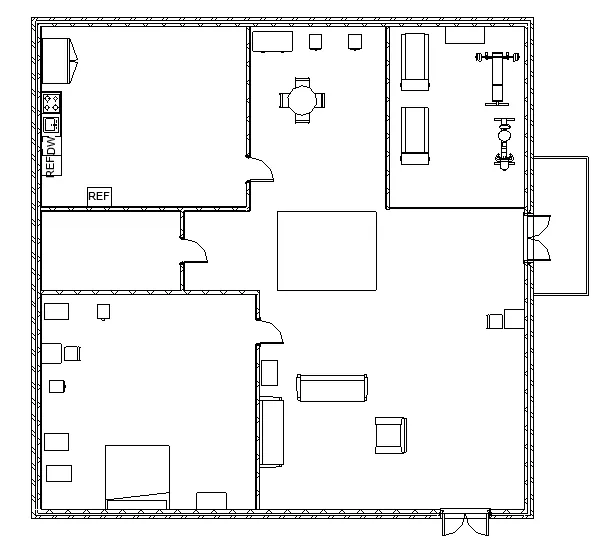

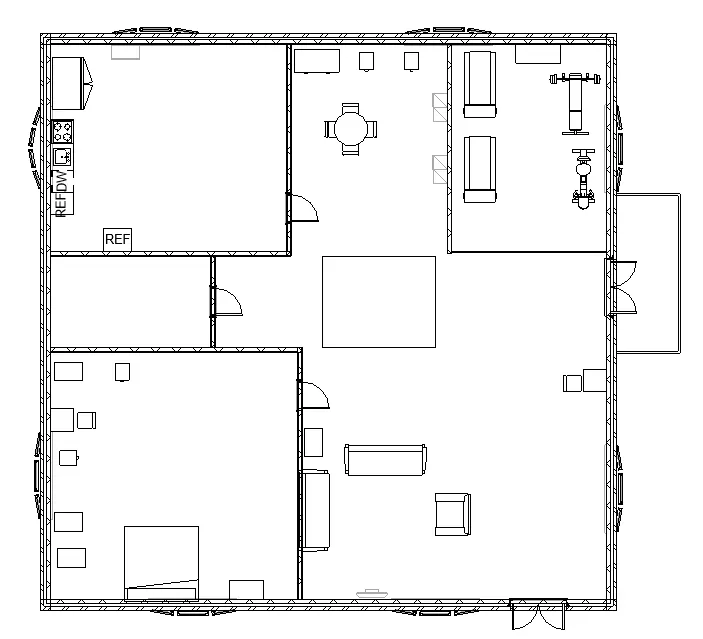

Then the ground floor is obtained as follows

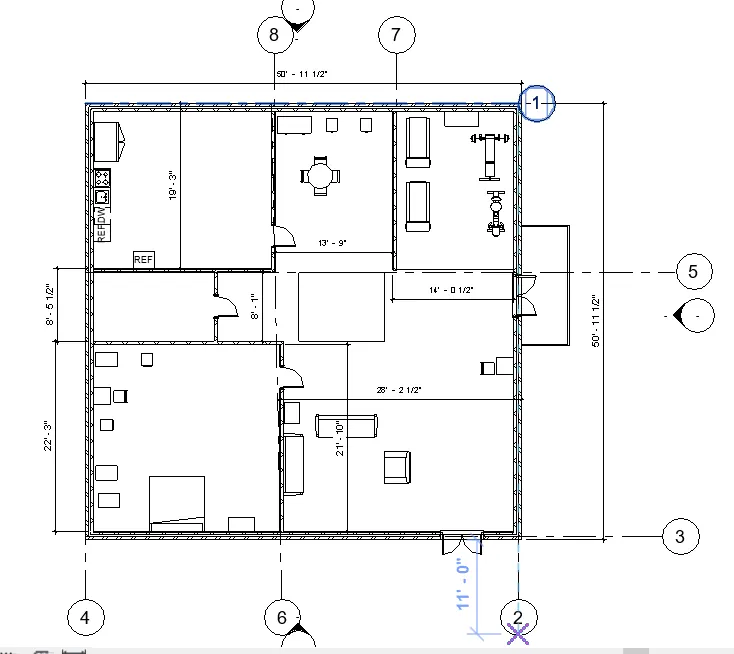

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
A)
Aim:
To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids.
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids.
Procedure:
a)
• Initially select the floor plan for ground floor.

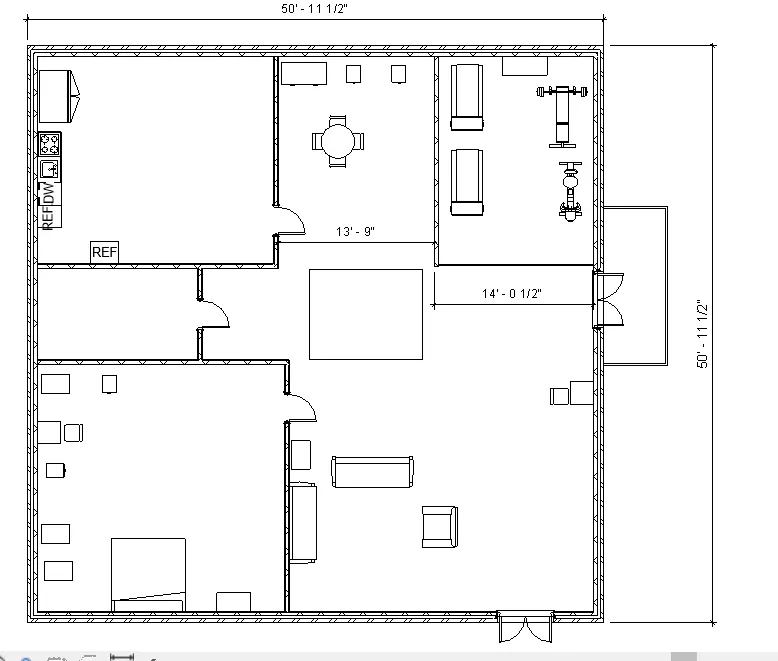

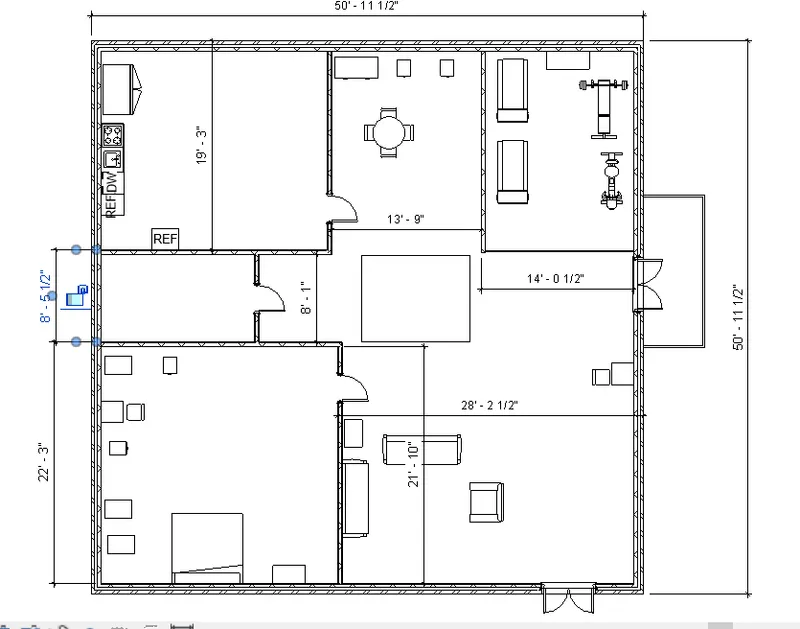

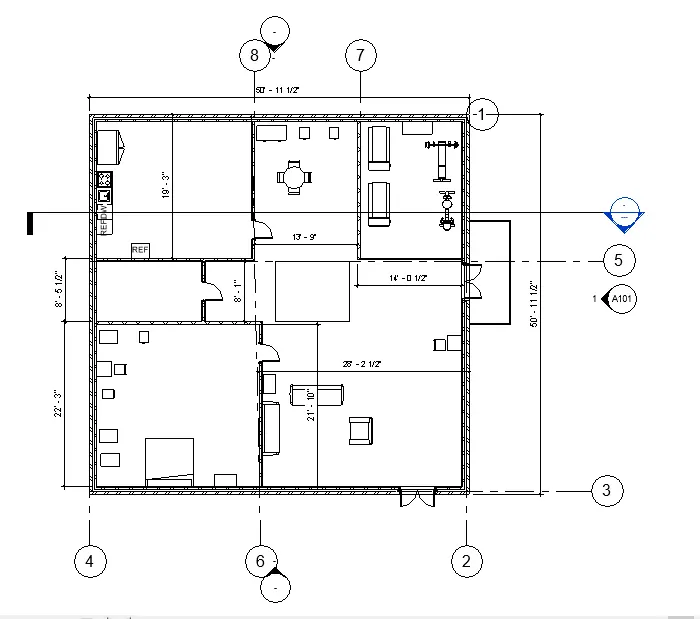

. Go to annotate tab and choose linear dimension and provide linear dimensions in the plan. o For ground floor:
B)
Now we have to create the structural plan dimensions acoording to grid lines.
For this, go to structural plan.
Then go to architectural tab, select grids and draw grids along the walls.
• Ground floor:
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
A)
Aim:
To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
Procedure:

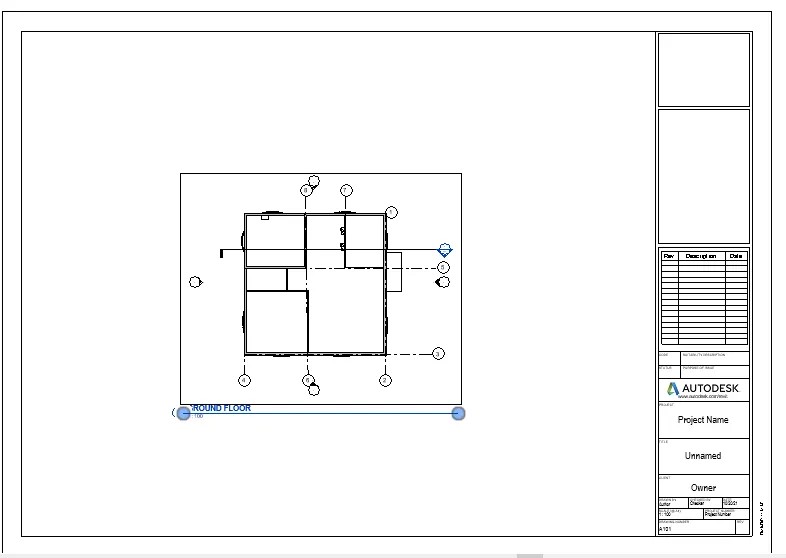

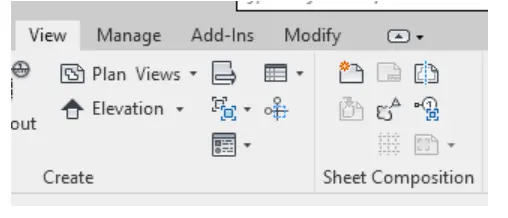

• Initially go to view tab of the panel.

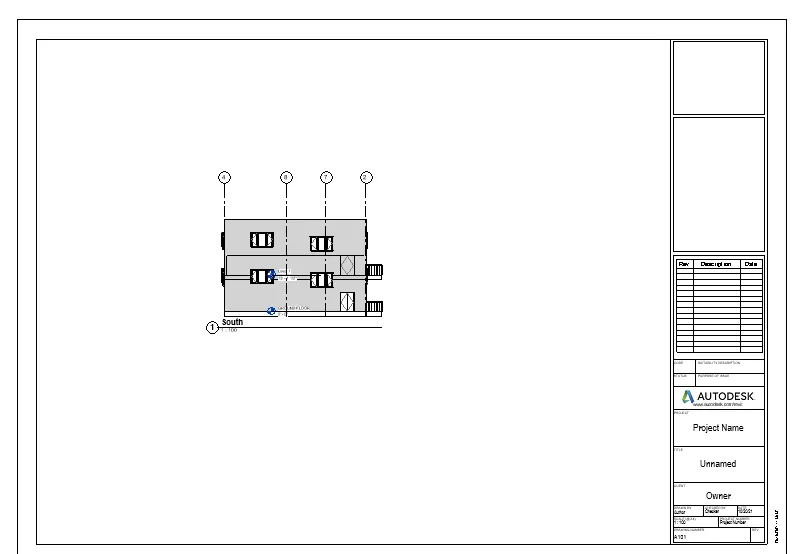

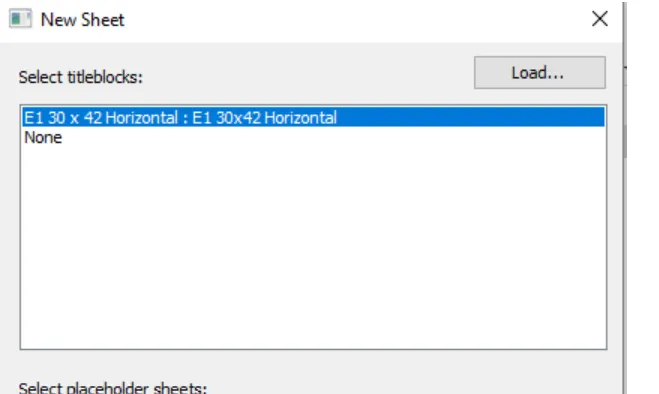

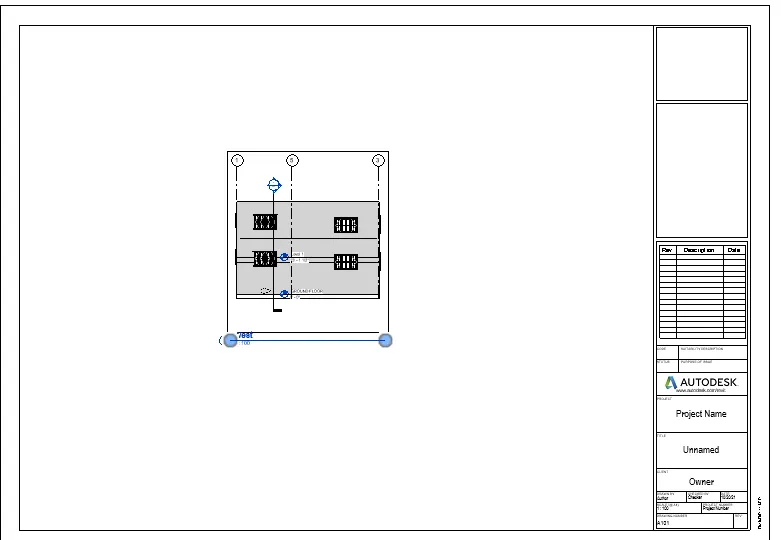

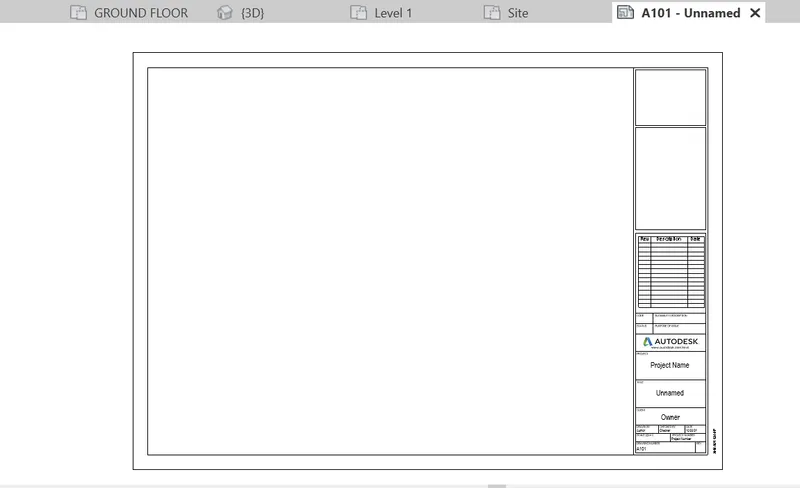

. Choose sheet option in the sheet composition panel of the view tab.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
A)
Aim:
To create the elevation views, looking at your building from East, North, South, and West.
Procedure:
• Initially go to view tab of the ribbon.
. Choose elevation view.
• Then create the elevation view --> north, south, east and west.

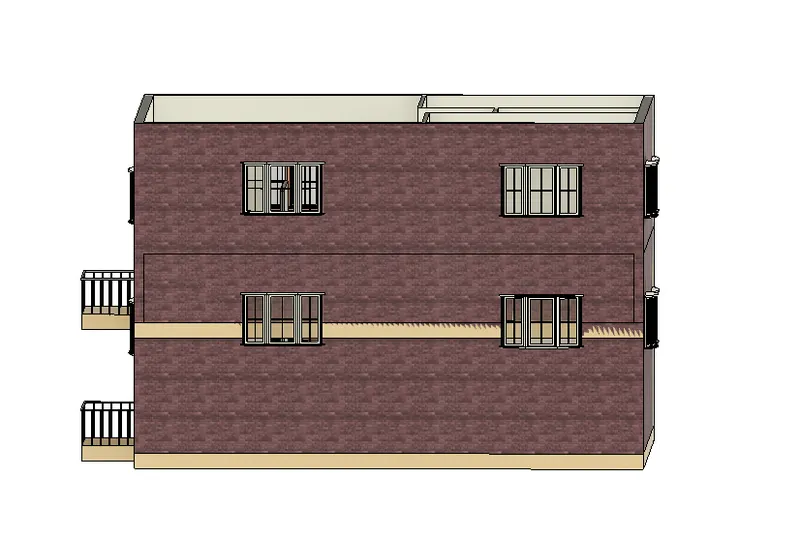

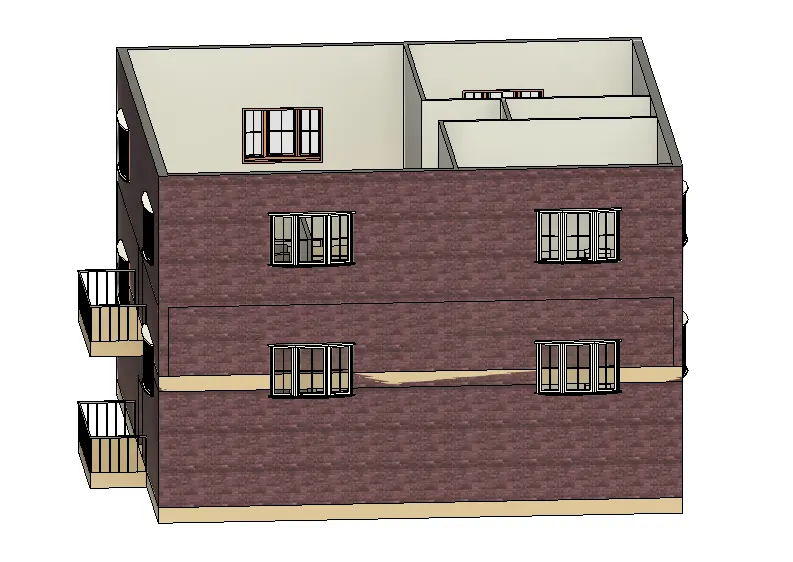

• The elevation views thus obtained are:

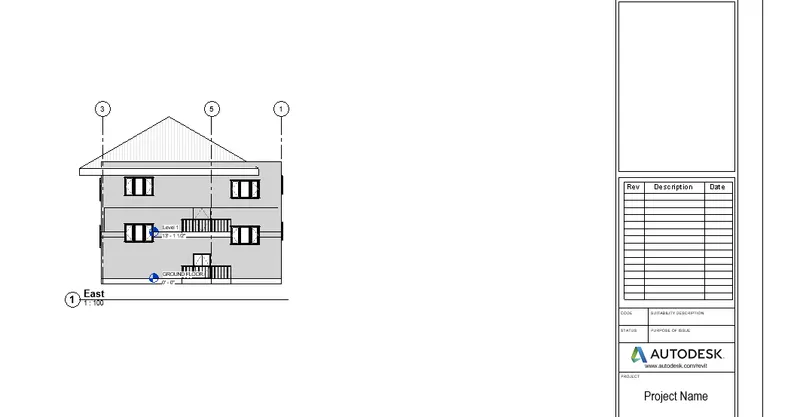

• East:
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
A)
Aim:
To produce section cut through each room.
Procedure:
. Go to view tab of the ribbon.
• Select the section view and then section the required room.

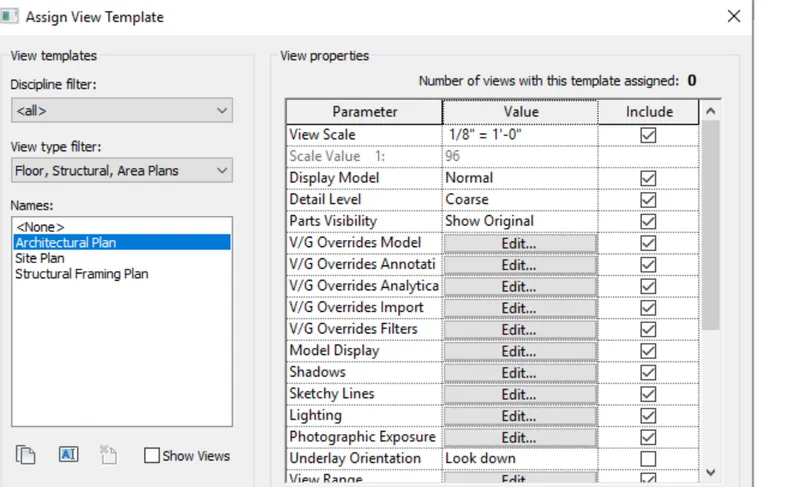

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
A)
Aim:
To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using properties browser.
Procedure:
. Go to view tab of the ribbon.
• Choose property browser.

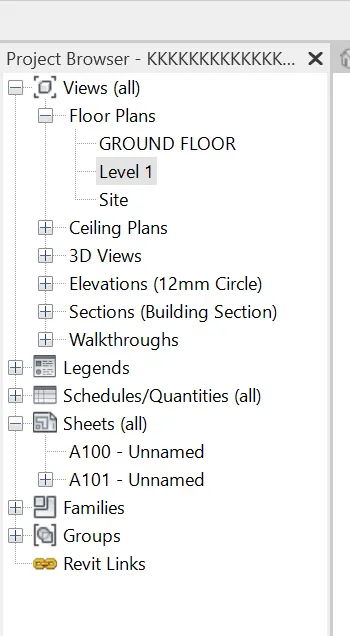

• The following are the different views created.

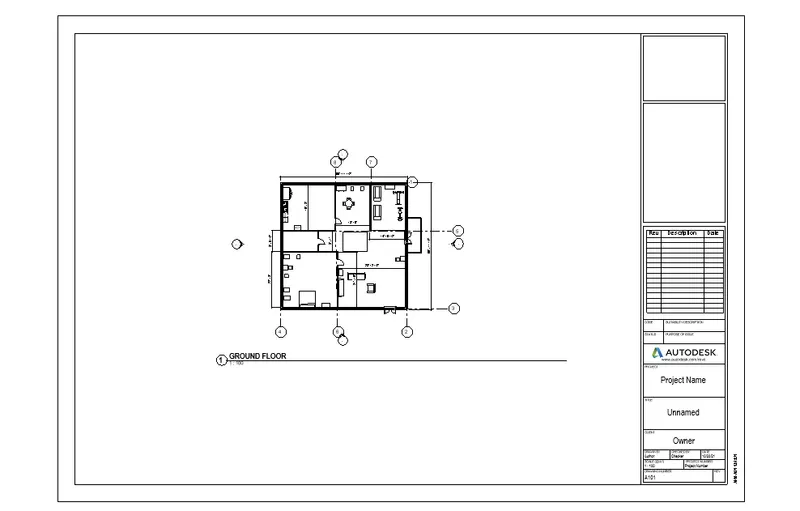

9) Using the sheet template produced create multiple sheets as follows

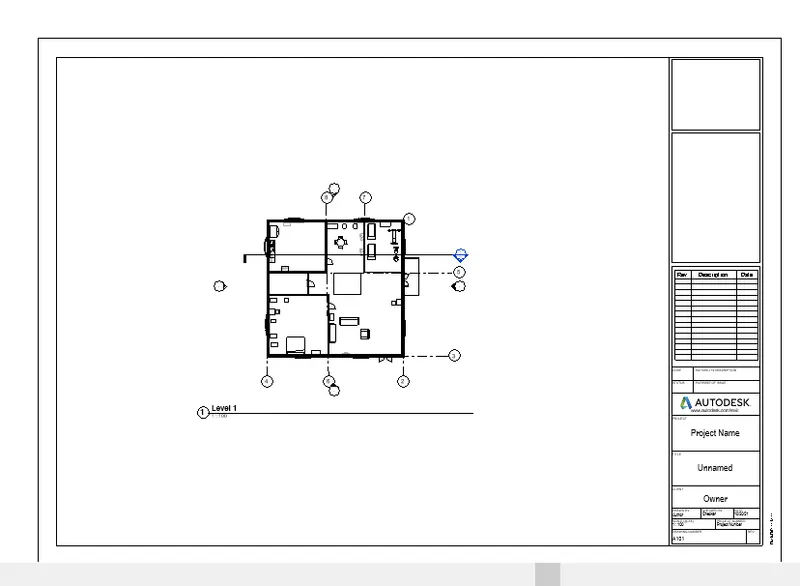

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
A)

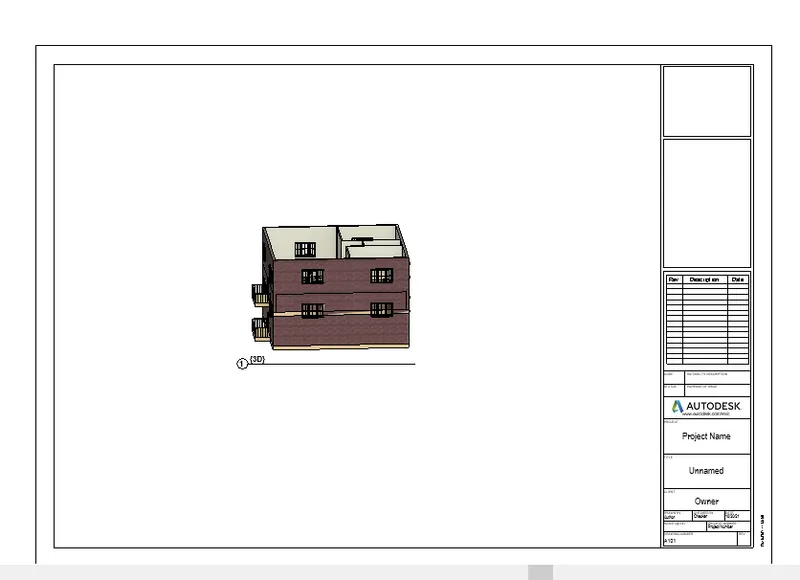

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
A)
Aim:
To create a camera-specific view or a 3D view in each room.
Procedure:
• Inorder to create a camera specific view, first go to view tab.
Then choose 3D drop down and in that choose camera.
Now place the camera in the plan view at suitable location to obtain the camera view.

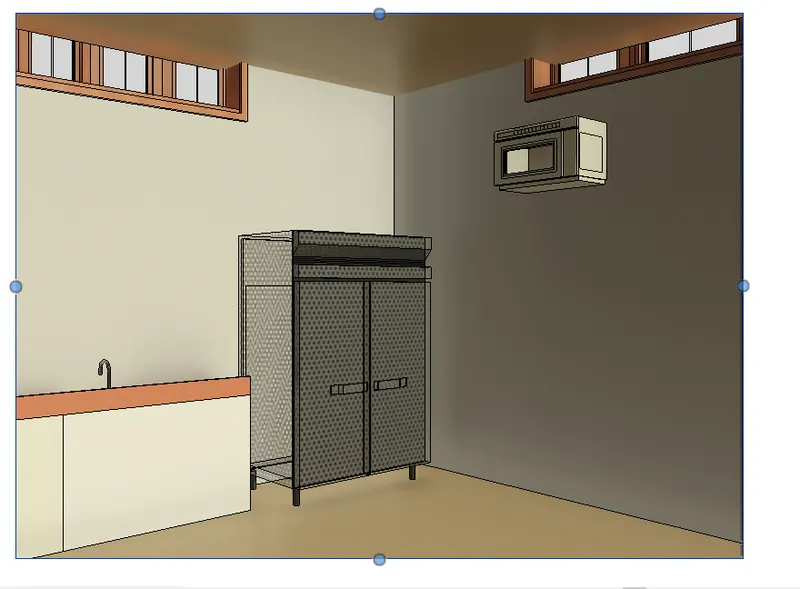

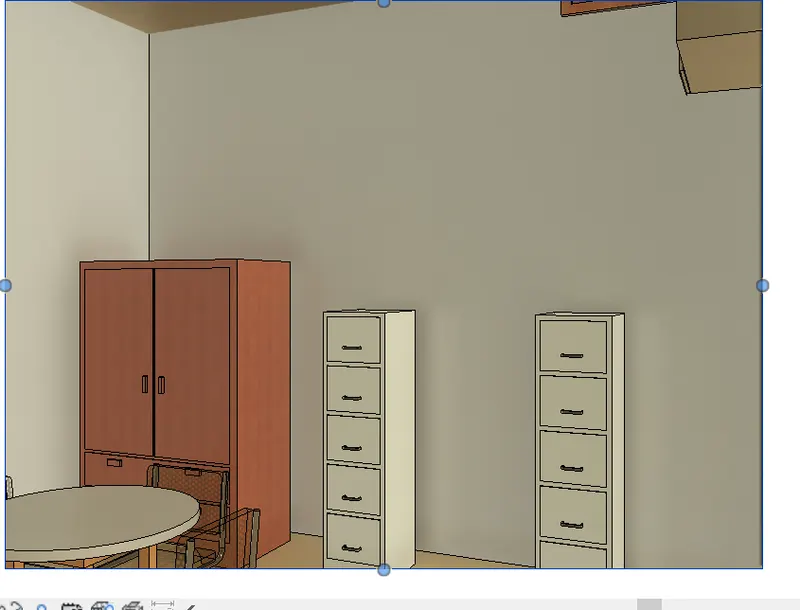

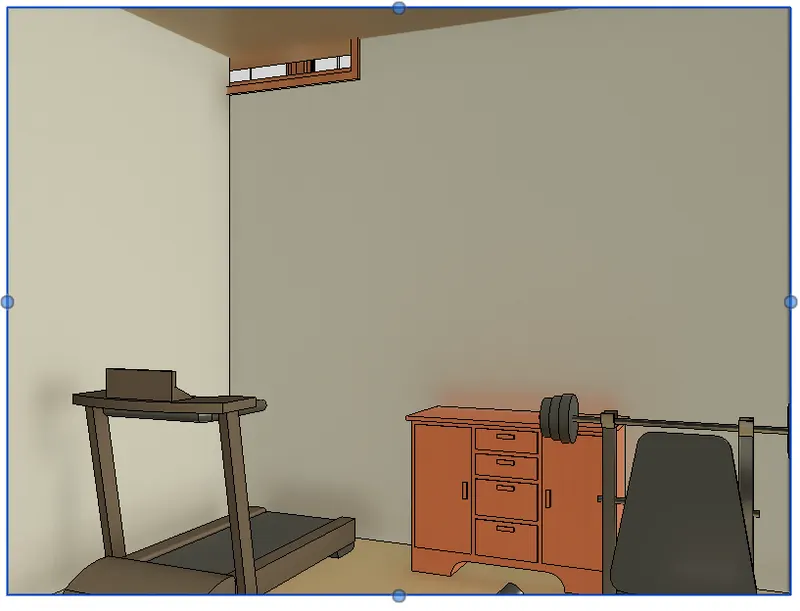

• Different camera views are then produced in a template.
• Ground floor(GF) views are as given below:
