3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
CHALLENGE WEEK 4
1. AIM: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
PROCEDURE:

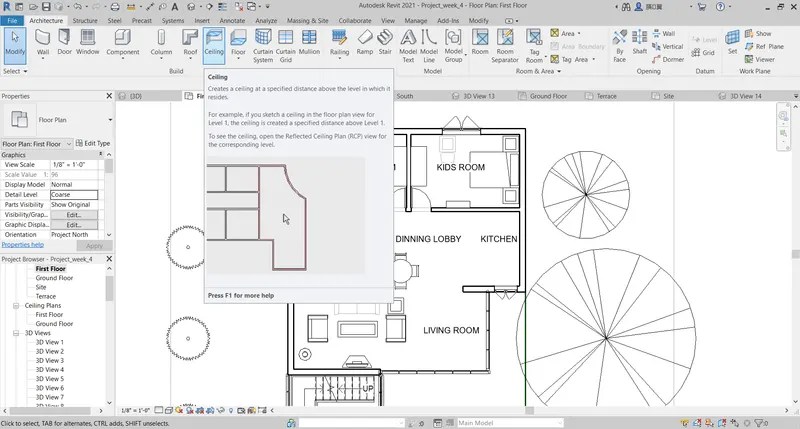

1. Under the architecture tab click on ceiling option.

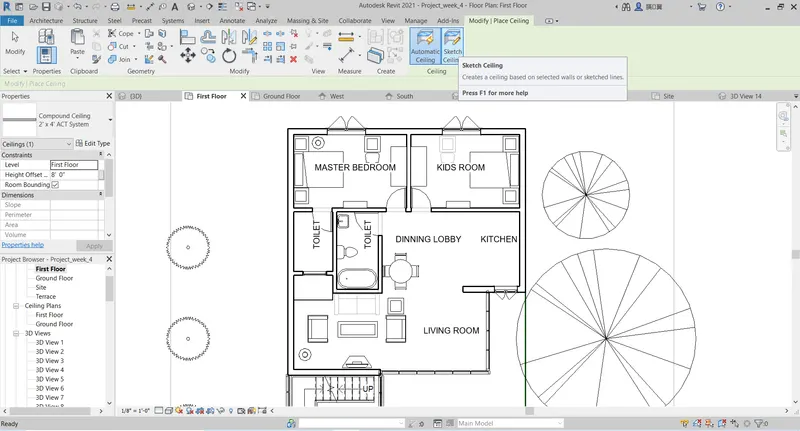

2. Now select sketch ceiling option in the modify tab which opens just after the previous step.

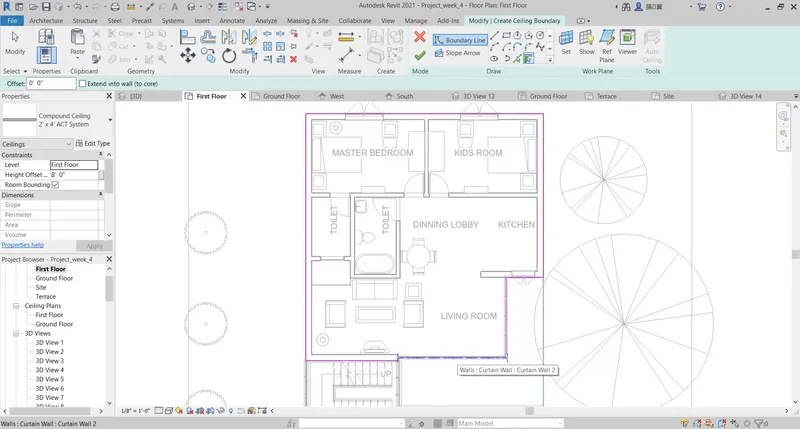

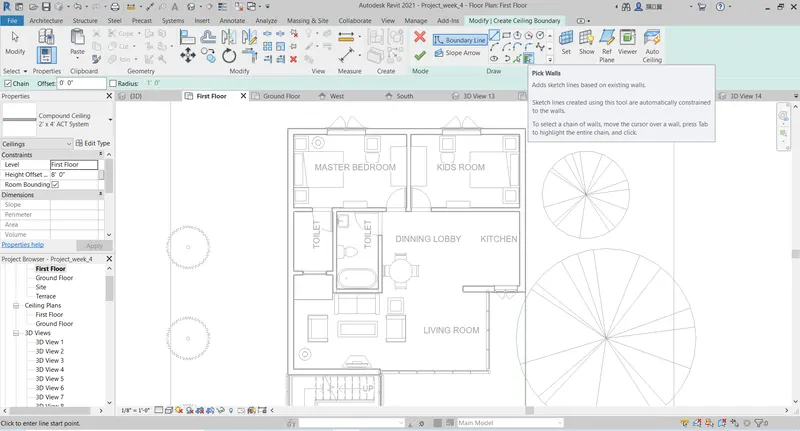

3. Now click on Pick Walls method of making the ceiling.
4. Now select the walls enclosing space of which needs to have a ceiling. Now click on the green tick to finalize the ceiling footprint.
5. The 3D shows the ceiling made above.
2. Aim: Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
PROCEDURE :

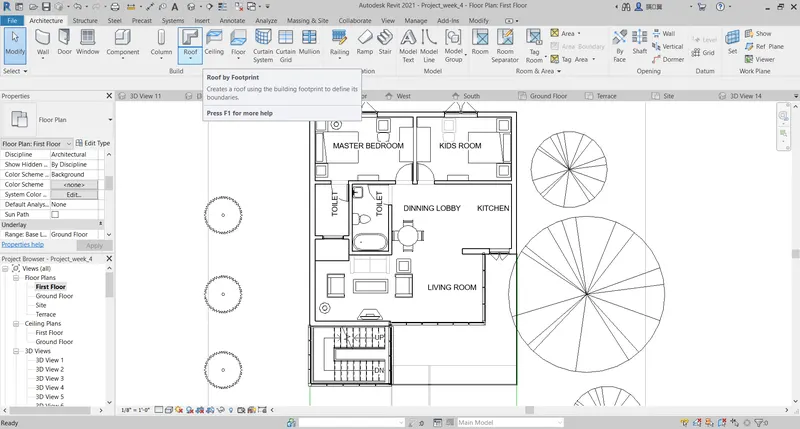

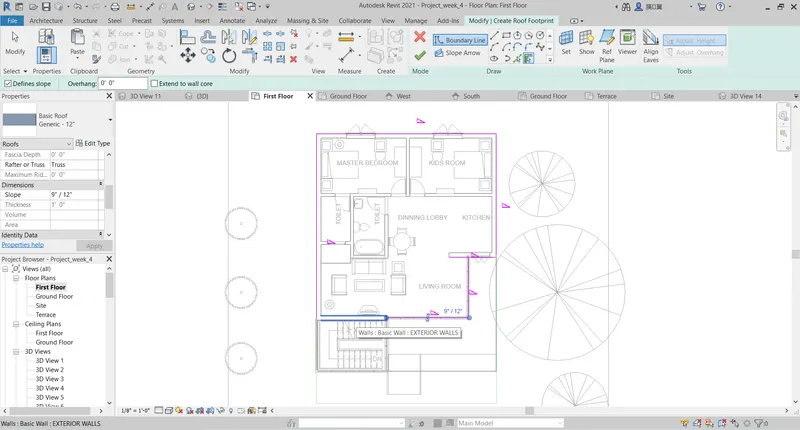

1. Under the architecture tab click on Roof option and select Roof by Footprint.

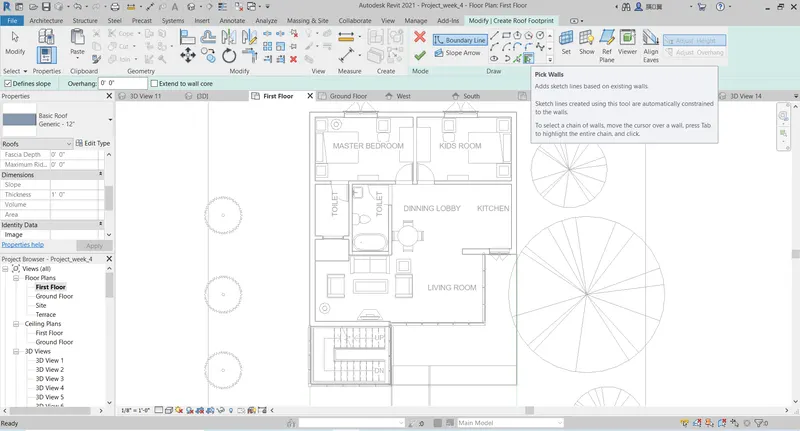

2. Select the Pick Walls method to draw the footprint of the roof to be made.

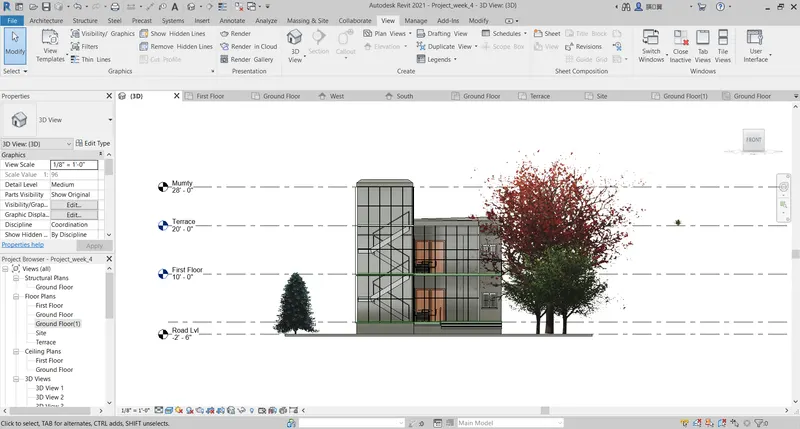

3. Now click on the green tick and the roof shall be made as per the footprint and the slope and height can be adjusted.
3. AIM: Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
PROCEDURE:

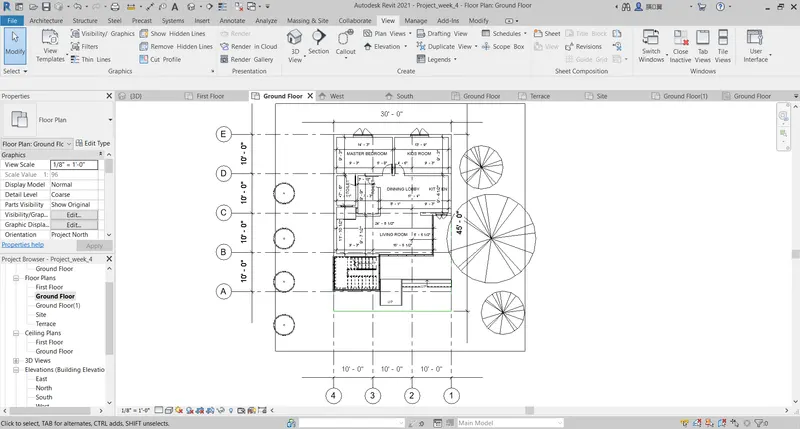

a. Architecture Plans

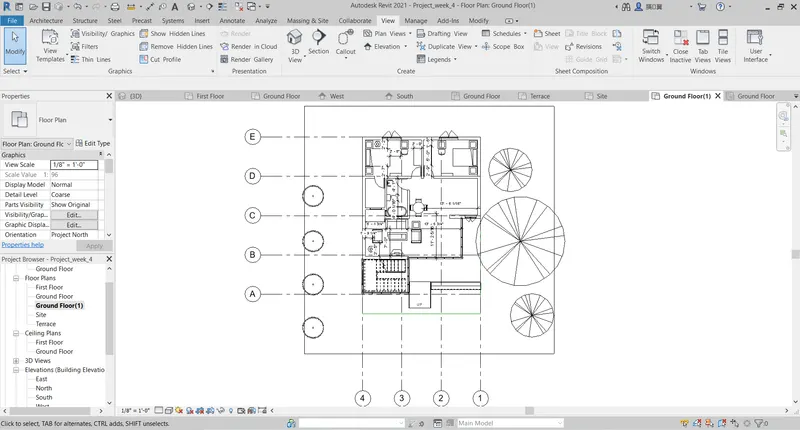

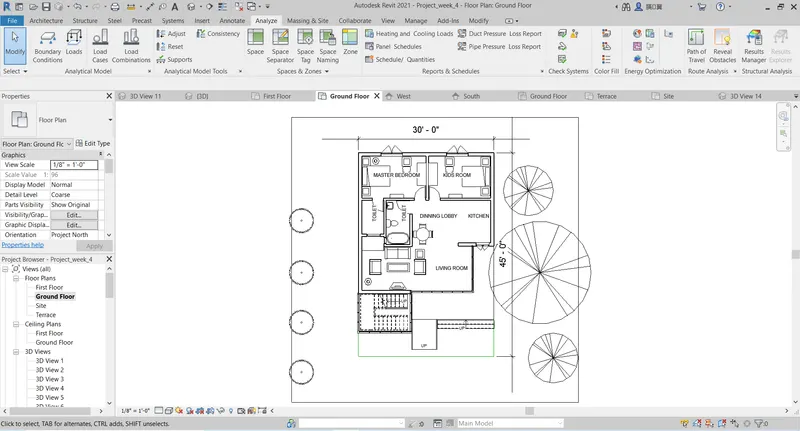

Ground Floor

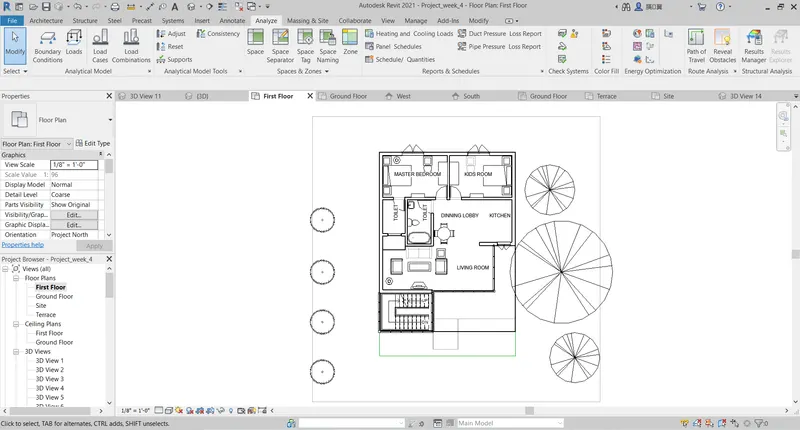

First Floor

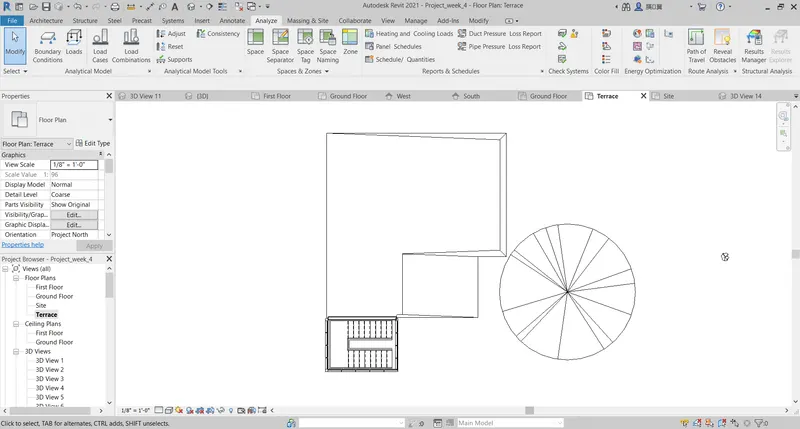

Roof

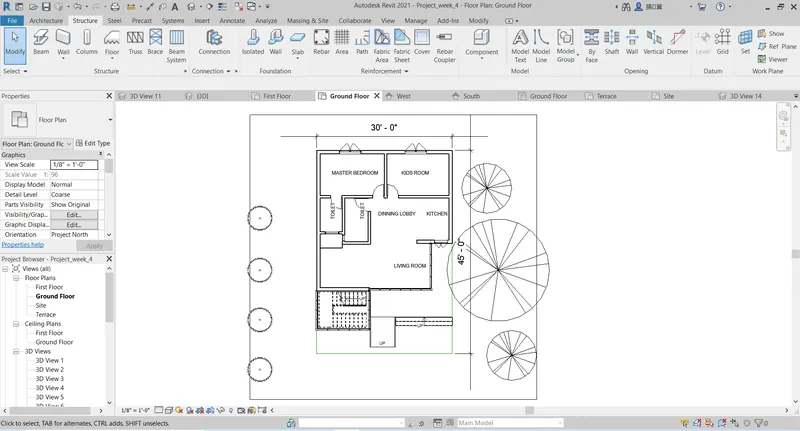

b. Structural Plans
Ground Floor
First Floor
4. AIM: Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
PROCEDURE:
a. Structural Plans
b. Architectural Plans
5. AIM: Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Procedure :

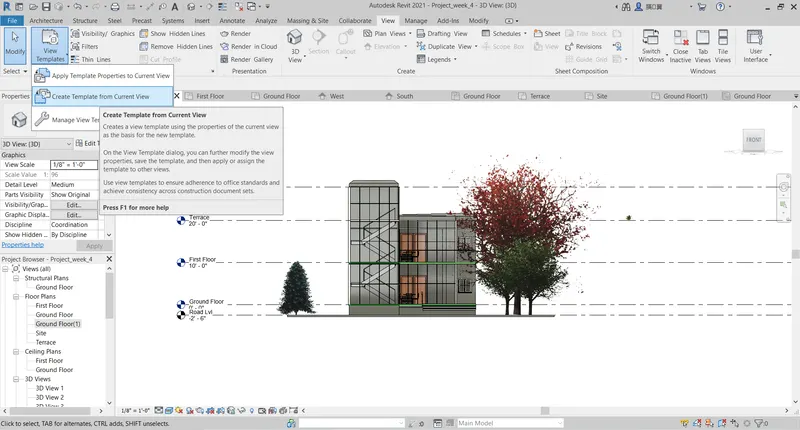

1. Under the View Tab click on View Templates and create a template from the current view.

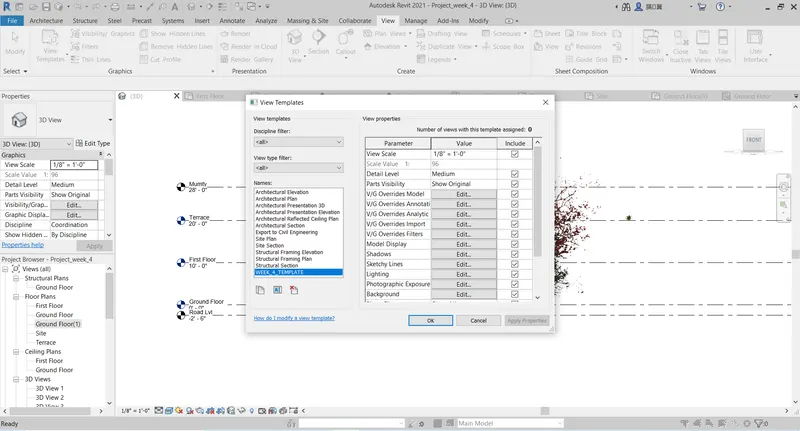

2. View Template Dialogue box.
6. AIM: Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Procedure:

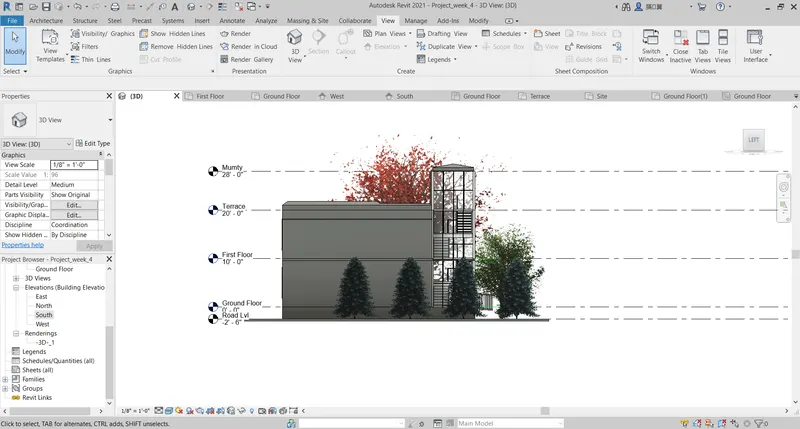

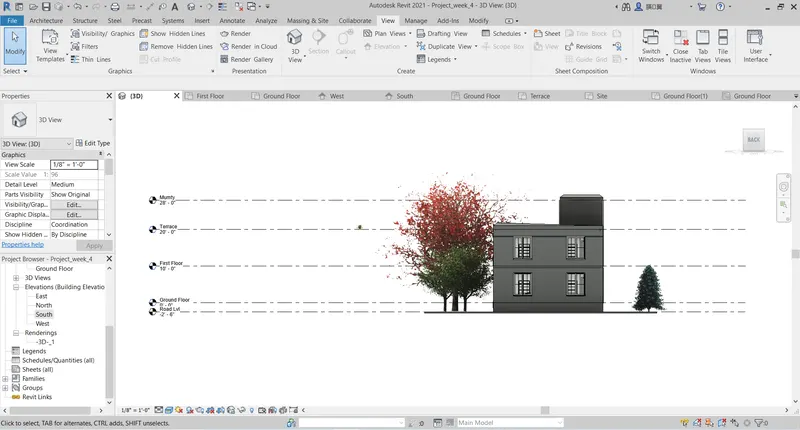

1. East Elevation

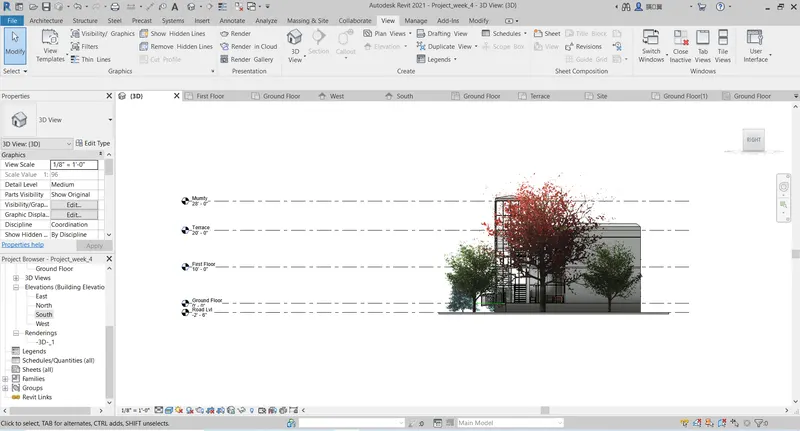

2. West Elevation
3. North Elevation
4. South Elevation
7. AIM: Produce section cut through each room either cutting across longitudinally or in a transverse direction
Procedure:

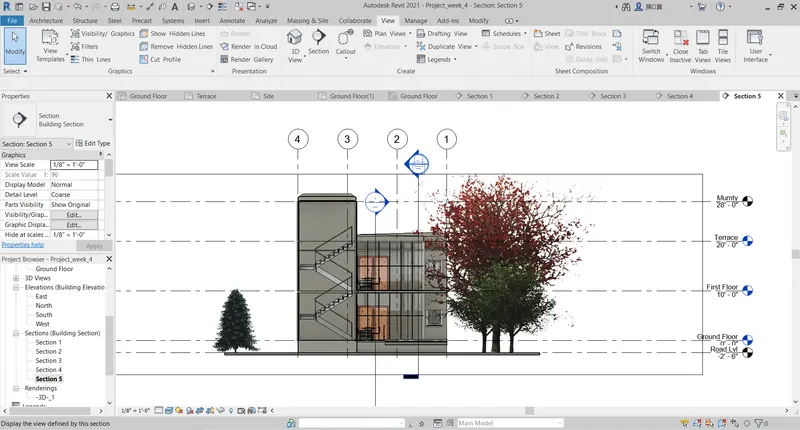

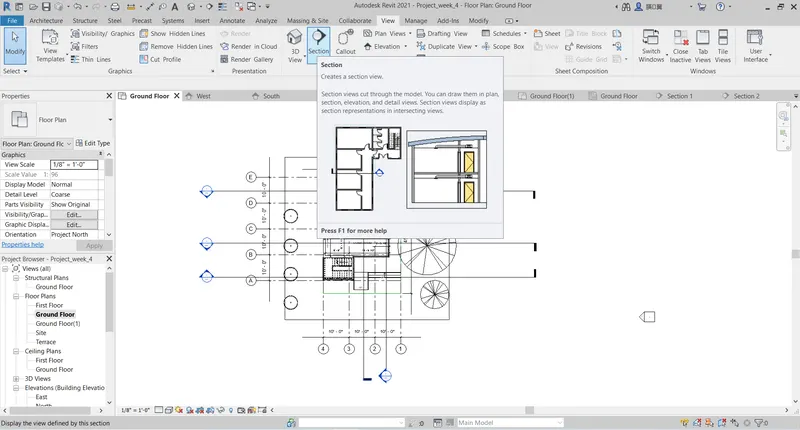

1. Under the View Tab click on the Section icon to create sections in the model.

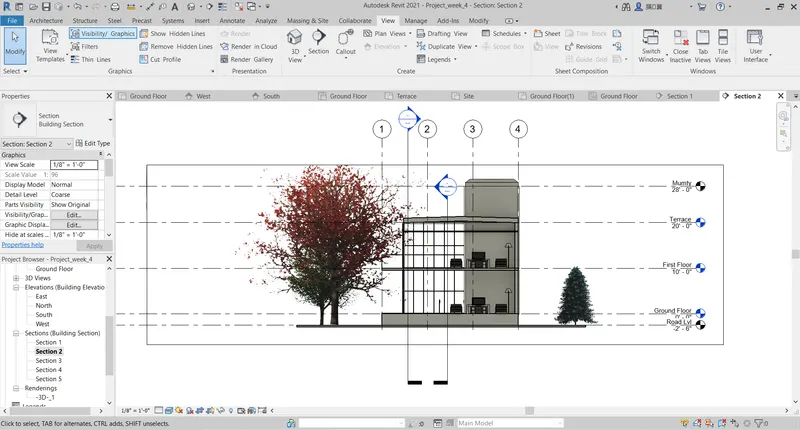

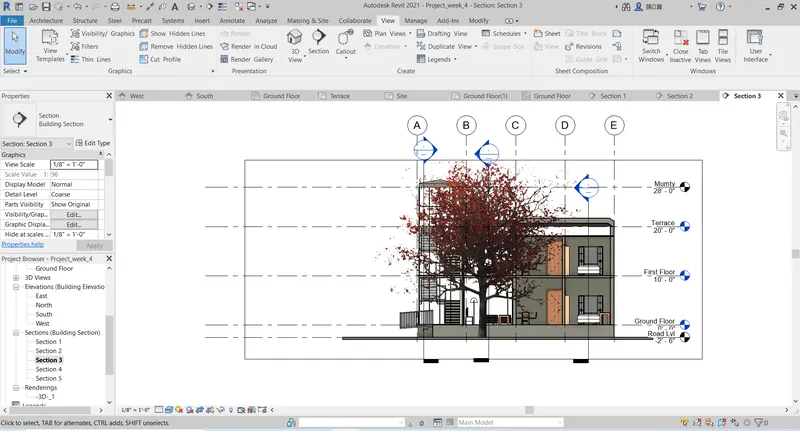

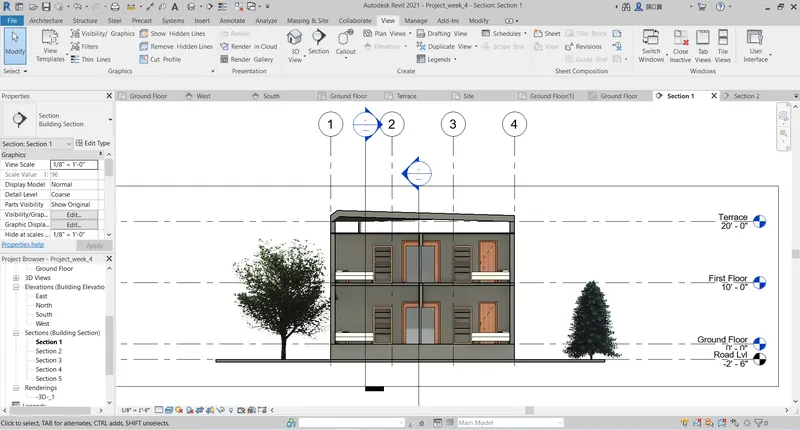

2. Sections through the building model below as follows:
8. AIM: Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
9. AIM: Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file

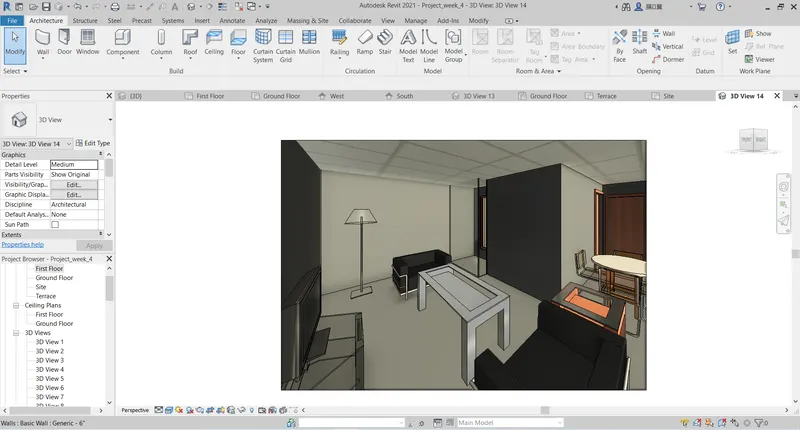

10. AIM: Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Procedure:
I HAVE UPLOADED THE PDFS OF THE ANSWER TO THE ABOVE QUESTIONS. PLEASE REFER THE FILES UPLOADED.
