3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1)

AIM: proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

INTRODUCTION: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

PROCEDURE:

• open the project, choose the first-floor level,
• choose the ceiling, sketch the choose the line option,
• enter the edit option choose the materials.

RESULT: proceeded from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

2)

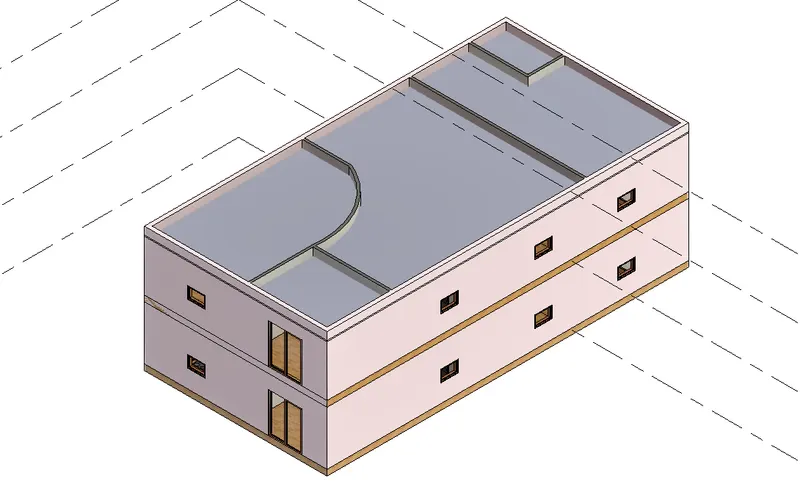

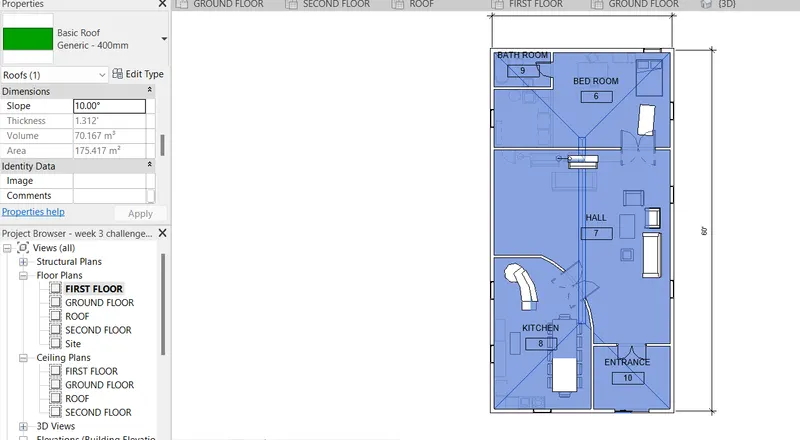

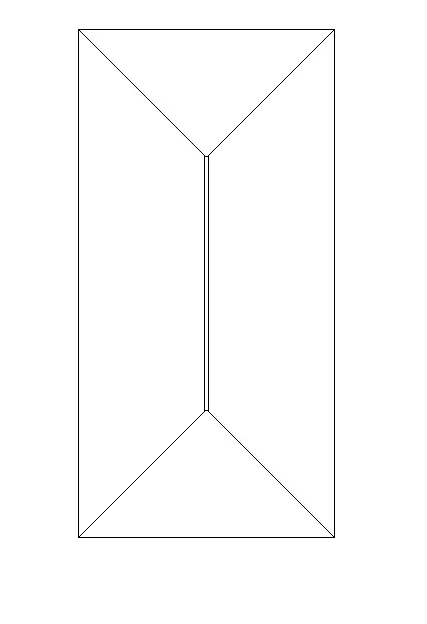

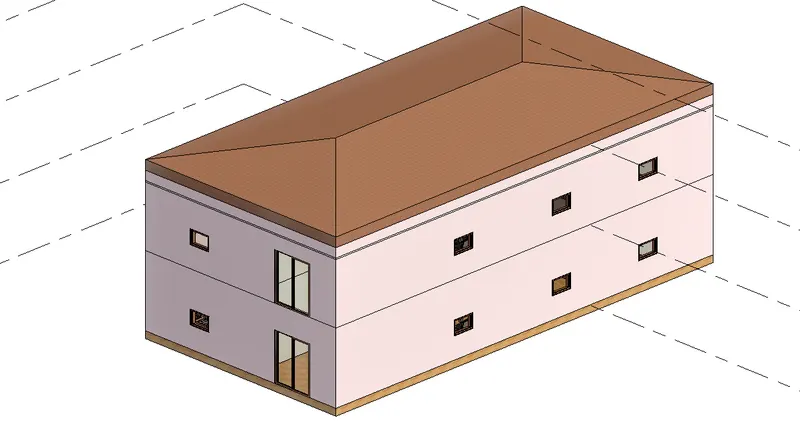

AIM: Model a roof above the ceiling by selecting the footprints of the ceiling.

INTRODUCTION: Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

PROCEDURE:

• Click the roof from the menu bar,
• choose the roof by footprint, and choose the slope as 10 degrees.
• enter the edit options choose the material as wood click ok.

RESULT: Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

3)

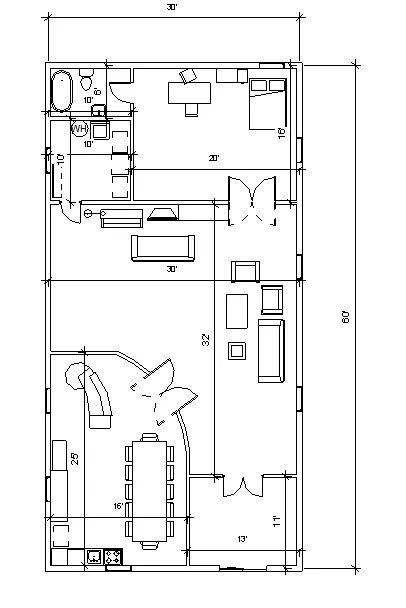

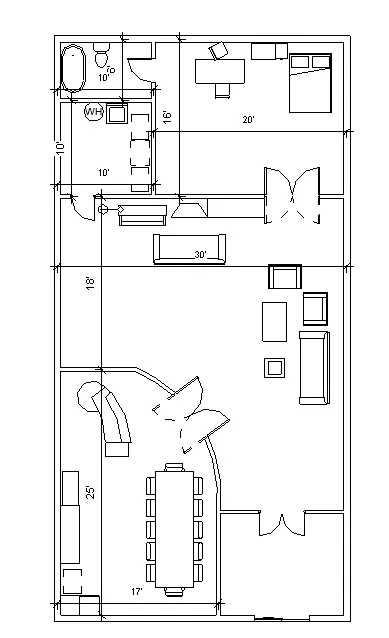

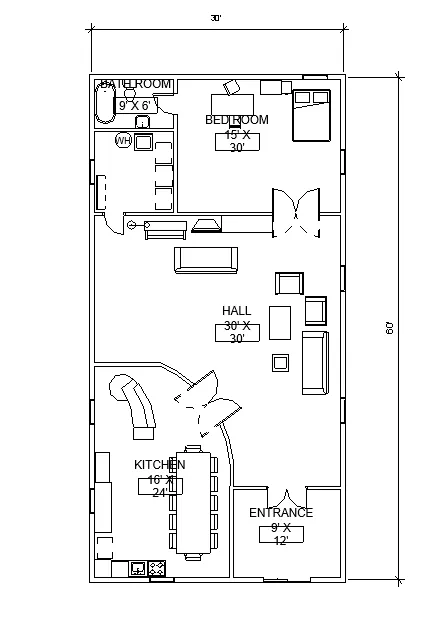

AIM: create plan views for the ground-floor level and first-floor level including all the walls, floors, and components.

INTRODUCTION: Using the file saved from weeks 2 to 4, create plan views for the ground-floor level and first-floor level including all the walls, floors, and components. Separate them into architecture and structural plans.

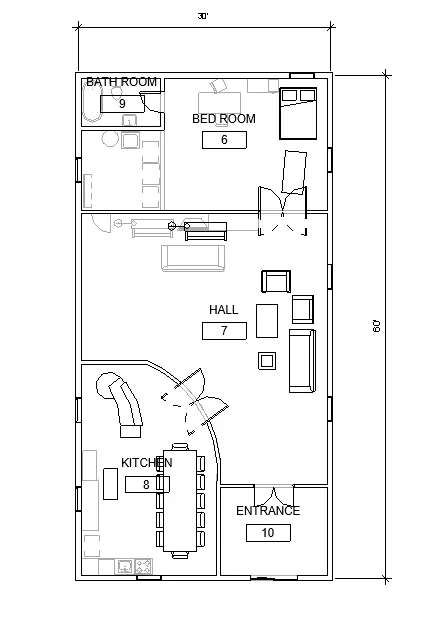

a. Architecture plan must have walls, floors, and all the components placed within the building

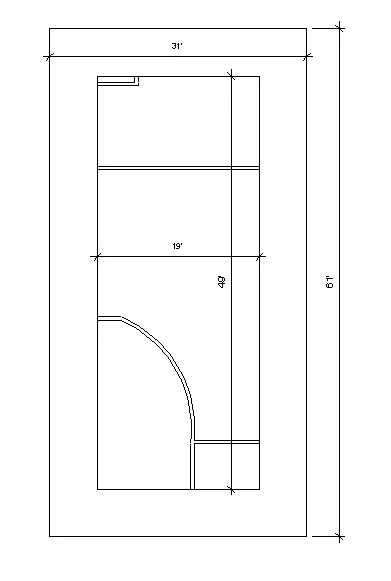

b. The structure plan must have details of only walls, floors, and columns

PROCEDURE:

• Go to view the panel choose the option of the plan,
• select the architectural plans to select it, and choose the ground floor and the first floor.
• select the structural plans to select the both ground floor, first floor, and roof view.

RESULT: architectural and structural plans are created.

4)

AIM: Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

INTRODUCTION: Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings in relation to grids. Overall dimensions are sufficient for architectural plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

PROCEDURE:

• Open the architectural plans choose the annotate tools,choose to align option measure the walls and floors
• same as architectural plans choose the structural plan from the view choose to annotate from the menu bar click align option enter ok.

RESULT: For respected architectural plan views and as well as structural plan views we assign the measurements.

5)

AIM: Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

PROCEDURE:

• go to view toolbar,
• Click the view choose the sheet,
• and select the type of paper from the load option.
• go to the project browser and select the sheets to rename them as sheets.

RESULT: Created a sheet template from the view tab and added appropriate views.

6)

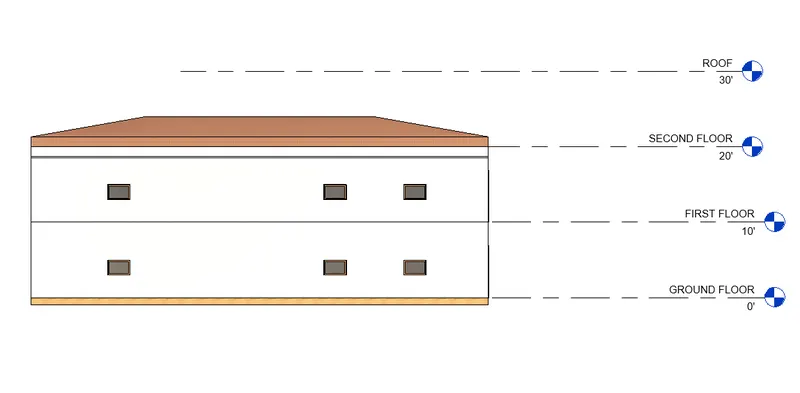

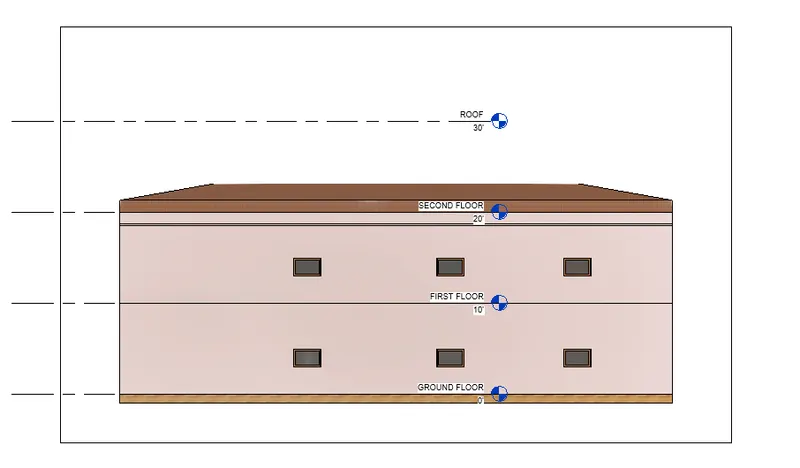

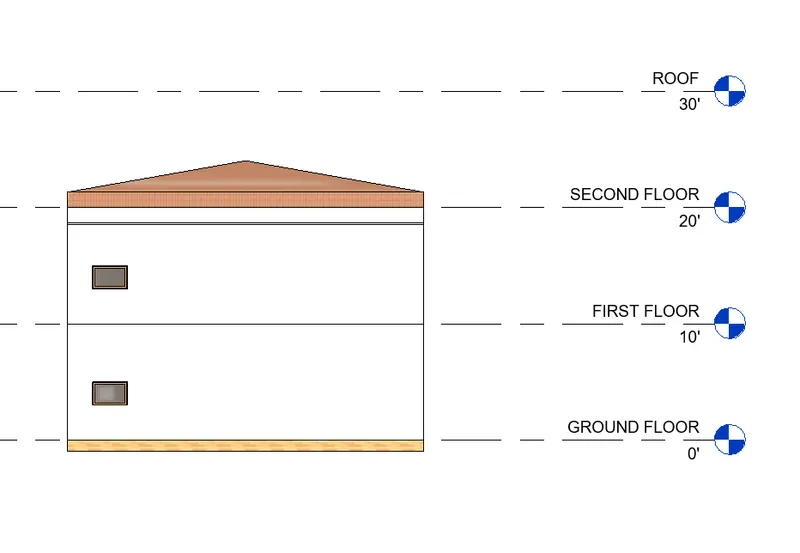

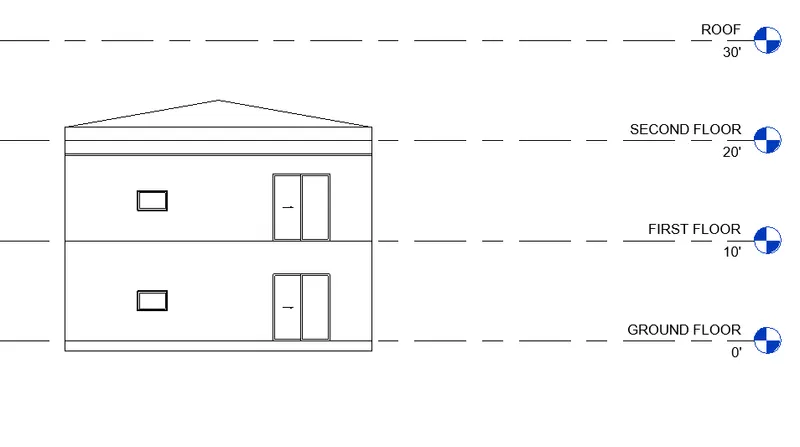

AIM: Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

INTRODUCTION: Using the elevation tab create the elevation views, looking at your building from East, North, South, and West created custom views also.

PROCEDURE:

• go to the view tab chooses the elevation,
• and click the elevation on 4 sides East, west, north, and south.
• go to the project browser and choose the sections to select each section.

RESULT: Using the elevation tab created the elevation views.

7)

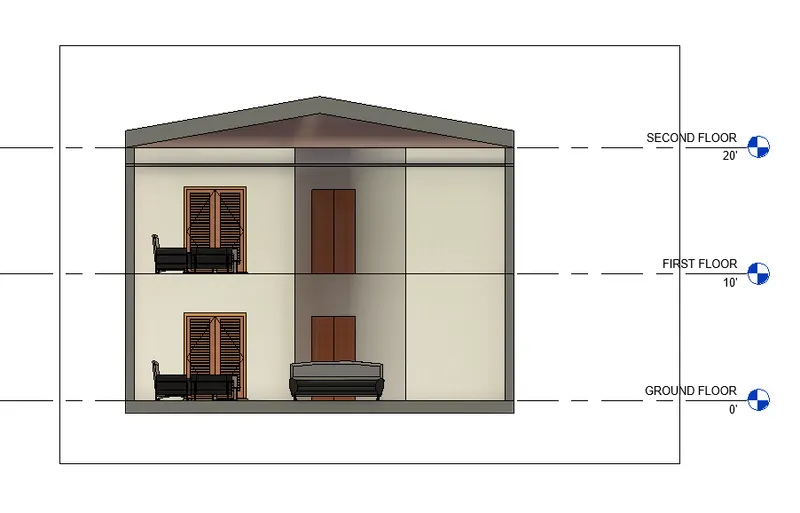

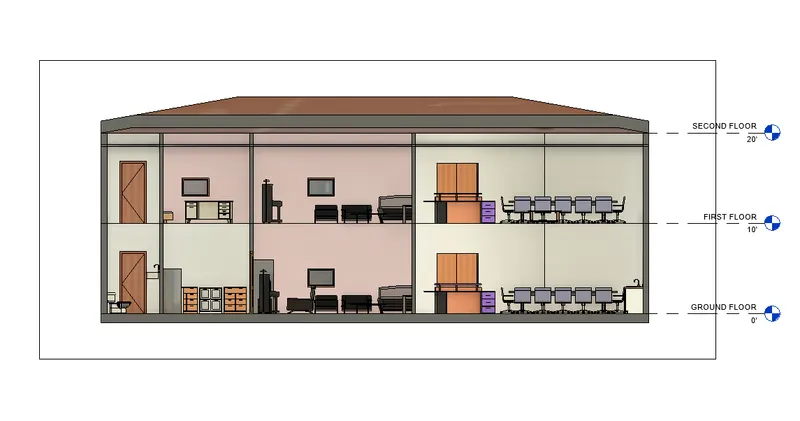

AIM: Produce section cut through each room either cutting across longitudinally or in a transverse direction

INTRODUCTION: Produce section cut through each room either cutting across longitudinally or in a transverse direction after that we can choose the sections from the sections view.

PROCEDURE:

• choose the view tab, select the section icon,
• choose the place where we want to cut the section cut by placing the cursor,
• we can see the sections in the project browser in section views.

RESULT: Produced the section cut through each room either cutting across longitudinally or in a transverse direction.

8)

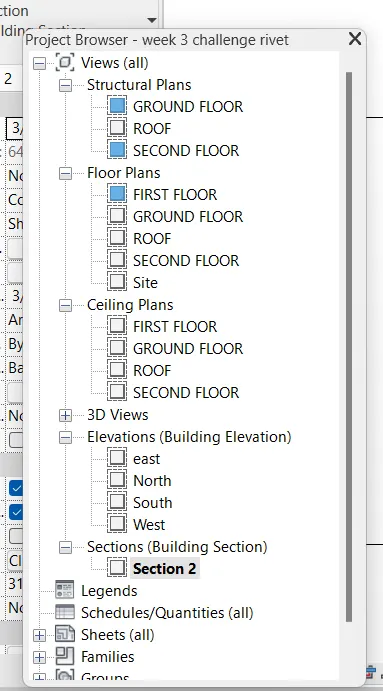

AIM: Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using the Properties browser

PROCEDURE: Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using the Properties browser we can represent by the project browser.

PROCEDURE:

whatever we created the views such as architectural, structural,3dvies, section views, and elevation views all are represented in the project browser.

RESULT: Classified the views, Plan Views, Section Views, and Elevation views.

9)

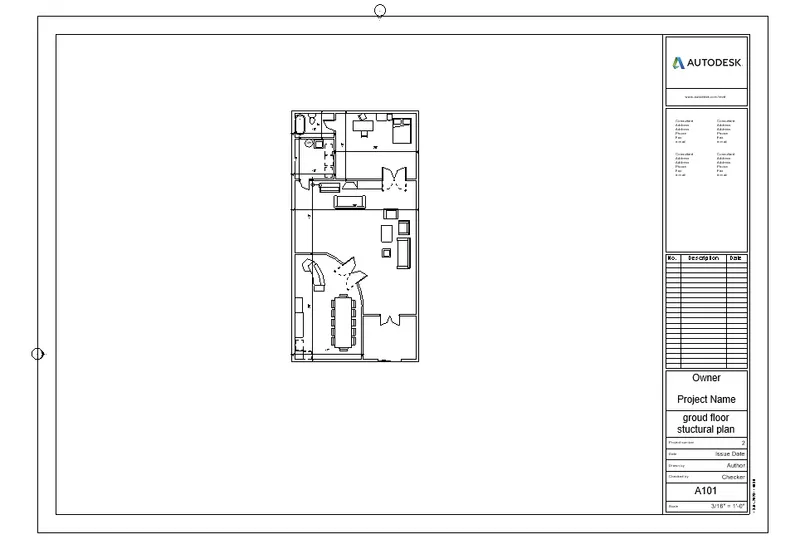

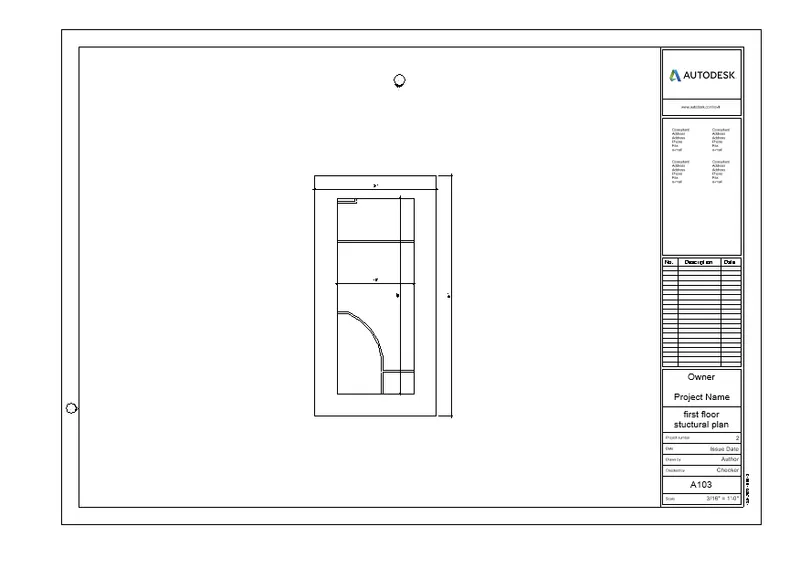

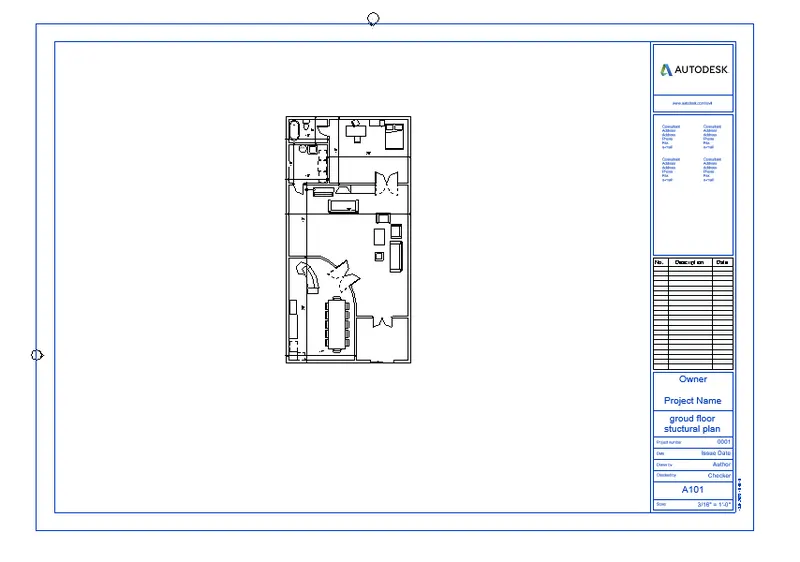

AIM: 9) Using the sheet template produced create multiple sheets as follows

INTRODUCTION: all views are created as per the challenge requirement using the sheet.

PROCEDURE:

a. A 101- Ground Floor Architecture Plan

b. A 102- First Floor Architecture Plan

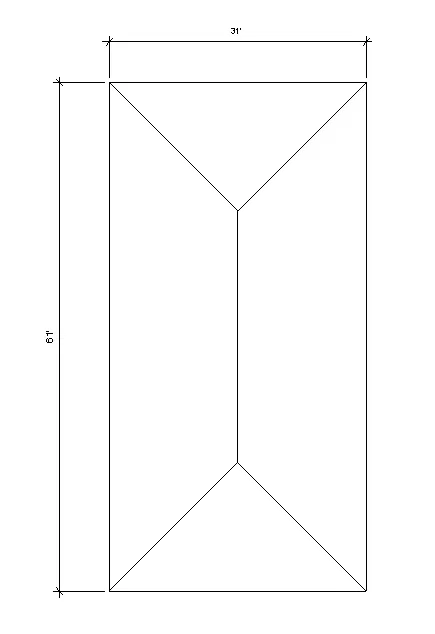

c. A 103- Roof Plan

d. S 101- Ground Floor Structural Plan

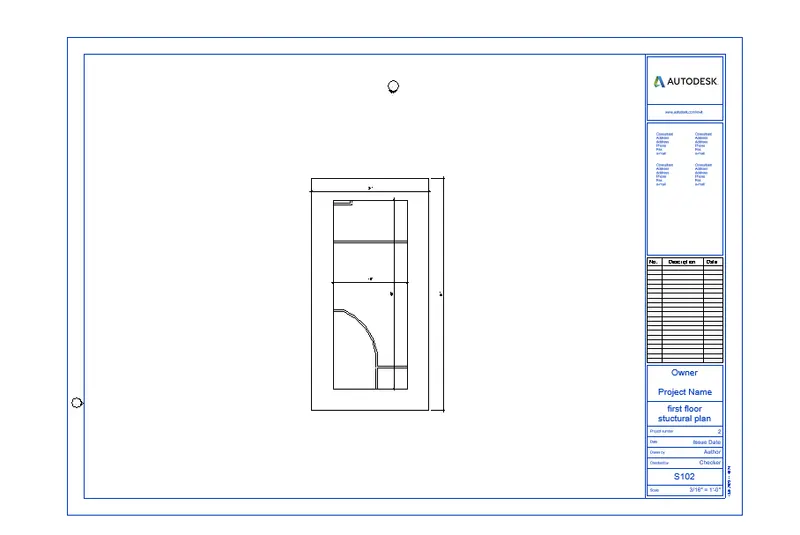

e. S 102- First Floor Structural Plan

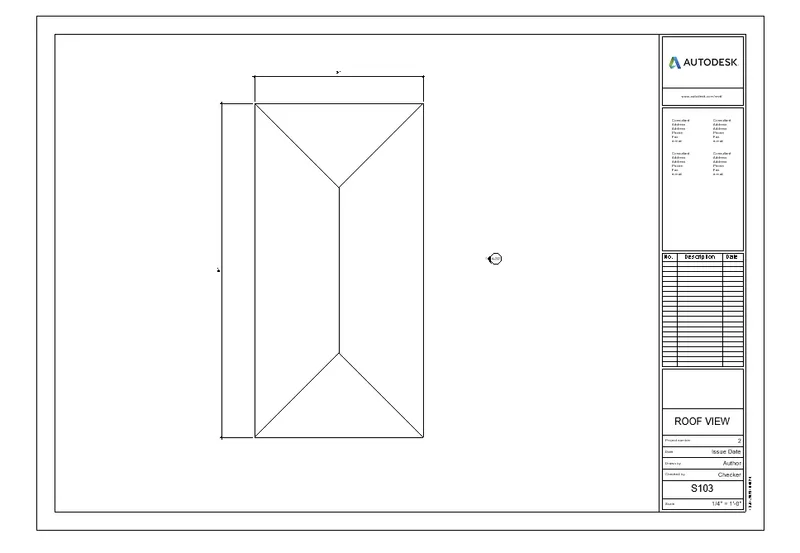

f. S 103- Roof Framing Plan

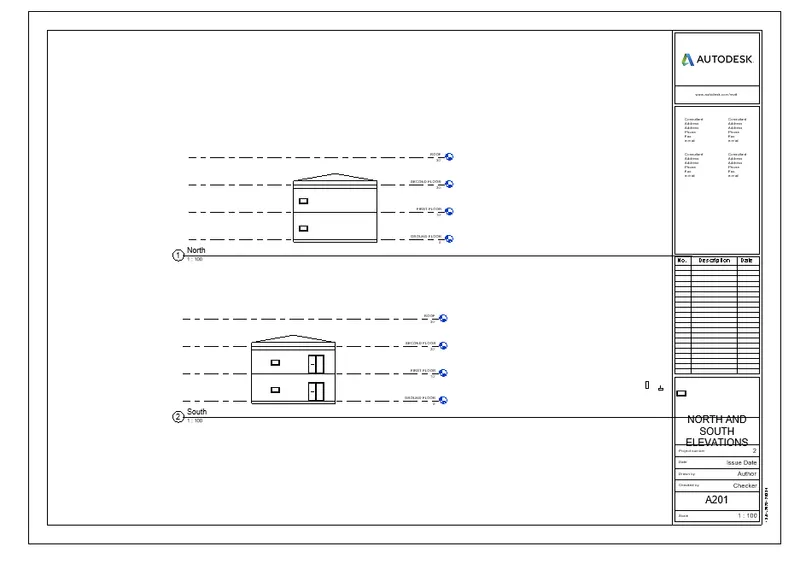

g. A-201- North-South Elevations

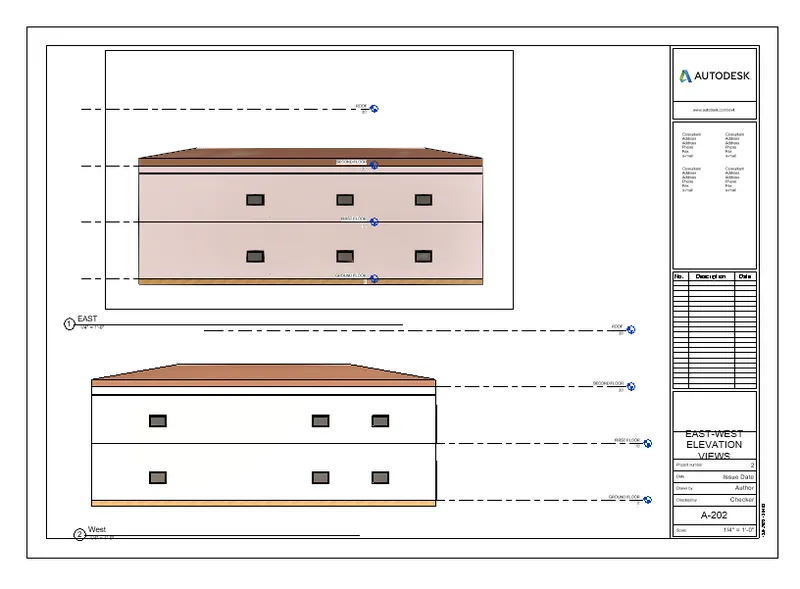

h. A-202- East-West Elevations

RESULT: all views are inserted in sheets.

10)

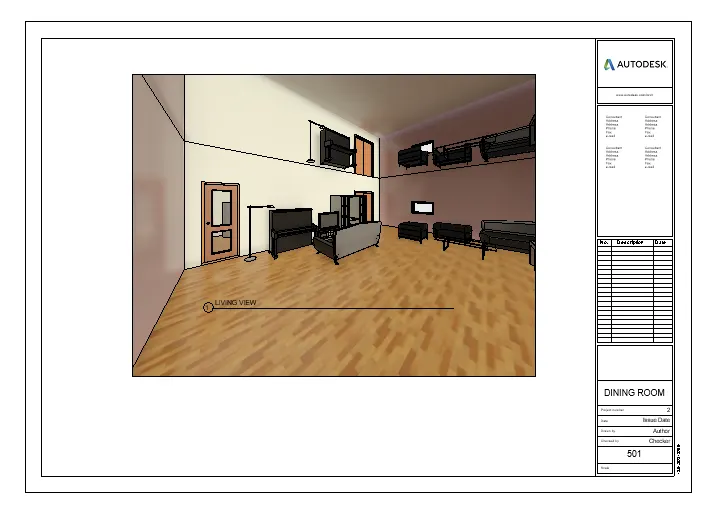

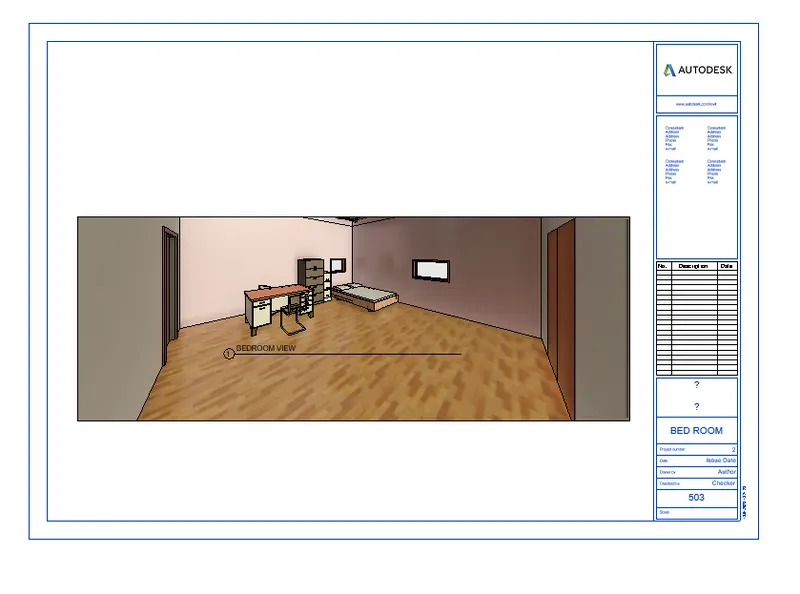

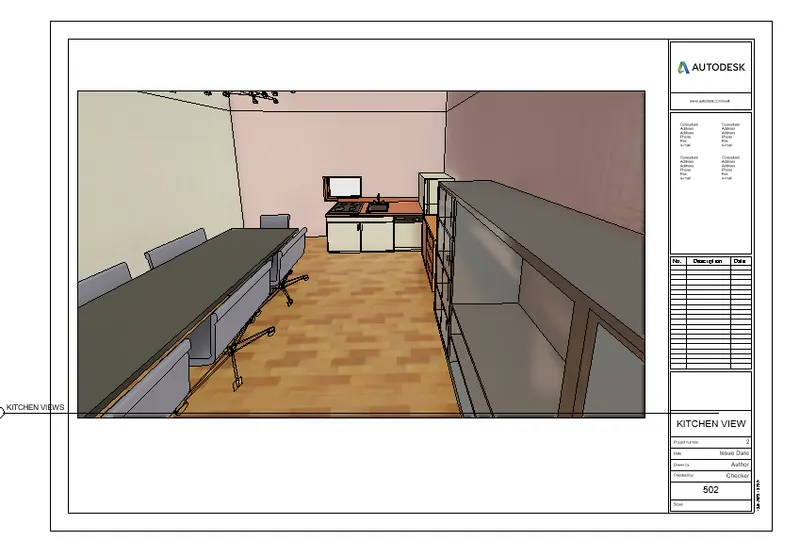

AIM: Create a camera-specific view or a 3D view in each room ( living, dining, bedroom).

INTRODUCTION: Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

PROCEDURE:

• Go to the View tab choose the camera view,
• and place it on the bedroom, dining, and living areas.
• we can get 3d views from the project browsers by clicking on them.

RESULT: Created camera-specific views or a 3D view of each room ( living, dining, bedroom).
