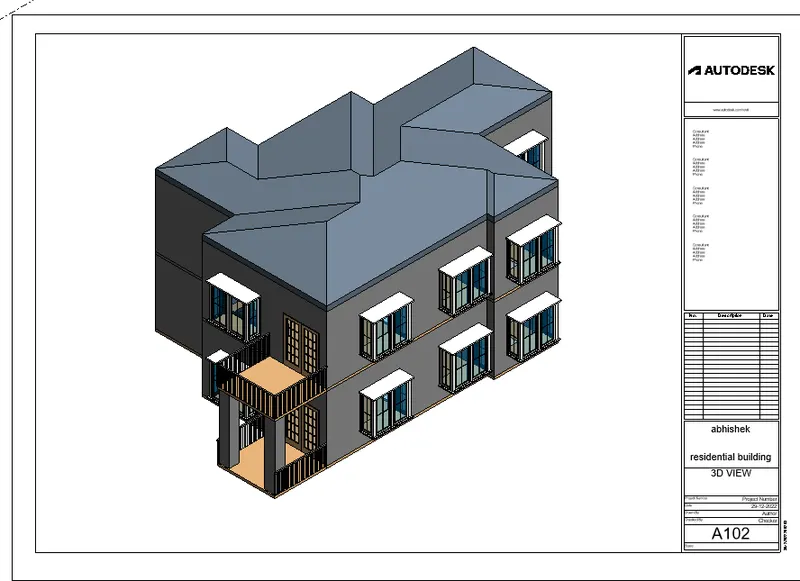

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q.1

AIM: TO CREATE THE CELLING ABOVE THE WALL AT FIRST FLOOR LEVEL

Steps:

1. Initially open the week 3 assignment from revit software

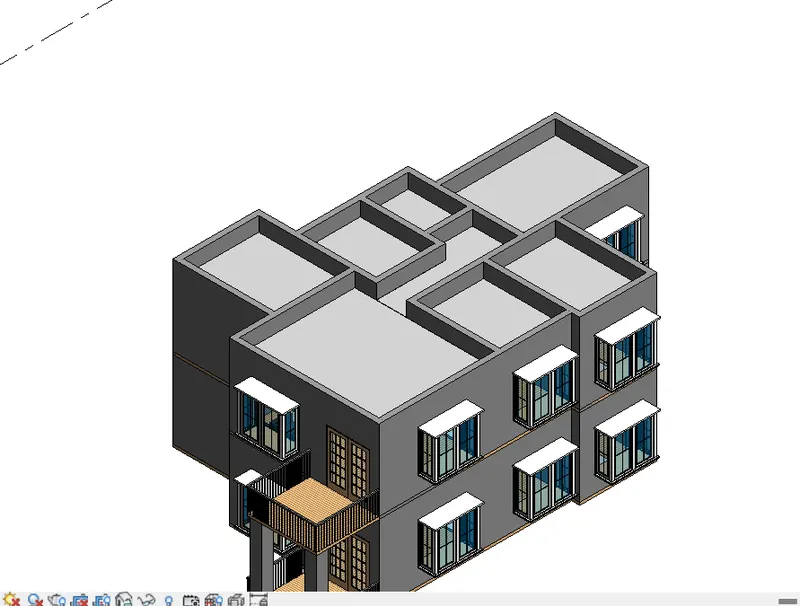

2. Then first create the veranda in the ground floor as well as first floor level so that roof is created for entire structure
3. For this go to plan view
4. Then using the floor option created for the verandh portion given below
5. Now copy this floor level to the level 2 i.e the first floor level

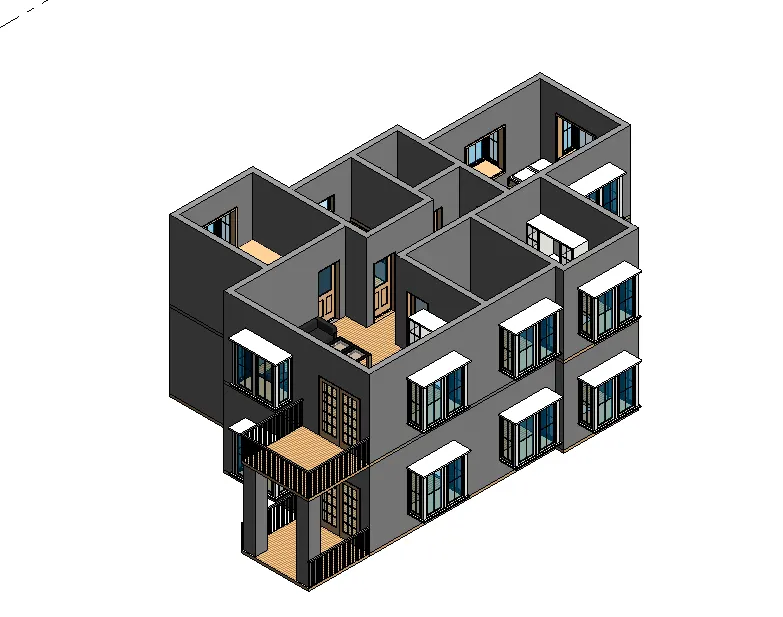

6. Now we add the columns to the veranda at the ground floor

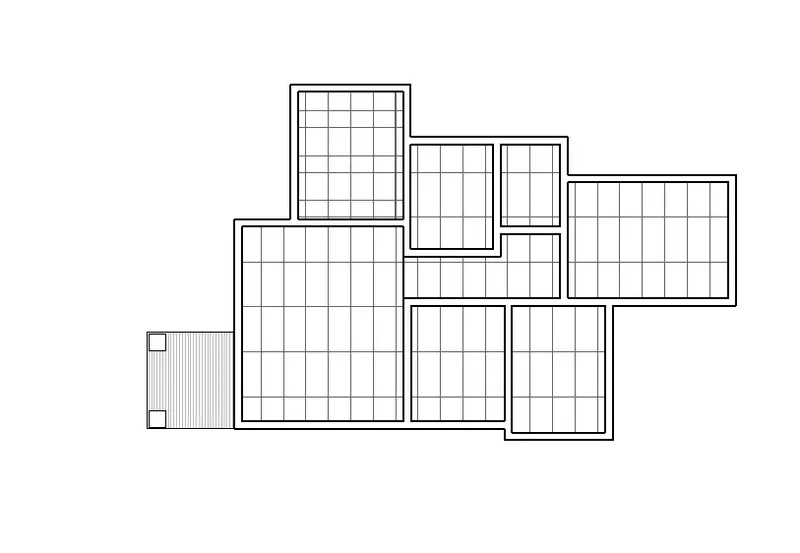

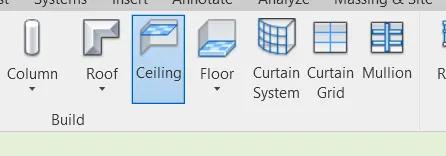

7. Now we can place the celling for this go to architectural tab and close celling
8. Ceiling is to be provided in the level 2 for the ground floor
9. Ceiling is to be provided in the level 2 for the ground floor
10. The ceiling is created

Q.2

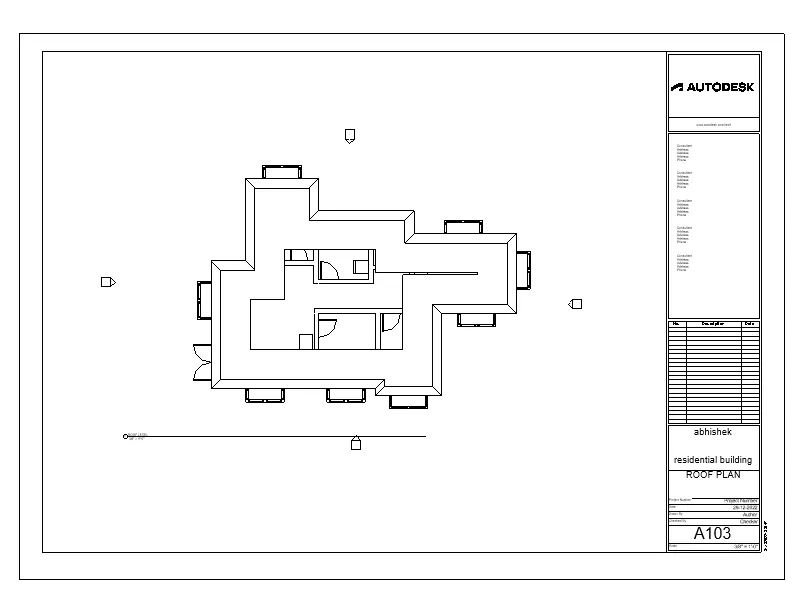

AIM: TO MODEL A ROOF ABOVE THE CEILING BY SELECTING THE FOOTPRINT OF THE CEILING AND TO ADJUST THE ROOF SLOPE TO 10 DEGREE USING 10 DEGREE TOOLBAR

Steps:

1. In order to create the roof, initially go to architectural tab of the ribbon
2. Then choose the roof option
3. From the roof dropdown choose roof by footprint

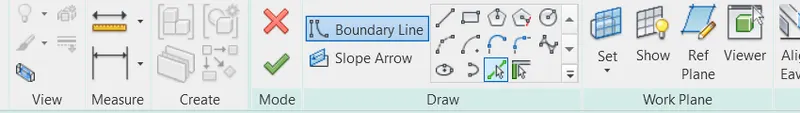

4. Then using the pick a line option create the roof boundary

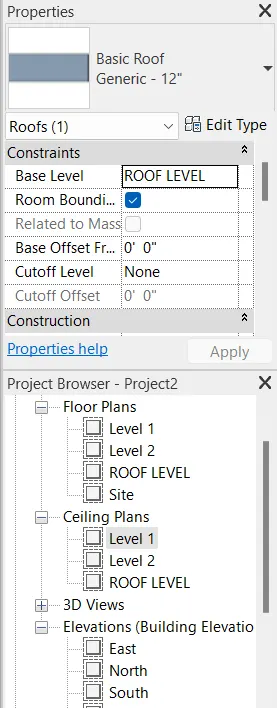

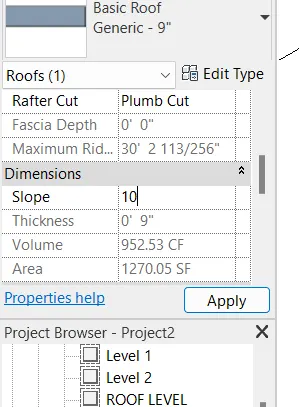

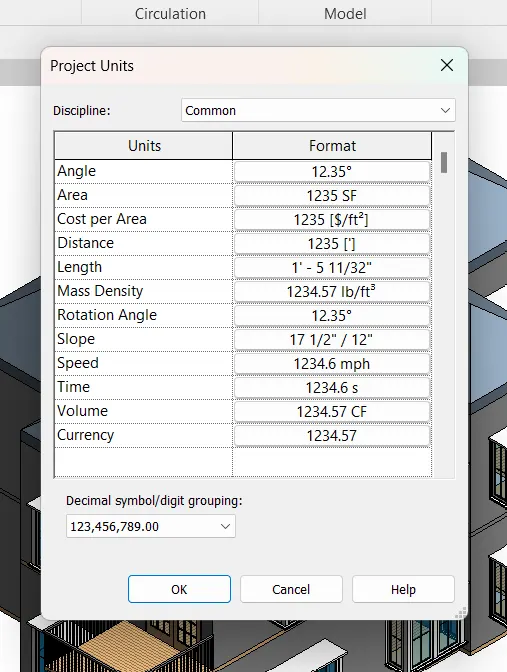

5. Now we have to adjust the roof slope to 10 degree

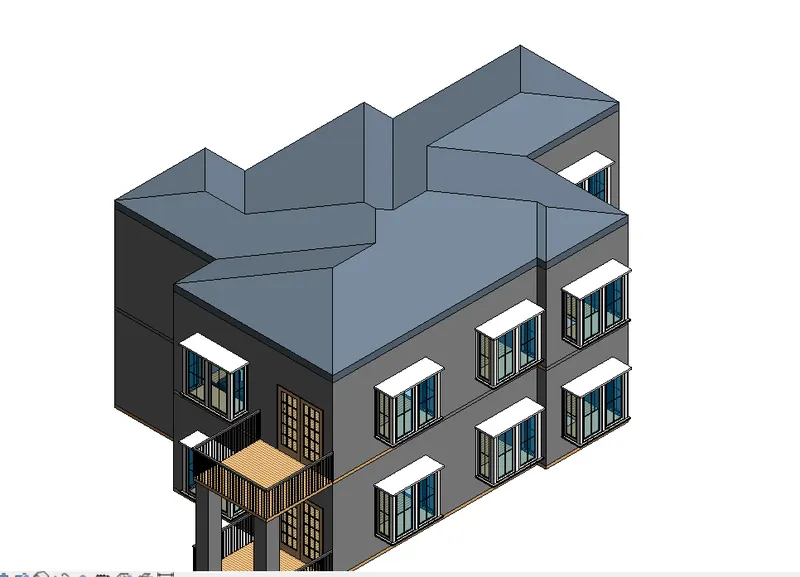

6. 10-degree slope roof is created

Q.3

AIM: TO CREATE PLAN VIEW FOR THE GROUND FLOOR LEVEL AND FIRST-FLOOR LEVEL INCLUDING ALL THE WALLS, FLOOR AND COMPONENT AND THE SEPRATE THEM TO

1. ARCHITECTURAL PLAN
2. STRUCTURAL PLAN

Steps:

1. To architectural plan:
2. Go to view tab of the ribbon then select plan view

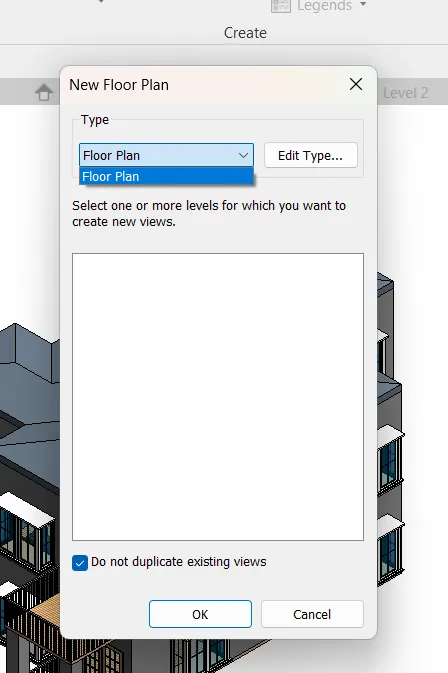

3. In the plan view select floor plan
4. In the plan view select floor plan

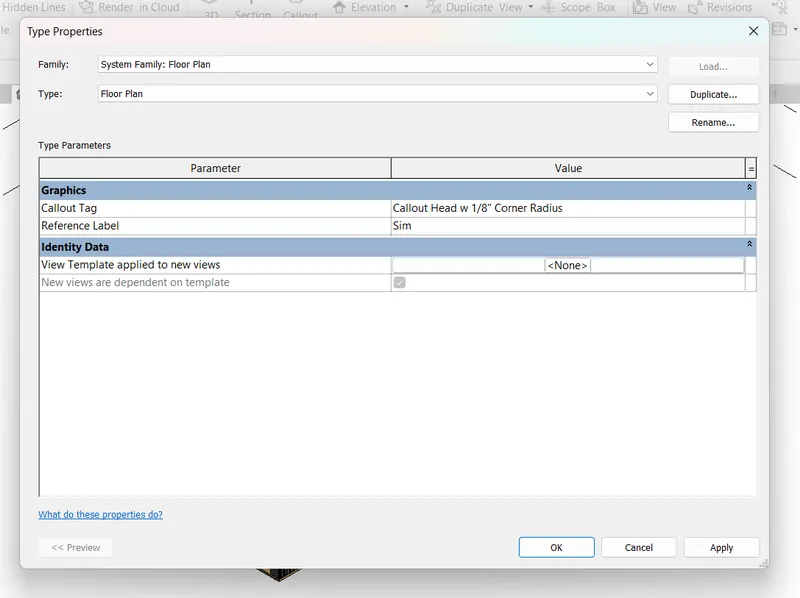

5. Click the level 1 and go to edit type

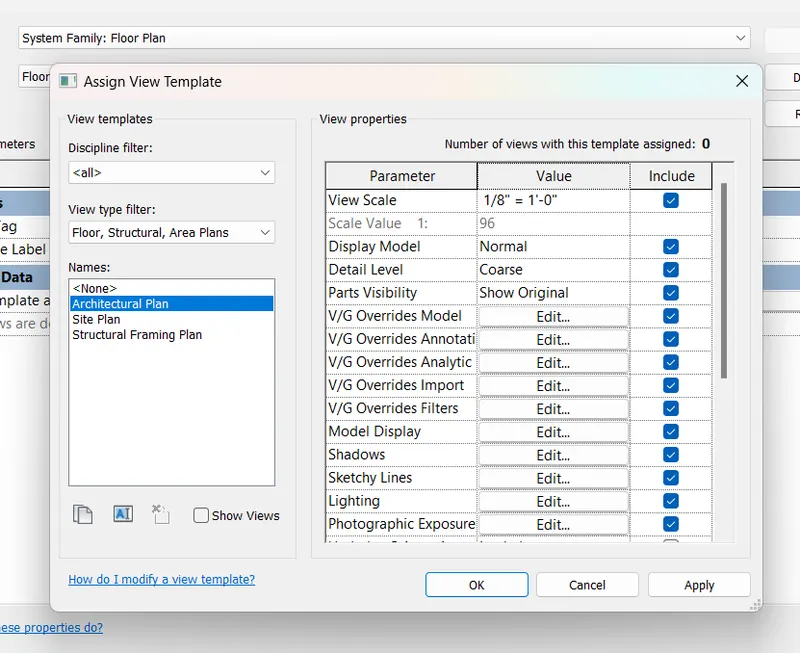

6. Choose view template applied to new view
7. Choose view template applied to new view
8. In the selected architectural plan

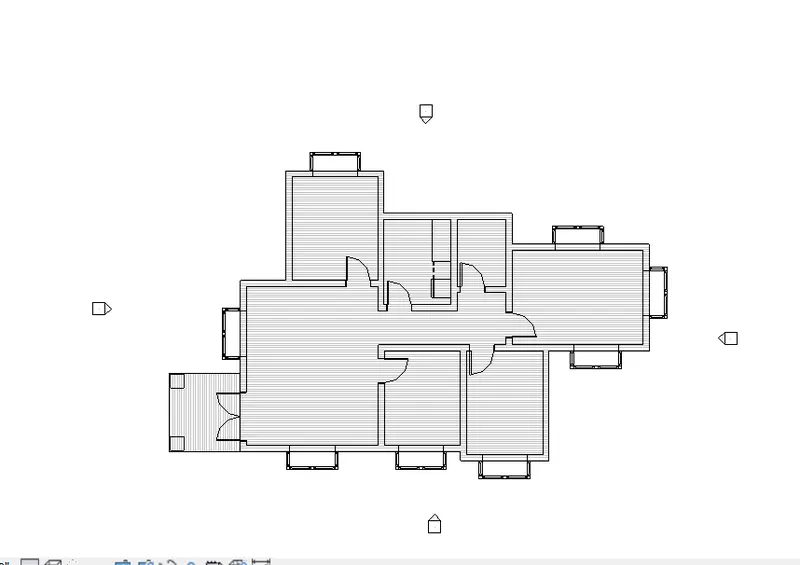

9. Then the floor plan is obtained as follows

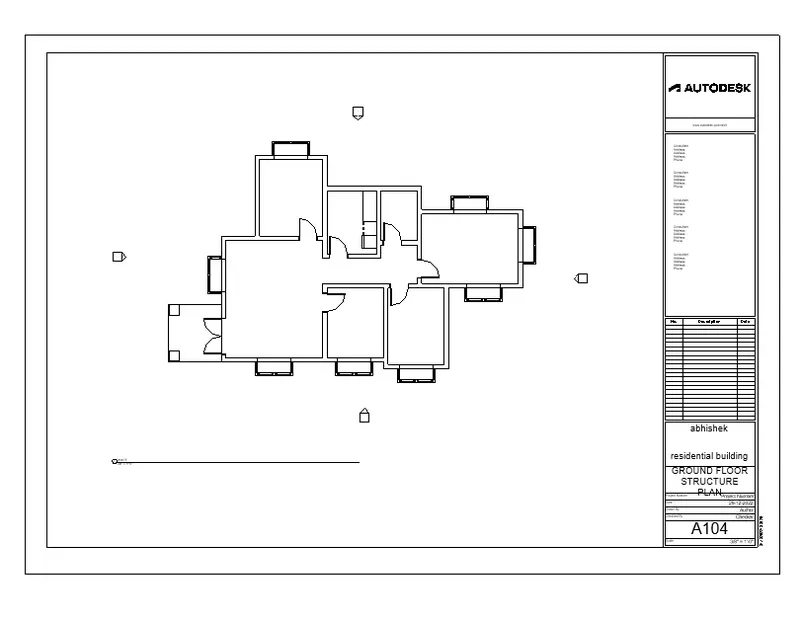

10. To structural plan:

Structural plan of ground floor and first floor is given below

Q.4

AIM: TO ADD DIMENSION TO ALL THE WALL AND FLOOR WITH REFERENCE TO THE LONGITUDINAL AND TRANSVERSE GRID CREATED IN THE PROJECT FILES

1. THE ARCHITECTURE PLAN DIMENSION INCLUDE DETAILS ON WHEN THE COMPONENT ARE PLACED WITHIN THE BUILDING WITH RELATION TO GRID
2. THE STRUCTURE PLAN DIMENSION MUST INCLUDE DETAILS ON THE POSITON OF ALL THE WALL AND INTERIOR WALL WITH REFERENCE TO GIRDS

Steps:

1. First select the floor plan for ground floor
2. Go to annotate tab and choose linear dimension and provide linear dimension in the plan
3. For ground floor and first floor
4. Now go to architectural tab and choose tag room option

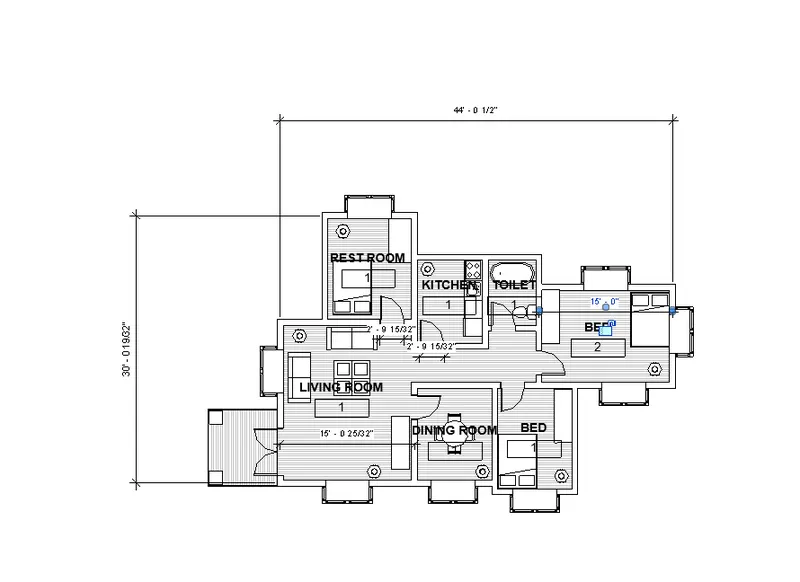

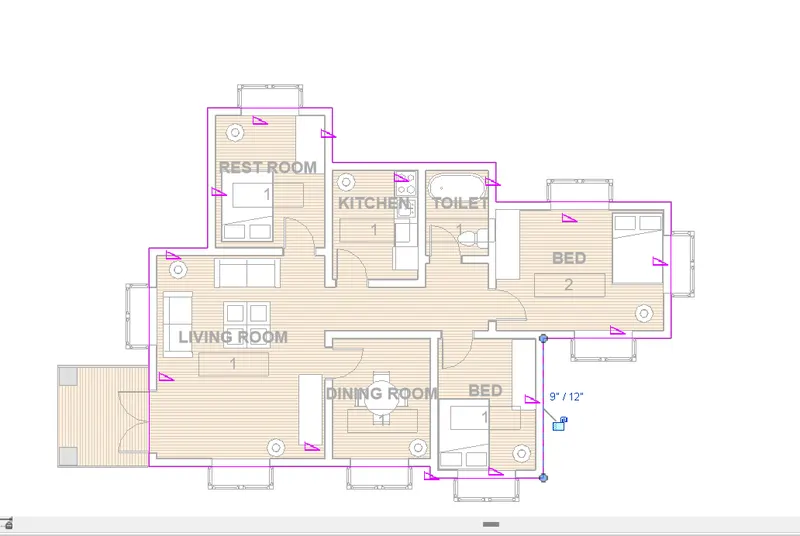

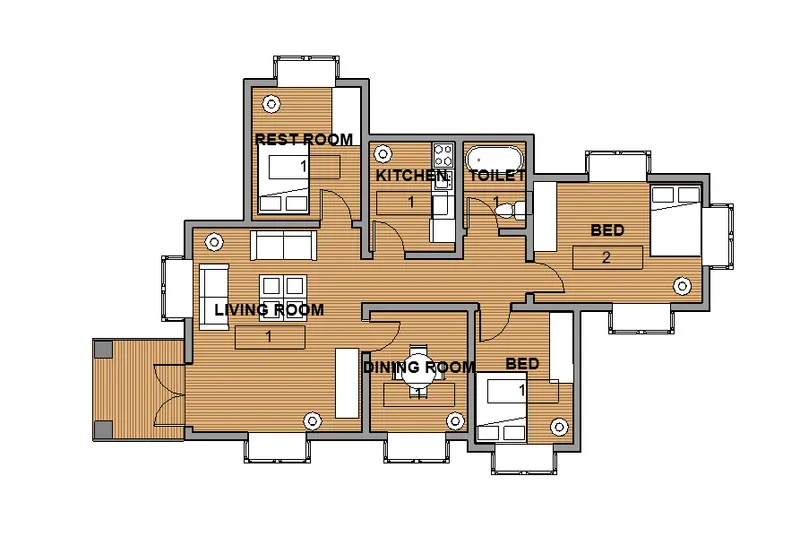

5. Then tag the individual room as given below
6. Ground floor and first floor

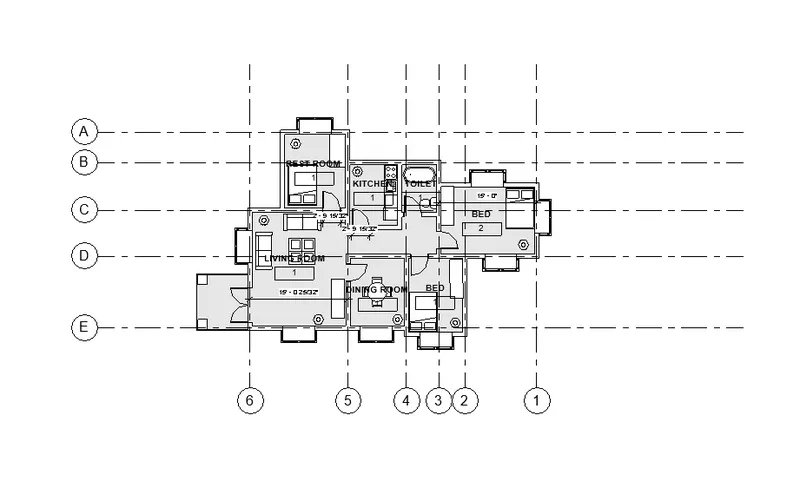

7. Now we have to create the structure plan dimension according to grid lines
8. For this go to structural plan

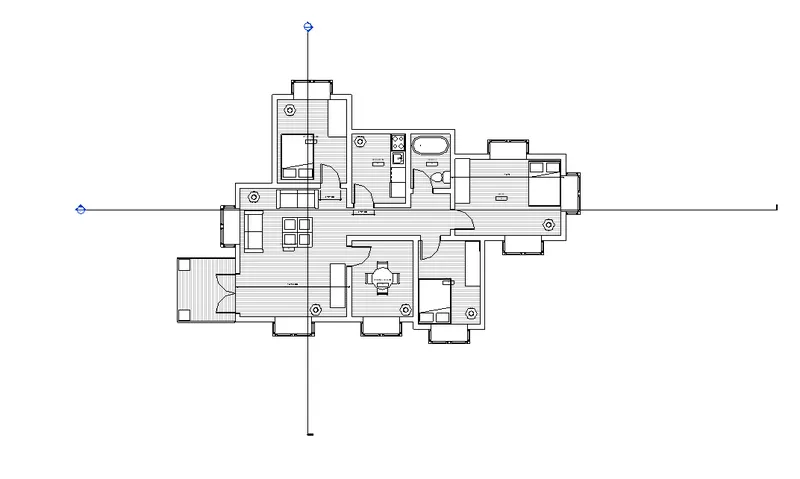

9. Then go to architectural tab select grids and draw along the walls
10. Ground floor

Q.5

AIM: TO CREATE A SHEET TEMPLATE FROM THE VIEW TAB AND ADJUST THE PARAMETESRS ON THE SHEET TO ADD APPROPRIATE VIEWS

Steps:

1. Go to view tab of the panel

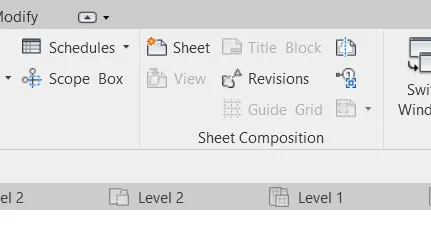

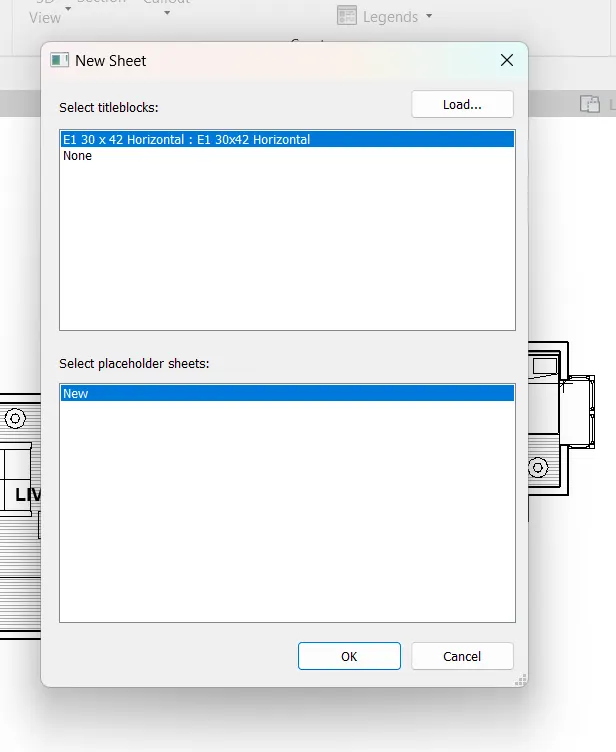

2. Choose sheet option in the sheet composition panel of the view tab
3. Click load option and load more templates

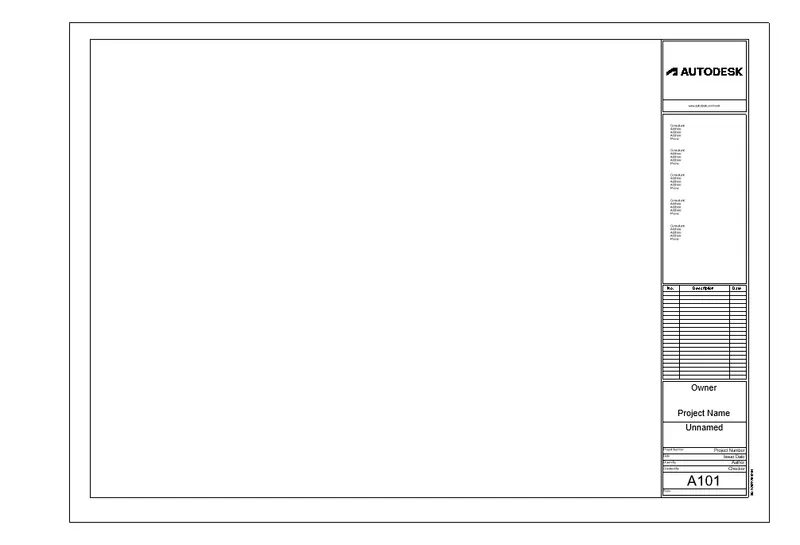

4. Select the template and click ok
5. Now choose the view that is to be added in the template
6. Add view to the sheet and then adjust the scale so that it fit to the template

Q.6

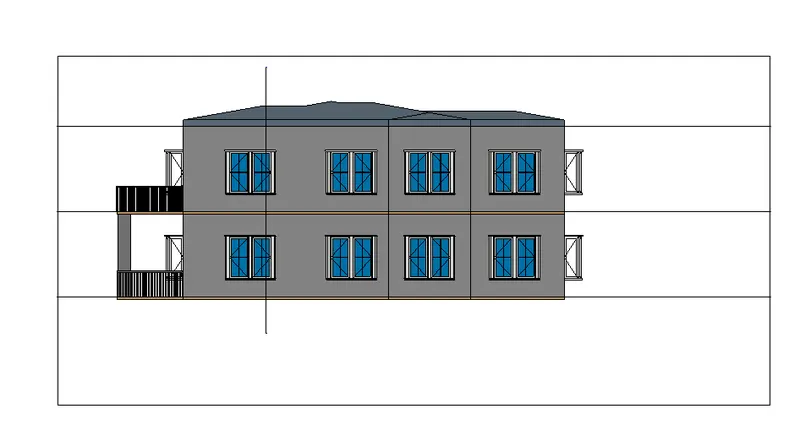

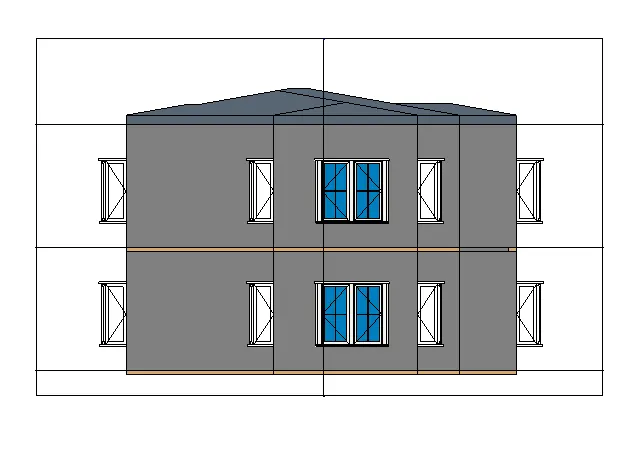

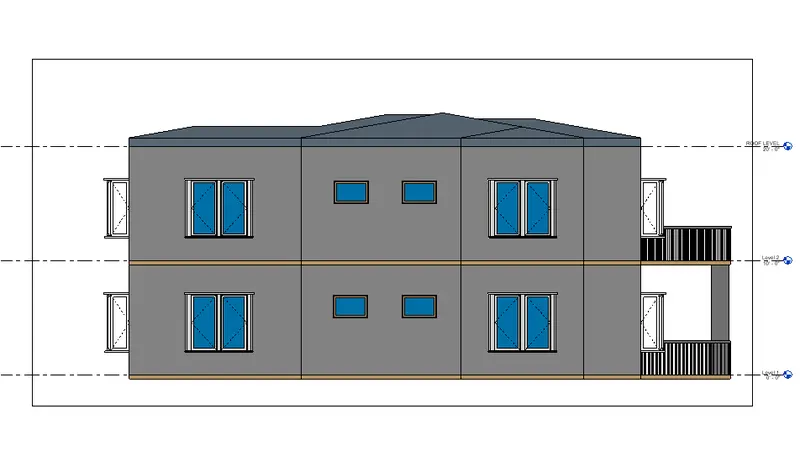

AIM: TO CREATE THE ELEVATION VIEW LOOKING AT YOUR BUILDING FROM EAST, NORTH, SOUTH AND WEST

Steps:

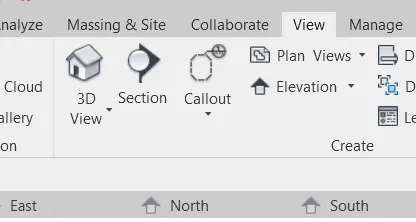

1. Go to the view tab of the ribbon
2. Choose elevation view
3. Then create the elevation view à north, south, east and west

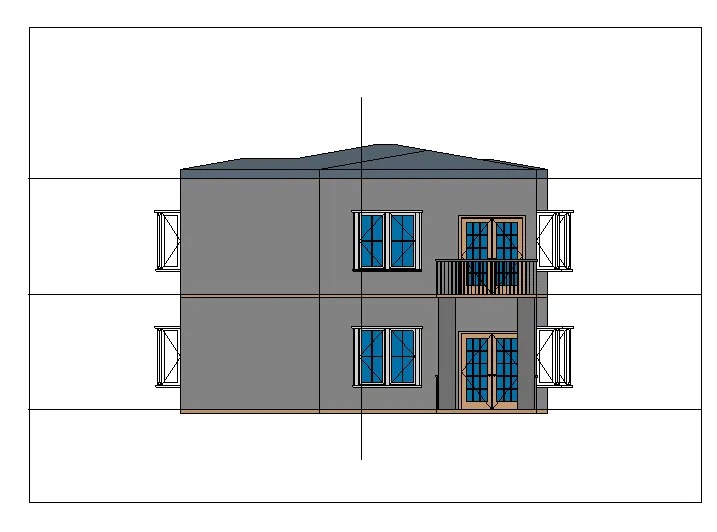

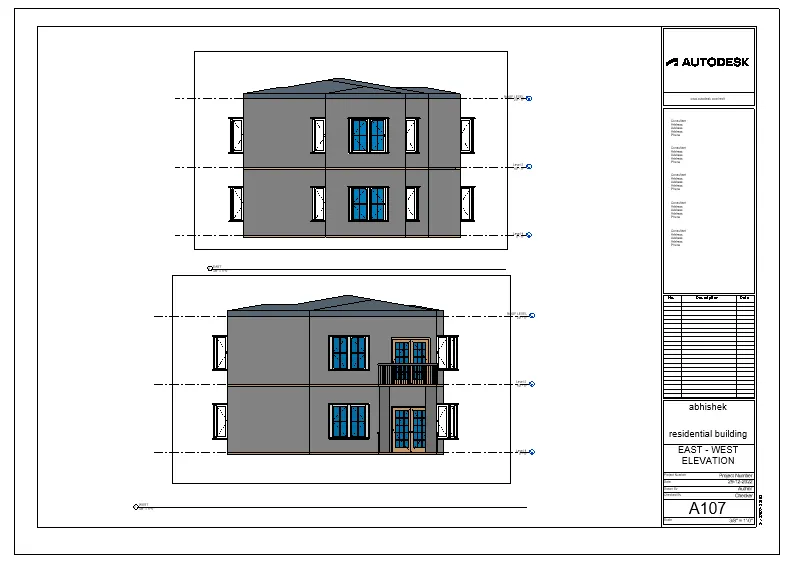

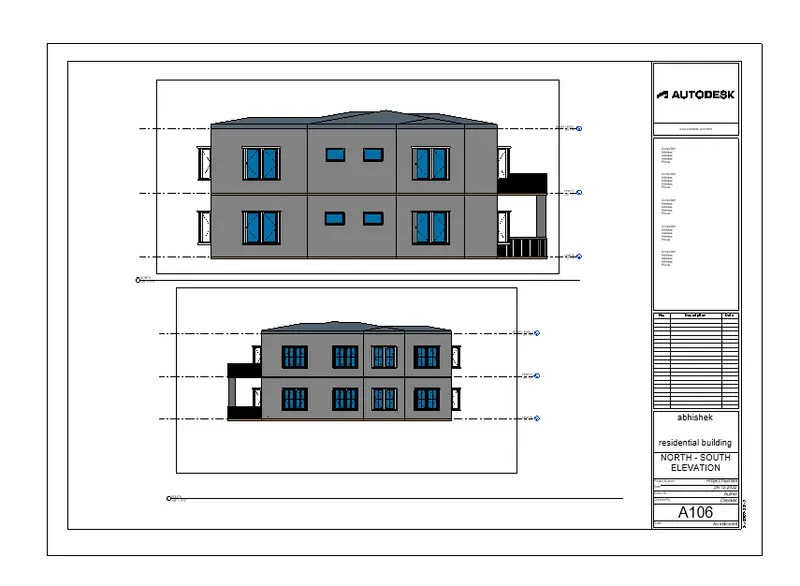

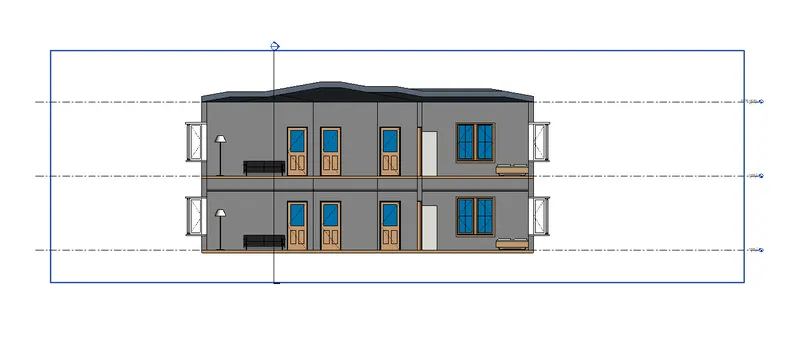

4. The elevation view thus obtained are

EAST:

WEST:

NORTH:

SOUTH:

Q.7

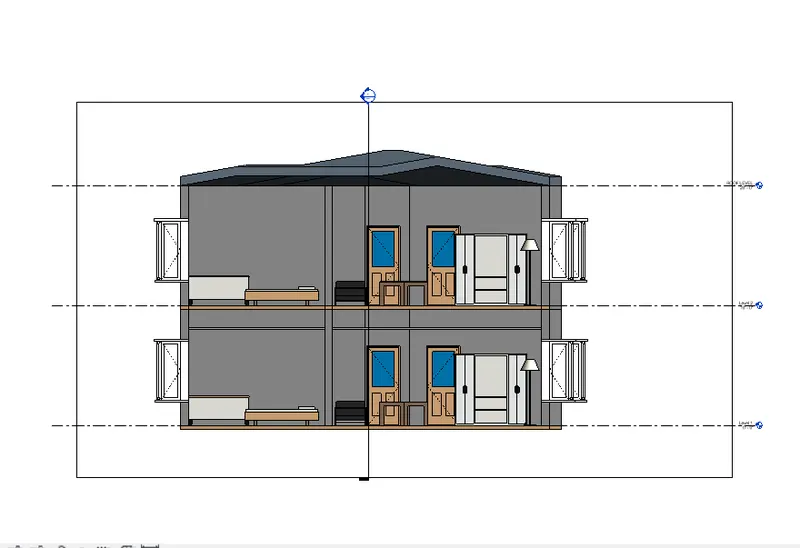

AIM: TO PRODUSED SECTION CUT THROUGH EACH ROOM

Steps:

1. Go to view tab of the ribbon
2. Select the section view and then section the required

Q.8

AIM: TO CLASSIFY THE VIEWS PLAN, VIEW SECTION, VIEW AND ELEVATION VIEW TO EITHER DESIGN OR DOCUMENTATION CATEGARY USING PROPERTIES BROWSER

Steps:

1. Go to view tab of the ribbon
2. Choose property browser
3. The following are the different view created

Q.9

AIM: TO CREATE SHEET TEMPLATE AND ADD DIFFERET VIEW IN IT

Steps:

1. Go to view tab of the ribbon panel
2. Choose sheet option and load the template required
3. Choose sheet option and load the template required

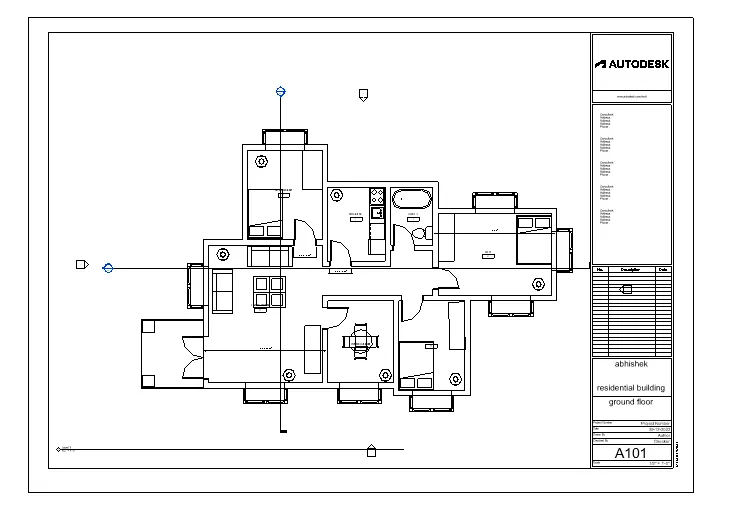

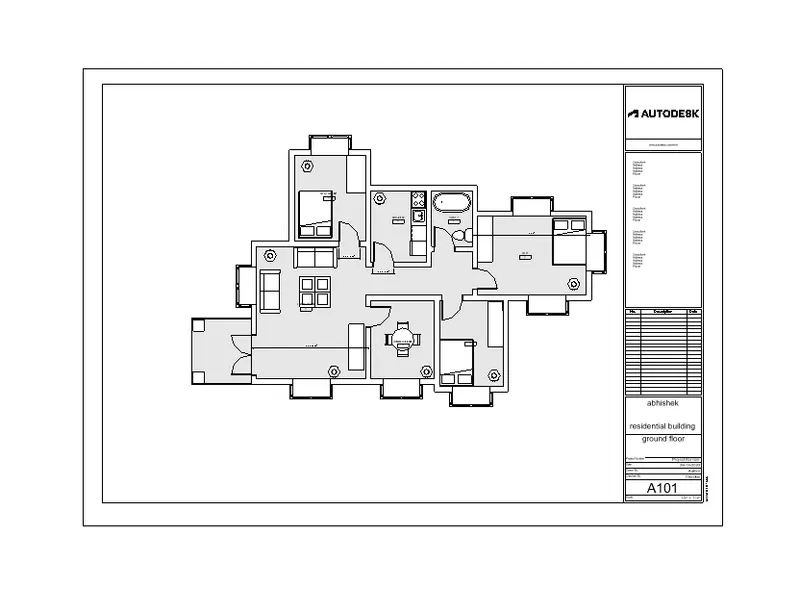

4. Ground floor architectural plan

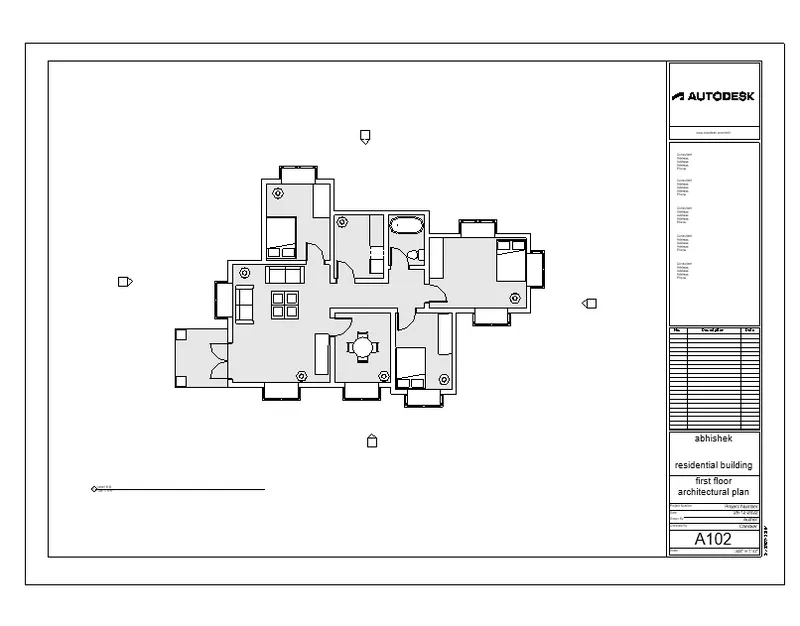

5. First floor architectural plan

Q.10

AIM: TO CREATE A CAMERA-SPECIFIC VIEW OR A 3D VIEW IN EACH ROOM

Steps:

1. In order to create a camera a specific view, first go to view tab
2. Then choose 3D drop down and in that choose camera
3. Now place the camera in the plan view at suitable location to obtain the camera view
4. Different camera view are then produced in a template
5. Ground floor (GF) view are as given below

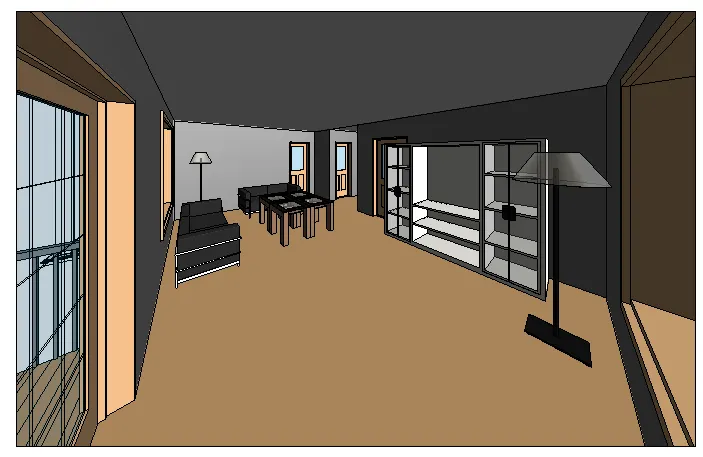

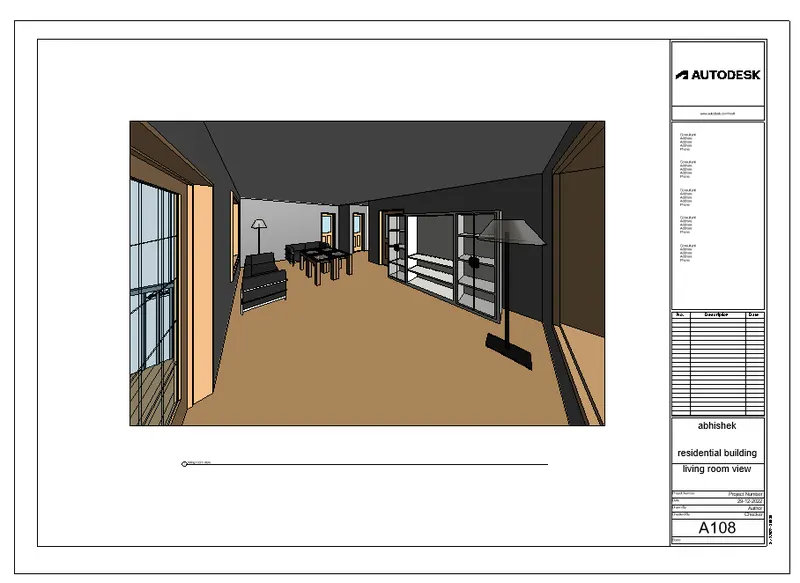

LIVING ROOM VIEW:

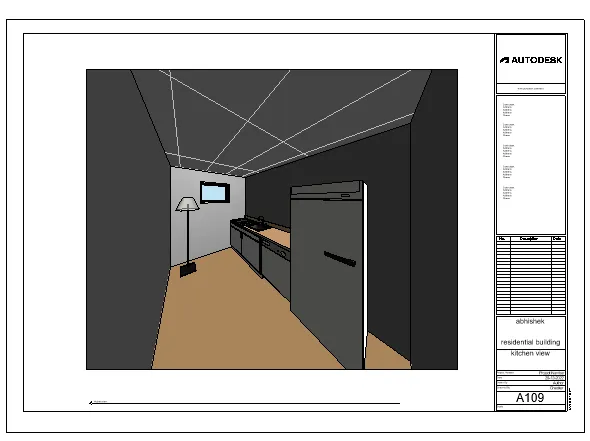

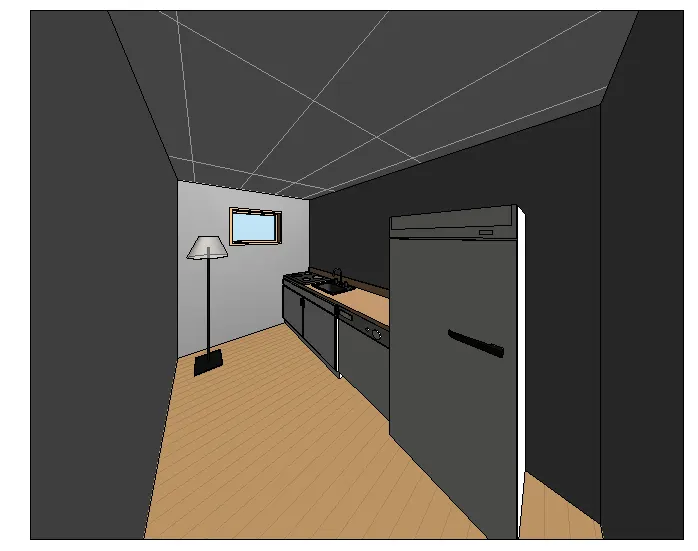

KITCHEN VIEW:

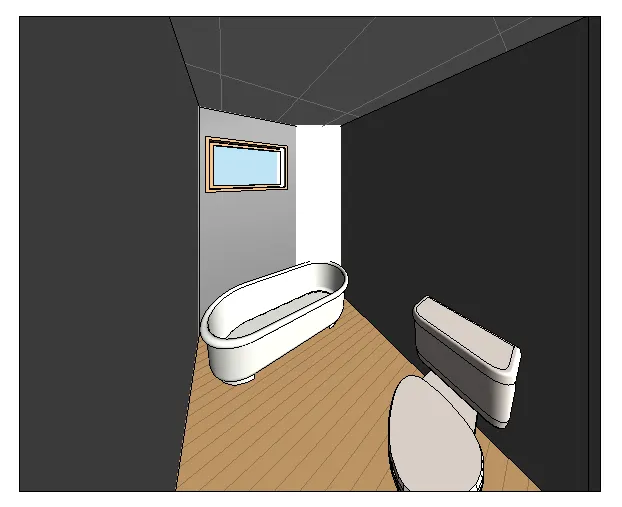

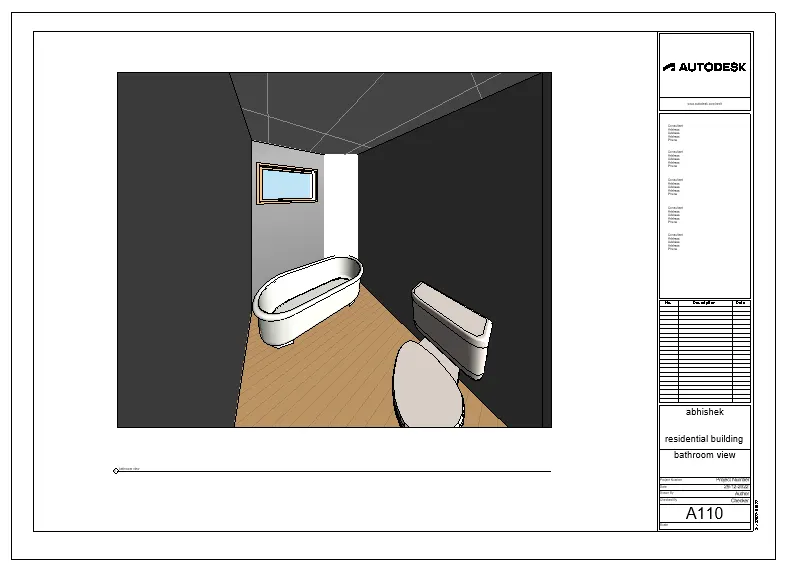

BATHROOM VIEW:

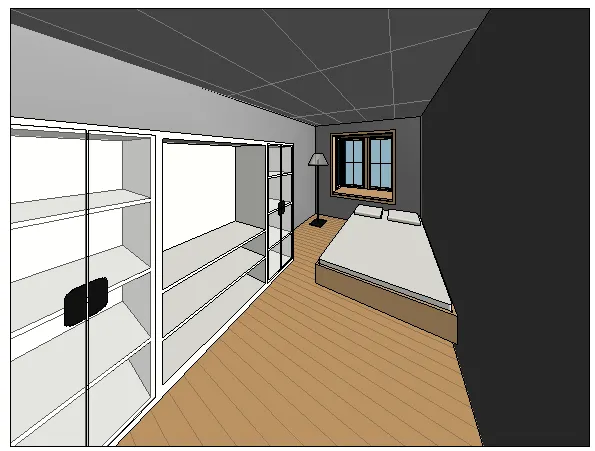

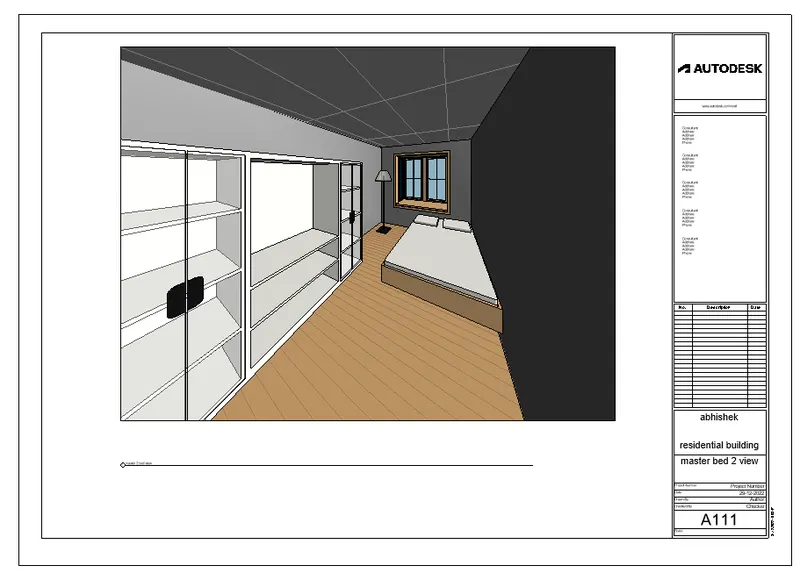

MASTER BED VIEW :

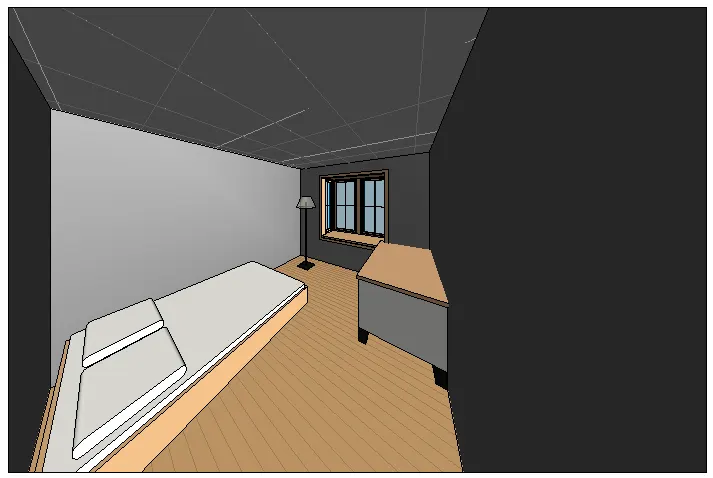

SMALL BED VIEW:

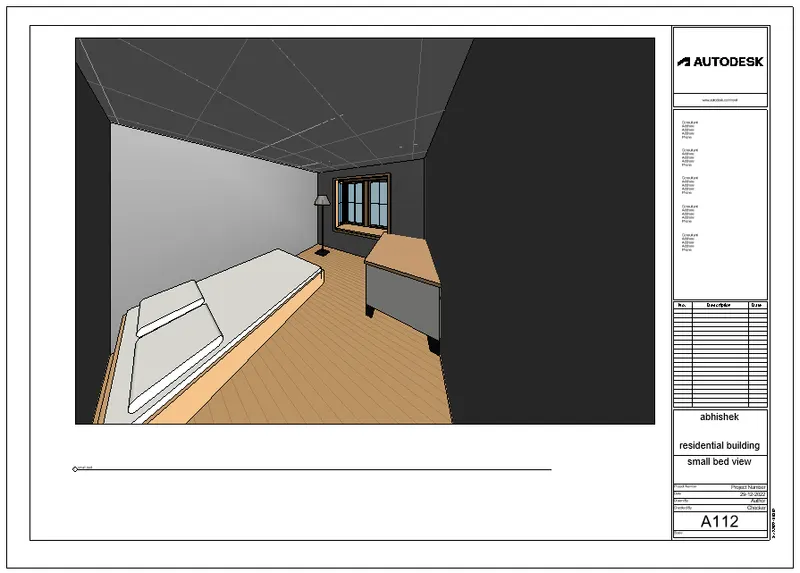

SHEET VIEW OF ALL VIEW:
