3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Challenge 4
1.
Aim: To model a ceiling from the Architectute tab above the walls at the first floor level
Procedure:

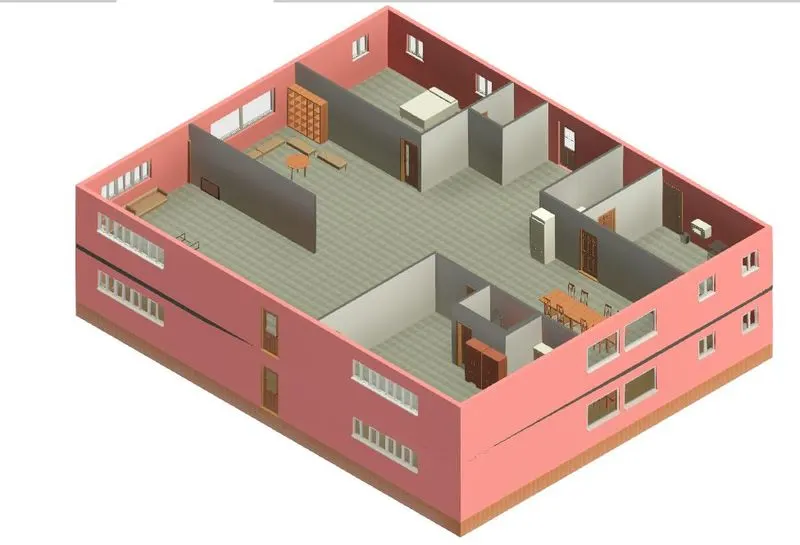

- Open the Revit software, select the project to continue

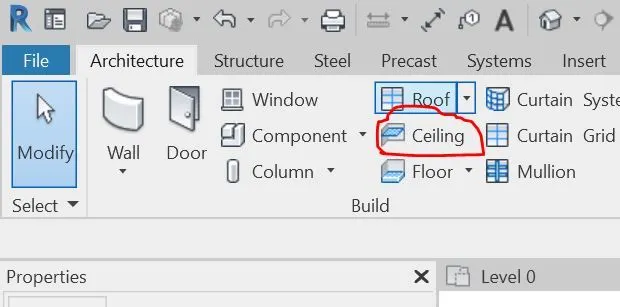

- Select Ceiling option from the architecture toolbar

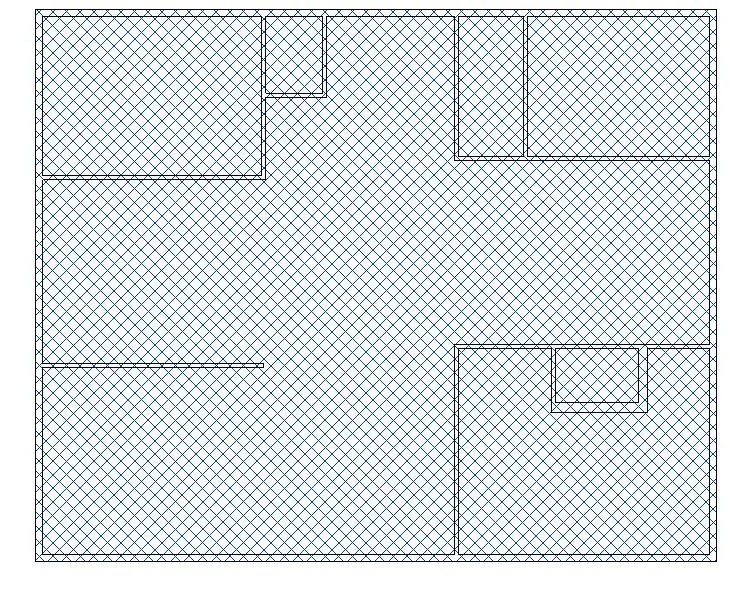

- Now select each room one by one, thus the ceiling will be created

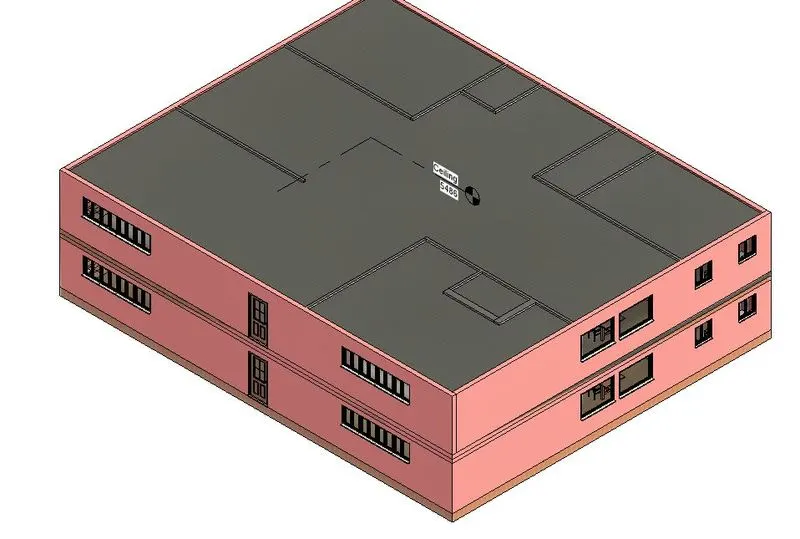

RESULT
2.

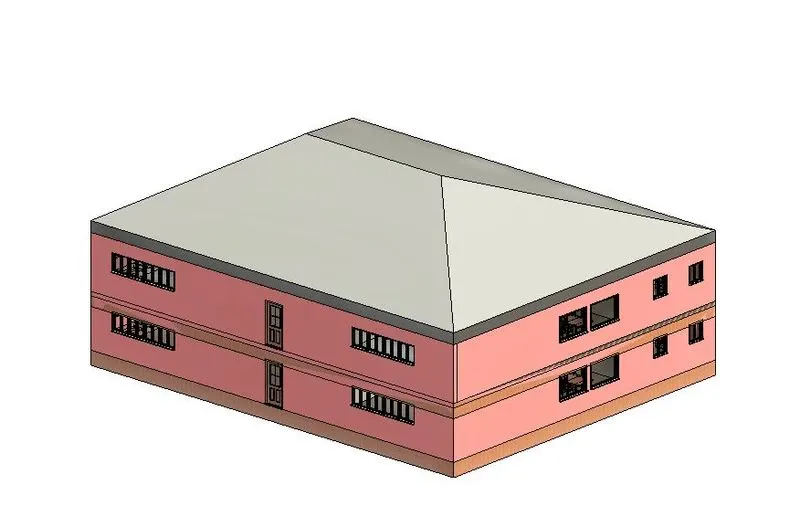

Aim: To model a roof above the ceiling by selecting the footprints of the ceiling
Procedure:

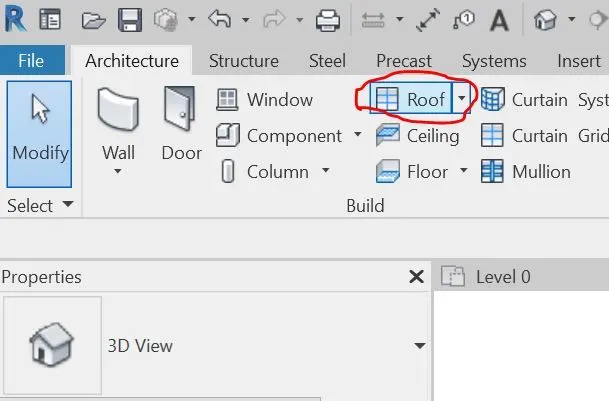

- Open the Architectural toolbar, and select Roof by footprint option
- Select the roof and adjust the roof degree, here the angle is selected as 20 degree

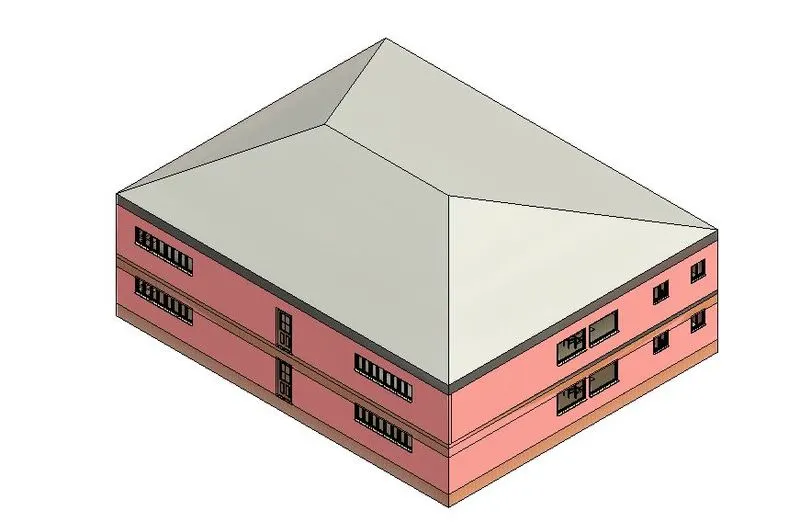

RESULT
3.

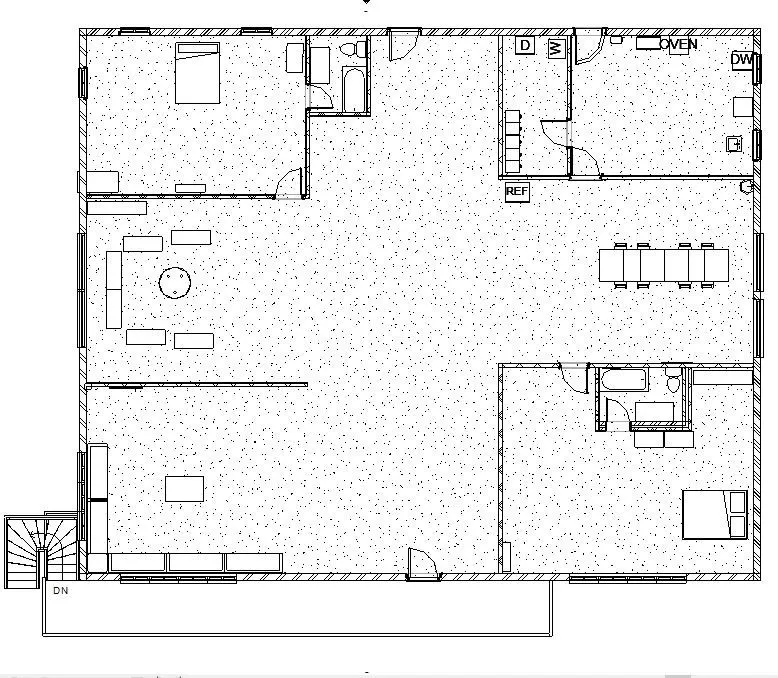

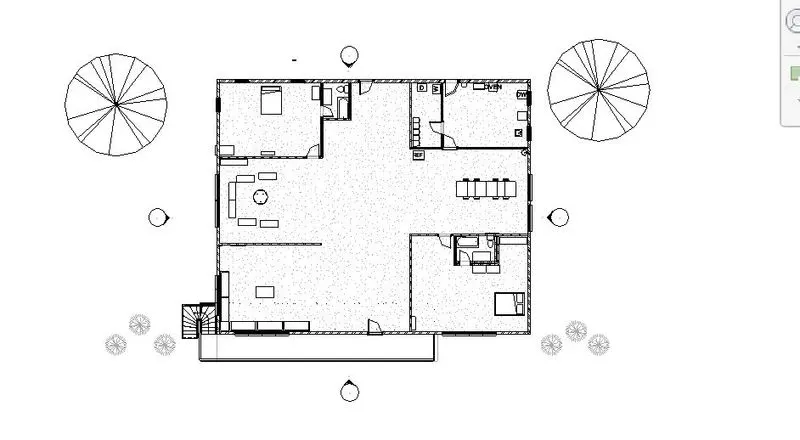

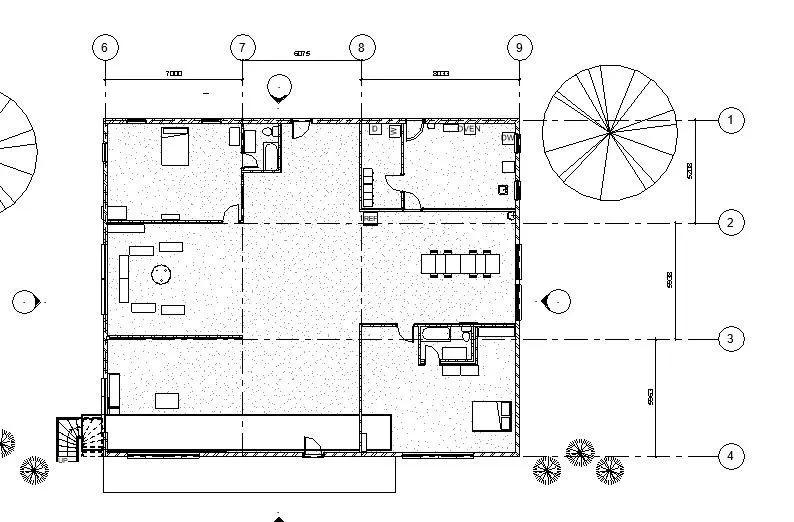

Aim: To create plan views for ground floor level and first floor level including walls, floors and components, and to separate them to architectural and structural plan
Procedure:
- The architectural and structural plans are drawns
- Now draw the structural plan of the first floor and second floor
RESULT
4.
Aim: To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
Procedure:

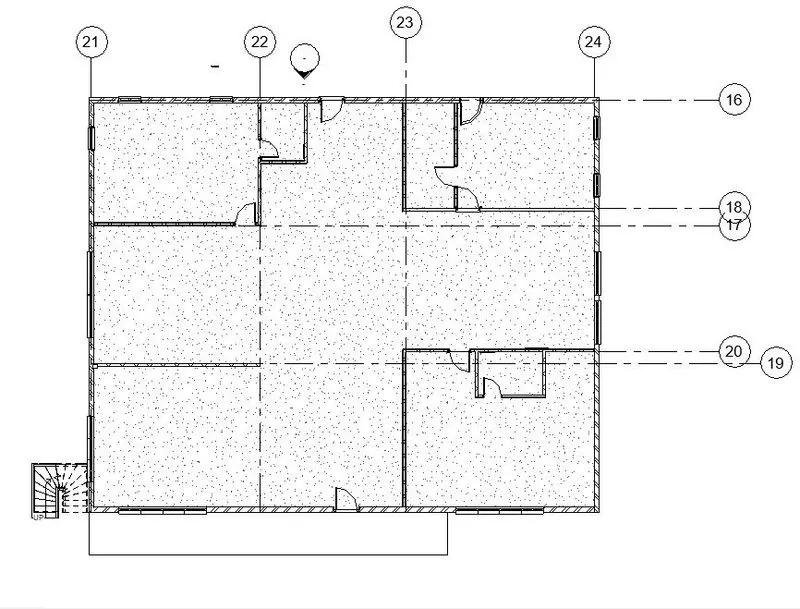

- Draw the longitudinal and transverse grids to the architectural floor plan
- Now add the dimensions to the architectural plans
- Now draw the longitudinal and transverse grids to the structural floor plan and add dimensions
5.

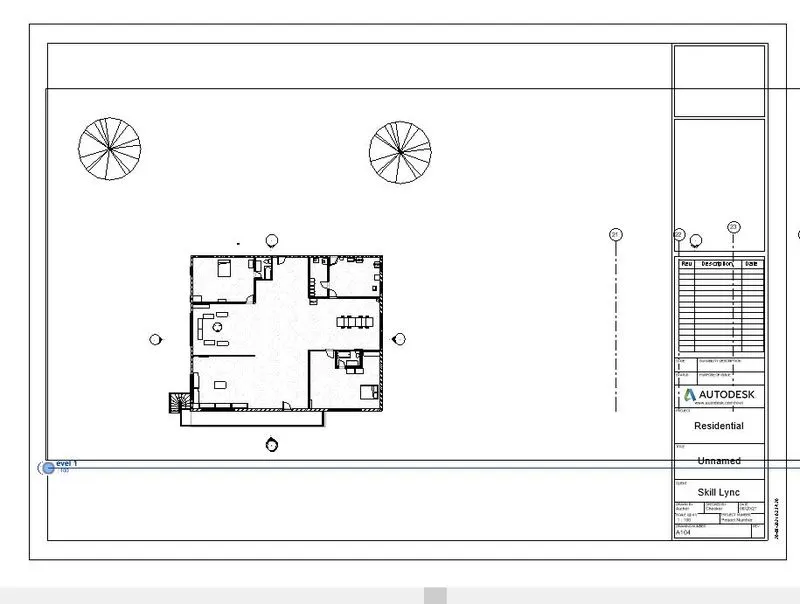

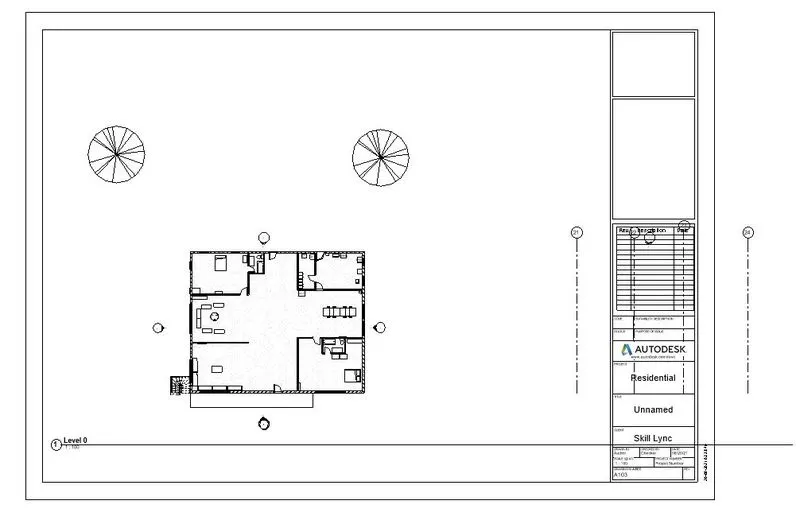

Aim: To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Procedure:

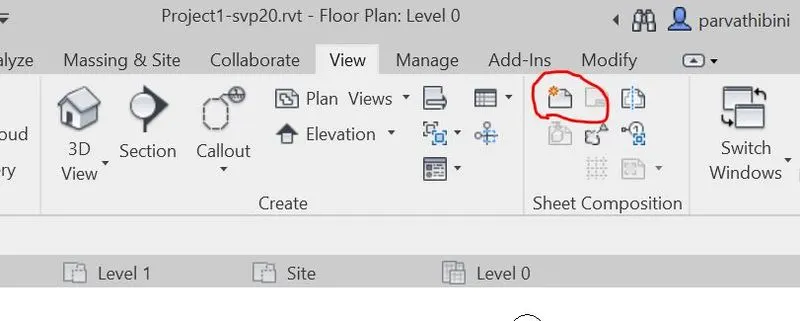

- Click on the sheet option from the view toolbar

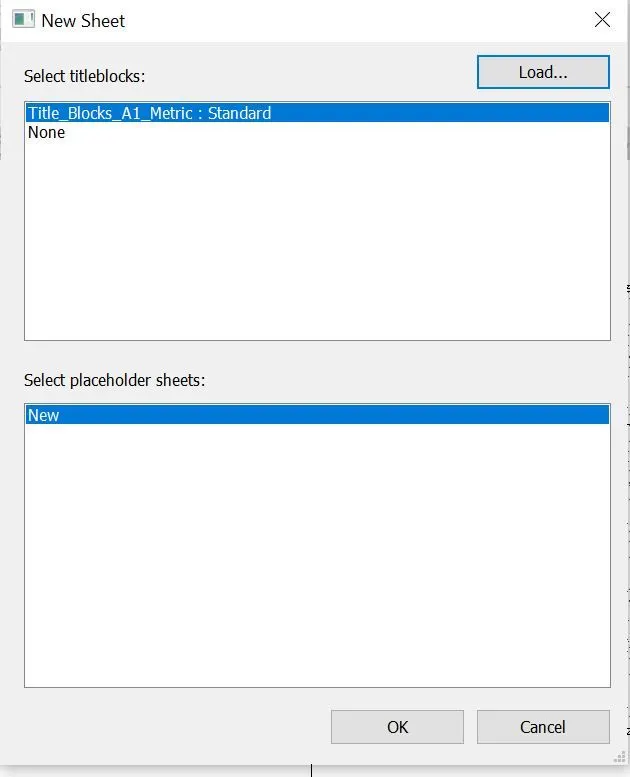

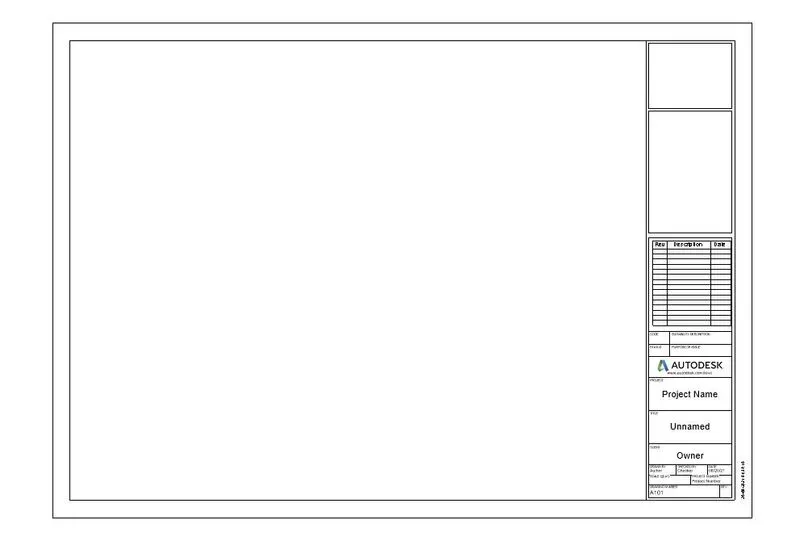

- Now a new tab appears and select A1 metric, then the sheet template will be displayed
- Now a sheet appears in new tab
- Now in the sheet template, insert the first floor plan and ground floor plan seperately
- Edit the project name and sheet number
RESULT
6.

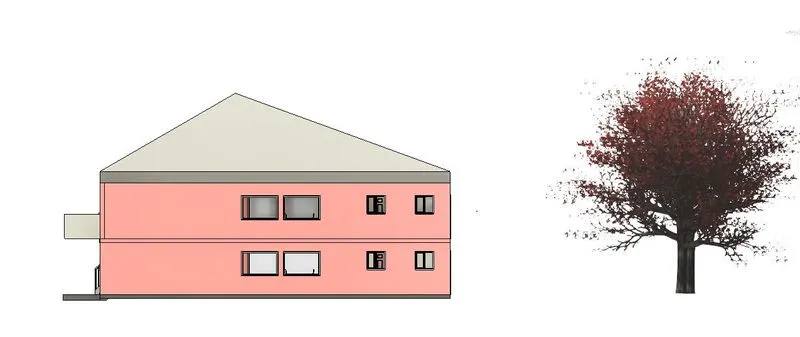

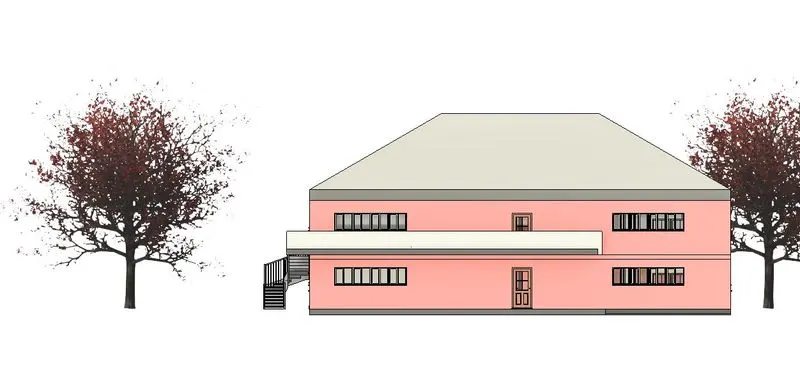

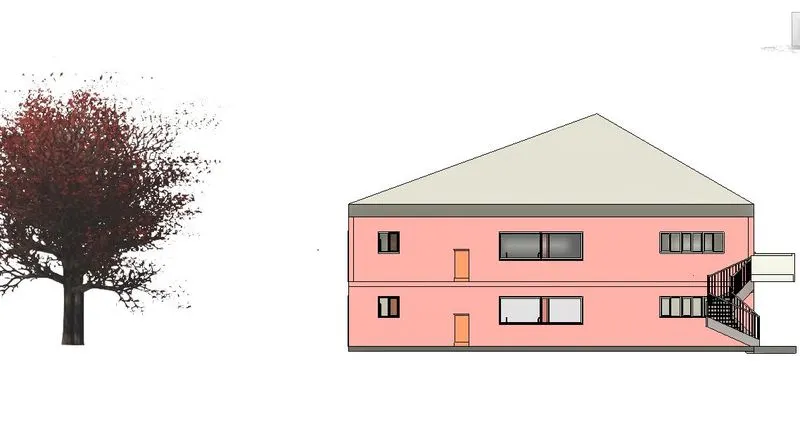

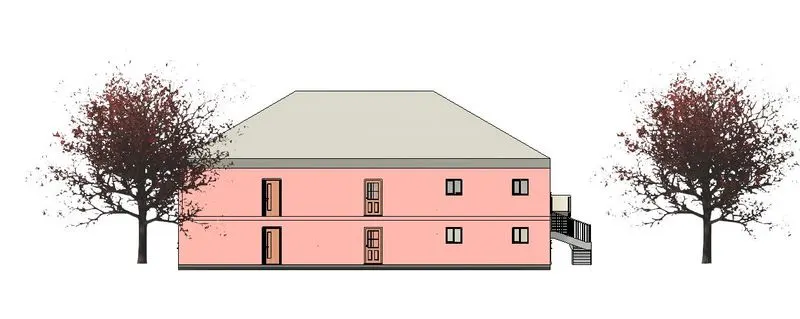

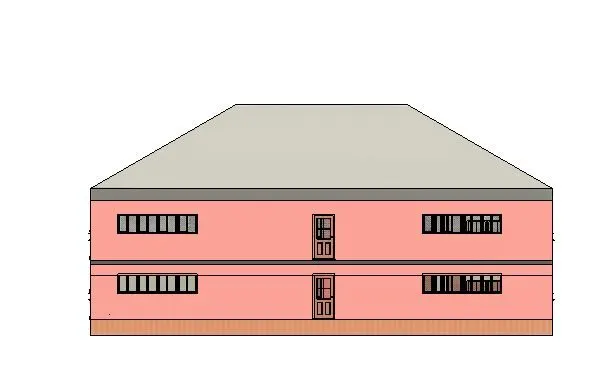

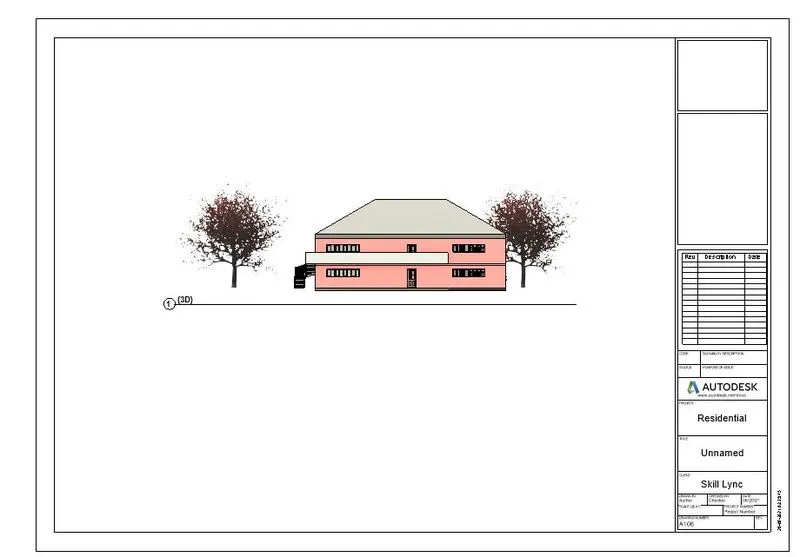

Aim: To create the elevation view, looking at the building from all the four directions using elevation tab
Procedure:

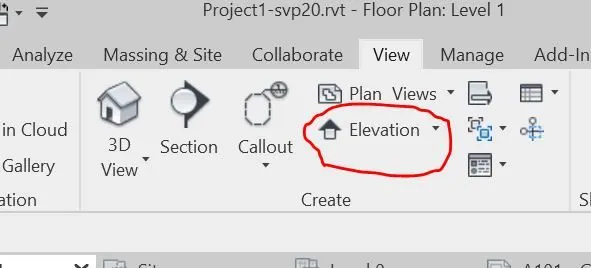

- Click on the Elevation option from the view toolbar
- Now select the elevation from East side
- Now select the elevation from West side
- Now select the elevation from North side
- Now select the elevation from South side
7.

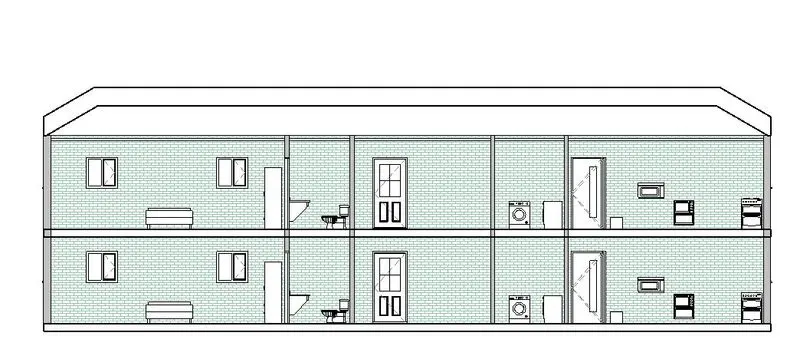

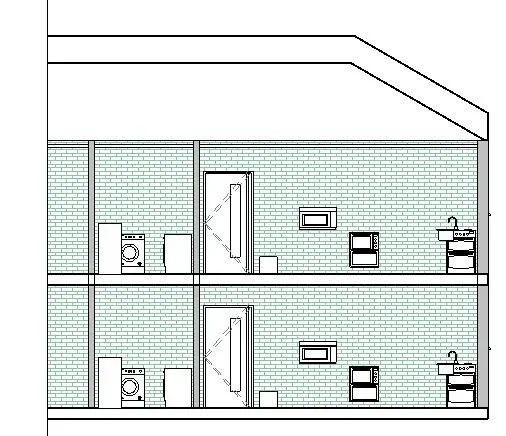

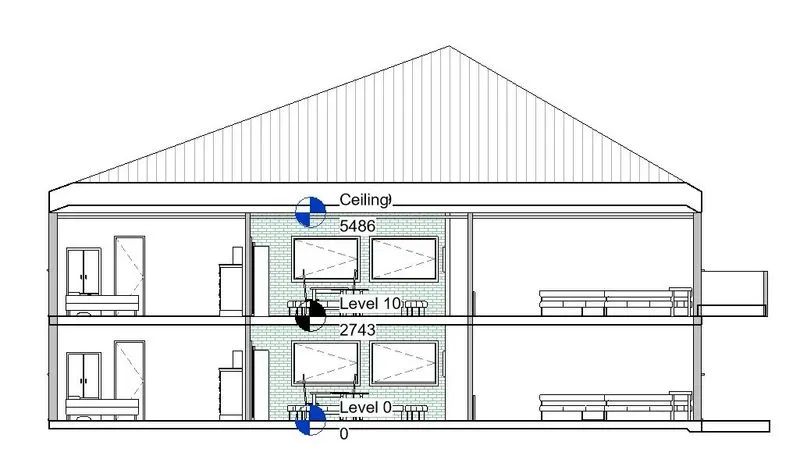

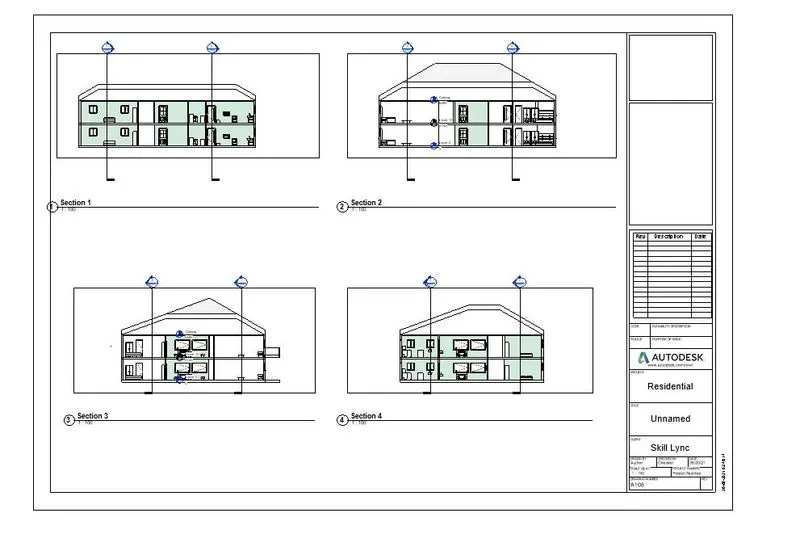

Aim: To produce section cut through each room either cutting across longitudinally or in trnasverse direction
Procedure:

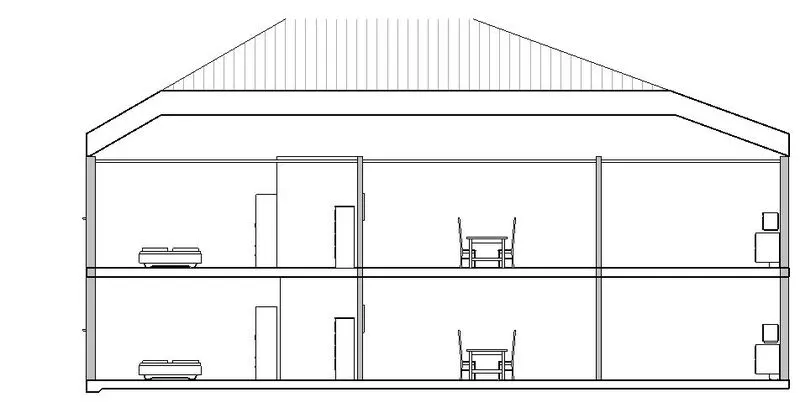

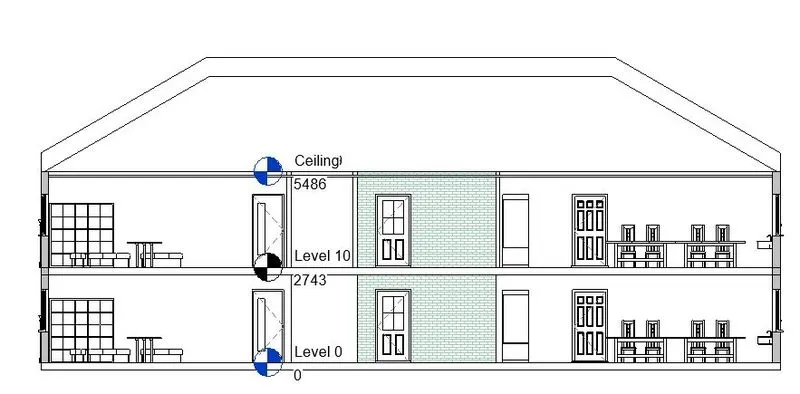

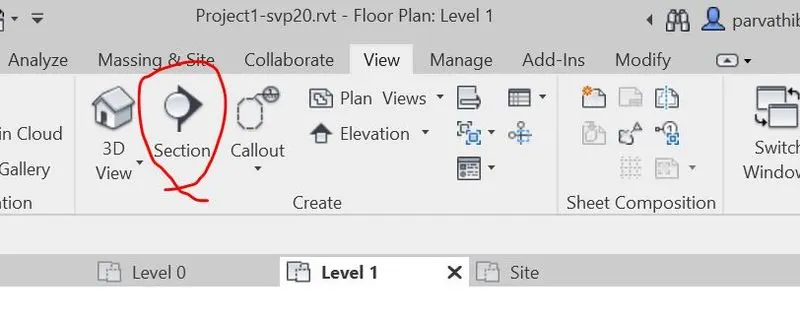

- Click on the section option from the View toolbar

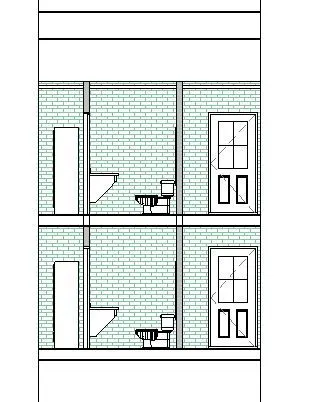

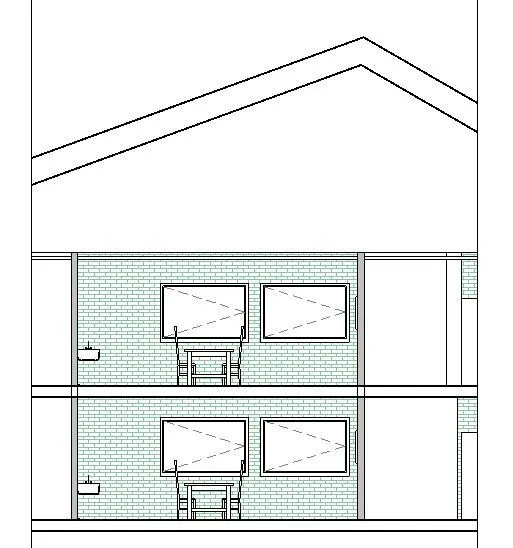

- Now produce the section view of each room
8.
Aim: To classify the views to either design or documentation category using Properties browser
Procedure:
- Open the Project browser, the views, plans, section and elevation
- Now insert these plans one by one in the sheet separately
9.
Aim: To create the multiple sheets and produce the drawings in the sheets, from the given drawing list
Procedure:

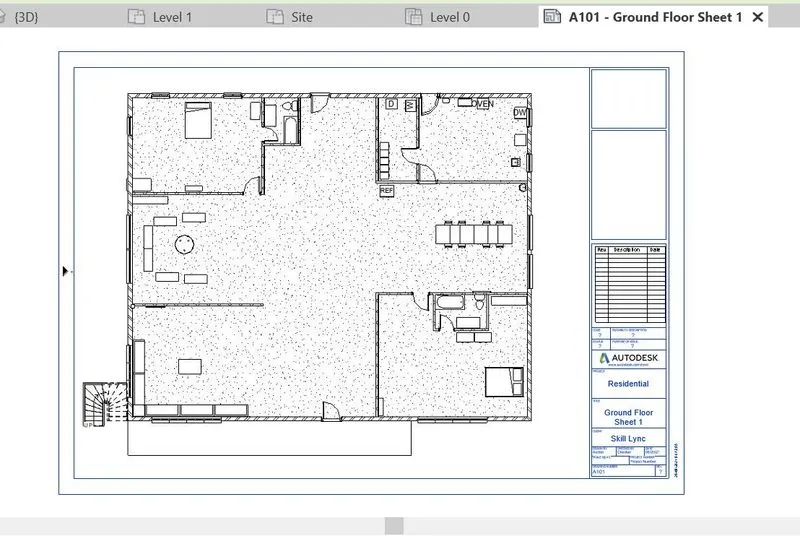

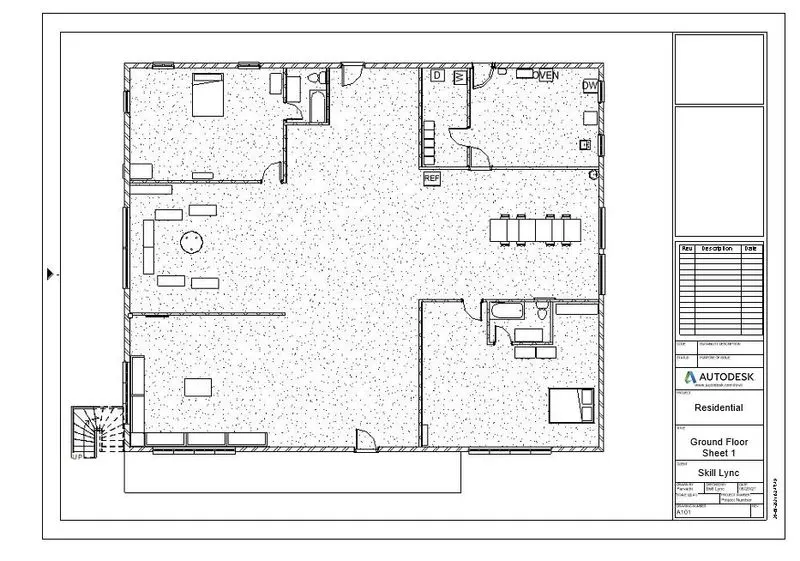

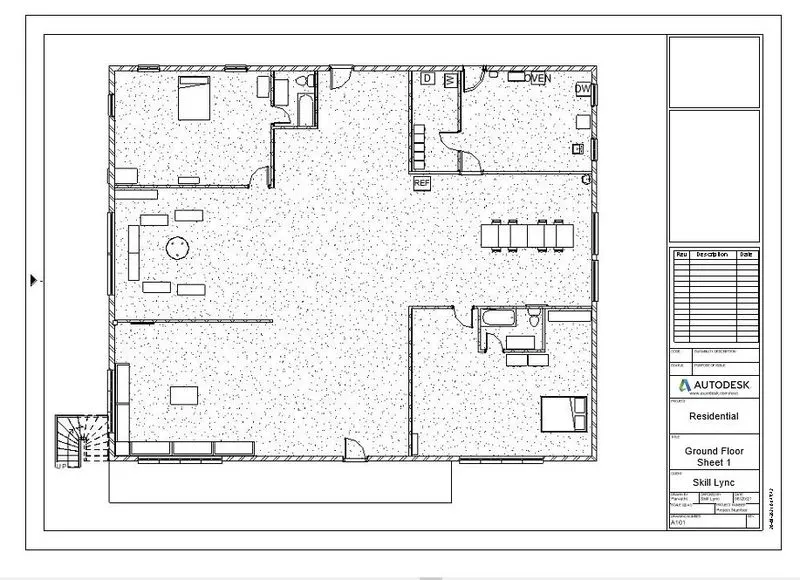

- Produce the Ground floor architectural plan in the sheet template A101

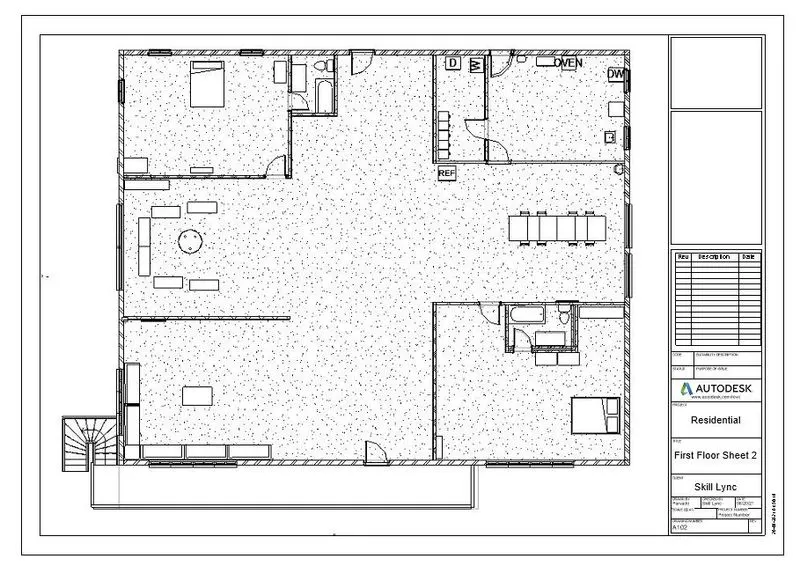

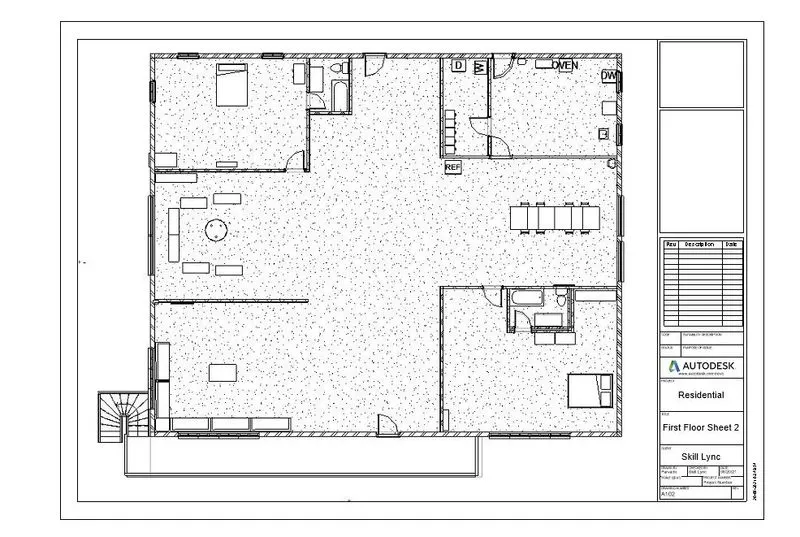

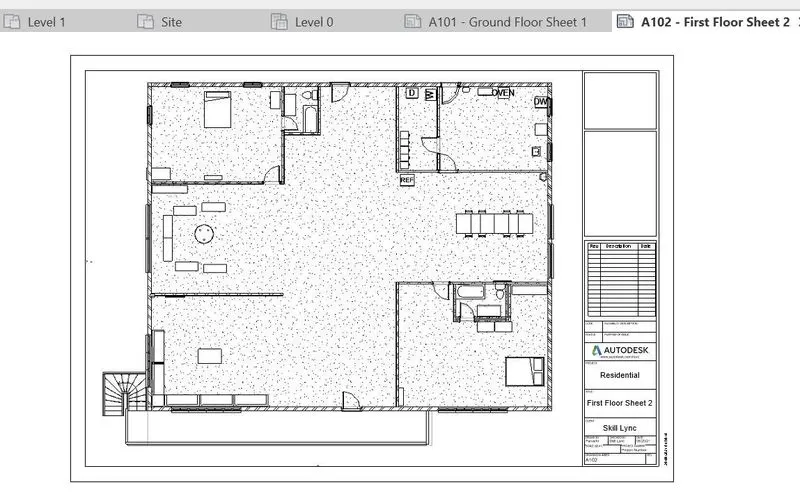

- Produce the First floor architectural plan in the sheet template A102

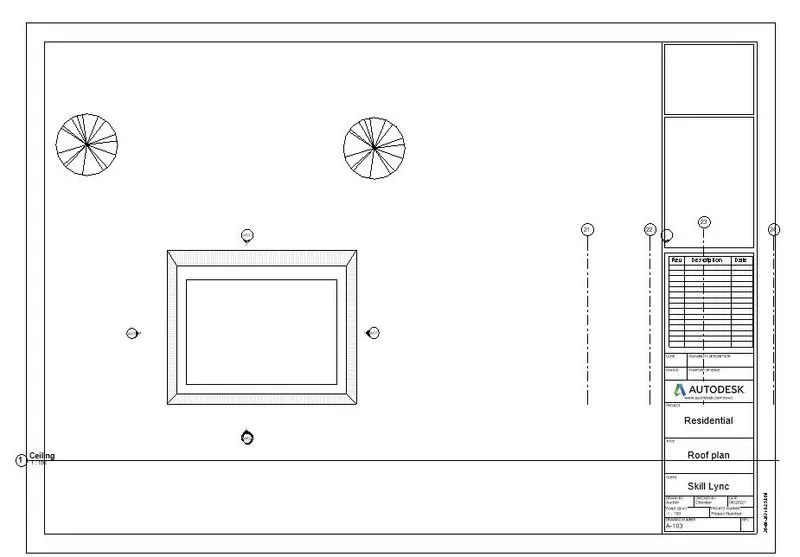

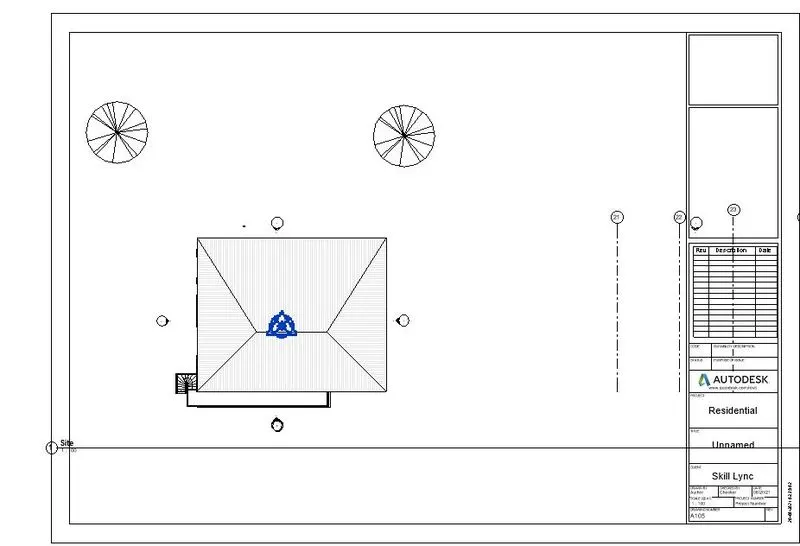

- Produce the Roof plan in the sheet template A103

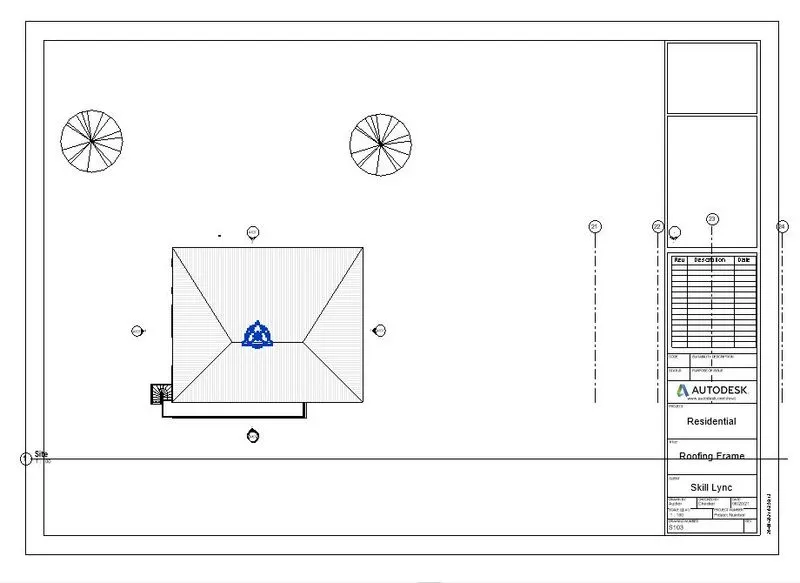

- Produce the Roofing frame plan in the sheet template S103

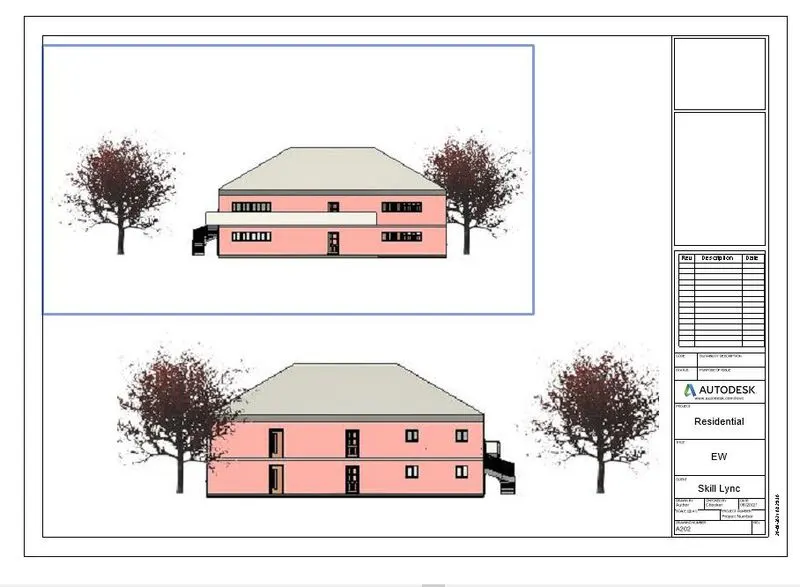

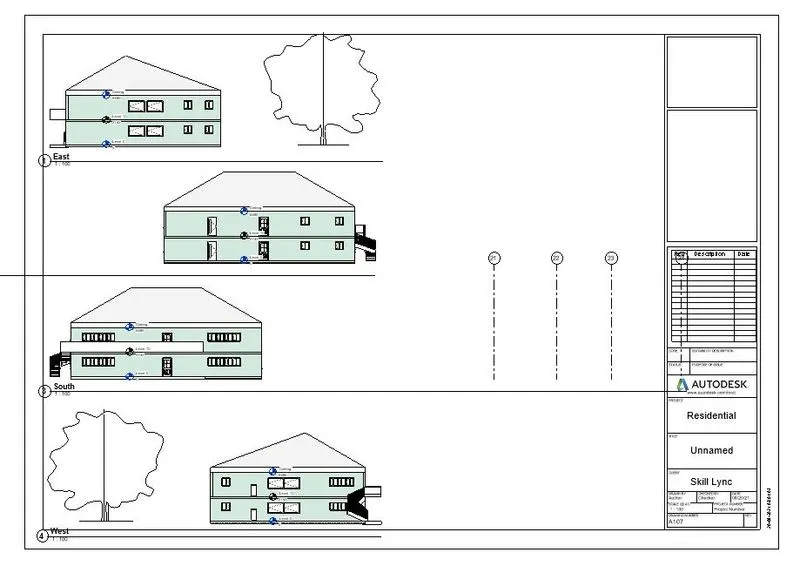

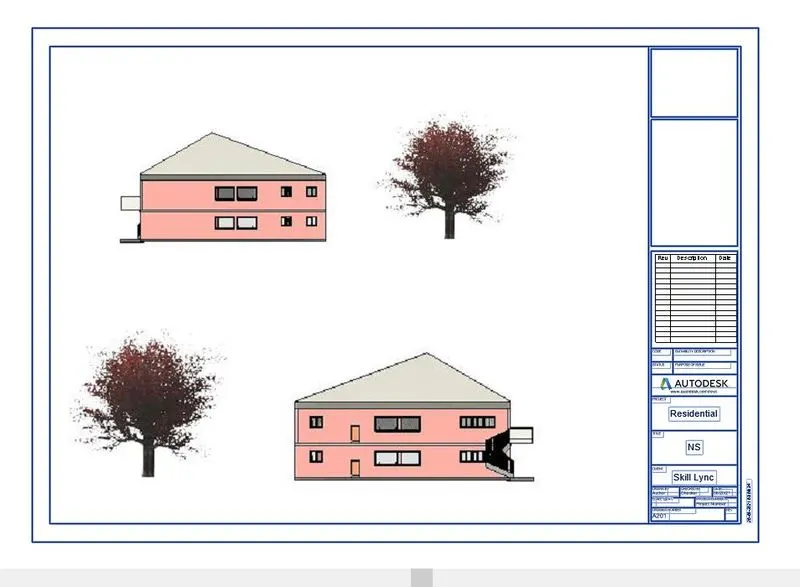

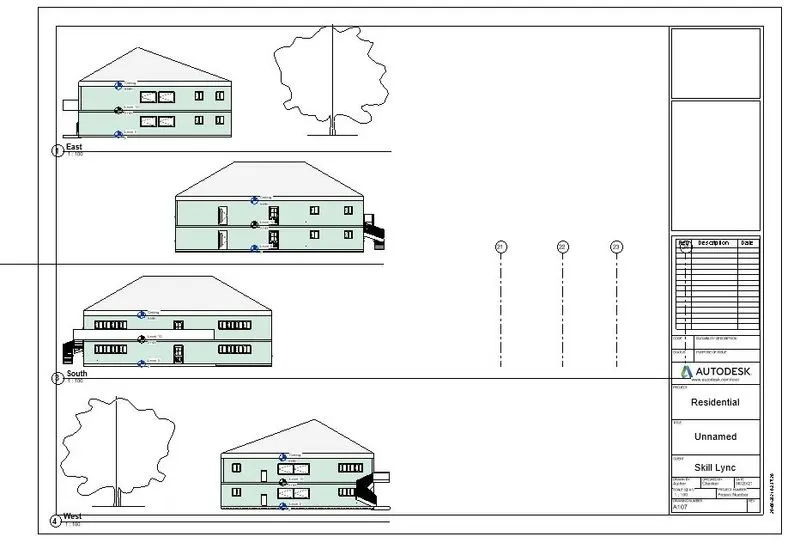

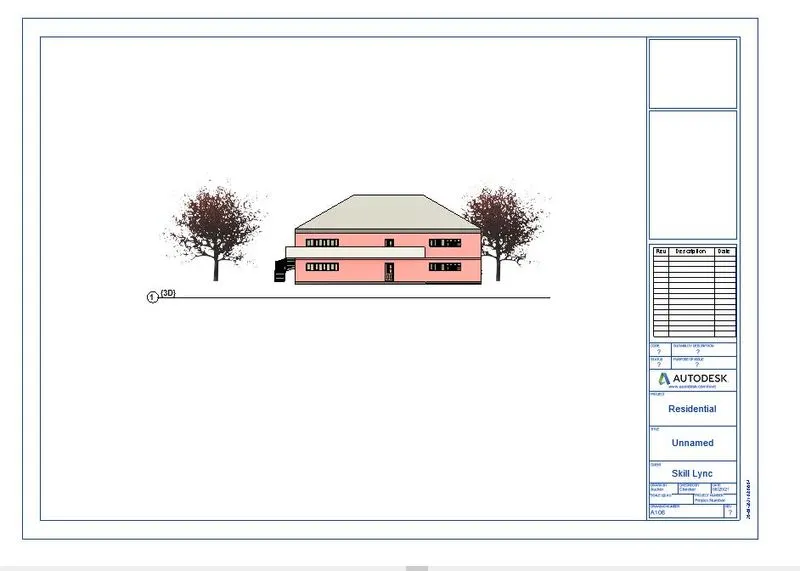

- Produce the North-south elevation in the sheet template A201
- Produce the East-West elevation in the sheet template A202
10.

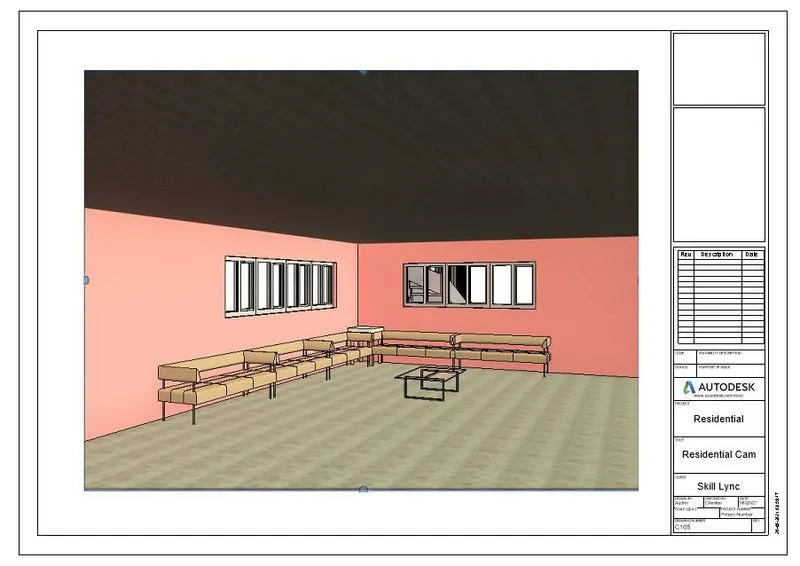

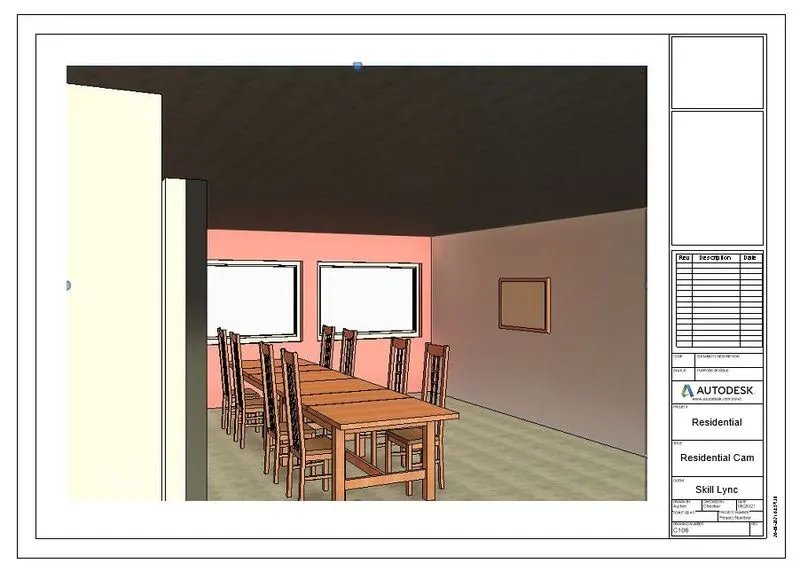

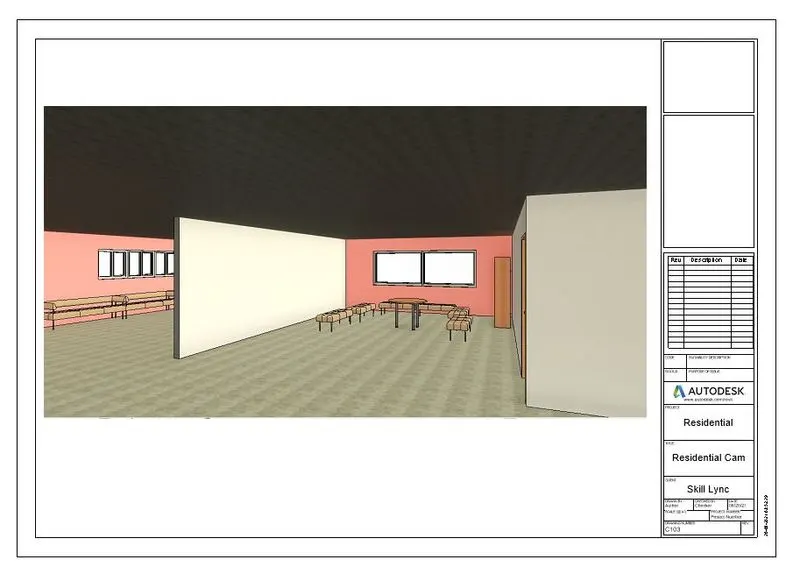

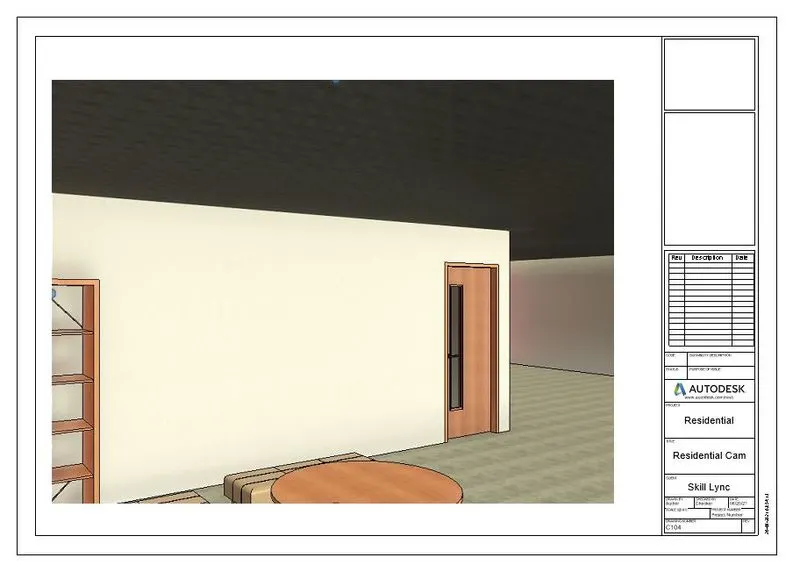

Aim: To create a camera-specific view or a 3D view in each room
Procedure:
- Create a sheet with any name.

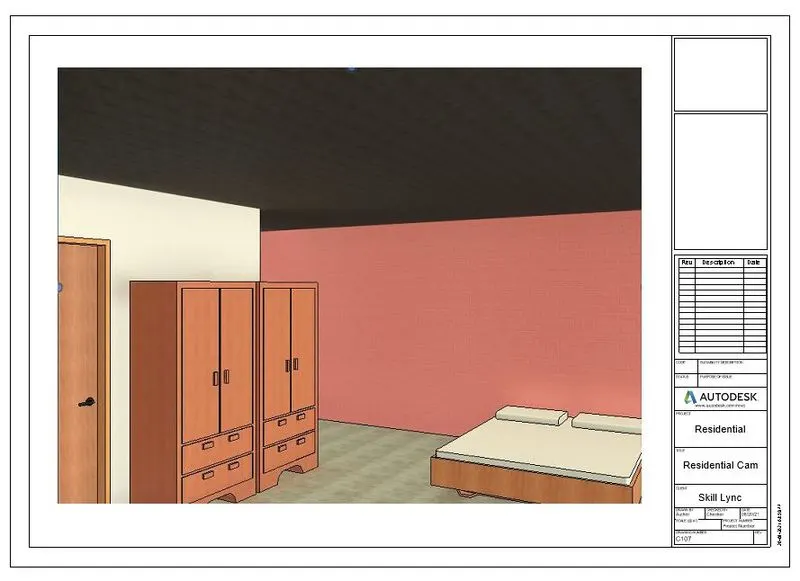

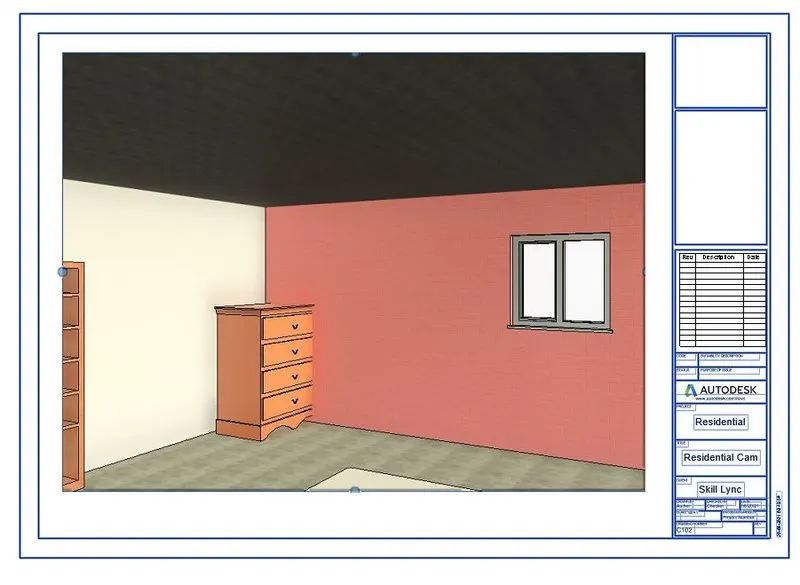

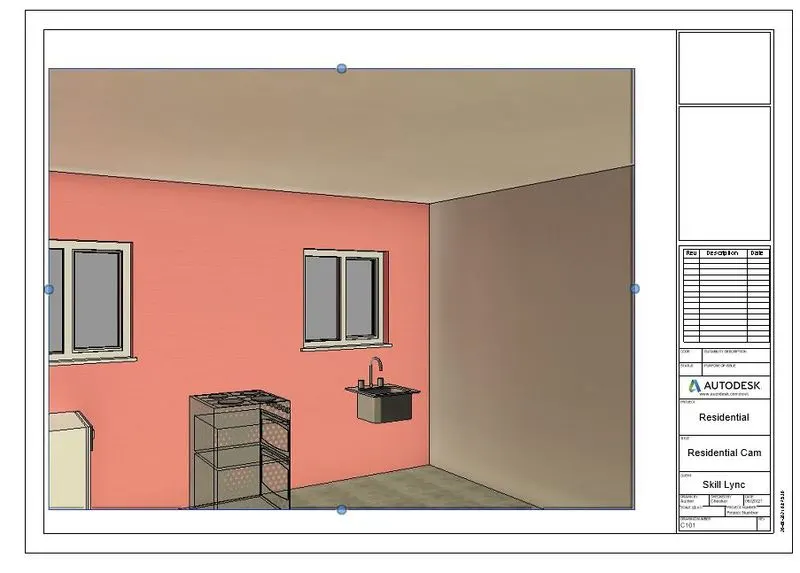

- Now take the floor plan and place the camera in each room
