3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM

Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

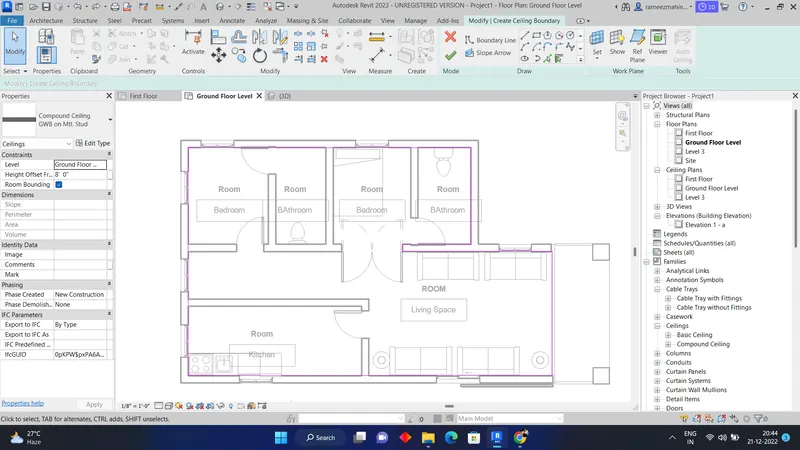

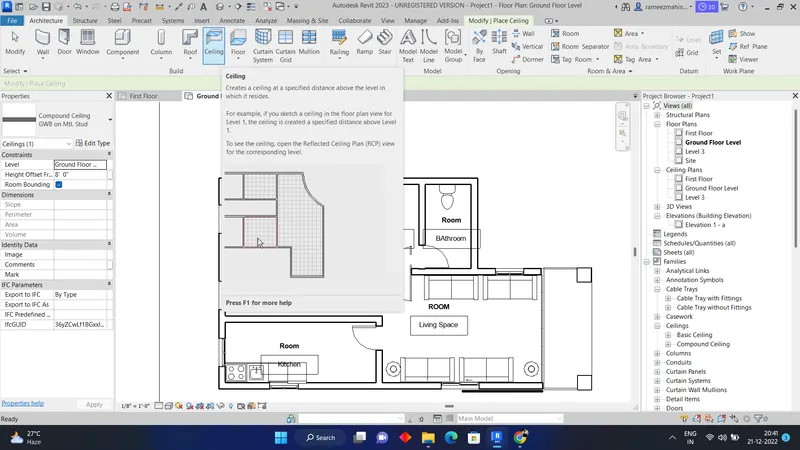

Here we are using ceiling option in architecture tab

PROCEDURE

Step 1:Open the week 3 project

Step 2:In project browser select first floor level

Aim: To create ceiling for ground floor

2. AIM

To model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

Here we are using roof option in architecture tab

PROCEDURE

Step 1:Open the week 3 project

Step 2:In project browser select first floor level

Step 3:Select architecture tab

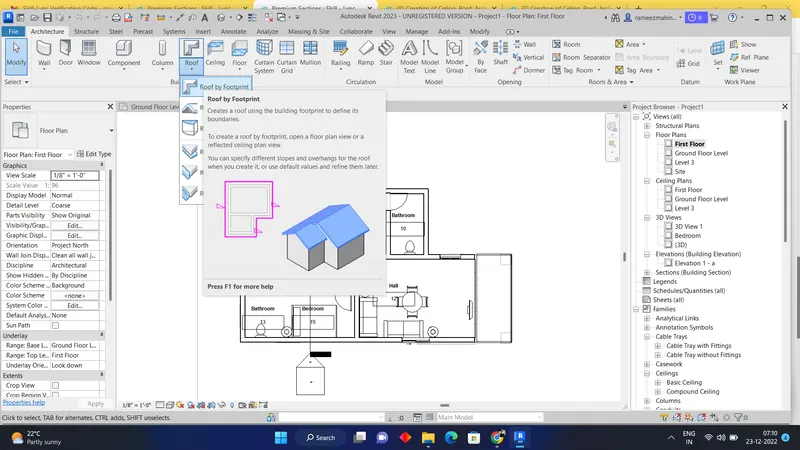

Select roof by footprint in roof option

Step 4:Select line option

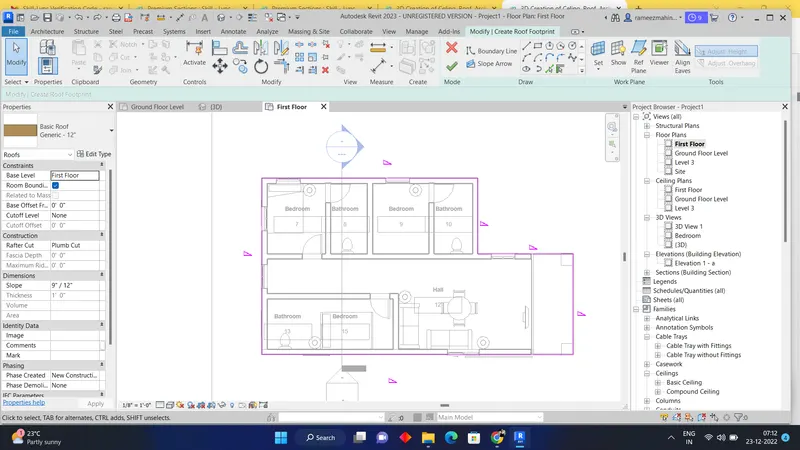

Draw lines where needed roof

Then click tick mark

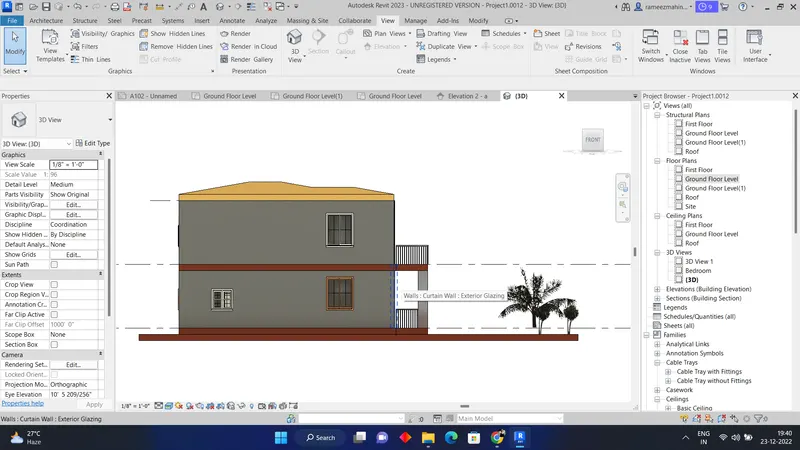

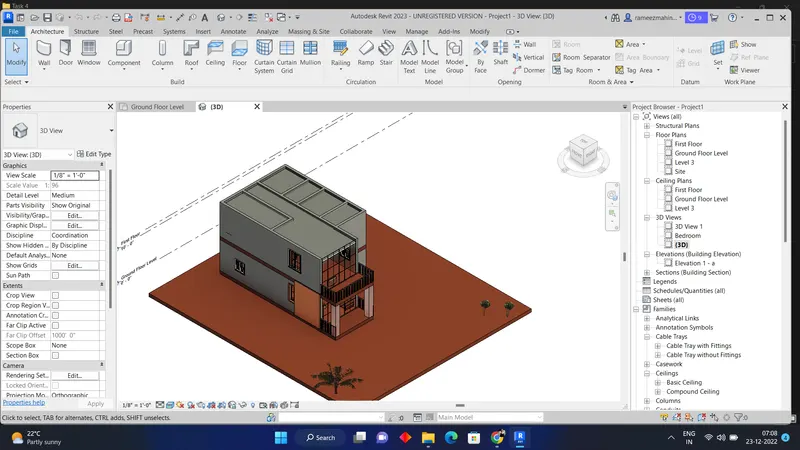

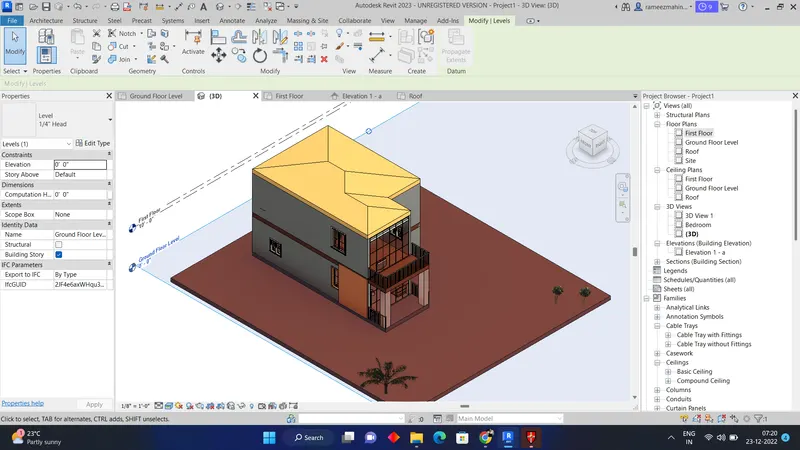

Step 5:Select 3D view

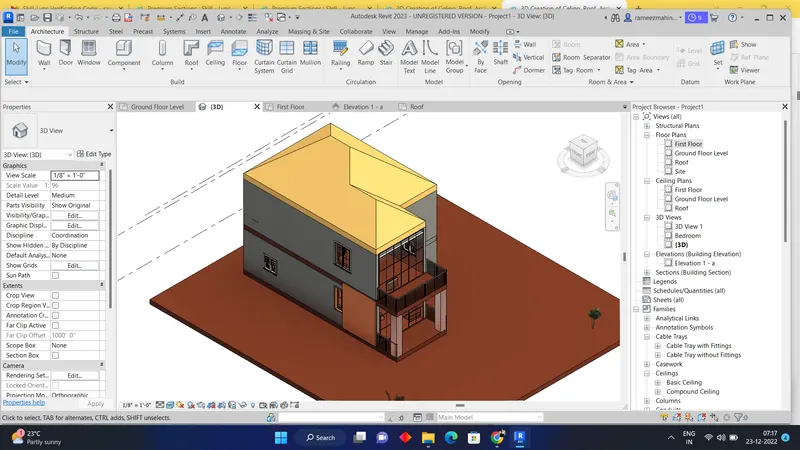

Step 6:Select the roof

In property browser change the slope to 10 degree

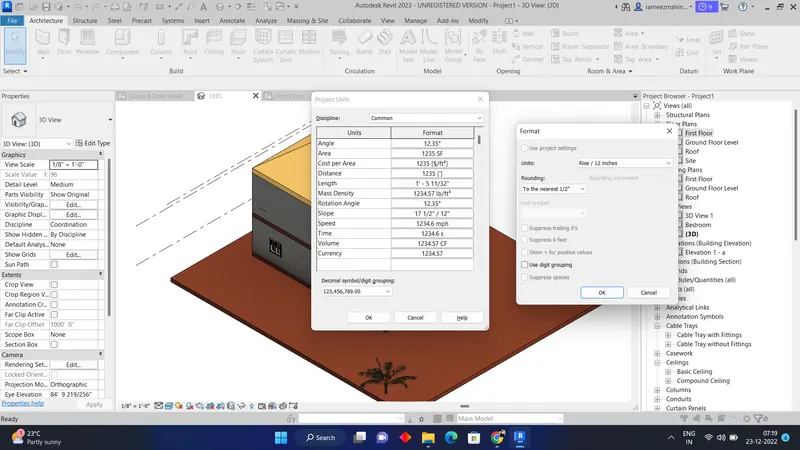

If it is in imperial (enter unit command change the slope to degrees)

Result

Question:3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

Aim : Archiecture & Structural plans

PROCEDURE

Step 1:Open the week 3 project

Step 2:In project browser select first floor level

Step 3:Select view tab

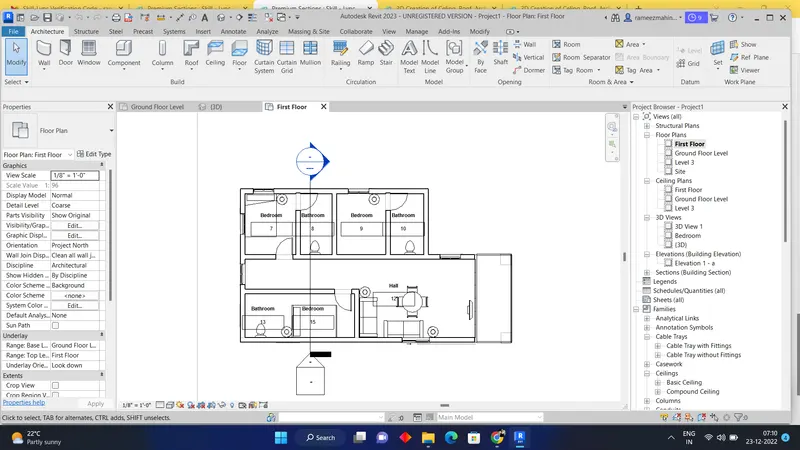

Select plan view

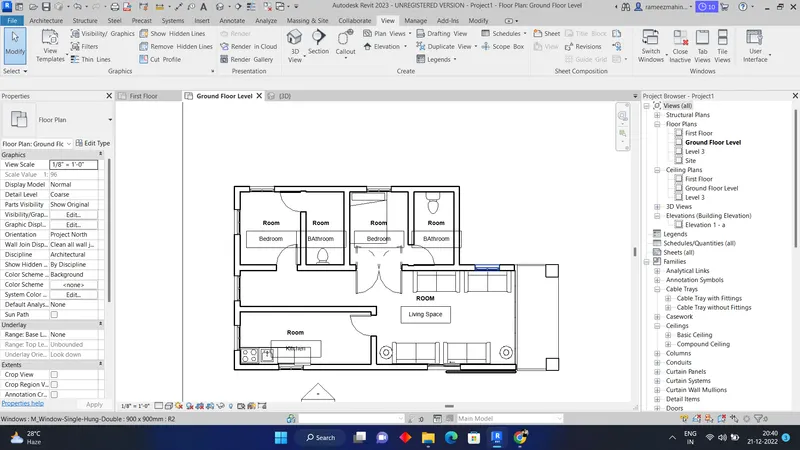

Select floor plan(it is the architecture plan)

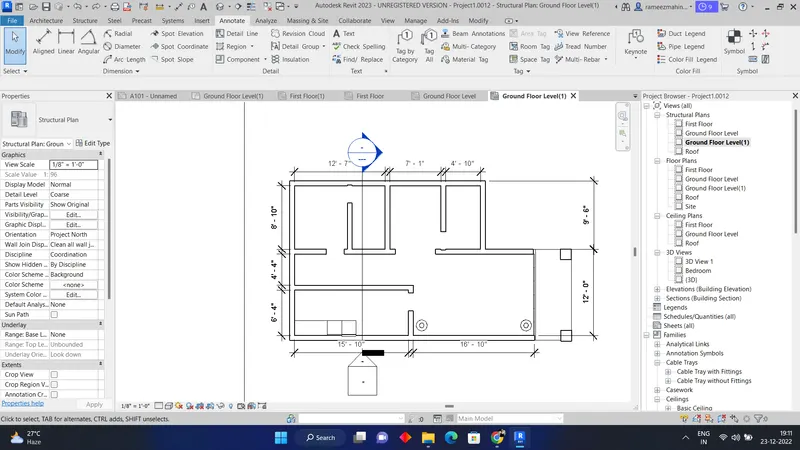

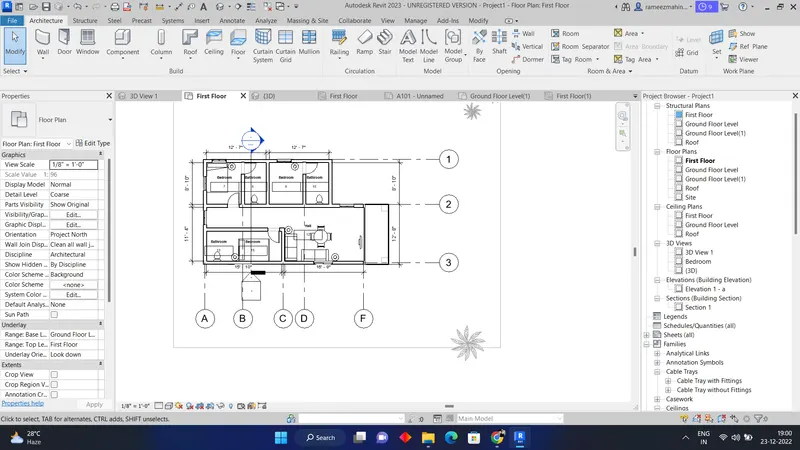

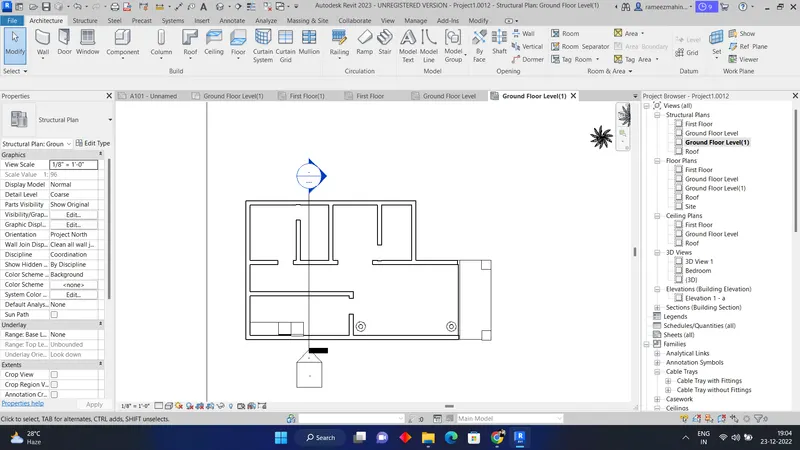

STRUCTURAL PLAN

RESULT

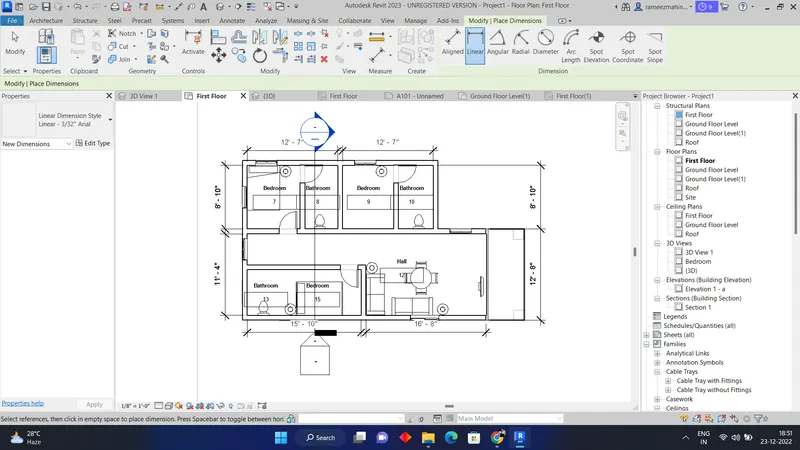

Grids and Dimensions are provided on Architecture and structural Plan

AIM

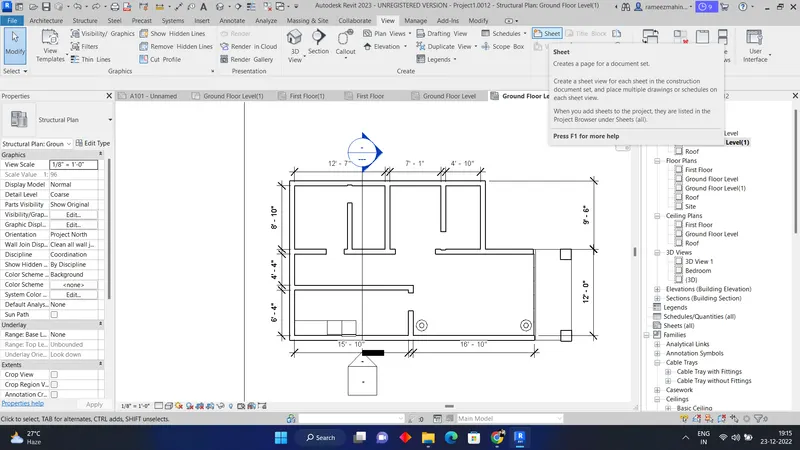

To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open the week 3 project

Step 2:Select the view tab

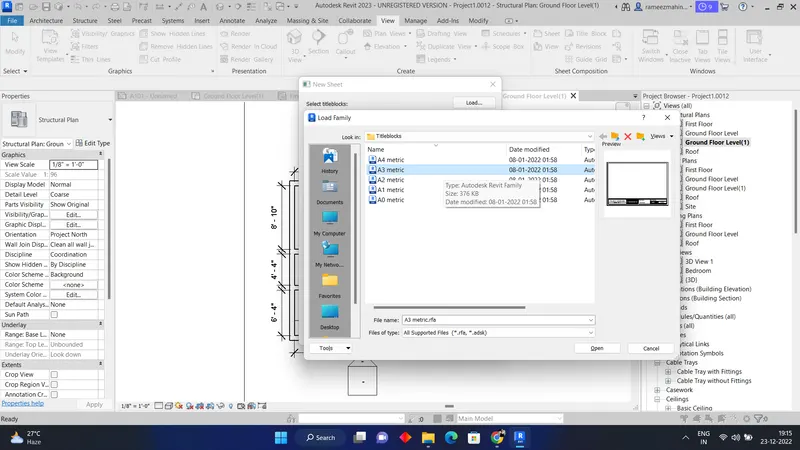

Select sheet in view tab

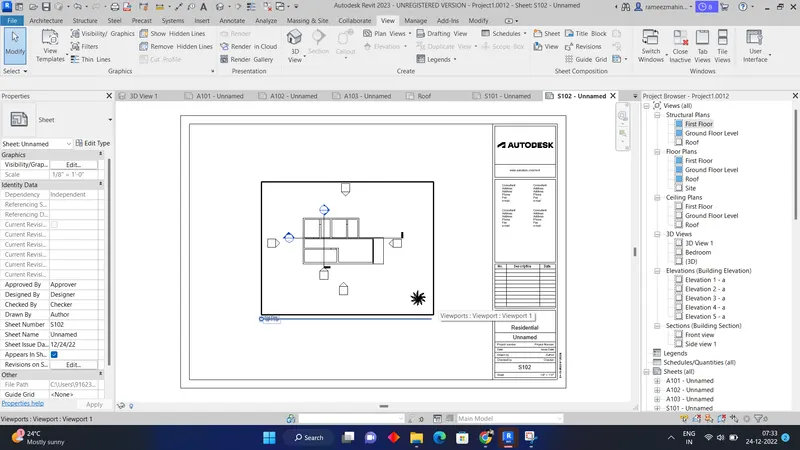

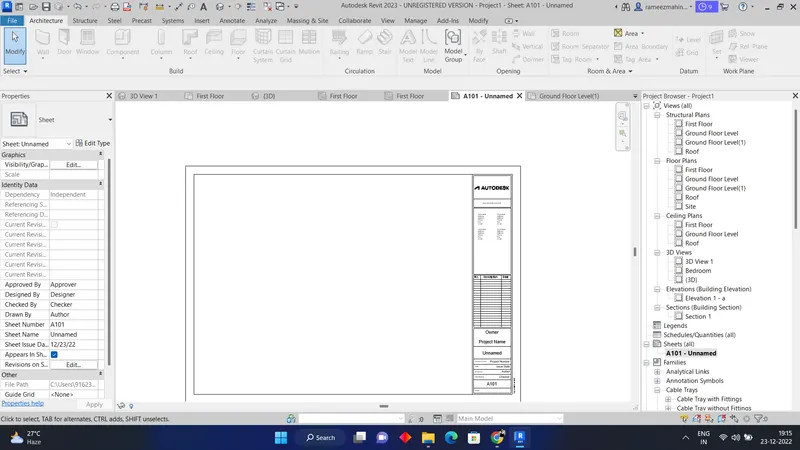

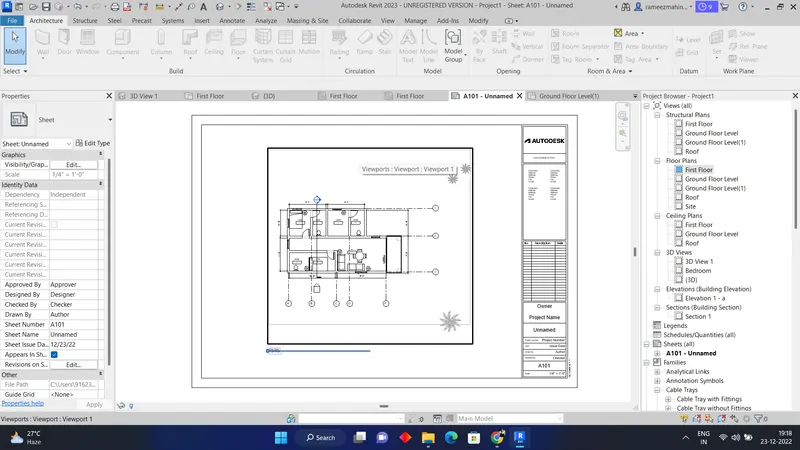

Select a sheet

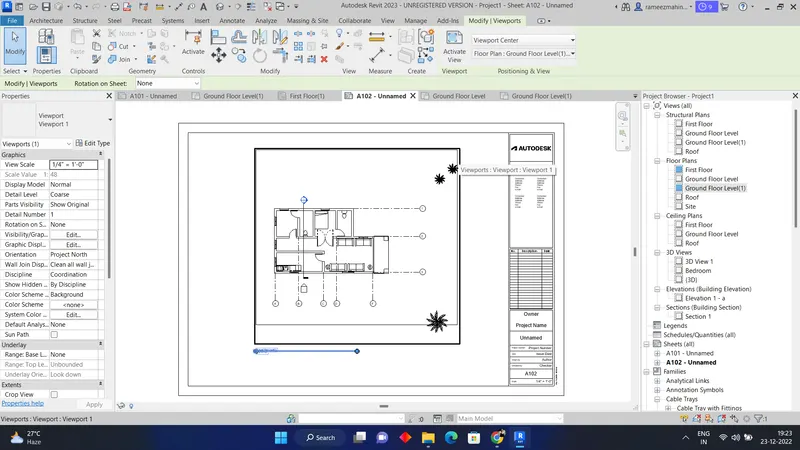

Step 3:Go to plan

Drag the Architectural plan into the sheet

Step 4:Go to plan

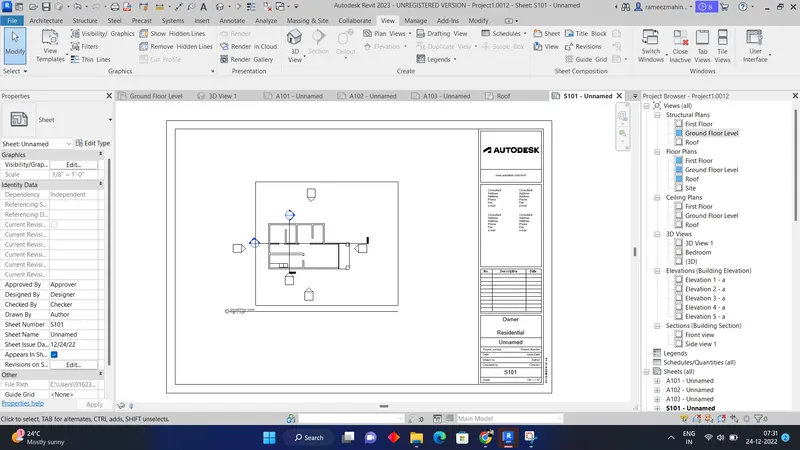

Drag the Structural plan into the sheet

RESULT

Sheets are set correctly and Architecture and Structural plans are imperted to sheet

6.

AIM

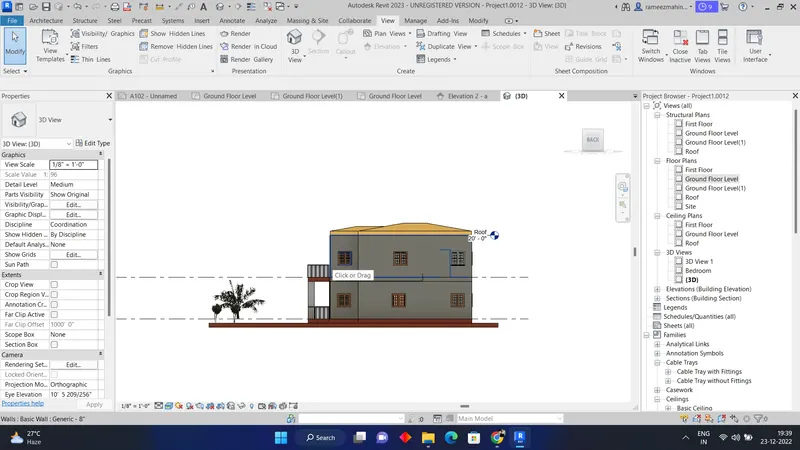

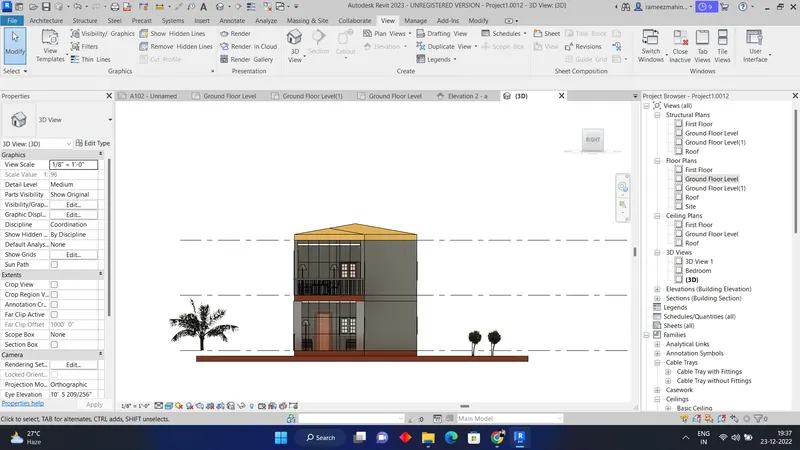

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open the week 3 project

Step 2:Select view tab

Then select elevation

Step 3:Place it on four side

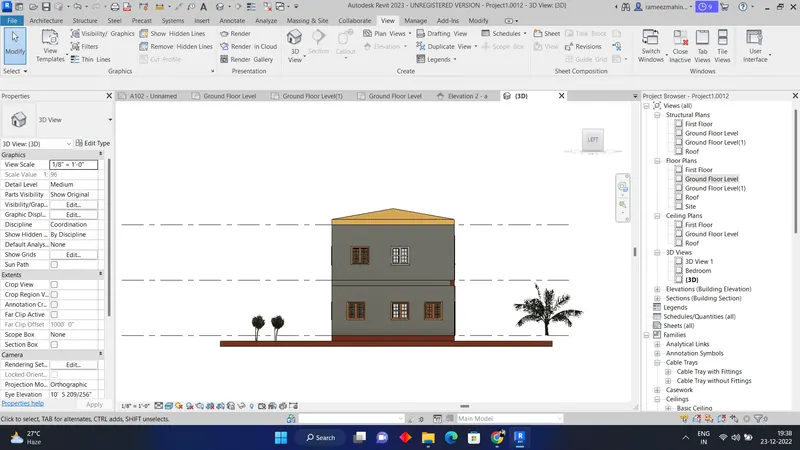

Rename it as North,South,East,West

Step 4:Select East view in elevation

Step 5:Select West view in elevation

Step 6:Select North view in elevation

Step 7:Select South view in elevation

Question:7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

Aim: To create section view

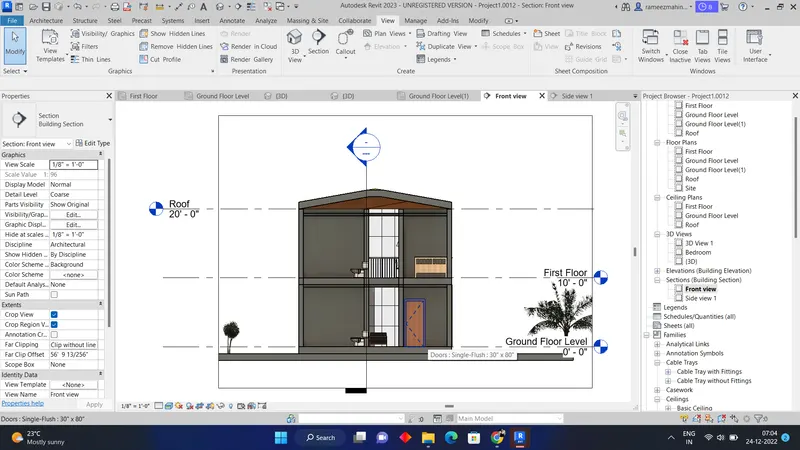

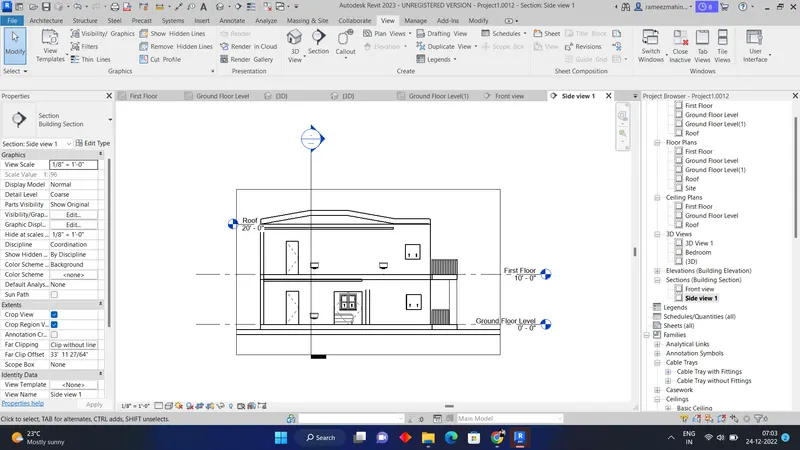

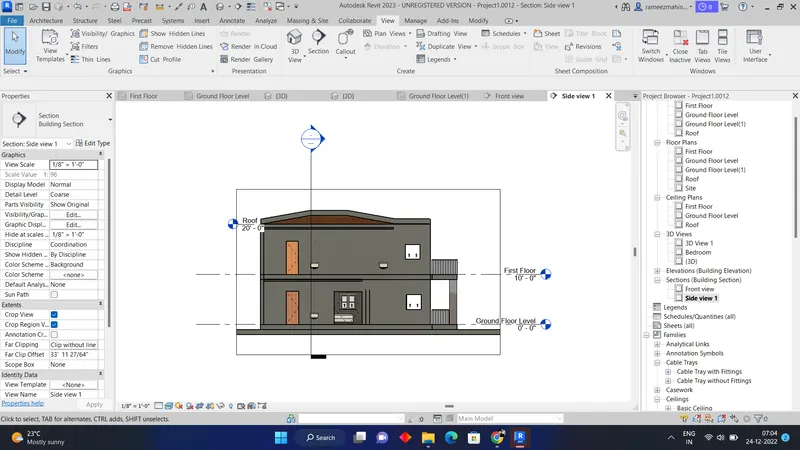

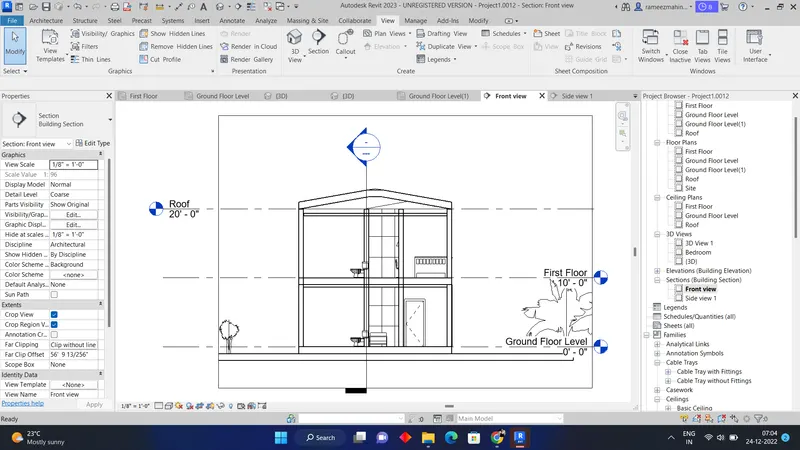

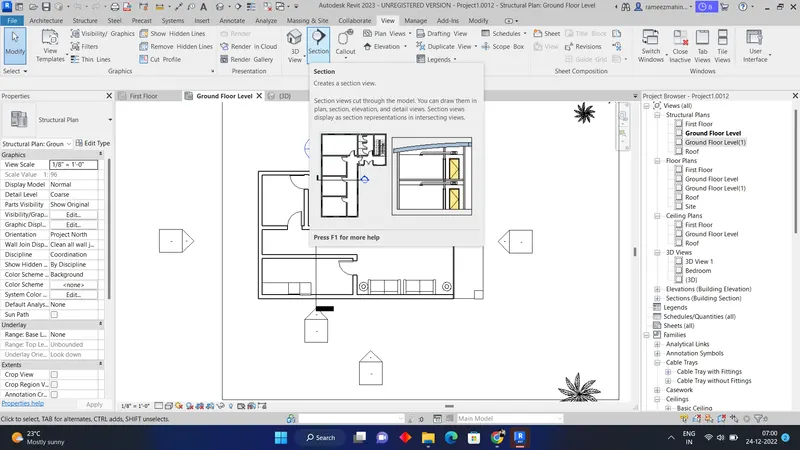

Step:1)View > Section

Step:2) Section > draw section line

Result : Section views created

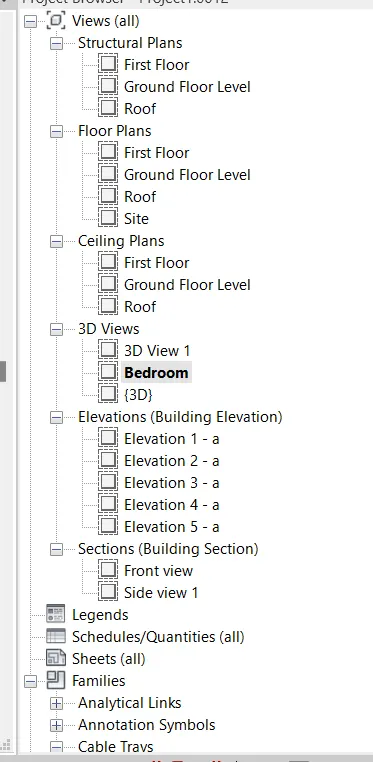

estion:8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Aim: Classify various views from property browser

Question:9) Using the sheet template produced create multiple sheets as follows

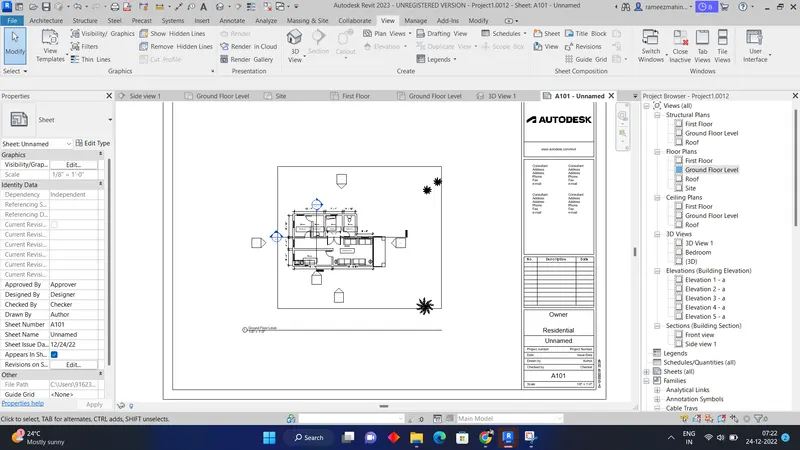

1. A 101- Ground Floor Architecture Plan

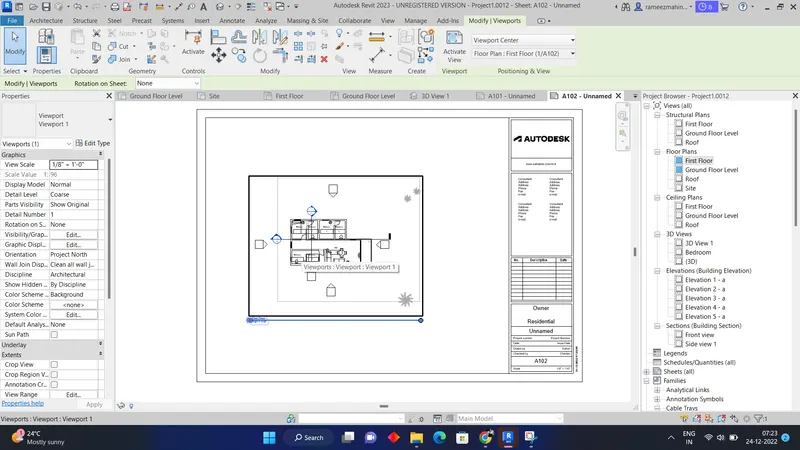

2. A 102- First Floor Architecture Plan

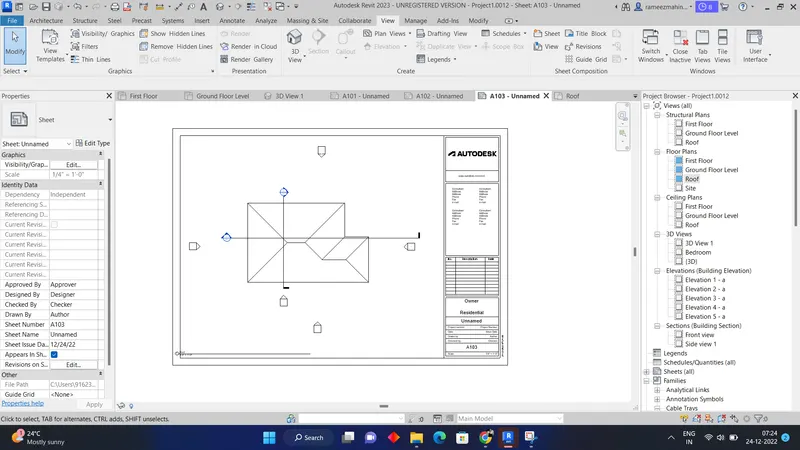

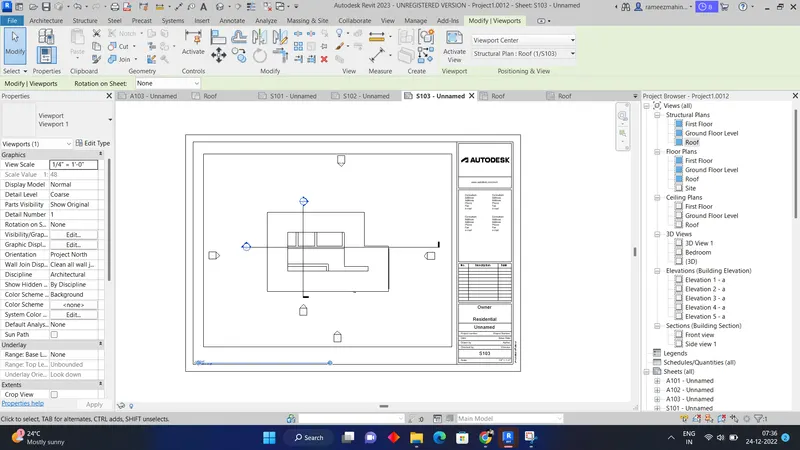

3. A 103- Roof Plan
4. S 101- Ground Floor Structural Plan
5. S 102- First Floor Structural Plan
6. S 103- Roof Framing Plan

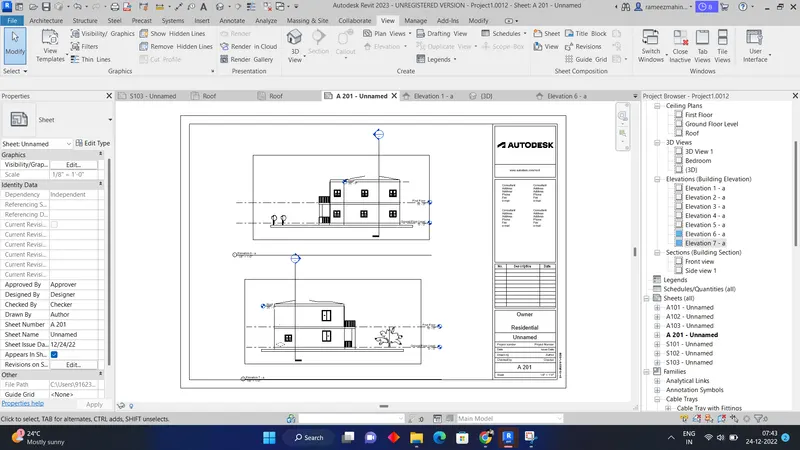

7. A-201- North-South Elevations

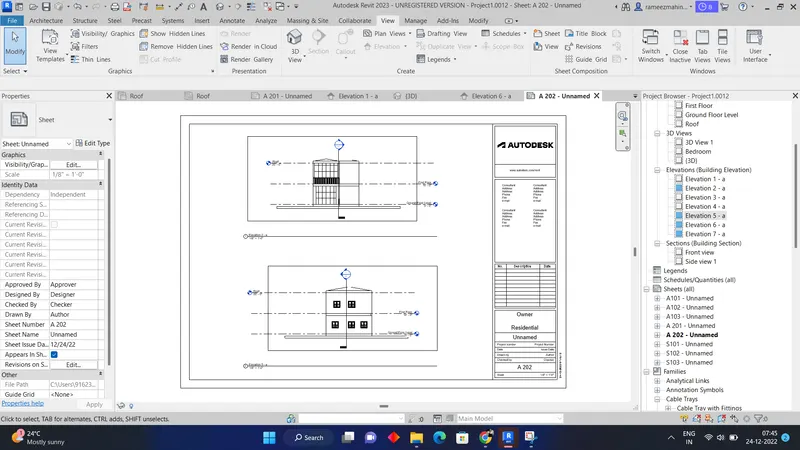

8. A-202- East-West Elevations

a. A 101- Ground Floor Architecture Plan

b. A 102- First Floor Architecture Plan

c. A 103- Roof Plan

d. S 101- Ground Floor Structural Plan

e. S 102- First Floor Structural Plan

f. S 103- Roof Framing Plan

g. A-201- North-South Elevations

h. A-202- East-West Elevations

RESULT

Architectural and Structural plans,Elevations and sections are created and set in to the sheets

Question:10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Aim: To create 3D view sheets

Step1:) Drag 3D view to sheet created

Step 1:Select the plan

Select camera tab

Set camera

Step 2:Set the3D view

Arrange the view size

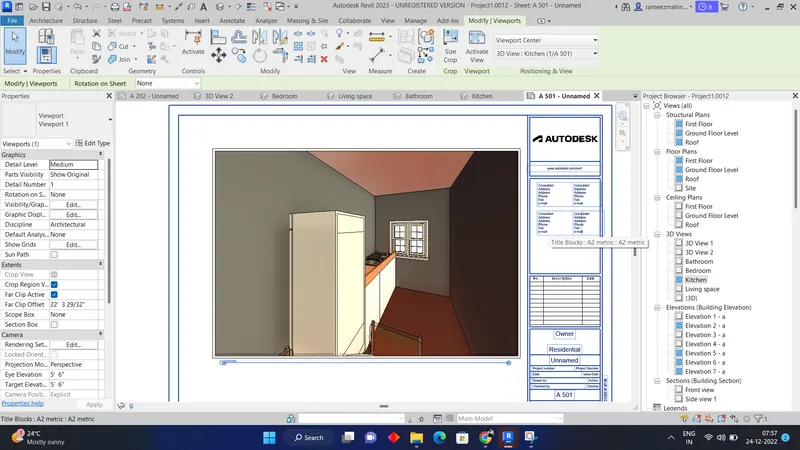

Step 3:Set A501 sheet

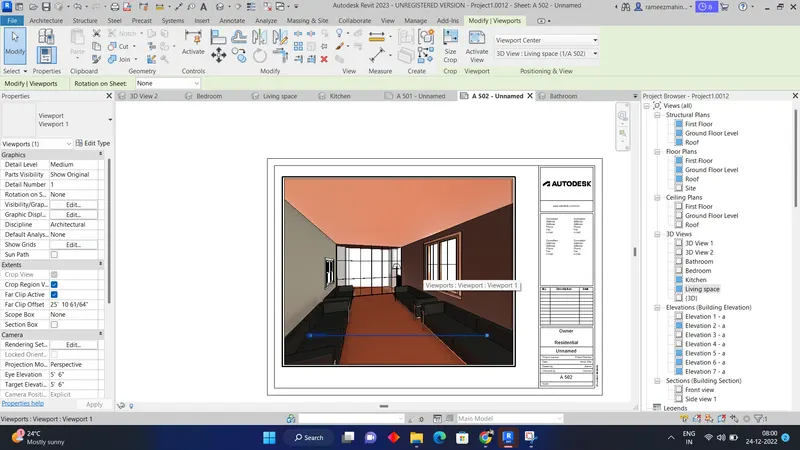

Place the 3D views of living dining and kitchen

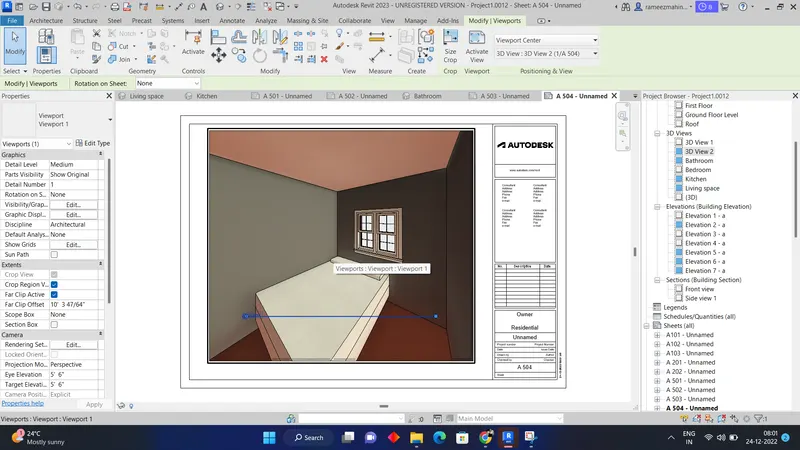

Step 4:Set A502 Sheet

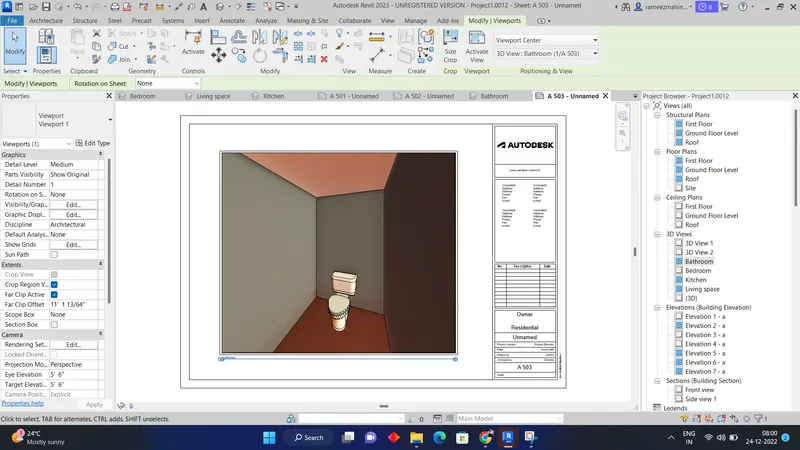

Place the 3D views of bedroom and toilet

RESULT
